Vuzix M4000 490 Instruction manual

M4000
Quick Start Manual
v1.2
Model 490

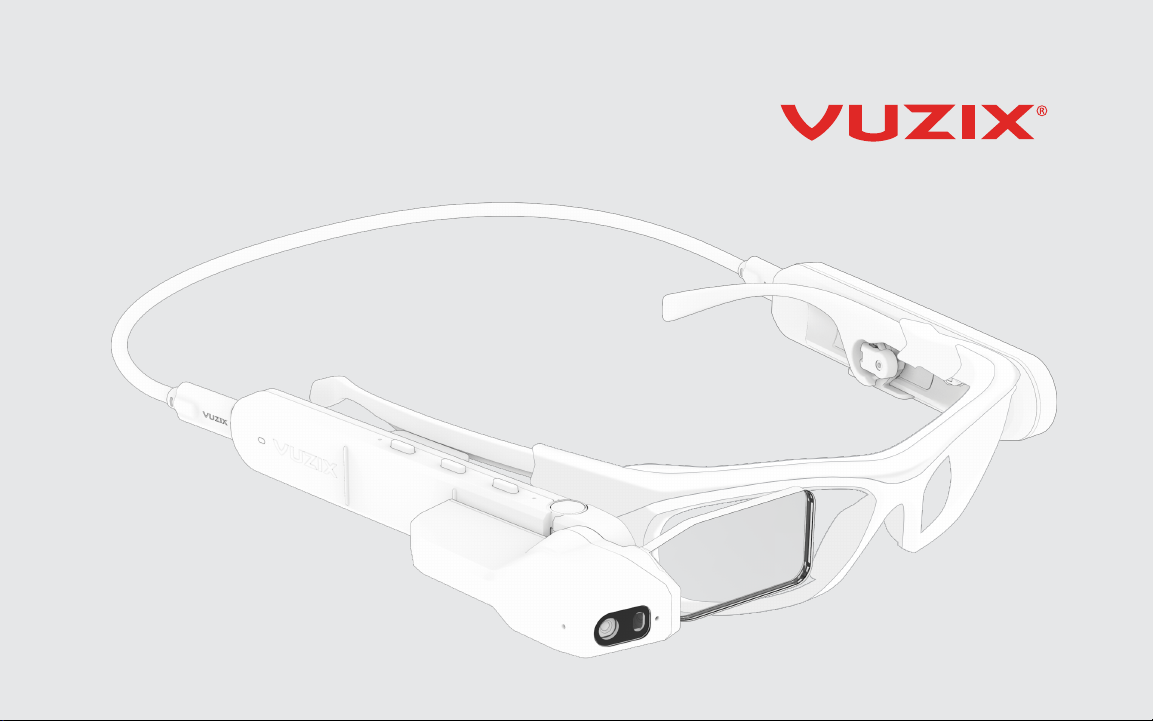

CONGRATULATIONS ON YOUR NEW VUZIX M4000 SMART GLASSES SYSTEM
Your M4000 Smart Glasses System is an ergonomically designed,
wearable Android-based computer with Wi-Fi connectivity, voice-command
functionality and HD camera — right out of the box, including:
• M4000 see-through viewer with adjustable waveguide display screen
• 1000 mAh USB-C power bank
• USB-A to USB-C power cable
• USB-C to USB-C viewer cable
• M-Series Safety Glasses viewer frames with rail mounts
• Hard case for storage
• Spare Waveguide
• Tinted window
• Safety & Quick Start Guide
02

Assembling the M4000 mounting system
Power to M4000 from Battery
USB-C BATTERY
USB-C TO
USB-C CABLE
VIEWER
03
CHARGING FOR FIRST-TIME USE
Charge battery before use with a standard USB wall
charger, wait until all three LEDs are solid.
Can take up to two hours if the battery is fully empty.

ASSEMBLING YOUR M4000 SMART GLASSES SYSTEM
1. Before attaching the viewer to either side of the smart glasses frame, determine your dominant eye for
optimum use of M4000 capabilities
2. Attach viewer to your preferred side of the safety glasses by sliding the mounting rail onto the temple
mount on the frames. Once properly fitted, the unit will be adjustable by sliding forward and backward,
and rotating/tilting the the display.
3. Using the same mounting process, attach the on-frame battery onto the other side of the frames.
4. Plug the USB-C viewer cable into the viewer and the on frame battery
(the viewer will automatically turn on).
5. When ready to wear your M4000 Smart Glasses, lift the power cable over
your head to rest on your shoulders as you place the Smart Glasses as
you would a pair of glasses.
6. Ear hooks and alternate nose pads are available for proper fit.
DETERMINE YOUR DOMINANT EYE
Extend your hands, placing them together to make a small triangle between your thumbs and knuckle.
Keeping both eyes open, center a nearby object inside the triangle. Close each eye one at a time. Notice
how the object moves out of view when one eye is closed? When the object remains in view, the open eye
is your dominant eye.
04

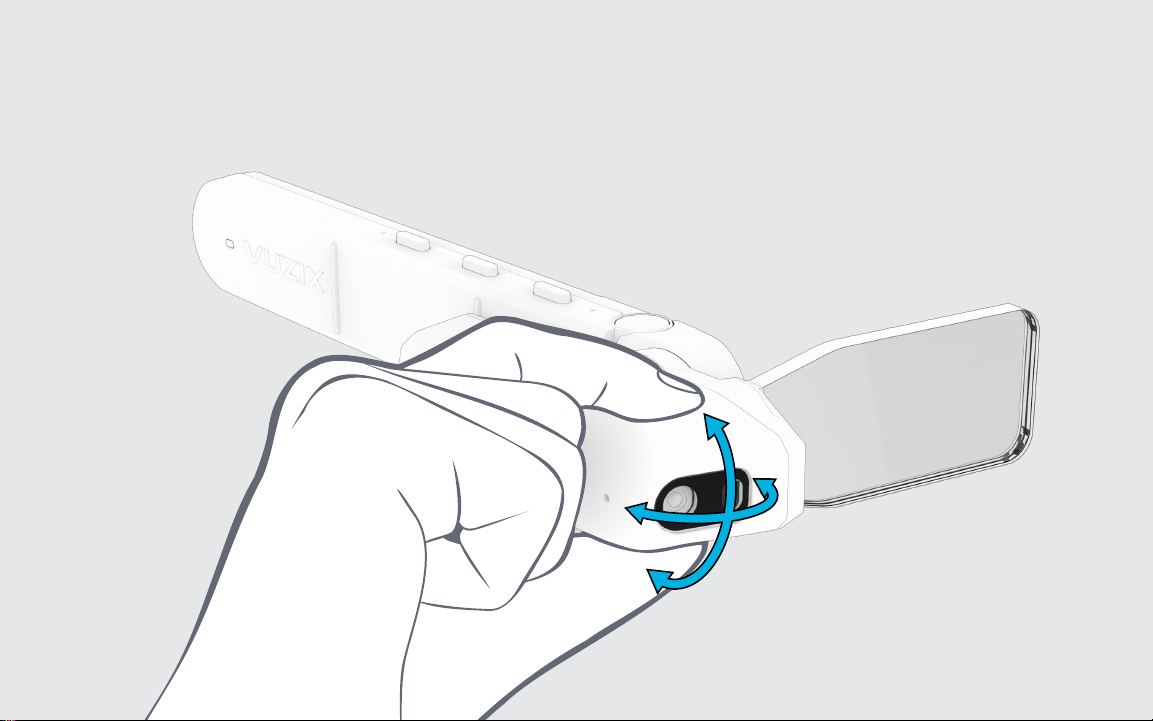

Holding only the plastic housing of the lens, adjust left, right, up and
down for optimal use. NEVER adjust by touching/moving the waveguide
display—doing so may damage or destroy the waveguide display. When
cleaning, you may stabilize the display by gently holding the outer edge,
but only if the rest of the unit is properly supported.
ADJUSTING & CLEANING THE M4000
05

NAVIGATING THE M4000
Touchpad
Power Button
(rotate arm to access)
Back
Navigation Buttons
Mounting Rail
Waveguide Display
Camera
Flash
Recording LED
Power LED
USB-C Port
Center Front
06

TOUCHPAD BUTTON NAVIGATION
Short press for primary functions:
front: forward navigation
center: back navigation
back: select
Long press (approx one sec) touch
for secondary functions:
front: right-click
center: exit to home menu
back: back one step

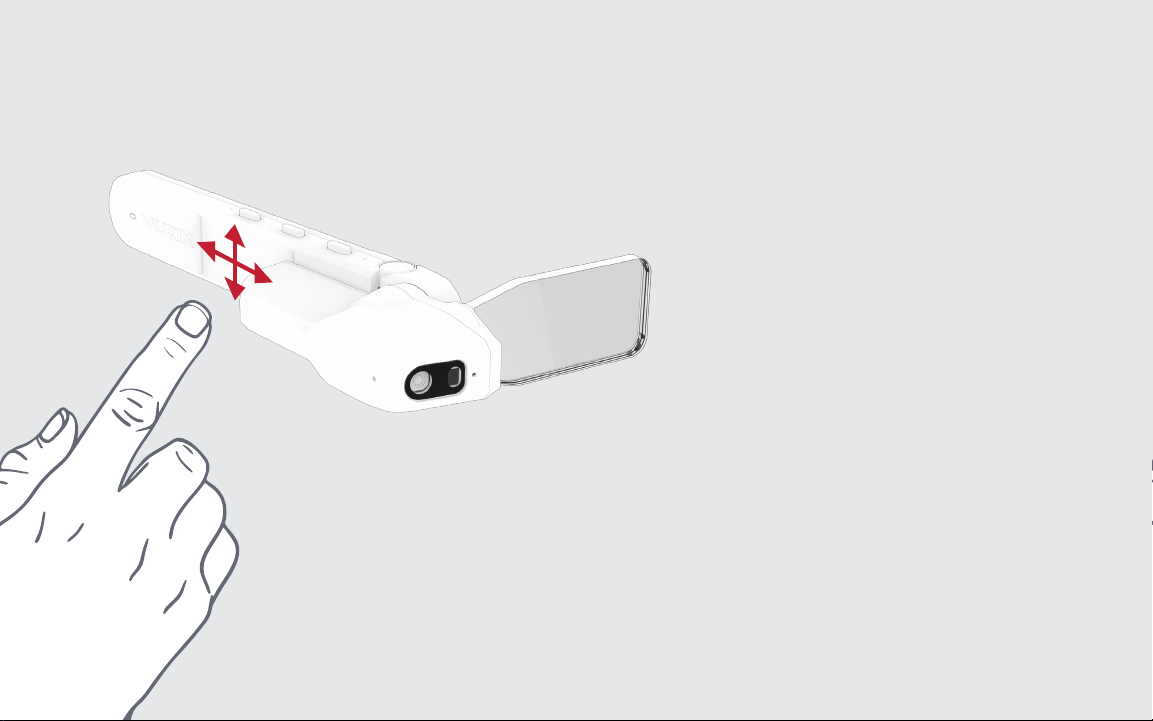

TOUCHPAD NAVIGATION
The 2-axis pad responds to up and
down or back-to-front finger swipes.
Tap to select.
07

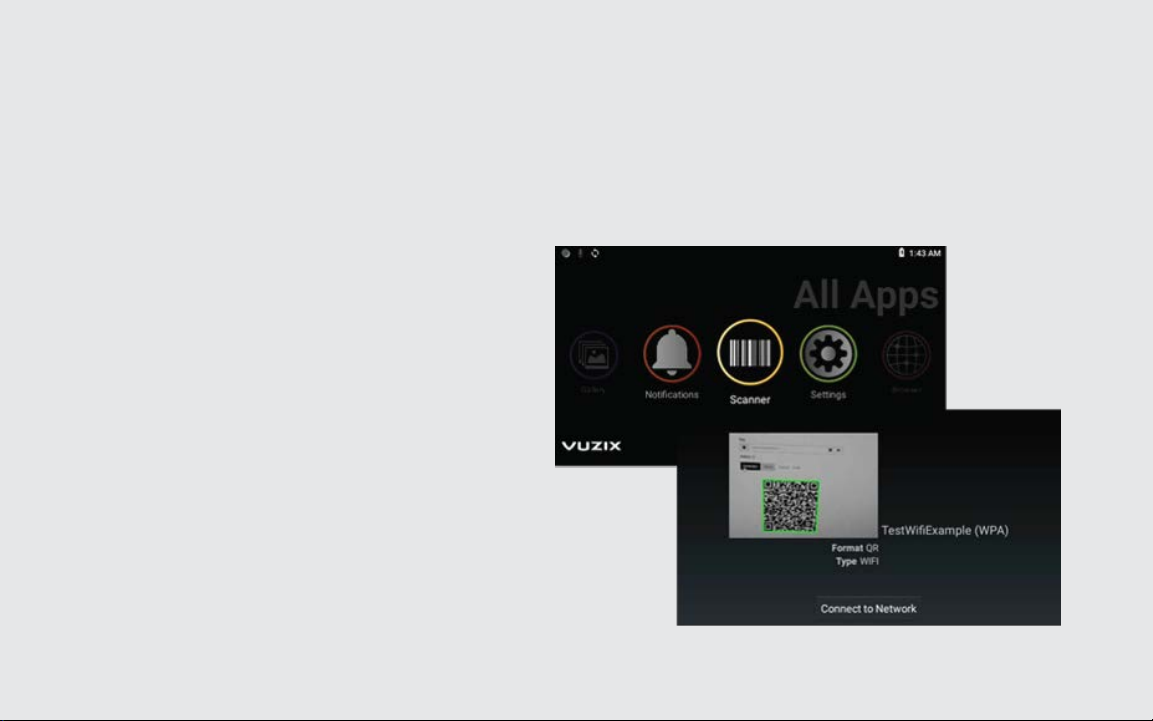

WI-FI QUICK CONNECT
The easiest way to connect to Wi-Fi is by
scanning a QR code.
QR code setup:
1. Create a QR code securely* using
www.vuzix.com/wifiQR directly from
your phone or computer.
2. Open Scanner from the main carousel.
3. Center available QR code in viewfinder
to scan.
*Vuzix cares about your privacy and security. By
visiting this link, our website sends your browser the
software to create the QR code. Your confidential data
is processed locally on your own device, and never
sent to our server.
WEARING THE M4000
08

REGISTERING YOUR DEVICE
One finger:
1. Register your device by logging on
to your Vuzix App Store account or
registering from a computer or phone at
www.vuzix.com/appstore/user/add-device.
2. Follow the instructions on the website
3. Once registered, you will see the serial
number of your M4000 under your account.
Serial number location
INSTALLING APPLICATIONS
Applications can be installed on the M4000 via
the Vuzix App Store. The Vuzix App Store will
install and manage applications via the OTA
(Over the Air) mechanism and will require Wi-Fi
connectivity.
For instruction and additional information about
installing applications and using the Vuzix App
Store, visit: www.vuzix.com/support
The M4000 supports ADB (Android Debug
Bridge) as an alternative mechanism for
advanced users to install applications.
4. The companion app for Android on Google
Play and for iOS on the App Store enables
easy set up and communication between
your smartphone and M4000.
09

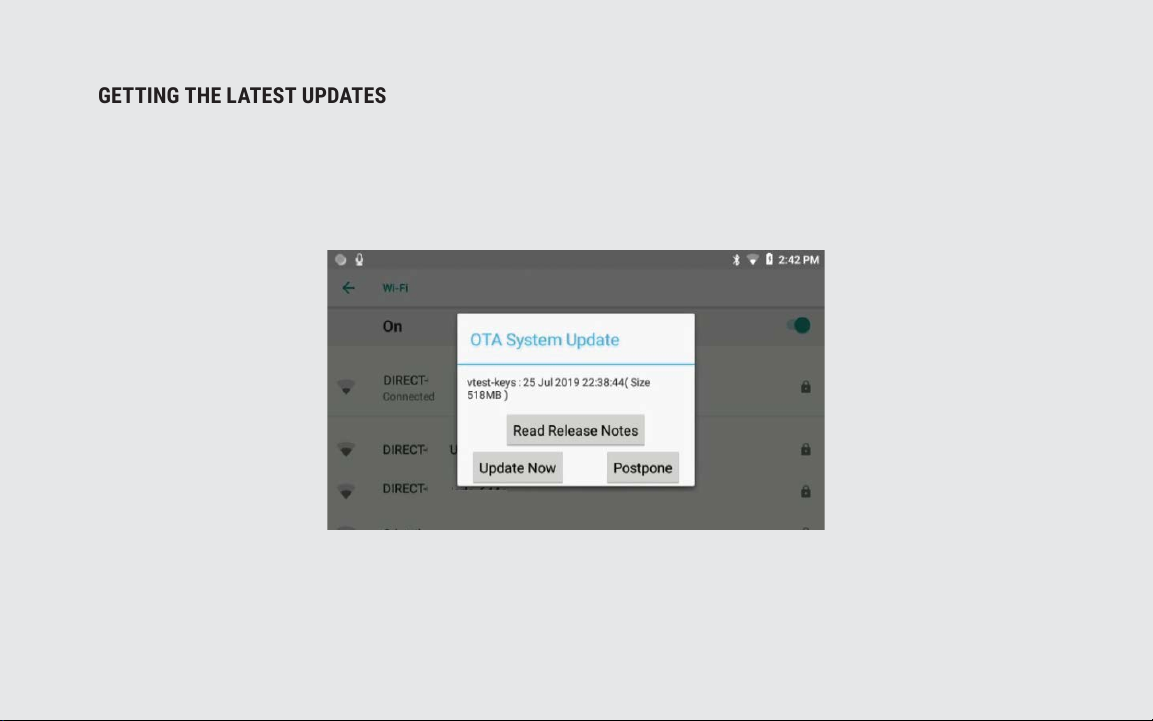

GETTING THE LATEST UPDATES
The M4000 will automatically check for updates once it is connected to Wi-Fi.
Click Update Now on the following pop-up.
Note: If your corporate firewall prevent access to the external website, your system administrator may
provide additional settings for your M4000 or may provide a software update offline.
10

DEVELOPING FOR M4000
Developer documentation is available at vuzix.com/developers.
In order to power the unit during development, please note:
• The included battery does not support data pass-through.
• The viewer should be plugged into the developer’s machine
with a USB C-to-C cable for the best experience.
• If a USB A-to-C cable must be used, then using a
CDP-capable port will provide enough power. If the USB-A
port is not providing sufficient power, functions of the
device may become impaired without notice, and the
viewer may shut down completely.
11

TROUBLESHOOTING COMMON ISSUES
SYMPTOM DIAGNOSIS REMEDY
M4000 will not turn on and
status LED is not lit.
Battery is discharged. Connect battery to wall charger for up to two
hours for a full charge, then connect battery
to viewer.
M4000 will not turn on and
status LED is blinking red.
Internal battery is
discharged.
Leave viewer connected to USB power. System
will begin booting within a few minutes.
M4000 display is not on but
status LED is lit.
Screen has turned off to
conserve power.
Tap any button to wake the screen.
M4000 powers off after
20-30 minutes while
plugged in to USB.
USB source does not
provide enough current.
M4000 can draw up to 1.5A while in operation.
12

CLEANING AND CARE
• Clean the viewer and battery with a damp cloth and mild detergent if
necessary. Do not use all-purpose cleaners as these may damage the
seals and impair the water resistance.
• Make sure that there is no standing water in the USB connector before
inserting the cable.
• Do not insert sharp objects into any holes in the viewer as this may
damage the mesh and impair the water resistance.
• Do not use metal objects to clean the USB port as this may cause
electrical damage.
• The waveguide may be cleaned using a microfiber cloth and lens
cleaner or warm water and a mild detergent. Do not hold or handle the
M4000 by the screen. Avoid exerting pressure on the screen as that
can cause it to crack.
13

REGULATORY INFORMATION
Regulatory information can be viewed from the Settings application:
1. Open “System”
2. Open “About Glasses”
3. Open “Regulatory Labels”
FCC Caution:
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Any Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
14

The device has been tested and in compliance with SAR limits.
This equipment should be installed and operated with minimum
distance 0mm between the radiator & your body.
ISEDC Warning:
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
The device has been tested and in compliance with SAR limits,
users can obtain Canadian information on RF exposure and
compliance. This equipment should be installed and operated
with minimum distance 0mm between the radiator & your body.
Après examen de ce matériel aux conformité aux limites DAS
et/ou aux limites d’intensité de champ RF, les utilisateurs
peuvent sur l’exposition aux radiofréquences et la conformité
and compliance d’acquérir les informations correspondantes.
Ce matériel devrait être installé et adapté à une distance
minimale de 0mm entre le radiateur et votre corps.
Europe:
In all EU member states, operation of 5150-5250 MHz is
restricted to indoor use only.
15
AT BE CY CZ DK EE FI
FR DE EL HU IE IT LV
LT LU MT NL PL PT SK
SI ES SE UK BG RO HR

FOR MORE INFORMATION ON THE M400
AND ACCESSORIES, VISIT:
vuzix.com | vuzix.eu | vuzix.jp
Vuzix Corporation
25 Hendrix Road
West Henrietta, NY 14586
©Vuzix 2020. This User Manual is subject to change.
Please read the included safety information, also at www.vuzix.com/support/safety-warranty-m-series before using this product.
All trademarks belong to respect owners.
490PB0001 (0003) – M4000 QUICK START GUIDE
LEARNING MORE
Visit www.vuzix.com/support/M4000-smart-glasses to reference a comprehensive online user’s
manual or contact [e-mail] for additional information and assistance.
