Upright Compound Microscope
Models
82026-614 & 82026-622
V
VW WR RT
TM M V
Vi is st ta aV Vi is si io on nT
TM M
U
Us se er r G Gu ui id de e
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1
Congratulations and ThankYou for your purchase of a
VWR VistaVision Microscope
This precision instrument has been designed to require a minimum of optical
and mechanical maintenance. Its excellent design assures years of high quality,
reliable service. We recommend that you read this entire manual carefully
before beginning to use the instrument.
WARNING
PLEASE DISCONNECT PLUG FROM THE MAIN SOCKET BEFORE
REMOVING THE BOTTOM PLATE, OPENING THE LAMP
REPLACEMENT DOOR, OR REMOVING THE LAMP HOUSING.
WARNING
THE POWER CORD PROVIDED WITH THE EQUIPMENT HAS A
GROUNDED PLUG. ALWAYS USE THE POWER CORD WITH A
PROPERLY GROUNDED WALL OUTLET.
DO NOT EXPOSE THE INSTRUMENT TO HIGH TEMPERATURE OR
HUMIDITY. AVOID USING THE INSTRUMENT IN EXTREMELY DUSTY
CONDITIONS
OPERATING TEMPERATURE: 5 DEGREE C. TO 35 DEGREE C.
OPERATING HUMIDITY: 20% TO 80% @ 25 DEGREE C.
CAUTION: NEVER IMMERSE THE INSTRUMENT IN WATER OR
SOLVENT
CAUTION: DO NOT PUT ANY FOREIGN OBJECTS IN THE FRAME OR
INTO ANY MOVING MECHANICAL PARTS
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2
Table of Contents
List of Contents...................................................................................3
Getting Started....................................................................................3
Component..........................................................................................4
Technical Specifications .....................................................................6
Setup Instructions ...............................................................................7
Basic Operation ..................................................................................8
Changing The Light Bulb................................................................. 11
Preventative Maintenance.................................................................12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3
List of Contents
Frame Abbe Condenser
Binocular Body or Monocular Body Two Filters: Blue and Frosted
10X Eyepieces(2) Immersion Oil
4X Semi-Planachromatic Objective Spare Halogen Bulb
10X Semi-Planachromatic Objective Spare Fuse
40X Semi-Planachromatic Objective Dustcover
100X Semi-Planachromatic Objective Manual
Getting Started
This user guide is written on the assumption that it will be used by advanced
students and experienced microscopists. It covers the essential adjustments and
controls of VWR VistaVision microscopes. No attempt has been made to
include fundamentals of microscopy. Read this user guide prior to unpacking
the microscope. After assembling the instrument, re-read the manual and
become familiar with all adjustments and functions before using your new
microscope.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

4
Component
1. Binocular Body 2. Nosepiece 3. Up Stop 4. Condenser Adjustment
5. Lamp Housing 6. Power Switch 7. Brightness Control 8. Condenser
Lock Screw 9. Condenser Centering Screw 10. Stage 11. Objective
1
2
3
4
5
6
7
8
9
10
11
Figure 1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

5
1. Eyepiece 2. Slide Holder 3. Filter Holding Tray 4. Iris Diaphragm
5. Base 6. TransverseAdjustment 7. Longitudinal Adjustment 8. Fine
Focus Control Knob 9. Coarse Focus Control Knob 10. Focus Tensional
Adjustment 11. Frame 12. Thumbscrew 13. Monocular Body
1
2
3
4
5 6
7
8
9
10
11
12
13
Figure 2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6
Technical Specifications
Body: Inclined 30°, able to rotate a full 360°, 53mm to 75mm
interpupillary adjustment. Left Eye diopter adjustment of -5 to
+5.(Binocular only)
Nosepiece: Quintuple ball-bearing reversed nosepiece with positive click
stops and smooth operation.
Eyepieces: 10X Plan wide field, Focal Length 25mm, Field Φ18mm.
Stage: 135mm X 125mm, range of motion 75mm X 34mm. Integrated
mechanical stage with vernier, Low-position Coaxial Control
Knobs. Removable spring clip slide holder.
Focus Mechanism:
Adjustable Tension Control to prohibit drift and Adjustable
Up-Stop to protect slides, specimen and objective lenses;
Coaxial coarse and fine adjustments with dial markings at 2μm
increments.
Condenser: 1.25 N.A. Abbe Condenser with iris diaphragm. Rack and
pinion focusing
Illumination: 20 watt, 6 volt Halogen bulb with electronic dimmer.
Semi-plan Achromatic Objective Specifications
Magnification Numerical Aperture Working Distance (mm)
4X 0.10 23.1
10X 0.25 4.1
40X 0.65 0.6
100X（oil）1.25 0.38
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

7
Setup Instructions
1. Remove all parts from their packing materials.
2. Loosen the thumbscrew and install the optical body to the frame by
removing its dust cap and inserting the dovetailed flange on the underside
of the optical body into the frame. Secure optical body with thumbscrew.
DO NOT RELEASE THE OPTICAL BODY FROM YOUR GRASP
UNTIL IT IS FIRMLY SECURED TO THE FRAME.
3. Install the objectives into the nosepiece.
4. Remove the dust caps from the eyetubes in the Optical Body and insert
eyepiece into the Optical Body.
5. Connect the power cord to a suitable power supply.

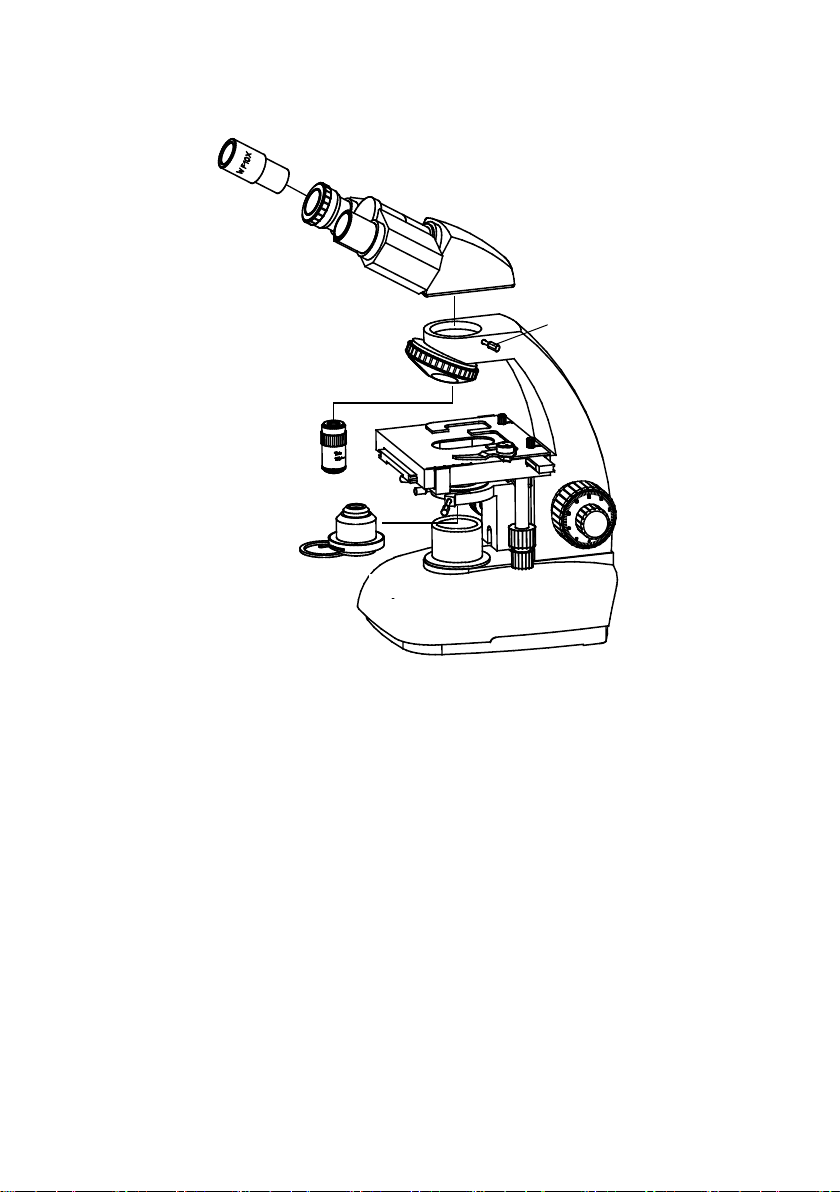

Figure 3
Eyepiece
Optical body
Thumbscrew
Frame
Objective
Condenser
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

8
Basic Operation
1. Illumination Controls
1) The power switch to the
illuminator and the brightness
control are located on the base. The
electrical system is fuse protected
and the fuse holder located on the
bottom of frame.
2) Turn on the light with the power
switch, see Figure 4. If the light
does not appear to be ON, check
the brightness control to see if it’s on a sufficiently low setting.
2. Focusing Controls
1) Focusing adjustment is
accomplished by using the large
coarse adjustment knobs located
comfortably on each side of the
frame. Fine adjustment is
accomplished by using the smaller
knobs located on the same focus
shaft. This coaxial arrangement
allows for easy, precise adjustment
without drift or discomfort.
2) Focus Control Turning either of
the coarse focus control knobs will
raise or lower the stage. The
smallest graduation on the fine
adjust knob index scale is 2μm of vertical.
3) Focus Tension Adjustment The tension of the coarse focus is
adjustable and preset at the factory for ease of use. If you wish to
adjust the coarse focus tension, turning the ring toward the rear of the
Brightness Control
Power Switch
Figure 4
1 2 43
Figure 5
1 Coarse Adjustment
2 Focus Tension
3 Up Stop
4 Fine Adjustment
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

9
microscope increases the tension, and toward the front of the
microscope loosens it. Tension is too high if you experience physical
discomfort
4) Pre-focusing or Focus Stop Control Use of this feature will insure
that the longer objectives don’t contact the stage or specimen when
using the microscope. Its use also simplifies focusing. After focusing
on the specimen with the coarse adjustment, rotation of the lever
toward the front of the microscope will set an upper limit on the coarse
adjustment movement. After changing specimens or objectives,
focusing is easily accomplished by rotating the coarse adjustment knob
to reach the pre-focused position, then making fine adjustments with
the fine adjustment knob. Focusing movement with the fine adjustment
knob isn’t affected by using the pre-focusing lever
3. Interpupillary and DiopterAdjustments
1) Diopter Adjustment Proper
correction for individual vision is
accomplished via the diopter
adjustment located at the left
eyepiece, see Figure 6. Using the
40X objective, close your left eye
and bring an image into focus with
your right eye only. Once the
image is well focused, make fine adjustments with the diopter
adjustment ring to correct for your vision.
2) Proper interpupillary distance, or the distance between eyepieces, is
crucial to the comfort of the user. Adjusting the interpupillary distance
is accomplished through a “folding” action of the optical head, at
Figure 6, allowing for quick and easy adjustment
4. Mechanical Stage Controls – The mechanical stage, see Figure 7, with
Ultra-Low position control knobs for ease of use, consists of three parts:
1) The smaller knob for transverse adjustment
Figure 6
Diopter Adjustment Ring
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

10
2) The larger knob for longitudinal
adjustment
3) The slide holder. When using the
slide holder, first lower the stage,
then push the spring loaded chrome
handle towards the rear and push
the slide into position, then gently
release the handle, securing the
slide into position.
Note: the slide holder can be easily
removed by loosening the two
thumbscrews, then sliding the holder
toward the front to disengage.
5. Condenser Components – are
located below the stage as follows, see
Figure 8: Abbe condenser; its
Mounting Ring with lock screw and
two large centering screws at either
side for adjusting condenser/iris
assembly in the optical center of the
light path; the adjustment knob for
raising and lowering the condenser.
Below the Abbe Condenser is a
circular filter tray to hold the filters.
6. CondenserAlignment – to center theAbbe Condenser in the optical light
path, see Figure 8:
1) Close the Condenser Iris Diaphragm
2) Observe the image using the 4X objective and you will see an image
similar to Figure 9 A. The image may be out of focus and out of center
Longitudinal Adjustment
Transverse Adjustment
Slide Holder
Figure 7
2
1
3 4 5 6
1 Filter Tray
2 Iris Diaphragm Control Lever
3 Condenser
4 Condenser Set Screw
5 Condenser Centering Screw
6 Condenser Adjustment
Figure 8
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

11
3) To center the iris opening in the
field of view, use the two centering
screws at each side of the Abbe
Condenser mounting ring, see
Figure 9 B.
4) To focus the iris opening, adjust
the coarse focus and the Abbe Adjustment Knob until the image is as
crisp as possible against the darker field of view.
5) Once the image is in focus and centered in the field of view, open the
Condenser Iris Diaphragm until the image is almost as large as the
field of view, see Figure 9 C.
Changing The Light Bulb
1. Disconnect the power plug and wait
to be sure the bulb is cool. On the
bottom of the frame there is a hinged
door for replacing the lamp bulb. The
lamp door retaining screw is to the
front of the frame, and the lamp
centering screw is located in the
middle of the lamp door. Open the
lamp door using the lamp door
retaining screw as shown in Figure 10.
2. Pull the old lamp straight out of the
socket. Always use a clean cloth or
lens tissue to prevent grease or oil
getting on the glass of the new bulb. Insert the lamp pins straight into the
socket. Close the lamp door and center the lamp in the field of view using
the lamp centering screw at the center of the lamp door, see Figure 10.
A B C
Figure 9
Figure 10
1 2 3
1. Lamp
2. Lamp Door Retaining Screw
3. Lamp Centering Screw
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

12
Preventative Maintenance
1. Cleaning frame and stage
Disconnect the plug from mains socket before cleaning. Clean the frame
and stage with a soft cloth moistened with a mild detergent solution. Be
sure the instrument is dry before using.
2. Cleaning optical parts
Microscope eyepieces and objectives are coated.
They should not be wiped while dry as dirt or dust may scratch the
coating. It is best to remove parts from the frame prior to cleaning.
Always blow loose dust away first. Use cotton swabs or lens tissue
moistened with a lens cleaner or a small amount of alcohol, then wipe the
surface clean with a good quality lens tissue. Solvents such as Xylene
should NOT be used as cleaner.
3. Cleaning 100X oil immersion lens
The immersion oil should be removed from the lens at the end of each
workday using cotton swabs or lens tissue moistened with a lens cleaner
or a small amount of alcohol.
DO NOT DISASSEMBLE OBJECTIVE LENSES.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

13
VWR TECHNICAL HOT LINE: 888-VWR-LINE
(888-897-5463)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF
IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF
MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY
RENTALS
• ITAR CERTIFIED
SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff
at our full-service, in-house repair center
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment
We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
REMOTE INSPECTION
Remotely inspect equipment before purchasing with
our interactive website at www.instraview.com
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more
information on price quotations, drivers, technical
specications, manuals, and documentation
Contact us: (888) 88-SOURCE | [e-mail] | www.artisantg.com
SM
View
Instra
