Vytronix LION29 User manual

LION29
CORDLESS VACUUM CLEANER
USER MANUAL
w w w . v y t r o n i x . c o m

BLANK PAGE

1. Motorised Floor head 10. ON/Off switch
2. Floor head release button 11. Battery release button
3. Extension tube 12. Dust container release button
4. Accessory holder 13. Dust container bottom release button
5.Wall mount 14. Battery
6. Extension tube release button 15 Charger
7. Screws 16. Dusting nozzle
8. Battery capacity indicator 17. Crevice nozzle
9. Power adjustment key

ACCESSORIES
Extension Tube: Usefor extended reach when using as an upright unit or for
those hard-to-reach places.
Motorised Floor Head: Use this for hard floors and carpets. Easily picking up
dirt dust and small debris.
Dusting Brush: Use this for vacuuming fabric furnishings such as sofas
armchairs and curtains. Ideal for use on car seats and in caravans.
Crevice Nozzle: Features a narrow nozzle that makes quick work of
vacuuming tight spaces such as corners and hard to reach areas.
TECHNICAL SPECIFICATIONS
Wattage
250W
Voltage
29.6V
Charger Input Voltage
100-240V / 50/60Hz
Charger Output Voltage
35V
Charge Time
4 - 5 hours
Running Time
Upto35minutes
SAFETY INSTRUCTIONS
For your own safety when using an electrical appliance please follow basic safety
precautions including:
1. Follow all instructions carefully when assembling and using this product.
2. Never leave thechargeron or plugged infor prolonged periods of time
when not in use.
3. For indoor use only.
4. Donot use appliance if the charger or battery are damaged.
5. Do not use this product without the dust container and filter in place.
6. Do not handle the plug, charger, or appliance with wet hands.
7. Do not operate this vacuum for extended periods of time near heat
sourcessuchasfires,radiators,heaters etc. This appliance is not suitable for
vacuuming burning or smoking items such as matches.

8. This product features a thermal safety cut-out device. Should the vacuum
overheatpower will instantly be stopped. In this event,the device should be
switched off,and left to cool completely before attempting to use again.
9. Ensure the appliance is completely switched OFF via the main body and at
the socket before removing from the battery charger. Do not overstretch the
charging cable.
10. Do not submerge any part of the appliance in water.
11. When removing the charger plug from the mains supply, do so from the
plug itself and not by the means of the cord.
12. Ensure that all vents and openings are kept clear of dust,lint, hair and
anything that may reduce airflow. A clogged vent may cause the product to
overheat.
13. Ensure that hair, loose clothing, fingers, and all parts of body are kept away
from the openings and moving parts of the vacuum.
14. This product uses a lithium-ion battery. Waste batteries should be safely
recycled where possible.
15. The appliance is only to be used with the battery provided in conjunction with
the supplied charger.
16. Store battery away from high temperatures.
17. Do not pierce or attempt to open the battery under any circumstances.
18. In the event of a leaking battery, ensure that acid stays away from skin
and eyes. If acid comes into contact with skin or eyes- rinse with clean,
fresh water and seek medical advice immediately.
19. Extra care must be taken when vacuuming the stairs.
20. Ensure the appliance is turned off before connecting any accessories.
21. This appliance is not suitable for vacuuming liquids or wet surfaces.
22. Do not leave this product for extended periods of time in direct sunlight.
23. Any person using this product should be fully aware of the hazards
involved. A responsible adult should always ensure the product is used
under supervision or that adequate instruction has been given to adults
with reduced physical mental or sensory capabilities, or anyone with a lack
of experience using a similar product. This product is not a toy. Children
under 16 should be supervised to ensure that they do not play with this
appliance.
24.In the event the appliance is not working correctly. Please use the
troubleshooting and maintenance advise below. Should this not resolve the
issue please contact Vytronix Ltd.
25.Ensure the appliance is checked prior to first use for any damage or defect.
Contact Vytronix Ltd upon receipt.
26.Ensure correct maintenance of the appliance is followed on a regular basis.

ASSEMBLY INSTRUCTIONS
NOTE: Before assembling the appliance fix the included mount to the wall
Ensure it is placed high enough for the vacuum to be securely mounted.
Assembling the main body:
Install the battery into the housing by sliding it into the appropriate slot. It
will "click" into place.
Assembling the motorised floor head :
1. Insert the connector of the motorised floor head into the base of the extension
tube by clicking it into place.
2. Attach the floor head and tube to the main body by slotting it into place via the air
duct connector.

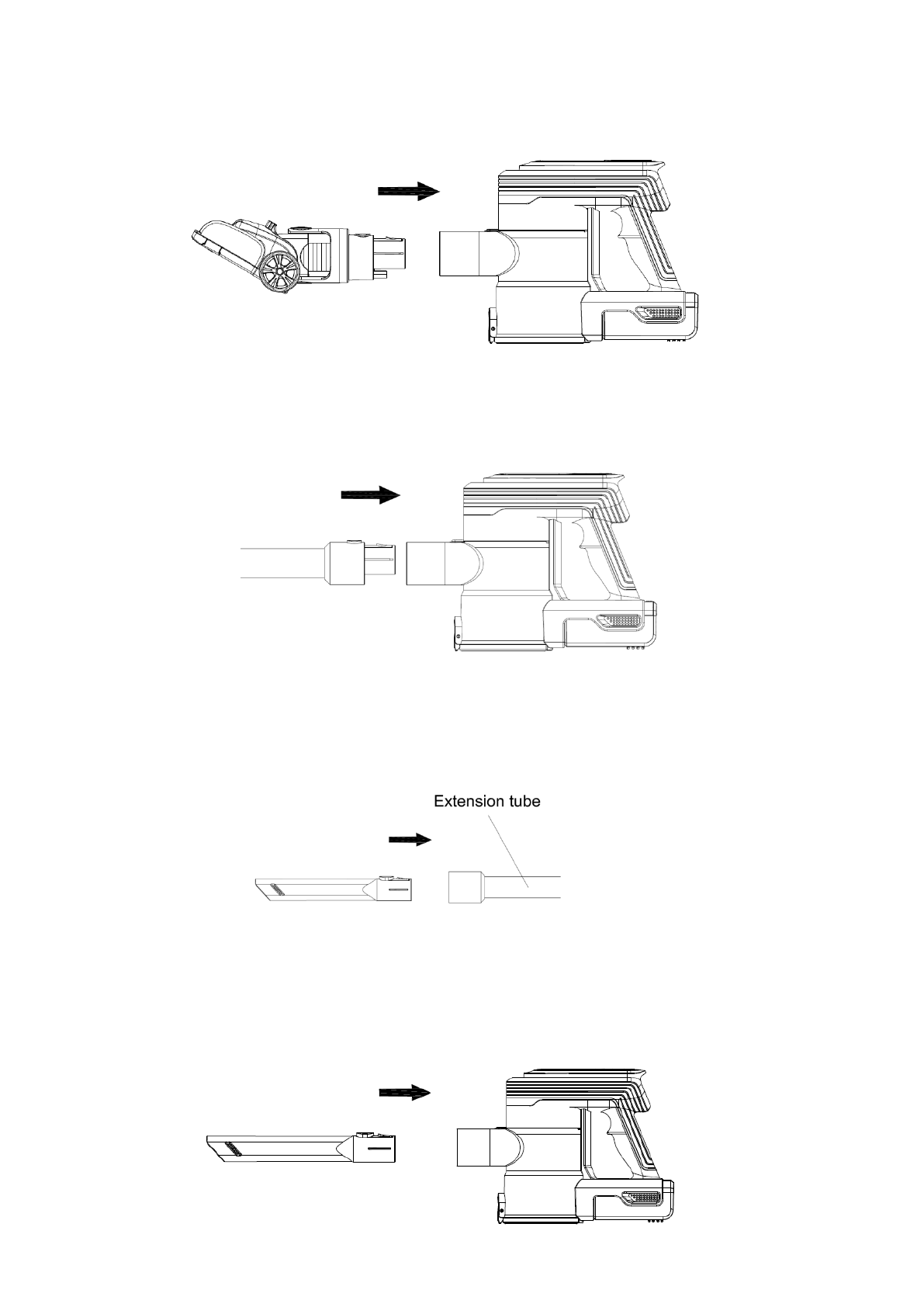

3. If using the floor head without the tube, simply attach it to the main body via the
air duct connector. It will "click" when secure.
Assembling the accessories:
1. Attach the extension tube to the main body by slotting it into place the via duct
connector
2. Attach the crevice nozzle to the base of the extension tube via the connector. It
will "click" into place.
3. If using accessories without the tube, simply attach them to the main body via
the air duct connector. It will "click" when secure

4. Attach the dusting nozzle to the extension tube or the main body works the same
as the crevice nozzle.
BEFORE FIRST USE
1. Plug the cable into the power inlet located on the side of the battery. When charging,
the energy indicator light will be illuminated RED. Once fully charged this indicator
light will change to GREEN. Indicator lights may turn off when fully charged. Once
fully charged, turn off the charger plug from the power socket.
The battery can also be charged when it is housed in the main body directly. The
three lights on the back of the body will indicate the charge level of the battery.
When the battery is fully charged, the lights will always be GREEN.

NOTE: In the event of a maintenance issue with the product such as a jammed
brush roll, all three BLUE indicator lights will flash on and off until the issue is
resolved, in this case turn the cleaner off until the issue is rectified.
2. Ensure that the air vent, suction pipe and telescopic wand are free from
blockages and dust. Should they suddenly become clogged, switch off the
appliance immediately and clear the blockage before attempting to use the
vacuum again.
3. Remove any sharp or large objects from the path of the vacuum before use as
these may irreparably damage the appliance.
OPERATING THE VACUUM
CAUTION: The vacuum must be fully charged before using for the first time.
1. Remove the vacuum cleaner from the wall mount. If using as a handheld unit,
disassemble the tube and attach the desired accessory.
2. Use the Power ON/OFF button to turn on the appliance.
3. To increase the suction, press the power adjustment key to increase the
strength.
Ideal for when you are cleaning carpets with a high pile.
4. To turn off the vacuum, press the Power ON/OFF button again.
MAINTENANCE
Cleaning the dust container

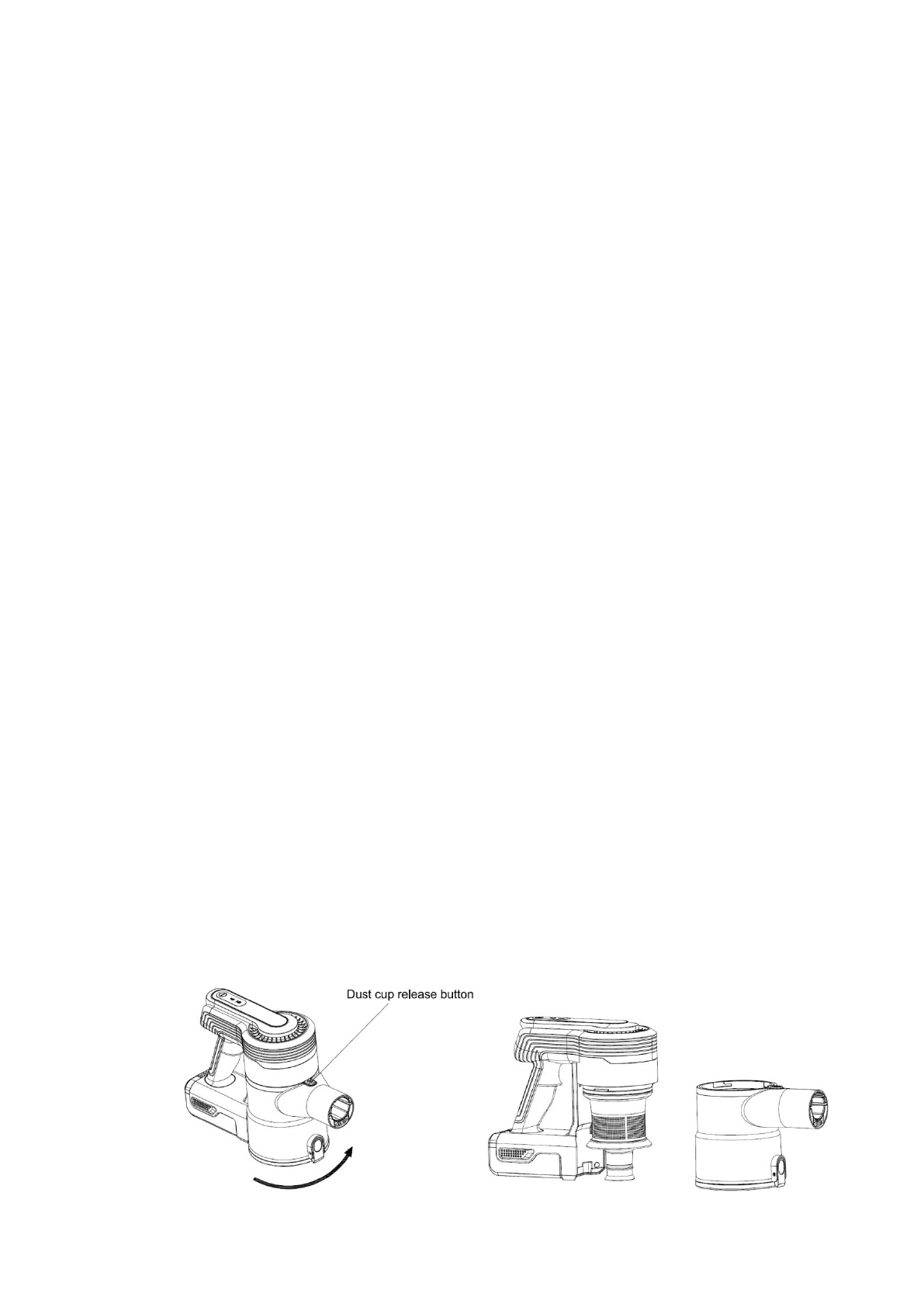

1. Press the dust cup release button and rotate the cup counterclockwise,
2. Take off the dust cup from the main body.

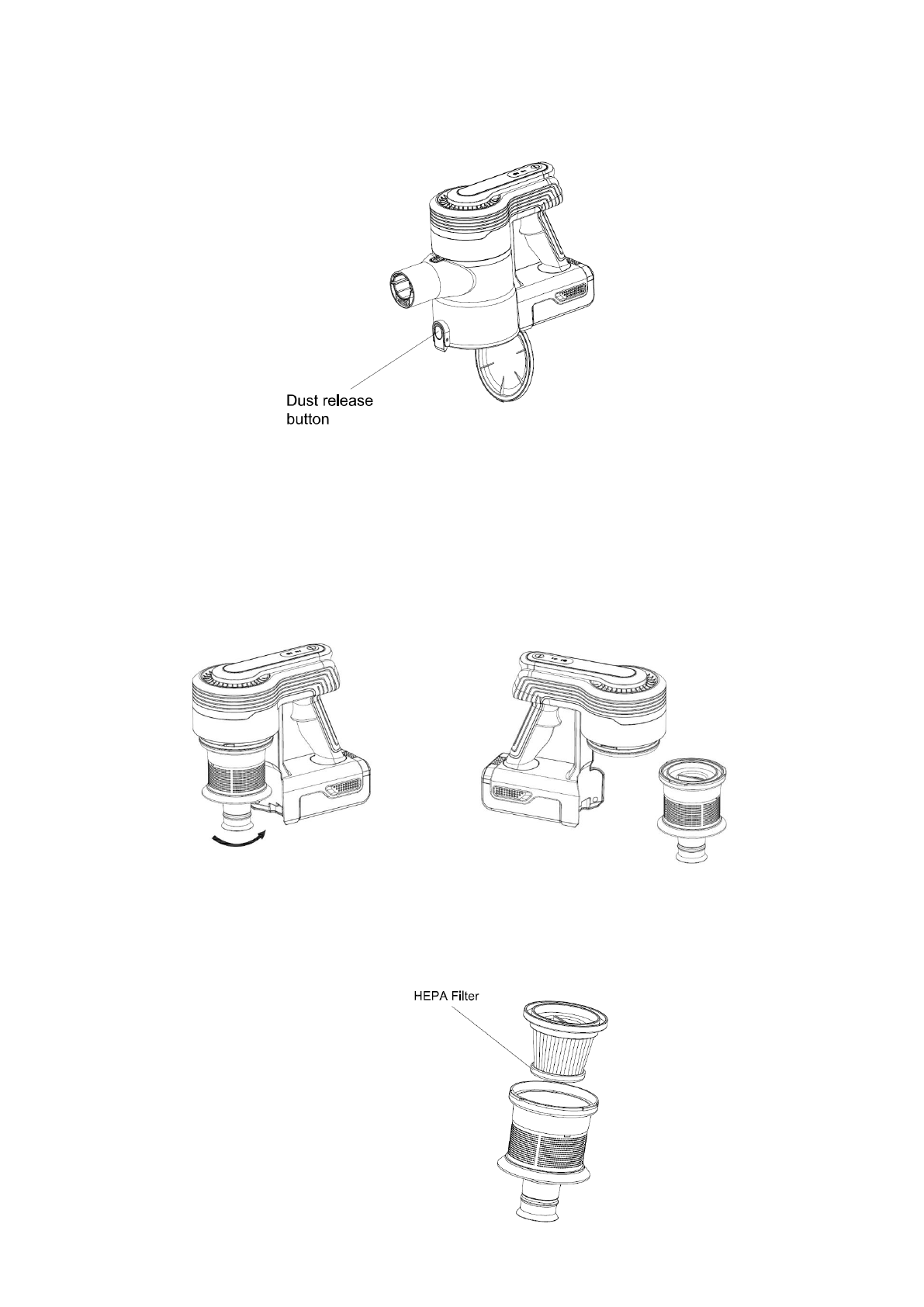

3. Over a waste bin, press the dust release button to open the bottom cover and
expel any dust and debris. Wipe clean only, do not submerge in water.
Cleaning the filter:
1. Remove the dust container from the main body.
2. Twist the steel-filter clockwise and take off the filter
3. Remove the HEPA filter from steel-filter

4. Rinse thoroughly under clean fresh water. Do not use soap or other cleaning
detergents.
5. Allow filter to dry naturally for at least 24hours before placing back into the
vacuum. Do not place on radiators or use additional appliances, such as a hair dryer, to
dry the filter. Doing so may cause the filter to warp and become unusable.
Cleaning the brush roll:
1. Slide the brush roll securing catch A away from the brush as indicated in the
illustration below.
2. Remove the brush roll from the brush housing.
3. Carefully clean and remove any hairs and fibers from the brush roll. Wipe clean
only, do not use any soap or harsh cleaning agents.
4. Allow to dry naturally before replacing the brush roll back into the housing.
5. Slide securing catch Aback into original position to secure the brush roll.

TROUBLESHOOTING
The appliance will not power on.
⚫This may be caused by a flat battery. This can occur if the appliance has been
used or stored for an extended period of time. Connect the vacuum to the
charger and allow for a full charging cycle to complete.
The vacuum stopped suddenly:
⚫This will occur if the safety cut-out device has been activated. This device is
designed to prevent your appliance from overheating. Ensure the vacuum
is turned off, disconnect all accessories, and leave to cool down for at least
half an hour before attempting to operate again. Try to identify the source of
the overheat by checking for blockages in the extension tube motorised
floor head and accessories using the maintenance steps in this user
manual.
Empty the dust container and clean or replace the filter.
The suction of the vacuum has reduced:
⚫Turn the vacuum off. Disconnect the floor head, extension tube and any
accessories. Check for and remove any blockages from the dustbin filter, air duct,
extension tube, floor head and accessories.
Motorised floor head is not rotating:
⚫This tends to occur when there are too many fibers wrapped around the brush roll
restricting movement. Consult the maintenance section of this manual for
instructions on how to appropriately clean the brush roll.
The charging indicator light does not flash up red:
⚫There may be no power reaching the vacuum from the charger.
Ensure that power is being supplied to the mains socket and that the charger is
turned on. Ensure the charging cable is securely connected to the vacuum
⚫Ensure the mains socket is switched off before checking the charging cable itself.
Do not attempt to use if the cable is split, frayed, or otherwise damaged. Instead,
seek a replacement charger.
The application time of the vacuum is less than it used to be:
⚫Ensure the battery has completed a full charging cycle. An insufficient charging
cycle will result in reduced application time.
⚫There may be reduced energy discharge in the battery. This is normal and
gradually occurs in all batteries over time.

Warranty
To register you free one year Vytronix guarantee visit www.vytronix.com using product
code: brandnew-vytronix-lion29
Safe disposal
This marking indicates that this product should not be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To arrange safe disposal of your used device,
please use the return and collection systems or contact the
retailer where the product was purchased.

Register your warranty at www.vytronix.com
