SmartBoard
Display / Controller (EN)

2 SmartBoard Display / Controller (EN)
SmartBoard functions (optional)
6
General
As an option, Humbaur trailers can be
equipped with a SmartBoard device as a
display and control unit for various
functions.
The display/control functions of the
SmartBoard device depend on the
components installed on the trailer.
List of possible functions:
Air suspension
Loading
Odometer
Diagnostic memory
Steering axle lock
Brake lining wear
SafeStart
Bounce control
Relaxation function
Brake release
GIO Function 1 & 2
Tyre pressures
Finisher brake
Vehicle tilt
Electronic parking brake
Wheel clamp
Wheel clamp emergency
unlocking
Current length of the trailer
Language
Extras

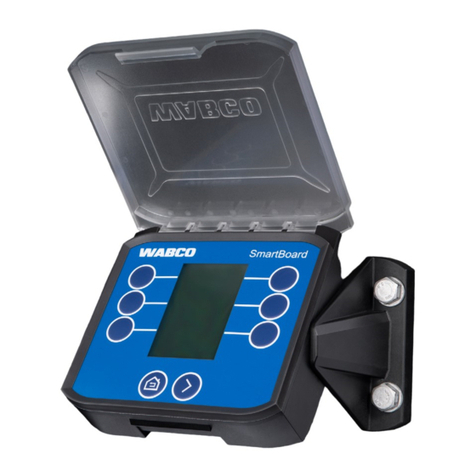

Abb. 1 SmartBoard device
1Housing
2Protective cover
3Electrical power cable
The SmartBoard device should
not be used in regions with
temperatures below -20 °C!
Refer to the WABCO
manufacturer documents for
additional information about
operating the SmartBoard
device and its safety!
The Wabco manufacturer documents
are available on its homepage
(www.wabco-auto.com).
SB - 001
2
1
3

SmartBoard Display / Controller (EN) 3
SmartBoard functions (optional) 1
2
3
4
5
6
7
8
General information
– The menu elements are displayed in
accordance with the installed and
configured system.
– All the data is purely informational!
– The displayed information and
messages correspond to the situation
of the latest or current driving
operation.
– A detailed definition of the message
codes can be found in the
SmartBoard system description in the
INFORM product database at
www.wabco-auto.com.
Batteries may only be replaced
by an authorized speciality
workshop
(does not apply for the ADR
version)!
The SmartBoard device is not
calibrated!
Displayed values can deviate
from actual values!
Switching the SmartBoard on/off
Abb. 2 Display ON / Display
A requirement for using the SmartBoard
device is the power supply by the
ISO 7638 5-pin or 7-pin plug connection
or by a battery connected to the Trailer's
EBS E-Modulator.
The SmartBoard can be used without
the ISO 7638 plug connection.
The SmartBoard device is supplied with
power by the internal battery (not in the
ADR Version).
The standard device is not
suitable and not approved for
ADR-compatible vehicles.
Switching on the display
ISO 7638 power supply / battery
Trailer hitched:
Turn on the tractor-unit ignition.
Display is ON.
Display of the trailer's EBS functions.
Power supply by internal battery.
Trailer unhitched:
Press any button for longer than
2 seconds.
Display is ON.
Standard SmartBoard display.
Switching off the display
Turn off the tractor-unit ignition.
The background lighting goes out after
30 seconds.
The display shuts off automatically
after:
– for hitched trailer
with EBS after 45 s / with EBS E
after 75 s.
– for unhitched trailer
after 15 s
SB - 003

SmartBoard functions (optional)
4 SmartBoard Display / Controller (EN)
6
Operating the display
Abb. 3 SmartBoard opened
1Protective cover
2Display
3Selector button: Selection of the next
menu element or the next option
4OK button: Confirmation / execution of the
current selection
5Return button: back one menu level
6Message symbol
7Signal lamp
Open the protective cover
(Abb. 3/ 1).
Activate the SmartBoard device.
Use the selector button to choose the
corresponding function (Abb. 3/ 3).
Press the OK button to confirm the
corresponding function (Abb. 3/ 4).
Abb. 4 Main menu field 1
Abb. 5 Main menu field 2
The menu elements are displayed in
accordance with the installed and
configured system.
SB - 002
2
1
3
7
6
45

SmartBoard Display / Controller (EN) 5
SmartBoard functions (optional) 1
2
3
4
5
6
7
8
Select/change language. Display of odometer and
trip data.
Using a PIN to lock/unlock the
trailer brake.

SmartBoard functions (optional)
6 SmartBoard Display / Controller (EN)
6
Status display for the brake
linings.
Display of the current axle loads.
The SmartBoard device is not
calibrated!
The operator is responsible for compli-
ance with the max. permissible axle
loads!
Pressure-sensor calibration
The SmartBoard is delivered with set
values of 15 t each for the first and
second warning thresholds. The warning
threshold are not activated by this.
The SmartBoard offers the option of
calibrating the pressure sensors for the
axle load display of the trailer's EBS E.
The parking brake and the
service brake must be released
during calibration!
Calibration improves the accuracy of the
axle-load display. The more precisely
the vehicle weight is determined and the
pressure sensors calibrated, the more
accurate the axle-load display.
Faulty calibration causes incorrect axle-
load display values!
The calibration must be repeated when
the air suspension or the Trailer EBS E
Modulator are replaced.
See the documents of the
SmartBoard device for
information on the pressure-
sensor calibration process.

SmartBoard Display / Controller (EN) 7
SmartBoard functions (optional) 1
2
3
4
5
6
7
8
Display of the tyre information
such as current tyre pressure and
target pressure.
Display of diagnostics and system
messages.
Check if the warning lamp is flashing.
Release service brake during
standstill.

SmartBoard functions (optional)
8 SmartBoard Display / Controller (EN)
6
Braking of tipper trucks operating
behind road-laying machines.
Display of the trailer tilt. Freely configured GIO functions
can be set on the Trailer EBS.

SmartBoard Display / Controller (EN) 9
SmartBoard functions (optional) 1
2
3
4
5
6
7
8
This group of functions can be
used to operate the air
suspension system in various
different ways.
Assignment of the operating buttons on
the SmartBoard device.
OptiTurn™ manoeuvring aid
The manoeuvring aid improves the
capacity of the lorry semi-trailer
combination for driving around bends and
roundabouts and when manoeuvring up to
loading ramps.
OptiLoad™ drawbar-load reduction
The draw-bar load reduction system
automatically distributes the weight of the
load onto the supporting axles of the lorry
semi-trailer combination without the need
to shift the load in the semi-trailer.

SmartBoard functions (optional)
10 SmartBoard Display / Controller (EN)
6
The relaxation function prevents
the body from "jumping" when the
brake is released.
The device settings can be
changed and additional functions
can be called up.

SmartBoard Display / Controller (EN) 11
Safety 1
2
3
4
5
6
7
8
Safety instructions / warnings
Carefully read all of the safety
instructions before starting any
device diagnostics, replacement
or commissioning!
Always follow these safety instructions
to prevent personal injury or material
damage.
Read and follow the safety
instructions in the operating
manual of the vehicle
manufacturer!
The SmartBoard housing must
not be opened, with the
exception of a speciality
workshop changing the battery.
Painting the SmartBoard device
is prohibited.
The following precautions must be taken
before work is performed on the vehicle
(repair, replacement of a device,
diagnostics etc.) :
– Only trained and qualified
professionals are permitted to work
on the vehicle.
– The company's accident prevention
regulations and the national
requirements must be complied with.
– Suitable protective clothing must be
worn as required.
– The workplace must be dry and
adequately lit and ventilated.

WARNING
Of unsecured vehicle rolling
away!
Risk of injury (crushing, impact,
being run over, etc.) due to
brake activation when work is
being performed on the vehicle
(e.g. pressure-sensor
calibration).
Check that the transmission is in
"neutral" and that the tractor parking
brake is actuated.
Place chocks under the tyres to
secure the vehicle from rolling away.
Post a visible sign on the steering
wheel indicating that work is being
performed on the vehicle and that the
brake must not be activated.

Safety
12 SmartBoard Display / Controller (EN)
6
Operating a SmartBoard device
which is not ADR-approved (with
battery operation) is prohibited
for ADR vehicles!
Responsibility lies with the vehicle
operator.
Abb. 6 Vehicle in accordance with ADR
(battery operation prohibited)
Abb. 7 Vehicle without ADR
(Standard design with battery operation)
An ADR-compatible SmartBoard device
is to be installed in accordance with the
report TUEH - TB 2007 - 132.00.
The report is available at
www.wabco-auto.com.

WARNING
Vehicle moves!
If the hand brake is released,
for example, following the
unloading process, the body can
suddenly spring up as the air
suspension lifts the vehicle with
to their bellows still being full
and the load having been
removed - impact/crush hazard!
Post a visible sign on the steering
wheel indicating that work is being
performed on the vehicle and that the
brake must not be activated.
 Keep persons away from the
vehicle's danger zone.
Check before activating the relaxation
function that no persons/animals are
located in the vehicle's danger zone.

WARNING
Lift axle lowering!
Persons can be hit/crushed
under the wheel when the lift
axle is lowered!
 Keep persons away from the
vehicle's danger zone.
Check before activating the lift axle
that no persons/animals are located in
the vehicle's danger zone.

SmartBoard Display / Controller (EN) 13
Maintenance / Cleaning / Disposal 1
2
3
4
5
6
7
8
Cleaning/Servicing the SmartBoard device
Disconnect the power supply
when performing cleaning and
maintenance work!
The SmartBoard device in itself is
maintenance-free.
Occasional cleaning, depending
on the operating environment,
is recommended.
Cleaning
Abb. 8 SmartBoard device closed
1Protective cover
To prevent damage to the
display or keypad, no solvents or
other chemicals must come into
contact with the SmartBoard
device.
The SmartBoard device must only be
cleaned with a soft, damp cloth without
cleaning agent.
NOTICE
Using high-pressure cleaners!
The SmartBoard device can be damaged
by high-pressure cleaners.
Ensure before cleaning that the cover
of the SmartBoard device is closed.
 Do not spray water jets directly
at the SmartBoard device.
Open the protective cover and clean
the user interface / display with a soft /
damp cloth.
Check that the protective cover is not
damaged - replace the protective
cover if cracks/splits are detected in
the plastic.
SB - 005
1

Maintenance / Cleaning / Disposal
14 SmartBoard Display / Controller (EN)
6
Performing diagnostics
Abb. 9 Menu message
1System providing the message
2Affected component
3Type of error (code)
The diagnostics are carried out using the
diagnostics interface of the trailer EBS E
or the ISO plug-in connection via CAN.
The SmartBoard device must be
connected to the trailer EBS for this and
the vehicle supplied with power by the
ABS socket.
The diagnostics enable the following
functions:
– Display of diagnostic messages
– SmartBoard parameter setting
– Update of the SmartBoard's internal
operating software
– Saving a start screen (splash image)
to the SmartBoard
To perform diagnostics, you require:
– a suitable diagnostic connection
– Hardware: PS / Laptop and
Diagnostic Interface Set
– Diagnostic software
Also follow the SmartBoard
device operating instructions for
reading the code messages.
The code messages are specific for the
installed system/components
(TEBS D / TEBS E / IVTM).
Read error type (code)
Read and evaluate the message in
accordance with the displayed error
type (Abb. 9/ 3).
SB - 004
1
23
Code Meaning
00. Value too high
01. Value too low
02. Data is irregular or incorrect
03. Overvoltage / short circuit
to 24 V
04. undervoltage / short circuit
to ground
05. Supply-line interruption
06. Power too high or power circuit
laid to ground
07. Air gap too large
08. Slip
09. Signal failure
10. Upward/downward jump
11/12 See error information
13. Characteristic curve error
14. Special errors / see error information
15. See error information / residual pres-
sure

SmartBoard Display / Controller (EN) 15
Maintenance / Cleaning / Disposal 1
2
3
4
5
6
7
8
Battery replacement
Not applicable to the ADR
version!
Batteries may only be replaced
at authorised speciality
workshops.
The SmartBoard has a replaceable
battery.
The battery status can be accessed in
the menu: <Extras> <System Info>
<SmartBoard>.
If the battery is flat, the SmartBoard can
only be operated using an existing power
supply from the tractor vehicle.
A repair kit is available as
No. 446 192 920 2 which includes a
description of the work steps in detail.
Also see the spare parts sheet at
www.wabco-auto.com
Menu item: INFORM.
Abb. 10 Battery display
The battery's service life is designed for
an average of 5 years.
The service life may be shorter if the
device is frequently used on an
unhitched trailer.
When the battery has only 10% of its
original charge, the "Battery almost flat"
message appears for 1 second following
the start logo and disclaimer is shown for
1 second after the device is switched on.
Disposal
Batteries are hazardous
waste!
They must never be disposed of
in household waste.
Dispose of hazardous waste in
compliance with the national
environmental protection regulations.
The SmartBoard device can be taken
to a recycling centre as an electronic
device in accordance with the national
regulations.

16 SmartBoard Display / Controller (EN)
EC conformity
6
Humbaur GmbH herewith confirms its
compliance with all relevant EU direc-
tives for the approval and safe operation
of the SmartBoard device.
You can request an EU declaration of
conformity from us separately.
EN|xxxxxx|original|05-2016
