Wacker Neuson MP70 User manual

5300407286 01 0614
5300407286
Operator’s Manual
Vibroplate
MP70
EN

Copyright
notice
© Copyright 2014 by Wacker Neuson Corporation.
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by Wacker Neuson Corporation
represents an infringement of valid copyrights. Violators will be prosecuted.
Trademarks All trademarks referenced in this manual are the property of their respective owners.
Manufacturer Wacker Neuson Manila Incorporated
Lot 2,Blk 1 Phase 3, PEZA Drive, First Cavite Industrial Estate, Brgy. Langkaan
Dasmariñas, Cavite, Philippines 4126
Tel: [phone] Fax: [phone]
www.wackerneuson.com
Original
instructions
This Operator’s Manual presents the original instructions. The original language of this
Operator’s Manual is American English.

07PMdroweroF
wpm_tx003784gb.fm 3
Foreword
SAVE THESE INSTRUCTIONS—This manual contains important instructions for
the machine models listed below. These instructions must be followed during
installation and maintenance of the machine (and battery, if equipped).
Machines
covered in
this manual
Machine
identification

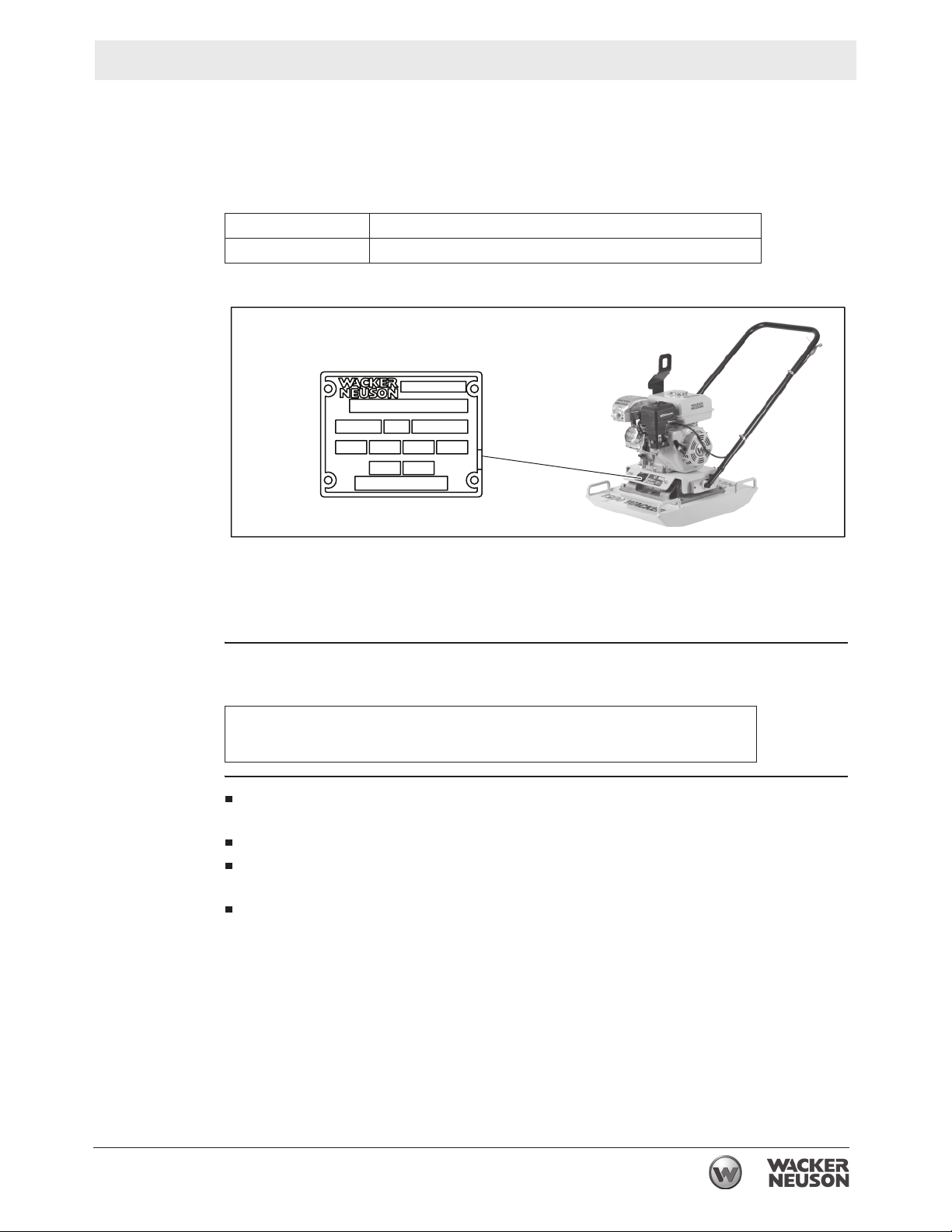

A nameplate listing the model number, item number, revision number, and serial
number is attached to this machine. The location of the nameplate is shown above.
Serial number
(S/N)
For future reference, record the serial number in the space provided below. You will
need the serial number when requesting parts or service for this machine.
Machine
documentation
From this point forward in this documentation, Wacker Neuson Manila Inc. will
be referred to as Wacker Neuson.
Keep a copy of the Operator’s Manual with the machine at all times.
Use the separate Parts Book supplied with the machine to order replacement
parts.
If you are missing any of these documents, please contact Wacker Neuson to
order a replacement or visit www.wackerneuson.com.
When ordering parts or requesting service information, be prepared to provide the
machine model number, item number, revision number, and serial number.
MachineItem Number
MP70 0630243
wpm_gr012086
Serial Number:

Foreword MP70
wpm_tx003784gb.fm 4
Expectations
for
information in
this manual
This manual provides information and procedures to safely operate and
maintain the above Wacker Neuson model(s). For your own safety and to
reduce the risk of injury, carefully read, understand, and observe all instructions
described in this manual.
Wacker Neuson expressly reserves the right to make technical modifications,
even without notice, which improve the performance or safety standards of its
machines.
The information contained in this manual is based on machines manufactured
up until the time of publication. Wacker Neuson reserves the right to change
any portion of this information without notice.
The illustrations, parts, and procedures in this manual refer to Wacker Neuson
factory-installed components. Your machine may vary depending on the
requirements of your specific region.
CALIFORNIA
Proposition
65 Warning
Combustion exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
Laws
pertaining to
spark
arresters
NOTICE: State Health Safety Codes and Public Resources Codes specify that in
certain locations spark arresters be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed to prevent accidental dis-
charge of sparks or flames from the engine exhaust. Spark arresters are qualified
and rated by the United States Forest Service for this purpose. In order to comply
with local laws regarding spark arresters, consult the engine distributor or the local
Health and Safety Administrator.
Manufacturer’s
approval
This manual contains references to approved parts, attachments, and modifica-
tions. The following definitions apply:
Approved parts or attachments are those either manufactured or provided by
Wacker Neuson.
Approved modifications are those performed by an authorized Wacker
Neuson service center according to written instructions published by Wacker
Neuson.
Unapproved parts, attachments, and modifications are those that do not
meet the approved criteria.
Unapproved parts, attachments, or modifications may have the following conse-
quences:
Serious injury hazards to the operator and persons in the work area
Permanent damage to the machine which will not be covered under warranty
Contact your Wacker Neuson dealer immediately if you have questions about
approved or unapproved parts, attachments, or modifications.

wpm_bo5000407286_01TOC.fm 5
Table of Contents
MP70
Foreword 3
1 Safety Information 7
1.1 Signal Words Used in this Manual ....................................................... 7
1.2 Machine Description and Intended Use ............................................... 8
1.3 Operating Safety .................................................................................. 9
1.4 Operator Safety while Using Internal Combustion Engines ............... 11
1.5 Service Safety .................................................................................... 11
2 Labels 14
2.1 Label Locations .................................................................................. 14
2.2 Label Meanings .................................................................................. 15
3 Lifting and Transporting 17
4 Operation 18
4.1 Preparing the Machine for First Use ................................................... 18
4.2 Recommended Fuel ........................................................................... 18
4.3 Application .......................................................................................... 19
4.4 Before Starting the Machine ............................................................... 19
4.5 Starting the Machine ........................................................................... 20
4.6 Stopping the Machine ......................................................................... 21
4.7 Operation ............................................................................................ 21

6 wpm_bo5000407286_01TOC.fm
Table of Contents MP70
5 Maintenance 22
5.1 Maintaining the Emission Control System ...........................................22
5.2 Periodic Maintenance Schedule ..........................................................22
5.3 Servicing the Spark Plug .....................................................................24
5.4 Servicing the Air Cleaner .....................................................................25
5.5 Changing the Engine Oil .....................................................................26
5.6 Adjusting the Engine Speed ................................................................27
5.7 Adjusting the Carburetor .....................................................................27
5.8 Cleaning the Sediment Cup .................................................................28
6 Troubleshooting 29
7 Technical Data 30
7.1 Engine Data..........................................................................................30
7.2 Machine ...............................................................................................31
7.3 Sound and Vibration Measurements....................................................31
8 Dimensions 32

wpm_si000880gb.fm 7
MP70 Safety Information
1 Safety Information
1.1 Signal Words Used in this Manual
This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE
signal words which must be followed to reduce the possibility of personal injury,
damage to the equipment, or improper service.
NOTICE: Used without the safety alert symbol, NOTICE indicates a situation
which, if not avoided, could result in property damage.
Note: A Note contains additional information important to a procedure.
This is the safety alert symbol. It is used to alert you to potential personal hazards.
fObey all safety messages that follow this symbol.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
fTo avoid death or serious injury from this type of hazard, obey all safety
messages that follow this signal word.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
fTo avoid possible death or serious injury from this type of hazard, obey all safety
messages that follow this signal word.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
fTo avoid possible minor or moderate injury from this type of hazard, obey all
safety messages that follow this signal word.

wpm_si000880gb.fm 8
MP70 Safety Information
1.2 Machine Description and Intended Use
The Wacker Neuson Vibratory plate is designed for the compaction of sand, gravel,
grit, granular materials, segmental brick paving and hot and cold asphalt, (when
fitted with the optional water sprinkler system).
This machine is optimally suited for a variety of compaction applications with high
speed and simple maneuverability. It has:
Compact design with central mounted, fully closed exciter for an even spread of
compactive force over the whole base plate.
Sturdy 4-stroke petrol or diesel engine with recoil starter is isolated from
vibration by rubber dampers.
Vibration isolated reversible handle with throttle control for ease of operation
and reduced operator fatigue.
This machine has been designed and built strictly for the intended use described
above. Using the machine for any other purpose could permanently damage the
machine or seriously injure the operator or other persons in the area. Machine
damage caused by misuse is not covered under warranty.
The following are some examples of misuse:
Using the machine as a ladder, support, or work surface
Using the machine to carry or transport passengers or equipment
Operating the machine outside of factory specifications
Operating the machine in a manner inconsistent with all warnings found on the
machine and in the Operator’s Manual.
This machine has been designed and built in accordance with the latest global
safety standards. It has been carefully engineered to eliminate hazards as far as
practicable and to increase operator safety through protective guards and labeling.
However, some risks may remain even after protective measures have been taken.
They are called residual risks. On this machine, they may include exposure to:
Heat, noise, exhaust, and carbon monoxide from the engine
Fire hazards from improper refueling techniques
Fuel and its fumes
Personal injury from improper lifting techniques
To protect yourself and others, make sure you thoroughly read and understand the
safety information presented in this manual before operating the machine.

wpm_si000880gb.fm 9
MP70 Safety Information
1.3 Operating Safety
Operator
training
Before operating the machine:
Read and understand the operating instructions contained in all manuals
delivered with the machine.
Familiarize yourself with the location and proper use of all controls and safety
devices.
Contact Wacker Neuson for additional training if necessary.
When operating this machine:
Do not allow improperly trained people to operate the machine. People
operating the machine must be familiar with the potential risks and hazards
associated with it.
Only trained personnel are permitted to start, operate, and shut down the machine.
They also must meet the following qualifications:
have received instruction on how to properly use the machine
are familiar with required safety devices
The machine must not be accessed or operated by:
children
people impaired by alcohol or drugs
Application
area
Be aware of the application area.
Keep unauthorized personnel, children, and pets away from the machine.
Remain aware of changing positions and the movement of other equipment and
personnel in the application area/job site.
Be aware of the application area.
Do not operate the machine in areas that contain flammable objects, fuels, or
products that produce flammable vapors.
Safety
devices,
controls, and
attachments
Only operate the machine when:
All safety devices and guards are in place and in working order.
All controls operate correctly.
The machine is set up correctly according to the instructions in the Operator’s
Manual.
The machine is clean.
The machine’s labels are legible.
To ensure safe operation of the machine:
Do not operate the machine if any safety devices or guards are missing or
inoperative.
Do not modify or defeat the safety devices.
Only use accessories or attachments that are approved by Wacker Neuson.

wpm_si000880gb.fm 10
MP70 Safety Information
Safe
operating
practices
When operating this machine:
Remain aware of the machine’s moving parts. Keep hands, feet, and loose
clothing away from the machine’s moving parts.
When operating this machine:
Do not operate a machine in need of repair.
Personal
Protective
Equipment
(PPE)
Wear the following Personal Protective Equipment (PPE) while operating this
machine:
Close-fitting work clothes that do not hinder movement
Safety glasses with side shields
Hearing protection
Safety-toed footwear
Transporting
and installing
the machine
Never allow untrained personnel to operate or service the vibrator plate.
Do not stand under the machine while it is being hoisted or moved.
Do not attach equipment to the machine when it is suspended.
Always transport the machine in an upright position.
Always position and operate the machine on a firm, noncombustible, level
surface.
Always make certain the machine is well-grounded and securely fastened to a
good earthen ground per national and local regulations.
General
Safety
Do not operate the machine when open containers of fuel, paint, or other
flammable liquids are near.
Do not operate the machine, or tools attached to the machine, with wet hands..
Do not enclose or cover the machine when it is in use or when it is hot.
Do not operate the machine in snow, rain, or standing water.
Do not stand on the machine.
Machine
vibration
Vibratory plate vibrate in normal use. During and after the use of the machine,
inspect the machine before storing it.
Have damaged items repaired or replaced as necessary.
= After use Store the machine properly when it is not being used. The machine should be
stored in a clean, dry location out of the reach of children.
Cleaning When cleaning and servicing the machine:
Keep the machine clean and free of debris such as leaves, paper, cartons, etc.
Keep the labels legible.
When cleaning the machine:
Do not clean the machine while it is running.
Never use gasoline or other types of fuels or flammable solvents to clean the
machine. Fumes from fuels and solvents can become explosive.

wpm_si000880gb.fm 11
MP70 Safety Information
1.4 Operator Safety while Using Internal Combustion Engines
Refueling
safety
When refueling the engine:
Do not smoke.
Do not refuel if the machine is sitting in a truck fitted with a plastic bed liner.
Static electricity can ignite the fuel or fuel vapors.
Do not refuel a hot or running engine.
Do not refuel the engine near an open flame.
When refueling the engine, always:
Refill the fuel tank in a well-ventilated area.
Replace the fuel tank cap after refueling.
Operating
safety
When operating the machine:
Check the fuel lines and the fuel tank for leaks and cracks before starting the
engine.
Do not run the machine if fuel leaks are present or the fuel lines are loose.
Do not run the engine near open flames.
Do not start the engine if fuel has spilled or a fuel odor is present. Move the
machine away from the spill and wipe it dry before starting.
Do not smoke while operating the machine.
1.5 Service Safety
Service
training
Before servicing or maintaining the machine:
Read and understand the instructions contained in all manuals delivered with
the machine.
Familiarize yourself with the location and proper use of all controls and safety
devices.
Only trained personnel shall troubleshoot or repair problems occurring with the
machine.
Contact Wacker Neuson for additional training if necessary.
When servicing or maintaining this machine:
Do not allow improperly trained people to service or maintain the machine.
Personnel servicing or maintaining the machine must be familiar with the
associated potential risks and hazards.
WARNING
Internal combustion engines present special hazards during operation and fueling.
Failure to follow the warnings and safety standards could result in severe injury or
death.
fRead and follow the warning instructions in the engine owner’s manual and the
safety guidelines below.

wpm_si000880gb.fm 12
MP70 Safety Information
Precautions Follow the precautions below when servicing or maintaining the machine.
Read and understand the service procedures before performing any service to
the machine.
All adjustments and repairs must be completed before operating the machine.
Do not operate the machine with a known problem or deficiency.
All repairs and adjustments shall be completed by a qualified technician.
Turn off the machine before performing maintenance or making repairs.
Remain aware of the machine’s moving parts. Keep hands, feet, and loose
clothing away from the machine’s moving parts.
Re-install the safety devices and guards after repair and maintenance
procedures are complete.
Machine
modifications
When servicing or maintaining the machine:
Use only accessories/attachments that are approved by Wacker Neuson.
When servicing or maintaining the machine:
Do not defeat safety devices.
Do not modify the machine without the express written approval of Wacker
Neuson.
Replacing
parts and
labels
Replace worn or damaged components.
Replace all missing and hard-to-read labels.
When replacing electrical components, use components that are identical in
rating and performance to the original components.
When replacement parts are required for this machine, use only Wacker
Neuson replacement parts or those parts equivalent to the original in all types of
specifications, such as physical dimensions, type, strength, and material.

wpm_si000880gb.fm 13
MP70 Safety Information
Cleaning When cleaning and servicing the machine:
Keep the machine clean and free of debris such as leaves, paper, cartons, etc.
Keep the labels legible.
When cleaning the machine:
Do not clean the machine while it is running.
Never use gasoline or other types of fuels or flammable solvents to clean the
machine. Fumes from fuels and solvents can become explosive.
Personal
Protective
Equipment
(PPE)
Wear the following Personal Protective Equipment (PPE) while servicing or
maintaining this machine:
Close-fitting work clothes that do not hinder movement
Safety glasses with side shields
Hearing protection
Safety-toed footwear
In addition, before servicing or maintaining the machine:
Tie back long hair.
Remove all jewelry (including rings).
Precautions Always turn the engine off before servicing the machine. If the engine has
electric start, disconnect the negative terminal on the battery before servicing
the machine.
Always let the engine cool before transporting or servicing the machine.

wpm_si000881gb.fm 14
MP70 Labels
2 Labels
2.1 Label Locations
wpm_gr012087
B
LI
H
I
J
M

wpm_si000881gb.fm 15
MP70 Labels

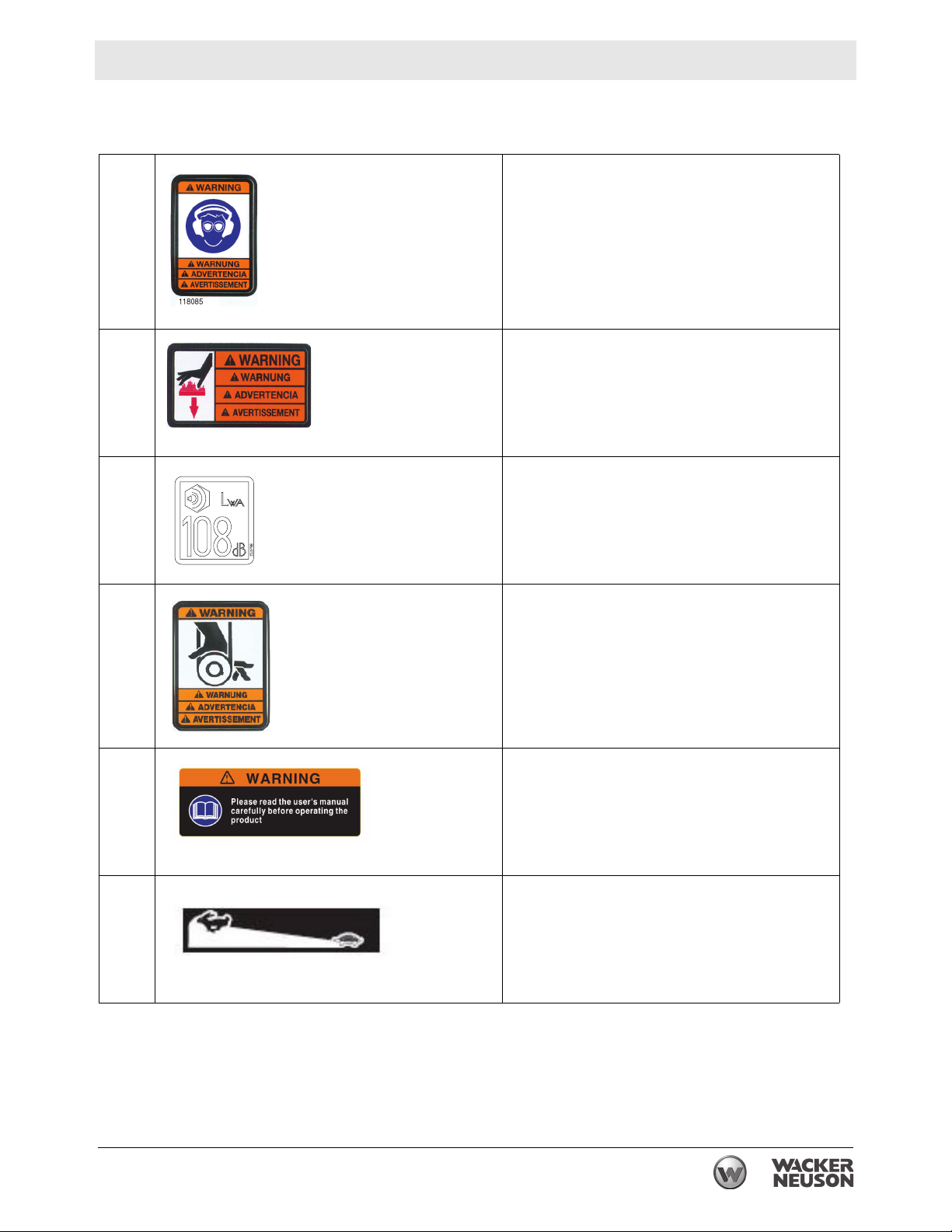

2.2 Label Meanings
AWARNING!
Always wearing hearing and eye protection
when operating this machine.
BWARNING
Hot surface
CGuaranteed sound power level in dB(A).
DWARNING
Hand injury if caught in moving belt.
Always replace beltguard.
ERead the operator’s manual carefully before
operating the product.
FThrottle control lever:
Turtle = Idle or Slow
Rabbit = Full or Fast

wpm_si000881gb.fm 16
MP70 Labels
GEngines emit carbon monoxide; operate only
in well-ventilated area. Read the operator’s
Manual
No sparks, flames, or burning objects near the
machine. Shut off the engine before refueling.
HCompany logo
ICompany label
JA nameplate listing the model number, item
number, revision number, and serial number is
attached to each unit. Please record the
information found on this nameplate so it will
be available should the nameplate become
lost or damaged. When ordering parts or
requesting service information, you will always
be asked to specify the model number, item
number, revision number, and serial number of
the unit.
KThis machine may be covered by one or more
patents.
LClean the air filter every 50 hours of use or
every 10 hours in a very dusty sites. Wash the
foam pre-cleaner with cleaning detergents.
Clean the paper filter by tapping the element
against a hard surface or blowing out the dust
with compressed air. Never clean with a
brush.
MChoke lever label

wpm_tx003785gb.fm 17
MP70 Lifting and Transporting
3 Lifting and Transporting
Lifting the
Machine
This machine is heavy enough to cause injury if proper lifting techniques are not
used. Observe the following guidelines when lifting the vibroplate.
Do not attempt to lift the machine unassisted. Use appropriate lifting equipment
such as slings, chains hooks, ramps or jacks.
Make sure lifting equipment is attached securely and has enough weight-
bearing capacity to lift or hold the machine safely.
Remain aware of the location of other people nearby when lifting the machine.
Transporting
the Machine
Observe the following guidelines when transporting the vibroplate to and from the
job site.
Drain the fuel tank before transporting the machine.
Ensure that the machine is securely strapped down in the transport vehicle to
prevent it from sliding or tipping.
Do not refuel the machine in or on the transport vehicle. Move the machine to its
operating location and then fill the fuel tank.
wpm_gr012091
ab
c

wpm_tx003786gb.fm 18
MP70 Operation
4 Operation
4.1 Preparing the Machine for First Use
1. Make sure all loose packaging materials have been removed from the machine.
2. Check the machine and its components for damage. If there is visible damage,
do not operate the machine! Contact your Wacker Neuson dealer immediately
for assistance.
3. Take inventory of all items included with the machine and verify that all loose
components and fasteners are accounted for.
4. Attach component parts not already attached.
5. Add fluids as needed and applicable, including fuel, engine oil, and battery acid.
6. Move the machine to its operating location.
4.2 Recommended Fuel
The engine requires regular grade unleaded gasoline. Use only fresh, clean
gasoline. Gasoline containing water or dirt will damage the fuel system. Consult the
engine owner’s manual for complete fuel specifications.
Use of
oxygenated
fuels
Some conventional gasolines are blended with alcohol. These gasolines are
collectively referred to as oxygenated fuels. If you use an oxygenated fuel, be sure
it is unleaded and meets the minimum octane rating requirement.
Before using an oxygenated fuel, confirm the fuel’s contents. Some states and
provinces require this information to be posted on the fuel pump.
The following is the Wacker Neuson approved percentage of oxygenates:
Ethanol (Ethyl or grain alcohol) 10% by volume. You may use gasoline containing up to
10% ethanol by volume (commonly referred to as E10). Gasoline containing more
than 10% ethanol (such as E15, 0r E85) may not be used because it could damage
the engine.
If you notice any undesirable operating symptoms, try another service station, or
switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use of an
oxygenated fuel containing more than the percentages of oxygenates above are
not covered under warranty.

wpm_tx003786gb.fm 19
MP70 Operation
4.3 Application
This plate is designed for compacting loose, granular soils, gravel, and paving
stones. It is intended to be used in confined areas and areas next to structures
such as walls, curbs, and foundations. Plates equipped with water tanks can be
used for compacting asphalt.
This plate is not recommended for compacting cohesive soils with a heavy clay
content. For cohesive soil, use a vibratory rammer or sheepsfoot roller.
4.4 Before Starting the Machine
Read and understand the safety and operating instructions at the beginning of this
manual.
Check Oil level in the engine
Fuel level
Condition of the air cleaner
Tightness of the external fasteners
Condition of the fuel lines

wpm_tx003786gb.fm 20
MP70 Operation
4.5 Starting the Machine
Procedure Perform the procedures below to start the machine.
1. Turn the fuel cock to the “ON” (OPEN) position (a1).
Note: If the engine is cold, move the choke lever to close position (b1). If the
engine is hot, set the choke to open position (b2).
2. Move the governor lever to left a little (c1).
3. Turn the engine switch to “ON” postion. (d1)
4. Pull the starter rope (e).
5. Note: Don’t allow the starter grip to snap back against the engine. Return it
gently to prevent damage to the starter.
6. Preheat the engine and push back the choke lever to the “OPEN” position (f1).
7. Move the throttle lever to proper position to make the gasoline engine run at
required velocity. (g1)
Result The machine is now ready
abc
d
e
g
f
g1
a1 b1 b2
c2
c1
d1
f1
d2
a2
wpm_gr011255
