Wacom DTH-2242 User manual

EN Quick start guide
KR 퀵스타트 가이드
TC 快速入門指南
SC 快速入门指南
DTK-2241
DTH-2242
DTH2242DTK2241QSGE.indb1DTH2242DTK2241QSGE.indb1 2012/11/2114:47:162012/11/2114:47:16

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

This Class [B] digital apparatus complies with Canadian ICES-003.


Important information
Install the driver software for correct operation.
Compatible operating systems:
Windows 8
Windows 7 (SP1 or later)
Windows Vista (SP2 or later)
Windows XP (SP3 or later)
Mac OS X v10.6.8 or later
Only the DTK-2241 supports Windows Vista (SP2 or later) and Windows XP (SP3 or later).
The following items provide help and support information for the pen display.
Help and support information Description
Quick Start Guide
(This guide)
Provides a general overview of the pen display. It includes information about connecting and
using the pen display.
User's Manual
Downloaded to your computer when the driver software is installed.
Refer to the User's Manual to learn useful information such as changing cables, using a VESA
mount, troubleshooting, etc.
Important Product Information Included on the installation CD. It contains precautions, product specifications, and other
important information. Read this information carefully before use.
To prevent scratching or damaging the pen display, replace your pen nibs regularly, and do not use felt nibs on the display.
For additional information about recycling programs for electronics please go to http://www.wacom.com/ewaste.
•
•
•
•
EN
DTH2242DTK2241QSGE.indb2DTH2242DTK2241QSGE.indb2 2012/11/2114:47:172012/11/2114:47:17

1
EN
Welcome
Dear Customer,
Thank you for your purchase of this DTK-2241/DTH-2242 interactive pen display. We appreciate your trust in us to provide you with the best
and most reliable tools possible. We hope that you will enjoy this new pen display, which was designed to help you work more effectively
and meets Wacom's exacting quality standards.
To ensure that you get the most out of your new Wacom product, please read this Quick Start Guide and browse the User's Manual. If you
cannot find the answers you need, please contact us.
Sincerely,
The Wacom team
DTH2242DTK2241QSGE.indb1DTH2242DTK2241QSGE.indb1 2012/11/2114:47:172012/11/2114:47:17

2

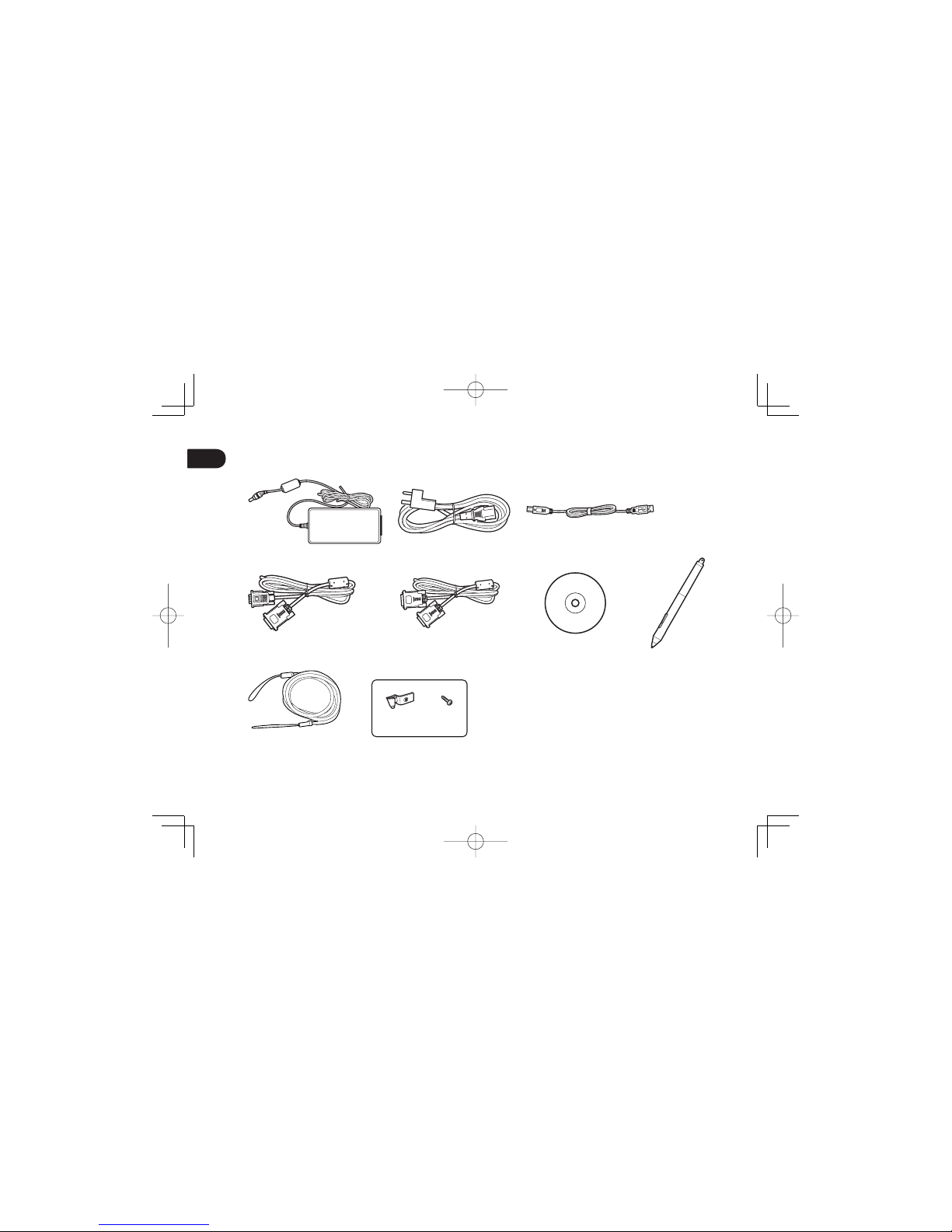

EN Supplied accessories
Power adapter Power cable USB cable
VGA to DVI-I cable DVI-D to DVI-I cable Installation CD Pen
Pen holder Screw
Pen tether
Some accessories are not supplied with all models.
See the User's Manual for information on replacing the pen nib.
DTH2242DTK2241QSGE.indb2DTH2242DTK2241QSGE.indb2 2012/11/2114:47:172012/11/2114:47:17

3
EN
Connecting the pen display
1 Turn off your computer.
2 Select the proper video cable for your computer. Connect to the DVI-I IN connector on the pen display, then to
the video output connector on your computer.
DTH2242DTK2241QSGE.indb3DTH2242DTK2241QSGE.indb3 2012/11/2114:47:182012/11/2114:47:18

4
EN
3 Connect the power adapter to the power connector on the pen display and to the power cable, then connect the
power cable to an AC outlet.
DTH2242DTK2241QSGE.indb4DTH2242DTK2241QSGE.indb4 2012/11/2114:47:182012/11/2114:47:18

5
EN

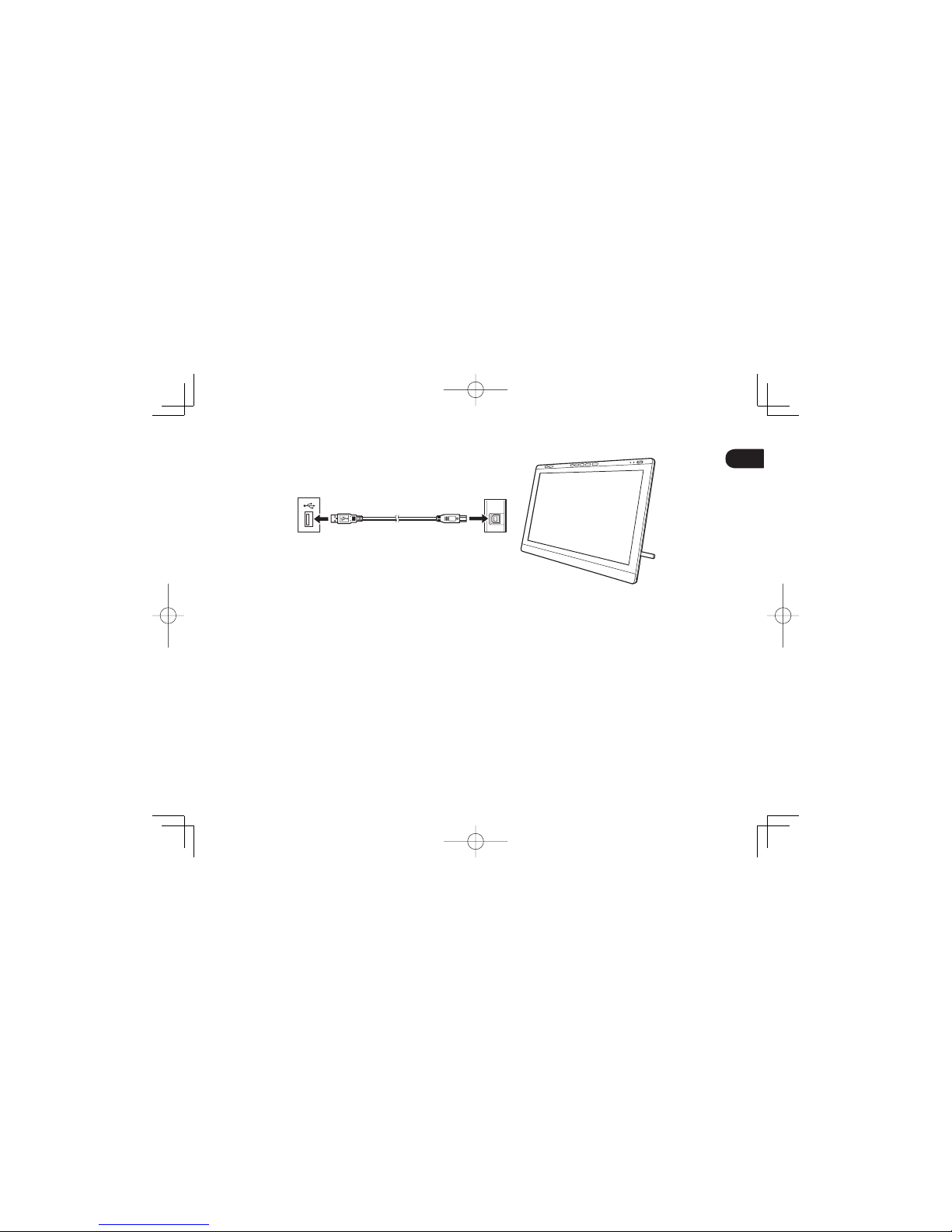

4 Connect the USB cable to the USB connector on the pen display and a USB connector on your computer.
5 Turn on the pen display. The power LED will light orange. When a video signal is detected, the LED turns blue.
6 Turn on your computer.
DTH2242DTK2241QSGE.indb5DTH2242DTK2241QSGE.indb5 2012/11/2114:47:182012/11/2114:47:18

6
EN Software installation
Save your work and close all open applications.
1 Insert the installation CD of the pen display. If the software installer menu is not automatically displayed, double-
click on the Install icon located on the CD.
If your computer does not have a CD/DVD drive, download the software of the pen display from www.wacom.com.
2 Click Install Tablet and follow the prompts.
Click the Important Product Information menu in the dialog to view the Important Product Information guide for the pen
display.
It includes product safety precautions, specifications, and other important information. The User's Manual is downloaded
to your computer when the driver software is installed.
DTH2242DTK2241QSGE.indb6DTH2242DTK2241QSGE.indb6 2012/11/2114:47:182012/11/2114:47:18

7
EN
Calibrating the pen display
For optimum performance, you must calibrate the pen display to align the screen cursor with the position of the pen on the
display screen. This is required to compensate for the viewing angle, and to adjust for parallax. Position the pen display at
the angle that you are going to be working from, then follow the procedure below to perform calibration.
You may want to re-calibrate whenever you significantly change your working position or viewing angle.
1 Open the Wacom Tablet control panel.
See page 12 for information on the Wacom Tablet control panel.
2 Click the Calibrate tab.
3 Click Calibrate....

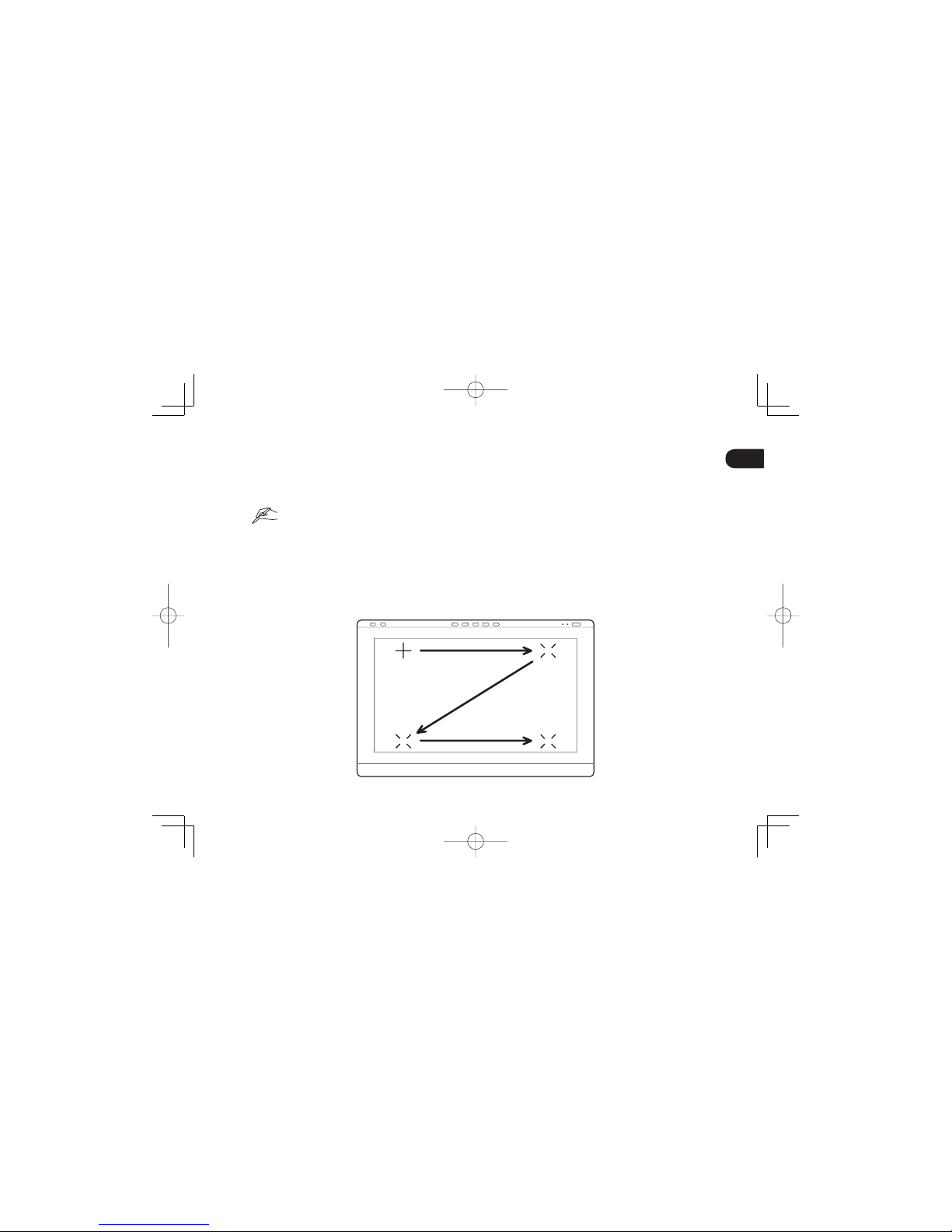

4 Starting at the upper left corner, click the center of each cross mark that appears on the screen with the pen.
The position adjustment is completed when the cross marks disappear.
Click OK and close the control panel after saving the adjustment settings.
•
•
DTH2242DTK2241QSGE.indb7DTH2242DTK2241QSGE.indb7 2012/11/2114:47:182012/11/2114:47:18

8
EN Changing the angle of the pen display
1 Pull the stand adjustment lever, and move the display stand to your desired angle.
2 Release the lever to lock the stand in position.
DTH2242DTK2241QSGE.indb8DTH2242DTK2241QSGE.indb8 2012/11/2114:47:182012/11/2114:47:18

9
EN
Adjusting the pen display to a horizontal position
You can lay the pen display flat on your work surface with the display stand closed.
Attaching the pen holder
Pen
Installation hole
Installation hole
Pen holder
Screw
You can turn the pen holder; however,
do not turn it more than 180 degrees.
DTH2242DTK2241QSGE.indb9DTH2242DTK2241QSGE.indb9 2012/11/2114:47:182012/11/2114:47:18

10

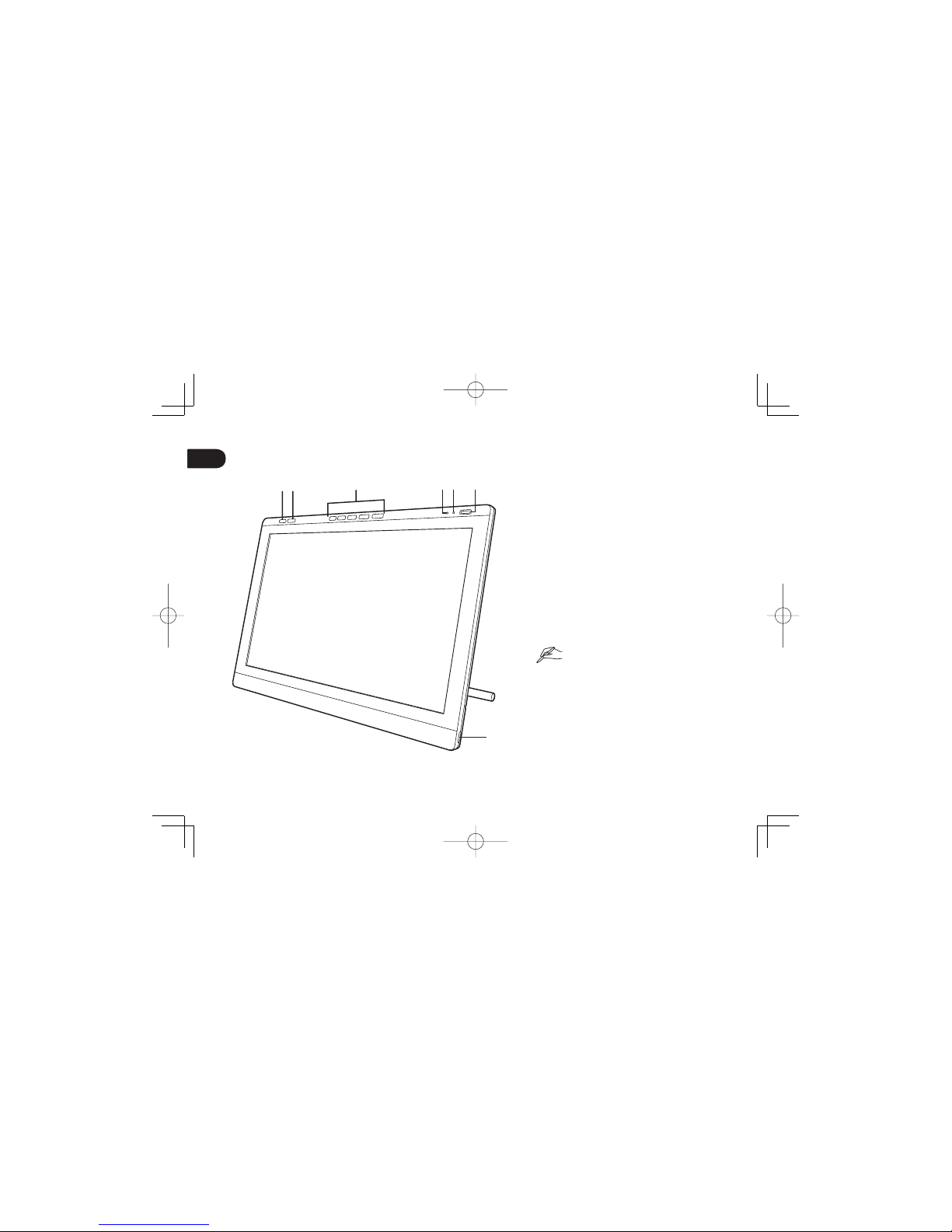

EN Getting to know the pen display
1. Control panel button
Pressing the button brings up the control panel.
2. OSD button
Pressing this button switches the 5 ExpressKeys
on the right to OSD buttons.
3. ExpressKeys
In ExpressKey mode, these buttons allow you to
set various shortcut functions.
In OSD mode, these buttons allow you to adjust
a variety of display settings.
4. Status LED
5. Power LED
6. Power button
7. USB ports (one on each side of the unit)
See the User's Manual for details about these
and other features.
•
•
12 3 4 5 6
7
DTH2242DTK2241QSGE.indb10DTH2242DTK2241QSGE.indb10 2012/11/2114:47:192012/11/2114:47:19

11
EN

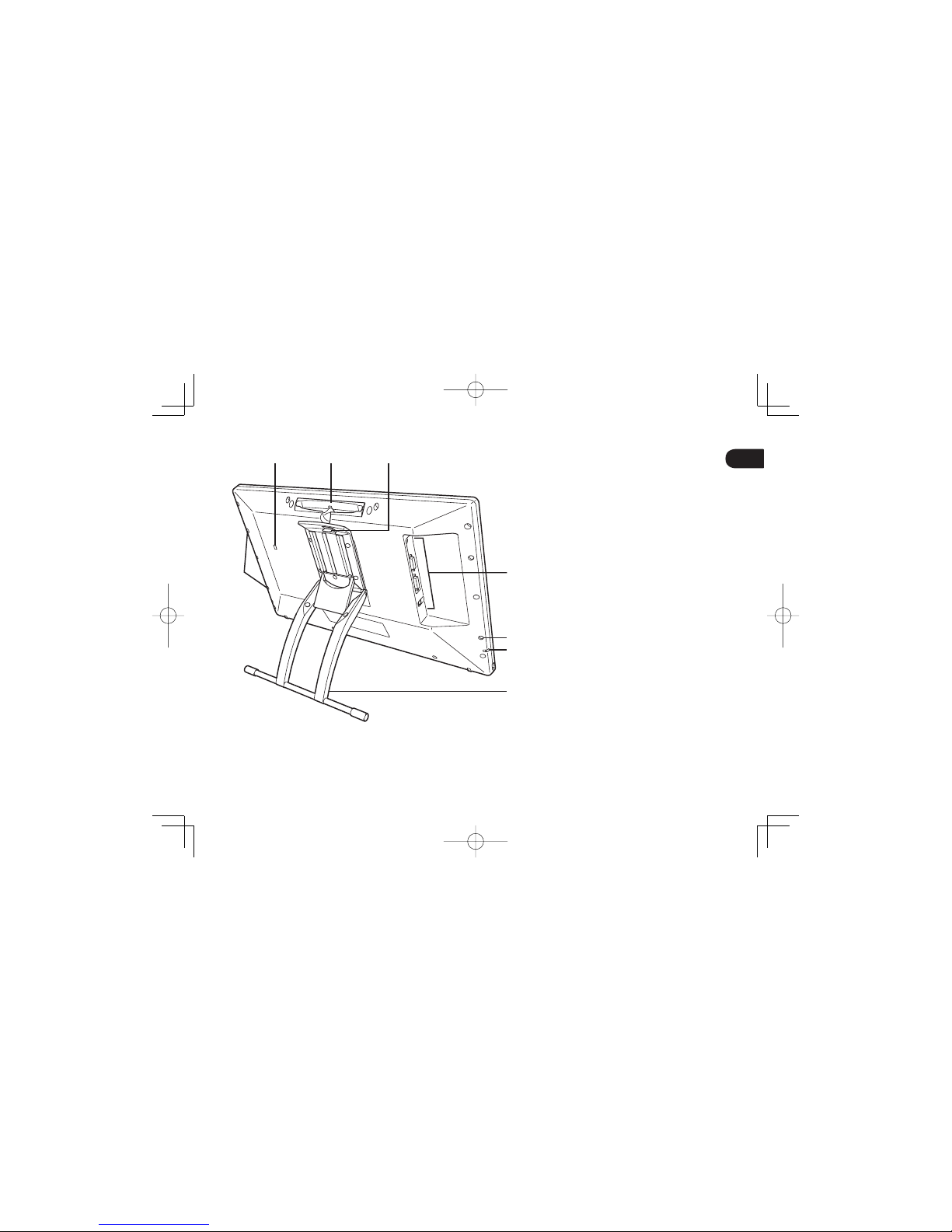

8. Kensington lock
9. Pen storage compartment
10. Stand adjustment lever
11. Connection panel
Power connector
DVI-I out connector
DVI-I in connector
USB connector
12. Pen tether attachment point
13. Display stand
14. Installation hole for the pen holder
•
•
•
•
8 9 10
11
12
13
14
14
DTH2242DTK2241QSGE.indb11DTH2242DTK2241QSGE.indb11 2012/11/2114:47:192012/11/2114:47:19

12
EN Customizing the pen display
To open the Wacom Tablet control panel, press the Settings button (see page 10). A diagram of the current pen display
settings appears on your screen. Click a setting to make changes using the Wacom Tablet control panel. You may also
follow the procedures below:
Windows 7/Vista/XP - Click Start > (All) Programs > Wacom Tablet > Wacom Tablet Properties.
Windows 8 - Start screen > Wacom Tablet Properties (Tile).
Mac - Open System Preferences > Wacom Tablet
See the User's Manual to learn how to customize the ExpressKeys and Radial Menu to increase your productivity.
Using touch with the pen display
The multi-touch is available only with the DTH-2242.
Multi-touch enables you to interact with a computer using only your fingertips on the pen display screen. Refer to your
User's Manual to learn about using touch with your pen display. You can aiso download the Wacom Gesture Guide from
www.wacom.com.
Registering the pen display and accessing additional benefits
When you install the driver, you will be given the opportunity to register the pen display. In some regions, this is required
to give you access to additional benefits, which may change from time to time.
Support options
For the latest information and software driver updates visit www.wacom.com, check the User's Manual, or contact Customer
Care at www.wacom.com/productsupport.
DTH2242DTK2241QSGE.indb12DTH2242DTK2241QSGE.indb12 2012/11/2114:47:192012/11/2114:47:19

DTH2242DTK2241QSGE.indb13DTH2242DTK2241QSGE.indb13 2012/11/2114:47:192012/11/2114:47:19

중요 정보
올바른 작동을 위해서 드라이버 소프트웨어를 설치하십시오.
호환되는 운영체제:
Windows 8
Windows 7(SP1 이상)
Windows Vista(SP2 이상)
Windows XP(SP3 이상)
Mac OS X 버전 10.6.8 이상
DTK-2241은Windows Vista(SP2 이상) 및Windows XP(SP3 이상)만지원합니다.
다음 항목은 펜디스플레이에 대한 도움과 지원을 제공합니다.
도움 및지원 정보 설명
퀵스타트 가이드
(본설명서)
펜디스플레이에 대한 일반적인 개요를 제공합니다.본설명서에는 펜디스플레이 연결 및사용에 관
한정보가 포함되어 있습니다.
사용자 설명서
드라이버 소프트웨어를 설치할 때컴퓨터에 다운로드됩니다.
사용자 설명서를 참조하면 케이블 교체, VESA 마운트 사용, 문제 해결 등과 같은 유용한 정보를 얻
을수있습니다.
중요한 제품 정보 설치 CD에들어 있습니다.주의 사항, 제품 규격, 기타 중요한 정보가 들어 있습니다.사용하기 전에
이정보를 잘읽어보십시오.
펜디스플레이의 긁힘이나 손상을 방지하려면 정기적으로 펜심을 교체하되, 펠트 펜심을 사용하지 마십시오.
전자제품 재활용 프로그램에 대한 자세한 내용은 http://www.wacom.com/ewaste에서 확인하십시오.
•
•
•
•
KR
DTH2242DTK2241QSGE.indb2DTH2242DTK2241QSGE.indb2 2012/11/2114:47:192012/11/2114:47:19

1
KR
환영합니다
고객님께,
DTK-2241/DTH-2242 양방향 펜디스플레이를 구매해 주셔서 감사합니다.가장 신뢰할 수있는 최고의 도구를 제공하고자 하는 저희의 노력을
신뢰해 주시는 점에 감사의 말씀을 드리고자 합니다.이새로운 펜디스플레이의 기능을 즐기실 수있기를 바랍니다.이제품은 귀하께서 더욱
효과적으로 작업하는데 도움을 제공할 수있도록 설계되었으며, Wacom의품질 표준을 정확하게 준수하여 제조되었습니다.
새로 출시된 Wacom 제품의 기능을 최대한 활용하려면 본퀵스타트 가이드와 사용자 설명서를 읽어 주시기 바랍니다.필요한 답변을 찾지 못
한경우에는 저희에게 연락해 주십시오.
감사합니다.
Wacom 팀
DTH2242DTK2241QSGE.indb1DTH2242DTK2241QSGE.indb1 2012/11/2114:47:192012/11/2114:47:19

2
KR
제공되는 액세서리
전원 어댑터 전원 케이블 USB 케이블
VGA - DVI-I 연결 케이블 DVI-D - DVI-I 연결 케이블 설치 CD 펜
펜홀더 나사
펜연결끈
일부 액세서리는 모든 모델에 다제공되지는 않습니다.
펜심 교체에 대한 내용은 사용자 설명서를 참조하십시오.
DTH2242DTK2241QSGE.indb2DTH2242DTK2241QSGE.indb2 2012/11/2114:47:192012/11/2114:47:19

3
KR
펜디스플레이 연결
1컴퓨터를 끕니다.
2컴퓨터에 맞는 올바른 비디오 케이블을 선택합니다.펜디스플레이의 DVI-I IN 커넥터에 케이블을 연결한 후컴퓨터
의비디오 출력 커넥터에 연결합니다.
DTH2242DTK2241QSGE.indb3DTH2242DTK2241QSGE.indb3 2012/11/2114:47:192012/11/2114:47:19
