USER’S MANUAL
Interactive Pen Display
Model:
DTU-1141 and DTU-1031X Interactive Pen Display
1
IndexContents
1
Index
Contents
Installation
Using the pen
Using and customizing the Radial Menu
Customizing the ExpressKeys
Application-specific settings
Troubleshooting
Technical support options
Contents

2
2
Interactive pen display
Index
Index
Contents
Contents
Interactive pen display
User’s Manual
Version 2.0, K1014
Copyright © Wacom Co., Ltd., 2014
All rights reserved. No part of this manual may be reproduced except for your express personal use.
Wacom reserves the right to revise this publication without obligation to provide notification of such changes.
Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right
to change any specifications and product configurations at its discretion, without prior notice and without obligation
to include such changes in this manual.
The above year indicates when this manual was prepared. However, the date of release to the users of the manual is
simultaneous with the introduction into the market of the applicable Wacom product.
Wacom is a registered trademark of Wacom Co., Ltd.
Adobe and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United
States and/or other countries. Microsoft, Windows, and Vista are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries. Apple, the Apple logo, and Macintosh are
trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
Any additional company and product names mentioned in this documentation may be trademarked and/or registered
as trademarks. Mention of third-party products is for informational purposes only and constitutes neither an
endorsement nor a recommendation. Wacom assumes no responsibility with regard to the performance or use of
these products.

3
3
Interactive pen display
Index
Index
Contents
Contents
CONTENTS
ABOUT THE MANUAL 4
Navigating the manual 5
YOUR INTERACTIVE PEN DISPLAY 6
Pen display features 6
Front view 7
Rear view 8
Pen display incline 9
Pen features 10
Pen Tether 10
INSTALLATION 11
System requirements 11
Step 1: Pen display installation 12
Step 2: Pen tablet installation 13
USB cable installation 13
Adding other display devices 14
WORKING WITH THE INTERACTIVE PEN DISPLAY 15
Ergonomics 15
Pen display orientation 15
Using the pen 16
Holding the pen 16
Positioning 16
Clicking 17
Dragging 17
Using the pen switch 18
Working with pressure sensitivity 18
Working with multiple monitors 18
Using the ExpressKeys 19
CUSTOMIZING 20
Opening the control panel 20
Control panel overview 21
Calibrating and adjusting the pen display 23
Customizing the pen 24
Adjusting tip feel and double-click 24
Advanced tip pressure settings 25
Customizing Pen mode and options 26
Customizing the ExpressKeys 27
Function settings 28
Using and customizing the Radial Menu 32
Working with Display Toggle 33
Application-specific settings 34
Creating an application-specific setting 35
Changing application-specific settings 36
Removing application-specific settings 36
TROUBLESHOOTING 37
Testing the interactive pen display 38
Testing your pen 39
Display troubleshooting 40
General display problems 40
Pen tablet troubleshooting 41
General problems 41
Windows-specific problems 44
Macintosh-specific problems 45
Technical support options 47
Obtaining driver downloads 48
APPENDIX 49
Caring for the interactive pen display 49
Replacing the pen tip 50
Using an alternate mount or stand 51
Uninstalling the interactive pen display 52
Managing preferences 53
Installing multiple tablets 54
Pen and digital ink capabilities in Windows 55
About the Windows Tablet PC Input Panel 56
Product information 57
Warranty Service 57
GLOSSARY 58
INDEX 60

4
4
Interactive pen display
Index
Index
Contents
Contents
ABOUT THE MANUAL
This document provides quick access to information about your interactive pen display. Click on a
navigation button or highlighted word to move through the document. The information is common to
Windows and Macintosh computers. Windows screen captures are shown, unless otherwise noted.
If you are new to electronic documentation, read navigating the manual.
• Go directly to Contents or Index topics by clicking on them.
•S
MALL CAPITAL LETTERS identify the names of keyboard keys, dialog boxes, and Control Panel options.
• You can use your viewer zoom-in tool to increase the size of the page on your display screen.
• The following information is not included with this product: information about your specific computer
hardware or operating system, or information about your application software. Your best source for this
information is the set of manuals and discs that came with your hardware, operating system, or
application.
• Many applications have built-in support for pen display features (such as pressure sensitivity).
Visit Wacom’s web site to find a listing of applications that support these features (see product
information).
• For information on how best to use pen display features within a specific application, see the
instructions in that application’s manuals.
Wacom’s philosophy is to continually improve all of its products. As a result, engineering changes and
improvements are made from time to time. Therefore, some changes, modifications, and improvements
may not be covered in this document.

5
5
Interactive pen display
Index
Index
Contents
Contents
NAVIGATING THE MANUAL
Use the navigation controls to move through the manual:
Go to front page.
Go to table of contents.
Go to index.
Go back to previous view.
Page back, or page forward.
Adobe®Reader®provides additional tools for using and printing the manual. See the Adobe Reader help
for more information.
Contents
Index

6
6
Interactive pen display
Index
Index
Contents
Contents
YOUR INTERACTIVE PEN DISPLAY
This manual describes the installation and use of interactive pen display DTU-1141 or DTU-1031X.
The Wacom Control Panel enables you to customize your pen and pen display settings. To learn more, see
customizing.
Pen display features
Pen display incline
Pen features
The following information is not included with this product: information about your specific computer
hardware or operating system, or information about your application software. Your best source for this
information is the set of manuals and discs that came with your hardware, operating system, or application.
Note: Not all product models are available in all regions.
For illustrations of the items included with your pen display, see the Quick Start Guide included in the
product box.
PEN DISPLAY FEATURES
Familiarize yourself with the features and components of your product.

7
7
Interactive pen display
Index
Index
Contents
Contents
FRONT VIEW
Pen Display Features
1 - Status LED
2 - Pen storage compartment
3 - Pen stand
4 - ExpressKeys
DTU-1141 ExpressKeys are shown as 1
through 4, from left to right (standard
Landscape mode)
The features of the DTU-1141 pen display are illustrated below and listed in the Pen Display Features box.
See Using the ExpressKeys for descriptions and a table of default ExpressKey functions.
Note: The DTU-1031X does not have ExpressKeys.
Place the pen into the storage compartment by inserting the nib end of the pen into the left side of the
compartment with the side switch up. Gently press the pen into the compartment. Take care not to damage
the pen nib.
Note: The DTU-1141 pen has a side switch, and the DTU-1031X pen does not. The DTU-1141 pen can be
used with the DTU-1031X. To obtain a DTU-1141 pen, please contact your Wacom representative.
To place the cover on the pen compartment, position the cover with the pen nib outline facing to the left.
Align the cover with the top of the pen compartment and press the cover into place.
Remove the pen by pressing on the pen tip side near the top notch to eject the opposite end from the
compartment, being careful not to damage the pen nib. Grasp the pen and remove.
The pen can also be placed upright in the pen stand, or secured to the pen display with the pen tether
provided (see Pen Tether).
Pen Display Orientation Options
• Landscape (shown) - ExpressKeys top
• Landscape Flip - ExpressKeys bottom
• Portrait - ExpressKeys right
• Portrait Flip - ExpressKeys left

8
8
Interactive pen display
Index
Index
Contents
Contents

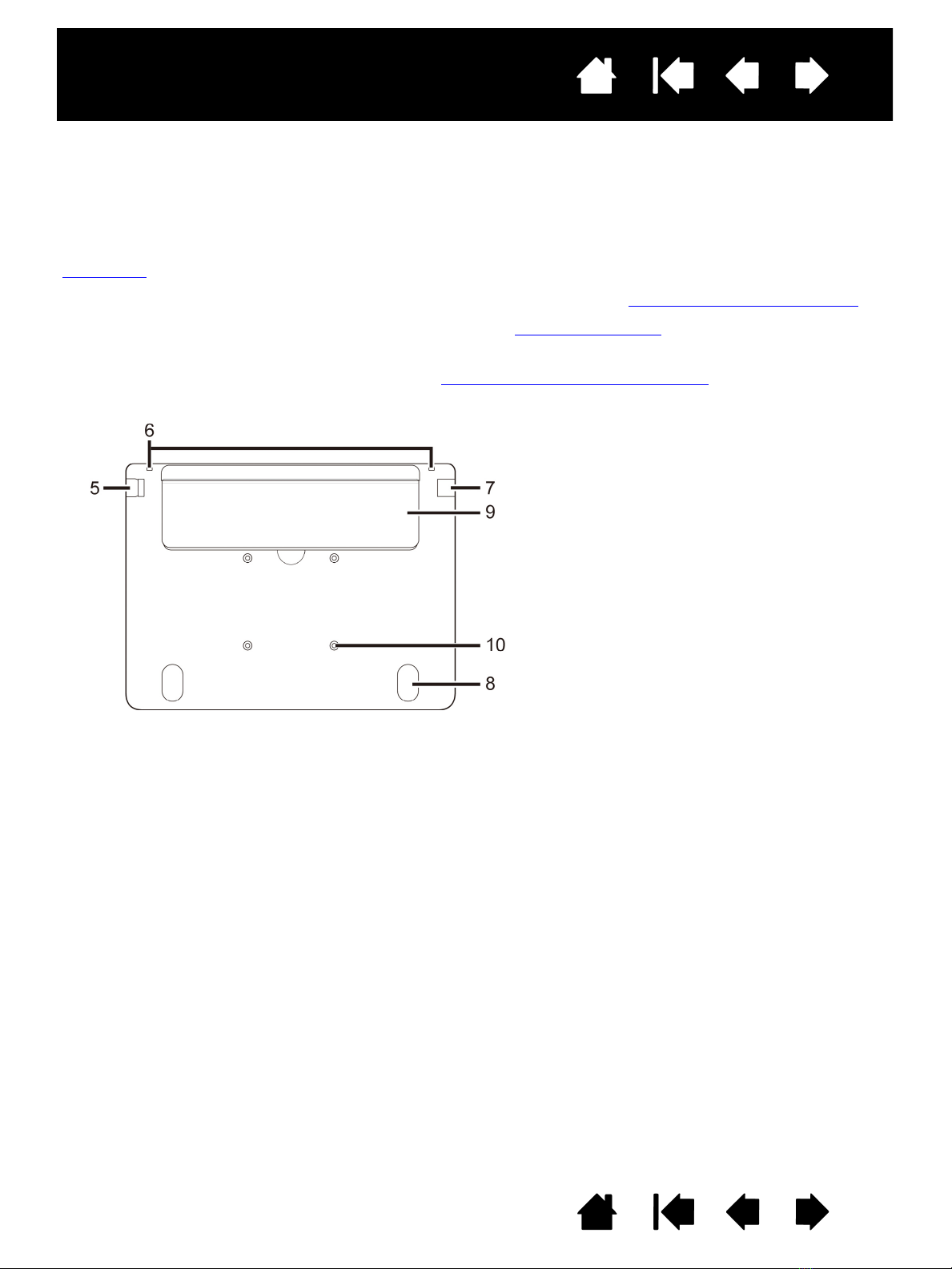

REAR VIEW
The features of your DTU-1141 are illustrated below and listed in the Pen Display Features box.
You can connect a security cable to the Security slot to prevent theft.
The pen can be secured to the pen display through the pen tether holes with the pen tether provided (see
Pen Tether).
The USB port is used to connect the pen display to your computer. See Step 2: Pen tablet installation.
The leg stand can be used to incline the pen display. See Pen display incline.
The pen display can be mounted to articulated arms or other third-party stands meeting the VESA
specification for display stands. For details, see Using an alternate mount or stand.
DTU-1141 Pen Display Features
5 - Security lock slot
6 - Pen tether holes
7 - USB port
8 - Rubber foot
9 - Leg stand
10 - VESA mount holes
Note: Both the DTU-1141 and the DTU-
1031X have a single leg stand

9
9
Interactive pen display
Index
Index
Contents
Contents
PEN DISPLAY INCLINE
You may want to place the pen display flat on your desk while you work. However, the leg stand on
the back allows you to adjust your pen display to a different angle for working and viewing. Both the
DTU-1031X and the DTU-1141 have a single leg stand. The diagram shows the leg stand for the
DTU-1141.

10
10
Interactive pen display
Index
Index
Contents
Contents
PEN FEATURES
Notes:
When not in use, place the pen in the pen storage compartment or the pen stand, or lay it flat on
your desk. To maintain the sensitivity of your pen, do not store it in a position where it will rest on its
tip.
Place the pen into the storage compartment by inserting the nib end of the pen into the left side of
the compartment with the side switch up. Gently press the pen into the compartment. Take care not
to damage the pen nib.
Important: Use only a pen specified for use with your pen display. Other pens may not function properly.
Also, the pen tip is specifically designed for use with the pen display. If your pen display has a
coated surface, the tips on other pens could damage the pen display screen.
PEN TETHER
A pen tether to secure the pen to the pen display is provided. The pen is secured by threading the tether
through the hole at the end of the pen and one of the tether holes at the top of the pen display. The
attachment holes for the tether are shown in the Rear view.
Pen switch): Be sure the pen’s programmable switch is in a
convenient location where you can toggle it with your thumb
or forefinger but not accidentally press it while using the pen.
You can use the switch whenever the pen tip is within
proximity of the display screen surface; you do not need to
touch the pen tip to the display surface.
Note: The DTU-1141 pen has a side switch, and the DTU-
1031X pen does not. The DTU-1141 pen can be used with the
DTU-1031X. To obtain a DTU-1141 pen, please contact your
Wacom representative.
Pen tip (replaceable nib): The pen is activated as soon as it is
brought within proximity (5 mm/.2 inch) of the pen display
screen. This allows you to position the screen cursor without
touching the pen tip to the display screen.
When pressure is applied to the pen tip, the pen simulates a
primary mouse button click. Tip click pressure can be adjusted
in the Wacom Control Panel.

11
11
Interactive pen display
Index
Index
Contents
Contents
INSTALLATION
The computer treats the interactive pen display as two separate devices (the display and the pen tablet).
Therefore, the installation process is completed in two stages:
• First install as a display.
• Then install as a pen tablet.
Both stages require hardware and software installations and adjustments. Carefully follow ALL instructions.
Important: You MUST install the Wacom driver software for correct pen-on-screen functionality.
System requirements
Step 1: Pen display installation
Step 2: Pen tablet installation
SYSTEM REQUIREMENTS
Make sure your computer meets the following minimum system requirements.
DTU-1141:
•PC. Windows 8, Windows 7, Windows Vista™, or Windows XP (32-bit). Available USB port and CD-
ROM drive.
•Macintosh. OS X, v10.8 or greater. Available USB port, and CD-ROM drive.
DTU-1031X:
•PC. Windows 8, Windows 7, or Windows XP (32-bit and 64-bit). Available USB port and CD-ROM drive.
•Macintosh. OS X, v10.7 or greater. Available USB port, and CD-ROM drive.
Note: Wacom recommends that you use both USB connectors to ensure adequate power for the pen
display. However, your system may operate satisfactorily with just one USB connector attached to
your computer.

12
12
Interactive pen display
Index
Index
Contents
Contents
STEP 1: PEN DISPLAY INSTALLATION
In this step, the driver for the interactive pen display is installed as a monitor on your system. Another
application will also be installed to allow the pen display to work properly. The additional application is:
• For the DTU-1141: DisplayLink
• For the DTU-1031X: Magic Control Technology (MCT)
Important:
• You MUST install the Wacom driver and the DisplayLink (DTU-1141) or MCT (DTU-1031X) driver for
correct pen-on-screen functionality.
• You cannot use a DTU-1141 and DTU-1031X connected to the same computer at the same time.
DisplayLink and MCT cannot be installed on the same computer at the same time.
1. Save your work and close all open applications. Temporarily disable any virus protection programs.
2. Insert the Installation CD into your computer’s CD-ROM drive. If the software installer menu does not
automatically display, double-click the INSTALL icon located on the CD. You can also download and
install the latest Wacom driver from the Wacom website for your region.
3. Click INSTALL TABLET and follow the prompts to install the drivers for the pen display.
• The DisplayLink driver will be installed automatically on Windows 8 and Windows 7. For Windows
XP and all Mac operating systems, it must be installed from the CD.
• The MCT driver must be installed from the CD for all operating systems.
• You can also download and install the DisplayLink driver at www.DisplayLink.com, and the MCT
driver at www.wacom.com.
• See Notes 3 and 4 below for information on re-installing and uninstalling drivers.
4. Reactivate your virus protection program.
5. If you have trouble installing the pen display, see troubleshooting.
Notes:
1. Driver installation automatically activates the new pen input functions available within Microsoft
Windows 8, Windows 7, Vista, and XP (except for Windows Starter and Home Basic, and Windows
Vista Home Basic). User-specific preferences are supported. After logging in, each user can
customize their personal settings in the Wacom Control Panel. Switching to another user will
automatically load the settings for that user.
2. On the Mac, you must restart your computer after installing the Wacom driver.
3. If you installing the Wacom and MCT drivers for a DTU-1031X, you must first uninstall any Wacom
or DisplayLink drivers already on the system. To uninstall the driver for the tablet, DisplayLink or
MCT, see uninstalling the interactive pen display.
4. If you do not use the provided CD for Wacom tablet driver installation, for example if you download
the Wacom driver from the Wacom website, DisplayLink or MCT will not install. You will need to
download the DisplayLink driver, or the MCT driver, and install it separately. You can also reinstall
either driver by using the Wacom Installation CD. However, on the DTU-1031X, you will need to
uninstall any Wacom tablet or DisplayLink drivers before reinstalling.
5. DisplayLink does not support 64-bit Windows XP. MCT does not support Vista.
6. If the pen display does not respond properly or you lose cursor control, the pen display preferences
may be corrupted. You can delete the current preference settings and return the pen display to its
factory default condition. See managing preferences.

13
13
Interactive pen display
Index
Index
Contents
Contents
STEP 2: PEN TABLET INSTALLATION
In this step, the interactive pen display is installed as a pen tablet.
USB CABLE INSTALLATION
1. Place your pen display face-down near your computer, using a soft cloth underneath the pen display to
protect the surface.
2. Plug the square end of the USB cable into the USB port of the pen display.
3. Place the USB cable attachment on the USB cable as shown, to prevent it from becoming unplugged. If
you need to remove the attachment, press in on both sides of the attachment and lift up.
4. Turn the pen display face up.
5. Plug the two connectors at the other end of the USB cable into two available USB ports on your
computer.
Note: Wacom recommends that you use both of these USB connectors to ensure adequate power for
the pen display. However, your system may operate satisfactorily with just one USB connector
attached to your computer.
6. Turn on your computer.
7. Check the status light (LED) on your pen display. When there is a connection between the computer
and the pen display, the status light is dimly lit. When the computer and pen display are connected and
the pen is in proximity of the display surface, the status light changes to a steady blue.
8. After completing the software installation (Step 1), make sure you can use your pen on the interactive
pen display to move the screen cursor.
9. When you place the pen tip on the display screen, the screen cursor should immediately jump to a
corresponding position approximately beneath the pen tip. Lift the pen tip and place it on the display
screen surface in a different location. The screen cursor should again jump to the new position. This is
known as absolute positioning, and enables you to position the screen cursor without having to drag
your pen across the display screen surface.
10. See calibrating and adjusting the pen display to precisely align the screen cursor to the pen tip.
11. To change the brightness of the pen display, adjust the Brightness setting in the Wacom Control Panel
(see Customizing).
Note: Windows: If you are using the pen display as a secondary display, you may first need to enable the
pen display in your display properties Control Panel.

14
14
Interactive pen display
Index
Index
Contents
Contents
ADDING OTHER DISPLAY DEVICES
You can connect another display device to your computer’s VGA or DVI connector for use with the pen
display. When working with more than one monitor, the pen display will map to the monitors based on how
your system is configured. By default, if you are in mirror mode, the pen display will map to the entire space
on each monitor.
Note: Make sure you complete the pen display installation before connecting another device to the unit.
The Display Toggle function is available for use on systems with more than one monitor. This enables you to
toggle the screen cursor between the pen display and other monitors.
Refer to your hardware and operating system documentation for information on connecting other monitors
to your computer and configuring your system for use with multiple monitors. Be sure to use the correct
cable and connector when adding an additional device to your system.
For troubleshooting tips, see troubleshooting.
Notes for the pen display screen:
Each interactive pen display LCD panel is produced under very stringent quality standards.
Production techniques cannot guarantee an absolutely perfect display, and some panels may exhibit
a certain number of pixels that show an incorrect color.
If an image has fine striping (such as screen stripes), it may appear to flicker or display a moiré
pattern.
Do not apply excessive pressure on the display screen surface; it may cause the appearance of a
moiré or pooling pattern. If this occurs, use less pressure on the display screen when working with
the pen.
When a still image is displayed for a long period of time, an after-image may remain for a short time.
To prevent this, use a screen saver or other power management feature.
To extend the life of the pen display backlight, set your computer’s power management to turn off
the display when it is not in use for extended periods of time.

15
15
Interactive pen display
Index
Index
Contents
Contents
WORKING WITH THE INTERACTIVE PEN DISPLAY
As you work with the pen display you can rest your hand lightly on the display screen, just as if it were a
sheet of paper.
Because the pen display surface will be a little higher than your desk, consider adjusting the height of your
desk or chair to assure comfortable use of the device.
Ergonomics
Using the pen
Working with multiple monitors
Customizing Pen mode and options
ERGONOMICS
To minimize fatigue, comfortably organize your work area. Position your pen display, the pen, and your
keyboard for easy access without unnecessary reaching. The pen display and any other displays should be
positioned so you can view them comfortably with a minimum of eyestrain.
• Take short breaks between tasks to stretch and relax your muscles.
• Use a gentle grip when working with the pen.
• Alternate tasks throughout the day.
• Maintain a good posture at all times. Minimize awkward postures and repetitive movements that cause
discomfort.
• Change your position if you feel any discomfort due to your work position.
Tip:
The pen display can also be mounted to articulated arms or other third-party stands meeting the
VESA specification for display stands. For details, see using an alternate mount or stand.
PEN DISPLAY ORIENTATION
Your pen display can be rotated for use in one of two landscape orientations, or one of two portrait
orientations. These positions are listed in the Pen Display Orientation Options list (see Pen Display
Orientation Options). Refer to your hardware and operating system documentation for information on
setting the pen display to your preferred orientation.

16
16
Interactive pen display
Index
Index
Contents
Contents
USING THE PEN
The pen is cordless, battery-free, and senses the amount of pressure you apply to the tip.
Holding the pen
Positioning
Clicking
Dragging
Using the pen switch
Working with pressure sensitivity
Working with multiple monitors
HOLDING THE PEN
Hold the pen like you would a normal pen or pencil. As you work with the interactive pen display you can
rest your hand lightly on the display screen. You can tilt the pen in any way that feels most comfortable.
For information on changing the pen settings, see customizing.
POSITIONING
To position the screen cursor, move the pen slightly above
the pen display screen without touching the screen surface.
Press the pen tip on the display screen to make a selection.
Note: Calibrating and adjusting the pen display ensures
correct alignment of the screen cursor with the pen
tip. If the screen cursor does not jump to a position
near the pen tip when you place the pen on the
display screen, the pen display software driver may
not be installed or is not loading. Re-install the driver
software if necessary. Also see troubleshooting.

17
17
Interactive pen display
Index
Index
Contents
Contents
CLICKING
DRAGGING
Tap the display screen once with the pen tip, or touch the pen to
the display screen with enough pressure to register a click.
Windows tip: To make navigating with the pen easier,
configure Windows to select when the pen is over an icon
and to launch the icon with a single click. To turn on this
feature, first open a folder.
For Windows 8, Windows 7 and Vista: From the ORGANIZE
pull-down menu choose FOLDER AND SEARCH OPTIONS.
From the GENERAL tab select SINGLE-CLICK TO OPEN AN ITEM
(POINT TO SELECT). Note: Vista is not supported on the DTU-
1031X.
For Windows XP: From the TOOLS pull-down menu choose
FOLDER OPTIONS.... From the GENERAL tab select SINGLE-
CLICK TO OPEN AN ITEM (POINT TO SELECT).
Press the switch if it is set to
DOUBLE CLICK, or quickly tap
the display screen twice in
the same place with the pen
tip. Double-clicking is easier
when the pen is
perpendicular to the pen
display screen.
Select an object, then slide the pen tip across the display
screen to move the object.

18
18
Interactive pen display
Index
Index
Contents
Contents
USING THE PEN SWITCH
The pen has a programmable switch that can be used whenever the pen tip is within proximity (5 mm (0.2
inch)) of the display screen surface. You do not need to touch the pen tip to the display surface in order to
use the switch. By default, the switch is set to RIGHT CLICK. The switch function can be modified or
disabled using the Wacom Control Panel. See customizing.
Note: The DTU-1141 pen has a side switch, and the DTU-1031X pen does not. The DTU-1141 pen can be used with
the DTU-1031X. To obtain a DTU-1141 pen, please contact your Wacom representative.
WORKING WITH PRESSURE SENSITIVITY
The pen responds to the nuance and inflection of your hand movements, enabling you to create natural-
looking pen strokes within applications that support this feature. To annotate and write with pressure,
select a pressure-sensitive tool from your application’s tool palette. As you work on the screen surface, use
various amounts of downward pressure on the tip of the pen.
WORKING WITH MULTIPLE MONITORS
When you are working with the pen display and additional monitors on the same system, the screen cursor
movement on the standard monitors will depend on your system configuration.
If a second monitor is connected in mirror mode, both the pen display and the other monitor will show
identical images and screen cursor movement.
If you are using the pen display with other monitors in extended monitor mode, you have the following
options for navigating on the other monitors:
• Set the pen switch to the DISPLAY TOGGLE function. You can then press the switch to toggle the screen
cursor between the pen display and your other displays. For example, your product can be used as a
pen display (the screen cursor is positioned at the pen tip location) or toggled for use as a standard
Wacom tablet (the screen cursor can be moved across the entire desktop or additional displays). See
Working with Display Toggle for more information.
• Set the pen switch to MODE TOGGLE. You can then quickly switch between pen mode for working on the
pen display and mouse mode for working on the other monitors.
• Set an ExpressKey to DISPLAY TOGGLE or MODE TOGGLE function.

19
19
Interactive pen display
Index
Index
Contents
Contents
USING THE EXPRESSKEYS
Press individual keys to perform frequently used functions or keystrokes. ExpressKeys can also be used to
modify your pen properties as you work. Please note that there are no ExpressKeys on the DTU-1031X.
Default settings are shown by ExpressKey numbers, which are numbered 1 through 4 from left to right and
shown in Front view. Use the Wacom Control Panel to set other functions for the ExpressKeys (see
Customizing).
ExpressKeys can also be operated in combination with one another. When you press both keys at the same
time, a combination function is initiated.
ExpressKey Number Function
1 Scroll Up
2Scroll Down
3 Z
OOM IN
4ZOOM OUT

20
20
Interactive pen display
Index
Index
Contents
Contents
CUSTOMIZING
After mastering the basics of using your pen on the interactive pen display, you may want to customize the
way your product works. This chapter describes how to use the Wacom Control Panel to adjust your pen
display and pen settings.
Advanced users can learn how to further optimize the pen display by creating application-specific settings.
Opening the control panel
Control panel overview
Calibrating and adjusting the pen display
Customizing the pen
Function settings
Using and customizing the Radial Menu
Working with Display Toggle
Application-specific settings
OPENING THE CONTROL PANEL
You customize the pen display from the Wacom Control Panel. See control panel overview. To open it, use
the pen on the pen display:
Windows 8: From the Windows 8 Start screen, click the WACOM TABLET PROPERTIES tile. If you are using the
Windows 8 Classic Desktop, press the Windows key on your keyboard, or select the Windows icon in the
Charms bar, to access the Start screen.n.
Windows 7, Vista and XP:
Click on the Windows START button and choose ALL PROGRAMS. Then select WACOM TABLET and choose the
WACOM TABLET PROPERTIES option.
Macintosh:
1. Open SYSTEM PREFERENCES from the Apple menu or from the APPLICATIONS folder.
2. Click on the WACOM TABLET icon.
Note: User-specific preferences are supported. After logging in, each user can customize their personal
settings in the Wacom Control Panel. Switching to another user will automatically load the settings
for that user.
