Waeco Refresh-o-mat HD User manual

Refresh-o-mat HD
EN 3 Operating manual
DE 13 Bedienungsanleitung
FR 24 Notice d’utilisation
ES 35 Instrucciones de uso
PT 46 Manual de instruções
IT 57 Istruzioni per l’uso
NL 68 Gebruiksaanwijzing
DA 79 Betjeningsvejledning
SV 90 Bruksanvisning
NO 100 Bruksanvisning
FI 111 Käyttöohje
PL 133 Instrukcja obsługi
SK 144 Návod na obsluhu
CS 155 Návod k obsluze
HU 165 Használati utasítás
HR 176 Upute za uporabu
TR 187 Kullanma Kılavuzu
SL 198 Navodilo za uporabo
RO 209 Instrucţiuni de operare
BG 220 Инструкция за
експлоатация
ET 253 Kasutusjuhend
EL 241 Οδηγίες χειρισμού
LT 274 Naudotojo vadovas
LV 263 Ekspluatācijas
rokasgrāmata

© 2023 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.

Refresh-o-mat HD
3
1
2
3
1
2
4
READY/ON
START/STOP
HIGH
TEMPERATURE
HIGH
LEVEL
123
4
3

Refresh-o-mat HD
4
6
5
8
7
0
9

Refresh-o-mat HD
5
a
b

EN
Explanation of symbols Refresh-o-mat HD
6
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in
order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this prod-
uct.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you
understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended
purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as
well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth
herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This
product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and
updates. For up-to-date product information, please visit documents.dometic.com.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8 Maintaining and cleaning the device . . . . . . . . . . . . . . . . . . . . . . . . 15
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not
avoided, will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not
avoided, could result in death or serious injury.

EN
Refresh-o-mat HD Safety instructions
7
!
A
I
2 Safety instructions
2.1 General safety
DDANGER! Failure to obey these warnings will result in death
or serious injury.
Before starting up the device for the first time, verify that the
operating voltage matches the power supply voltage (see data
plate).
In the event of fire use a fire extinguisher which is suitable for
electrical devices.
!WARNING! Failure to obey these warnings could result in
death or serious injury.
The device may not be used if the device itself or the connection
cable are visibly damaged.
This device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Should the device need to be repaired, contact the customer
services.
This device can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and know-ledge if they have
been given supervision or instruction concerning use of the
device in a safe way and understand the hazards involved.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not
avoided, could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property
damage.
NOTE
Supplementary information for operating the product.

EN
Safety instructions Refresh-o-mat HD
8
Electrical devices are not toys.
Always keep and use the device out of the reach of very young
children.
Children must be supervised to ensure that they do not play with
the device.
!CAUTION!
Disconnect the device from the power supply:
– Before each cleaning and maintenance
– After every use
– Before working on the device
ANOTICE! Damage hazard
Check that the voltage specification on the data plate is the
same as that of the power supply.
Never pull the plug out of the socket by the cable.
2.2 Operating the device safely
!CAUTION! Failure to obey these cautions could result in
minor or moderate injury.
Only use cleaning agents approved by Dometic WAECO:
– AirCon Refresh, content 1 l, ref. no.: 8887400008
– AirCon Refresh, content 20x 100 ml, ref. no.: 8887400016
– Car Refresh, content 1 l, ref. no.: 8887400009
– Car Refresh, content 20x 100 ml, ref. no.: 8887400015
Never operate the device without any fluid.
Before starting the device, ensure that the power supply line
and the plug are dry.
Get out of the vehicle during cleaning.
Ensure good ventilation. Do not breathe in the spray from the
air-conditioning cleaning agent.
ANOTICE! Damage hazard
Never expose the device to moisture.
Do not clean plastic parts with solvents or corrosive substances.

EN
Refresh-o-mat HD Scope of delivery
9
3 Scope of delivery
4 Accessories
Available as accessories (not included in the scope of delivery):
Chemical agent for the Refresh-o-mat from Dometic WAECO:
For cleaning the air-conditioning system
For eradicating odors in the vehicle interior
Available from a specialist dealer or directly from Dometic WAECO:
The Refresh-o-mat is also available as a starter kit with the AirCon Refresh
air-conditioning cleaning agent:
No. in
fig. 1,
page 3
Quantity Description
1 1 Refresh-o-mat
21Hose
3 1 Connection cable
– 1 Operating manual
Ref. no. Description
8885300097 Adapter kit for cleaning the outer air intake ducts
Includes one hose and two adapters (fig. 2, page 3)
8887400008 AirCon Refresh air-conditioning cleaning agent, content 1 l
8887400016 AirCon Refresh air-conditioning cleaning agent,
content 20x 100 ml
8887400009 Car Refresh interior cleaning agent, content 1 l
8887400015 Car Refresh interior cleaning agent, content 20x 100 ml
Ref. no. Description
8885300098 Starter kit
Includes Refresh-o-mat and twenty 100 ml bottles of
AirCon Refresh air-conditioning cleaning agent

EN
Intended use Refresh-o-mat HD
10
5 Intended use
The Refresh-o-mat is an ultrasonic spraying device for cleaning vehicle air-
conditioning systems or for eradicating odors in the vehicle interior. The
device produces a fine spray of active agent which is distributed by the air-
conditioning system and thereby removes impurities and odors.
Used once a year, the air-conditioning system will be cleaned hygienically
and be free of odors.
This product is only suitable for the intended purpose and application in
accordance with these instructions.
This manual provides information that is necessary for proper installation
and/or operation of the product. Poor installation and/or improper operating
or maintenance will result in unsatisfactory performance and a possible fail-
ure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
Incorrect assembly or connection, including excess voltage
Incorrect maintenance or use of spare parts other than original spare
parts provided by the manufacturer
Alterations to the product without express permission from the manufac-
turer
Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.

EN
Refresh-o-mat HD Technical description
11
6 Technical description
6.1 General description
The ultrasonic cells diffuse the air-conditioning cleaning agent into a fine
spray. The spray is directed through the hose by a fan to the suction open-
ings of the air-conditioning system.
The Refresh-o-mat switches off automatically in the following events:
The fluid reaches the minimum level
The tank is overfilled (the Refresh-o-mat does not start if the tank is too
full)
A temperature of 65 °C is exceeded
6.2 Control panel
Item in
fig. 3,
page 3
Description Explanation/function
1HIGH
TEMPERATURE
Red LED
Lights up if the interior temperature exceeds
65 °C. The device stops automatically.
2 READY/ON Green LED
Flashes while the tank is being filled up
Lights up while it is being cleaned
3 HIGH LEVEL Green LED
Lights up if the tank is overfilled with fluid. The
device stops automatically.
4 START/STOP Switches the device on or off.

EN
Operation Refresh-o-mat HD
12
7 Operation
7.1 Cleaning the air-conditioning unit
A
I
Preparing the Refresh-o-mat

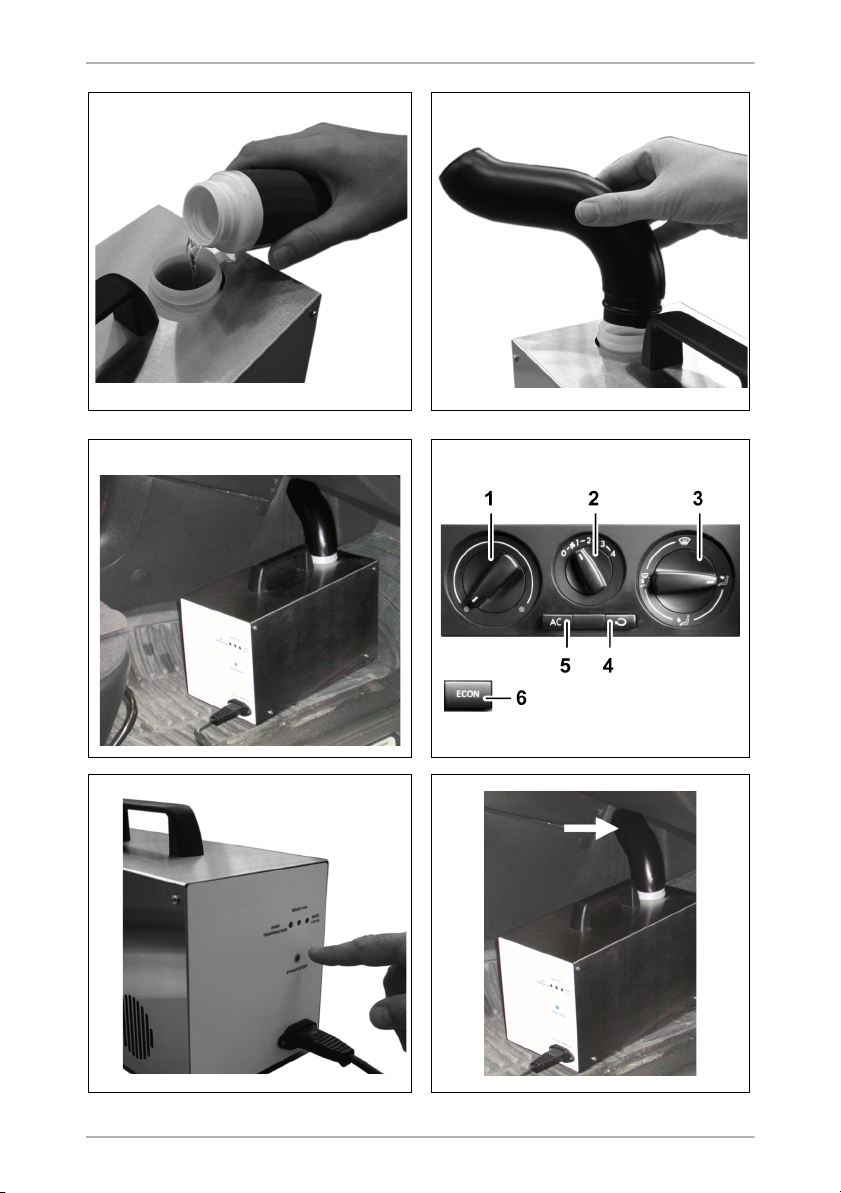

1. Connect the Refresh-o-mat to the power supply (fig. 4, page 3).
2. Shake the air-conditioning cleaning agent thoroughly.
3. Open the lid and fill the Refresh-o-mat with cleaning agent up to the
maximum filling level indicator (fig. 5, page 4).
4. Close the door.
5. Plug in the hose completely (fig. 6, page 4).
Setting up the Refresh-o-mat
1. Place the Refresh-o-mat upright and securely in the foot area of the
passenger's seat (fig. 7, page 4).
2. Place the hose in the vicinity of the suction opening of the ventilation
system.
Setting the air-conditioning system
1. Set the air-conditioning system (fig. 8, page 4):
– Set the temperature control to the lowest level (1).
– Set the blower to the lowest level (2).
– Set the front ventilation (3) and open all air outlets on the dashboard
and position upwards.
– Set to ventilation (4).
NOTICE! Damage hazard
If the temperature in the vehicle exceeds 60 °C, switch on the air-
conditioning unit before the cleaning procedure and cool down the
interior to below 60 °C.
NOTE
Only use Dometic WAECO’s air-conditioning cleaning agents.
Observe the safety instructions on the packaging of the air-
conditioning cleaning agent.
Check whether the pollen filter is contaminated and replace it
if necessary.

EN
Refresh-o-mat HD Operation
13
2. Manual air-conditioning systems: Switch off the air-conditioning
system (5).
3. Automatic air-conditioning systems: Set to “Economy” (6) and the lowest
temperature setting.
Starting the cleaning procedure
!
1. Press “START/STOP” once (fig. 9, page 4) to start the cleaning proce-
dure with 100 ml of fluid.
2. The “READY/ON” LED lights up green.
I
3. Ensure that the spray from the ventilation is sucked up (fig. 0, page 4).
4. Get out of the vehicle and close the doors.
5. Allow the air-circulation/automatic air-conditioning system to run for
about 20 minutes.
Ending the cleaning procedure
I
1. Press “START/STOP” once to end the cleaning procedure prematurely.
2. Disconnect from the power supply.
Ventilating the vehicle
1. Open all vehicle doors and switch off the air-circulation blower and the
air-conditioning.
2. Allow the interior of the vehicle to ventilate for about 30 minutes.
3. After the cleaning procedure leave the blower running for more than
10 minutes to dry the vaporizer.
CAUTION! Health hazard
Do not breathe in the spray.
NOTE
For a cleaning procedure with 400 ml of fluid press “START/
STOP” twice. All three LEDs flash briefly to confirm.
NOTE
The Refresh-o-mat stops automatically when the fluid reaches a
minimum level.

EN
Operation Refresh-o-mat HD
14
7.2 Cleaning the interior
I
Use the Refresh-o-mat to clean the interior of the vehicle as described in
chapter “Cleaning the air-conditioning unit” on page 12.
1. Set up the Refresh-o-mat without a hose, pointing into the interior of the
vehicle.
2. Connect the Refresh-o-mat to the power supply.
!
3. Press “START/STOP” once (fig. 9, page 4), to start the cleaning proce-
dure with 100 ml of fluid.
✔The “READY/ON” LED lights up green.
I
4. Get out of the vehicle and close the doors.
5. The Refresh-o-mat stops automatically after approx. 20 minutes when
the fluid reaches a minimum level.
6. Press “START/STOP” once, to end the cleaning procedure prematurely.
7. Disconnect from the power supply.
8. Open all vehicle doors and allow the vehicle interior to air for approx.
30 minutes.
7.3 Cleaning the outer air intake ducts
(only with adapter kit accessory)
I
NOTE
Only use Dometic WAECO’s own Car Refresh interior cleaning
agent.
CAUTION! Health hazard
Do not breathe in the spray.
NOTE
For a cleaning procedure with 400 ml of fluid, press “START/
STOP” twice. All three LEDs flash briefly to confirm.
NOTE
To completely remove odors in vehicles, the outer air ducts
also have to be cleaned. The adapter kit (ref. no. 8885300097)
can be used to do this.
Only use Dometic WAECO’s own AirCon Refresh air-condi-
tioning cleaning agent.

EN
Refresh-o-mat HD Maintaining and cleaning the device
15
Use the Refresh-o-mat to clean the outer air ducts as described in the
chapter “Cleaning the air-conditioning unit” on page 12.
1. Set air-conditioning system to outer air mode (4) (fig. 8, page 4).
2. Place the Refresh-o-mat in front of the vehicle.
3. Connect the adapter kit to the Refresh-o-mat. Place the end of the
adapter kit in front of the outer air ducts (fig. a, page 5).
4. Connect the Refresh-o-mat to the power supply.
!
5. Press “START/STOP” once (fig. 9, page 4), to start the cleaning
procedure with 100 ml of fluid.
✔The “READY/ON” LED lights up green.
I
6. Ensure that the spray from the ventilation is sucked up.
7. The Refresh-o-mat stops automatically after approx. 20 minutes when
the fluid reaches a minimum level.
8. Press “START/STOP” once, to end the cleaning procedure prematurely.
9. Disconnect from the power supply.
10.Open all vehicle doors and allow the vehicle interior to air for approx.
30 minutes.
8 Maintaining and cleaning the device
A
1. Disconnect from the power supply.
2. Remove the hose.
3. Empty any remaining fluid (fig. b, page 5).
4. Rinse out with water.
CAUTION! Health hazard
Do not breathe in the spray.
NOTE
For a cleaning procedure with 400 ml of fluid press “START/
STOP” twice. All three LEDs flash briefly to confirm.
NOTICE! Damage hazard
Do not use any sharp or hard objects for cleaning since they may
damage the device.

EN
Troubleshooting Refresh-o-mat HD
16
I
9 Troubleshooting
10 Warranty
The statutory warranty period applies. If the product is defective, please
contact your retailer or the manufacturer's branch in your country
(see dometic.com/dealer).
For repair and warranty processing, please include the following documents
when you send in the product:
A copy of the receipt with purchasing date
A reason for the claim or description of the fault
Note that self-repair or non-professional repair can have safety conse-
quences and might void the warranty.
NOTE
You can collect the remaining fluid (approx. 30 ml) in a suitable
container and use it for the next cleaning procedure.
Problem Possible cause Suggested remedy
No spray formation There is too little fluid in the
device.
Top up fluid.
The ultrasonic cell is defective. Contact customer services (see
back page).
The fan is defective.
There is a fault in the connection
to the transformer.
Fluid is leaking out of
the device
There is too much air-condition-
ing cleaning agent in the device.
Drain excess air-conditioning
cleaning agent from the device.
The container is overflowing
because the device is standing
on a severe slope.
Place the device upright.
The sealing in the device is
defective.
Contact customer services (see
back page).

EN
Refresh-o-mat HD Disposal
17
11 Disposal
12 Technical data
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
➤Consult a local recycling center or specialist dealer for details about
how to dispose of the product in accordance with the applicable dis-
posal regulations.
Refresh-o-mat HD
Ref. no. 8885300096
Voltage 230 Vw, 50/60 Hz
Current consumption 0.15 A
Dimensions (L x W x H) 295 x 220 x 150 mm
Weight 3.1 kg
Sound level < 70 dB(A)
Operating temperature 0 °C to +60 °C
Storage temperature –30 °C to +90 °C
Inspection/certification

DE
Erläuterung der Symbole Refresh-o-mat HD
18
Lesen und befolgen Sie bitte alle Anweisungen, Richtlinien und Warnhinweise in diesem Produkthandbuch sorgfältig, um sicher-
zustellen, dass Sie das Produkt ordnungsgemäß installieren und stets ordnungsgemäß betreiben und warten. Diese Anleitung
MUSS bei dem Produkt verbleiben.
Durch die Verwendung des Produktes bestätigen Sie hiermit, dass Sie alle Anweisungen, Richtlinien und Warnhinweise sorg-
fältig gelesen haben und dass Sie die hierin dargelegten Bestimmungen verstanden haben und ihnen zustimmen. Sie erklären
sich damit einverstanden, dieses Produkt nur für den angegebenen Verwendungszweck und gemäß den Anweisungen, Richt-
linien und Warnhinweisen dieses Produkthandbuchs sowie gemäß allen geltenden Gesetzen und Vorschriften zu verwenden.
Eine Nichtbeachtung der hierin enthaltenen Anweisungen und Warnhinweise kann zu einer Verletzung Ihrer selbst und anderer
Personen, zu Schäden an Ihrem Produkt oder zu Schäden an anderem Eigentum in der Umgebung führen. Dieses Produkt-
handbuch, einschließlich der Anweisungen, Richtlinien und Warnhinweise, sowie die zugehörige Dokumentation können Ände-
rungen und Aktualisierungen unterliegen. Aktuelle Produktinformationen finden Sie unter documents.dometic.com.
Inhalt
1 Erläuterung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4 Zubehör . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7 Betrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Gerät pflegen und reinigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Fehlersuche und Fehlerbehebung . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Entsorgung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
1 Erläuterung der Symbole
D
!
GEFAHR!
Sicherheitshinweis: Kennzeichnet eine Gefahrensituation, die
zum Tod oder schwerer Verletzung führt, wenn die jeweiligen
Anweisungen nicht befolgt werden.
WARNUNG!
Sicherheitshinweis: Kennzeichnet eine Gefahrensituation, die
zum Tod oder schwerer Verletzung führen könnte, wenn die
jeweiligen Anweisungen nicht befolgt werden.

DE
Refresh-o-mat HD Sicherheitshinweise
19
!
A
I
2 Sicherheitshinweise
2.1 Grundlegende Sicherheit
DGEFAHR! Nichtbeachtung dieser Warnungen führt zum Tod
oder schwerer Verletzung.
Kontrollieren Sie vor Inbetriebnahme des Gerätes, ob die
Betriebsspannung und die Spannung der Stromversorgung
übereinstimmen (siehe Typenschild).
Verwenden Sie im Brandfall einen Feuerlöscher, der für elektri-
sche Geräte geeignet ist.
!WARNUNG! Nichtbeachtung dieser Warnungen kann zum Tod
oder schwerer Verletzung führen.
Wenn das Gerät oder das Anschlusskabel sichtbare Beschädi-
gungen aufweisen, dürfen Sie das Gerät nicht in Betrieb neh-
men.
Reparaturen an diesem Gerät dürfen nur von Fachkräften
durchgeführt werden. Durch unsachgemäße Reparaturen kön-
nen erhebliche Gefahren entstehen.
Wenden Sie sich im Reparaturfall an den Kundendienst.
Dieses Gerät kann von Kindern ab 8 Jahren und von Personen
mit verringerten physischen, sensorischen oder mentalen
Fähigkeiten oder Mangel an Erfahrung und/oder Wissen ver-
wendet werden, wenn diese Personen beaufsichtigt werden
oder im sicheren Gebrauch des Geräts unterwiesen wurden
und die daraus resultierenden Gefahren verstanden haben.
VORSICHT!
Sicherheitshinweis: Kennzeichnet eine Gefahrensituation, die
zu geringer oder mittelschwerer Verletzung führen könnte, wenn
die jeweiligen Anweisungen nicht befolgt werden.
ACHTUNG!
Kennzeichnet eine Situation, die zu Sachschäden führen kann,
wenn die jeweiligen Anweisungen nicht befolgt werden.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.

DE
Sicherheitshinweise Refresh-o-mat HD
20
Elektrogeräte sind kein Kinderspielzeug!
Verwahren und benutzen Sie das Gerät außerhalb der Reich-
weite kleiner Kinder.
Kinder sollten beaufsichtigt werden, um sicherzustellen, dass
sie nicht mit dem Gerät spielen.
!VORSICHT!
Trennen Sie das Gerät von der Stromversorgung:
– vor jeder Reinigung und Pflege
– nach jedem Gebrauch
– vor der Durchführung von Arbeiten an dem Gerät
AACHTUNG! Beschädigungsgefahr
Prüfen Sie, ob die Spannungsangabe auf dem Typenschild mit
der vorhandenen Netzspannung übereinstimmt.
Ziehen Sie den Stecker nie am Anschlusskabel aus der Steck-
dose.
2.2 Sicherheit beim Betrieb des Gerätes
!VORSICHT! Nichtbeachtung dieser Hinweise kann zu leichten
bis mittelschweren Verletzungen führen.
Verwenden Sie nur von Dometic WAECO zugelassene
Reiniger:
– AirCon Refresh, Inhalt 1 l, Art.-Nr.: 8887400008
– AirCon Refresh, Inhalt 20x 100 ml, Art.-Nr.: 8887400016
– Car Refresh, Inhalt 1 l, Art.-Nr.: 8887400009
– Car Refresh, Inhalt 20x 100 ml, Art.-Nr.: 8887400015
Betreiben Sie das Gerät niemals ohne Flüssigkeit.
Achten Sie vor der Inbetriebnahme darauf, dass Zuleitung und
Stecker trocken sind.
Während der Reinigung müssen Sie das Fahrzeug verlassen.
Achten Sie auf eine gute Belüftung. Atmen Sie den Sprühnebel
des Klimaanlagen-Reinigers nicht ein.
AACHTUNG! Beschädigungsgefahr
Setzen Sie das Gerät niemals Nässe aus.
Kunststoffteile nicht mit Lösungsmitteln oder aggressiven Subs-
tanzen reinigen.
