WAGNER Cobra 40-10/2K Operational manual

B_5076
High Pressure Double Diaphragm
Pump for 2 Component Products
with Mixing Ratio 1:1
Version 07/2014
Translation of the Original
Operating Manual

3
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
Table of Contents
1 ABOUT THESE INSTRUCTIONS 6
1.1 Preface 6
1.2 Warnings, Notices and Symbols in these Instructions 6
1.3 Languages 7
1.4 Abbreviations in the Text 7
1.5 Terminology for the Purpose of this Manual 7
2 CORRECT USE 8
2.1 Device Type 8
2.2 Type of Use 8
2.3 Use in an Explosion Hazard Area 8
2.4 Safety Parameters 8
2.5 Processible 2K Working Materials With Mixing Ratio 1:1 9
2.5.1 Recommended Application Areas 9
2.6 Reasonably Foreseeable Misuse 10
2.7 Residual Risks 10
3 IDENTIFICATION 11
3.1 Explosion Protection Identication 11
3.2 Identication X 11
3.3 Type Plate 12
4 GENERAL SAFETY INSTRUCTIONS 13
4.1 Safety Instructions for the Operator 13
4.1.1 Electrical Equipment 13
4.1.2 Personnel Qualications 13
4.1.3 Safe Work Environment 13
4.2 Safety Instructions for Sta 14
4.2.1 Safe Handling of WAGNER Spray Devices 14
4.2.2 Grounding the Device 15
4.2.3 Product Hoses 15
4.2.4 Cleaning and Rinsing 16
4.2.5 Handling Hazardous Liquids, Varnishes and Paints 16
4.2.6 Touching Hot Surfaces 17
5 DESCRIPTION 18
5.1 Components 18
5.2 Mode of Operation 18
5.2.1 General Information 18
5.2.2 Air Motor (4) 18
5.2.3 Protective and Monitoring Equipment 18
5.2.4 Fluid Section (9) 19
5.2.5 Positioning 19
5.3 Scope of Delivery 20
5.4 Data 20
5.4.1 Materials of Paint-wetted Parts 20
5.4.2 Technical Data 20
5.4.3 Measurements and Connections 22
5.4.4 Volume Flow 23
5.4.5 Performance Diagrams 23
5.5 Pressure Regulator Unit for Cobra 25

4
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
Table of Contents
6 ASSEMBLY AND COMMISSIONING 26
6.1 Training Assembly/Commissioning Sta 26
6.2 Storage Conditions 26
6.3 Installation Conditions 26
6.4 Transportation 26
6.5 Assembly and Installation 27
6.5.1 Ventilation of the Spray Booth 28
6.5.2 Air Supply 28
6.5.3 Product Supply 28
6.6 Grounding 29
6.7 Safety Checks 30
6.8 Commissioning 31
6.8.1 Safety Instructions 31
6.8.2 Preparation for Commissioning 32
6.8.3 Basic Cleaning 32
6.8.4 Filling with Working Material 34
7 OPERATION 35
7.1 Training the Operating Sta 35
7.2 Safety Instructions 35
7.3 Emergency Deactivation 36
7.4 Work 37
7.5 Pressure Relief / Work Interruption 37
7.5.1 Pressure Relief / Work Interruption 37
8 CLEANING AND MAINTENANCE 39
8.1 Cleaning 39
8.1.1 Cleaning Sta 39
8.1.2 Safety Instructions 39
8.1.3 Cleaning and Flushing Device 40
8.1.4 Long-term Storage 40
8.2 Maintenance 41
8.2.1 Maintenance Sta 41
8.2.2 Safety Instructions 41
8.2.3 Safety Checks 42
8.2.3.1 Grounding Check 42
8.2.3.2 Product Hoses, Tubes and Couplings 43
8.2.4 Hydraulic Stage Maintenance 44
8.2.5 Checking the Oil Level 44
8.2.6 Changing the Oil 45
9 TROUBLESHOOTING, MAINTENANCE, AND REPAIR 48
9.1 Troubleshooting and Rectication 48
10 REPAIR WORK 50
10.1 Repair Personnel 50
10.2 Safety Instructions 50
10.3 Cleaning the Parts after Disassembly 51

5
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
Table of Contents
11 FUNCTION TEST AFTER THE REPAIR 52
12 DISPOSAL 55
13 ACCESSORIES 56
13.1 Cobra 40-10/2K Accessories 56
14 SPARE PARTS 60
14.1 How Can Spare Parts Be Ordered? 60
14.2 Overview of the Cobra 40-10/2K Components 61
14.3 Cobra 40-10 Air Motor 62
14.4 Cobra 40-10 Fluid Section 66
14.5 Cobra 40-10 Inlet Valve 70
14.6 Inlet Valve Depressor 70
14.7 Mixer Complete 71
14.8 Trolley 73
14.9 Cobra Suction System 74
15 WARRANTY AND CONFORMITY DECLARATIONS 76
15.1 Important Notes Regarding Product Liability 76
15.2 Warranty Claim 76
15.3 CE Declaration of Conformity 77
15.4 Reference to German Regulations and Guidelines 77

6
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
1 ABOUT THESE INSTRUCTIONS
1.1 PREFACE

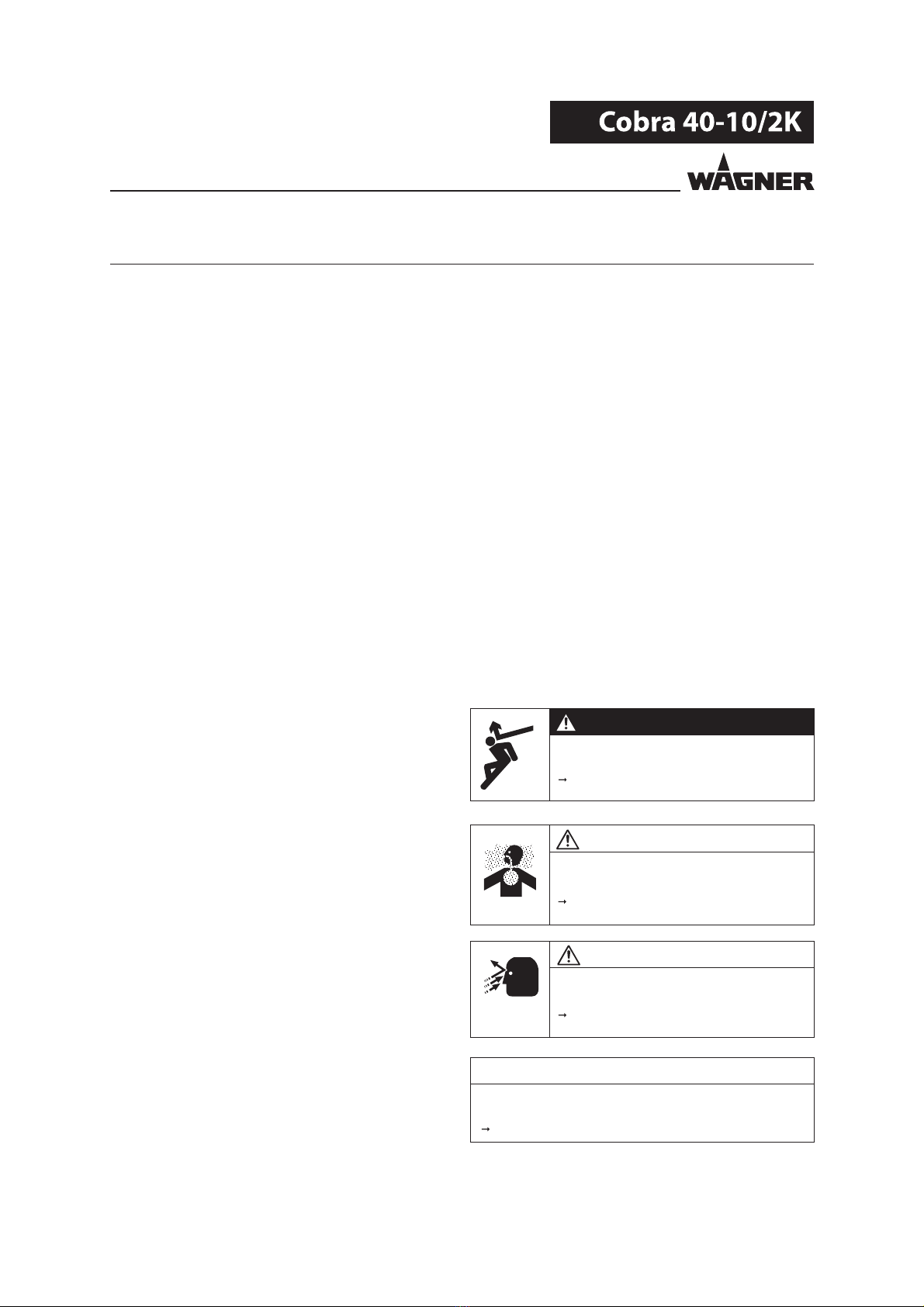

1.2 WARNINGS, NOTICES AND SYMBOLS IN THESE INSTRUCTIONS
Warning instructions in this operating manual highlight particular dangers to users and to
the device and state measures for avoiding the hazard. These warning instructions fall into
the following categories:
Danger - immediate risk of danger.
Non-observance will result in death or serious injury.
Warning - possible imminent danger.
Non-observance may result in death or serious injury.
Caution - a possibly hazardous situation.
Non-observance may result in minor injury.
Notice - a possibly hazardous situation.
Non-observance may result in damage to property.
Note - provides information about particular characteristics and how to proceed.
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The signal word indicates the hazard level.
The measures for preventing the danger and its
consequences.
DANGER
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The signal word indicates the hazard level.
The measures for preventing the danger and its
consequences.
WARNING
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The signal word indicates the hazard level.
The measures for preventing the danger and its
consequences.
CAUTION
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions. The signal word
indicates the hazard level.
The measures for preventing the danger and its consequences.
NOTICE
The operating manual contains information about safely operating, maintaining, cleaning
and repairing the device.
The operating manual is part of the device and must be available to operating and service
sta.
The device may only be operated by trained sta and in compliance with this operating
manual. Operating and service personnel should be instructed according to the safety
instructions.
This equipment can be dangerous if it is not operated according to the instructions in this
operating manual.

7
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
1.3 LANGUAGES
The operating manual is available in the following languages:
Language Order No. Language Order No.
German 2349649 English 2349980
Italian 2349981
1.4 ABBREVIATIONS IN THE TEXT
Number of pieces
Position
Marking in the spare parts lists
Order No. Order number
Double stroke
Stainless steel
Two components
1.5 TERMINOLOGY FOR THE PURPOSE OF THIS MANUAL
Cleaning Manual cleaning of devices and device parts with cleaning
agent
Flushing Internal ushing of paint-wetted parts with ushing agent
Product pressure
generator
Pump or pressure tank
Sta qualications
Trained person Is instructed in the tasks assigned to him/her, the potential
risks associated with improper behavior as well as the
necessary protective devices and measures.
Electrically trained
person
Is instructed by an electrician about the tasks assigned to
him/her, the potential risks associated with improper behavior
as well as the necessary protective devices and measures.
Electrician Can assess the work assigned to him/her and detect possible
hazards based on his/her technical training, knowledge and
experience in relevant provisions.
Skilled person A person, who, based on his/her technical training, experience
and recent vocational experience, has sucient technical
knowledge in the areas of explosion protection, protection
from pressure hazards and electric hazards (if applicable) and
is familiar with the relevant and generally accepted rules of
technology so that he/she can inspect and assess the status of
devices and coating systems based on workplace safety.
In accordance with
TRBS 1203 (2010)
Additional languages on request or at:

8
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
2 CORRECT USE
2.1 DEVICE TYPE
/2K
Double diaphragm pump and spray pack:
2.2 TYPE OF USE
2.3 USE IN AN EXPLOSION HAZARD AREA
The device is suitable for processing liquid materials like paints and lacquers in accordance
with the classication into explosion classes IIA or IIB.
The double diaphragm pump can be employed in explosion hazard areas (Zone 1).
2.4 SAFETY PARAMETERS
WAGNER accepts no liability for any damage arising from incorrect use.
Use the device only to work with the products recommended by WAGNER.
Only operate the device as a whole.
Do not deactivate safety xtures.
Use only WAGNER original spare parts and accessories.
The double diaphragm pump may only be operated under the following conditions:
The operating sta must be trained on the basis of this operating manual.
The safety regulations listed in this operating manual must be observed.
The operating, maintenance and repair information in this operating manual must
be observed.
The statutory requirements and accident prevention regulation standards in the
country of use must be observed.

9
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
Application
Water-dilutable products
Solvent-based lacquers and paints
Emulsions
UV lacquers
Primers
Epoxy and polyurethane lacquers, phenolic lacquers
Liquid plastics
Wax-based underside protection
Shear-sensitive lacquers
2.5.1 RECOMMENDED APPLICATION AREAS
Application
Furniture industry
Kitchen manufacturers
Joinery
Window factories
Steel-processing industry
Construction of vehicles
Shipbuilding
Legend
recommended limited suitability less suitable
Legend
recommended limited suitability less suitable
2.5 PROCESSIBLE 2K WORKING MATERIALS WITH MIXING RATIO 1:1
The double diaphragm pump is suitable for processing liquid 2K products
Abrasive working materials and pigments!
Greater wear of parts carrying the product.
Check if the uids and solvents used are compatible with the pump construction
materials as indicated in Chapter 5.4.1.
NOTICE

10
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
2.6 REASONABLY FORESEEABLE MISUSE
The following is prohibited:
coating work pieces which are not grounded,
unauthorized conversions and modications to the double diaphragm pump,
processing dry or similar coating materials, and
using defective components, spare parts, or accessories other than those described
in Chapter 13 of this operating manual.
The forms of misuse listed below may result in physical injury or property damage:
use of powder as coating product and
incorrectly set values for processing.
Wagner double diaphragm pumps are not designed for conveying food.
2.7 RESIDUAL RISKS
Residual risks are risks which cannot be ruled out even in the event of correct use.
If necessary, warning and prohibition signs at the relevant points of risk indicate residual
risks.
Residual risk Source Consequences Specic measures Lifecycle phase
Skin contact with
lacquers and
cleaning agents
Handling of
lacquers and
cleaning agents
Skin irritations, wear protective
clothing,
Operation,
allergies observe safety data
sheets
maintenance,
disassembly
Lacquer in air
outside the dened
working area
Lacquering outside
the dened working
area
Inhalation of
substances which
are hazardous to
health
Observe working
and operating
manuals
Operation,
maintenance

11
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
3.1 EXPLOSION PROTECTION IDENTIFICATION
As dened in Directive 94/9/EC (ATEX 95), the device is suitable for use in potentially
explosive areas.
European Communities
Symbol for explosion protection
Device class II
Category 2 (Zone 1)
Ex-atmosphere gas
Explosion group
Constructional security
Special Notes (see Chapter 3.2)
3 IDENTIFICATION
3.2 IDENTIFICATION X
X The maximum surface temperature corresponds to the permissible product
temperature. This and the permissible ambient temperature can be found in the
"Technical Data" chapter.
Maximum surface temperature
The maximum surface temperature of the pump depends on the operating conditions
(heated product) and not on the device (frictional heat).
Ignition temperature of the coating product
Ensure that the ignition temperature of the coating product is above the maximum
surface temperature.
Ambient temperature
The permissible ambient temperature is: +10 °C to +60 °C; +50 °F to 140 °F.
Medium supporting atomizing
To atomize the product, use only weakly oxidizing gases, e.g., air.
Safe handling of WAGNER spray devices
Mechanical sparks can form if the device comes into contact with metal.
In an explosive atmosphere:
Do not knock or push the device against steel or rusty iron.
Do not drop the device.
Use only tools that are made of a permitted material.

12
Pumpentyp/ Pump type/ Type de pompe
Max. Materialdruck/ Fluid pressure/ Pression fluid
Übersetzungsverhältnis/ Ratio/ Rapport
Fördermenge DH/ Delivery DS/ Débit CD
Max. Luftdruck/ Air pressure/ Pression d`air
Max. Temp. Material/ Fluid
Serie Nr. / Serie No. / N. serie
Vor Gebrauch Betriebsanleitung beachten / Check manual before use!
J. WAGNER AG
MADE IN SWITZERLAND
CH-9450 ALTSTÄTTEN II 2G IIB c X
B_05083
40-10/2K
25 MPa
40:1
10 ccm
0.6 MPa
80°C
SOM3001
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
Surface spraying, electrostatics
Do not spray device parts using electrostatic equipment.
Cleaning
If there are deposits on the surfaces, the device may form electrostatic charges. Flames or
sparks can form during discharge.
Remove deposits from the surfaces to maintain conductivity.
Use only a damp cloth to clean the device.
Operation without Fluid
Avoid running the pump so that it sucks in air (without uid inside). The air, combined with
the vapor of ammable uids, can generate internal areas with an explosion hazard.
Periodically check that the pump is working, paying special attention to the presence of air
in the pumped uid, which may be caused by damaged diaphragms.
Avoid operating the pump with damaged diaphragms.

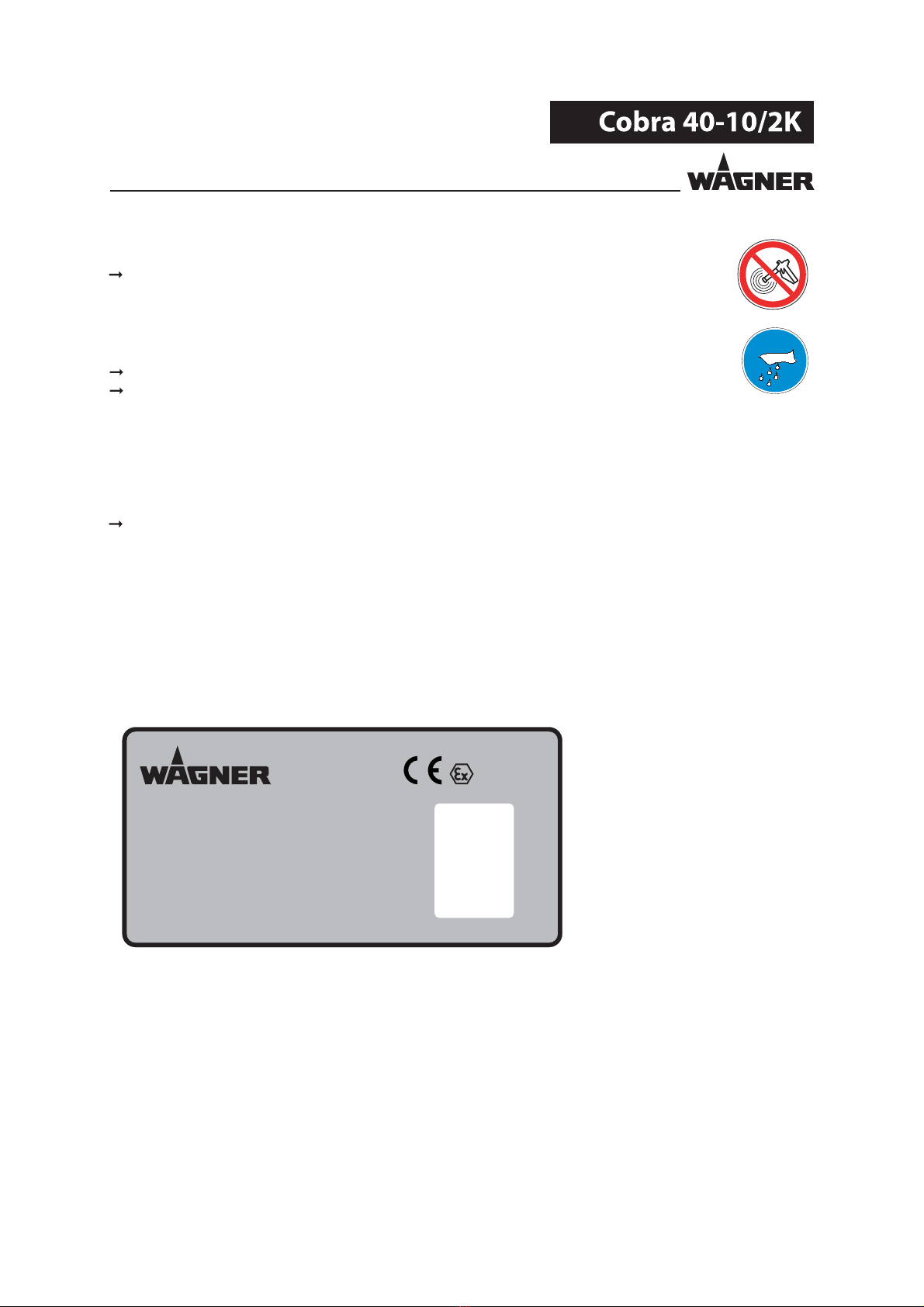

3.3 TYPE PLATE
Example for Cobra 40-10/2K
1
2
3
4
5
6
7
8
1 Pump type
2 Max. product pressure
3 Pump ratio
4 Delivery rate
5 Max. air pressure
6 Max. temp. product/ uid
7 Serial number
8 Read instruction manual
before use

13
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
4 GENERAL SAFETY INSTRUCTIONS
4.1 SAFETY INSTRUCTIONS FOR THE OPERATOR
4.1.1 ELECTRICAL EQUIPMENT
4.1.2 PERSONNEL QUALIFICATIONS
4.1.3 SAFE WORK ENVIRONMENT
Keep this operating manual at hand near the device at all times.
Always follow local regulations concerning occupational safety and accident
prevention.
Electrical devices and equipment
To be provided in accordance with the local safety requirements with regard to the
operating mode and ambient inuences.
May only be maintained by skilled electricians or under their supervision.
Must be operated in accordance with the safety regulations and electrotechnical
regulations.
Must be repaired immediately in the event of problems.
Must be decommissioned if they pose a hazard.
Must be de-energized before work is commenced on active parts. Inform sta about
planned work. Observe electrical safety regulations.
Ensure that the device is only operated, maintained and repaired by trained persons.
Ensure that the oor in the working area is static dissipative in accordance with
EN61340-4-1 (resistance must not exceed 100 megohms).
Ensure that all persons within the working area wear static dissipative shoes. Footwear
must comply with EN 20344. The measured insulation resistance must not exceed
100megohms.
Ensure that during spraying, persons wear static dissipative gloves. Grounding takes
place via the spray gun handle.
If protective clothing is worn, including gloves, it has to comply with EN1149-5. The
measured insulation resistance must not exceed 100 megohms.
Paint mist extraction systems/ventilation systems must be tted on site according to
local regulations.
Ensure that the following components of a safe working environment are available:
- Product/air hoses adapted to the working pressure.
- Personal safety equipment (breathing and skin protection).
Ensure that there are no ignition sources such as naked ames, sparks, glowing wires,
or hot surfaces in the vicinity. Do not smoke.

14
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980

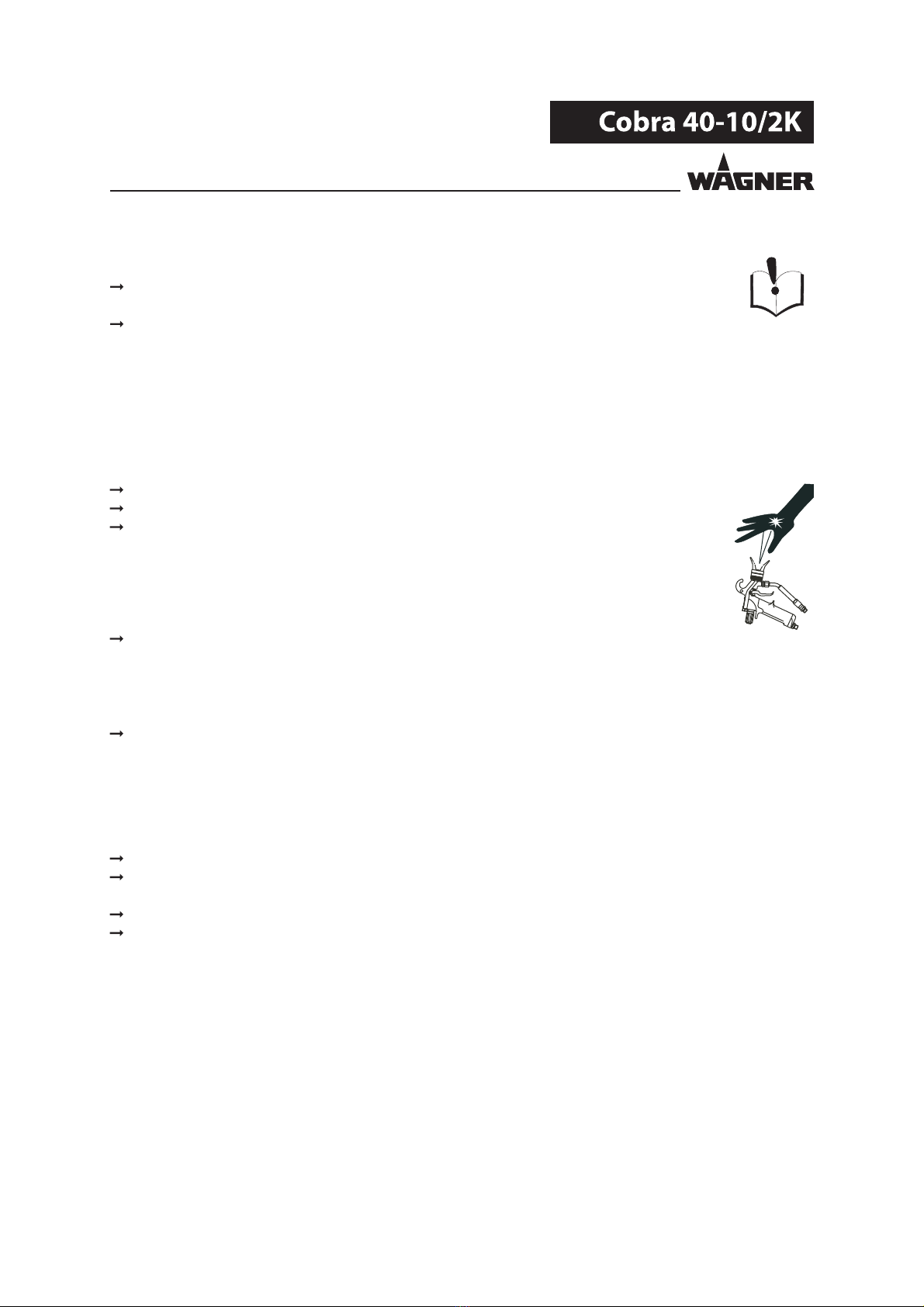

4.2.1 SAFE HANDLING OF WAGNER SPRAY DEVICES
4.2 SAFETY INSTRUCTIONS FOR STAFF
Always follow the information in these instructions, particularly the general safety
instructions and the warning instructions.
Always follow local regulations concerning occupational safety and accident
prevention.
The spray jet is under pressure and can cause dangerous injuries.
Avoid injection of paint or ushing agents:
Never point the spray gun at people.
Never reach into the spray jet.
Before all work on the device, in the event of work interruptions and functional faults:
- Switch o the energy/compressed air supply.
- Relieve the pressure from the spray gun and device.
- Secure the spray gun against actuation.
- In the event of functional faults, remedy the fault as described in the "Troubleshooting"
chapter.
When necessary, or at least every 12 months, the liquid ejection devices should be
checked for safe working conditions by an expert (e.g., Wagner Service Technician)
in accordance with the guidelines for liquid ejection devices (ZH1/406 and BGR500
Part2 Chapter2.29 and 2.36).
- For shut down devices, the examination can be suspended until the next start-up.
Follow the "Pressure Relief Procedure":
- If pressure relief is required.
- If the spraying work is interrupted or stopped.
- Before the device is cleaned on the outside, checked or serviced.
- Before the spray nozzle is installed or cleaned.
In the event of skin injuries caused by paint or ushing agents:
Note the paint or ushing agent that you have been using.
Consult a doctor immediately.
Avoid risk of injury from recoil forces:
Ensure that you have firm footing when operating the spray gun.
Only hold the spray gun briey in a position.

15
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
4.2.3 PRODUCT HOSES
4.2.2 GROUNDING THE DEVICE
In order to avoid electrostatic charging of the device, the device must be grounded.
Friction, owing liquids and air or electrostatic coating processes create charges. Flames or
sparks can form during discharge.
Ensure that the device is grounded for every spraying operation.
Ground the work pieces to be coated.
Ensure that all persons inside the working area are grounded, e.g., that they are wearing
static dissipative shoes.
Wear static dissipative gloves when spraying. The grounding takes place via the spray
gun handle.
Ensure that the hose material is chemically resistant to the sprayed products and the
used ushing agents.
Ensure that the product hose is suitable for the pressure generated.
Ensure that the following information can be seen on the high-pressure hose:
- Manufacturer
- Permissible operating pressure
- Date of manufacture
Material of the inner hose (e.g. PA or FEP)
Make sure that the hoses are laid only in suitable places. Hoses should not be laid in the
following places under any circumstances:
- in high-traffic areas,
- on sharp edges,
- on moving parts or
- on hot surfaces.
Ensure that the hoses are never run over by vehicles (e.g., fork lifts), or that the hoses are
never put under pressure from the outside in any other way.
Ensure that the hoses are never kinked. Observe maximum bending radii.
Make sure that the hoses are never used to pull or move the equipment.
The electrical resistance of the product hose, measured at both valves, must be less
than 1 megohm.
Suction hoses may not be subjected to pressure.
Several liquids have a high expansion coecient. In some cases their volume can rise with
consequent damage to pipes, ttings, etc. and cause uid leakage.
When the pump sucks liquid from a closed tank, ensure that air or a suitable gas can
enter the tank. Thus a negative pressure is avoided. The vacuum could implode the tank
(squeeze) and can cause it to break. The tank would leak and the liquid would ow out.
The pressure created by the pump is a multiplication of the inlet air pressure.

16
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980

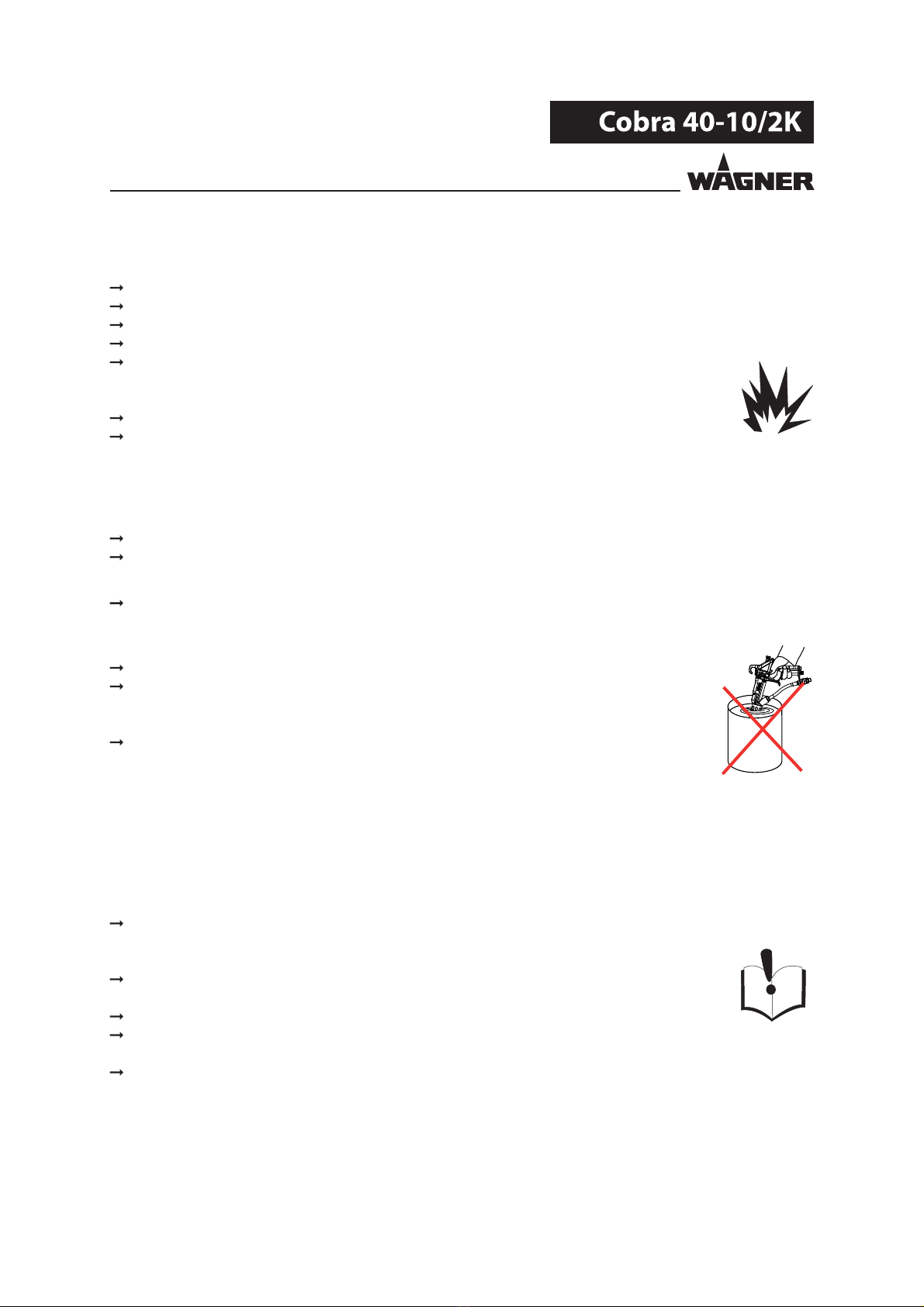

4.2.5 HANDLING HAZARDOUS LIQUIDS, VARNISHES AND PAINTS
When preparing or working with lacquer and when cleaning the device, follow the
working instructions of the manufacturer of the lacquers, solvents and cleaning agents
being used.
Take the specied protective measures; in particular, make sure that you wear safety
goggles, protective clothing, and gloves, as well as skin protection cream if necessary.
Use a mask or a breathing apparatus if necessary.
For sucient health and environmental safety: Operate the device in a spray booth or
on a spraying wall with the ventilation (extraction) switched on.
Wear suitable protective clothing when working with hot products.
4.2.4 CLEANING AND RINSING
Relieve the pressure from the device.
De-energize the device electrically.
Preference should be given to non-ammable cleaning and ushing agents.
Observe the specications of the paint manufacturer.
Ensure that the ash point of the cleaning agent is at least 15 K above the ambient
temperature or that cleaning is undertaken at a cleaning station with technical
ventilation.
Take measures for workplace safety (see Chapter 4.1.3).
When commissioning or emptying the device, please note that an explosive mixture
may temporarily exist inside the lines and components of equipment:
- depending on the coating product used,
- depending on the ushing agent (solvent) used,
explosive mixture inside the lines and items of equipment.
Only electrically conductive tanks may be used for cleaning and ushing agents.
The tanks must be grounded.
An explosive gas/air mixture forms in closed tanks.
Never spray into a closed tank when using solvents for ushing.
External cleaning
When cleaning the exterior of the device or its parts, also observe the following:
Disconnect the pneumatic supply line.
Use only moistened cloths and brushes. Never use abrasive agents or hard objects and
never spray cleaning agents with a gun. Cleaning the device must not damage it in any
way.
Ensure that no electrical component is cleaned with nor even immersed into solvent.

17
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
4.2.6 TOUCHING HOT SURFACES
Only touch hot surfaces if you are wearing protective gloves.
When operating the device with a coating product with a temperature of > 43 °C;
109.4 °F:
- Identify the device with a warning label "Warning - hot surface".
Order No.
9998910 Instruction label
9998911 Protection label
Note: Order the two stickers together.

18
B_05078
4
1
6
9
3
5
2
7
13
15 (A)
15 (B)
A
18
17
16
11 12
14
8 (A)
10 (A)
10 (B) 8 (B)

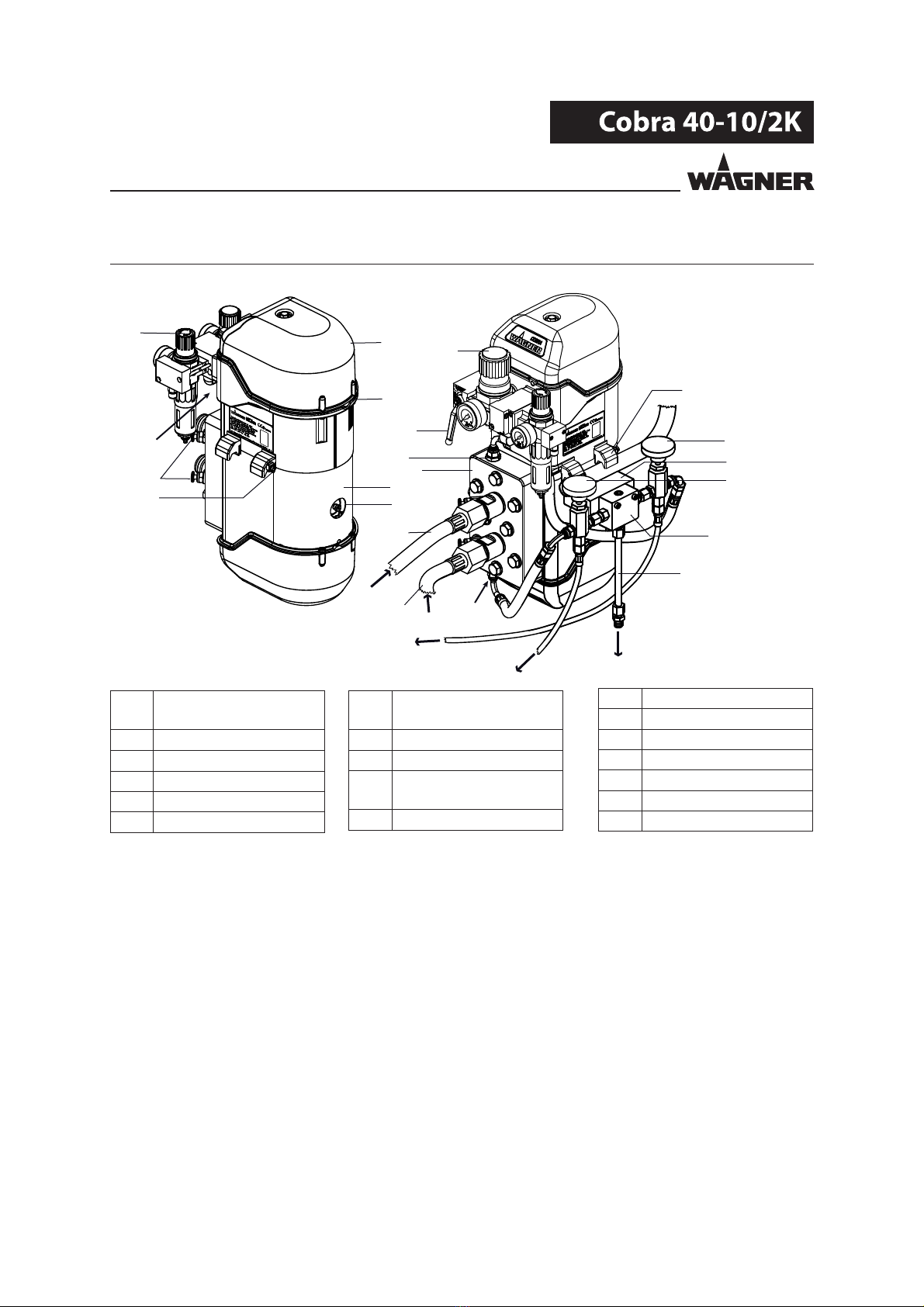

Cobra 40-10/2K
A + B
B
B
A
A
B
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
5 DESCRIPTION
The double diaphragm pump is driven with compressed air. This compressed air moves the air piston in the air
motor (4), and consequently the piston rod in the pressure stage (9), up and down. At the end of each stroke the
compressed air is redirected by a reversing valve and the control piston. The up-and-down movement of the 2
diaphragms within the uid section is produced by hydraulic oil, which is moved by the piston in the pressure stage.
With every stroke of the piston rod, working material is sucked in and delivered to the spray gun at the same time.
5.1 COMPONENTS
1 Control housing with
integrated silencer
2 Air pressure regulator
3 Ball valve
4 Air motor
5 Compressed air Inlet
6 Fastening ange
5.2 MODE OF OPERATION
5.2.1 GENERAL INFORMATION
5.2.2 AIR MOTOR 4
The air motor with its pneumatic reverse (1) does not require pneumatic oil.
The compressed air is fed to the motor via the air pressure regulator (2) and the ball valve (3).
The air motor is tted with a safety valve. The safety valve has been set and sealed at the factory. In case
of pressures over and above the permissible operating pressure, the valve, which is held with a spring,
automatically opens and releases the excess pressure.
5.2.3 PROTECTIVE AND MONITORING EQUIPMENT
7 Pressure regulator
AirCoat (option)
8 Product outlet (A, B)
9 Fluid section
10 Suction system product
inlet (A, B)
11 Grounding connection
12 Fluid section casing
13 Valve depressor (A, B)
14 Exhaust air cap
15 Relief valve (A, B)
16 Mixing block holder
17 Mixing block
18 Mixing tube

19
B_5062
B_5061
B_05063
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980

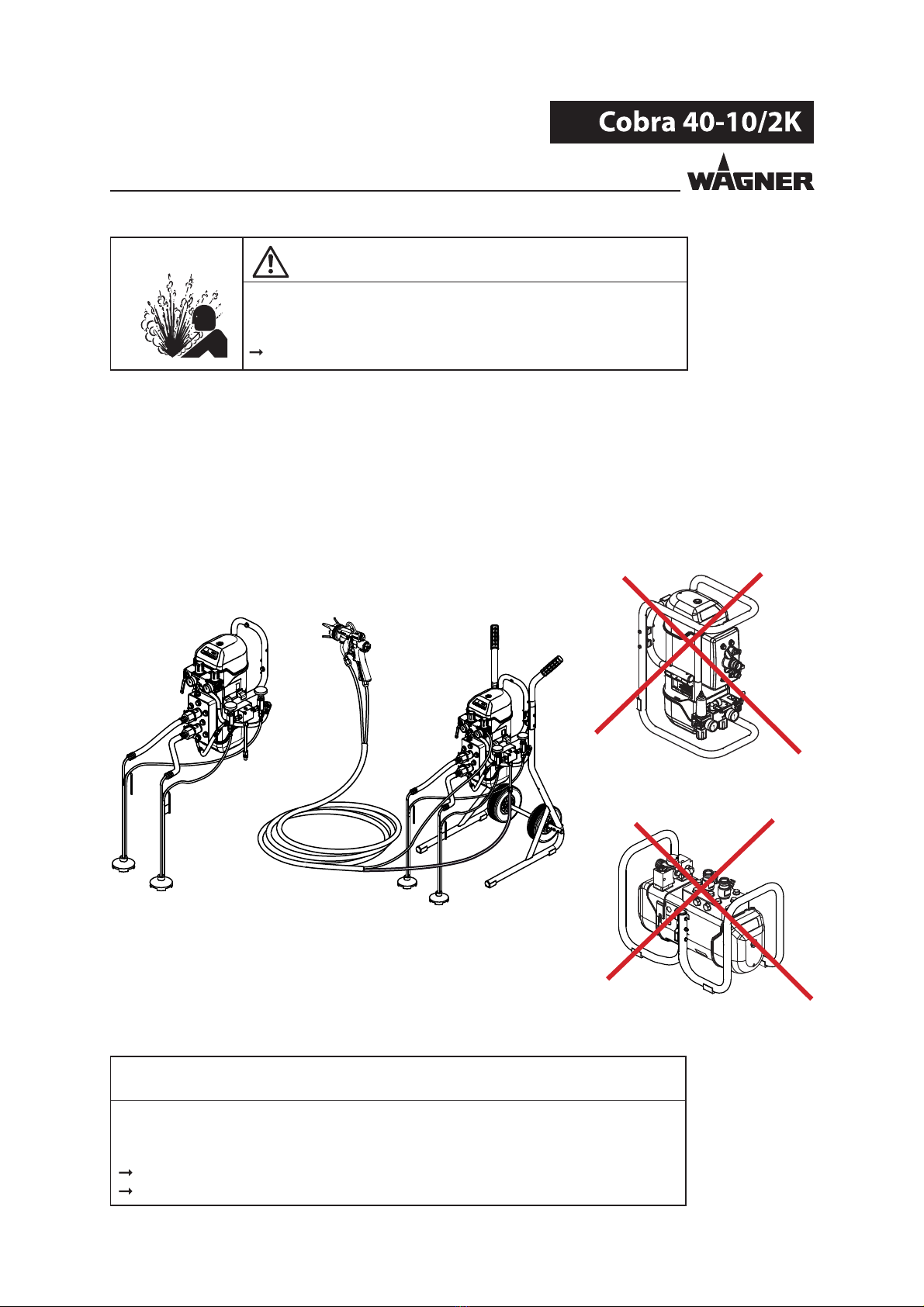

The Cobra pump may only be operated in a vertical position as
shown. Overhead operation is not permitted.
Vertical position at
wall mount
Vertical positioning
on trolley
Overpressure!
Risk of injury from bursting components.
Never change the safety valve setting.
WARNING
Overhead operation or storage (air motor with pressure regulator below)
Air could get into the hydraulic circuit, causing a malfunction.
Avoid overhead operation or storage at all costs.
Venting, see chapter 8.2.6 Oil change
NOTICE
The uid section has been designed as a double diaphragm pump with exchangeable inlet
and outlet valves. With the mixer (18 and 19) upstream relief valves (16) can be switched
"spraying mode" and "circulation mode".
5.2.4 FLUID SECTION 9
5.2.5 POSITIONING

20
OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC2349980
5.3 SCOPE OF DELIVERY
Inlet housing Consital (aluminum alloy)
Fluid section Consital (aluminum alloy)
Valve balls Stainless steel
Valve seats/valve cone Carbide
Diaphragms Resistant PA
Valve tting 1.4104
Description Devices
Pump ratio 40:1
Volume ow per double stroke cm 10
cu inch 0.6
Maximum operating overpressure MPa 25
bar 250
psi 3626
Maximum possible strokes in operation /min. 200
Minimum/maximum air inlet pressure MPa 0.25-0.6
bar 2.5-6
psi 36.3-87
5.4 DATA
5.4.1 MATERIALS OF PAINTWETTED PARTS
5.4.2 TECHNICAL DATA
Order No. Designation
U850.00CA 1 Double diaphragm pump Cobra 40-10/2K consisting of:
Fluid section, air motor and connection elements mounted on trolley.
U850.00MA 1 Double diaphragm pump Cobra 40-10/2K consisting of:
Fluid section, air motor, connection elements and holder for wall
mounting.
U850.00SA 1 Double diaphragm pump Cobra 40-10/2K consisting of:
Fluid section, air motor, connection elements and mounted on a special
rack.
The standard equipment includes:
322981 1 Sign
236219 1 Grounding cable, complete
341434 1 Double open-end wrench
See Chapter 15.3 1 Declaration of conformity
2349649 1 Operating manual, German
See Chapter 1 1 Operating manual in the local language
The delivery note shows the exact scope of delivery.
Accessories: see Chapter 13.
