WAGNER Wildcat 18-40 Operational manual

B_03900
IceBreaker Piston Pumps
Flow rate of 40 cm3
Version 05/2015
Translation of the Original
Operating Manual

3
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
Table of Contents
1 ABOUT THIS MANUAL 6
1.1 Preface 6
1.2 Warnings, Notices, and Symbols in this Operating Manual 6
1.3 Languages 7
1.4 Abbreviations in the Text 7
1.5 Terminology for the Purpose of this Manual 8
2 CORRECT USE 9
2.1 Device Types 9
2.2 Type of Use 9
2.3 Field of Application 9
2.4 Safety Parameters 9
2.5 Processable Working Materials 10
2.6 Recommended Application Areas 10
2.7 Reasonably Foreseeable Misuse 11
2.8 Residual Risks 11
3 IDENTIFICATION 12
3.1 Explosion Protection Identication 12
3.2 Identication X 12
3.3 Type Plate 13
4 GENERAL SAFETY INSTRUCTIONS 14
4.1 Safety Instructions for the Operator 14
4.1.1 Electrical Equipment 14
4.1.2 Personnel Qualications 14
4.1.3 Safe Work Environment 14
4.2 Safety Instructions for Sta 15
4.2.1 Safe Handling of WAGNER Spray Devices 15
4.2.2 Grounding the Device 16
4.2.3 Product Hoses 16
4.2.4 Cleaning and Flushing 17
4.2.5 Handling Hazardous Liquids, Lacquers and Paints 18
4.2.6 Touching Hot Surfaces 18
5 DESCRIPTION 19

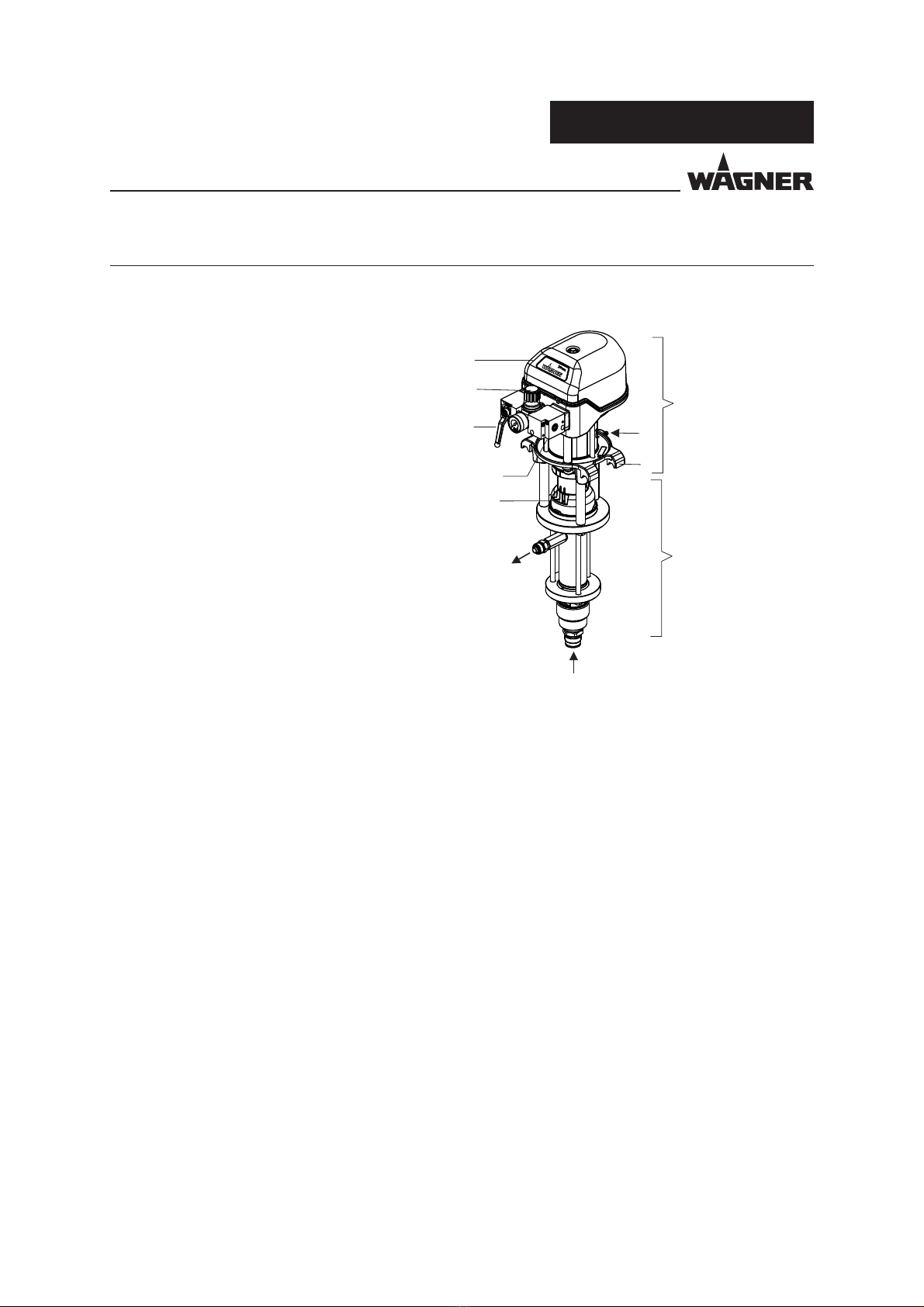

5.1 Components 19
5.2 Mode of Operation 19
5.3 Protective and Monitoring Equipment 20
5.4 Scope of Delivery 20
5.5 Data 21
5.5.1 Materials of Paint-wetted Parts 21
5.5.2 Recommended Packings 21
5.5.3 Technical Data 21
5.5.3.1 Technical Data for Wildcat and Puma 22
5.5.3.2 Measurements and Connections for Wildcat and Puma 23
5.5.4 Volume Flow 24
5.5.5 Performance Diagrams 25
5.6 Pressure Regulator Unit 26

4
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
Table of Contents
5.7 Product Filter and Return Flow 26
5.7.1 High-Pressure Filter (Option) 26
5.7.2 Relief Combination and Inline Filter up to 270 bar (Option) 27
5.8 Stroke Count (Option) 27
5.9 Feed Pump (Option) 28
6 ASSEMBLY AND COMMISSIONING 29
6.1 Training Assembly/Commissioning Sta 29
6.2 Storage and Installation Conditions 29
6.3 Transportation 29
6.4 Assembly and Installation 30
6.4.1 Ventilation of the Spray Booth 30
6.5 Grounding 31
6.6 Commissioning 32
7 OPERATION 33
7.1 Training the Operating Sta 33
7.2 Safety Instructions 33
7.2.1 General Rules for Making Adjustments to the Spray Gun 34
7.3 Emergency Stop 34
7.4 Spraying 35
7.5 Pressure Relief/Work Interruption 35
7.6 Basic Flushing 36
7.6.1 Filling with Working Material 36
8 CLEANING AND MAINTENANCE 37
8.1 Cleaning 37
8.1.1 Cleaning Sta 37
8.1.2 Safety Instructions 37
8.1.3 Decommissioning and Cleaning 38
8.1.4 Long-term Storage 38
8.2 Maintenance 39
8.2.1 Maintenance Sta 39
8.2.2 Safety Instructions 39
8.2.3 Regular Maintenance Work 40
8.2.4 Filling Separating Agent 40
8.2.5 Condensate Drain from the AirCoat Filter Regulator 40
8.2.6 Emptying the Pump 41
8.2.7 Filling the Empty Pump 42
8.2.8 Cleaning the High-pressure Filter 43
8.2.9 Product Hoses, Tubes and Couplings 44
9 TROUBLESHOOTING AND RECTIFICATION 45
10 REPAIRS 46
10.1 Repair Personnel 46
10.2 Mounting Materials 46
11 DISPOSAL 46

5
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
12 ACCESSORIES 48
12.1 Product Outlet 48
12.2 Product Inlet 50
12.3 Trolley, Rack and Wall Bracket Accessories 52
13 SPARE PARTS 54
13.1 How Can Spare Parts Be Ordered? 54
13.2 Overview of the Components 55
13.3 Air Motors 56
13.3.1 Wildcat and Puma Air Motor Regulators 60
13.4 Connection Sets 61
13.5 Fluid Sections 62
13.6 Inlet Valve with Valve Depressor 65
13.7 Relief Combination 270 bar 66
13.8 Paint Filter (up to 270 bar; 3,916 psi) 67
13.9 High-pressure Filter 270 bar 68
13.10 High-pressure Filter 530 bar 70
13.11 AirCoat Regulator and AirCoat Filter Regulator 72
13.12 Trolley for Wildcat and Puma 73
14 3+2 YEARS GUARANTEE FOR PROFESSIONAL FINISHING 75
14.1 Scope of Guarantee 75
14.2 Guarantee Period and Registration 75
14.3 Handling 75
14.4 Exclusion of Guarantee 76
14.5 Additional Regulations 76
14.6 CE Declaration of Conformity 77
14.7 Notes on National Regulations and Guidelines 77
Table of Contents

6
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
1.2 WARNINGS, NOTICES, AND SYMBOLS IN THIS OPERATING MANUAL
1 ABOUT THIS MANUAL
Warning instructions in this operating manual highlight particular dangers to users and
to the device and state measures for avoiding the hazard. These warning instructions fall
into the following categories:
Danger – immediate risk of danger.
Non-observance will result in death or serious injury.
Warning – possible imminent danger.
Non-observance may result in death or serious injury.
Caution – a potentially hazardous situation.
Non-observance may result in minor injury.
Notice – a potentially hazardous situation.
Non-observance may result in material damage.
Note – provides information about particular characteristics and how to proceed.
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The signal word indicates the hazard level.
The measures for preventing the hazard and its consequences
are listed here.
DANGER
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The signal word indicates the hazard level.
The measures for preventing the hazard and its consequences
are listed here.
WARNING
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions.
The signal word indicates the hazard level.
The measures for preventing the hazard and its consequences
are listed here.
CAUTION
This notice warns you of a hazard!
Possible consequences of not observing the warning instructions. The signal word
indicates the hazard level.
The measures for preventing the hazard and its consequences are listed here.
NOTICE
1.1 PREFACE
The operating manual contains information about safely operating, maintaining, cleaning
and repairing the device.
The operating manual is part of the device and must be available to the operating and
service personnel.
The device may only be operated by trained personnel and in compliance with this
operating manual. Operating and service personnel should be instructed according to the
safety instructions.
This equipment can be dangerous if it is not operated according to the instructions in this
operating manual.

7
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
1.3 LANGUAGES
The operating manual is available in the following languages:
Language Order No. Language Order No. Language Order No.
German 2302505 English 2303659 French 2303661
Italian 2303663 Spanish 2303665 Dutch 2303662
Danish 2303666 Swedish 2303667 Portuguese 2339146
The corresponding service manuals are available under the following
order number:
Language Order No. Language Order No.
German 2335993 English 2335994
1.4 ABBREVIATIONS IN THE TEXT
Number of pieces
Position
Marking in the spare parts lists
Order No. Order number
Double stroke
DN Nominal diameter
PN Nominal pressure
Two components
Additional languages on request or at:
Materials
Stainless steel
Polyethylene
Ultra-high molecular weight
polyethylene
Polytetrauorethylene
PTFE with graphite
PTFE
Leather

8
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
1.5 TERMINOLOGY FOR THE PURPOSE OF THIS MANUAL
Cleaning Manual cleaning of devices and device parts with cleaning
agent
Flushing Internal ushing of paint-wetted parts with ushing agent
Sta qualications
Trained person Is instructed in the tasks assigned to him/her, the potential
risks associated with improper behavior as well as the
necessary protective devices and measures.
Electrically trained
person
Is instructed by an electrician about the tasks assigned to
him/her, the potential risks associated with improper behavior
as well as the necessary protective devices and measures.
Electrician Can assess the work assigned to him/her and detect possible
hazards based on his/her technical training, knowledge and
experience in relevant provisions.
Skilled person A person who, based on his/her technical training, experience
and recent vocational experience, has sucient technical
knowledge and is familiar with the relevant and generally
accepted rules of technology so that he/she can inspect and
assess the status of devices and coating systems based on
workplace safety.
In the context of
TRBS1203 (2010 /
Revision 2012)
Refer to TRBS1203 (2010 / revision 2012) for further
requirements for qualied persons: Special skills in the areas
of protection against pressure and electrical hazards and
explosion protection (if applicable).

9
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
2 CORRECT USE
2.1 DEVICE TYPES
2.2 TYPE OF USE
2.3 FIELD OF APPLICATION
The device is suitable for processing liquid materials such as paints and lacquers in
accordance with the classication into explosion classes IIA or IIB.
The pneumatic pump can be used in potentially explosive areas (Zone 1).
See Chapter 3.
2.4 SAFETY PARAMETERS
Pneumatic pump with spraypack:
18-40 28-40
WAGNER accepts no liability for any damage arising from incorrect use.
Use the device only to work with the products recommended by WAGNER.
Operate the device only as a whole.
Do not deactivate safety xtures.
Use only WAGNER original spare parts and accessories.
The pneumatic pump may only be operated under the following conditions:
The operating personnel must be trained on the basis of this operating manual.
The safety regulations listed in this operating manual must be observed.
The operating, maintenance and repair information in this operating manual must
be observed.
The statutory requirements and accident prevention regulation standards in the
country of use must be observed.

10
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
2.5 PROCESSABLE WORKING MATERIALS
Abrasive working materials and pigments!
Greater wear of parts carrying the product.
Do not use any grainy and abrasive working materials with large, sharp-edged
pigments.
Use the application-related model (ow rate/cycle, material packaging, valve seat,
etc.), as specied in Chapter 5.5.
Check if the uids and solvents used are compatible with the pump construction
materials as indicated in Chapter 5.5.1.
NOTE
Wear caused by abrasive working materials is not covered by the warranty.
Working materials
Water-dilutable products
Solvent-based lacquers and paints
Primers
Epoxy and polyurethane lacquers, phenolic lacquers
Liquid plastics
Wax-based underside protection
Chemically aggressive products that attack carbide seats
Legend: recommended limited suitability less suitable
2.6 RECOMMENDED APPLICATION AREAS
Application area
Furniture industry
Kitchen manufacturers
Joinery
Window factories
Steel-processing industry
Construction of vehicles
Shipbuilding
Legend: recommended limited suitability less suitable

11
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
2.8 RESIDUAL RISKS
Residual risks are risks which cannot be ruled out even in the event of correct use.
If necessary, warning and prohibition signs at the relevant points of risk indicate residual
risks.
Residual risk Source Consequences Specic measures Lifecycle phase
Skin contact with
lacquers and
cleaning agents
Handling of
lacquers and
cleaning agents
Skin irritation,
allergies
Use personal safety
equipment.
Operation,
Observe safety data
sheets
maintenance,
disassembly
Lacquer in air
outside the dened
working area
Lacquering outside
the dened
working area
Inhalation of
substances
hazardous to
health
Observe work and
operation instructions.
Use personal safety
equipment
Operation,
maintenance
2.7 REASONABLY FORESEEABLE MISUSE
The forms of misuse listed below may result in physical injury or property damage:
coating work pieces which are not grounded;
unauthorized conversions or modications to the pneumatic pump;
processing dry or similar coating products, e.g., powder;
using defective components, spare parts or accessories other than those described in
the "Accessories" chapter of this operating manual;
continuing work with a defective or kinked product hose;
working with incorrectly set values;
processing food.

12
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
3.1 EXPLOSION PROTECTION IDENTIFICATION
3.2 IDENTIFICATION X
As dened in Directive 94/9/EC (ATEX 95), the device is suitable for use in potentially
explosive areas.
CE CE mark (European Communities)
Explosion-proof equipment
II Device class II (not mining)
2 Category 2 device (suitable for zone 1)
G Ex-atmosphere gas
c Constructional safety
IIB Device class (Gas) IIB
T3 Temperature class T3: maximum surface temperature 200 °C; 392 °F
T4 Temperature class T4: maximum surface temperature 135 °C; 275 °F
X There are special instructions for safe operation. See the following chapter,
"Identication X".
3 IDENTIFICATION
Maximum surface temperature
The maximum surface temperature T3 of the piston pump can be reached if it runs dry.
Ensure that the piston pump is lled with sucient working or ushing agent.
Ensure that the separating agent tank is lled with sucient separating agent.
Temperature class T3: Without dry-running protection.
Temperature class T4: With dry-run protection.
Ignition temperature
Ensure that the ignition temperature of the surrounding gas (pumping product,
cleaning agents) is higher than the maximum permitted surface temperature of the
device.
Ambient temperature
The permissible ambient temperature is: +5 °C to +50 °C; +41 °F to +122 °F.
Medium supporting atomizing
To atomize the product, use only weakly oxidizing gases, e.g. air.

13
Wildcat & Puma 40 cm
Pumpentyp / Pump type
Max. Materialdruck / Fluid pressure
Übersetzungsverhältnis / Ratio
Fördermenge DH / Delivery DS
Max. Luftdruck / Air pressure
Max. Temp. Material / Fluid
Baujahr - Serie Nr. / Year of manufacture - Serial No.
Vor Gebrauch Betriebsanleitung beachten / Check manual before use!
J. WAGNER AG
MADE IN SWITZERLAND
CH-9450 ALTSTÄTTEN II 2 G c IIB T3/T4 X
1
2
4
5
6
7
8
9
3
B_05439
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
Safe handling of WAGNER spray devices
Mechanical sparks can form if the device comes into contact with metal.
In an explosive atmosphere:
Do not knock or push the device against steel or rusty iron.
Do not drop the device.
Only use tools that are made of a permitted material.
Surface spraying, electrostatics
Do not spray device parts using electrostatic equipment.
Cleaning
If there are deposits on the surfaces, the device may form electrostatic charges. Flames or
sparks can form during discharge.
Remove deposits from the surfaces to maintain conductivity.
Use only a damp cloth to clean the device.
National regulations
Ensure that the national explosion prevention rules and regulations are observed when
setting up the device.
Air in the pump uid
Flammable gas mixtures can form if air reaches the pump uid.
Prevent the pump from taking in air and running dry.
If air has been taken in, x the leak. Then, ll slowly and in a controlled manner until the
air has escaped.
Air in the pumped uid can be caused by damaged packings.
Avoid operating the pump with damaged packing.
Ensure that the separating agent tank is lled with sucient separating agent.
Periodically check that the pump is working smoothly, paying special attention to the
presence of air in the pumped uid.
Filling and emptying
Flammable gas mixtures can form in the uid section or product hoses if the pump must
be emptied for maintenance.
Empty and ll the device slowly and in a controlled manner.
Avoid potentially explosive atmosphere in the surroundings.
3.3 TYPE PLATE
1 Manufacturer and CE Identication
2 Pump type
3 Maximum product pressure
4 Pump ratio
5 Flow rate per double stroke
6 Maximum air inlet pressure
7 Maximum product temperature
8 Model year - serial number
9 Read operating manual before use!

14
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
4 GENERAL SAFETY INSTRUCTIONS
4.1 SAFETY INSTRUCTIONS FOR THE OPERATOR
Keep this operating manual at hand near the device at all times.
Always follow local regulations concerning occupational safety and accident
prevention.
4.1.1 ELECTRICAL EQUIPMENT
Electrical devices and equipment
To be provided in accordance with the local safety requirements with regard to the
operating mode and ambient inuences.
May only be maintained by skilled electricians or under their supervision. With open
housings, there is a danger from line voltage.
Must be operated in accordance with the safety regulations and electrotechnical
regulations.
Must be repaired immediately in the event of problems.
Must be decommissioned if they pose a hazard or are damaged.
Must be de-energized before work is commenced on active parts. Inform sta about
planned work. Observe electrical safety regulations.
Ground all devices to a common grounding point.
Only operate the device with a properly installed socket with a protective ground wire
connection.
Keep liquids away from electrical devices.
4.1.2 PERSONNEL QUALIFICATIONS
Ensure that the device is operated, maintained and repaired only by trained persons.
4.1.3 SAFE WORK ENVIRONMENT
Ensure that the oor in the working area is static dissipative in accordance with
EN61340-4-1 (resistance must not exceed 100 megohms).
Paint mist extraction systems / ventilation systems must be tted on site according to
local regulations.
Ensure that product hoses / air hoses adapted to the working pressure are used.
Ensure that personal protective equipment is available and is used.
Ensure that all persons within the working area wear static dissipative shoes. Footwear
must comply with EN 20344. The measured insulation resistance must not exceed
100megohms.

15
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
Always follow the information in this manual, particularly the general safety instructions
and the warning instructions.
Always follow local regulations concerning occupational safety and accident
prevention.
For electrostatic application: Anyone tted with a pacemaker must not enter the
high-voltage area!
The spray jet is under pressure and can cause dangerous injuries.
Avoid injection of paint or ushing agents:
Never point the spray gun at people.
Never reach into the spray jet.
Before any work on the device, in the event of work interruptions and malfunctions:
- Relieve pressure from spray guns and devices.
- Secure spray guns against actuation.
- Switch o the energy/compressed air supply.
- Disconnect the control unit from the mains.
- In the event of functional faults, remedy the fault as described in the
"Troubleshooting"chapter.
Ensure that during spraying, persons wear static dissipative gloves. The grounding
takes place via the spray gun handle.
Protective clothing, including gloves, must comply with EN 1149-5. The measured
insulation resistance must not exceed 100 megohms.
Ensure that there are no ignition sources such as naked ames, sparks, glowing wires,
or hot surfaces in the vicinity. Do not smoke.
Ensure that the pipe joints, hoses, equipment parts and connections are permanently,
technically leak-proof:
- Periodic preventative maintenance and service (replacing hoses, checking tightness
strength and connections, etc.)
- Regular monitoring of leaks and defects via visual inspection and odor testing, e.g.,
daily before commissioning, at the end of work or weekly.
In the event of defects, immediately bring the device or system to a stop and arrange
to have repairs carried out immediately.
Grounding
Make sure that the ground and potential equalization of all system parts are performed
reliably and continuously and can withstand the expected stress (e.g. mechanical
stress, corrosion).
4.2 SAFETY INSTRUCTIONS FOR STAFF
4.2.1 SAFE HANDLING OF WAGNER SPRAY DEVICES

16
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
4.2.3 PRODUCT HOSES
Ensure that the hose material is chemically resistant to the sprayed products and the
ushing agents used.
Ensure that the product hose is suitable for the pressure generated.
Ensure that the following information can be seen on the high-pressure hose:
- Manufacturer
- Permissible operating pressure
- Date of manufacture
4.2.2 GROUNDING THE DEVICE
Friction, owing liquids and air or electrostatic coating processes create charges. Flames or
sparks can form during discharge. Grounding prevents electrostatic charging.
Ensure that the device is grounded. See the "Grounding" chapter.
Ground the work pieces to be coated.
Ensure that all persons inside the working area are grounded, e.g. that they are wearing
static dissipative shoes.
Wear static dissipative gloves when spraying. The grounding takes place via the spray
gun handle.
The spray substance supply (spray substance tank, pump, etc.) must be grounded.
If needed, the liquid ejection devices must be checked by an expert (e.g. a WAGNER
service technician) at least every 12 months to verify that they are safe to use in
accordance with DGUV regulation 100-500.
- If devices have been shut down, the examination can be suspended until the next
start-up.
Carry out the work steps as described in the "Pressure Relief" chapter:
- If pressure relief is required.
- If the spraying work is interrupted or stopped.
- Before the device is cleaned on the outside, checked or serviced.
- Before the spray nozzle is installed or cleaned.
In the event of skin injuries caused by paint or ushing agents:
Note the paint or ushing agent that you have been using.
Consult a doctor immediately.
Avoid risk of injury from recoil forces:
Ensure that you have firm footing when operating the spray gun.
Hold the spray gun in one position only briey.

17
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
4.2.4 CLEANING AND FLUSHING
Relieve the pressure from the device.
De-energize the device electrically.
Preference should be given to non-ammable cleaning and ushing agents.
When carrying out cleaning work with ammable cleaning agents, make sure that all
equipment and resources (e.g. collection tank, funnel, transport cart) are conductive or
static dissipative and grounded.
Observe the specications of the lacquer manufacturer.
Ensure that the ash point of the cleaning agent is at least 15 K above the ambient
temperature or that cleaning is undertaken at a cleaning station with technical
ventilation.
Take measures for workplace safety (see Chapter 4.1.3).
When commissioning or emptying the device, please note the following:
- depending on the coating product used,
- depending on the ushing agent (solvent) used,
explosive mixture inside the lines and items of equipment.
Make sure that the hoses are laid only in suitable places. Do not lay hoses:
- in high-traffic areas,
- on sharp edges,
- on moving parts or
- on hot surfaces.
Ensure that the hoses are never run over by vehicles (e.g. fork lifts), or subjected to an
external force in any other way.
Ensure that the hoses are never kinked. Observe maximum bending radii.
Make sure that the hoses are never used to pull or move the device.
The electrical resistance of the product hose, measured at both ttings, must be less
than 1 megohm.
Suction hoses must not be subjected to pressure.
Several liquids have a high expansion coecient. In some cases their volume can rise with
consequent damage to pipes, ttings, etc. and cause uid leakage.
When the pump sucks liquid from a closed tank, ensure that air or a suitable gas can
enter the tank. Thus a negative pressure is avoided. The vacuum could implode the tank
(squeeze) and can cause it to break. The tank would leak and the liquid would ow out.
The pressure created by the pump is a multiplication of the inlet air pressure.

18
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659

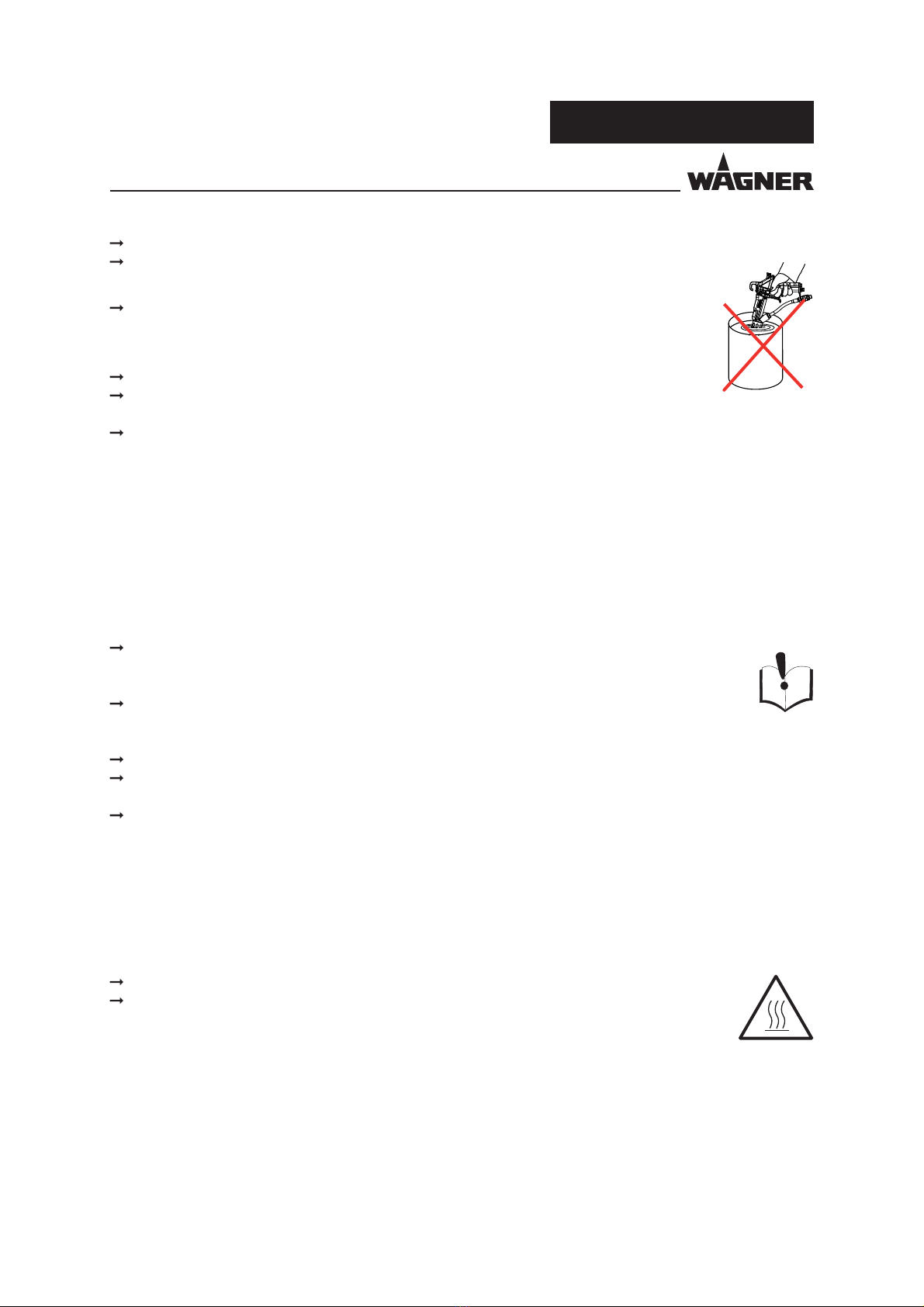

4.2.6 TOUCHING HOT SURFACES
Only touch hot surfaces if you are wearing protective gloves.
When operating the device with a coating product with a temperature > 43 °C; 109.4 °F:
Mark the device with a warning label "Warning – hot surface".
- Instruction label Order No. 9998910
- Protection label Order No. 9998911
Note: Order the two labels together.
Only electrically conductive tanks may be used for cleaning and ushing agents.
The tanks must be grounded.
An explosive gas/air mixture forms in closed tanks.
Never spray into a closed tank when using solvents for ushing.
External cleaning
When cleaning the exterior of the device or its parts, also observe the following:
Disconnect the pneumatic supply line.
Use only damp cloths and brushes. Never use abrasive agents or hard objects and never
spray cleaning agents with a gun. Cleaning the device must not damage it in any way.
Ensure that no electrical component is cleaned with or immersed in the solvent.
4.2.5 HANDLING HAZARDOUS LIQUIDS, LACQUERS AND PAINTS
When preparing or working with lacquer and when cleaning the device, follow the
processing instructions of the manufacturer of the lacquers, solvents and cleaning
agents being used.
Take the prescribed protective measures; in particular, use the personal protective
equipment: Wear safety glasses, protective clothing and safety gloves and, if necessary,
respiratory protection and a skin protection product.
Use a mask or breathing apparatus if necessary.
For sucient health and environmental safety: Operate the device in a spray booth or
on a spraying wall with the ventilation (extraction) switched on.
Wear suitable protective clothing when working with hot products.

19
Wildcat & Puma 40 cm
B_03906
10
9
8
7
5
3
2
1
4
11
6
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
The piston pump is driven with compressed air (2). This compressed air moves the air
piston up and down in the air motor (4) and it also moves the associated pump piston up
and down in the uid section (9).
In the control housing (1), the air pressure is redirected at the end of each stroke with the
help of the reversing valve. The working material is sucked up during the upwards stroke
and is continuously conveyed towards the product outlet (8) in both stroke directions.
Air motor (4)
The air motor with its pneumatic reverse (1) does not require pneumatic oil.
The compressed air is fed to the motor via the air regulator (2) and the ball valve (3).
Fluid section (9)
The uid section has been designed as a piston pump with exchangeable ball valves. The
hard chrome-plated pump piston runs in two xed packings which are self-adjusting by
means of a pressure spring, thus resulting in a long service life.
Between the air motor and the uid section there is a separating agent cup (7) for separating
the separating agent.
1 Control housing with integrated silencer
2 Air pressure regulator
3 Ball valve
4 Air motor
5 Compressed air inlet
6 Mounting ange
7 Separating agent cup
8 Product outlet
9 Fluid section
10 Product inlet
11 Grounding connection
5 DESCRIPTION
5.1 COMPONENTS
5.2 MODE OF OPERATION

20
Wildcat & Puma 40 cm
OPERATING MANUAL
VERSION 05/2015 ORDER NUMBER DOC2303659
5.3 PROTECTIVE AND MONITORING EQUIPMENT
Safety valve
The air motor is tted with a safety valve. The safety valve has been set and sealed at the
factory. In case of pressures over and above the permissible operating pressure, the valve,
which is held with a spring, automatically opens and releases the excess pressure.
Overpressure!
Risk of injury from bursting components.
Never change the safety valve setting.
WARNING
5.4 SCOPE OF DELIVERY
Pneumatic piston pump
Consists of:
-Fluid section
-Air motor
-Connection set for air motor - uid section
-Air pressure regulator for air motor
The scope of delivery also includes:
Separating agent 250 ml; 250 cc Order No.: 9992504
Declaration of Conformity See Chapter 14.3
Operating manual, German Order No.: 2302505
Operating manual in the local language See Chapter 1.3
The delivery note shows the exact scope of delivery. Accessories: see Chapter 12.
