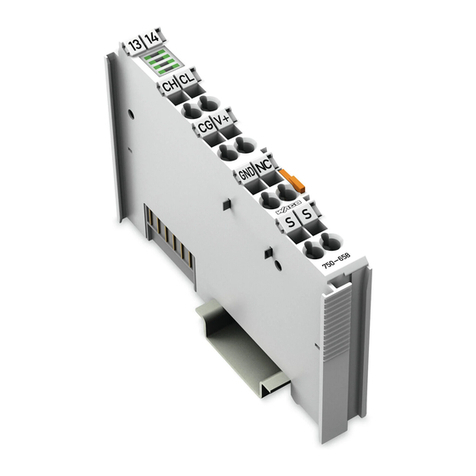

WAGO 750-658 User manual

Manual
WAGO-I/O-SYSTEM 750
750-658
CAN Gateway
Version 1.2.1, valid from FW/HW-Version 01/01

2 WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
© 2019 WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]
Web: www.wago.com
Technical Support
Phone: [phone] – 4 45 55
Fax: [phone] – 84 45 55
E-Mail: [email protected]
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
E-Mail: [email protected]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH.

WAGO-I/O-SYSTEM 750 Table of Contents 3
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
Table of Contents
1Notes about this Documentation ..............................................................6
1.1 Validity of this Documentation..................................................................6
1.2 Copyright..................................................................................................6
1.3 Symbols ...................................................................................................7
1.4 Number Notation......................................................................................9
1.5 Font Conventions.....................................................................................9
2Important Notes ........................................................................................10
2.1 Legal Bases ...........................................................................................10
2.1.1 Subject to Changes...........................................................................10
2.1.2 Personnel Qualifications....................................................................10
2.1.3 Use of the 750 Series in Compliance with Underlying Provisions.....10
2.1.4 Technical Condition of Specified Devices .........................................11
2.1.4.1 Disposal........................................................................................11
2.1.4.1.1 Electrical and Electronic Equipment ........................................11
2.1.4.1.2 Packaging ................................................................................12
2.2 Safety Advice (Precautions)...................................................................13
3CAN Technology.......................................................................................15
4Device Description ...................................................................................16
4.1 View .......................................................................................................18
4.2 Connectors.............................................................................................19
4.2.1 Data Contacts/Local Bus...................................................................19
4.2.2 Power Jumper Contacts/Field Supply ...............................................20
4.2.3 CAGE CLAMP®Connectors..............................................................22
4.3 Display Elements ...................................................................................23
4.4 Schematic Diagram................................................................................24
4.5 Technical Data.......................................................................................25
4.5.1 Device Data.......................................................................................25
4.5.2 Supply ...............................................................................................25
4.5.3 CAN Communication.........................................................................26
4.5.4 Connection Type ...............................................................................26
4.5.5 Climatic Environmental Conditions....................................................27
4.6 Approvals...............................................................................................28
4.7 Standards and Guidelines......................................................................29
5Function Description................................................................................30
5.1 Operating Modes ...................................................................................30
5.1.1 Sniffer Mode......................................................................................31
5.1.2 Transparent Mode.............................................................................31
5.1.3 Mapped Mode ...................................................................................31
5.1.3.1 Map CAN Telegrams in Input Direction ........................................31
5.1.3.2 Map CAN Telegrams in Output Direction .....................................32
5.1.3.2.1 "Content of the CAN telegram" Setting ....................................32
5.1.3.2.2 "Send on request" Setting........................................................33
5.1.3.2.3 "Send on change" Setting ........................................................33
5.1.3.2.4 "Cycle Time" Setting ................................................................33
5.1.3.3 Access CAN Telegrams via the Mailbox.......................................34

4 Table of Contents WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
5.2 Filter Settings.........................................................................................35
5.2.1 "Overwrite" Setting ............................................................................35
5.2.2 "Keep All" Setting ..............................................................................35
6Process Image ..........................................................................................36
6.1 Process Image in "Sniffer" Operating Mode ..........................................37
6.1.1 Mailbox..............................................................................................37
6.1.2 CAN User Data Range......................................................................37
6.2 Process Image in "Transparent" Operating Mode .................................39
6.2.1 Mailbox..............................................................................................39
6.2.2 CAN User Data Range......................................................................39
6.3 Process Image in the "Mapped" Operating Mode..................................40
6.3.1 Mailbox..............................................................................................40
6.3.2 Toggle Byte .......................................................................................40
6.3.3 Mapped Cyclical Data (CAN User Data) ...........................................40
7Mounting ...................................................................................................41
7.1 Mounting Sequence...............................................................................41
7.2 Inserting and Removing Devices ...........................................................42
7.2.1 Inserting the I/O Module....................................................................42
7.2.2 Removing the I/O Module..................................................................43
8Connect Devices.......................................................................................44
8.1 Connecting a Conductor to the CAGE CLAMP®....................................44
8.2 Connect CAN Bus..................................................................................45
9Configuration and Parameterization
.......................................................46
9.1 Configuration and Parameterization with WAGO-I/O-CHECK..............47
9.1.1 Configuration Dialog..........................................................................48
9.1.1.1 Toolbar .........................................................................................48
9.1.1.2 Function Area ...............................................................................51
9.1.1.3 Diagnosis Area .............................................................................51
9.1.2 Load Parameters into the Application ...............................................52
9.1.3 "Configuration" Dialog .......................................................................54
9.1.3.1 Set Mailbox Diagnosis ..................................................................54
9.1.3.2 Set Mailbox Length.......................................................................55
9.1.3.3 Setting the Process Image Size ...................................................56
9.1.4 Function Area in the "Sniffer Mode" ..................................................57
9.1.5 Function Area in the "Transparent Mode" .........................................58
9.1.6 Function Area in the "Mapped Mode"................................................60
9.1.6.1 "PII" View......................................................................................60
9.1.6.2 "PIO" View ....................................................................................62
9.1.7 "CAN Parameter" Dialog ...................................................................65
9.1.7.1 Select CAN Data Format ..............................................................65
9.1.7.2 Set CAN Baud Rate......................................................................66
9.1.8 "Filter" Dialog.....................................................................................67
9.2 Configuration and Parameterization with e!COCKPIT ...........................69
9.3 Startup with WAGO-I/O-PRO.................................................................70
10 Diagnostics ...............................................................................................71

WAGO-I/O-SYSTEM 750 Table of Contents 5
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
11 Use in Hazardous Environments ............................................................73
11.1 Marking Configuration Examples ...........................................................74
11.1.1 Marking for Europe According to ATEX and IECEx ..........................74
11.1.2 Marking for the United States of America (NEC) and Canada
(CEC) ................................................................................................78
11.2 Installation Regulations..........................................................................81
11.2.1 Special Notes Regarding Explosion Protection.................................81
11.2.2 Special Notes Regarding ANSI/ISA Ex .............................................83
12 Appendix ...................................................................................................84
12.1 Mailbox 2.0 Transmission Method .........................................................84
12.1.1 Message............................................................................................84
12.1.2 Transmission Channel.......................................................................85
12.1.2.1 The Handshake Byte ....................................................................86
12.1.3 Communication Phases ....................................................................87
12.1.3.1 Synchronization ............................................................................87
12.1.3.1.1 Mailbox Commands .................................................................87
12.1.3.1.2 Acknowledgement....................................................................88
12.1.3.1.3 Signaling ..................................................................................88
12.1.3.1.4 Finite Automation .....................................................................89
12.1.3.2 Data Exchange .............................................................................90
12.1.3.2.1 Example ...................................................................................91
12.2 Protocols Supported by Mailbox 2.0 ......................................................92
12.2.1 Protocol 0x80 (Parameter Access)....................................................92
12.2.2 Protocol 0x81 (Diagnostics) ..............................................................93
12.3 Overview of Parameters ........................................................................95
12.3.1 Table 0: Base Register......................................................................95
12.3.2 Tables 50 … 55: Filter Configuration.................................................95
12.3.3 Tables 100 … 144: Configuration of Output Direction for "Mapped
Mode" ................................................................................................96
12.3.4 Tables 200 … 244: Configuration of Input Direction for "Mapped
Mode" ................................................................................................99
12.4 Register Communication......................................................................102
12.4.1 Control/Status Byte .........................................................................103
12.4.2 Register Overview...........................................................................104
List of Figures ..................................................................................................105
List of Tables....................................................................................................107

6 Notes about this Documentation WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
1 Notes about this Documentation
Always retain this documentation!
This documentation is part of the product. Therefore, retain the documentation
during the entire service life of the product. Pass on the documentation to any
subsequent user. In addition, ensure that any supplement to this documentation
is included, if necessary.
1.1 Validity of this Documentation
This documentation is only applicable to the I/O module 750-658
(CAN Gateway).
This documentation is only applicable from FW/HW-Version 01/01.
The I/O module 750-658 shall only be installed and operated according to the
instructions in this manual and in the manual for the used fieldbus coupler or
controller.
Consider power layout of the WAGO-I/O-SYSTEM 750!
In addition to these operating instructions, you will also need the manual for the
used fieldbus coupler or controller, which can be downloaded at www.wago.com.
There, you can obtain important information including information on electrical
isolation, system power and supply specifications.
1.2 Copyright
This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.

WAGO-I/O-SYSTEM 750 Notes about this Documentation 7
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
1.3 Symbols
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.

8 Notes about this Documentation WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).

WAGO-I/O-SYSTEM 750 Notes about this Documentation 9
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
1.4 Number Notation
Table 1: Number Notation
Number Code
Example
Note
Decimal
100
Normal notation
Hexadecimal
0x64
C notation
Binary
'100'
'0110.0100'
In quotation marks, nibble separated
with dots (.)
1.5 Font Conventions
Table 2: Font Conventions
Font Type
Indicates
italic
Names of paths and data files are marked in italic-type.
e.g.: C:\Program Files\WAGO Software
Menu
Menu items are marked in bold letters.
e.g.: Save
>
A greater-than sign between two names means the selection of a
menu item from a menu.
e.g.: File > New
Input
Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range
“Value”
Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under
Start of measurement range
.
[Button]
Pushbuttons in dialog boxes are marked with bold letters in square
brackets.
e.g.: [Input]
[Key]
Keys are marked with bold letters in square brackets.
e.g.: [F5]

10 Important Notes WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
2 Important Notes
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
2.1 Legal Bases
2.1.1 Subject to Changes
WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all
rights arising from the granting of patents or from the legal protection of utility
patents. Third-party products are always mentioned without any reference to
patent rights. Thus, the existence of such rights cannot be excluded.
2.1.2 Personnel Qualifications
All sequences implemented on WAGO-I/O-SYSTEM 750 devices may only be
carried out by electrical specialists with sufficient knowledge in automation. The
specialists must be familiar with the current norms and guidelines for the devices
and automated environments.
All changes to the coupler or controller should always be carried out by qualified
personnel with sufficient skills in PLC programming.
2.1.3 Use of the 750 Series in Compliance with Underlying
Provisions
Fieldbus couplers, controllers and I/O modules found in the modular WAGO-I/O-
SYSTEM 750 receive digital and analog signals from sensors and transmit them
to actuators or higher-level control systems. Using controllers, the signals can
also be (pre-) processed.
The devices have been developed for use in an environment that meets the IP20
protection class criteria. Protection against finger injury and solid impurities up to
12.5 mm diameter is assured; protection against water damage is not ensured.
Unless otherwise specified, operation of the devices in wet and dusty
environments is prohibited.
Operating the WAGO-I/O-SYSTEM 750 devices in home applications without
further measures is only permitted if they meet the emission limits (emissions of
interference) according to EN 61000-6-3. You will find the relevant information in
the section “Device Description” > “Standards and Guidelines” in the manual for
the used fieldbus coupler or controller.
Appropriate housing (per 2014/34/EU) is required when operating the
WAGO-I/O-SYSTEM 750 in hazardous environments. Please note that a

WAGO-I/O-SYSTEM 750 Important Notes 11
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
prototype test certificate must be obtained that confirms the correct installation of
the system in a housing or switch cabinet.
The implementation of safety functions such as EMERGENCY STOP or safety
door monitoring must only be performed by the F-I/O modules within the modular
WAGO-I/O-SYSTEM 750. Only these safe F-I/O modules ensure functional
safety in accordance with the latest international standards. WAGO's
interference-free output modules can be controlled by the safety function.
2.1.4 Technical Condition of Specified Devices
The devices to be supplied ex works are equipped with hardware and software
configurations, which meet the individual application requirements. These
modules contain no parts that can be serviced or repaired by the user. The
following actions will result in the exclusion of liability on the part of WAGO
Kontakttechnik GmbH & Co. KG:
• Repairs,
• Changes to the hardware or software that are not described in the
operating instructions,
• Improper use of the components.
Further details are given in the contractual agreements. Please send your
request for modified and new hardware or software configurations directly to
WAGO Kontakttechnik GmbH & Co. KG.
2.1.4.1 Disposal
2.1.4.1.1 Electrical and Electronic Equipment
Electrical and electronic equipment may not be disposed of
with household waste. This also applies to products without
this symbol.
Electrical and electronic equipment contain materials and substances that can be
harmful to the environment and health. Electrical and electronic equipment must
be disposed of properly after use.
WEEE 2012/19/EU applies throughout Europe. Directives and laws may vary
nationally.

12 Important Notes WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
Environmentally friendly disposal benefits health and protects
the environment from harmful substances in electrical and
electronic equipment.
• Observe national and local regulations for the disposal of electrical and
electronic equipment.
• Clear any data stored on the electrical and electronic equipment.
• Remove any added battery or memory card in the electrical and
electronic equipment.
• Have the electrical and electronic equipment sent to your local
collection point.
Improper disposal of electrical and electronic equipment can be harmful to the
environment and human health.
2.1.4.1.2 Packaging
Packaging contains materials that can be reused.
PPWD 94/62/EU and 2004/12/EU packaging guidelines apply throughout
Europe. Directives and laws may vary nationally.
Environmentally friendly disposal of the packaging protects the environment and
allows sustainable and efficient use of resources.
• Observe national and local regulations for the disposal of packaging.
• Dispose of packaging of all types that allows a high level of recovery,
reuse and recycling.
Improper disposal of packaging can be harmful to the environment and wastes
valuable resources.

WAGO-I/O-SYSTEM 750 Important Notes 13
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
2.2 Safety Advice (Precautions)
For installing and operating purposes of the relevant device to your system the
following safety precautions shall be observed:
Do not work on devices while energized!
All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.
Install the device only in appropriate housings, cabinets or in electrical
operation rooms!
The WAGO-I/O-SYSTEM 750 and its components are an open system. As such,
install the system and its components exclusively in appropriate housings,
cabinets or in electrical operation rooms. Allow access to such equipment and
fixtures to authorized, qualified staff only by means of specific keys or tools.
Ensure disconnect and overcurrent protection!
The device is intended for installation in automation technology systems.
Disconnect protection is not integrated. Connected systems must be protected by
a fuse.
Provide suitable disconnect and overcurrent protection on the system side!
Ensure a standard connection!
To minimize any hazardous situations resulting in personal injury or to avoid
failures in your system, the data and power supply lines shall be installed
according to standards, with careful attention given to ensuring the correct
terminal assignment. Always adhere to the EMC directives applicable to your
application.
Ensure proper contact with the DIN-rail!
Proper electrical contact between the DIN-rail and device is necessary to
maintain the EMC characteristics and function of the device.

14 Important Notes WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
Replace defective or damaged devices!
Replace defective or damaged device/module (e.g., in the event of deformed
contacts).
Protect the components against materials having seeping and insulating
properties!
The components are not resistant to materials having seeping and insulating
properties such as: aerosols, silicones and triglycerides (found in some hand
creams). If you cannot exclude that such materials will appear in the component
environment, then install the components in an enclosure being resistant to the
above-mentioned materials. Clean tools and materials are imperative for
handling devices/modules.
Clean only with permitted materials!
Clean housing and soiled contacts with propanol.
Do not use any contact spray!
Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.
Do not reverse the polarity of connection lines!
Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.
Avoid electrostatic discharge!
The devices are equipped with electronic components that may be destroyed by
electrostatic discharge when touched. Please observe the safety precautions
against electrostatic discharge per DIN EN 61340-5-1/-3. When handling the
devices, please ensure that environmental factors (personnel, work space and
packaging) are properly grounded.

WAGO-I/O-SYSTEM 750 CAN Technology 15
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
3 CAN Technology
The CAN bus is an asynchronous serial bus system for connecting intelligent
actuators and sensors to the control level. CAN standards for "Controller Area
network" and defines a communication standard developed in the mid-1980s for
data transmission in automobiles.
The so-called "Data Link Layer" is defined in the CAN specification. This is the
physical layer and data link layer. The message format is described in detail.
In addition, the so-called "CAN Application Layer" (CAL) is defined in the CAN
specification. CAL is a general description language for CAN networks and
makes a number of communication services available.
Network management powers up the network in a simplified manner. This
network can be extended by the user as required.
CAN is a so-called "Multi-Master Bus System". Contrary to other fieldbus
systems, the I/O modules connected to the bus are not addressed, but the
messages are identified. The devices are allowed to send messages whenever
the bus is available. Bus conflicts are solved by assigning messages a specific
priority. This priority is defined by the so-called "CAN-ID" (CAN identifier). It is
uniquely assigned to a communication object. The smaller the identifier, the
higher the priority. Thus, communication without bus master module is thus also
possible.
There are two CAN standards:
• "2.0A Standard Frame"
• "2.0B Extended Frame"
The "2.0A Standard Frame" makes it possible to address up to 211 different CAN
identifiers. The "2.0B Extended Frame" was later developed to support up to 229
different CAN identifiers.
Each bus node decides by itself when it wants to send data. However, it is also
possible to request other bus nodes to send data. This request happens via the
so-called "Remote Frame".
Based on CAN, various protocols have been established on the market at higher
layers. These may include CANopen, DeviceNet and SAE J1939. Support for
these protocols is left to future module variants.
Additional information about the CAN bus!
Additional information about the CAN bus is available on the Internet at
www.can-cia.org.

16 Device Description WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
4 Device Description
The I/O module 750-658 is used to connect a CAN bus network to a PLC
independent of the fieldbus.
The I/O module supports the physical layer and data link layer by default.
Support higher protocol layers!
Use IEC-61131-compliant function blocks to support the I/O module of higher
protocol layers. The function blocks can be downloaded at www.wago.com.
The I/O module can be configured and parameterized via:
• WAGO-I/O-CHECK,
• e!COCKPIT,
• PROFIBUS GSD or
• function blocks
The 750-658 module can be used with the fieldbus couplers and controllers of
the WAGO-I/O-SYSTEM 750 of the specified version or higher listed in the
“Compatibility list” table.
Table 3: 750-658 Compatibility List – Fieldbus Couplers/Controllers
Bus System
Fieldbus
Couplers/Controllers
Item Number Firmware
PROFIBUS
Fieldbus coupler
750-333
17
PROFINET
Fieldbus coupler
750-375
03
750-377
03
ETHERNET
Fieldbus coupler
750-341
08
750-342
17
750-352
02
Fieldbus controller
750-841
19
750-842
18
750-843
02
750-871
07
750-872
03
750-873
05
750-880
03
750-880/0025-0001
03
750-880/0025-0002
03
750-881
03
750-882
02
750-884
03
750-885
04
DeviceNet
Fieldbus coupler
750-306
4K
ECO fieldbus coupler
750-346
10
Fieldbus controller
750-806
10
CANopen
Fieldbus coupler
750-337
19
750-338
19

WAGO-I/O-SYSTEM 750 Device Description 17
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
Table 3: 750-658 Compatibility List – Fieldbus Couplers/Controllers
Bus System
Fieldbus
Couplers/Controllers Item Number Firmware
ECO fieldbus coupler
750-347
08
750-348
08
Fieldbus controller
750-837
16
750-838
16
EtherCAT
Fieldbus coupler
750-354
01
KNX
Fieldbus controller
750-849
05
750-889
07
BACnet
Fieldbus controller
750-830
03
LONWORKS
Fieldbus coupler
750-319
05
Fieldbus controller
750-819
09
Various
PFC200
750-820x
02
Table 4: 750-658 Compatibility List – IPC
Bus System
IPC
Item Number
Description
WAGO-IPC
IPC
758-0870/0000-0010
Firmware revision 2.4.31 / 0111
Local bus FW revision 01.02.10(12)
758-0870/0000-0111
Firmware revision 01.01.26(05)
Local bus FW revision 01.02.10(12)
758-0875/0000-0111
Firmware revision 01.01.26(05)
Local bus FW revision 01.02.10(12)
758-0876/0000-0112
Firmware revision 01.01.26(05)
Local bus FW revision 01.02.10(12)

18 Device Description WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
4.1 View
Figure 1: View
Table 5: Legend for Figure “View”
Pos.
Description
Details See Section
1
Marking possibility with Mini-
WSB
---
2
Status LEDs
“Device Description” > “Display Elements”
3
Data contacts
“Device Description” > “Connectors”
4
CAGE CLAMP®connectors
“Device Description” > “Connectors”
5
Power jumper contacts
“Device Description” > “Connectors”
6
Release tab
“Mounting” > “Inserting and Removing
Devices”

WAGO-I/O-SYSTEM 750 Device Description 19
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
4.2 Connectors
4.2.1 Data Contacts/Local Bus
Communication between the fieldbus coupler/controller and the I/O modules as
well as the system supply of the I/O modules is carried out via the local bus. It is
comprised of 6 data contacts, which are available as self-cleaning gold spring
contacts.
Figure 2: Data Contacts
Do not place the I/O modules on the gold spring contacts!
Do not place the I/O modules on the gold spring contacts in order to avoid soiling
or scratching!
Ensure that the environment is well grounded!
The devices are equipped with electronic components that may be destroyed by
electrostatic discharge. When handling the devices, ensure that the environment
(persons, workplace and packing) is well grounded. Avoid touching conductive
components, e.g. data contacts.

20 Device Description WAGO-I/O-SYSTEM 750
750-658 CAN Gateway
Manual
Version 1.2.1, valid from FW/HW-Version 01/01
4.2.2 Power Jumper Contacts/Field Supply
Risk of injury due to sharp-edged blade contacts!
The blade contacts are sharp-edged. Handle the I/O module carefully to prevent
injury. Do not touch the blade contacts.
The I/O module 750-658 has 2 self-cleaning power jumper contacts that supply
and transmit power for the field side. The contacts on the left side of the I/O
module are designed as blade contacts and those on the right side as spring
contacts.
Figure 3: Power Jumper Contacts
Table 6: Legend for Figure “Power Jumper Contacts”
Contact
Type
Function
1
Spring contact
Potential transmission (Uv) for field supply
2
Spring contact
Potential transmission (0 V) for field supply
3
Blade contact
Potential feed-in (0 V) for field supply
4
Blade contact
Potential feed-in (Uv) for field supply
Do not exceed maximum values via power contacts!
The maximum current that can flow through the power jumper contacts is 10 A.
The power jumper contacts can be damaged and the permissible operating
temperature can be exceeded by higher current values.
When configuring the system, do not exceed the permissible maximum current
value. If there is a higher power requirement, you must use an additional supply
module to provide the field voltage.
