Instruction Booklet for ZX805
Wahl kitchen innovations
Innovative products since 1919

2
Wahl kitchen innovations
Innovative products since 1919
Please read this instruction manual carefully and
familiarise yourself with your new Table Blender with
Grinder before using for the rst time. Please retain
these instructions for future reference.
IMPORTANT SAFEGUARDS
When using this electrical appliance, especially when
children are present, basic safety precautions should
always be observed including the following.
TO REDUCE THE RISK OF FIRE AND INJURY
1. Read all instructions before using the Blender.
2. Close supervision is necessary when the blender is
used by or near children.
3. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their
safety.
Children should be supervised to ensure that they
do not play with the appliance.
4. Avoid contact with moving parts. Keep hands, hair
clothing and other utensils away from the moving
parts during operation to prevent accident, injury or
damage to the blender.
5. Switch off the appliance and unplug from outlet
when not in use, before putting on or taking off
attachments and also before cleaning the
appliance or approaching parts that move in use.
6. Set the unit on a rigid, at surface, not near open
ames (such as gas oven) and operate it out of
reach of children
7. Never use your appliance without paying attention!
Always unplug the unit when not in use, even for a
moment.
8. Caution! The appliance is live so long as it is
plugged in and connected to the main power.
9. Do not operate the appliance with a broken cord or
plug, or if the appliance malfunctions, or is dropped
or damaged in anyway.

3
10. Any servicing or repair must be performed by an
authorized service representative.
11. Do not use outdoors or in damp areas.
12. Do not let the cord hang over the edge of the work
surface or let it touch any hot surfaces.
13. Unplug and remove attachments from the blender
before attempting to clean the appliance.
14. The use of attachments that are not supplied by
the manufacturer may cause re, electric shock or
injury and damage to the appliance.
15. To protect against risk of electrical shock, never
immerse the unit in water or any other liquids, or
come into contact with them. Do not use it with wet
hands.
16. If the appliance should become wet, damp or fall in
water, remove plug from mains socket immediately.
Do not put your hands in the water!
17. Use this appliance only for its intended purpose.
18. Never attempt to touch the rotating tools while still
in motion; always wait for them to stop and unplug
the appliance.
19. Never use this appliance to mix or stir anything
other than foods.
20. Always cool hot liquids before blending.
21. The blades are extremely sharp, handle with care.
22. Always switch off the unit before pulling out the
mains plug.
23. Never carry the unit by its power cord.
24. Do not remove individual housing components.
25. Only use the unit with the lid tightly closed.
Wahl kitchen innovations
Innovative products since 1919

4
INSTALLATION
1. Remove all packaging and clean the jug,
measuring cup and lid thoroughly before using for
the rst time. Only clean the main unit with a damp
cloth. Never immerse the unit in water or place
under running water. See cleaning & storage
section page 7 & 8 for full cleaning instructions.
The blender should be placed on at surface
before operation. Note: The blade is very sharp.
Wash with care and never touch the blade with
your ngers.
2. Do not plug in the appliance before assembling.
3. Place the appliance on a at surface.
4. Place the jug on to the motor unit and lock into
place by turning clockwise. Lining up the markings
on the jug and mainbody.
5. Put the lid on top of the jug and push it down.
Insert the measuring cup into the cover and turn
until it locks into place.
6. Make sure the appliance is turned off before
plugging in.
Wahl kitchen innovations
Innovative products since 1919

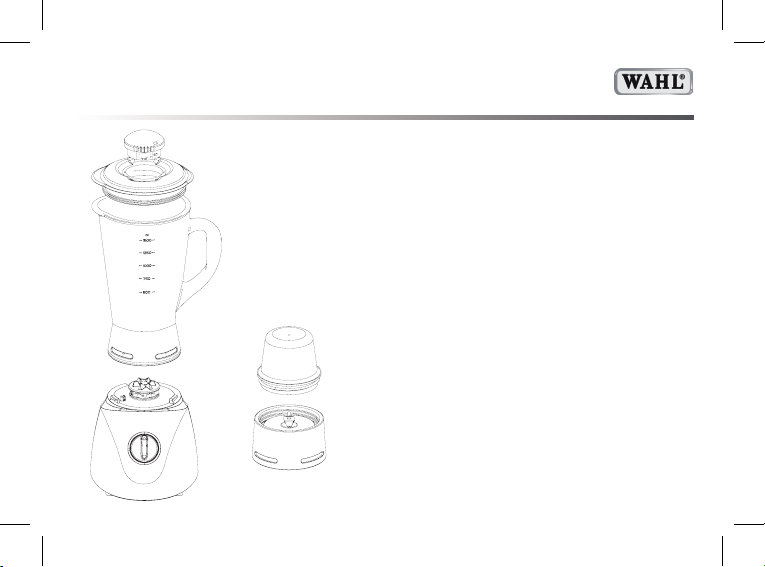

Lid
Plastic Jug
Measuring Cup
Blade/
Blade Housing
Mainbody
Grinder
Bowl
Blade/
Blade Housing
Dial

5
INSTALLATION
1. Remove all packaging and clean the jug,
measuring cup and lid thoroughly before using for
the rst time. Only clean the main unit with a damp
cloth. Never immerse the unit in water or place
under running water. See cleaning & storage
section page 7 & 8 for full cleaning instructions.
The blender should be placed on at surface
before operation. Note: The blade is very sharp.
Wash with care and never touch the blade with
your ngers.
2. Do not plug in the appliance before assembling.
3. Place the appliance on a at surface.
4. Place the jug on to the motor unit and lock into
place by turning clockwise. Lining up the markings
on the jug and mainbody.
5. Put the lid on top of the jug and push it down.
Insert the measuring cup into the cover and turn
until it locks into place.
6. Make sure the appliance is turned off before
plugging in.
Wahl kitchen innovations
Innovative products since 1919
HOW TO USE
1. Before plugging in ensure that the mains voltage
matches that shown on the rating label.
2. This unit has a safety design, it will not work if the jug
is not installed onto the main body properly.
3. Turn the control dial to position 0 in order to make sure
the unit is turned off.
4. Place ingredients into the jug, do not exceed the
maximum 1.5L capacity.
DO NOT OPERATE WITH OUT ANY INGREDIENTS.
5. Put the lid on top of the jug ensuring it is tted
correctly.
6. Turn the control dial clockwise to your desired speed
as you need, or use the pulse function by turning the
dial anti-clockwise.
IMPORTANT NOTE: Do not open the lid while the
blender is working.
CONTROL SETTINGS
P - Pulse. The pulse setting will operate at the highest
speed, and will only operate when you are holding the
switch, as soon as you release the switch the
appliance will stop. This is suitable for ice and for when
you only want to roughly blend ingredients and you
require control so that you don’t end up with a really
ne mixture.
1 - Low Speed. Will blend continuously on Low speed until
you return the switch to the off position.
2 - High Speed. Will blend continuously on High speed
until you return the switch to the off position.
0 - Off. Will turn off the unit.

6
7. Turn the dial to the “0/OFF” position when you have
nished. Wait for the blender to completely stop.
Unplug the appliance before removing the lid or the
jug.
8. Always ensure the appliance is unplugged after use.
Note: It is recommended to cut the meat, vegetables or
other food into smaller pieces before putting them in the
jug. Large quantities of food should be processed in small
batches, do not overload.
Do not operate the appliance continuously for more than 1
minute. Always allow the appliance to cool down to room
temperature before continuing.
ALWAYS COOL HOT LIQUIDS BEFORE BLENDING.
NOTE: IF BLENDING WARM LIQUIDS REMOVE
THE MEASURING CAP AND START AT LOW SPEED
INCREASING TO HIGH SPEED IF REQUIRED. THE
PULSE SETTING IS NOT RECOMMENDED FOR WARM
LIQUIDS. DO NOT BLEND WARM LIQUIDS OVER
THE 1L LEVEL, AND ALWAYS TAKE CARE TO AVOID
CONTACT WITH ANY STEAM OR LIQUIDS.
USING THE GRINDING ATTACHMENT
1. Make sure the unit is unplugged and turned off before
installation of the grinder attachment.
2. The grinder can be used for nuts, dried fruit, bread
crumbs etc.
3. Turn grinder upside down and carefully unscrew the
blade housing. Carefully remove the blade housing.
4. Fill the grinder with desired ingredients. Do not ll
more than half full.
5. Screw the blade housing tightly on to the bowl.
NOTE: If it is not tightly screwed together the Motor will
not work due to a safety mechanism.
6. Turn the grinder the right way up and lock into place on
the motor unit by turning clock wise.
7. Plug the appliance in and select desired speed setting.
8. When the ingredients have been grounded/chopped to
the desired consistency, unplug the appliance, and
remove the grinding unit from the appliance.
Wahl kitchen innovations
Innovative products since 1919

7
Wahl kitchen innovations
Innovative products since 1919
NOTE: ALWAYS UNPLUG AND REMOVE THE
COMPLETE GRINDING UNIT. DO NOT UNSCREW
THE BOWL ON THE UNIT. AS THIS WILL CAUSE THE
INGREDIENTS TO SPILL OUT AND EXPOSE THE
BLADE UNIT.
9. Turn the grinder upside down and carefully unscrew
the blade housing. Carefully remove the housing and
empty the ingredients into a bowl etc.
CLEANING AND STORAGE
GRINDER ATTACHMENT
1. In addition to the following you must refer to the
safety precautions.
2. Turn grinder upside down and carefully unscrew the
blade housing. Carefully remove the housing. Clean
with hot water and a little mild cleaning agent taking
great care as the blades are very sharp.
3. Ensure the bowl and blades are clean, rinse and dry
well before re-using.
4. Never use aggressive cleaning agents.
WARNING: DO NOT TOUCH THE SHARP BLADES,
WHEN CLEANING PLEASE WIPE WITH A CLOTH TO
AVOID ACCIDENTAL INJURY.

8
Wahl kitchen innovations
Innovative products since 1919
CLEANING AND STORAGE
BLENDER AND JUG
1. In addition to the following you must refer to the
safety precautions.
2. Do not clean motor main body, power cord and plug
with water.
3. Clean the main body with a soft, damp cloth and
some mild cleaning agent.
4. Fill the jug half-full with warm water and a little
cleaning agent. Let the unit run on speed 2 until the jug
is clean.
5. Ensure the jug and blades are clean, rinse and dry well
before re-using. Caution! The blades inside of the jug
are very sharp.
6. Never use aggressive cleaning agents.
REMOVABLE BLADE HOUSING
To make cleaning of the blades easier the blade housing
can be removed. Please ensure that you read the following
instructions carefully.
1. Ensure the appliance is turned off and unplugged.
2. Remove the jug assembly from the base. Turn upside
down, and twist the blade housing clockwise as
indicated by the arrows.
3. Carefully remove the blade housing and wash with
mild cleaning agent, taking great care as the blades
are sharp.
4. Dry all parts carefully.
TO REASSEMBLE
1. Carefully twist the blade housing anti clockwise back
into place as indicated by the arrows ensuring that it is
securely tightened.
ALWAYS UNPLUG THE MAIN HOUSING AND
REMOVE THE COMPLETE JUG ASSEMBLY BEFORE
ATTEMPTING TO UNSCREW THE BLADE HOUSING.
NEVER PLACE OR STORE THE BLADE HOUSING ON
THE MAIN UNIT WHILST REMOVED FROM THE JUG.

9
Wahl kitchen innovations
Innovative products since 1919
PRODUCT REGISTRATION
Wahl are constantly developing and launching new
products in the UK. We would like to understand your
product needs and expectations and we value any
comments you may have. As part of Wahl Customer Care,
we are offering you the chance to be kept up to date with
the latest product launches, innovations and special offers.
Please take a minute to register your product online at
www.wahl.co.uk.
GUARANTEE
This product is guaranteed against defects in material and
workmanship for a period of twenty four months from the
date of original purchase or receipt as a gift.
The guarantee becomes invalid in the case of misuse or
repair by unauthorised persons.
Should this product become defective during the warranty
period, return it to the store of purchase together with your
proof of purchase for repair or replacement without any
charges to you.
This guarantee in no way affects your rights under
statutory law in the United Kingdom.

10
Wahl kitchen innovations
Innovative products since 1919
WASTE ELECTRICAL & ELECTRONIC
EQUIPMENT DIRECTIVE 2002/96/EC
(WEEE)
At the end of this products life it should not be
disposed of with general household waste.
Care should be taken to dispose of in a
suitable manner in accordance with your
Local Authority regulation.

11
Wahl kitchen innovations
Innovative products since 1919
WIRING
WARNING: If the supply cord is damaged it must be
replaced by the manufacturers service agent or a
similarly qualied person in order to avoid a hazard.
The wires in the mains lead of this Table Blender are
coloured in accordance to the following code:
Blue Neutral (N) Brown live (L)
This appliance is tted with a 3 pin plug which has a
13amp fuse tted.
If the plug supplied is not suitable for your socket or
becomes damaged, it should be cut off and disposed
of, and a suitable plug tted as detailed below.
As the colours of the wires in the mains lead of this
Table Blender with Grinder may not correspond with
the colour markings identifying the terminals in your
plug, proceed as follows.
The wire which is coloured BLUE must be connected
to the terminal in the plug which is marked with the
letter ‘N’ or coloured BLACK or BLUE.
The wire which is coloured BROWN must be
connected to the terminal in the plug which is marked
with the letter ‘L’ or coloured RED or BROWN.
DO NOT connect either wire to the terminal in the
plug which is marked with the letter ‘E’ or has the Earth
symbol, or coloured GREEN or GREEN/YELLOW.

12
WAHL (UK) LIMITED
HERNE BAY TRADE PARK, SEA STREET
HERNE BAY, KENT, CT6 8JZ.
TECHNICAL SUPPORT TEL: [phone]
CUSTOMER CARE TEL: [phone]
www.wahl.co.uk
Form No. ZB166
Rev0 - 10/11
