Waldorf RN8200G Series User manual

Installation and Operation Manual
Gas Cooktops
Series
RN8200G
RN8400G
RN8600G
RN8800G
Date Purchased
Serial Number
Dealer
Service Provider
228605-25
For use in GB, IE & DK
RNL8200G
RNL8400G
RNL8600G
RNL8800G

The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in
writing by the manufacturer.
In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice. © Copyright Moffat Ltd. May 2014.
MANUFACTURED BY
Moffat Limited
Christchurch
New Zealand
INTERNATIONAL CONTACTS
AUSTRALIA
Moffat Pty Limited
Web: www.moffat.com.au
E.Mail: [email protected]
Main Office: (tel) [phone]
(fax) [phone]
Service: (tel): 1800 622 216
Spares: (tel): 1800 337 963
Customer Service: (tel): 1800 335 315
(fax): 1800 350 281
CANADA
Serve Canada
Web: www.servecanada.com
E.Mail: [email protected]
Sales: (tel): 800 551 8795 (Toll Free)
Service: (tel): 800 263 1455 (Toll Free)
NEW ZEALAND
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]
Main Office: (tel): 0800 663328
UNITED KINGDOM
Blue Seal
Web: www.blue-seal.co.uk
E.Mail: [email protected]
Sales: (tel): [phone]
(fax): [phone]
Spares: (tel): [phone]
(fax): [phone]
Service: (tel): [phone]
(fax): [phone]
UNITED STATES
Moffat
Web: www.moffat.com
Sales: (tel): 800 551 8795 (Toll Free)
(tel): [phone]
(fax): [phone]
Service: (tel): 800 858 4477 (Toll Free)
(tel): [phone]
(fax): [phone]
REST OF WORLD
Moffat Limited
Web: www.moffat.co.nz
E.Mail: [email protected]

Contents
Waldorf Gas Cooktops
RN(L)8200G Gas Cooktop 300mm wide.
RN(L)8400G Gas Cooktop 600mm wide.
RN(L)8600G Gas Cooktop 900mm wide.
RN(L)8800G Gas Cooktop 1200mm wide.
Introduction .............................................................................................. 2
Specification .............................................................................................. 3
Model Numbers Covered in this Specification
General
Gas Supply Requirements
Gas Connection
Dimensions ................................................................................................ 6
Installation .............................................................................................. 11
Installation Requirements
Unpacking
Location
Clearances
Assembly
Fitting Adjustable Feet / Rear Rollers to Leg Stand Units
Fitting Adjustable Feet / Rear Rollers to Cabinet and Refrigeration Bases
Gas Connection
Commissioning
Operation.................................................................................................17
Operation Guide
Description of Controls
Open Burners ('F' - Flame Failure Option)
Open Burners ('PF' - Pilot and Flame Failure Option)
Griddle
Cleaning and Maintenance ...................................................................... 20
Before Commencing Cleaning
Open Burner Cleaning
Griddle Plate Cleaning
Stainless Steel Surfaces
Fault Finding............................................................................................22
Gas Conversion and Specifications .........................................................23
Conversion Procedure
Gas Specifications
Replacement Parts .................................................................................. 28

2
Introduction
We are confident that you will be delighted with your WALDORF GAS COOKTOP, and it will become a most
valued appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new Waldorf Gas Cooktops, there are two important
things you can do.
Firstly:
Please read the instruction book carefully and follow directions given. The time taken will be well spent.
Secondly:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your WALDORF dealer promptly. In many cases a phone call could answer your question.
CE Only:
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK OF
FIRE.
 THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
 ITIS RECOMMENDED THAT AREGULAR INSPECTION IS MADE BY ACOMPETENT SERVICE PERSON TO
ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
 DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
 DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
Warning
 This appliance is for professional use and is only to be used by qualified
persons.
 Only authorised service persons are to carry out installation, servicing or gas
conversion operations.
 Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.
 DO NOT operate the appliance without the legs supplied fitted.
Caution
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
Warning
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN APROMINENT
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.
Warning

3
Specifications
Model Numbers Covered in this Specification
RN[1]8200G-[2]-[3] 2 Open Burners.
RN[1]8203G -[3] 300mm Griddle.
RN[1]8400G-[2]-[3] 4 Open Burners.
RN[1]8403G-[2]-[3] 2 Open Burners + 300mm Griddle.
RN[1]8406G -[3] 600mm Griddle.
RN[1]8600G-[2]-[3] 6 Open Burners.
RN[1]8603G-[2]-[3] 4 Open Burners + 300mm Griddle.
RN[1]8606G-[2]-[3] 2 Open Burners + 600mm Griddle.
RN[1]8609G -[3] 900mm Griddle.
RN[1]8800G-[2]-[3] 8 Open Burners.
RN[1]8803G-[2]-[3] 6 Open Burners + 300mm Griddle.
RN[1]8806G-[2]-[3] 4 Open Burners + 600mm Griddle.
RN[1]8809G-[2]-[3] 2 Open Burners + 900mm Griddle.
NOTE:
[1]: - Back Options;
- - Standard Models.
L - Low Back Models.
[2] - Open Burner Options;
F - With Flame Failure Protection.
PF - With Pilot and Flame Failure Protection.
[3] - Base Stand Options;
B - Bench Mount.
CB - Cabinet Base (excluding RN8200G Series).
LS - Leg Stand (excluding RN8200G Series).
RB - Refrigerated Base (RN8600G and RN8800G Series only).
General
A heavy duty, high efficiency Cooktop for modular kitchens. It has a high option Cooktop / Griddle
arrangement and is available either on industrial adjustable feet or on robust rollers. Griddle options
with 4 models of base unit available (except RN8200G model). Fitted with either 'Individual Flame
Failure' (F) or 'Pilot and Flame Failure' (PF) option for each open burner. Griddles are fitted with
pilot, flame failure and piezo ignition as standard. Easy clean stainless steel external finish.

4
Specifications
Gas Supply Requirements
- Australia
- New Zealand
- United Kingdom
Category: II2H3P (20, 37).
Flue Type: A1.
* - Measure burner operating pressure at manifold test point with two burners operating at full
setting. Operating pressure is ex-factory set, through appliance regulator and is not to be
adjusted, apart from when converting between gases, if required. (Refer to ‘Gas Conversion’
section for details).
Natural Gas LP Gas (Propane)
Input Rate (N.H.G.C.)
- each Open Burner
28 MJ/hr 28 MJ/hr
- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.95 kPa 2.6 kPa
Gas Connection See ‘Gas Connection’ information overleaf.
Natural Gas LP Gas
Input Rate (N.H.G.C.)
- each Open Burner
28 MJ/hr 28 MJ/hr
- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa
Burner Operating Pressure (*) 0.95 kPa 2.6 kPa
Gas Connection See ‘Gas Connection’ information overleaf.
Natural Gas (G20) Propane (G31)
Open Burner
(each) Griddle (each 300mm section) Open Burner (each) Griddle (each 300mm section)
Heat Input (nett) Nominal 6.5 kW 5.5 kW 6.5 kW 5.5 kW
Reduced 1.75 kW 1.85 kW 1.75 kW 1.95 kW
Gas Rate (nett) Nominal 0.69 m3/hr 0.58 m3/hr 0.51 kg/hr 0.43 kg/hr
Reduced 0.19 m3/hr 0.20 m3/hr 0.14 kg/hr 0.15 kg/hr
Supply Pressure 20 mbar 30 / 37 mbar
Burner Operating Pressure (*) 9.5 mbar
Gas Connection See ‘Gas Connection’ information overleaf.
26 mbar

5
Specifications
- All Other Markets
NOTE:
 (*) Measure Burner operating pressure at manifold test point with two burners operating at
'High Flame' setting.
 NAT, LPG & Butane Only - Operating pressure is ex-factory set and is not to be adjusted,
unless when converting between gases, if required.
 (**) TOWN GAS Only - Adjust burner operating pressure using adjustable gas regulator
supplied.
 Refer to ‘Gas Conversion and Specifications' section in this manual for further details.
Gas Connection
Gas supply connection point is located at rear of appliance, approximately 130mm from right hand
side, 32mm from rear and 655mm from floor (55mm for bench top – B models) and is reached from
beneath appliance. (Refer to ‘Dimensions’ section). With exception of RN8200G-B and RN8203G-B
models which are 100mm from right hand side, 32mm from rear and 70mm from floor.
Connection is ½" BSP male thread (for RN8200G and RN8203G models).
Connection is ¾" BSP male thread (for all other models).
Natural Gas Town Gas (**)
Input Rate (N.H.G.C.)
- each Open Burner 28 MJ/hr 28 MJ/hr
- each 300mm Griddle Section 21 MJ/hr 21 MJ/hr
Supply Pressure 1.13 - 3.40 kPa 0.75 - 1.50 kPa
Burner Operating Pressure (*) 0.95 kPa 0.63 kPa
Gas Connection See ‘Gas Connection’ information below.
LP Gas / Butane
Input Rate (N.H.G.C.)
- each Open Burner 28 MJ/hr
- each 300mm Griddle Section 21 MJ/hr
Supply Pressure 2.75 - 4.50 kPa
Burner Operating Pressure (*) 2.6 kPa
Gas Connection See ‘Gas Connection’ information below.

6
Dimensions
Bench Models
Refer to Page 9 for Cooktop options
= Rating Plate Location for
this option.
R
RN (L) 8400G-B
RN
(L) 8200G-B
R
RN (L) 8600G-B
RN (L) 8800G-B

7
Dimensions
Cabinet Base Models
RN8200G Models - not available in Cabinet Base option.
RN (L) 8400G-CB
RN (L) 8600G-CB
R
= Rating Plate Location for
this option.
R
RN (L) 8800G-CB
Refer to Page 9 for Cooktop options

8
Dimensions
Leg Stand Models
RN8200G Models - not available in Leg Stand Base option.

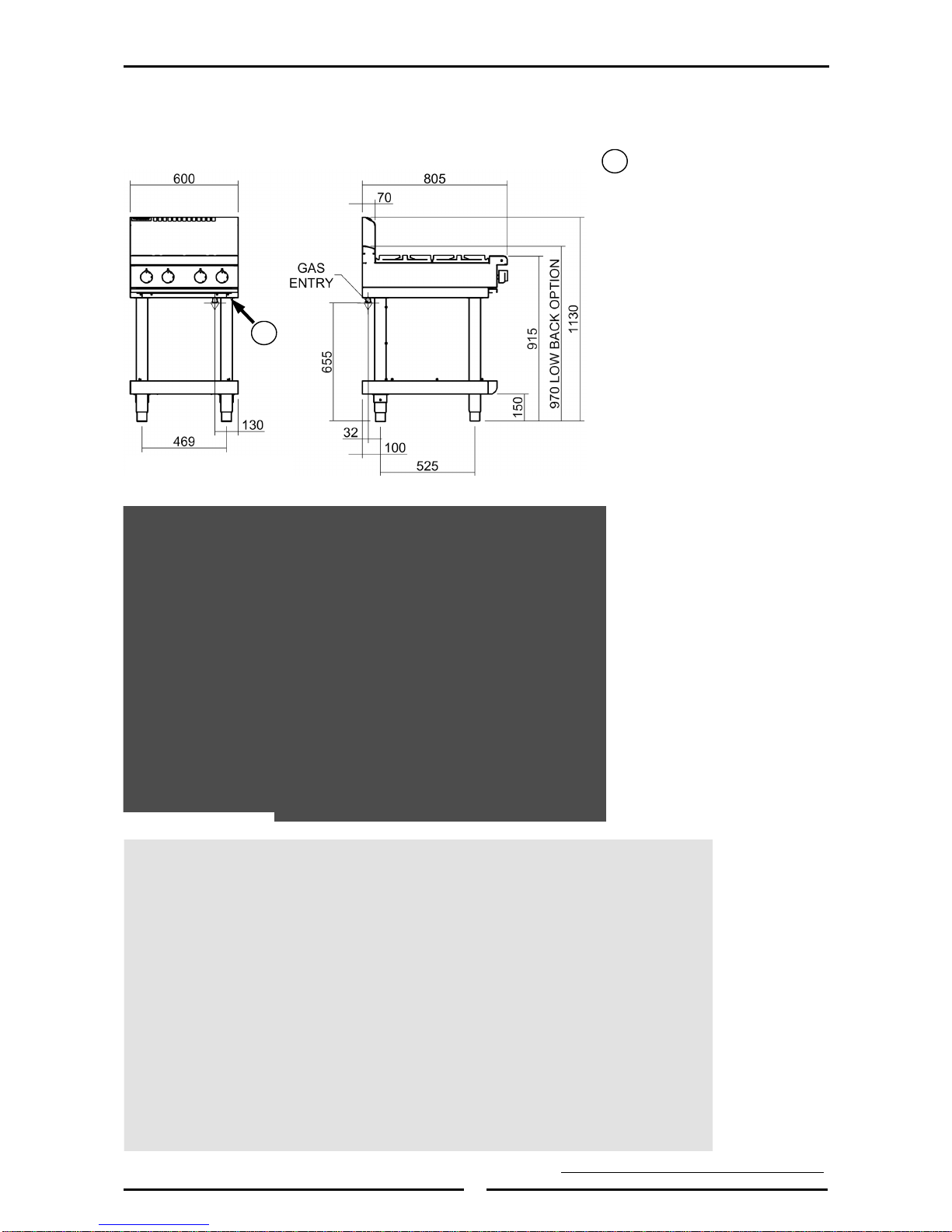

RN (L) 8400G-LS
Refer to Page 9 for Cooktop options
= Rating Plate Location for
this option.
R
R
RN (L) 8600G-LS
RN (L) 8800G-LS

9
Dimensions
Refrigerated Base Models
RN8200G and RN8400G Models - not available in Refrigerated Base option.
RN (L) 8600G-RB
RN
(L) 8800G-RB
Refer to Page 9 for Cooktop options
= Rating Plate Location
for this option.
R
R

10
Dimensions
Cooktop Options
RN
(L) 8200G
RN
(L) 8400G
RN (L) 8800G
RN (L) 8803G
RN
(L) 8806G
RN
(L) 8809G
RN (L) 8600G
RN
(L) 8603G
RN
(L) 8606G
RN
(L) 8609G
RN
(L) 8203G
RN
(L) 8403G
RN
(L) 8406G
NOTE:
 RN8200G models are only available in Bench Model (-B) option.
 RN8400G models are available in Bench Model (-B), Cabinet Base (-CB), or Leg Stand (-LS)
model options.
 RN8600G and RN8800G are available in Bench Model (-B), Cabinet Base (-CB), Leg Stand
(-LS), or Refrigeration Base (-RB) model options.
For Refrigeration Cabinet Specifications and Dimensions refer to Refrigeration Cabinet Installation
and Operation Manual supplied with appliance.

11
Installation
Installation Requirements
NOTE:
 It is most important that this Cooktop is installed correctly and that operation is correct
before use. Installation shall comply with local gas, health and safety requirements.
 This appliance shall be installed with sufficient ventilation to prevent the occurrence of
unacceptable concentrations of health harmful substances in the room, the appliance is
installed in.
Waldorf Cooktops are designed to provide years of satisfactory service, and correct installation is essential
to achieve the best performance, efficiency and trouble-free operation.
This appliance must be installed in accordance with National installation codes and in addition, in
accordance with relevant National / Local codes covering gas and fire safety.
AUSTRALIA: - AS5601 - Gas Installations.
NEW ZEALAND: - NZS5261 - Gas Installation.
UNITED KINGDOM: - Gas Safety (Installation & Use) Regulations 1998.
- BS6173 - Installation of Catering Appliances.
- BS5440 1 & 2 - Installation Flueing & Ventilation.
IRELAND: - IS 820 - Non - Domestic Gas Installations.
Installations must be carried out by qualified service persons only. Failure to install
equipment to relevant codes and manufacturer’s specifications shown in this section will void
the warranty.
Components having adjustments protected (e.g. paint sealed) by the manufacturer are only
to be adjusted by an authorised service agent. They are not to be adjusted by the installation
person.
Unpacking
 Remove all packaging and transit protection from appliance including all protective plastic coating
from exterior stainless steel panels.
 Check equipment and parts for damage. Report any damage immediately to the carrier and
distributor.
 Report any deficiencies to distributor who supplied appliance.
 Check available gas supply is correct to that shown on Rating Plate attached to underside of R/ H
side, front Cooktop lower trim, for Bench, Cabinet Base and Leg Stand Models. For Refrigerated
Base Models, rating plate is located inside right hand front panel and can be viewed through upper
grille.
Location
1. Installation must allow for a sufficient flow of fresh air for the combustion air supply.
2. Installation must include adequate ventilation means, to prevent dangerous build up of combustion
products.
3. Never directly connect a ventilation system to appliance flue outlet.
4. Position appliance in its approximate working position.
5. All air for burner combustion is supplied from underneath appliance. Legs must always be fitted and
no obstructions placed on underside or around base of appliance, as obstructions will cause incorrect
operation and / or failure of appliance.
NOTE: Do not obstruct or block appliance flue. Never directly connect a ventilation system to
appliance flue outlet.
Combustion Air Requirements:
RN8200G RN8400G RN8600G RN8800G
Natural Gas (G20) 12m3/hr 24m3/hr 36m3/hr 48m3/hr
LPG / Propane (G31) 13m3/hr 25m3/hr 38m3/hr 50m3/hr

12
Installation
Clearances
NOTE: Only non-combustible materials can be used in close proximity to this appliance.
* Side clearances can be 50mm when adjacent surface is at least 100mm below cooking surface.
Assembly
NOTE:
 All Models are delivered completely assembled. No further assembly is required, with
exception of all Leg Stand Models (RN8400G-LS, RN8600G-LS RN8800G-LS), these will
require assembly. Refer to 'Leg Stand Models Only' information below for assembly
instructions.
 The appliance rear leg housings can be fitted with:-
Adjustable feet to assist with levelling of appliance on uneven floors. This should be
carried out on completion of gas connection. Refer to 'Gas Connection Section'.
Rear rollers to enable appliance to be easily moved for positioning and cleaning
purposes.
Optional Accessories (Refer to Replacement Parts List)
 Plinth Kit. For installation details, refer to instructions supplied with each kit.
Bench Models
1. Check that all feet are fitted.
2. Adjust the four feet to make Cooktop steady and level.
Fitting of Adjustable Feet / Rear Rollers to Leg Stand Units.
1. Remove all pot stands, pot stands supports, burner caps, burner bowls, griddle plates and other
removable items.
2. Lower cooktop onto its rear face.
3. Attach four cooktop legs to leg mount points on underside of cooktop unit.
4. Secure each leg hand tight.
5. Align 4 round holes in corners of base tray with 4 cooktop legs already fitted. (Ensure base tray is
orientated with sloping edge of base tray facing front of appliance).
6. Slot base tray onto 4 cooktop legs and push fully home.
7. Secure base tray to cooktop legs by screwing two front adjustable feet supplied, into base of front
cooktop legs. Secure each adjustable foot, hand tight.
8. The two rear leg housings can be fitted with either adjustable legs or rollers. (See Figure 1).
Combustible Surface Non Combustible Surface
Left / Right Hand Side 250mm (*) 0mm
Rear; - Standard Models 50mm 0mm
- Low Back Models 100mm 0mm
TO PREVENT EQUIPMENT DAMAGE AND RISK OF INJURY, REMOVE ALL LOOSE ITEMS FROM THE TOP OF THE
COOKTOP PRIOR TO FITTING THE LEG STAND.
Warning

13
Installation
Rear Adjustable Feet, fitting:-
a. Secure rear of base tray to rear
cooktop legs by screwing the two
adjustable feet supplied, into base of
rear cooktop legs.
b. Secure each adjustable foot, hand
tight.
Rear Rollers, fitting:-
a. Fit rear leg securing bolts up through
centre of rear leg housings to secure
rear of base tray to rear cooktop legs
and tighten up bolts using a 24mm
socket.
b. Fit rear rollers to rear leg supports.
c. Secure rear rollers to rear leg
supports using locating screw
supplied.
d. Tighten screw using a 10mm spanner.
9. Lift cooktop back onto its legs / rollers and
refit all griddle plates, open burners, trivets
and pot stands.
10. Adjust adjustable feet to level appliance.
Fig 1
Cooktop
Cooktop
Legs
Base Tray
Leg Mount
Points
Adjustable
Foot Rear Roller
Rear Leg
Securing Bolt
Roller
Locating Bolt
Rear Leg
Housing

14
Installation
Fitting Adjustable Feet / Rear Rollers to Cabinet and Refrigeration Bases.
Rear Adjustable Feet, fitting:-
1. Raise appliance from floor by approximately 75
mm using suitable lifting equipment (i.e.
Palletiser / Forklift) to allow rear rollers to be
removed.
2. Unscrew and remove securing bolt that secures
rear roller to rear leg housing.
3. Rear roller will drop freely from rear leg
housing.
4. Remove second rear roller.
5. Screw rear adjustable feet into rear leg
housings and tighten hand tight.
6. Lower appliance back to floor and adjust
adjustable feet to level appliance.
Rear Rollers, fitting:-
1. Raise appliance from floor by approximately 75
mm using suitable lifting equipment (i.e.
Palletiser / Forklift) to allow rear adjustable feet
to be removed.
2. Unscrew and remove both rear adjustable feet
from rear leg housings.
3. Fit rear roller to rear leg housing and align
screw hole in side of rear leg housing with
threaded hole in rear roller.
4. Secure rear roller to leg support with bolt
supplied and tighten bolt using a 10 mm A/F
spanner.
5. Fit second roller and tighten.
6. Lower appliance back to floor and adjust front
adjustable feet to level appliance.
Fig 2
Cabinet /
Refrigeration
Base
Adjustable
Foot Rear Roller
Roller
Locating Bolt
Rear Leg
Housing

15
Installation
Gas Connection
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON.
1. Waldorf Cooktops do not require electrical connection, as they function totally on the gas supply.
2. It is essential that gas supply is correct for Cooktop being installed and that adequate supply
pressure and volume are available. The following checks should be made before installation:-
a. Gas Type the appliance has been supplied for is shown on a coloured stickers located above gas
entry point and on rating plate. Check that this is correct for gas supply the appliance is being
installed for. Gas conversion procedure is detailed in this manual.
b. Supply Pressure required for this appliance is shown in ‘Specifications’ section of this manual.
Check gas supply to ensure that adequate supply pressure exists.
c. Input Rate of this appliance is shown on Rating Plate and in ‘Specifications’ section of this
manual. Input rate should be checked against available gas supply line capacity. Particular
note should be taken if appliance is being added to an existing installation.
NOTE: It is important that adequately sized piping runs directly to connection joint on appliance
with as few tees and elbows as possible, to give maximum supply volume.
3. Fit gas regulator supplied, into gas supply line as close to appliance as possible.
NOTE: Gas pressure regulator provided with this appliance is convertible between Natural Gas and
LPG as per ‘Gas Conversion Section’ in this manual.
Ensure regulator is converted to correct gas type that appliance will operate on.
Regulator outlet pressure is fixed ex-factory for gas type that regulator is converted to and it
is NOT to be adjusted.
For RN8200G-B and RN8203G-B models, regulator connection is ½" BSP female. Connection
on the unit is ½" BSP male.
For RN8400G / RN8600G / RN8800G, regulator connections are ¾" BSP female. Connection
on unit is ¾" BSP male.
(Refer to ‘Specifications’ section for gas supply location dimensions).
NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line.
4. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that
appliance is level and at correct height.
5. Connect gas supply to appliance. A suitable joining compound which resists breakdown action of
LPG must be used on every gas line connection, unless compression fittings are used.
6. Check all gas connections for leakages using soapy water or other gas detecting equipment.
7. Check gas operating pressure is as shown in ‘Specifications’ section.
NOTE: Operating pressure is to be measured at manifold test point
with 2 burners operating at ‘High Flame’ setting.
8. Verify operating pressure remains correct.
NOTE: This appliance is fitted with adjustable feet to enable appliance to be positioned securely
and level. This should be carried out on completion of gas connection.
Manifold
Test Point
Fig 3
DONOT USE ANAKED FLAME TO CHECK FOR GAS LEAKAGES.
Warning

16
Installation
Commissioning
1. Before leaving the new installation;
a. Check the following functions in accordance with operating instructions specified in ‘Operation’
section of this manual.
 Lighting the Griddle.
 Light the Open Burners. (F - Flame Failure Option).
 Light the Open Burners. (PF - Pilot and Flame Failure Option).
 Check the Low Fire Burner Operation.
b. Ensure that the operator has been instructed in the areas of correct lighting, operation, and
shutdown procedure for the appliance.
2. This manual must be kept by owner for future reference and a record of
Date of Purchase, Date
of Installation
and Serial Number of Appliance recorded and kept with this manual. (These
details can be found on the Rating Plate;
For Bench, Cabinet Base and Leg Stand Models, Rating Plate is attached to underside of
right hand side, front Cooktop lower trim.
For the Refrigerated Base Model, Rating Plate is located inside right hand front panel and can
be viewed through upper grille. Refer to ‘Gas Connection’ section and ‘Dimensions’ section.
NOTE: If for some reason it is not possible to get the appliance to operate correctly, shut off gas
supply and contact supplier of this appliance.
For Refrigeration Cabinet Installation details refer to Refrigeration Cabinet Installation in Operation
Manual supplied with appliance.

17
Operation
Operation Guide
1. Waldorf appliances have been designed to provide simplicity of operation and 100% safety
protection.
2. Improper operation is almost impossible, however bad operation practices can reduce the life of the
appliance and produce a poor quality product. To use this appliance correctly please read the
following sections carefully:-
 Lighting the Open Burners (F Flame Failure Option).
 Lighting the Open Burners (PF - Option).
 Lighting the Griddle.
Description of Controls
NOTE: Only Cooktops fitted with ‘Griddle Option’ and 'Pilot & Flame Failure Option' will have a
‘Pilot’ position on Gas Control Knob. 'Griddle Options' will also have a piezo igniter fitted.
Open burner control knobs with 'Flame Failure Option Only' will only have ‘Off’, ‘Low Flame’
and ‘High Flame’ positions.
Griddle & Open Burners
with 'PF' Option fitted.
Burner Control
OFF Position
PILOT Burner
HIGH Flame
LOW Flame
Gas Control Knobs
Piezo Igniter
(Griddles Only)
Open Burner 'F' Option
Only
OFF Position
HIGH Flame
LOW Flame
Rear Burner
Front Burner
(Indicators located above
the Gas Control Knobs).
Fig 4
 This appliance is for professional use and is only to be used by qualified
persons.
 Only authorised service persons are to carry out installation, servicing or gas
conversion operations.
 Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.
Caution

18
Operation
Open Burners ('F' - Flame Failure Option)
Lighting the Open Burners
Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which
will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not
expelled.
a. Select burner required, depress and turn the gas control knob anti-clockwise to ‘HIGH’ position.
b. Hold gas control knob depressed and manually light main burner.
c. Release gas control knob after approximately 10-20 seconds after lighting burner.
d. Burner should stay alight - if not, repeat Steps (a. to (c. above.
e. To adjust the temperature required, depress and rotate gas control knob between ‘HIGH’ and
‘LOW’ positions.
Turning 'OFF' the Open Burners
a. When main burner is not required, depress and turn gas control knob clockwise back to ‘OFF’
position. 'MAIN' burner will extinguish.
Open Burners ('PF' - Pilot and Flame Failure Option)
Lighting the Open Burners
These hobs are fitted with individual standing pilots for each open burner which allows main burners
to be turned 'ON' - 'OFF' without having to manually re-light burner each time that it is turned 'ON',
as burner will automatically light itself off the pilot burner.
Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which
will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not
expelled.
a. Select burner required, depress and turn the gas control knob anti-clockwise to ‘PILOT’ position.
b. Hold gas control knob depressed and manually light pilot burner.
c. Release gas control knob after approximately 10-20 seconds after lighting pilot burner.
d. Pilot burner should stay alight - if not, repeat Steps (b. to (c. above.
e. To select ‘Full Flame’, depress and rotate gas control knob anti-clockwise to first stop 'HIGH'
flame position.
f. To select ‘Low Flame’, depress and rotate gas control knob fully anti-clockwise to ‘LOW' flame
position.
g. To adjust the temperature required, depress and rotate gas control knob between ‘HIGH’ and
‘LOW’ positions.
Turning 'OFF' the Open Burners / Pilots
a. To turn 'OFF' main burner, but keep pilot burner alight, rotate gas control knob to 'PILOT'
position. Main burner will extinguish and pilot will remain alight.
b. To turn 'OFF' the 'PILOT', depress and turn gas control knob clockwise back to ‘OFF’ position.
'PILOT' burner will extinguish.
