Walgreens WGNBPA-750 User manual

PREMIUM ARM
Blood Pressure
Monitor
• 5-Year
Limited Warranty
WGNBPA-750
El manual en español
empieza en la página 40
IB-WGNBPA-750--03.indd 1 2012/7/24 上午 9:43

1
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and Safety
Instructions ..........................................................3
About Blood Pressure.........................................5
Blood Pressure Standard....................................5
How This Blood Pressure Monitor Works .........7
USAGE INFORMATION:
Name/Function of Each Part ...............................8
Display Explanations...........................................9
Installing Batteries ............................................11
Using the AC Adapter........................................12
Date & Time Set Procedure...............................13
Using Rest Assure.............................................14
Using Triple Check Measurement System ......14
Using the Cuff ....................................................15
Measurement Procedure...................................19
Risk Category Index ..........................................24
IB-WGNBPA-750--03.indd 1 2012/7/24 上午 9:43

2
Irregular Heartbeat Detector ...........................25
Using the Memory Function..............................26
Clearing Values from Memory..........................28
Using Your Device with
Microsoft®HealthVault™...................................29
Important Notes Regarding Your
Blood Pressure Measurement..........................31
Care, Maintenance & Cleaning .........................32
Potential for Electromagnetic Interference .....34
Troubleshooting.................................................35
Specifications ....................................................36
5 Year Limited Warranty....................................37
IB-WGNBPA-750--03.indd 2 2012/7/24 上午 9:43

3
IMPORTANT PRODUCT NOTICES AND
SAFETY INSTRUCTIONS
When using your blood pressure monitor, basic precautions
should always be followed. Please read and follow all instructions
and warnings before using this product. Save these instructions
for future reference.
• Pleasenotethatthisisahomehealthcareproductonlyand
it is not intended to serve as a substitute for the advice of a
physician or medical professional.
• Thisdeviceusestheoscillometricmethodtomeasuresystolic
and diastolic blood pressure, as well as heart rate.
• Do not use this device for diagnosis or treatment of any health
problem or disease. Measurement results are for reference
only. Consult a healthcare professional for interpretation
of pressure measurements. Contact your physician if you
have or suspect any medical problem. Do not change your
medications without the advice of your physician or healthcare
professional.
• Proper cuff size is critical for accurate measurements. Follow
the instructions in this manual and printed on the arm cuff to
ensure the appropriate size of cuff is being used.
• Thisproductisnotsuitableforpeoplewitharrhythmias.This
device may have difficulty determining the proper blood pressure
for pregnant women and for users with irregular heartbeat,
diabetes, poor circulation of blood, kidney problems or for
users who have suffered from a stroke.
IB-WGNBPA-750--03.indd 3 2012/7/24 上午 9:43

4
• Thepulsedisplayisnotsuitableforcheckingthefrequencyof
heart pacemakers.
• Electromagneticinterference:Thedevicecontains
sensitive electronic components. Avoid strong electrical or
electromagnetic fields in the direct vicinity of the device (e.g.
mobile telephones, microwave ovens). These may lead to
temporary impairment of measurement accuracy.
• Usebloodpressuremonitoronlyforitsintendeduse.
• Do not wrap the cuff around body parts other than your arm.
• Notforusebyoronpersonsundertheageof18.
• Do not plug or unplug the adapter power cord with wet hands.
• PleaseuseonlytheACadapterincludedwiththismonitoror
1.5VAAalkalinebatteriesforpowersupply.
Blood pressure measurements determined with this device are
equivalenttothoseobtainedbyatrainedobserverusingthecuff/
stethoscope auscultatory method, within the limits prescribed by
the American National Standard, Manual, electronic, or automated
sphygmomanometers.
IB-WGNBPA-750--03.indd 4 2012/7/24 上午 9:43

5
ABOUT BLOOD PRESSURE
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery
walls while blood flows through the arteries. The pressure
measured when the heart contracts and sends blood
out of the heart is systolic (highest) blood pressure. The
pressure measured when the heart dilates with blood
flowing back into the heart is called diastolic (lowest)
blood pressure.
Why Measure Your Blood Pressure?
Among today’s various health problems, those associated
with high blood pressure are very common. High blood
pressure dangerously correlates with cardiovascular
diseases. Therefore, blood pressure monitoring is
important for identifying those at risk.
BLOOD PRESSURE STANDARD
The table on page 6 contains defined levels for hypertension that
are publicly available from the National Heart Lung and Blood
Institute at the U.S. National Institutes of Health (NIH)
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html). Users
can compare their own blood pressure readings against these
defined levels to determine if they may be potentially at increased
risk.
Thistableisapplicabletomostadultsaged18andolder.
Category Systolic (mmHg) Diastolic (mmHg)
Normal Lessthan120 and Lessthan80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage1 140-159 or 90-99
Stage2 160orhigher or 100orhigher
IB-WGNBPA-750--03.indd 5 2012/7/24 上午 9:43

6
Blood pressure tends to go up and down, even in people who
normally don’t have high readings. If your numbers stay above
the “normal” range most of the time, you may be at increased
risk and should consult your physician.
Although one can easily find where their own blood pressure
readingsfallonthistable,thismonitorcomesequippedwitha
Risk Category Index that automatically compares each reading to
the defined levels and provides a helpful cue if your reading falls
into one of the stages that could potentially indicate increased
risk.Seepage24formoreinformationonthisfeature.
Please note that cues provided by this monitor are only
intended to assist you in using this table. The table and cues
are only provided for convenience to help you understand your
non-invasivebloodpressurereadingasitrelatestotheNIH
information. They are not a substitute for a medical examination
by your physician. It is important for you to consult with your
physician regularly. Your physician will tell you your normal
blood pressure range as well as the point at which you may
actually be considered to be at risk.
Category Systolic (mmHg) Diastolic (mmHg)
Normal Lessthan120 and Lessthan80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage1 140-159 or 90-99
Stage2 160orhigher or 100orhigher
IB-WGNBPA-750--03.indd 6 2012/7/24 上午 9:43

7
HOW THIS BLOOD PRESSURE MONITOR WORKS
This monitor uses innovative technology to detect your systolic
pressure, diastolic pressure and pulse. This technology enables
the monitor to automatically inflate and deflate at the appropriate
level for each individual. With one touch of a button, the cuff will
automatically inflate to block the blood flow through your artery.
Next, the deflation process starts. Please note that any muscle
movement during inflation or deflation will cause measurement
error. When measurement is complete, the monitor will display
your systolic pressure, diastolic pressure, and pulse readings.
Beforemeasurement,itissuggestedthatyousitquietlyfor15
minutes before measurement as measurements taken in a relaxed
state have greater accuracy. The Rest Assure function provides
ahelpfulcountdownofthelast5minutesofthissuggestedtime.
Refertopage14formoreinformationonthisfeature.
The Triple Check Measurement System automatically takes and
averages three readings for accuracy you can trust. Refer to page
14formoreinformationonthisfeature.
The monitor automatically finds where your measurement results
fall on the NIH’s National Heart Lung and Blood Institute’s table
and provides a cue if your reading falls into one of the stages that
couldpotentiallyindicateincreasedrisk.Pleaserefertopage24
for more information on this feature.
The appearance of the icon indicates that a pulse irregularity
consistent with an irregular heartbeat was detected during
measurement.Refertopage25formoreinformationonthe
Irregular Heartbeat Detector.
IB-WGNBPA-750--03.indd 7 2012/7/24 上午 9:43

8

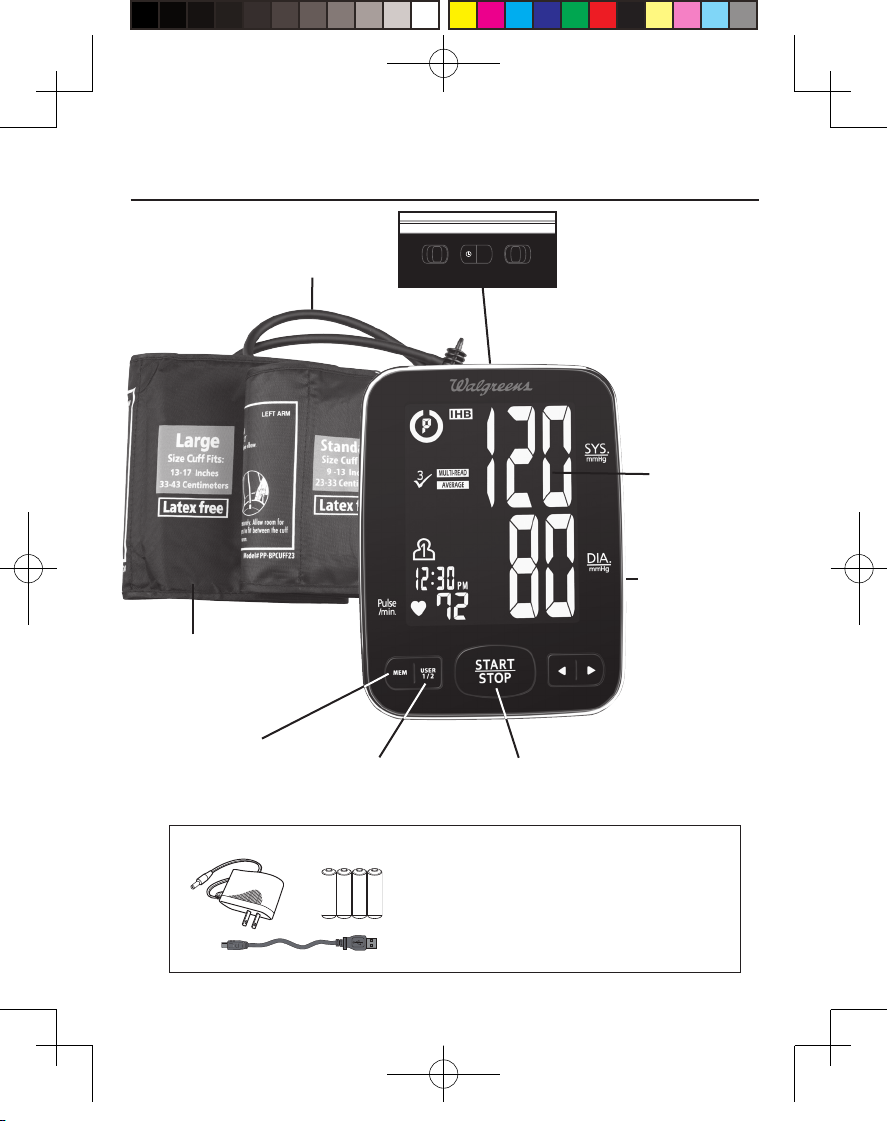

NAME/FUNCTIONOFEACHPART
User-Select
Button START/STOP
Button
Memory Recall
Button
Air Tube
and Connector
1.TripleCheckSwitch
2.Date/TimeSetButton
3.AM/PMAveraging
Button
4.RestAssureSwitch
Arm Cuffs
LCD Display
Other Accessories Included :
•16VDCOutputACAdapter
•4“AA”size,1.5Valkalinebatteries
•Mini-bUSBCable
Note: Please unload the batteries when operating
with the AC adapter for an extended period of time.
Battery Cover
(Located on
bottom of unit)
Triple Check Rest Assure
ON ONAM/PMOFF OFF
Date Link
1 2 3 4
B
IB-WGNBPA-750--03.indd 8 2012/7/24 上午 9:43

9
DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time
Indicator
Heart Rate
IB-WGNBPA-750--03.indd 9 2012/7/24 上午 9:43

10
User 1:AppearswhenthemonitorisoperatedbyUser1.
User 2:AppearswhenthemonitorisoperatedbyUser2.
Weak Battery Symbol: Appears when batteries should be replaced.
Pulse Symbol: Shows the heart rate per minute.
Risk Category Index:Seepage24formoreinformation.
Irregular Heartbeat Detector:Seepage25formoreinformation.
Rest Assure Symbol: Indicates when it is a moment to rest.
Memory Average: Displaysaverageoflast3readings.
AM/PM Averaging: Indicates the reading being displayed is an average from the
last3morningorlast3eveningmeasurements.
Multi-Read Symbol: Appears when Triple Check Measurement System is
turned ON.
Average Symbol: Displayed when viewing a Triple Check average.
Measurement Indicator: Indicates which measurement is being taken, or which
measurement is being viewed from a Triple Check average reading.

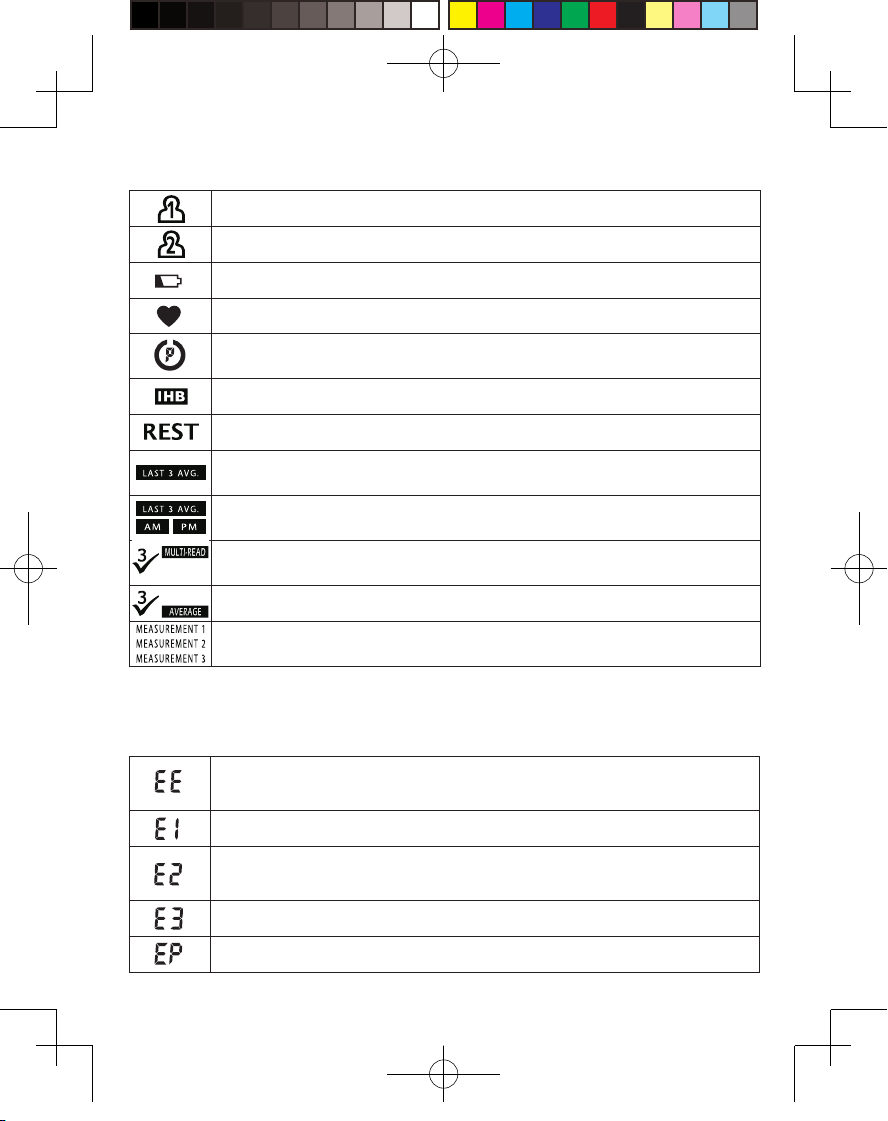

Display Symbols:
/
START
STOP
3
/
START
STOP
3
Measurement Error: Wrap the cuff correctly and keep arm steady during
measurement. Measure again.
Air Circuit Abnormality: Check cuff connection. Measure again.
Pressure Exceeding 300 mmHg: Turn the unit off to clear, then measure
again.
Error Determining Measurement Data: Measure again.
System Error: Measure again.
If any of the following letters and numbers appear in the area that systolic
pressure should be displayed, an error has occurred with your reading. See
Troubleshooting section of this manual for more information.
IB-WGNBPA-750--03.indd 10 2012/7/24 上午 9:43

11
INSTALLING BATTERIES
1. Press down on latch and lift
the battery cover to open the
battery compartment.
2. Installorreplace4“AA”
sized alkaline batteries in
the battery compartment
according to the indications
inside the compartment.
3. Close the battery cover by
pushing in the top end of the
battery door.
Replace the batteries if:
•Theweakbatterysymbolappearsonthedisplay.
•Nothingappearsonthedisplaywhenthepowerisswitchedon.
As the supplied batteries are for test only, they may be
discharged earlier than batteries you buy in stores. Replace all
batteriesatonetime(assimultaneousset).Useonly1.5VAA
alkaline batteries. Remove batteries when unit is not in use for
extended periods of time. Date and time will need to be reset if
batteries are removed or replaced. Clean contacts on battery and
in battery compartment with a soft dry cloth each time you install
batteries.
Note:
Batteries are hazardous waste. Do not dispose of them together
with the household garbage.
Battery
Cover
IB-WGNBPA-750--03.indd 11 2012/7/24 上午 9:43

12
Triple Check Rest Assure
ON ONAM/PMOFF OFF
Date Link
USING THE AC ADAPTER
1. Connect the AC adapter with the AC adapter jack as
shown below.
2. Please use only the AC adapter included with this
monitor.
Note:
• Please unload the batteries when operating with an AC
adapter for an extended period of time. Leaving the
batteries in the compartment for a long time may cause
leakage, which may lead to damage to the unit.
• No batteries are needed when operating with
an AC adapter.
• Date and time will need to be reset if AC adapter is
unplugged and unit is without batteries.
AC Adapter
Input:100-240V~0.18A50/60Hz
Output:6VDC1A6WMax
Connect AC
adapter here
IB-WGNBPA-750--03.indd 12 2012/7/24 上午 9:43

13
DATE & TIME SET PROCEDURE
1.Toadjustthedateandtime,press
the Date/Time Set button
TALKING
MODE LANGUAGE
TALKING
MODE
.
2.Thedisplaywillshowablinkingnumbershowingthe
YEAR. Change the YEAR by pressing the button.
Each press will increase the number by one in a cycling
manner. Pressing the button will decrease the number
by one in a cycling manner. Press the Date/Time Set
button
TALKING
MODE LANGUAGE
TALKING
MODE
again to confirm the entry, and the screen will
show a blinking number representing the MONTH.
3.Change the MONTH, DAY, HOUR and MINUTE as
describedinStep2above,usingthe button/ button
to change the numbers and the Date/Time Set button
TALKING
MODE LANGUAGE
TALKING
MODE
to confirm the entries.
(Please note that year does not appear on the display.)
Triple Check Rest Assure
ON ONAM/PMOFF OFF
Date Link
Press the button
blinking YEAR
increasing YEAR
confirm the entry
repeat process to set MONTH, DAY,
HOUR and MINUTE
TALKING
MODE LANGUAGE
TALKING
MODE
TALKING
MODE LANGUAGE
TALKING
MODE
TALKING
MODE LANGUAGE
TALKING
MODE
IB-WGNBPA-750--03.indd 13 2012/7/24 上午 9:43

14
USING REST ASSURE
This blood pressure monitor features the Rest Assure
function.Itissuggestedyousitquietlyfor15minutes
prior to measurement. The Rest Assure function will count
downthelast5minutesbeforeautomaticallystartingthe
measurement. To turn this feature OFF, slide the switch on
the back to the OFF position.
USING TRIPLE CHECK MEASUREMENT SYSTEM
The Triple Check Measurement System automatically takes
andaveragesthreereadingsinarow,with1minuterest
intervals in between each measurement. To deactivate this
feature and take only a single reading, slide the switch on
the back to the OFF position.
Triple Check Rest Assure
ON ONAM/PMOFF OFF
Date Link
Triple Check Rest Assure
ON ONAM/PMOFF OFF
Date Link
IB-WGNBPA-750--03.indd 14 2012/7/24 上午 9:43

15
USING THE ARM CUFF
Very Important:
Proper cuff size is critical to accurate measurement.
This monitor comes with two sizes of arm cuffs:
Standard Size Fits 9”–13” (23 cm – 33 cm)
Large Size Fits 13”–17” (33 cm – 43 cm)
The appropriate cuff is suitable for your use if the
colored arrow falls within the solid color line as shown
below.
ARROW MUST FALL
WITHIN YELLOW BAND
ARROW MUST FALL
WITHIN YELLOW BAND
Center tube over
middle of arm
MODEL# PP-BPCUFF5
Position cuff
edge 0.6˝
–
1.0˝
(1.5
–
2.5cm)above elbow.
Center tube over
middle of arm.
Fit cuff securely. Allow r oom for
two fingers to fit between t he cuff
and your arm.
Solid Colored Line
Colored Arrow
IB-WGNBPA-750--03.indd 15 2012/7/24 上午 9:43

16
1.Ifthecuffisnotassembled,passtheendofthe
cuff furthest away from the tubing through the
metalD-ringinordertoformaloop.Thesmooth
side without the felt material should be on the
inside of the cuff loop.
2.Plugthecufftubeintotheleftsideoftheunit.
ARROW MUST FALL
WITHIN YELLOW BAND
D-ring
End of cuff
2~3cm
(0.8”~1.2”)
Positioncuffedge
0.8
–
1.2inches(2
–
3cm)
aboveelbow.
Fitcuffsecurely.
Allowroomfor2fingers
tofitbetweenthecuff
andyourarm.
Centertubeover
middleofarm.
Insert plug here
IB-WGNBPA-750--03.indd 16 2012/7/24 上午 9:43

17

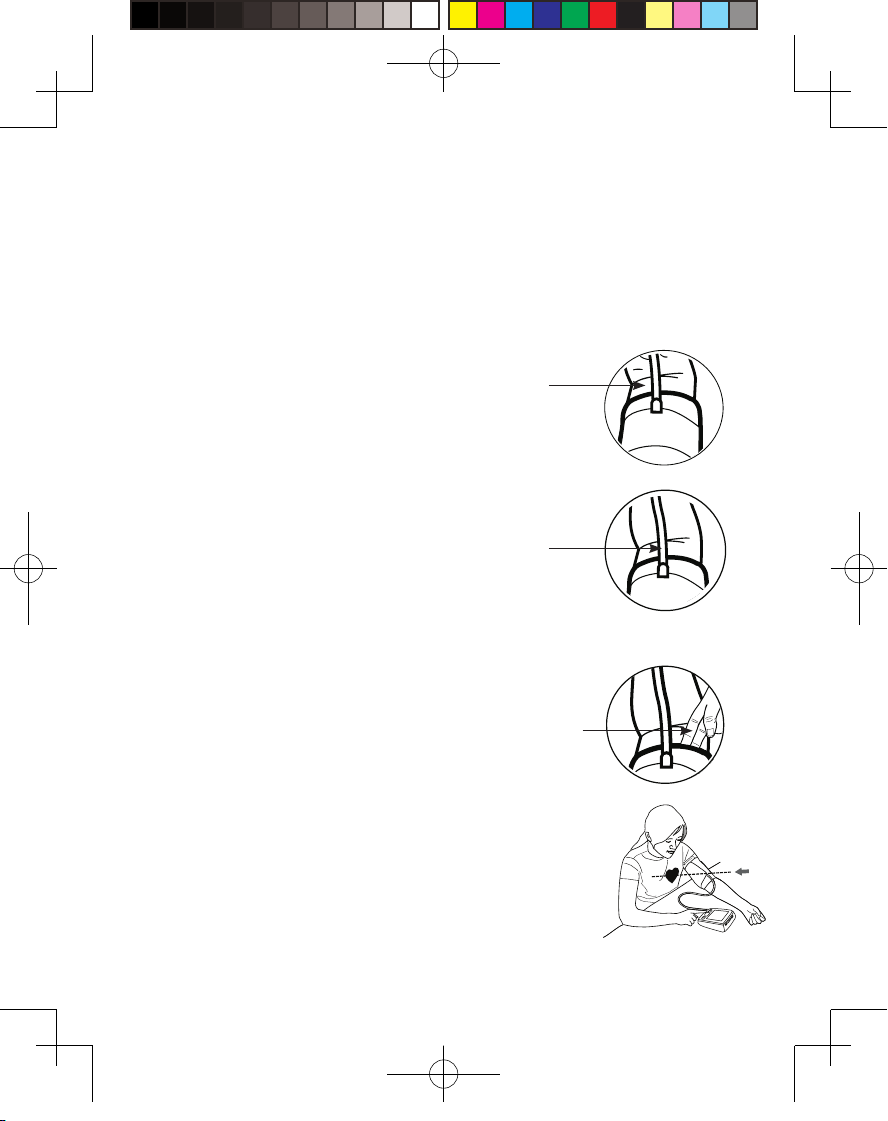

3.Openthearmcuffsothatyourarmmay
be placed through it.
4.Removetightfittingclothingfromyour
upper left arm so that the cuff can be
wrapped around your exposed arm.
5.Positioncuffedge0.8-1.2
inches(2-3cm)aboveelbow.
6. Center tube over middle of arm.
7. Pull the end of the cuff so that it tightens
evenly around your arm. Press the hook
and loop material together to secure.
Allowroomfor2fingerstofitbetweenthe
cuff and your arm.
8.Lay your arm on a table (palm upward)
so the cuff is at the same height as your
heart. Make sure the tube is not kinked.
IB-WGNBPA-750--03.indd 17 2012/7/24 上午 9:43

18
Note:
If it is not possible to fit the cuff on your left arm, it can also
be placed on your right arm. However, all measurements
should be made using the same arm.

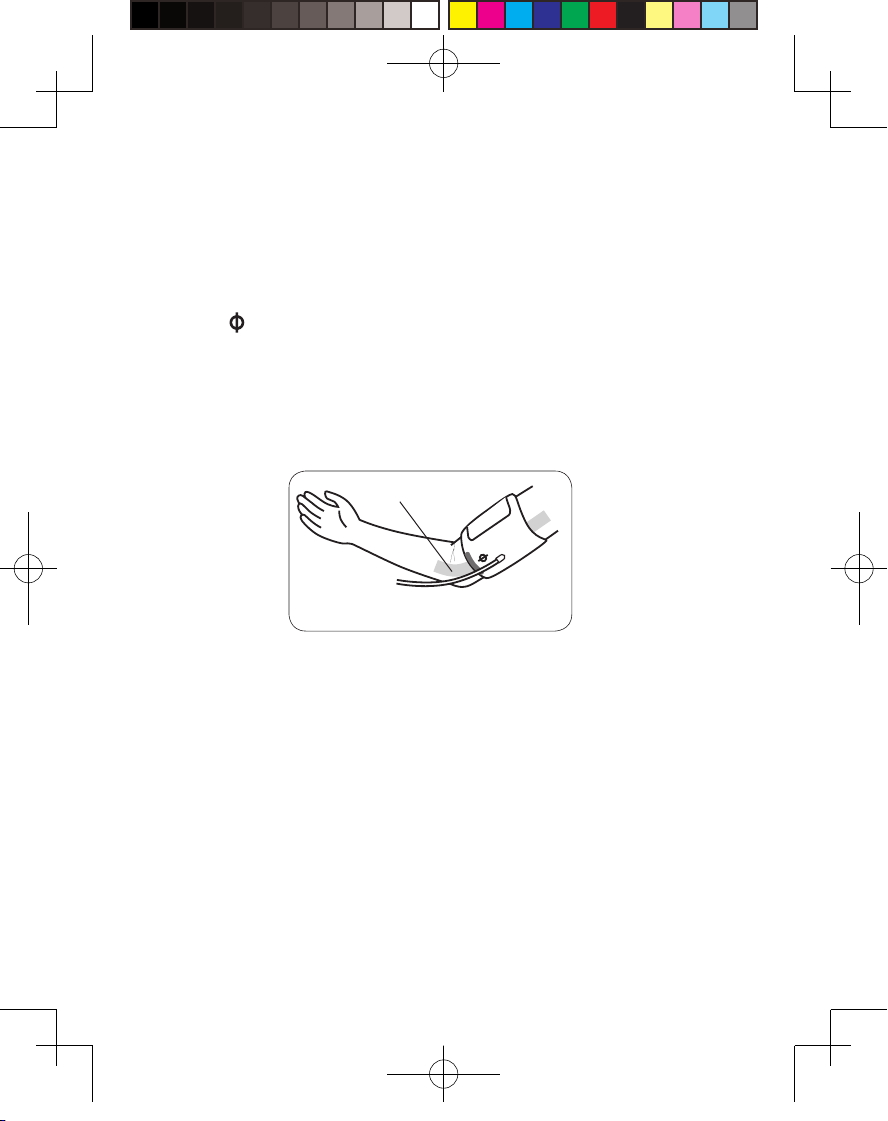

To use on the right arm, you must position the artery
symbol “ ” over the main artery. Locate the main artery
bypressingwithtwofingersapproximately1”(2cm)above
the bend of your elbow on the inside of your right arm.
Identify where the pulse can be felt the strongest. This is
your main artery.
Main Artery
IB-WGNBPA-750--03.indd 18 2012/7/24 上午 9:43

19
MEASUREMENT PROCEDURE
Important Notes:
•Bloodpressurechangeswitheveryheartbeatandisin
constant fluctuation throughout the day.
•Bloodpressuremeasurementcanbeaffectedbythe
position of the user, his or her physiologic condition
andotherfactors.Forgreatestaccuracy,wait1hour
after exercising, bathing, eating, drinking beverages
with alcohol or caffeine, or smoking to measure blood
pressure.
•Beforemeasurement,itissuggestedthatyousit
quietlyfor15minutesasmeasurementstakenduring
a relaxed state will have greater accuracy. You should
not be physically tired or exhausted while taking a
measurement.
•Duringthemeasurement,donottalkormoveyourarm
or hand muscles.
•Seepage31foradditionalnotesregardingyourblood
pressure measurement.
If you are using this blood pressure monitor for the first
time, please remove the protective film from the screen.
IB-WGNBPA-750--03.indd 19 2012/7/24 上午 9:43
