Walgreens WGNBPW-720 User manual

DELUXE WRIST
Blood Pressure
Monitor
WGNBPW-720
El manual
en español
empieza en la
página 38
• 5-Year
Limited
Warranty
IB-WGNBPW-720--02.indd 1 2012/7/11 上午 11:37

1
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and
Safety Instructions .......................................... 3
About Blood Pressure..................................... 5
Blood Pressure Standard................................ 6
How This Blood Pressure
Monitor Works.................................................. 8
USAGE INFORMATION:
Name/Function of Each Part ........................... 9
Display Explanations..................................... 10
Installing Batteries ........................................ 12
Wrist Positioning Guide ................................ 14
Setting User Preferences.............................. 15
Applying the Cuff........................................... 16
Correct Measurement Posture ..................... 18
IB-WGNBPW-720--02.indd 1 2012/7/11 上午 11:37

2
Measurement Procedure............................... 19
Risk Category Index ...................................... 23
Irregular Heartbeat Detector (IHB) .............. 24
Recalling Values from Memory..................... 26
Clearing Values from Memory ...................... 27
Important Notes Regarding Your
Blood Pressure Measurement...................... 28
Care, Maintenance & Cleaning ..................... 29
Potential for Electromagnetic
Interference.................................................... 31
Troubleshooting ............................................. 32
Specifications ................................................ 33
5 Year Limited Warranty................................ 35
IB-WGNBPW-720--02.indd 2 2012/7/11 上午 11:37

3
IMPORTANT PRODUCT NOTICES AND
SAFETY INSTRUCTIONS
When using your blood pressure monitor, basic precautions
should always be followed. Please read and follow all
instructions and warnings before using this product. Save
these instructions for future reference.
• Pleasenotethatthisisahomehealthcareproductonly
and it is not intended to serve as a substitute for the
advice of a physician or medical professional.
• Thisdeviceusestheoscillometricmethodtomeasure
systolic and diastolic blood pressure, as well as heart rate.
• Do not use this device for diagnosis or treatment of any
health problem or disease. Measurement results are
for reference only. Consult a healthcare professional for
interpretation of blood pressure measurements. Contact
your physician if you have or suspect any medical
problem. Do not change your medications without the
advice of your physician or healthcare professional.
• Thisproductisnotsuitableforpeoplewitharrhythmias.
This device may have difficulty determining the proper
blood pressure for pregnant women and for individuals
with irregular heartbeat, diabetes, poor circulation of
blood, kidney problems or for users who have suffered
from a stroke.
IB-WGNBPW-720--02.indd 3 2012/7/11 上午 11:37

4
• Consultyourphysicianbeforemeasuringblood
pressure at the wrist if you have any of the following
conditions: Severe hypertension, severe diabetes, severe
arteriosclerosis, severe kidney disease or vascular disease
that may compromise circulation.
• Thepulsedisplayisnotsuitableforcheckingthefrequency
of heart pacemakers.
• Electromagneticinterference:Thedevicecontains
sensitive electronic components. Avoid strong electrical or
electromagnetic fields in the direct vicinity of the device (e.g.
mobile telephones, microwave ovens). These may lead to
temporary impairment of measurement accuracy.
• Usebloodpressuremonitoronlyforits
intended use.
• Do not wrap the cuff around body parts other than your
wrist.
• Notforusebyoronpersonsunderthe
age of 18.
• Useonly1.5VAAAalkalinebatteriesfor
power supply.
Blood pressure measurements determined with this device
areequivalenttothoseobtainedbyatrainedobserverusing
the cuff/stethoscope auscultatory method, within the limits
prescribed by the American National Standard, Manual,
electronic, or automated sphygmomanometers.
IB-WGNBPW-720--02.indd 4 2012/7/11 上午 11:37

5
ABOUT BLOOD PRESSURE
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery
walls while blood flows through the arteries. The
pressure measured when the heart contracts and
sends blood out of the heart is systolic (highest) blood
pressure. The pressure measured when the heart
dilates with blood flowing back into the heart is called
diastolic (lowest) blood pressure.
Why Measure Your Blood Pressure?
Among today’s various health problems, those associated
with high blood pressure are very common. High blood
pressure dangerously correlates with cardiovascular
diseases. Therefore, blood pressure monitoring is
important for identifying those at risk.
IB-WGNBPW-720--02.indd 5 2012/7/11 上午 11:37

6
BLOOD PRESSURE STANDARD
The table below contains defined levels for hypertension
that are publicly available from the National Heart Lung and
Blood Institute at the U.S. National Institutes of Health (NIH)
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_
WhatIs.html). Users can compare their own blood pressure
readings against these defined levels to determine if they
may be potentially at increased risk.
This table is applicable to most adults aged 18 and older.
Blood pressure tends to go up and down, even in people
who normally don’t have high readings. If your numbers stay
above the “normal” range most of the time, you may be at
increased risk and should consult your physician.
Although one can easily find where their own blood pressure
readingsfallonthistable,thismonitorcomesequippedwith
a Risk Category Index that automatically compares each
reading to the defined levels and provides a helpful cue if
Category Systolic (mmHg) Diastolic (mmHg)
Normal Less than 120 and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher
IB-WGNBPW-720--02.indd 6 2012/7/11 上午 11:37

7
your reading falls into one of the stages that could potentially
indicate increased risk. See page 23 for more information on
this feature.
Please note that cues provided by this monitor are only
intended to assist you in using this table. The table and cues
are only provided for convenience to help you understand
your non-invasive blood pressure reading as it relates to
the NIH information. They are not a substitute for a medical
examination by your physician. It is important for you to
consult with your physician regularly. Your physician will tell
you your normal blood pressure range as well as the point at
which you may actually be considered to be at risk.
IB-WGNBPW-720--02.indd 7 2012/7/11 上午 11:37

8
HOW THIS BLOOD PRESSURE
MONITOR WORKS
This monitor uses innovative technology to detect your blood
pressure. This technology enables the monitor to automatically
inflate and deflate at the appropriate level for each individual.
With one touch of a button, the cuff will automatically inflate
to block the blood flow through your artery. Next, the deflation
process starts.
To help guide your wrist into the ideal position, this blood
pressuremonitorcomesequippedwithanoptionalwrist
positioning guide to help you take an accurate blood pressure
reading. Please see page 14 for more information on this feature.
Please note that any muscle movement during inflation or
deflation will cause measurement error. When measurement is
complete, the monitor will display your systolic pressure, diastolic
pressure, and pulse readings.The monitor automatically finds
where your measurement results fall on the NIH’s National Heart
Lung and Blood Institute’s table and provides a cue if your reading
falls into one of the stages that could potentially indicate increased
risk. See page 23 for more information on this feature.
The appearance of the icon indicates that a pulse
irregularity consistent with an irregular heartbeat was detected
during measurement. Refer to page 24 for more information on the
Irregular Heartbeat Detector.
IB-WGNBPW-720--02.indd 8 2012/7/11 上午 11:37

9
NAME/FUNCTION OF EACH PART
Accessories for unit :
2“AAA”size,1.5Valkaline
batteries included with the
carrying case with the unit.
User-Select
Button
Wrist Cuff
Battery Cover
(located on
side of unit)
Memory Recall
Button
START/STOP
Button
Date/Time
Set Buttons
LCD Display
Date/Time
Indicator
Wrist
Positioning
Guide
IB-WGNBPW-720--02.indd 9 2012/7/11 上午 11:37

10
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time
Indicator
Heart Rate
Wrist
Positioning
Guide
IB-WGNBPW-720--02.indd 10 2012/7/11 上午 11:37

11
Display Symbols:
User 1: Appears when the monitor is operated by User 1.
User 2: Appears when the monitor is operated by User 2.
Weak Battery Symbol: Appears when batteries should be
replaced.
Pulse Symbol: Shows the heart rate per minute.
Wrist Positioning Guide: See page 14 for more information.
Irregular Heartbeat Detector: See page 24 for more
information.
Memory Average: Displays average of last 3 readings.
Risk Category Index: See page 23 for more information.
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
Measurement Error: Wrap the cuff correctly and keep wrist
steady during measurement. Measure again.
Air Circuit Abnormality: Measure again.
Pressure Exceeding 300 mmHg: Switch the unit off to clear,
then measure again.
Error Determining Measurement Data: Measure again.
Component Error: Measure again.
System Error: Measure again.
If and any of the following letters and numbers appear in the
area that systolic pressure should be displayed, an error has occurred
with your reading. See Troubleshooting section of this manual for
more information.
/
START
STOP
M
(No Symbol)
IB-WGNBPW-720--02.indd 11 2012/7/11 上午 11:37

12
INSTALLING BATTERIES
1. The battery cover is located along
the side of the monitor. Remove
battery cover by pressing down
and pulling away from the
monitor.
2. Install batteries according to
the polarity indications inside
the compartment (as shown
in figure 2). Battery Type: 2
Alkaline LR03 (AAA) size
3. Insert the other battery,
according to the polarity
indications inside the
compartment (as shown in
figure 3).
4. Replace the cover by inserting
it back into place.
1.
2.
4.
3.
IB-WGNBPW-720--02.indd 12 2012/7/11 上午 11:37

13
Replace the batteries if:
•Theweakbatterysymbolappearsonthedisplay.
•Nothingappearsonthedisplaywhenthepoweris
switched on.
As the supplied batteries are for test only, they may be
discharged earlier than batteries you buy in stores. Replace
all batteries at one time (as simultaneous set). Use only
1.5VAAAalkalinebatteries.Removebatterieswhenunitis
not in use for extended periods of time. Date and time will
need to be reset if batteries are removed or replaced. Clean
contacts on battery and in battery compartment with a soft
dry cloth each time you install batteries.
Note:
Batteries are hazardous waste. Do not dispose of them
together with the household garbage.
IB-WGNBPW-720--02.indd 13 2012/7/11 上午 11:37

14
WRIST POSITIONING GUIDE
• Whenusingwristbloodpressuremonitors,itisimportant
to take the measurement while relaxing your wrist at heart
level. This will help ensure an accurate reading will be
taken. Because it is difficult to find the ideal location for
a wrist measurement we have included an optional Wrist
Positioning Sensor that will assist in directing your wrist to
the ideal location for a blood pressure measurement.
• AfteryoupressSTART/STOP button, the display will
illuminate with different icons that are designed to help you
move your wrist. Once the ideal location is found, the Pulse
Symbol will flash and measurement will begin.
SYMBOL ACTION
Move your wrist up.
Move your wrist down.
Rotate your wrist to your left.
Rotate your wrist to your right.
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
IB-WGNBPW-720--02.indd 14 2012/7/11 上午 11:37

15
SETTING USER PREFERENCES
1. To adjust the user preferences, press the Date/Time Set
button located on the top of the monitor.
2. The display will show a blinking ON. By default, the wrist
positioning guide is ON. To turn it OFF, press the
button.
3. Press the Date/Time Set button again for the display to
show a blinking number, showing the HOUR. Change the
hour by pressing the button. Each press will increase
the number by one in a cycling manner. Pressing the Date/
Time Set button will confirm the entry.
4.
Change the MINUTE, MONTH, DAY and YEAR as described
in Step 3 above, using the button to change the numbers
and the Date/Time Set button to confirm the entries.
Press the button
turn 3d OFF
blinking 3d ON
confirm entry
blinking HOUR
repeat process to set HOUR, MINUTE,
MONTH, DAY and YEAR
PM
AVG.
3
UP
DOWN
ROTATE
RIGHT
LEFT
IB-WGNBPW-720--02.indd 15 2012/7/11 上午 11:37

16

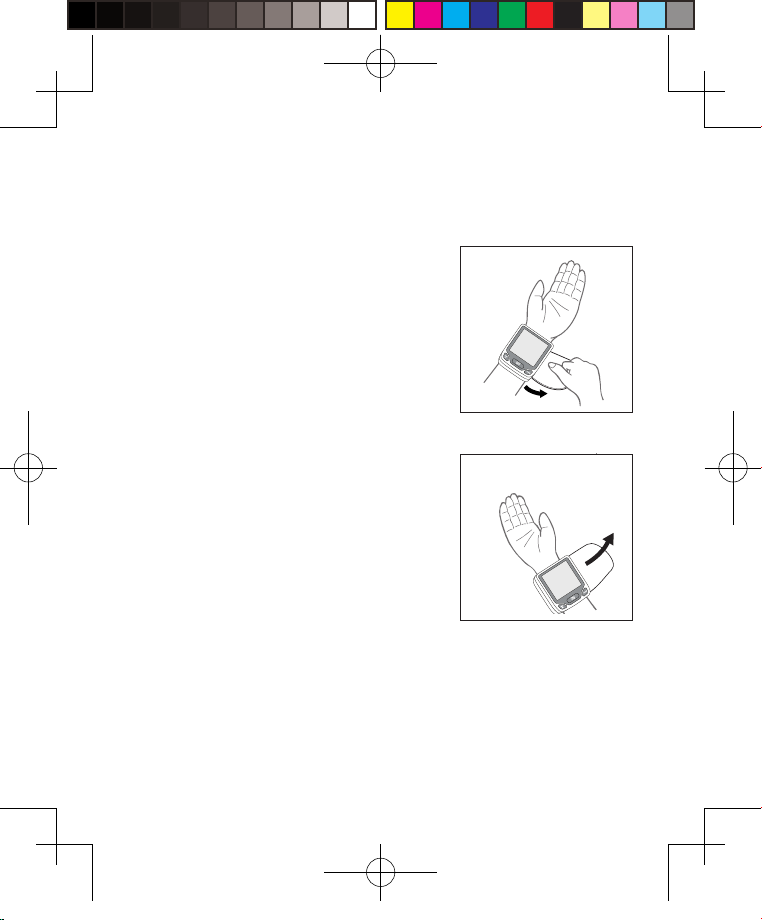

APPLYING THE CUFF
1. Remove all watches, wrist jewelry, etc. prior to attaching
the wrist monitor. Clothing sleeves should be rolled up
and the cuff should be wrapped around bare skin for
correct measurements.
2. Apply cuff to left wrist with
palm facing up as shown in
Fig. A.
3. Make sure the edge of the
cuff is about 1/4”~1/2” (1 cm)
from the palm as shown in
Fig. B.
Fig. A
Fig. B
IB-WGNBPW-720--02.indd 16 2012/7/11 上午 11:37

17
4. In order to ensure accurate
measurements, fasten the hook
and loop strap securely around
your wrist so there is no extra
space between the cuff and the
wrist as shown in Fig. C. If the
cuff is not wrapped tight enough,
the measurement values will not
be accurate.
5.Ifyourphysicianhasdiagnosed
you with poor circulation in your
left arm, place the cuff around
your right wrist as shown in Fig. D.
Note:
If it is not possible to use the cuff on
your left wrist, it can also be used
on your right wrist. However, all
measurements should be made using
the same wrist.
Fig. C
Fig. D
IB-WGNBPW-720--02.indd 17 2012/7/11 上午 11:37

18

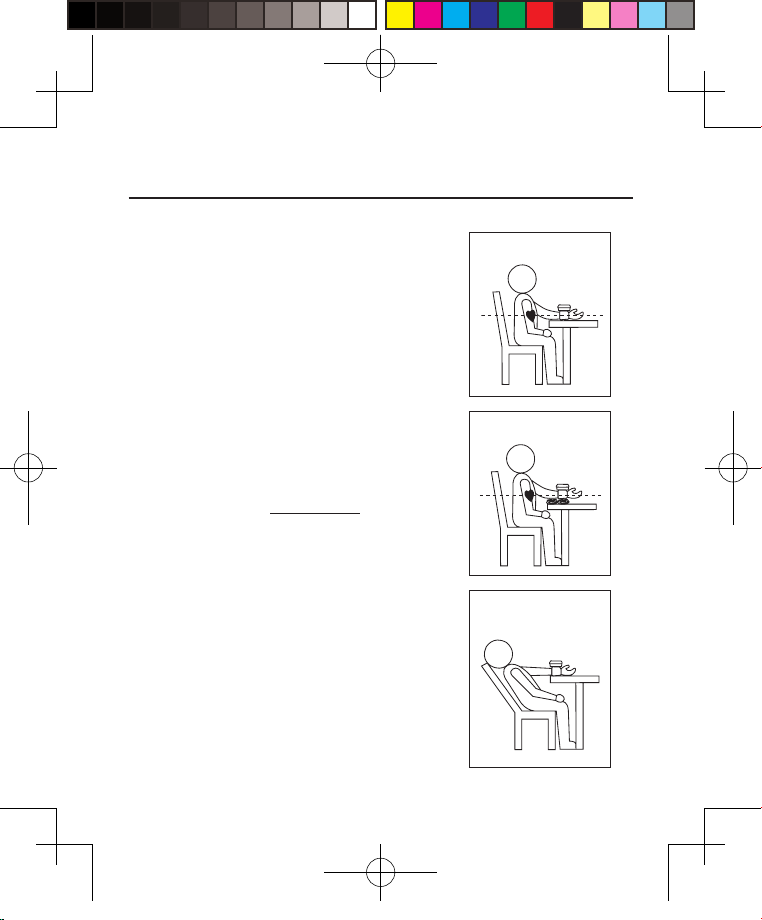

CORRECT MEASUREMENT POSTURE
1. Place your elbow on a table so that
the cuff is at the same level as your
heart as shown in Fig. A. Relax your
entire body, especially between your
elbow and fingers.
Note:
Your heart is located slightly below
your armpit.
2. If the cuff is not at the same level as
your heart or if you cannot keep your
arm completely still throughout the
reading, use a soft object such as a
folded towel to support your arm as
shown in Fig. B.
3. Turn your palm upwards.
4.Situprightinachair,andtake5-6
deep breaths.
5.Avoidleaningbackwhilethe
measurement is being taken as
shown in Fig. C.
Fig. A
Fig. B
Fig. C
(X)
IB-WGNBPW-720--02.indd 18 2012/7/11 上午 11:37

19
MEASUREMENT PROCEDURE
Important Notes:
•Positionthemonitoratthesamelevelasyourheart
during measurement to ensure accurate readings.
•Bloodpressurechangeswitheveryheartbeatandisin
constant fluctuation throughout the day.
•Bloodpressuremeasurementcanbeaffectedbythe
position of the user, his or her physiologic condition
and other factors. For greatest accuracy, wait 1 hour
after exercising, bathing, eating, drinking beverages
with alcohol or caffeine, or smoking to measure blood
pressure.
•Beforeameasurement,itissuggestedthatyousit
quietlyfor15minutesasmeasurementstakenduring
a relaxed state will have greater accuracy. You should
not be physically tired or exhausted while taking a
measurement.
•Duringthemeasurement,donottalkormoveyour
arm or hand muscles.
•Seepage28foradditionalnotesregardingyour
blood pressure measurement.
If you are using this blood pressure monitor for the first
time, please remove the protective film from the screen.
IB-WGNBPW-720--02.indd 19 2012/7/11 上午 11:37
