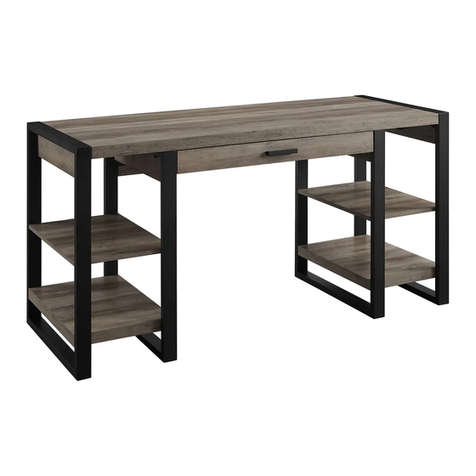

Walker Edison AF18DEW1D User manual

Secure cam bolt (B) into part (3),then using screw (L) attach Door stopper (K) to part (3) with
Philips head screwdriver as per diagram.

Insert wooden dowel (A) into parts (5,6) as per diagram.

Using Cam lock(C) attach part (3) to part (5) with Philips head screwdriver as per diagram.

Using Cam lock(C) attach part (3) to part (6) with Philips head screwdriver as per diagram.

Place part (7) as per diagram.

Using bolt (E) attach part (4) into parts (5,6,7) with hex key (F) as per diagram.

Using screw (N) secure plastic wedge (M) with Philips head screwdriver as per diagram.

Place sticker (D) cover the holes as per diagram .

Using bolt (J) attach part (9) to part (4) with hex key (F) as per diagram.
Note: Do not fully tighten all the bolts.

Using bolt (H) attach part (8) to part (9) with hex key (F) as per diagram.

Repeat the action same as last step 10.

Using bolt (G) attach part (8) to part (2) with hex key (F) as per diagram.
Note：Fully tighten all the bolts.

Using screw (T) attach Europe hinge (U) to part (10) with Philips head screwdriver as per diagram.

Using Handle bolt (Q) attach Handle (P) into part (10) with Philips head screwdriver as per diagram.

Using screw (T) attach Europe hinge (U) to part (5) with Philips head screwdriver as per diagram.

Tear off glass pad (R) and place glass pad (R) upon the part (2) as per diagram.
