WallboxOK EV PORTABLE User manual

WALLBOX EV PORTABLE
USER MANUAL
INSTALLATION MANUAL

2
www.wallboxok.com
EV Portable bears the CE mark. The corresponding
Declarations of Conformity ara located at WallboxOK
This product metes the reuirementes of the ROHS
Directive (2011/65/CE). The corresponding Declarations
of Conformity ara located at WallboxOK
Disposal Information
The crossed-out trash container symbol indicates that electric appliances
and electronic devices including accessories are to be disposed of
separately from general household trash. You can find more information
about this directly on the product, in the operating manual or on the
packaging. The materials are recyclable according to their labeling.
You can make an important contribution to protecting our environment by
reusing, renewing and recycling materials and old appliances

3
www.wallboxok.com
1INDEX
1 INDEX..................................................................................................................................... 3
2 IMPORTANT INFORMATION.................................................................................................. 4
2.1 SAFETY INSTRUCTIONS.................................................................................................. 4
2.2 INTENDED USED ............................................................................................................ 5
2.3 ABOUT THIS MANUAL ................................................................................................... 5
3 OVERVIEW............................................................................................................................. 6
3.1 VERSIONS ...................................................................................................................... 7
4 USING DE CHARGING STATION ............................................................................................. 8
4.1 CHARGE AMPS SELECTION ............................................................................................ 9
5 TROUBLESHOOTING. ........................................................................................................... 10
6 INSTALLATION GUIDELINES................................................................................................. 11
6.1 GENERAL CRITERIA FOR THE SITE SELECTION ............................................................. 11
6.2 SPECIFICATION FOR THE ELECTRICAL CONNECTION................................................... 12
Dear Customer,
WallboxOk Team want to thank you for buying one of our Electric Vehicle Charging Box. Our passion in
design and innovation makes our charging points leaders in technology.
Do not hesitate to contact us at [email protected] if you have any suggestion.
We hope you enjoy your EVSE
Kind regards
Querido Cliente,
Todo el equipo de WallboxOk, le da las gracias por haber adquirido uno de nuestros puntos de recarga.
Nuestra pasión por el diseño y la innovación, hace que todos nuestros puntos de recarga sean lideres en
tecnología y diseño.
Si desea comentarnos algún tipo de sugerencia para nuestra mejora, puede hacerle a través del correo
[email protected].
Esperemos que disfrute de él.
Gracias,
El Equipo de WallboxOk

4
www.wallboxok.com
2IMPORTANT INFORMATION
2.1 Safety instructions
Warning!
Not observing the safety instructions can result in risk of death, injuries and damage to the
device! WALLBOXOK assumes no liability for claims resulting from this!
Electrical hazard / fire hazard!
Never use damaged, worn or dirty charging plugs.
The owner must ensure that the charging station is only ever operated in perfect
condition:
-The charging station must be checked regularly for faulty sockets and
connectors and damage to the housing (visual inspection).
-A damaged charging station must be switched off immediately and replaced.
-Repair work to the charging station is not permitted and may only be performed
by the manufacturer (replacement of the charging station)!
-Do not carry out any unauthorized conversion work or modifications to the
charging station!
-Do not remove any notices on the device, such as safety symbols, warning
notices, rating plates, nameplates or cable markings!
The charging station does not have its own power switch! The RCD circuit breaker and
the line circuit breaker of the building installation serve as mains disconnector.
No extension cables are permitted for connecting an electric vehicle to the power
supply device for electric vehicles.
Only electrical vehicles or their chargers may be connected. No connection of other
loads is permitted (electric tools etc.)!
Read the information and instructions for your vehicle carefully before youcharge
the vehicle using the charging station.
Ventilation: A number of vehicles require an external ventilation system in the interior
areas due to the possible creation of toxic or explosive gases during the charging
procedure.
Warning!
Risk Damage!
Never clean the charging station using spray water (from a hose, high-pressure cleaner
etc.) to clean the charging station!

5
www.wallboxok.com
2.2 Intended used
EV PORTABLE is a "charging station" for the indoor and outdoor area at which electrically
operated vehicles can be charged (e.g. electric automobiles). It can be used portable and allow
you to change the maximum Amps rate.
The respective national regulations must be observed with regard to the installation and
connection of the charging station.
The device was developed, manufactured, inspected and documented in compliance with the
rele-vant safety standards. Therefore, the products do not pose any danger to the health of
persons or a risk of damage to other property or equipment under normal circumstances,
provided that the instructions and safety precautions relating to the intended use are properly
observed.
The instructions contained in this manual must be followed precisely in all circumstances.
Failure to do so could result in the creation of potential sources of danger or the disabling of
safety devic-es. Apart from the safety instructions given in this manual, the safety precautions
and accident prevention measures appropriate to the situation in question must also be
observed.
2.3 About this manual
This manual is valid for devices of the type: WALLBOX PORTABLE EV

6
www.wallboxok.com
3OVERVIEW

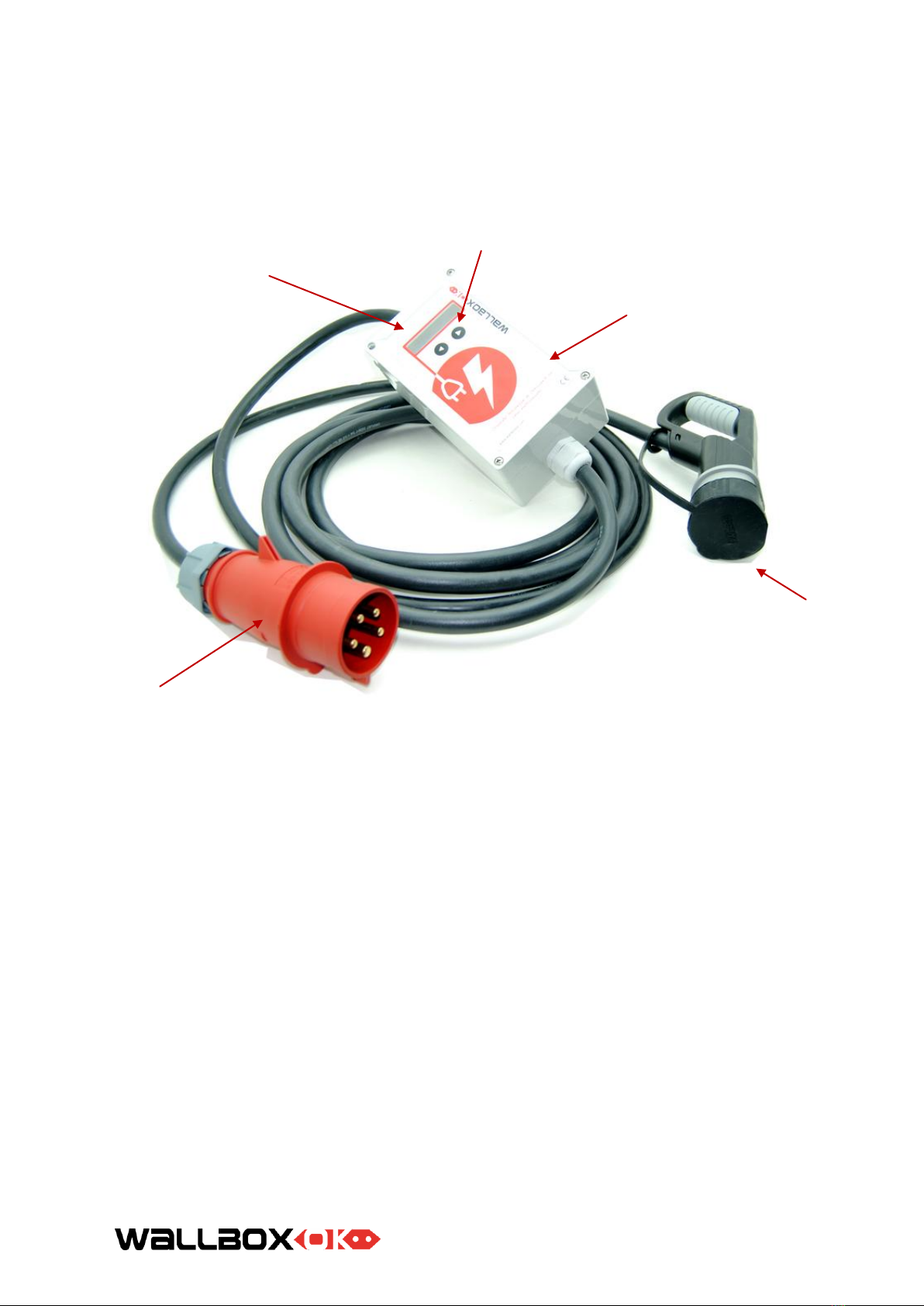

WALLBOX EV PORTABLE
LCD DISPLAY
AMPS RATE
BUTTONS
WALLBOX
PORTABLE
Cable IEC 62196 o
SAE J1772
INDUSTRIAL CEE
PLUG

7
www.wallboxok.com
3.1 VERSIONS
Amps Range
6-32 Amps
6-32 Amps
Phase
3F+N+TT
1F+N+TT
Max Power
22 kW
7,6 kW
Supply CEE Plug

8
www.wallboxok.com
4USING DE CHARGING STATION
1. Plug CEE industrial conector.
2. Select the Amp rate with the buttons. PLEASE READ BEFORE SECTION 4.1 “AMPS RATE
SELECTION”!
3. Plug the charging cable into Vehicle.
Starting the charging procedure
1. When the car allows the EVSE start charging, the recharge station will begin to charge.
In the LCD display will show the state of charge.
.
Ending the charging procedure
The charging procedure is ended by unplugging the charging cable at the vehicle. For details,
please refer to the instructions of the vehicle manufacturer.
Do not use force to pull out a mechanically locked plug!
Disconnect the charging cable from the vehicle ("Wait for unplugging").
Disconnect the CEE plug
C

9
www.wallboxok.com
4.1 CHARGE AMPS SELECTION
ATENTION, BEFORE USING THE EVSE, PLEASE REVISE THIS SETION. THE WRONG USE OF THE
EQUIPMENT CAN DAMAGE THE ELECTRICAL INSTALLATION.
The Amp rate selection depends on the electrical installation and the adaptor used. It has to be
selected with the front buttons. The LCD Display will guide you which is the minimum adaptor
you need to use.

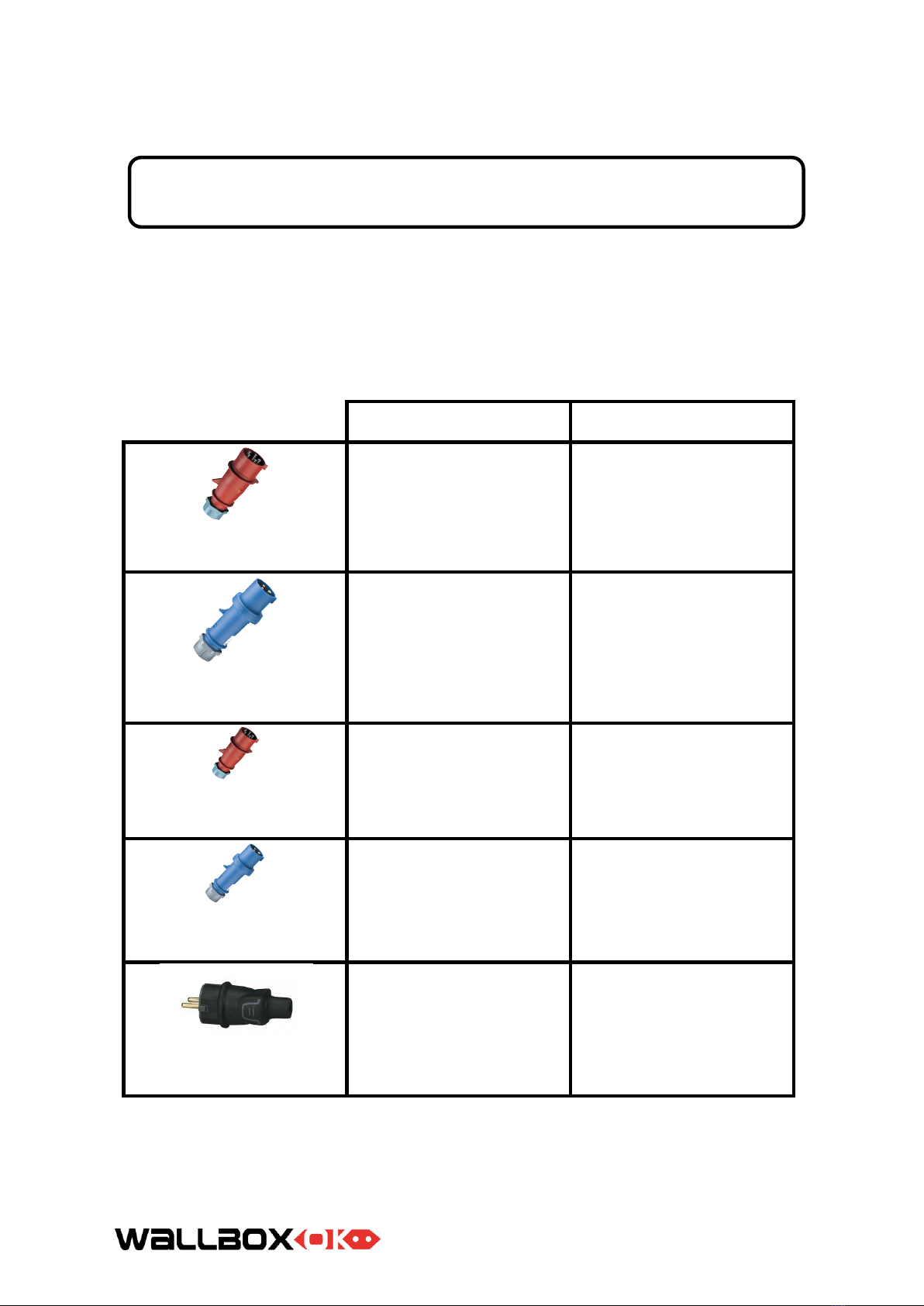

SELECT YOUR AMP RATE DEPENDING ON THE ADAPTOR CHOOSEN
Amps range permited
Charging power (máximum)
CEE 32 AMPS 400V
6-32 Amp.
IEC 62196: 22 kW
SAE J1772: 7,6 kW
CEE 32 AMPS 230V
6-32 Amp.
IEC 62196: 7,6 kW
SAE J1772: 7,6 kW
CEE 16 AMPS 400V
6-16 Amp.
IEC 62196: 11 kW
SAE J1772: 3,7 kW
CEE 16 AMPS 230V
6-16 Amp.
IEC 62196: 3,7 kW
SAE J1772: 3,7 kW
SCHUKO
6-12 Amp.
IEC 62196: 2,7 kW
SAE J1772: 2,7 kW

10
www.wallboxok.com
All charging stations are supplied with power CETAC 32 Amp. (single or three phase depending
on the output connector). You can purchase as many adapters as needed.
5TROUBLESHOOTING.
PROBLEM
Possible cause - remedy
LCD Display does not light up
No voltage supply –Check RCD circuit breaker and line
circuit breaker and switch on if necessary.
Defective –please contact your service partner
Charging procedure is not started
The plug is not inserted correctly - Pull out the plug and
insert the plug again.
The charging procedure was not performed correctly –
follow the instructions in Chapter "Starting/ending the
charging procedure".
The plug may possibly be dirty in the locking area or
damaged –clean the plug or have it replaced.
The vehicle does not need any power or has an error –
check the vehicle.
The vehicle is programmed to a later start time for
charging.
Vehicle is not fully charged
Increased charging time
Power reduction due high temperature by vehicle or
charging station:
Protect the vehicle and charging station from direct
sunlight during the charging process (carport, garage, ...)
Visual inspection of the connectors for dirt, wear or
damages. If necessary, please contact your service
partner.
Missing release by external controller (energy supplier,
PV system, ...)
Standard plug cannot be
unplugged
The charging procedure was not ended correctly by the
vehicle –end the charging procedure according to the
instructions of the vehicle manufacturer.
Eventually the plug cannot be unlocked under tension -
Push in the plug and connect it again on the vehicle.
Then end the charging procedure again.

11
www.wallboxok.com
6INSTALLATION GUIDELINES.
6.1 GENERAL CRITERIA FOR THE SITE SELECTION
The charging station was constructed for the indoor and outdoor area. Accordingly, it
is necessary to ensure the installation conditions and the protection of the device at
the installation site.

Take into account the local electrical installation regulations, fire prevention measures
and ac-cident prevention regulations as well as emergency routes at this site.
The charging station must not be use in potentially explosive zones (EX environment).
Mount the charging station so that it is not located in the direct flow of passersby and
so that no one can trip over connected charging cables and so that the charging cables
do not cover or cross passing pedestrian and motorized traffic.
Do not use the charging station at locations where ammonia or ammonia gas is
exposed (e.g. in or at stables).
Do not use the charging station at locations where falling objects (e.g. hung ladders or
au-tomobile tires) could damage the device.
The device may not be exposed to direct spray water (by e.g. neighboring manual
carwash facility, high-pressure cleaner, garden hose).
If possible, the device should be used protected from direct rainfall, in order to avoid
e.g. icing, damage because of hail or similar.
If possible, the charging station should be mounted protected from direct sunlight, in
order to avoid the reduction of the charging current or the interruption of the charging
procedure due too high temperatures of the components inside the charging station.
Observe the internationally relevant installation standards (e.g. IEC 60364-1 and IEC 60364-
5-52) and follow the applicable national installation standards and regulations.

12
www.wallboxok.com
6.2 SPECIFICATION FOR THE ELECTRICAL CONNECTION
EV Portable is designed for plug it in a CEE Industrial connector (female). You need to choose
the amps rate depending on the place where it is installed and the adaptor selected.
EV Portable needs to be connected to a main supply line and must be hardwired and
correspond to the nationally applicable legal conditions.
Selection of the RCD circuit breaker:
Each charging station must be connected to a separate RCD circuit breaker. No other
cir-cuits may be connected to this RCD circuit breaker.
The nominal current IN must be selected to match the line circuit breaker and the fuse.
Dimensioning the Line circuit breaker:
When dimensioning the line circuit breaker also observe the increased environmental
temperatures in the switching cabinet! Under certain circumstances, this may require
a reduction of the pread-justed charging current setting to increase the system
availability.
Maximum value according to the type plate data matching to the amp rate EV Portable
selected.
Dimensioning of the mains supply line:
When dimensioning the mains supply line also observe possible reduction factors and the
increased environmental temperatures in the interior connection area of the charging station
