Walton 01OVLP0602-V2 User manual

TIMBER

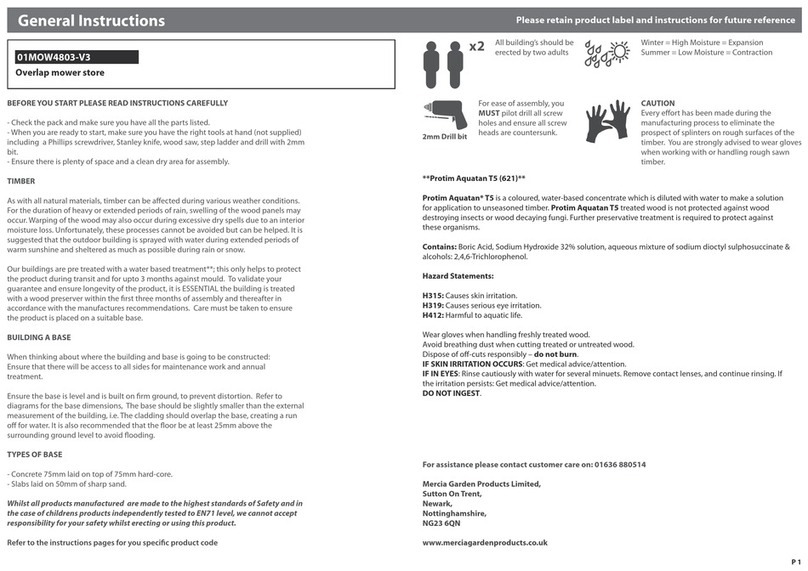

As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy or extended periods of rain, swelling
of the wood panels may occur. Warping of the wood may also occur during excessive dry spells due to an interior moisture loss. Unfortunately, these
processes cannot be avoided but can be helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm
sunshine and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent the timber from deteriorating and
to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treatment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. the cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
**Protim Aquatan T5 (621)**
Your building has been treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct application of Aquatan solution and then
allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl sulphosuccinat and alcohols: 2, 4,
6-trichlorophenol.
PLEASE READ INSTRUCTIONS CAREFULLY.
For ease of assembly, you must to pilot drill all
screw holes and ensure all
screw heads are countersunk.
WINTER = HIGH MOISTURE = EXPANSION
SUMMER = LOW MOISTURE = CONTRACTION
Drill
2mm bit
x2
Dimensions
Height = 1960mm
Width = 1786mm
Depth = 797mm
01OVLP0602-V2
Before you start...
Our buildings are pre treated with a water based treatment**; this only helps to protect the product during transit and for upto 3 months against
mould. To validate your guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated with a wood preserver within the rst
three months of assembly and thereafter in accordance with the manufactures recommendations.
Tools required for installation (not supplied)
Screwdriver (cross point), Stanley knife, wood saw
and step ladders.
For Assistance Please Contact Customer Care on 01636880514
This building should be erected by two people.
*Shiplap version
shown in illustrations
Whilst all products manufactured at Walton Garden Buildings Limited are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, Walton Garden Buildings Limited cannot accept responsibility for your safety whilst erecting or using
this product.
Gable QTY 2
AI-01OVLPPGL697X1919-V2
AI-01OVLPPGR697X1919-V2
Front Panel QTY 1
AI-01OVLPFP1762X1820-V2
Rear Panel QTY 1
AI-01OVLPRP1762X1919-V2
Door QTY
AI-01MBDR1660X634-V1
Felt
Roof Panel QTY 1
PI-03-0027
Eaves Framing - 28 x 28 x 1786mm QTY 1
FS2828-1786MM
Rear Fascia -12 x 60 x 1810mm QTY 1
S1260-1810MM
Side Fascia - 12 x 60 x 830mm QTY 2
S1260-830MM
`S1245-1818MM
Corner Trim -12 x 45 x 1918mm QTY 2
S1245-1918MM
Door block - 28 x 28 x 140mm QTY 2
F2828-140MM
Iron mongery & Nail Bag Contents
Door hinge QTY 4
PI-02-1043
30mm Screw x80
50mm Screw x30
40mm Screw x15
10mm Felt Tacks x80
Turn Key QTY 2
PI-07-0034
Pad bolt QTY 1
PI-07-0035
Please retain product label and instructions for future reference
Floor Panel QTY 1
AI-01OVLPFP1762X1820-V2

Assembly
Step 1
Remove transportation blocks
from the bottom of each panel
before beginning assembly.
Each Panel should have two
blocks.
Step 2
Place oor on a rm and
level base, ensure base has
suitable drainage free from
areas where standing water
can collect. (see front page
on base requirements).
Step 3
Do not secure the building
to the oor until the roof is
tted. Fix the panels onto
the oor using 50mm
screws in alignment with
the oor joists
Fix the corners with 3x
50mm screw a shown in
diagram.
Position the panels so there is
equal spacing between the
oor and cladding on all 4 sides
9 x 50mm screws
Step 4
Fix door gable and front panel
using same method shown in
step 3.
15 x 50mm screws
Step 5
Place the Gable Top onto the
plain gable, ensuring the
cladding and framing on either
side is ush with gable. Fix with
2x30mm screws as shown in
diagram.
4 x 30mm screws
*Shiplap Only
*Shiplap Only

Step 6
Fix Eave framing to edge of Roof
sheet using 4x30mm screws.
Place roof into position ensuring
the eave frame ts butt against
the panel cladding. Fix using
10x30mm screws as shown in
diagram.
14 x 30mm screws
*Fix eave frame to
roof sheet rst
Step 7
Lay sheet of felt onto roof as
shown in diagram ensuring
there is a 50mm overhang
around the sides.
Fix using felt tacks at 100mm
intervals
80 x Felt Tacks
100mm
intervals
50mm
Overhang
1mm
30mm
screws
44 x 30mm screws
Fix hinges to the doors with
30mm screws ensuring the
screws are located into the door
framing.
Position each door on to the
building leaving a 2mm gap in
between doors and building. Fix
the door to the building with
30mm screws.
Fix pad bolt with 6x30mm screws
to horizontal door brace.
Then x the pad bolt retainer to
the opposite door framing using
4x30mm screws.
Step 8
*Fix door block and turn key to top
and bottom of door with bolt
retainer tted, using 30mm screws.
Step 9
Use 3x30mm screws to x
each cover trim.
12 x 30mm screws
9 x 40mm screws
Step 10
Fit fascia boards to building
using 3x40mm screws per
board as shown in diagram.
Pre drill holes before hand,
making sure screws go into
the framing.
