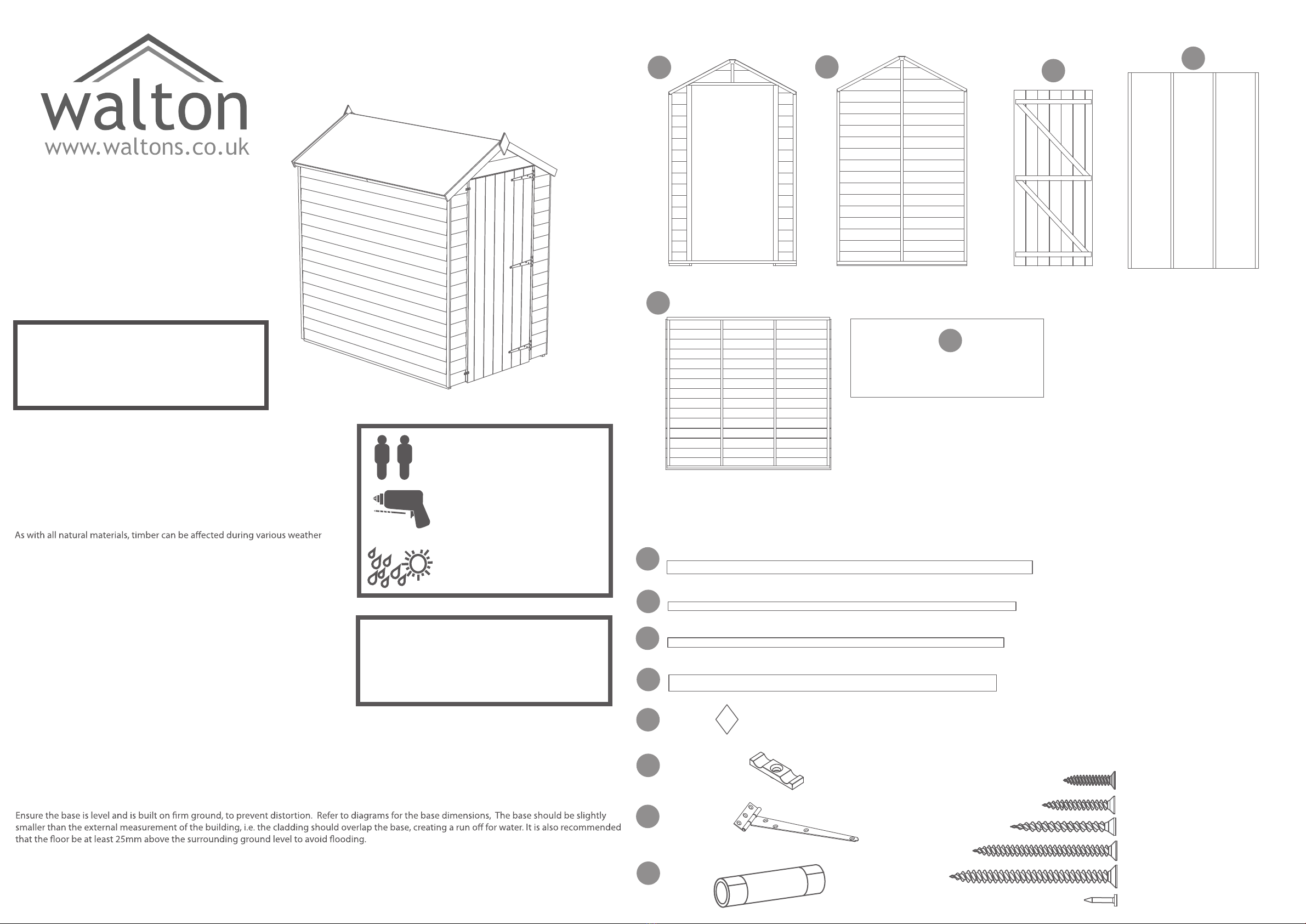

Walton 01OVLP0604-V1-NW User manual

Contents
Fixing Kit
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
For Assistance Please
Contact Customer Care on
0800 0142 333
2mm Drill bit
x2
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
This building should be erected by
two people.
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently
tested to EN71 level. We cannot accept responsibility for your safety whilst erecting or using this product.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23
BASE DIMENSIONS
Length - 175cm
Width - 116cm
OVERALL DIMENSIONS
Length - 180cm
Width - 131cm
Height - 192cm
123
5
6
8
9
11
12
13
14
Finial x2
Eaves Frame - 890mm x4
Door Gable Plain Gable
Plain Side x2
Door
7
Roof OSB
1780mm x 720mm
x2
10
Ridge Bar - 1745mm x1
Fascia- 710mm x4
Cover Trim - 1575mm x4
4
Floor
Felt
T-Hinge x3
Turn Button x2
Felt Tacks x60
30mm Screw x60
50mm Screw x30
16mm Black Screw x3
40mm Screw x40
60mm Screw x3
CAUTION
Every effort has been made during the
manufacturing process to eliminate the prospect
of splinters on rough surfaces of the timber. You
are strongly advised to wear gloves when
working with or handling rough sawn timer.

Assembly
Step 1
Remove transportation blocks
from the bottom of each panel
before beginning assembly. Each
Panel should have two blocks.
Step 2
Place the floor on a firm and level base,
ensure base has suitable drainage free
from areas where standing water can
collect. (See front page on base
requirements). 4
Fix the hinge to the door
using 30mm screws ensuring
that the screws go through
to the door framing.
Step 3
21x 30mm Screws
30mm
screw
1
3
13
13
Step 4
Fix the corners with 2x 50mm
screw as shown in diagram.
Do not secure the building to the
floor until the roof is fitted. Fix
the panels onto the floor using
50mm screws in alignment with
the floor joists
11x 50mm screws
50mm
screw
2
5
Step 5
Fix door gable and Plain side
using same method shown in
step 5.
Position the panels so there is
equal spacing between the oor
and cladding on all four sides.
17x 50mm screws
50mm
screw
1
5

Step 6
Use 30mm screws to fix each
cover trim.
12 x 30mm screws
8
8
30mm
screw
8
8
Place the Ridge Bar in between the
front and back panels. Ensure the
top corners of the support bar are
ush with each top point.
Step 7
60mm
screw
8
8
2x60mm screws
Step 8
Fix two eaves frames to each sheet
using 3x30mm screws per eave.
Fix the roof sheets to the roof using
40mm screws directly through the
OSB into the framing.
12 x 30mm Screws
20 x 40mm screws
7
10
7
30mm
screw
40mm
screw
Step 9
Cut felt into 2 sheets and lay onto roof as
shown in diagram ensuring there is a
50mm overhang around the sides.
Fix using felt tacks at 100mm intervals
60 x felt tacks
Felt
tacks
14

Step 10
Fix fascias and nials using
40mm screws. Pre drill holes to
avoid splitting. Ensure to trap
the felt between the fascia and
building.
16x 40mm screws
40mm
screw
11
10
10
Step 11
Fix the two external black turn
buttons with black 16mm
screws through to the top and
bottom door framing.
2 x 16mm Black Screws
30mm
screw
12
