Warmlite WL41006 Mounting instructions

www.warmlite.co
3000W
TURBO CONVECTION HEATER
MODEL WL41006
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
This product is only suitable for well insulated spaces or occasional use.

2
CUSTOMER SUPPORT TEAM:: [phone]
TECHNICAL DATA
Description: Turbo Convection Heater
Model: WL41006
Rated Voltage: 220-240V
Frequency: ~ 50-60Hz
Power Consumption: 2800 – 3000W
DOCUMENTATION
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
RK Wholesale LTD Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.

3
www.warmlite.co
WARNING:
This Appliance MUST be Earthed
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the mains lead of this appliance
may not correspond with the coloured markings
identifying the terminals in your plug, please
proceed as follows:
The wires in the mains lead are labelled in
accordance with the following code:
Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]
Plug Fitting Details (Where Applicable). The
wire labelled blue is the neutral and must be
connected to the terminal marked [N].
The wire labelled brown is the live wire and must
be connected to the terminal marked [L].
The wire labelled green/yellow must be
connected to the terminal marked with the letter
[E].
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal.
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug - disconnect it
from the mains - then cut it o of the mains lead
and immediately dispose of it in a safe manner.
Never attempt to reuse the plug or insert it into a
socket outlet as there is a danger of an electric
shock.
FUSE
Earth
(Green/Yellow)
Fuse
Neautral
(Blue)
Live
(Brown)

4
CUSTOMER SUPPORT TEAM:: [phone]
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should
always be followed including the following:
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance
before operating.
• Please ensure that the
appliance is used on a stable,
level, and heat resistant
surface.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• DO NOT leave the appliance
unattended while it is
operating.
• Close supervision is
necessary when any
appliance is used by or near
children or pets.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
• Children shall not play with
the appliance.
• Cleaning and user
maintenance shall not be
made by children without
supervision.
• Switch o at the wall socket
then remove the plug from the
socket when not in use or
before cleaning.
• If the supply cord or appliance
is damaged, stop using the
appliance immediately and
seek advice from the
manufacturer or its service
agent or a similarly qualied
person.
• DO NOT let the cord hang
over the edge of a table or
counter or let it come into
contact with any hot surfaces.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those supplied
with this product. DO NOT
use extension cords with the
appliance.
• DO NOT pull the plug out by
the cord as this may damage
the plug and/or the cable.
• DO NOT use this product for
anything other than its
intended use.
• This appliance is for
household use only.
• DO NOT carry the appliance
by the power cord.
• DO NOT use the appliance
outdoors.

5
www.warmlite.co
• DO NOT use the heater
unless the feet are correctly
attached.
• Always ensure that the heater
is placed on a rm level
surface. Ensure that the
heater is not positioned close
to curtains, furniture or any
combustible materials as this
could create a re hazard.
• Allow a 50cm safe area
around the heater on the top
and sides and a 120cm safe
area at the front of the
appliance.
• The heater must not be
located immediately below
a mains socket outlet.
• WARNING! DO NOT cover
the heater as this may lead to
a re risk.
• WARNING! DO NOT obstruct
any of the openings of the
heater.
• WARNING! DO NOT insert
any object through any
openings on the heater.
• Check from time to time for
accumulated dust.
• WARNING! DO NOT use the
heater in areas where
ammable liquids are stored
or where ammable fumes
may be present.
• CAUTION! In order to avoid a
hazard due to inadvertent
resetting of the thermal cut-
out; this appliance must not
be supplied through an
external switching device
such as a timer or connected
to a circuit that is regularly
switched on and o by the
utility.
• DO NOT operate the heater
on a timer or leave on
overnight.
• When not being used, please
unplug the heater from the
mains socket.
• Keep the mains lead away
from the hot body of the
heater and ensure that it is
not pulled tight between the
socket and the heater.
• WARNING! DO NOT use the
heater in the immediate
surroundings of a bath, a
shower, a swimming pool or
similar indoor locations and
DO NOT touch hot surfaces.
• Always unplug the heater and
allow it to cool before moving
it from one location to
another.
• WARNING! DO NOT attempt
to dismantle or repair any part
of the heater. This should only
be done by a qualied service
agent.
• In the unlikely event the
appliance develops a fault,
stop using it immediately and
seek advice from the service
support team.
HIGH VOLTAGE HOT SURFACE DO NOT COVER

6
CUSTOMER SUPPORT TEAM:: [phone]
WHAT’S IN THE BOX
Instruction Manual
Convection Heater
4 Self Tapping Screws
2 Feet
1. Control Panel
2. Output Vents
3. Handle
4. Feet
5. Power Switches
6. Adjustable
Thermostat Control
7. Power ON/OFF/
Timer Switch
8. 24 Hour Programmable
Timer
1 2 3
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Assemble your appliance.
3. Locate your appliance in accordance with the safety instructions.
4. Plug the appliance into the mains supply.
5. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
4
5
6
8
7

7
www.warmlite.co
ASSEMBLY
Before using the heater,
attach the feet to the base of
the heater.
Note: They are supplied
separately in the carton.
1. Use the provided 4 self-tapping screws to
attach the feet to the base of the heater.
2. Make sure they are located correctly in the
bottom ends of the heater side mouldings.
USING YOUR APPLIANCE
Controls
1. Heat Selection Switches – There are
two settings: 1500W and 3000W. Flick
either of the 2 switches to the On position
to select the 1500W setting, or ick
them both to the On position to select
the 2000W setting. The corresponding
switches will illuminate to show they have
been turned on.
Note: If neither switch is turned to the On
position, the radiator will operate on cooling fan
mode until a selection is made.
2. Adjustable Thermostat Control – Allows
you to set the temperature level from
MIN to MAX. Rotate the thermostat dial
clockwise from the MIN all the way to the
MAX position to start the heating cycle.
Once the correct temperature has been
reached, rotate this dial counter-clockwise
from the MAX to the MIN position to select
the desired temperature.
3. Power / Timer Switch – Turns the unit On
or O or activates the Timer function. Flick
this switch to the I position to turn the unit
on, to the 0 position to turn it o, or to
the Timer position to activate and set the
programmable timer.
4. 24 Hour Programmable Timer – Allows
you to set a timed heating cycle for the
unit . Flick the Power On/O / Timer
switch to the Timer position to activate the
timer function, and follow the instructions
below to set it.

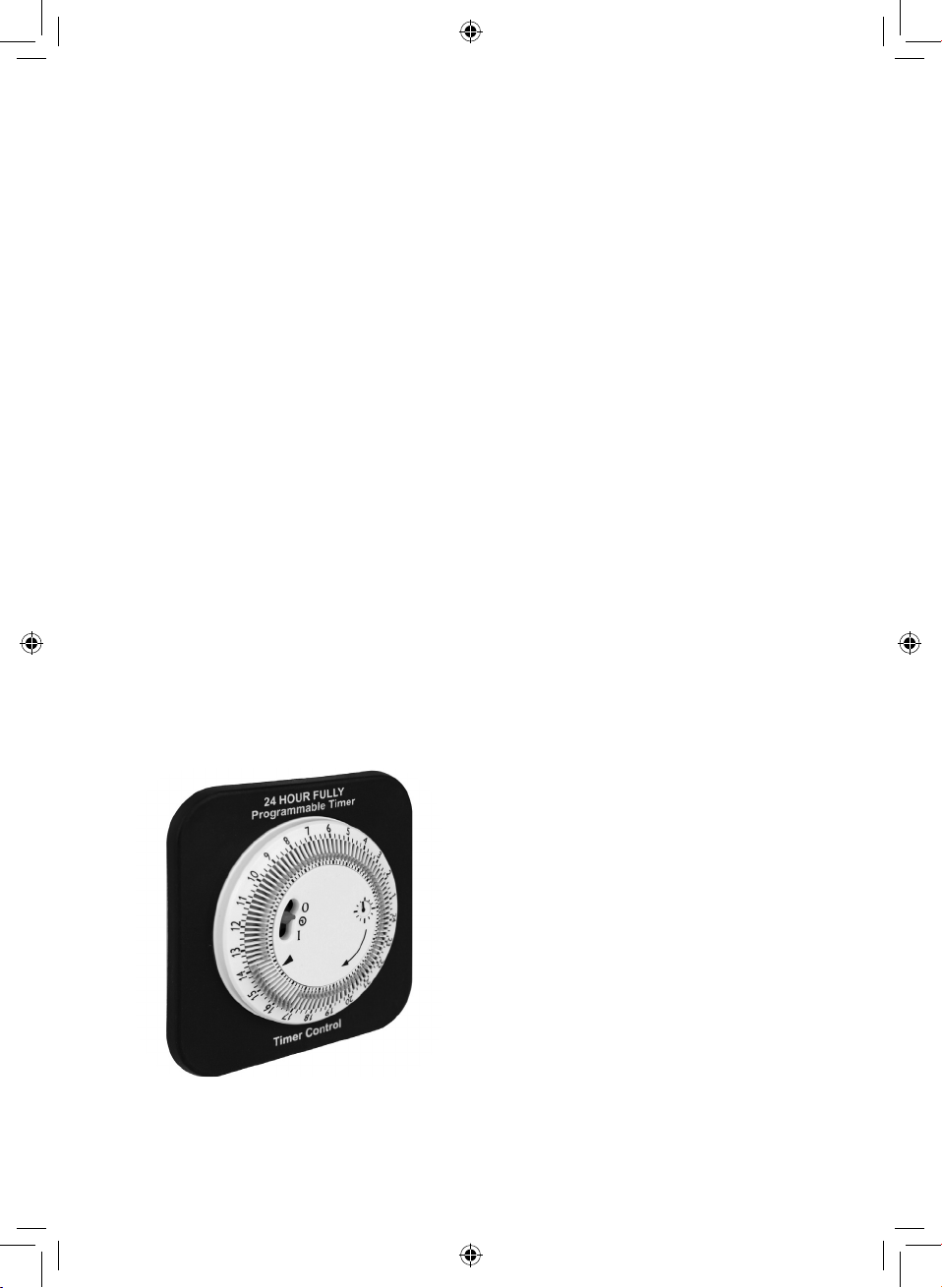

Setting the Timer
1. To set the unit’s 24-hour timer, start by
activating it. To do this, ick the Power
On/O / Timer switch to the Timer
position. The timer function is located
between positions 0 and I on the switch,
and represented by a clock symbol.
1
2
4
3
(Figure 1.)

8
CUSTOMER SUPPORT TEAM:: [phone]
2. Once the timer has been activated, rotate
the 24-hour dial so that the indicator
arrow points to the current time, as shown
in (Figure 1.) Use the small clock on the
right-hand side of the dial as a guide to
check if the current time is correct. The
timer dial will automatically begin to rotate
once the current time has been set.
Note: If an incorrect current time is set, the
timer will not operate correctly. Always ensure
the unit is set to the correct current time before
attempting to program the timer.
3. Once you have set the correct current
time, use the small pins around the
thermostat dial to nd and set your
desired time. Push the relevant pins up or
down as required to set and change alarm
start and stop times. For instance, to set
a heating cycle from 2pm to 4.45pm,
push all the pins to the down position,
other than those between the ‘14’ and
’16.45’ indicators, as shown in (Figure
2.) If the timer has been activated and
set correctly, the heater will now operate
during the selected periods and idle for
the remainder of the 24-hour cycle.
Note: Each hour section is divided into 3
segments. Each segment represents a period
of 15 minutes. For instance, the rst segment
after the ‘9’ marker represents 9.15am, the
second 9.30am, and the third 9.45am. Make
sure to bear this in mind when setting and
programming the timer.
Note: It is normal when the heaters are turned
on for the rst time or when they are turned on
after having not been used for a long period
of time the heaters may emit some smell and
fumes. This will disappear when the heater has
been on a short while.
USING THE HEATER
1. Choose a suitable location for the heater,
and take the safety instructions in to
account.
2. Insert the heater’s plug into a suitable
socket.
3. Turn the thermostat control in a clockwise
direction to the maximum setting.
4. For the rst heat setting, press one
1500W switch.
5. For the second heat setting, press both
1500W switches at the same time.
6. When a heat setting is selected, the
indicator light will turn on.
7. When the desired temperature is reached,
slowly turn the thermostat control anti-
clockwise until you hear the thermostat
click and the light on the heat control
turns o.
8. The heater will switch on and o
automatically to maintain your chosen
temperature.
Note: When the unit is turned on, the fan will
operate continuously and cannot be switched
o independently.
(Figure 2.)

9
www.warmlite.co
Note: The fan provides general ventilation
distribution around the room. In either of the
heat positions, Low or High, the fan will boost
the circulation of the heated warm air around
the room.
SAFETY-TILT SWITCH
• For your safety, the heater has a safety tilt
switch, which turns the heater o if it is
knocked over.
• For the heater to work it must be standing
on a rm, level surface.
CLEANING AND CARE
• Always switch o the heater, remove
the plug from the electrical socket and
allow the appliance to cool down before
cleaning.
• To remove the dust, wipe the appliance
with a dry cloth.
• Never use any detergents, abrasive
powders or solvents.
• DO NOT allow water to enter the heater.
• If the heater shows any signs of wear or
damage disconnect immediately from the
mains supply,
• DO NOT use it – have it checked by a
suitably qualied person.
• Store the heater in a clean, dry place.
• Make sure the heater is protected from
dust when it is not used for long periods
of time.
• Always ensure that the heater is switched
o and unplugged from the electrical
socket when in storage.
WARNING:
DO NOT IMMERSE ANY ELECTRICAL PART
OF THE APPLIANCE IN WATER SUCH AS
MOTOR UNITS OR PLUGS.
PLEASE SEE CLEANING SECTION FOR
FURTHER INSTRUCTIONS.
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.

10
CUSTOMER SUPPORT TEAM:: [phone]
TROUBLESHOOTING & FAQS:
Questions Answers
Why has the heater
shut o?
1. Make sure the heater is plugged into the mains and switched on.
2. The heater may have shut o because it has reached the selected
temperature.
3. The Safety-Tilt Switch may be activated if the heater has fallen over
or tilted. Ensure that your heater is on a at, stable, heat-resistant
surface to continue using. Please refer to the Safety-Tilt Switch
Section for further information.
How do I turn on
the second heating
feature?
Please refer to step 5 in the ‘Using the Heater’ section.
Why is the heater
emitting an odour?
• The odour is only normal if the heater has not been used for a long
time or is being turned on for the rst time. The odour will disappear
after some time.
• Contact the manufacturer or a qualied repair/service agent if the
heater is still emitting an odour after regular use.

11
www.warmlite.co
Model Identier(s): WL41006
Item Symbol Valve Unit Item Unit
Heat Output Type of heat input for electric storage, local space
heaters only (select one)
Nominal heat
output Pnom 2,9 kW Manual heat charge with integrated thermostat N/A
Minimum heat
output (indicative) Pmin 0,0194 kW Manual heat charge control with room and/or outdoor temperature feedback N/A
Maximum
continuous heat
output
Pmax, c 2,9 kW Electronic heat charge control with room
and/or outdoor temperature feedback N/A
Auxiliary electricity
consumption Fan assisted heat output N/A
At nominal heat
output elmax N/A kW Type of heat output/room temperature control (select one)
At minimum heat
output elmin N/A kW Single stage heat output and no room temperature control No
In standby mode eISB N/A kW Two or more manual stages, no room
temperature control No
With mechanic thermostat room temperature
control Yes
With electronic room temperature control No
Electronic room temperature control plus day
timer No
Electronic room temperature control plus
week timer No
Other control options (multiple selections possible)
Room temperature control with presence
detection No
Room temperature control with open
window detection No
With distance control option No
With adaptive start control No
With working time limitation No
With black bulb sensor No
Contact Details: Imported by RK Wholesale LTD., Berryhill Road, Stoke-on-Trent ST4 2NL

We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by visiting:
www.warmlite.co
Make sure to retain your original receipt.
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
[phone]
Distributed throughout the UK by RK Wholesale LTD
0219.V3
