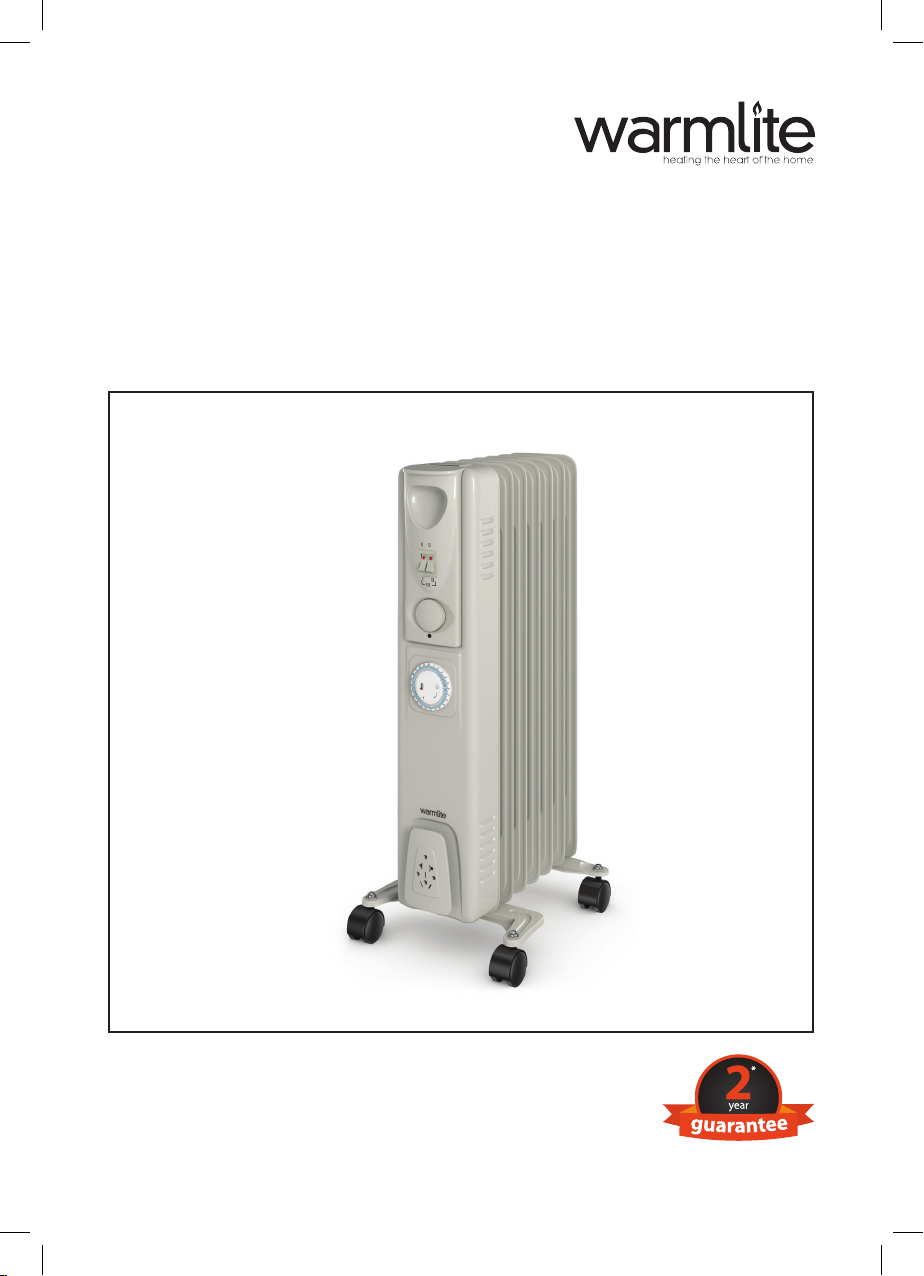

Warmlite WL43003YT User manual

1500W
7 FIN TALL
OIL FILLED RADIATOR
MODEL WL43003YT
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
www.warmlite.co

2
SERVICE DEPARTMENT: [phone]
TECHNICAL DATA
Description: 7 Fin Tall Oil Filled Radiator
Model: WL3003YT
Rated Voltage: 220 - 240V
Frequency: ~ 50Hz
Power consumption: 1500 Watts
DOCUMENTATION
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive..
RKW Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RKW has limited liability for incidental or consequential loss or damage.
• This guarantee is only valid in the UK and Eire.
An extended warranty is available for this appliance.
See back page for details.

3
www.warmlite.co
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the
mains lead of this
appliance may not
correspond with the
coloured markings
identifying the terminals
in your plug, please
proceed as follows:
The wires in the mains lead are coloured in
accordance with the following code:
Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]
Plug Fitting Details (Where Applicable).
The wire coloured blue is the neutral and must
be connected to the terminal marked [N] or
coloured black.
The wire coloured brown is the live wire and
must be connected to the terminal marked [L] or
coloured red.
The wire coloured green/yellow must be
connected to the terminal marked with the letter
[E] or marked .
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal .
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug - disconnect it
from the mains - and then cut it off the mains
lead and immediately dispose of its safely. Never
attempt to reuse the plug or insert it into a
socket outlet as there is a danger of an electric
shock.
WARNING:
This Appliance MUST be Earthed
FUSE

4
SERVICE DEPARTMENT: [phone]
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should
always be followed including the following:
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance
before operating.
• Please ensure that the
appliance is used on a stable,
level, and heat resistant
surface.
• Do not immerse cords, plugs
or any part of the appliance in
water or any other liquid.
• Do not leave the appliance
unattended while it is operating.
• Close supervision is necessary
when any appliance is used by
or near children or pets.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved.
• Children shall not play with the
appliance.
• Cleaning and user maintenance
shall not be made by children
without supervision.
• Switch off at the wall socket
then remove the plug from
the socket when not in use or
before cleaning.
• If the supply cord or appliance
is damaged, stop using the
appliance immediately and seek
advice from the manufacturer
or its service agent or a similarly
qualied person.
• Do not let the cord hang over
the edge of a table or counter
or let it come into contact with
any hot surfaces.
• The use of accessory
attachments is not
recommended by the appliance
manufacturer, apart from those
supplied with this product.
• Do not pull the plug out by the
cord as this may damage the
plug and/or the cable.
• Do not use this product for
anything other than its intended
use.
• This appliance is for household
use only.
• Do not carry the appliance by
the power cord.
• Do not use the appliance
outdoors.

5
www.warmlite.co
• Always ensure that the radiator
is placed on a rm level surface.
Ensure that the radiator is not
positioned close to curtains,
furniture
or any combustible materials as
this could create a re hazard.
• The radiator must not be
located immediately below a
mains socket outlet.
• Do NOT cover the radiator as
this may lead to a re risk.
• Do NOT obstruct any of
the openings of the radiator
especially the heat outlet at the
bottom of the radiator.
• Do NOT insert any object
through any openings on the
radiator.
• Do NOT use the radiator in
areas where ammable liquids
are stored or where ammable
fumes may be present.
• Do NOT operate the radiator on
an external timer.
• Avoid leaving the radiator on
overnight, as this poses a re
risk.
• Keep the mains lead away from
the hot body of the radiator and
ensure that it is not pulled tight
between the socket and the
radiator.
• Do not use the radiator in the
immediate surroundings of a
bath,
a shower, a swimming pool or
similar indoor locations.
• Always unplug the radiator and
allow it to cool before moving it
from one location to another.
• Do not attempt to dismantle or
repair any part of the radiator.
This should only be done by a
qualied service agent.
• In the unlikely event the
appliance develops a fault,
stop using it immediately and
seek advice from the service
department.
HIGH VOLTAGE HOT SURFACE DO NOT COVER

6
SERVICE DEPARTMENT: [phone]
2
3
4
5
1
WHAT’S IN THE BOX
Instruction Manual
Oil Filled Radiator
2 x Castor units
4 x Wing Nuts
2 x U bolt

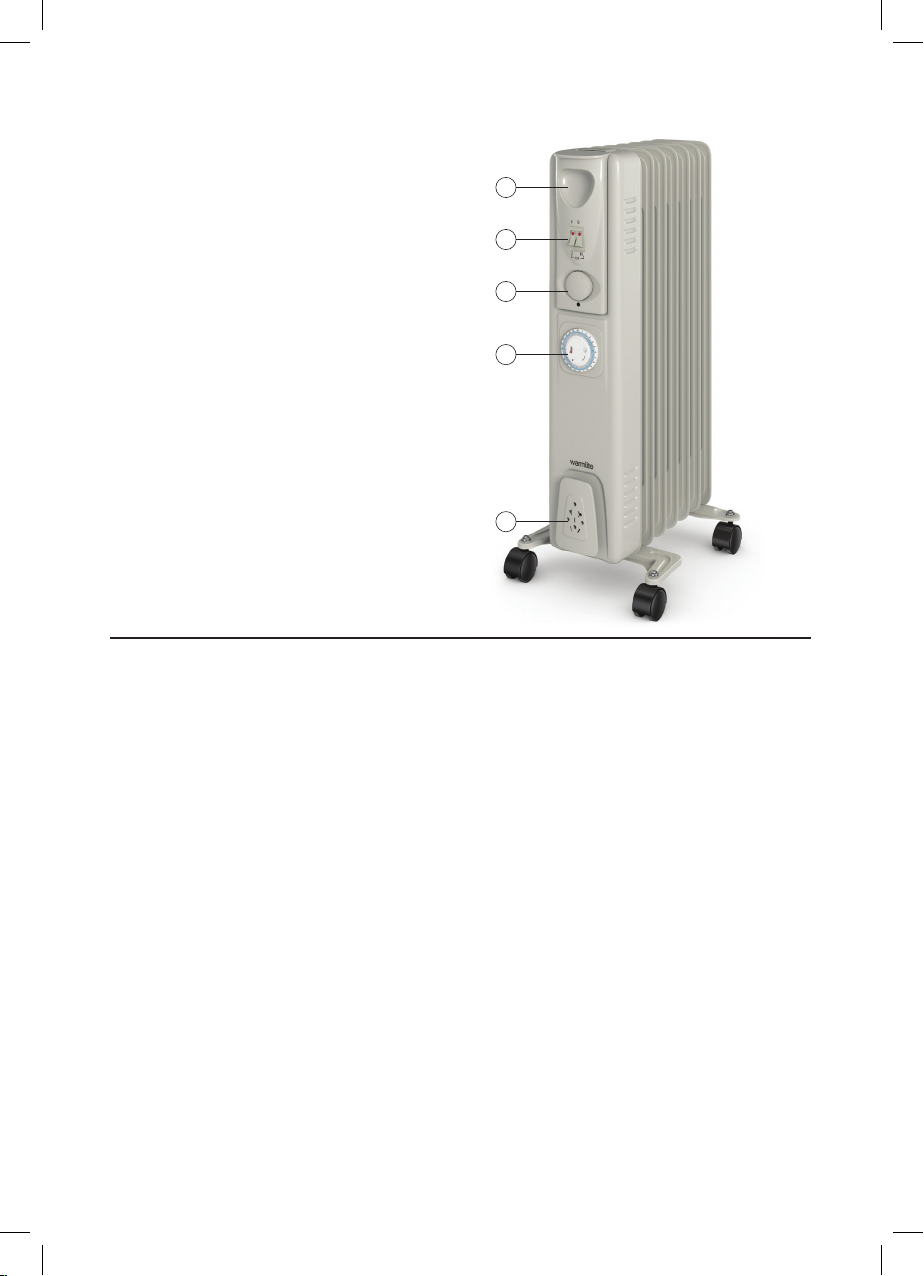

1. Handle
2. Power Switch
3. Thermostat
4. Timer
5. Cable Storage
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Assemble your appliance.
3. Locate your appliance in accordance with the safety instructions.
4. Plug the appliance into the mains supply.
5. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.

7
www.warmlite.co
ASSEMBLY
A
Fit the Castor units to the cross bars.
B
Turn the radiator upside-down on a
scratch-free and stable surface to
prevent damage to the paint nish or
your oor surfacing.
C
Fit the two Castor units to the radiator
by placing the U bolts between the
outermost ns on each side of the
radiator.
D
Securely fasten the two Castor units
onto the radiator by screwing two Wing
Nuts onto each Foot.
USING YOUR APPLIANCE
1. Set the radiator thermostat to the minimal
position and with the wall socket power
switch in the “OFF” position, insert the
plug into the power supply.
2. The thermostat will automatically maintain
your desired room temperature.
3. Set the power switch to the “ON” position.
4. Turn the thermostat control clockwise all
the way round until you hear a click, this
sound indicates that the oil radiator is
activated. Continue turning the thermostat
control clockwise to its highest setting.
5. When the indicator light is ON, the radiator
is activated. The indicator light turns ON
and OFF repeatedly during use. This is
normal and shows that the thermostat
is keeping the radiator at the desired
temperature.
6. There are three heat settings - choose the
desired setting to maintain a comfortable
temperature.
• Switch 1 = Low Heat
• Switch 2 = Medium Heat
• Both Switches = High Heat
Note: It is normal when the radiators are turned
on for the rst time or when they are turned on
after having not been used for a long period
of time the radiators may emit some smell and
fumes. This will disappear when the radiator
has been on a short while.
A
C
D
B

8
SERVICE DEPARTMENT: [phone]
TIMER
Clock Setting:
The programme/timer, as in all clocks, must be
set to the correct time. If for example the time
is 9.00 A.M. (day zone), turn the dial clockwise
(following the direction of the arrow) until 9.00
is aligned with the triangular pointer. (See Fig.
1.)
The timer is in effect an electric clock and only
works while plug is connected to the power
supply. Whenever the plug is disconnected, the
timer stops and must be re-set.
IMPORTANT
DO NOT TURN CLOCK DIAL COUNTER
CLOCKWISE
Note:
There are 96 segments around the
dial. Each segment represents a 1/4 hour
(15 minutes) and there is a segment for
every quarter of the 24 hour day.
The timer is in effect an electric clock and only
works while plug is connected to the power
supply. Whenever the plug is disconnected, the
timer stops and must be re-set.
Using the timer:
The radiator can be programmed to switch
itself ON and OFF at the time you want.
• With the timer you can approximate your
setting to within 15 minutes and program
up to 48 cycles (1 cycle=1 “ON”+ 1
“OFF”) over a period of 24 hours (12
hours A.M. +12 hours P.M.).
• The segments can be pushed inwards
or pulled outwards by simply using your
ngers.
• When the segment is in the outward
position (towards the numbers of the dial),
the radiator will operate during that 15
minutes period.
• If the segment is in the inward position,
the radiator will not operate during this
period.
• Please note when you rst use your
radiator, all the segment are outwards.
• You must pull the chosen segments
outwards for the period that you want the
radiator to work.
• If you want to bypass the timer, check
that the all 96 segments are pulled
outward. (Fig 1.)
Timer Operation:
1. Plug in the radiator.
2. Turn timer dial clockwise to set clock
with the current time of day. (see CLOCK
SETTING)
3. Pull segments outwards for the period you
want the radiator to operate. For example,
Figure 2. shows that the appliance will
operate from 2 A.M. to 4.30 A.M. (See
Fig. 2.)
4. Push switch (or switches) in.
5. Once you have set the segments for
the desired heating period, the radiator
will cycle on and off according to these
settings.
6. As long as you keep the radiator plugged
in, the timer will continue to keep proper
time.
FIG1
All segments
engaged and timer
disengaged
FIG2
Current time set at
9:00 10 segments
engaged Timer set

9
www.warmlite.co
CLEANING AND CARE
• The oil radiator should be cleaned
regularly to wipe out the dust on the
surface of ns. As the dust may result the
radiating efciency being reduced.
• Unplug from the power supply and allow
the appliance to cool down.
• Wipe with a soft damp cloth. Do not use
detergent or abrasives.
• Avoid scratching the surfaces of radiator
ns with sharp objects and this will
damage the paint surface and allow the
ingress of moisture to the metal body and
may induce rust to form.
• Ensure the oil radiator is completely cool.
• Roll up the power cord around the
supports when the radiator is not in use.
• Store the appliance in a cool, dry place.
WARNING:
DO NOT IMMERSE ANY PART OF THE
APPLIANCE IN WATER
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.

10
SERVICE DEPARTMENT: [phone]
NOTES

11
www.warmlite.co
NOTES

0716.V2
We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are giving you an extra year peace of mind.
To receive your extra year guarantee, register your appliance online by visiting
www.warmlite.co
Should you have a problem
with your appliance or need any spare parts please call our
Service Department on:
[phone]
Distributed throughout the UK by RKW LTD
