Warmlite WL45011 Installation instructions

www.warmlite.co
FIREPLACE SUITE
WL45011
WL45012
WL45013
WL45014
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
MODEL WL45011
MODEL WL45013
MODEL WL45012
MODEL WL45014

2
CUSTOMER SUPPORT TEAM: [phone]
TECHNICAL DATA
Description: Fireplace Suite
Model: WL45011/ WL45012/ WL45013/ WL45014
Rated Voltage: 220 - 240V
Frequency: ~ 50Hz
Power consumption: 2000W
Lighting: 0.96W LED Array (non serviceable)
DOCUMENTATION
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
RK Wholesale LTD Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.

3
www.warmlite.co
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the
mains lead of this
appliance may not
correspond with the
coloured markings
identifying the terminals
in your plug, please
proceed as follows:
The wires in the mains lead are coloured in
accordance with the following code:
Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]
Plug Fitting Details (Where Applicable).
The wire coloured blue is the neutral and must
be connected to the terminal marked [N] or
coloured black.
The wire coloured brown is the live wire and
must be connected to the terminal marked [L] or
coloured red.
The wire coloured green/yellow must be
connected to the terminal marked with the letter
[E] or marked .
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal .
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug – disconnect
it from the mains – and then cut it o of the
mains lead and immediately dispose of it in a
safe manner. Never attempt to reuse the plug or
insert it into a socket outlet as there is a danger
of an electric shock.
WARNING:
This Appliance MUST be Earthed
FUSE

4
CUSTOMER SUPPORT TEAM: [phone]
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should always be
followed including the following:
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance before
operating.
• Please ensure that the appliance
is used on a stable, level, and
heat resistant surface.
• DO NOT immerse cords, plugs
or any part of the appliance in
water or any other liquid.
• DO NOT leave the appliance
unattended while it is operating.
• Close supervision is necessary
when any appliance is used by or
near children.
• Take care when any appliance is
used near pets.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Children should not play with the
appliance.
• Cleaning and user maintenance
should not be undertaken by
children without supervision.
• Switch o at the wall socket
then remove the plug from the
socket when not in use or before
cleaning.
• If the supply cord or appliance
is damaged, stop using the
appliance immediately and seek
advice from the manufacturer,
its service agent or a similarly
qualied person.
• DO NOT let the cord hang over
the edge of a table or counter or
let it come into contact with any
hot surfaces.
• The use of accessory
attachments other than those
supplied is not recommended.
• DO NOT pull the plug out by the
cord as this may damage the
plug and/or the cable.
• DO NOT use this product for
anything other than its intended
use.
• This appliance is for household
use only.
• DO NOT carry the appliance by
the power cord.
• DO NOT use any extension cord
with this appliance.
• DO NOT use the appliance
outdoors.

5
www.warmlite.co
• This heater is not equipped with
a device to control the room
temperature. DO NOT use this
heater in small rooms when
they are occupied by persons
not capable of leaving the room
on their own, unless constant
supervision is provided.
• Always ensure that the heater is
placed on a rm level surface.
Ensure that the heater is not
positioned close to curtains,
furniture or any combustible
materials as this could create a
re hazard.
• NEVER sit or stand on the re.
• Never use this surround with a
gas re
• NEVER stand or sit on the
surround.
• NEVER cut o the plug and hard
wire into a xed fused spur.
• The heater must not be located
immediately below a mains
socket outlet.
• DO NOT cover the heater as this
may lead to a re risk.
• DO NOT obstruct any of the
openings of the heater.
• DO NOT insert any object
through any openings on the
heater.
• Check the heater from time to
time for accumulated dust.
• DO NOT use the heater in
areas where ammable liquids
are stored or where ammable
fumes may be present.
• DO NOT operate the heater on a
timer, or leave on overnight.
• When not being used, please
unplug the heater from the mains
socket.
• Keep the mains lead away from
the hot body of the heater and
ensure that it is not pulled tight
between the socket and the
heater.
• Always unplug the heater and
allow it to cool before moving it
from one location to another.
• WARNING! This product must
be installed correctly, failure
to do so may cause damage
to your product and/or your
surroundings.
• DO NOT attempt to dismantle
or repair any part of the heater.
This should only be done by a
qualied service agent.
• In the unlikely event the appliance
develops a fault, stop using it
immediately and seek advice
from the Customer Support
Team.
HIGH VOLTAGE HOT SURFACE DO NOT COVER

6
CUSTOMER SUPPORT TEAM: [phone]
WHAT’S IN THE BOX
Instruction Manual
Optional Fitting Parts
1. Mantel
2. Controls
3. Electric re
4. Hearth
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Place your appliance in accordance with the installation & safety instructions.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
The images are for illustration purposes only and might not be a true indication of the actual product.
1
3
2
4

7
www.warmlite.co
HANDLING
Before continuing any further with the
installation of this re please read the following:
• One person should be sucient to lift
the re but two people should move the
appliance.
• When lifting always keep your back
straight. Bend your legs and not your
back.
• Avoid twisting at the waist. It is better to
reposition your feet.
• Avoid upper body / top heavy bending.
Always bend from the knees rather
than the waist. Do not lean forward or
sideways whilst handling the re.
• Always grip with the palm of your hand.
Do not use the tips of ngers for support.
• Always keep the product as close to the
body as possible to prevent unnecessary
and undue strain on the body.
• Use gloves to provide additional grip.
• Always use assistance if required.
UNPACKING THE PRODUCT
The unit is supplied in a single package
carton. Carefully unpack the product using the
following procedure:
• Ensure that the product is in the correct
position with the carton wording legible.
• Remove the straps and sleeve.
• Carefully lift the replace out of the box.
• Remove the protective packaging and
bag from the suite.
• Locate the pebble pack and put aside.
• Carefully remove the protective lm
covering the re.
IMPORTANT: This surround is only suitable
for use with electric res.
Please ensure that there is an accessible
electrical socket within the space for
installation. The electrical socket must not be
behind or above the suite.
WARNING! Ensure supply cord is located
correctly within the notches and cannot be
trapped when the surround is tted to the
wall.
1. Route the supply cord through the
notch at the back of the suite.
2. Route the supply cord through the side
of the suite as shown. There will be a
notch located at each side of the suite.
Use the notch nearest to the electrical
socket.
USING YOUR APPLIANCE
The appliance is controlled using 3 switches,
located under the recessed top of the unit.
The OI switch is used
to turn the replace on.
The replace has two
heat settings, 1 KW and
2 KW.
The switch with one
bar is the lowest heat
setting.
The switch with two bars
indicates the highest
heat setting.

8
CUSTOMER SUPPORT TEAM: [phone]

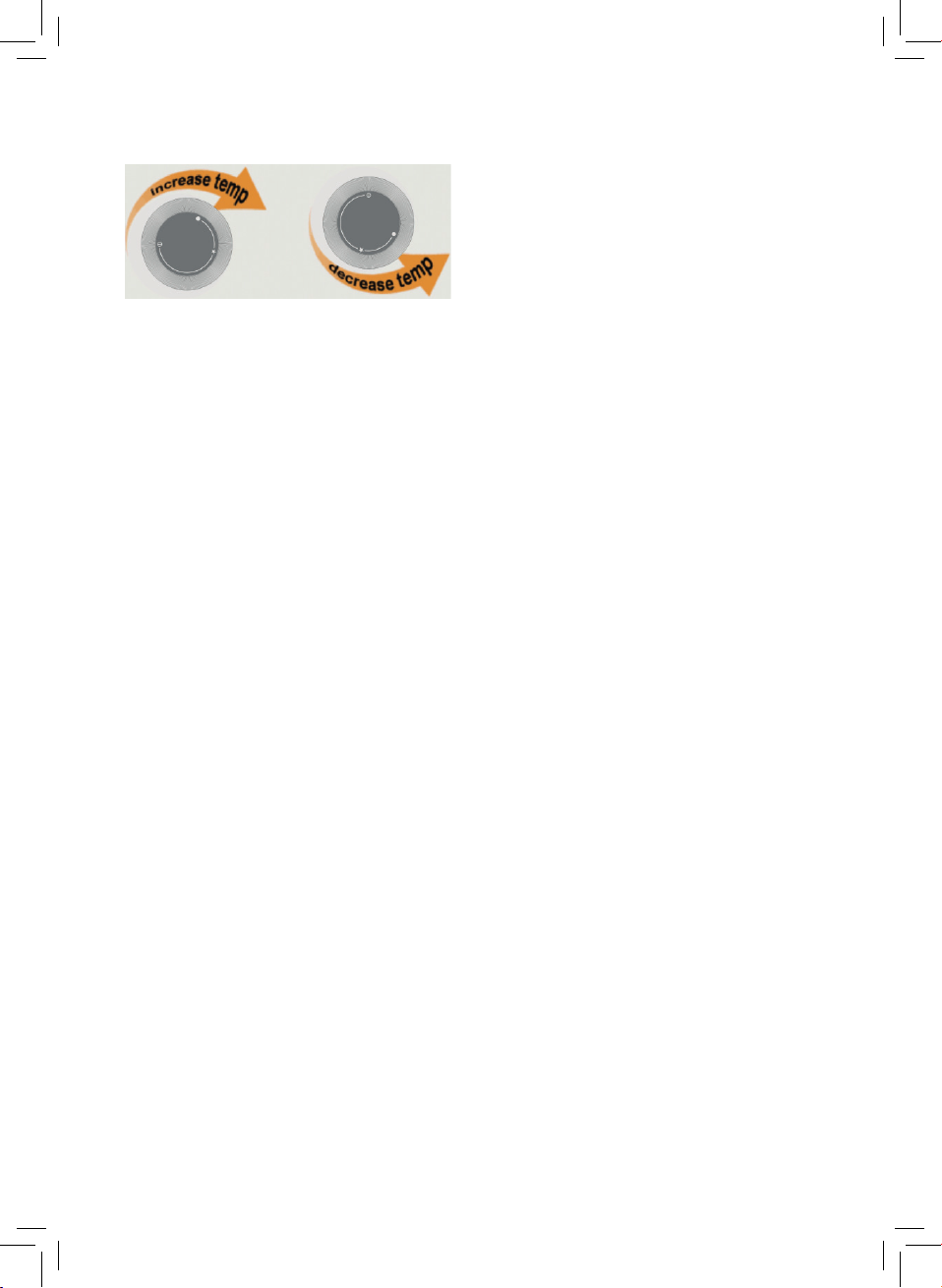

CONTROLLING THE THERMOSTAT
You can control the temperature of the
appliance with the thermostat control. Turn the
dial clockwise to increase the temperature and
anticlockwise to decrease the temperature.
The thermostat provides complete peace of
mind regarding the safety of the appliance and
temperature control, whilst ensuring minimal
energy consumption.
PLACING THE PEBBLES
Randomly place the pebbles in the open bed
of the re.
CHECK THAT YOU HAVE NOTED ALL THE
FOLLOWING INSTRUCTIONS:
Do:
• Always place the re in accordance with
this guide. If in doubt obtain expert advice.
• Always make sure the electrical socket is
accessible and located adjacent to, but
not above or behind the re.
• Always disconnect the re from the
electrical supply before carrying out
cleaning or maintenance..
• Always assemble the re in accordance
with this guide. If in doubt, obtain expert
advice.
• Always ensure the product is assembled
in an area that is free from dust, grease or
liquids.
• Always ensure that the correct tools are
used to assemble this product.
Don’t:
• Never leave children unsupervised in a
room where the re is ON and unguarded.
• Never obstruct or cover the fan outlet or
force items into re openings.
• Never place or use the re anywhere
where water is in use, i.e. bathrooms,
kitchens, shower rooms, and swimming
pool etc.
• Never use aerosols or steam cleaners on
or around the re.
• Never route the mains supply cable under
carpet etc.
• Never place the re close to curtains or
combustible materials.
• Never use the re to dry clothes etc.
• Never sit or stand on the re.
• Never cut the o the plug and hard wire
into a xed fused spur.
Note: Any new wiring required, must be in
accordance with local and national codes
and other applicable regulations in order
to reduce the risk of re, electric shock, or
other injuries.
Note: When the re is turned on for the
rst time or when it has not been used for
some time, it may release a slight, harmless
odour. This odour is a normal occurrence
caused by the initial heating of the internal
heating elements or dust, and will disappear
with use.
SAFETY CUT-OUT SYSTEM
WARNING!
Please do not obstruct the air vents of the
electric re.
This appliance has a ‘self resetting’ safety cut
out system. This will activate if the air inlets
or outlets are obstructed. If the Electric Fire is
obstructed, it will overheat. If the temperature
exceeds 85oC, the heater element will cut out,
until a safe temperature is regained.

9
www.warmlite.co
TROUBLE SHOOTING
Safety Cut-Out device:
To ensure against the potential hazard caused
by blockage of the air outlet, this unit is
equipped with an automatic over-temperature
safety cut-out device. When the device is
activated the heater will not operate. If this
occurs, the unit can be reset using the following
procedure.
1. Turn the re o by depressing the on/o
switch on the unit.
2. Unplug the power cord form the electrical
mains supply socket and leave it
disconnected for at least 10 minutes.
3. Ensure that the air vents are free from
obstruction.
4. Plug the power cord back in to the mains
socket.
5. Turn the re back on.
6. If the re fails to operate, check the fuse in
the plug.
7. If the fuse in the plug is OK and the re
is still not functioning, contact a qualied
service person.
Problem Potential cause Corrective action
The re won’t turn on. Mains plug is not plugged
in.
The On/O switch hasn’t
been switched on.
The fuse in the plug has
blown.
Check the mains socket to
ensure the plug has been
inserted correctly.
Switch on using the
operation switches.
Check and change the fuse
in the plug.
No heat. One or both of the heat
selector switches haven’t
been switched on.
Ensure that the heat
selection switches have
been correctly switched on.
Heater operates and then
the heat cuts out.
The safety cut-out may
have operated.
Follow the procedures as
outlined in the “safety cut
-out device” section.

10
CUSTOMER SUPPORT TEAM: [phone]
CLEANING AND CARE
• Unplug the appliance and allow the unit to
cool down completely before cleaning.
• There are no specic requirements for
the care of this unit, other than general
cleaning.
• Brushed stainless steel (silver) res can
be cleaned using a cloth and a propriety
cleaner. Other features (non-silver) can be
cleaned using a damp cloth.
• If the supply cord is damaged, it must be
replaced by a suitably qualied person.
• The area around the re should be kept
free from animal hair, lint and other
extraneous material that may be drawn into
the workings of the appliance which could
aect its performance.
WARNING:
DO NOT IMMERSE ANY ELECTRICAL PART
OF THE APPLIANCE IN WATER SUCH AS
MOTOR UNITS OR PLUGS.
PLEASE SEE CLEANING SECTION FOR
FURTHER INSTRUCTIONS.
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.

11
www.warmlite.co
Model Identier(s): WL45011/WL45012/WL45013/WL45014
Item Symbol Valve Unit Item Unit
Heat Output Type of heat input for electric storage, local space
heaters only (select one)
Nominal heat
output Pnom 2.0 kW Manual heat charge with integrated thermostat No
Minimum heat
output (indicative) Pmin 1.0 kW Manual heat charge control with room and/or outdoor temperature feedback No
Maximum
continuous heat
output
Pmax, c 2.0 kW Electronic heat charge control with room
and/or outdoor temperature feedback No
Auxiliary electricity
consumption Fan assisted heat output No
At nominal heat
output elmax 0.025 kW Type of heat output/room temperature control (select one)
At minimum heat
output elmin 0.025 kW Single stage heat output and no room temperature control No
In standby mode eISB 0 kW Two or more manual stages, no room
temperature control No
With mechanic thermostat room temperature
control Yes
With electronic room temperature control No
Electronic room temperature control plus day
timer No
Electronic room temperature control plus
week timer No
Other control options (multiple selections possible)
Room temperature control with presence
detection No
Room temperature control with open
window detection No
With distance control option No
With adaptive start control No
With working time limitation No
With black bulb sensor No
Contact Details: Imported by RK Wholesale LTD., Berryhill Road, Stoke-on-Trent ST4 2NL

We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by visiting:
www.warmlite.co
Make sure to retain your original receipt.
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
[phone]
Distributed throughout the UK by RK Wholesale LTD
0218.V4
