WarmlyYours CP-3646-120 User manual

User Manual for WarmlyYours
Under Area Rug Warmer

Thank you for choosing the WarmlyYours Under Area Rug Warmer
(Warmer). This product ts discreetly beneath area rugs throughout
the home to add luxurious warmth without unsightly vents or
portable heaters. Radiant warmth gently rises from oor-to-ceiling
across the full surface area of the Warmer.
All necessary installation and operation instructions are included in
this manual. If you encounter any difculties while installing your
system, Technical Support is available between the hours of 8:00am
– 5:30pm CST, Monday through Friday by calling [phone].
SAFETY INFORMATION
• Never cut or trim the Warmer to t an area rug that is smaller.
• Never use the Warmer in bathrooms or other wet areas.
• Never shampoo or steam clean an area rug while the Warmer
is underneath.
• Never use the Warmer on stairways or steps.
• Never drop or place heavy solid objects with a footprint of
6” x 6” or larger, such as an armoire or stereo equipment, on top
of the Warmer.
• Never staple or otherwise puncture the Warmer with sharp objects.
• Never use over another radiant oor warming system.
• Never fold the Warmer or overlap multiple Warmers.
• Never place non slip padding or any other type of padding on top of
the warmer.
CLEANING INFORMATION
Clean your Under Area Rug Warmer by shaking the rug out and/or
lightly vacuuming it. Never shampoo or steam clean an area rug
while the Warmer is underneath.
1

INSTALLATION AND OPERATIONAL INSTRUCTIONS
This appliance must be installed in accordance with the instructions
in this manual. Please read all instructions before installing and
operating the Under Area Rug Warmer.
1. Clean the oor of any debris or sharp objects.
2. Lay the Warmer at on the oor and unroll it fully; it may take up
to 30 minutes for the Warmer to lay completely at.
3. Be sure the Warmer is right side up. The side with the non-slip
padding and product tag should be facing downward toward
the oor. (Diagram A) The side with the attached cord faces up.
(Diagram B)
4. Remove any excess cord from underneath the Warmer before
connecting the power cord to the electrical outlet. Plug the
Warmer into a standard 120V, 15A electrical outlet.
5. Select either the “High” or “Low” heat setting to manage the
amount of warmth you desire. The “High” setting is indicated
by an “II” and the “Low” setting is indicated by an “I”. The “O”
indicates the “Off” position. (Diagram C)
6. Cover the Warmer with your area rug to enjoy the warmth. The
area rug must completely cover the system with a 1” space on
all sides.
7. Do not place furniture with a footprint larger than 6” x 6” on top
of the area rug when the Warmer is underneath. Doing so could
cause a heat build up which could compromise the integrity of
the furniture as well as the Warmer.
2

DIAGRAMS
2
A. BOTTOM
B. TOP
C.
LOW
HIGH
OFF
• Do not use in bathrooms, or other wet areas.
• Do not place solid objects such as coffee tables or stereo
equipment that have footprints of 6” x 6” or larger on top
of the warmer.
• Do not overlap multiple warmers.
• Do not shampoo or steam clean rugs while warmer is in
place under the area rug.
WarmlyYours
2 Corporate Dr, Long Grove, IL 60047
Ph: [phone] Fax: [phone] www.WarmlyYours.com
Size: 3’ 6” x 4’ 6”
Item # CP-3646-120
Watts: Hi/Lo: 300/230
Volts: 120
Amps: Hi/Lo: 2.5/1.9
Sm a l l
WarmlyYours Under Area Rug Warmer

TESTING YOUR APPLIANCE LEAkAGE CURRENT
INTERRUPTER (ALCI)
• Test the ALCI periodically by pressing the white button while the
Warmer is in operation. This will cause the red button to pop up
and disconnect the Warmer from the power supply.
• Reset the ALCI by pressing the red button to reconnect the
Warmer to the power supply.
• If this test is unsuccessful, call WarmlyYours Technical Support
immediately for assistance at [phone].
PRODUCT SPECIFICATIONS
Product Purpose
• The purpose of the Under Area Rug Warmer (Warmer) is to gently
warm the surface of an area rug to a temperature of up to 100°F
bringing soothing radiant warmth to that area of the room.
• The Warmer is portable, connects to a standard electrical outlet,
and can be installed quickly and easily beneath a new or existing
area rug.
• The system may be used for any residential application where you
have an area rug and additional warmth is desired, such as your
family room, recreation room, sunroom and dining room.
Specications
3
Model Dimensions Heat Output Voltage
Low High
CP-3646-120 3’6” x 4’6” 236 watts 315 watts 120
CP-4979-120 4’9” x 7’9” 552 watts 735 watts 120
Model Name Dimensions Voltage Heat Output Resistance Amperage
(volts) (watts) (ohms) (amps)
TW-PCP Riviera 22”w x 35”h x 3”d 120 140 90 1.17
TW-OCP Portofino 22”w x 32”h x 4”d 120 140 90 1.17
TW-SWP Catalina 22”w x 32”h x 4”d 120 263 45.9 2.19
TW-CON1 Soft-Touch 2” w x 4” h 120 N/A N/A N/A
Control

Product Construction
The product has a total thickness of less than ¼” thick and is
constructed in 5 layers:
• High Density Thermal Anti-slip matting —insulates and prevents
the rug from slipping on smooth or polished  oors.
• Reinforced Aluminum Foil —facilitates heat dissipation and
electrical grounding.
• Coaxial Tefzel® extruded insulation warming element—spaced
for uniform heating.
• Reinforced Aluminum Foil —facilitates heat dissipation and
electrical grounding.
• Low Density Anti-slip matting—prevents rug from slipping on top
of the Warmer while allowing heat to transfer through.
Product Diagram
Under Area Rug Heater
24/7 Installation Support • Lifetime Technical Assistance • [phone]
www.WarmlyYours.com
Low Density Anti-slip Layer
Reinforced Aluminum Foil Layer
(heat dissipation & grounding)
Heating Wire
Reinforced Aluminum Foil Layer
(heat dissipation & grounding)
High Density Insulation Layer
4

Connection Method

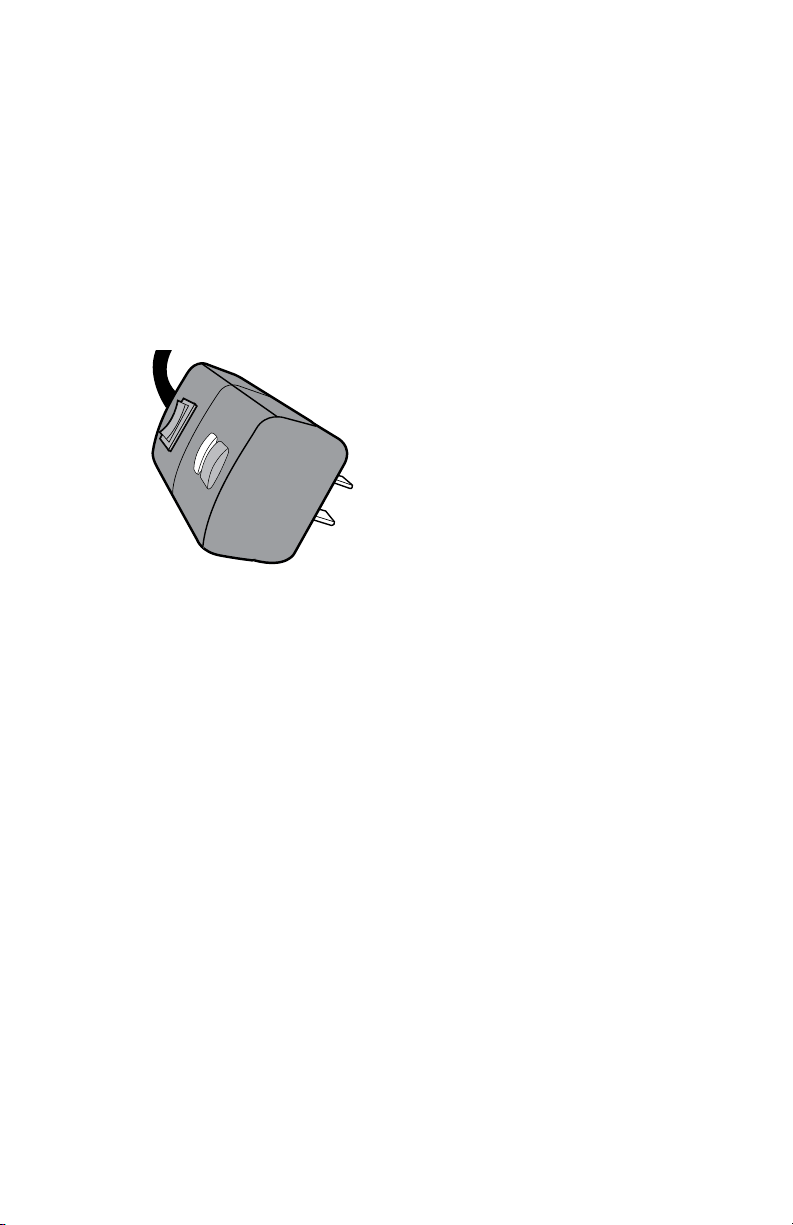

Wall plug (Diagram D) has built in, UL listed ALCI connected to a
16AWG, SVT cable, 75°C power cord, manufactured to UL le #
E88265 with Low/High rocker switch.
Safety Ratings
• The system is rated to standard IPX 7 in compliance with the
ammability test & glow wire test (IEC / UL94 HB).
• The main electrical plug incorporates an ALCI for North America.
• Plugs comply with requirements of IEC 355 and the NEC.
ALCI WALL PLUG FOR
CONNECTION TO OUTLET
5
D.

WarmlyYours Under Area Rug Warmer Warranty
WarmlyYours.com Inc. warrants the WarmlyYours Under Area Rug Warmer (“the
Product”) to be free from defects in materials and workmanship for one year
from the date of sale, provided that the Product is installed in accordance with
the accompanying Installation Manual, any special written design or installation
guidelines provided by WarmlyYours.com Inc., the National Electric Code (NEC),
and all applicable local building and electrical codes.
Any suspected defect must be reported by registered letter immediately upon
discovery. The determination of the existence of such a defect will be made by
WarmlyYours.com Inc, or its authorized representative only. Upon notication of
an actual or possible problem, WarmlyYours.com Inc. will issue an Authorization
to Proceed under the terms of the Limited Warranty.
This warranty is null and void if the Product is improperly used, operated or
installed, or if the owner or his representative attempts to repair the Product
without receiving authorization.
Under this Limited Warranty, WarmlyYours.com Inc. will provide the following
remedy:
If the Product is determined to be defective in materials and workmanship, and has
not been damaged as a result of misuse, misapplication, or improper installation,
WarmlyYours.com Inc. will refund the original purchase price or replace the
Product.
WARMLYYOURS.COM INC. DISCLAIMS ANY WARRANTY NOT PROVIDED
HEREIN, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
WARMLYYOURS.COM INC. FURTHER DISCLAIMS ANY RESPONSIBILITY
FOR SPECIAL, INDIRECT, SECONDARY, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT,
INCLUDING INCONVENIENCE OR LOSS OF USE. THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THE FACE OF THIS DOCUMENT. NO AGENT OR
REPRESENTATIVE OF WARMLYYOURS.COM INC. HAS ANY AUTHORITY
TO EXTEND OR MODIFY THIS WARRANTY UNLESS SUCH EXTENSION OR
MODIFICATION IS MADE IN WRITING BY A CORPORATE OFFICER.
Please ll in warranty card information at www.warmlyyours.com/warranty/cp or
to register via phone, please call [phone] to speak to one of our customer
service representatives.
7
