LAVA®
Design Glass-Radiator
By WarmlyYours
Installation Manual
Read all instructions before installing or using this heater.
CAUTION: Hot Surface!
Can cause burns!

IMPORTANT INSTRUCTIONS
LAVA® glass heating radiators are very versatile. They
are an elegant design, featuring simple installation and
easy operation. LAVA® provides great reliability and great
performance.
This guide provides important information on safety,
installation, use and maintenance of the equipment. Please
read this information carefully.
The manufacturer is not liable if the instructions are not
followed.
The packaging of your LAVA® high-quality glass radiator
consists of recyclable materials.
ATTENTION: Operation of the heater causes high
temperature on the glass surfaces. Prolonged contact may
cause burns.
This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes,
curtains, et cetera, at least 20” (0,5m) from the front of the
heater and keep them away from the sides and rear (sides
and rear restictions apply to location dedicated heaters
only).
Extreme caution is necessary when any heater is used by
or near children and whenever the heater is left operating
while unattended.
This heater is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge of using
the radiator.
Children should be supervised to ensure that they do not
play with the device.
The heater must not be placed or mounted directly below a
wall socket.
The heater must not be placed or mounted directly below a
wall socket.
WARNING: Covering the glass surface
causes overheating danger! May cause
damage to the heating element.
WARNING: The glass heater must not be
used if the front glass is broken.
Do not operate any heater after it malfunctions. Disconnect
power at service panel and have heater inspected by a
reputable electrician before reusing.
Do not use the heater outdoors.
To disconnect heater, turn off power to heater circuit at
main disconnect panel.
Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an electric
shock or fire, or damage the heater.
To prevent a possible fire, do not block air intakes or
exhaust in any manner.
Do not use unit in areas where gasoline, paint, or
flammable vapors or liquids are used or stored.
Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electric shock, or injury.
OVERHEATING AND OVERLOAD PROTECTION
Each radiator has an overheating protection. The device
automatically starts again after a cooling down to under
113º F, or 45°C.
THESE INSTRUCTIONS MUST
• be passed to the owner/operator after the installation.
In addition, ensure that the operator is trained in the
operation of the glass-radiation heater.
• be stored in a secure location and transferred at change
of ownership to the new owner.
SAVE THESE INSTRUCTIONS!

Installation and Usage Instruction | LAVA® Design Glass Radiator
1

DELIVERY | PACKAGING
The LAVA® glass radiator has to be fixed only with the
supplied mounting hardware. Screws and anchors must
correspond with the building material of the wall (masonry,
concrete, plasterboard, etc.). Drywall anchors are included.
The wall must have a flat surface.
Wall mounting kit:
• LAVA® Glass Radiator
• 1 x Wall mounting hardware:
- 4 x mounting bracket
- 2 x screw M5 x 16
- 2 x washer
- 2 x nut
- 4 x hex bolt M8 x 16
- 1 x cable clamp (not pictured)
- 4 x wall anchor & screw (not pictured)
- 1 x wall protection plate
After attaching hardware, do not tighten completely! Only
tighten hardware when unit is assured to mount by test
fitting unit.
Electrical and electronic equipment frequently
contain valuable materials. They may also
contain harmful substances that were
necessary for their function and safety. The
residual waste or incorrect treatment can
harm the environment. Please help protect
our environment! Dispose your old unit
according to the local regulations.
ATTENTION: Packaging materials, must be disposed of
properly.
Ceiling kit:
• LAVA® Glass Radiator
• 1 x Wall mounting hardware:
- 4 x ceiling mounting bracket
- 4 x screw M3 x 6
- 4 x Lava Secure - Glass safety hook
- 4 x hex bolt M8 x 20
(optional, might already be preinstalled on the device)
- 1 x wall protection plate
After attaching hardware, do not tighten completely! Only
tighten hardware when unit is assured to mount by test
fitting unit.

Installation and Usage Instruction | LAVA® Design Glass Radiator
Fig. 1 = Mounting Hardware
2

INSTALLATION AND USAGE INSTRUCTION FOR
THE ELECTRICIAN
IMPORTANT NOTES:
• Installation and service work must be carried out by a
licensed professional or a qualified person. Verify that the
electrical installation complies with the applicable local
codes. The responsibility of the manufacturer is limited to
the supply of the device.
• The devices are designed for wall mounting (vertical
or horizontal) with the appropriate accessories (see
included part list).
• Wall mounting of the glass radiators corresponds IP24
Protection.
• When installing the unit in a bathroom, note the areas of
protection to local electric code regulations.
• Specified minimum distances must be respected.
INSTALLATION AND MINIMUM DISTANCES:
LAVA® glass heaters can be mounted horizontally
or vertically on the wall. They are positioned so that
flammable items can not be ignited. Ensure the required
minimum distances, particularly to flammable objects like
curtains, and upholstered furniture are correct. Please
make sure, that the glass radiator can radiate freely into
open space. (See Fig. 2)
ATTENTION: Don’t lean items against the glass or lean the
radiator against other objects.
ASSEMBLY OF THE RADIATOR:
Please verify that no shipping or handling damage occured
before installing the power cable to the radiator.
WALL MOUNTING:
1. Locate the area where the warming panel is going to be
installed. If electric needs to be installed to panel, find a
location for the electrical supply and install the proper
outlet in the wall, placing it near the unit supply cord with
the plug on rear of the warming panel. We recommend
using a recessed duplex box (Leviton #689)
(Always turn power off at panel)
2. Locate area for thermostat. Locate area away from the
front of the warming panel for the thermostat control
so it does not affect the unit from operating properly.
Follow the wiring diagram located with the thermostat
instruction manual.
3. Install 2 of the brackets into a stud and then install the
correct type of wall anchors and mounting hardware
for the other 2 mounting points - Please see the hole-
patterns on page 4. (Anchors for drywall applications are
included in the box. Anchors for other applications are
not included and should be sourced locally.)
The installation of the warming panel unit on the wall,
must be secure.
a. The layout of the bracket locations on the wall should
be level and plumb. Secure them by using a 2 1/2” (min)
large screw heads.
b. Install the hanging bolts (supplied) to the back of
the warming panel unit and leave them extended
approximately 1/4” to 3/8”.
c. Move the warming panel unit to the place of the
installation and plug into outlet and hang unit on the
installed brackets.
4. Position cable clamp and place LAVA® glass radiators on
the wall and tighten the screws completely.
5. To protect the glass radiator against unintentional
removal, etc. the protection-plate (included in kit) should
be affixed to one of the 4 mounting brackets.
(See pg. 2)
Installation and Usage Instruction | LAVA® Design Glass Radiator

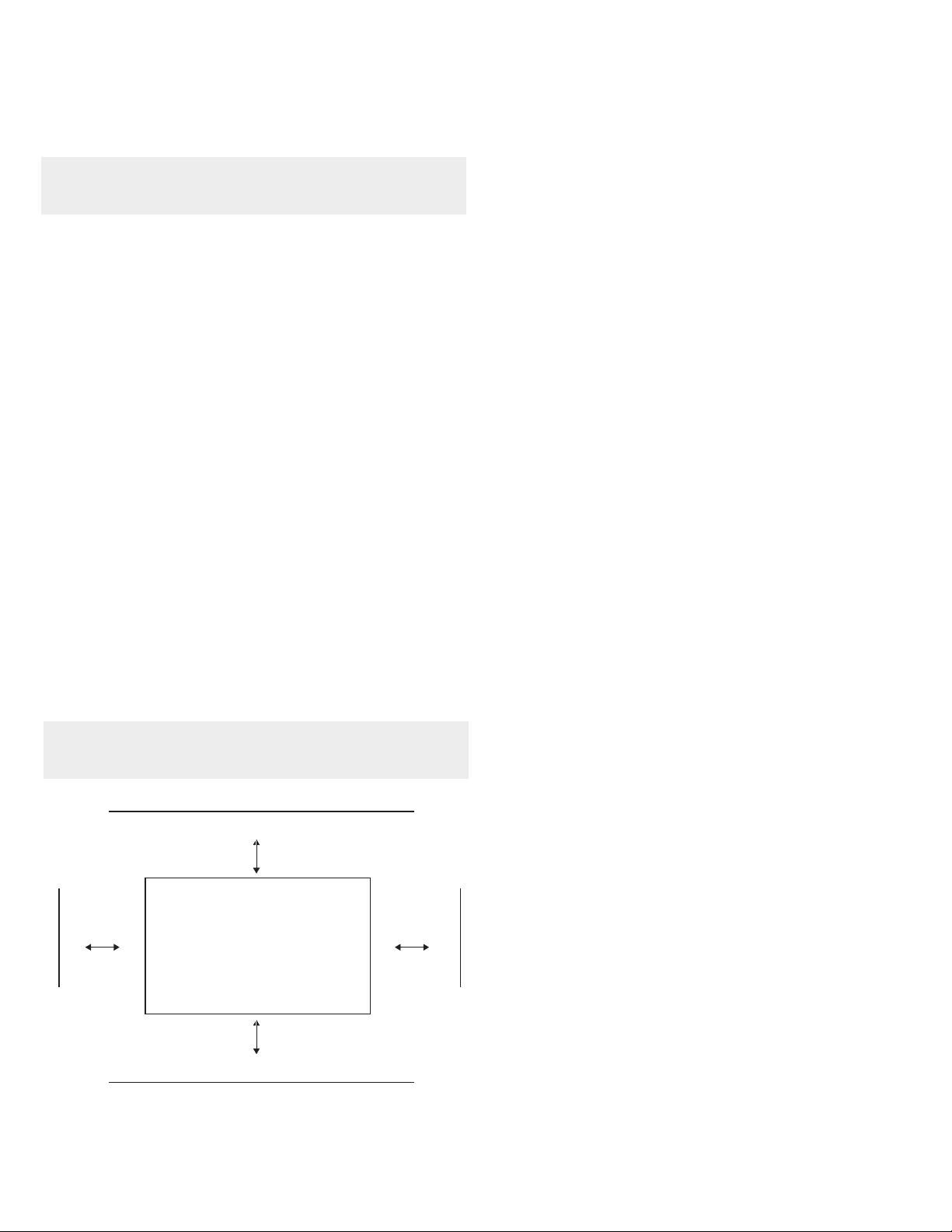

Fig. 2: Minimum mounting distances
3
11.8” / 300mm
7.8” / 200mm
11.8” / 300mm11.8” / 300mm

18.9”/ 48cm18.9”/ 48cm
13.8”/ 48cm
29.5”/ 48cm
45.2”/ 48cm
57”/ 48cm
18.9”/ 48cm18.9”/ 48cm
LAVA 250 LAVA 500 LAVA 750 LAVA 1000
Graphic: LAVA® Glass radiators 250W | 500W | 750W | 100W - Hole drilling pattern
ATTENTION: Verify minimum distances! Use required mounting holes and anchors!
Installation and Usage Instruction | LAVA® Design Glass Radiator
Fig. 6 = 4xFig. 5
Fig. 4
Fig. 3
Fig. 8Fig. 7
BACK
Stud
4

ELECTRICAL CONNECTION
The heater is designed for permanent connection to a
suitable room thermostat. Please refer to the instructions
of the room thermostat.
ATTENTION: If the power cord of the unit is damaged, it
must be replaced immediately.
The device is connected with the supplied connector to
a junction box supplying the AC power supply. If a longer
cable is required, it can be replaced by longer one, Type
H05VV-F 3x1.0mm ². A direct connection to a line is
only permitted up to a diameter of 1.5 mm ² (e.g. NYM-J
3x1.5mm ²).
HEATING
The heater is controlled by the externally mounted
thermostat.
GROUNDING
The heater is for use with 120 volts. The green-yellow
grounding of the cord must be connected to a permanent
ground inside the junction box.
Installation and Usage Instruction | LAVA® Design Glass Radiator
5
BLACK
WHITE
GREEN GROUND
2” x 4” ELECTRICAL
BOX FOR TIMER
2” x 4” ELECTRICAL BOX
LAVA Radiant Panel
HOT
LOAD
(black or blue)
GFCI
Protected
Circuit
Hot
Black
Hot
Black
Neutral
White
Neutral
White
Ground
GROUND
(green or yellow)
NEUTRAL LOAD
(white or brown)
THERMOSTAT
ELECTRIC PANEL
Load Line
Fig 9: Connection diagram

USER INSTRUCTION
HEATING
Do not power-on unit until it is installed.
Depending on the thermal insulation quality in your home,
the required heat output of the radiator will range from
3 to 20 W/ft² (30 to 200 W/m²). The LAVA® glass radiator
has a very high radiation fraction and a low proportion of
convective heat output. The surface temperature, for safety
reasons, is limited to appoximately 203ºF / 95 °C, thus
the overall performance of the device is limited. For this
reason, these devices are used as a sole heating solution
only in very well insulated houses.
ETHERMA LAVA® glass radiators warm predominantly
solid objects and only a small proportion of the air directly,
so these devices are ideal for additional temperature
control. In order to achieve the same feeling of comfort as
with convection heating, the indoor air temperature can be
lowered by 2-3 °C/F. Each degree reduction can save about
6% in heating costs, depending on the respective heating
behavior and thermal insulation in the room. The unit can
be turned on when a seldomly-used room is occupied, to
provide a warm, cozy feeling.
Depending on the size of the unit, the LAVA® glass radiator
will require some time to reach its operating temperature.
The glass sheet consists of 1/4” (6mm) toughened safety
glass (ESG). This glass is much more durable than
conventional glass, and is designed for significantly higher
impact forces. However, you should avoid excessive use. In
case of damage, ESG shatters into many small pieces with
blunt edges, to minimize the risk of injury.
Please note when choosing an installation location, that
a very small percentage of toughened glass products
can exhibit “spontaneous breakage”, i.e. when the glass
shatters. This can occur even when external influence isn’t
indicated. Choose the installation location of the device so
that there is no danger to people or nearby objects.
ATTENTION: Avoid any kind of load on the glass itself,
especially directly on the edges! Do not lean it against
anything, or lean anything against it!
Please refrain from placing any objects between the LAVA®
glass radiator and the persons to be heated. Objects
between the radiator and people will block the heat from
the people themselves.
MAINTENANCE AND CARE
The LAVA® glass radiator is designed to give its heat
over the glass surface in the form of radiation. There
are no moving parts located on the device that require
special maintenance. For care of your glass radiator, we
recommend commercial glass cleaner. Please do not use
abrasive cleaners, as these can cause scratches to the
glass as well as the painted surface. Clean the unit before
every heating season, with a minimium of once a year.
ATTENTION: Prior to cleaning, please ensure that the
LAVA® glass radiators are turned off at the circuit braker
panel and that the unit is at room temperature!
SPARE PARTS
Please contact WarmlyYours for any replacement parts
required. Only use original spare parts.
Installation and Usage Instruction | LAVA® Design Glass Radiator
6

TECHNICAL DATA AND ACCESSORIES
TECHNICAL DATA
• Voltage: ...........................120 V
• Power:: ...........................250-1000 Watt
• Body: ...............................steel case, white, powdercoated
• Surface:...........................6 mm safety glass
• Protection: ......................IP24
• Protection class: ............I
• Connection: ..................... hot, neutral, ground
•Approvals: ........................ cULus to UL2021 & CSA c22,2 no46
•Colors: .............................Pure White | Pale Green | Black | Red | Mirror:
• Surface Temp.: ................ 203ºF / 95 °C (maximum)
• Depth:..............................1.9” / 50 mm
• Mounting: ........................horizontal or vertical
TROUBLESHOOTING
Device does not heat:
• Circuit beaker tripped?
• Is external supply switch turned on?
• Is the temperature of the external thermostat set lower than the actual room temperature?
Radiant heat oputput not to expectations:
• Is the distance between glass radiation heater and person too great?
• Is the glass radiation heater undersized for the space?
• Are there objects between the person and the glass-radiation heater?
EQUIPMENT MARKINGS
Data is included on the rating plate. The rating plate, depending on the vertical or horizontal orientation of the unit, can be
found on top or on the left of the unit.
Fig 10: Nameplate Fig 11: Warning on front side
Type Watts L (mm) B (mm)T (mm) pnds/kg
LAVA-250 250 24.8“ x 19.7“ 630x500mm 18 lbs / 8kg
LAVA-500 500 24.8“ x 35.4“ 630x900mm 33 lbs / 15kg
LAVA-750 750 24.8“ x 51.2“ 630x1300mm 51 lbs / 23kg
LAVA-1000 1000 24.8“ x 63“ 630x1600mm 73 lbs / 33kg
LAVA-500-Mirror 500 35.4“ x 47.2“ 900x1200mm 33 lbs / 15kg
LAVA-750-Mirror 750 35.4“ x 63“ 900x1600mm 51 lbs / 23kg
LAVA-1000-Mirror 1000 35.4“ x 63“ 900x1600mm 51 lbs / 23kg
Installation and Usage Instruction | LAVA® Design Glass Radiator
7

CONGRATULATIONS!
You have made a wise choice by choosing the ETHERMA LAVA® glass heating radiator. Thank you for your trust. The latest
technologies and developments offer maximum comfort and safety this electric glass radiator. Each unit is tested several
times during the manufacturing process and tested before shipment to exacting quality control standards. If you follow
these installation and operating instructions, your LAVA® glass radiator will provide many years of troublefree enjoyment!
WARMLYYOURS USA
2 Corporate Drive,
Long Grove, IL, 60047
Tel: [phone]
Fax: [phone]
WARMLYYOURS CANADA
300 Granton Drive, Unit 4A
Richmond Hill, L4B1H7
Tel: [phone]
Fax: [phone]
Installation and Usage Instruction | LAVA® Design Glass Radiator
8
