WARRIOR SAMURAI S8000 Quick reference guide

SAMURAI NEXT GEN
ELECTRIC WINCH
S8000 S9500
S12000 S14500
S9500SD
S9500HS
Assembly & Operating Instructions

CONTENTS
INTRODUCTION...................................................................................... 1
GETTING TO KNOW YOUR WINCH .......................................................1
WINCH ASSEMBLY AND MOUNTING....................................................3
SAFETY PRECAUTIONS.........................................................................5
GENERAL TIPS FOR SAFE OPERATION..............................................6

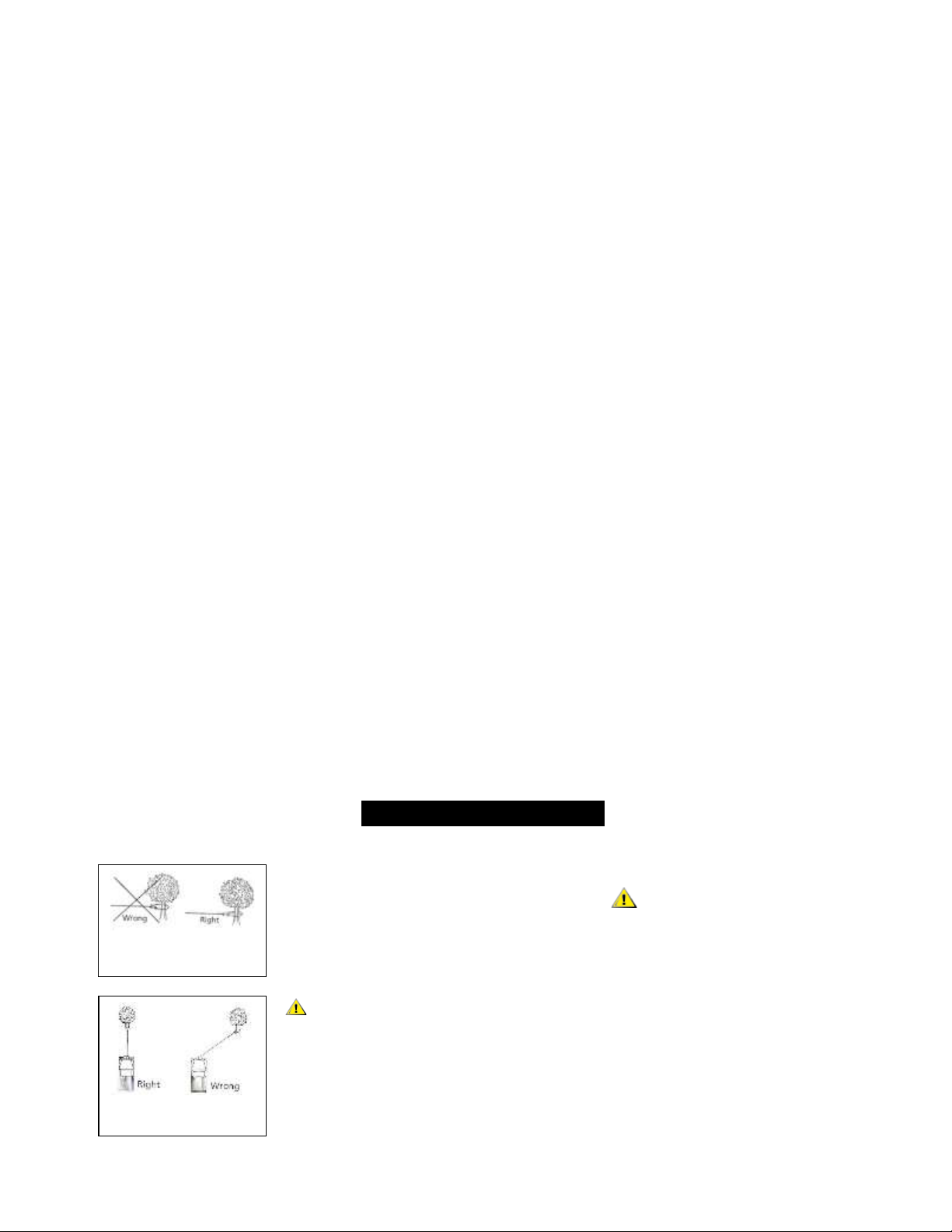

RIGGING TECHNIQUES..........................................................................7
WINCHING TECHNIQUES A-Z .............................................................. 8
MAINTENANCE...................................................................................... 9
REPLACING THE WIRE ROPE............................................................. 1 0
TROUBLE SHOOTING..........................................................................1 0
WINCH ASSEMBLY DRAWING（S8000）..........................................1 1
WINCH PARTS LIST（S8000）............................................................1 2
WINCH ASSEMBLY DRAWING（S9500）..........................................1 3
WINCH PARTS LIST（S9500）............................................................1 4
WINCH ASSEMBLY DRAWING（S12000）........................................1 5
WINCH PARTS LIST（S12000）..........................................................1 6
WINCH ASSEMBLY DRAWING（S14500）........................................1 7
WINCH PARTS LIST（S14500）..........................................................1 8
WINCH ASSEMBLY DRAWING（S9500SD）.....................................19
WINCH PARTS LIST（S9500SD）.......................................................2 0
WINCH ASSEMBLY DRAWING（S9500HS）.....................................2 1
WINCH PARTS LIST（S9500HS）.......................................................2 2
SPECIFICATION（S8000）.................................................................. 23
SPECIFICATION（S9500）.................................................................. 2 4
SPECIFICATION（S12000）................................................................ 2 5
SPECIFICATION（S14500）................................................................2 6
SPECIFICATION（S9500SD）............................................................. 2 7
SPECIFICATION（S9500HS）............................................................. 28
WARRANTY...........................................................................................29

1
INTRODUCTION
Congratulations on your purchase of a winch. We design and build winches to strict
specifications and with proper use and maintenance your winch should bring you years
of satisfying service.
WARNING - Read, study and follow all instructions before operating this
device. Failure to heed these instructions may result in personal injury
and/or property damage.
Your winch can develop tremendous pulling forces and if used unsafely or
improperly could result in property damage, serious injury or death. Throughout
this manual, you will find the following symbols for caution, warning and danger.
Pay particular attention to the notes preceded by these symbols as they are written
for your safety. Ultimately, safe operation of this device rests with you, the
operator.
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. This notation is also used to alert against unsafe
practices.
Indicates a potentially hazardous situation which, if not avoided
could result in death or serious injury.
GETTING TO KNOW YOUR WINCH
Your winch is a powerful piece of machinery. It is important that you
understand the basics of its operation and specifications so that when you
need to use it, you can use it with confidence and safety. Below is a list of
the components of your winch and their uses. Practice using your winch
before you are in a situation to need to use it.
1. This winch is engineered for maximum line pull with only one layer of cable
spooled onto the winch drum (the first layer).
2. Motor: Your motor is powered by a 12/24-volt battery and provides power to the
gear mechanism which turns the drum and winds the wire rope;
CAUTION
WARNING

2
3. Winch Drum: The winch drum is the cylinder on which the wire rope is stored. It
can feed out or wind in the rope by use of the remote winch switch.
4. Wire Rope: Your winch has a galvanized aircraft cable designed specifically for
load capacity of the rated line pull of this winch. The wire rope feeds onto the
drum in the “under wind” position through the roller fairlead and is looped at the
end to accept the clevis hook pin.
5. Roller Fairlead: When using the winch at an angle the roller fairlead acts to guide
the wire rope onto the drum and minimizes damage to the wire rope from
abrasion on the winch mount or bumper.
6. Mechanical Gear System: The reduction gears convert the winch motor power
into extreme pulling forces.
7. Braking System: Braking action is automatically applied to the winch drum when
the winch motor is stopped and there is a load on the wire rope. This is achieved
by a separate mechanical brake which applies the braking action.
8. Free Spooling Clutch: The clutch allows the operator to manually disengage
(“CLUTCH OUT”) the spooling drum from the gear train. This called free spool.
Engaging the clutch (“CLUTCH IN”) locks the winch into the gear system.
9. Solenoid: Power from the vehicle battery flows through the weather-sealed
switch before being directed to the winch motor.
10.Remote Switch: The power switch leads have a dual switch for powering in or
powering out your winch drum. The remote control allows you to stand clear of
the wire rope when the winch is under load.
11.The wireless remote control allows you to controlthe winch from up to 50 Ft away.
12.Universal Flat Bed Mounting Channel: Your winch could have been optionally
supplied with a flat bed mounting channel that can be mounted to most flat
surfaces such as trailers, step bumpers, truck beds, etc. The mounting channel
also has holes to accept your roller fairlead.
13.Snatch Block: If your winch is supplied with a snatch block which can double the
pulling power of the winch, or change the pulling direction without damaging the
wire rope. We recommend you to use double line and snatch block for pulling
over 70% of the rated line pull.

3
WINCH ASSEMBLY AND MOUNTING
1. Your winch is designed with a bolt pattern that is standard in this class of winch.
Many winch mounting kits are available that utilize this bolt pattern for the most
popular vehicle and mounting channels. If you cannot find a kit locally, contact
us and we will provide you with the name of a dealer near you. If you utilize the
mounting channel you must ensure that it is mounted on a flat surface so that the
three major sections (motor, drum and gear housing) are properly aligned.
Proper alignment of the winch will allow even distribution of the full rated load.
2. Start by connecting the Roller Fairlead to the Mounting Channel using 2 each of
the Cap Bolt M10 X 35, Flat Washer, Lock Washer and securing with M10 Nut
(Make sure the bolt is placed through the mounting channel and roller fairlead
from inside the channel. This will allow enough clearance for the winch to be
placed in the channel without obstruction.)
3. Assemble the winch to the Mounting Channel by first pulling and releasing the
clutch knob to “Off” position (Free Spooling). Pull out a few inches of cable from
the drum and feed the wire loop through the opening in the front of the mounting
channel and roller fairlead. Now, using the remaining M10 x 35 Cap Bolts, Flat
Washer, Lock Washer and M10 Nut secure the winch to the mounting channel.
4. Connect the battery and motor leads as the drawing above. Remember every
type of winch is different.
5. Connect the winch motor leads as detailed below:

4
CAUTION –Batteries contain gases which are flammable and explosive.
Wear eye protection during installation and remove all jewelry. Do not lean over
battery while making connections.
6. Assemble the Clevis Hook to the cable. Take off the pin from the Clevis Hook,
connect the Clevis Hook to the cable and mount the pin back to the Clevis Hook.
7. Always use the Hand Saver when free-spooling and re-spooling the wire rope.
Using the Hand Saver keeps your hands and fingers away from the rotating
drum.
8. Check for proper drum rotation. Pull and turn the clutch knob to the “off” position
(Free-spooling). Pull out some cable from the drum, and then turn the clutch
knob to the “In” position to engage the gears. Press the cable out button on the
power switch. If the drum is turning and releasing cable, then your connections

5
are accurate. If the drum is turning and collecting more cable, then reverse the
leads on the motor. Repeat and check rotation.
SAFETY PRECAUTIONS
WARNING
WARNING –DO NOT EXCEED RATED CAPACITY.
WARNING –Intermittent use only.
WARNING - Do not use winch for lifting or moving people.
WARNING - A minimum of five wraps of cable around the drum barrel is
necessary for pulling and holding the rated load. The cable clamp is not
designed to hold the load without the 5 wraps of cable around the barrel.
WARNING - Keep yourself and others a safe distance to the side of the
cable when under tension.
WARNING –The wire rope may break before the motor stalls. For heavy
loads at or near rated capacity, use a pulley block/snatch block to reduce
the load on the wire rope.
WARNING -Never step over a cable, or near a cable under load.
WARNING - Don’t move the vehicle to pull a load (towing) on the winch
cable. This could result in cable breakage.
WARNING-Disconnect the remote control and battery leads when not in
use.
WARNING- Do not exceed maximum pull rating. Avoid “shock loads” by
using the control switch intermittently to take up the slack in the wire rope.
“Shock loads” can far exceed the rated capacity for the wire rope and drum.
WARNING- Do not exceeds maximum line pull ratings shown on the tables.
WARNING-When re-spooling the cable, ensure that the cable spools in the
under-wind position with the cable entering the drum from the bottom, not
the top. To re-spool correctly, and while wearing gloves, keep a slight load
on the cable while pushing the remote control button to draw in the cable.
Walk toward the winch not allowing the cable to slide through your hands.
Do not let your hands get within 12″(30cm) of the winch while re-spooling.

6
Turn off the winch and repeat the procedure until a few feet of cable is left.
Disconnect the remote control and finish spooling by hand by rotating the
drum manually with the clutch disengaged. Keep hands clear of the
fairlead and drum while the winch is under power.
Do not use as a hoist. Do not use for overhead lifting.
Failure to heed these warnings may result in personal injury and/or
property damage.
WARNING - Use gloves to protect hands when handling the cable. Never
let the cable slide through your hands.
WARNING –Never connect the cable back to itself.
Apply blocks to the wheels of the vehicle when on an incline.
No modifications, alterations, or deviation to the winch are authorized by the
manufacturer and MUST not be made.
Duration of winching pulls should be kept as short as possible. If the motor
becomes uncomfortably hot to the touch, stop winching immediately and let
it cool down for a few minutes. Do not pull for more than one minute at or
near the rated load. CAUTION - If the motor stalls do not maintain power
to the winch. Electric winches are designed and made for intermittent
use and should not be used in constant duty applications.
CAUTION - Never release the free-spool clutch when there is a load on the
winch.
CAUTION - Use hand saver hook when handling the hook for spooling or
un-spooling the wire rope.
GENERAL TIPS FOR SAFE OPERATION
•The winch and its all-derivative types are rated at rated capacity when
spooling the first rope layer on the drum. Overloading can damage
the winch/motor/ or wire rope. For loads over 70% of rated line pull,

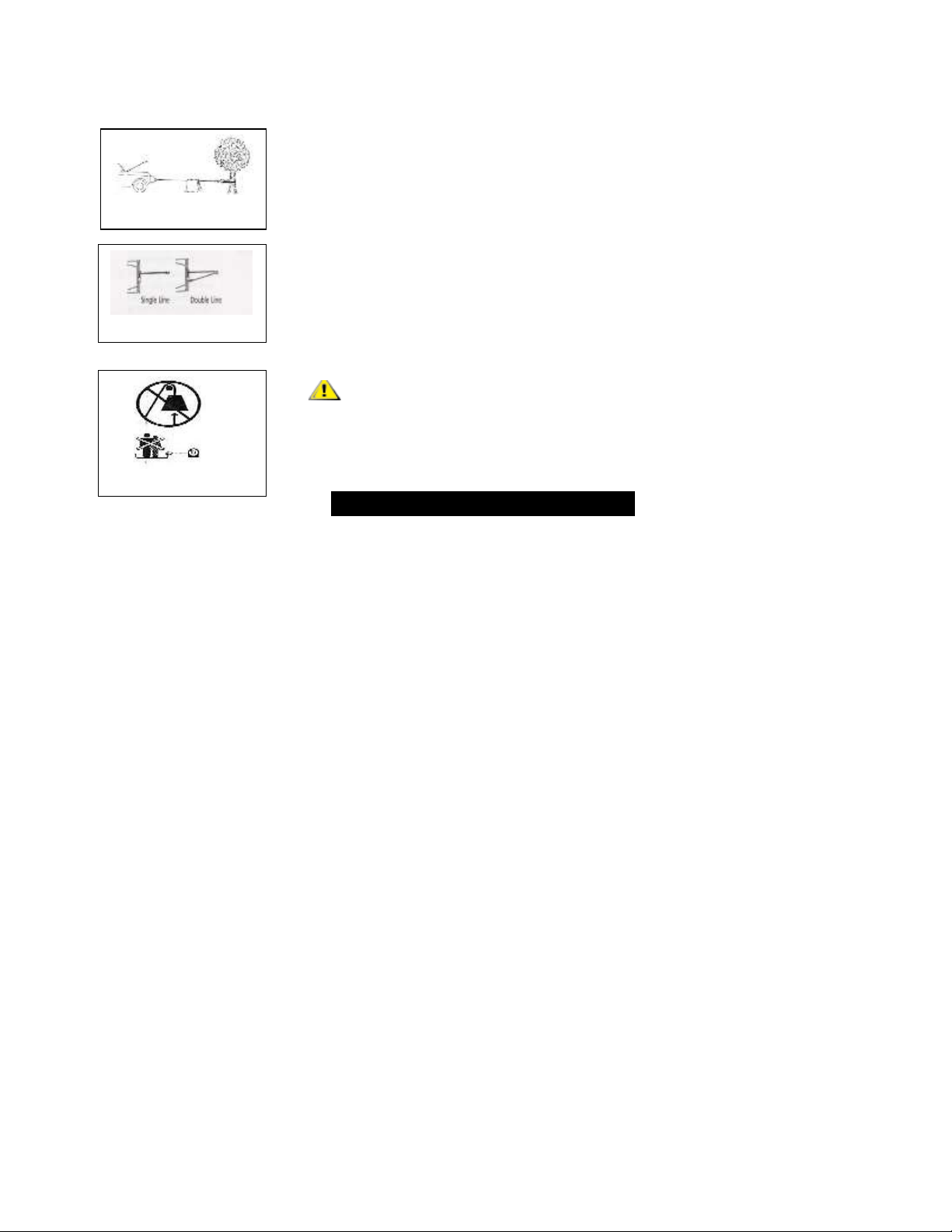

we recommend the use of the pulley block/snatch block to double the
wire rope line. This will aid in two ways: It will reduce the number of
rope layers on the drum and reduce the load on the wire rope by as
much as 50%. When doubling the line back to the vehicle, attach to
the frame or other load bearing part.

7
•The vehicle engine should be kept running during operation of the
winch to minimize battery drain and maximize power and speed of
the winch. If the winch is used for a considerable time with the engine
switched off the battery may be drained and too weak to restart the
engine
•Get to know your winch before you need to use it. We recommend
that you set up a few test runs to familiarize yourself with rigging
techniques; the sounds your winch makes under various loads and
the way the cable spools on the drum, etc.
•Inspect the wire rope and equipment before each use. A frayed or
damaged rope must be replaced immediately. Use only
manufacturer’s identical replacement rope with the exact
specifications.
•Inspect the winch installation and bolts to ensure that all bolts are
tight before each operation.
•Never connect the cable back to itself. This will cause cable damage.
Always use a snatch block, sling or chain of suitable strength as
shown in the illustrations.
•Store the remote control inside your vehicle in a safe place.
•Any winch that appears to be damaged in any way, is found to be
worn, or operates abnormally MUST BE REMOVED FROM
SERVICE UNTIL REPAIRED. It is recommended that the necessary
repairs be made by a manufacturer’s authorized repair facility.
•Pull only on areas of the vehicle as specified by the vehicle
manufacturer.
•Only attachments and/or adapters supplied by the manufacturer shall
be used. RIGGING TECHNIQUES
Self Recovery Locate a suitable anchor such as a strong tree trunk or boulder.
Always use a sling as an anchor point. CAUTION Do not attach
the clevis hook back onto the cable as this could cause damage to
the cable.
As shown in Fig 3.1
Do not winch from an acute angle as the wire rope will pile up on
one side of the drum causing damage to wire rope and the winch.
Fig 3.2
Short pulls from an angle can be used to straighten the vehicle. Long
pulls should be done with the wire rope at a 90° angle to the
winch/vehicle.
Fig 3.1
Fig 3.2

8
When pulling a heavy load, place a blanket or jacket over the wire
rope five or six feet from the hook because in the event of a broken
cable it will dampen the snap back. For additional protection open
the hood/bonnet of the vehicle as shown in Fig 3.3
For pulls over 6800lbs, we recommend the use of the snatch
block/pulley block to double line the wire rope. Fig 3.4
This reduces the load on the winch and the strain on the rope by
approximately 50%.
WARNING - Never use your winch for overhead hoisting or
for lifting people or moving people.
WINCHING TECHNIQUES A-Z
a. Take time to asses your situation and plan your pull.
b. Put on gloves to protect your hands.
c. Disengage the clutch to allow free-spooling and also save battery power.
d. Attach the hand saver hook to the clevis hook.
e. Pull out the wire rope to your desired anchor point using the hand saver hook.
f. Secure the clevis hook to the anchor point: Sling, chain or snatch block. Do not attach
the hook back onto the wire rope.
g. Engage the clutch.
h. Connect the remote control to the winch.
i. Start your engine to ensure power is being replenished to the battery.
j. Power in the wire rope guiding the wire under tension to draw up the slack in the wire.
Once the wire is under tension stand well clear. Never step over the wire rope.
k. Double check your anchors and make sure all connections are secure.
l. Inspect the wire rope. Make sure there are at least 5 wraps of wire rope around the
winch drum.
m. Drape a blanket or jacket over the wire rope approximately 5 to 6 feet from the hook.
Open the hood/bonnet for added protection.
n. Clear the area. Make sure all spectators are well back and that no one is directly in
front or behind the vehicle or anchor point.
Fig 3.3
Fig 3.4
Fig 3.5

9
o. Begin winching. Be sure that the wire rope is winding evenly and tightly around the
drum. The vehicle that is being winched can be slowly driven to add assistance to the
winching process. Avoid shock loads; keep the wire rope under tension.
p. The vehicle to be winched should be placed in neutral and the emergency brake
released. Only release the brake pedal when under full tension. Avoid shock loads to
the winch. This can damage the winch, rope and vehicle.
q. The winch is meant for intermittent use. Under full load with a single line rig do not
power in for more than a minute without letting the motor cool down for a few minutes
and then resume the winching operation.
r. The winching operation is complete once the vehicle is on stable ground and can
drive under its own power.
s. Secure the vehicle. Be sure to set the brakes and place the vehicle in park.
t. Release the tension on the wire rope. The winch is not meant to hold the vehicle for
long periods of time.
u. Disconnect the wire rope from the anchor.
v. Rewind the wire rope. Make sure that any wire already on the drum has spooled
tightly and neatly. If not, draw out the wire and re-spool from the point where the rope
is tight.
w. Keep your hands clear of the winch drum and fairlead as the wire rope is being drawn
in.
x. Secure the hook and hook strap.
y. Disconnect the remote control and store in a clean, dry place.
z. Clean and inspect connections and mounting hardware for next winching operation.
MAINTENANCE
1. Periodically check the tightness of mounting bolts and electrical connections.
Remove all dirt or corrosion and always keep clean.
2. Do not attempt to disassemble the gear box. Repairs should be done by the
manufacturer or an authorized repair center.
3. The gear box has been lubricated using a high temperature lithium grease and is
sealed at the factory. No internal lubrication is required.
REPLACING THE WIRE ROPE

10
1. If the wire rope has become worn or is beginning to show signs of fraying, it must
be replaced before being used again. To do this, remove the defective rope by
free spooling. Remove the bolt M8x10 on the drum and release the rope.
2. Insert the end of the new rope and secure the M8 x 10 mm bolt tightly.
3. Engage the clutch and re-spool the new rope on the drum keeping tension on the
rope as it spools. Ensure that the rope is re-spooling in the under-wind position.
WARNING - Only replace the wire rope with the identical replacement part
recommended by the manufacturer.
TROUBLE SHOOTING
WINCH ASSEMBLY DRAWING(S8000)
SYMPTOM
POSSIBLE CAUSE
SUGGESTED ACTION
Motor does not
turn on
-Switch Assembly
connected improperly
-Reinsert switch assembly into the connector.
-Loose battery cable
connections
-Tighten nuts on all cable connections.
-Defective switch
assembly
-Replace switch assembly.
-Defective motor
-Check for voltage at armature port with Switch
pressed. If voltage is present, replace motor.
-Water has entered
motor
-Allow to drain and dry. Run winch until
completely dry.
Motor runs but
cable drum not
turn
-Clutch not engaged
-Turn clutch to the “In” position. If problem
persists, ask a technician to check and repair.
Motor runs
slowly or without
normal power
-Insufficient current or
voltage
-Operate winch while vehicle motor running.
Motor
overheating
-Winch running for too
long
-Allow winch to cool down periodically.
Motor runs in
one direction
only
-Loose or corroded
battery cable or motor
cable connections.
-Clean and tighten.
-Repair or replace switch assembly.

11
14
4
5
2
3
7
15
1
5
4
3
2
6
7
9
12
16
17
21
20
19
18
22
23
25
26
27
24
13
8
11
10
37
36
35
34
32
38
33 39
40
41
30
31
2
43
5
28
29
42
43

12
WINCH PARTS LIST (S8000)
No.
Part #
Qty
Description
Remark
1
950100
1
Motor Assembly
2
800001
6
Cap Screw M10 x 35
3
800002
6
Lock Washer Φ10
4
800003
6
Think Flat Washer Φ10
5
800004
6
Hex Flange Nut M10
6
1200200
1
Break / Shaft Assembly
7
1200005
2
Bushing—Drum
8
800006
2
Tie Bar
9
800007
1
Screw M8 x 10
10
800008
4
Think Flat Washer Φ8
11
800009
4
Cap Screw M8 x 30
12
1200300
1
Drum Assembly
13
800010
8
Screw M5 x18
14
800011
8
Lock Washer Φ5
15
1200012
1
End Bearing
16
800013
1
Gasket
17
800014
1
Gear—Ring
18
800400
1
Gear Carrier Assembly（Input）
19
800500
1
Gear Carrier Assembly（Intermediate）
20
800600
1
Gear Carrier Assembly（Output）
21
800015
1
Gear—Input Sun
22
800016
1
Trust Washer
23
800017
1
Gear—Housing
24
800018
1
Clutch Screw
25
800019
1
Ring Seals
26
800020
1
Clutch Cover
27
1200021
1
Clutch
28
800RS
1
Remote Control Switch（R8）
29
800800
1
Cable Assembly
30
80WRS
1
Wireless Remote Control Switch
31
800900
1
Roller Fairlead
32
800022
1
Mounting Play
800VS12/800VA12
33
800023
1
Connecting Piece
800VS12/800VA12
34
800024
1
Connecting Piece
800VS12/800VA12
35
801300
1
Wireless Switch Receiver
800VS12/800VA12
36
1201400
1
Relay with Screw Assembly
800VS12/800VA12
37
951500
1
Cover with Screw Assembly
800VS12/800VA12
38
800025
1
Connecting Piece
800VS12/800VA12
39
1200026
4
Connecting Block
40
1200027
2
Connecting Rod Sets
41
800028
2
Ring Seals
42
801600
1
Control Assembly
43
800029
1
Six angle bar

13
WINCH ASSEMBLY DRAWING(S9500)
14
4
5
2
3
7
15
1
5
4
3
2
6
7
9
12
16
17
21
20
19
18
22
23
25
26
27
24
13
8
11
10
37
36
35
34
32
38
33 39
40
41
30
31
2
43
5
28
29
42
43

14
WINCH PARTS LIST (S9500)
No.
Part #
Qty
Description
Remark
1
950100
1
Motor Assembly
2
950001
6
Cap Screw M10 x 35
3
950002
6
Lock Washer Φ10
4
950003
6
Think Flat Washer Φ10
5
950004
6
Hex Flange Nut M10
6
1200200
1
Break / Shaft Assembly
7
1200005
2
Bushing—Drum
8
950006
2
Tie Bar
9
950007
1
Screw M8 x 10
10
950008
4
Think Flat Washer Φ8
11
950009
4
Cap Screw M8 x 30
12
1200300
1
Drum Assembly
13
950010
8
Screw M5 x18
14
950011
8
Lock Washer Φ5
15
1200012
1
End Bearing
16
950013
1
Gasket
17
950014
1
Gear—Ring
18
950400
1
Gear Carrier Assembly（Input）
19
950500
1
Gear Carrier Assembly（Intermediate）
20
950600
1
Gear Carrier Assembly（Output）
21
950015
1
Gear—Input Sun
22
950016
1
Trust Washer
23
950017
1
Gear—Housing
24
950018
1
Clutch Screw
25
950019
1
Ring Seals
26
950020
1
Clutch Cover
27
1200021
1
Clutch
28
950RS
1
Remote Control Switch（R8）
29
950800
1
Cable Assembly
30
95WRS
1
Wireless Remote Control Switch
31
950900
1
Roller Fairlead
32
950022
1
Mounting Play
950VS12/950VA12
33
950023
1
Connecting Piece
950VS12/950VA12
34
950024
1
Connecting Piece
950VS12/950VA12
35
951300
1
Wireless Switch Receiver
950VS12/950VA12
36
1201400
1
Relay with Screw Assembly
950VS12/950VA12
37
951500
1
Cover with Screw Assembly
950VS12/950VA12
38
950025
1
Connecting Piece
950VS12/950VA12
39
1200026
4
Connecting Block
40
1200027
2
Connecting Rod Sets
41
950028
2
Ring Seals
42
951600
1
Control Assembly
43
950029
1
Six angle bar

15
WINCH ASSEMBLY DRAWING(S12000)
14
4
5
2
3
7
15
1
5
4
3
2
6
7
9
12
16
17
21
20
19
18
22
23
25
26
27
24
13
8
11
10
37
36
35
34
32
38
33 39
40
41
30
31
2
43
5
28
29
42
43

16
WINCH PARTS LIST (S12000)
No.
Part #
Qty
Description
Remark
1
1200100
1
Motor Assembly
2
1200001
6
Cap Screw M10 x 35
3
1200002
6
Lock Washer Φ10
4
1200003
6
Think Flat Washer Φ10
5
1200004
6
Hex Flange Nut M10
6
1200200
1
Break / Shaft Assembly
7
1200005
2
Bushing—Drum
8
1200006
2
Tie Bar
9
1200007
1
Screw M8 x 10
10
1200008
4
Think Flat Washer Φ8
11
1200009
4
Cap Screw M8 x 30
12
1200300
1
Drum Assembly
13
1200010
8
Screw M5 x18
14
1200011
8
Lock Washer Φ5
15
1200012
1
End Bearing
16
1200013
1
Gasket
17
1200014
1
Gear—Ring
18
1200400
1
Gear Carrier Assembly（Input）
19
1200500
1
Gear Carrier Assembly（Intermediate）
20
1200600
1
Gear Carrier Assembly（Output）
21
1200015
1
Gear—Input Sun
22
1200016
1
Trust Washer
23
1200017
1
Gear—Housing
24
1200018
1
Clutch Screw
25
1200019
1
Ring Seals
26
1200020
1
Clutch Cover
27
1200021
1
Clutch
28
120RS
1
Remote Control Switch（R8）
29
1200800
1
Cable Assembly
30
120WRS
1
Wireless Remote Control Switch
31
1200900
1
Roller Fairlead
32
1200022
1
Mounting Play
120VS12/120VA12
33
1200023
1
Connecting Piece
120VS12/120VA12
34
1200024
1
Connecting Piece
120VS12/120VA12
35
1201300
1
Wireless Switch Receiver
120VS12/120VA12
36
1201400
1
Relay with Screw Assembly
120VS12/120VA12
37
1201500
1
Cover with Screw Assembly
120VS12/120VA12
38
1200025
1
Connecting Piece
120VS12/120VA12
39
1200026
4
Connecting Block
40
1200027
2
Connecting Rod Sets
41
1200028
2
Ring Seals
42
1201600
1
Control Assembly
43
1200029
1
Six angle bar

17
WINCH ASSEMBLY DRAWING(S14500)
14
4
5
2
3
7
15
1
5
4
3
2
6
7
9
12
16
17
21
20
19
18
22
23
25
26
27
24
13
8
11
10
37
36
35
34
32
38
33 39
40
41
30
31
2
43
5
28
29
42
43

18
WINCH PARTS LIST (S14500)
No.
Part #
Qty
Description
Remark
1
1450100
1
Motor Assembly
2
1450001
6
Cap Screw M10 x 35
3
1450002
6
Lock Washer Φ10
4
1450003
6
Think Flat Washer Φ10
5
1450004
6
Hex Flange Nut M10
6
1450200
1
Break / Shaft Assembly
7
1450005
2
Bushing—Drum
8
1450006
2
Tie Bar
9
1450007
1
Screw M8 x 10
10
1450008
4
Think Flat Washer Φ8
11
1450009
4
Cap Screw M8 x 30
12
1450300
1
Drum Assembly
13
1450010
8
Screw M5 x18
14
1450011
8
Lock Washer Φ5
15
1450012
1
End Bearing
16
1450013
1
Gasket
17
1450014
1
Gear—Ring
18
1450400
1
Gear Carrier Assembly（Input）
19
1450500
1
Gear Carrier Assembly（Intermediate）
20
1450600
1
Gear Carrier Assembly（Output）
21
1450015
1
Gear—Input Sun
22
1450016
1
Trust Washer
23
1450017
1
Gear—Housing
24
1450018
1
Clutch Screw
25
1450019
1
Ring Seals
26
1450020
1
Clutch Cover
27
1450021
1
Clutch
28
145RS
1
Remote Control Switch（R8）
29
1450800
1
Cable Assembly
30
145WRS
1
Wireless Remote Control Switch
31
1450900
1
Roller Fairlead
32
1450022
1
Mounting Play
145VS12/145VA12
33
1450023
1
Connecting Piece
145VS12/145VA12
34
1450024
1
Connecting Piece
145VS12/145VA12
35
1451300
1
Wireless Switch Receiver
145VS12/145VA12
36
1451400
1
Relay with Screw Assembly
145VS12/145VA12
37
1451500
1
Cover with Screw Assembly
145VS12/145VA12
38
1450025
1
Connecting Piece
145VS12/145VA12
39
1450026
4
Connecting Block
40
1450027
2
Connecting Rod Sets
41
1450028
2
Ring Seals
42
1451600
1
Control Assembly
43
1450029
1
Six angle bar
