Wasp WDI4600 User manual

WDI4600
1D 2D Digital Scanner USB
Quick Reference Guide

Wasp Barcode Technologies
1400 10th Street
Plano, Texas USA 75074
Tel. [phone]
Tel. [phone]
Copyright Notice: ©2000-2013 Wasp Barcode Technologies, Inc.
(an unpublished work provided under license).
Patents
This product may be covered by one or more of the following
patents:
Design Patents: CN ZL200830142386.5; CN ZL200930006852.1;
EP870787; USD599799; USD606076
Utility Patents: EP996284; EP999514; EP1128315; EP1172756;
EP1396811; EP1413971; EP1828957; JP4435343; US5481098;
US6478224; US6512218; US6513714; US6561427; US6758403;
US6808114; US6877664; US6997385; US7053954; US7234641;
US7387246; US7721966.
Additional patents pending.

Table of Contents
Software Product Policy .............................................................................4
Description .....................................................................................................5
Setting Up the Reader ................................................................................6
Connect/Disconnect Cable to Reader ........................................6
Using the WDI4600 ......................................................................................7
Selecting the Interface Type .....................................................................8
Interface Selection ............................................................................8
Configuring the Interface .................................................... 8
Keyboard Interface.............................................................. 10
Scancode Tables .................................................................. 12
Country Mode....................................................................... 12
Caps Lock State .................................................................... 17
Numlock.................................................................................. 18
Programming ..............................................................................................19
Using Programming Barcodes ...................................................19
Configure Other Settings .............................................................19
Resetting Product Defaults .........................................................19
Reading Parameters .................................................................................20
Aiming System ................................................................................20
Good Read Green Spot Duration ..............................................20
Operating Modes ......................................................................................21
Scan Mode ........................................................................................21
Stand Mode Operation...................................................... 23
Pick Mode ..........................................................................................24
Multiple Label Reading ................................................................24
Technical Specifications ..........................................................................25
LED and Beeper Indications ...................................................................28
Error Codes ..................................................................................................31
Cleaning ........................................................................................................32
Regulatory Information ...........................................................................33
Statement of Agency Compliance ...........................................33
FCC Class B Compliance Statement .........................................33
Canadian Notice ..............................................................................34
Power Supply ...................................................................................34
Imager Labeling ..............................................................................35
Aiming System...................................................................... 35
Wasp Barcode Technologies Limited Factory Warranty ..40
Ergonomic Recommendations .............................................................42
Services and Support ...............................................................................42

NOTES

Quick Reference Guide 1
Wasp Barcode Technologies
WDI4600 PRODUCT SERIES
END USER LICENSE AGREEMENT
Notice to End User: The Wasp Barcode Technologies Product you have acquired con-
tains embedded Software, which is integral to the product's operation. This Software
is being provided to you under license, subject to the terms and conditions of this
Agreement. If you use the Wasp Product, you will be deemed to have accepted the
terms and conditions of this Agreement. If you do not intend to be bound to the
terms of this Agreement, Wasp is not willing to license the Software to you, you may
not use the Wasp Product or the Software, and you must contact the party from
whom you acquired the Wasp Product for instructions.
This End User Software License Agreement ("Agreement") is a legally binding agree-
ment governing the licensing of the Software and Documentation by Wasp Barcode
Technologies and its Affiliates ("Wasp") to the entity or person who has purchased or
otherwise acquired a Wasp Product ("End User"). For purposes of this Agreement, any
software that is associated with a separate end-user license agreement is licensed to
you under the terms of that license agreement. Wasp and End User hereby agree as
follows:
1. Definitions
1.1 "Affiliate" means a business entity currently existing or later acquired that controls,
is controlled by, or is under common control with Wasp Barcode Technologies.
1.2 "Documentation" means materials such as user's guides, program reference
guides, quick reference guides, manuals, or similar materials associated with or
related to the Wasp Product, whether in printed, "online", or other form.
1.3 "Proprietary Information" means: (a) source code, object code, software, docu-
mentation, and any related internal design, system design, data base design,
algorithms, technology, technical data or information, implementation tech-
niques, and trade secrets related to the Software, (b) any other trade secrets
marked appropriately or identified as proprietary or confidential, and (c) any
information that End User, under the circumstances, should recognize as confi-
dential. Proprietary Information does not include any information that the receiv-
ing party can establish was (1) in the public domain, (2) already in the receiving
party's possession or rightfully known prior to receipt, (3) rightfully learned from
a third party not in violation of any other's proprietary rights, or (4) inde-
pendently developed without access to Proprietary Information.
1.4 "Wasp Product" means the Wasp WDI2100series scanner product, including all
embedded Software in and all Documentation related to such product, which
has been purchased or otherwise acquired by End User, whether obtained
directly or indirectly from Wasp.
1.5 "Software" means any software or computer programs of Wasp or its third party
licensors in machine readable form which is embedded in the Wasp Product,
whether obtained directly or indirectly from Wasp, including any replacement,
update, upgrade, enhancement or modification.
2. Scope Of License Granted
2.1 Wasp grants to End User a non-exclusive, non-transferable, perpetual license to
use the Software, solely on the Wasp Product in which it is embedded ("desig-
nated Wasp Product"), in machine-readable form only, solely for End User's inter-
nal business purposes. This Agreement does not convey ownership of the
Software to End User. Title to the Software shall be and remain with Wasp or the
third party from whom Wasp has obtained a licensed right. As used in this Agree-
ment, the term "purchase" or its equivalents when applied to the Software shall
mean "acquire under license." End User is not entitled to receipt or use of the
source code to any Software.
2.2 End User shall not copy, modify, decompile, disassemble, reverse engineer, or
otherwise reproduce or remanufacture the Software, whether modified or
unmodified, nor sell, assign, sublicense, distribute, lend, rent, give, or otherwise
transfer the Software to any other person or organization, for purposes other
than as expressly provided in this Agreement, without Wasp's prior written con-
sent.
3. Transfers, Support
3.1 Any copying, installing, reproduction, remanufacture, reverse engineering, elec-
tronic transfer, or other use of the Software on other than the designated Wasp
Product will be a material breach of this Agreement. However, Wasp may elect
not to terminate this Agreement or the granted licenses, but instead may elect to

2 WDI4600
notify End User that End User is deemed to have ordered and accepted a license
for each breaching use. End User shall pay Wasp the applicable list price for such
licenses as of the date of such breach.
3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or otherwise
transfer the Wasp Product to any third party unless such third party agrees with
Wasp in writing to be bound by the terms and conditions of this Agreement. Any
such transfer of the Wasp Product absent such agreement shall be null and void.
3.3 End User may obtain support for Software from Wasp at Wasp's standard support
fees and under Wasp's standard support terms and conditions in effect at the
time the support is requested.
4. Intellectual Property
End User acknowledges that the Software constitutes valuable trade secrets of Wasp
or Wasp's third party licensors and that the Software is protected by intellectual prop-
erty laws and treaties. The license set forth in this Agreement does not transfer to End
User any ownership of Wasp's or its third party licensors' copyrights, patents, trade-
marks, service marks, trade secrets, or other intellectual property rights and End User
shall have no right to commence any legal actions to obtain such rights. End User shall
not remove, modify, or take any other action that would obscure any copyright, trade-
mark, patent marking, or other intellectual property notices contained in or on the
Wasp Product.
5. Proprietary Information
5.1 End User acknowledges that Proprietary Information is the confidential, propri-
etary, and trade secret property of Wasp and Wasp's third party licensors and End
User acquires no right or interest in any Proprietary Information.
5.2 End User shall not disclose, provide, or otherwise make available the Proprietary
Information of Wasp or its third party licensors to any person other than End
User's authorized employees or agents who are under confidentiality agreement,
and End User shall not use the Proprietary Information other than in conjunction
with use of the Wasp Product exclusively for End User's internal business pur-
poses. End User shall take steps to protect the Proprietary Information no less
securely than if it were End User's own intellectual property.
5.3 The provisions of this Proprietary Information Section shall survive and continue
for five (5) years after the termination of this Agreement.
6. Limited Warranty
6.1 Wasp warrants that, under normal use and operation, the Wasp Product will con-
form substantially to the applicable Documentation for the period specified in
the Documentation. During this period, for all reproducible nonconformities for
which Wasp has been given written notice, Wasp will use commercially reason-
able efforts to remedy nonconformities verified by Wasp. End User agrees to sup-
ply Wasp with all reasonably requested information and assistance necessary to
help Wasp in remedying such nonconformities. For all defects reported to Wasp
within the warranty period, Wasp's liability is limited to providing End User with
one copy of corrections or responding to End User's problem reports according
to Wasp's standard assistance practices. Wasp does not warrant that the product
will meet End User's requirements or that use of the product will be uninter-
rupted or error free, or that Wasp's remedial efforts will correct any nonconfor-
mance. This limited warranty does not cover any product that have been
subjected to damage or abuse, whether intentionally, accidentally, or by neglect,
or to unauthorized repair or unauthorized installation, and shall be void if End
User modifies the product, uses the product in any manner other than as estab-
lished in the Documentation, or if End User breaches any of the provisions of this
Agreement.
6.2 EXCEPT AS PROVIDED IN THIS AGREEMENT, THE Wasp PRODUCT IS PROVIDED "AS
IS" AND Wasp MAKES NO WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WRIT-
TEN OR ORAL, WITH RESPECT TO THE PRODUCT, AND SPECIFICALLY DISCLAIMS
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICU-
LAR PURPOSE.
7. Infringement
7.1 Wasp will defend End User against any claim in a lawsuit that the Wasp Product
furnished hereunder infringe a United States patent or copyright of a third party
and Wasp will pay any damages finally awarded against End User by a court of
competent jurisdiction that are attributable to such claim or will pay End User's
part of any settlement that is attributable to such claim, provided, that 1) End
User notifies Wasp promptly in writing of the claim, 2) Wasp controls the defense

Quick Reference Guide 3
or settlement of the claim, and 3) End User cooperates fully with Wasp in such
defense or settlement. All notices of a claim should be sent to Wasp Barcode
Technologies, Legal Department, 959 Terry Street, Eugene, OR 97402.
7.2 In the defense or settlement of any such claim, Wasp may, at its option, 1) procure
for End User the right to continue using the Wasp Product, 2) modify the Wasp
Product so that it becomes non-infringing, 3) replace the Wasp Product with an
equivalent product not subject to such claim, or 4) provide End User an opportu-
nity to return the Wasp Product and receive a refund of the purchase price paid,
less a reasonable allowance for use.
7.3 Wasp shall have no liability to End User for claims of infringement based upon 1)
the use of any Wasp Product in combination with any product which Wasp has
not either furnished or authorized for use with such Wasp Product 2) the use of
any Wasp Product designed, manufactured, or modified to the specifications of
End User, or 3) End User's modification of the Wasp Product without written
authorization from Wasp.
7.4 THE FOREGOING STATES WASP'S COMPLETE AND ENTIRE OBLIGATION CONCERN-
ING CLAIMS OF PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY
INFRINGEMENT, CANCELS AND SUPERCEDES ANY PRIOR AGREEMENTS,
WHETHER ORAL OR WRITTEN, BETWEEN THE PARTIES CONCERNING SUCH
CLAIMS, AND WILL NOT BE MODIFIED OR AMENDED BY ANY PAST, CONTEMPO-
RANEOUS, OR FUTURE AGREEMENTS OR DEALINGS BETWEEN THE PARTIES,
WHETHER ORAL OR WRITTEN, EXCEPT AS SET FORTH IN A FUTURE WRITING
SIGNED BY BOTH PARTIES.
8. Limitation Of Liability
EXCEPT AS PROVIDED IN SECTION 7, WASP SHALL NOT BE LIABLE FOR ANY CLAIMS
AGAINST END USER BY ANY OTHER PARTY. IN NO EVENT SHALL WASP'S LIABILITY FOR
DAMAGES, IF ANY, WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE),
PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE
PRICE OR FEE PAID BY END USER FOR THE WASP PRODUCT. UNDER NO CIRCUMSTANCES
SHALL WASP BE LIABLE TO END USER OR ANY THIRD PARTY FOR LOST PROFITS, LOST
DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER SPECIAL, CONSE-
QUENTIAL, CONTINGENT, INDIRECT, INCIDENTAL, PUNITIVE, EXEMPLARY, OR OTHER SIMI-
LAR DAMAGES, EVEN IF WASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
9. Government Restricted Rights; International Use
9.1 Use, duplication, or disclosure of the Software by the U.S. Government is subject
to the restrictions for computer software developed at private expense as set
forth in the U.S. Federal Acquisition Regulations at FAR 52.227-14(g), or 52.227-19
or in the Rights in Technical Data and Computer Software clause at DFARS
252.227-7013(c)(1)(ii), whichever is applicable.
9.2 If End User is using the Wasp Product outside of the United States, End User must
comply with the applicable local laws of the country in which the Wasp Product is
used, with U.S. export control laws, and with the English language version of this
Agreement. The provisions of the "United Nations Convention on International
Sale of Goods" shall not apply to this Agreement.
10. Termination
10.1 Either party may terminate this Agreement or any license granted under this
Agreement at any time upon written notice if the other party breaches any provi-
sion of this Agreement.
10.2 Upon termination of this Agreement, End User immediately shall cease using any
nonembedded software and shall return to Wasp or destroy all non-embedded
software covered by this Agreement, and shall furnish Wasp with a certificate of
compliance with this provision signed by an officer or authorized representative
of End User. For embedded software, End User agrees to sign a waiver prepared
by Wasp concerning further use of the embedded Software. End User's resumed
or continued use of the embedded Software after termination shall constitute
End User's agreement to be bound by the terms and conditions of this Agree-
ment for such use.
11. General Provisions
11.1 Entire Agreement; Amendment. This document contains the entire agreement
between the parties relating to the licensing of the Software and supersedes all
prior or contemporaneous agreements, written or oral, between the parties con-
cerning the licensing of the Software. This Agreement may not be changed,
amended, or modified except by written document signed by Wasp.

Software Product Policy
4 WDI4600
11.2 Notice. All notices required or authorized under this Agreement shall be given in
writing, and shall be effective when received, with evidence of receipt. Notices to
Wasp shall be sent to the attention of Contract Administration, Wasp Barcode
Technologies,1400 10th Street, Plano, Texas, or such other address as may be
specified by Wasp in writing.
11.3 Waiver. A party's failure to enforce any of the terms and conditions of this Agree-
ment shall not prevent the party's later enforcement of such terms and condi-
tions.
11.4 Governing Law; Venue: This Agreement and the rights of the parties hereunder
shall be governed by and construed in accordance with the laws of the State of
Oregon U.S.A, without regard to the rules governing conflicts of law. The state or
federal courts of the State of Oregon located in either Multnomah or Lane coun-
ties shall have exclusive jurisdiction over all matters regarding this Agreement,
except that Wasp shall have the right, at its absolute discretion, to initiate pro-
ceedings in the courts of any other state, country, or territory in which End User
resides, or in which any of End User's assets are located.
11.5 Attorneys' Fees. In the event an action is brought to enforce the terms and condi-
tions of this Agreement, the prevailing party shall be entitled to reasonable attor-
neys' fees, both at trial and on appeal.
- END -
Software Product Policy
Wasp Barcode Technologies reserves the right to ship its prod-
ucts with the latest version of software/firmware available.
This provides our customers with the very latest in Wasp soft-
ware technology.
The only exception to this policy is when the buyer has a
signed contract with Wasp that clearly defines the terms and
conditions for making software/firmware changes in products
shipped to the buyer.

Quick Reference Guide 5
WDI4600
Description
With rich feature sets and extensive model options, the
WDI4600 product series from Wasp Barcode Technologies
represents the premium level of data collection equipment for
general purpose applications. The WDI4600 reader has en-
hanced optics with improved motion tolerance, allowing
codes placed on fast-moving objects to be easily and quickly
captured, creating the ideal reader for tasks requiring high
throughput like those found in retail and light industrial envi-
ronments.
Omni-
Directional
Operating
To read a symbol or capture an image, simply aim
the reader and pull the trigger. The WDI4600 is a
powerful omni-directional reader, so the orienta-
tion of the symbol is not important.
When using the product with the cradle at a 45°
position, the aiming pattern can work as an aim-
ing system to aid in positioning the barcode for
quick and intuitive reading.
Decoding
Reliably decodes all standard 1D (linear) and 2D
barcodes, including GS1 DataBar™ linear codes,
Postal Codes (China Post), Stacked Codes (such as
GS1 DataBar Expanded Stacked, GS1 DataBar
Stacked, GS1 DataBar, Stacked Omnidirectional).
The data stream — acquired from decoding a
symbol — is rapidly sent to the host. The reader is
immediately available to read another symbol.
Imaging
The WDI4600 can also function as a camera by
capturing entire images or image portions of
labels, signatures, and other items.

Setting Up the Reader
6 WDI4600
Setting Up the Reader
Follow the steps below to connect and get your reader up and
communicating with its host.
1. Connect the Cable to the reader and the Host.
2. Configure the Interface (see page 8).
3. Configure the Reader starting on page 19 (optional,
depends on settings needed).
Connect/Disconnect Cable to Reader
Figure 1. Connecting to the Reader
Host Connection:
The WDI4600 plugs directly into the host
device as shown in Figure 2. The power can also be supplied
through an external power supply via the Interface Cable sup-
plied with a power jack.
Figure 2. Connecting to the Host
U
S
B

Using the WDI4600
Quick Reference Guide 7
Using the WDI4600
The WDI4600 normally functions by capturing and decoding
codes. The reader is equipped with an internal motion-sensing
function which activates the aiming system on device motion.
The intelligent aiming system indicates the field of view which
should be positioned over the barcode:
Aiming System
Relative Size and Location of Aiming System Pattern
A red beam illuminates the label. The field of view indicated
by the aiming system will be smaller when the reader is closer
to the barcode and larger when it is farther from the code.
Symbologies with smaller bars or elements (mil size) should be
read closer to the unit. Symbologies with larger bars or ele-
ments (mil size) should be read farther from the unit.
If the aiming system is centered and the entire barcode is with-
in the aiming field, you will get a good read. Successful reading
is signaled by an audible tone plus a good-read green spot LED
indicator.
Reference the WDI4600 Product Reference Guide (PRG) for
more information about this feature and other programmable
settings.
Linear barcode 2D Matrix symbol

Selecting the Interface Type
8 WDI4600
Selecting the Interface Type
Upon completing the physical connection between the reader
and its host, proceed directly to Interface Selection below for
information and programming for the interface type the read-
er is connected to (for example: RS-232, Keyboard Wedge,
USB, etc.) and scan the appropriate barcode to select your sys-
tem’s correct interface type.
Interface Selection
Each reader model will support one of the following sets of
host interfaces:
General Purpose Models: RS-232, RS-232 OPOS, USB, Key-
board Wedge, Wand.
Information and programming options for each interface type
are provided in this section. For defaults and additional infor-
mation associated with each interface, proceed to the corre-
sponding chapter in the WDI4600 PRG.
Configuring the Interface
Scan the appropriate programming barcode to select the inter-
face type for your system.
Unlike some other programming features and options,
interface selections require that you scan only one
programming barcode label. DO NOT scan an ENTER/
EXIT barcode prior to scanning an interface selection
barcode.
Some interfaces require the scanner to start in the dis-
abled state when powered up. If additional scanner
configuration is desired while in this state, pull the
trigger and hold for 5 seconds. The scanner will change
to a state that allows programming with barcodes.

Selecting the Interface Type
Quick Reference Guide 9

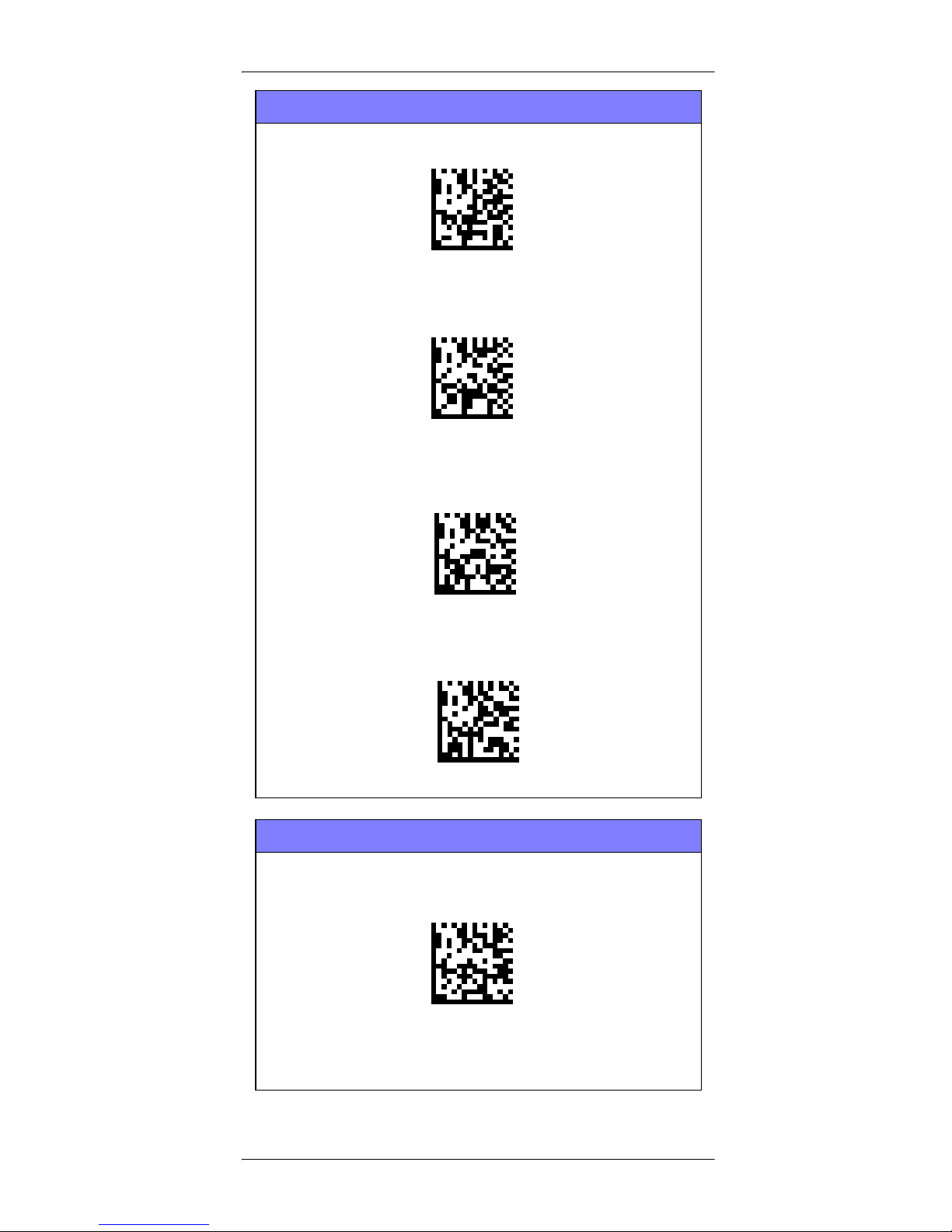

RS-232
RS-232 standard interface
Select RS232-STD
RS-232 Wincor-Nixdorf
Select RS232-WN
RS-232 for use with OPOS/UPOS/JavaPOS
Select RS-232 OPOS
USB Com to simulate RS-232 standard interface
Select USB-COM-STD
a
USB-OEM
USB-OEM
(can be used for OPOS/UPOS/JavaPOS)
Select USB-OEM
a. Download the correct USB COM driver from www.waspbarcode.com

Selecting the Interface Type
10 WDI4600
Keyboard Interface
Use the programming barcodes to select options for USB
Keyboard and Wedge Interfaces.
KEYBOARD
AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/
Standard Key Encoding
Select KBD-AT
Keyboard Wedge for IBM AT PS2 with standard key encoding but
without external keyboard
Select KBD-AT-NK
AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
w/Alternate Key
Select KBD-AT-ALT
Keyboard Wedge for IBM AT PS2 with alternate key encoding but
without external keyboard
Select KBD-AT-ALT-NK

Selecting the Interface Type
Quick Reference Guide 11
KEYBOARD (continued)
PC/XT w/Standard Key Encoding
Select KBD-XT
Keyboard Wedge for IBM Terminal 3153
Select KBD-IBM-3153
Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make
only keyboard
Select KBD-IBM-M
Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make
break keyboard
Select KBD-IBM-MB
USB Keyboard with alternate key encoding
Select USB Alternate Keyboard
USB Keyboard for Apple computers
Select USB-KBD-APPLE

Selecting the Interface Type
12 WDI4600
Scancode Tables
Reference the WDI4600 PRG for information about control
character emulation for keyboard interfaces.
Country Mode
This feature specifies the country/language supported by the
keyboard. Only these interfaces support ALL Country Modes:
• USB Keyboard (without alternate key encoding)
• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &
95 w/Std Key Encoding
• Keyboard Wedge for IBM AT PS2 with standard key
encoding but without external keyboard
• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &
95 without Alternate Key
• Keyboard Wedge for IBM AT PS2 without alternate
key encoding but without external keyboard
All other interfaces support ONLY the following Country
Modes: U.S., Belgium, Britain, France, Germany, Italy,
Spain, Sweden.
KEYBOARD (continued)
Keyboard Wedge for DIGITAL Terminals
VT2xx, VT3xx, VT4xx
Select KBD-DIG-VT
USB Keyboard with standard key encoding
Select USB Keyboard
WAND EMULATION
Wand Emulation
Select WAND

Selecting the Interface Type
Quick Reference Guide 13
COUNTRY MODE
ENTER/EXIT PROGRAMMING MODE
Country Mode = U.S.
Country Mode = Belgium
Country Mode = Britain
Country Mode = Croatia*
Country Mode = Czech*
*
Supports only the interfaces listed in the Country Mode feature description

Selecting the Interface Type
14 WDI4600
COUNTRY MODE (continued)
Country Mode = Denmark*
Country Mode = France
Country Mode = French Canadian*
Country Mode = Germany
Country Mode = Hungary*
*
Supports only the interfaces listed in the Country Mode feature description
$CKBCO13(CR)

Selecting the Interface Type
Quick Reference Guide 15
COUNTRY MODE (continued)
Country Mode = Italy
Country Mode = Japanese 106-key*
Country Mode = Lithuanian*
Country Mode = Norway*
Country Mode = Poland*
Country Mode = Portugal*
*
Supports only the interfaces listed in the Country Mode feature description

Selecting the Interface Type
16 WDI4600
COUNTRY MODE (continued)
Country Mode = Romania*
Country Mode = Spain
Country Mode = Sweden
Country Mode = Slovakia*
Country Mode = Switzerland*
*Supports only the interfaces listed in the Country Mode feature
description
