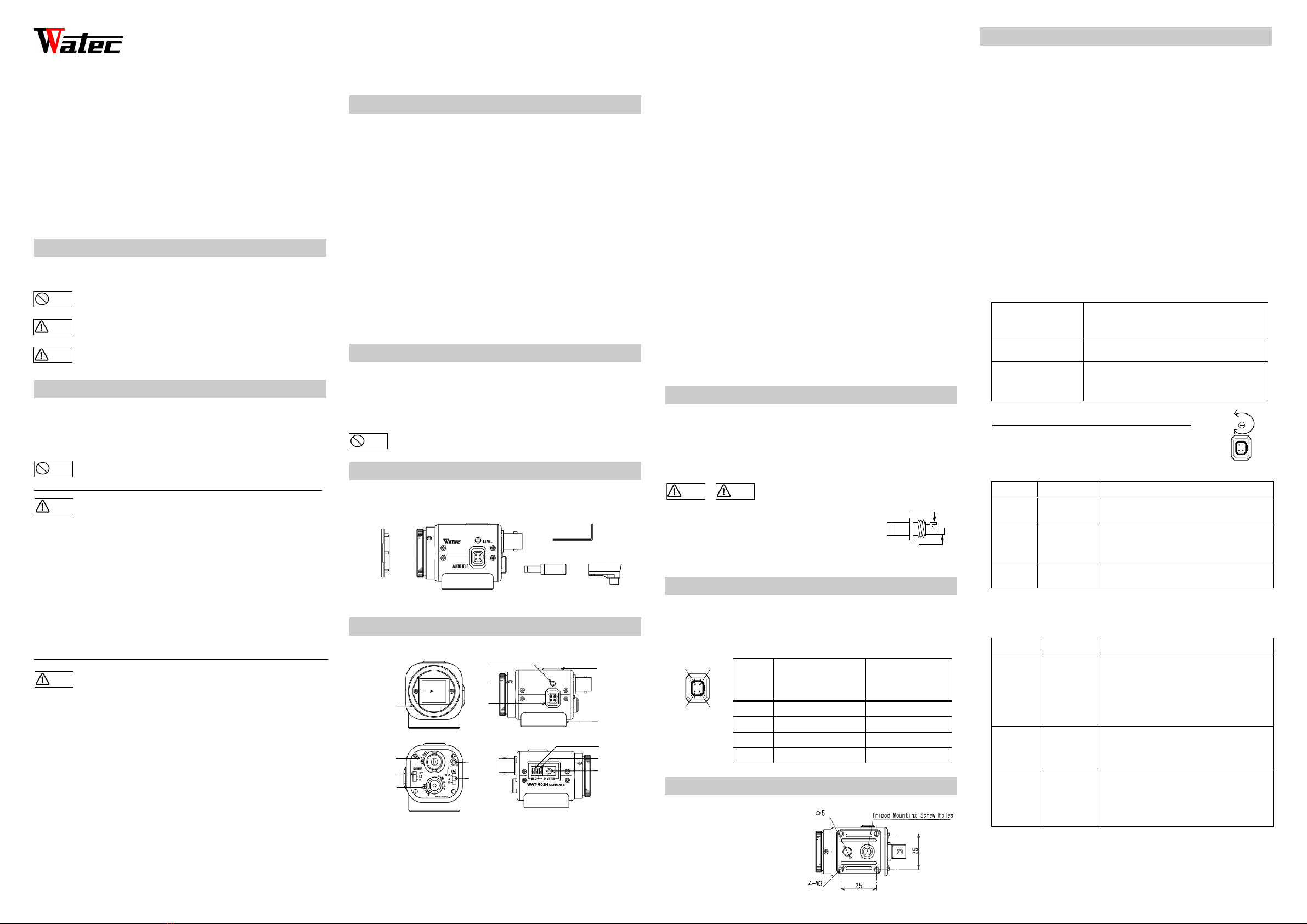

Watec WAT-902H2 ULTIMATE Installation manual

Danger
LEVEL
CLOSED
OPEN
Danger
Danger
Monochrome CCD Camera
WAT
WATWAT
WAT-
--
-902H
902H902H
902H 2
22
2 ULTIMATE
ULTIMATE ULTIMATE
ULTIMATE
WAT
WATWAT
WAT-
--
-902H
902H902H
902H 3
33
3 ULTIMATE
ULTIMATE ULTIMATE
ULTIMATE
Operation Manual
This Operation Manual covers safety, camera functions, installation and the
correct operating procedure for the WAT-902H 2 3 ULTIMATE. First, we ask you
to read this Operation Manual thoroughly, then install and operate the
WAT-902H 2 3 ULTIMATE as advised. In addition, for future reference, we also
advise safekeeping of this manual.
Please contact the distributor or dealer from which the WAT-902H 2 3 ULTIMATE
was purchased, if you do not understand the installation, operation or safety
instructions laid out in this manual. Not understanding the contents of the
Operation Manual sufficiently may cause damage to the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the “Danger” sign, it
may lead to a serious accident such as death or injury caused by
fire or electric shock.
When you do not adhere to or take notice of the “Warning” sign, it
may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the “Caution” sign, it
may incur injury and cause damage to peripheral objects in the
immediate surroundings.
Cautions for Safety
WAT-902H 2 3 ULTIMATE is designed to be used safely; however, if not used
safely, it may lead to a physical accident caused by fire and electric shock.
Therefore, please keep and read the “Cautions for Safety” below for protection
against accidents.
• Do not disassemble and/or modify the WAT-9 2H 2/3
ULTIMATE.
• Do not operate the WAT-9 2H 2/3 ULTIMATE with wet hands.
• Use only the AD9 1-12 /23 or equivalent power adaptor for
the WAT-9 2H 2/3 ULTIMATE.
The recommended voltage is DC+12V±10%
• Do not expose the WAT-9 2H 2/3 ULTIMATE to wetness or high
moisture conditions.
The WAT-902H 2 3 ULTIMATE is designed and approved for indoor
use only. The WAT-902H 2 3 ULTIMATE is not water-
resistant or waterproof. If the location of the camera is outdoors or
in an outdoor like environment, we recommend that you use an
outdoor camera housing.
• Protect the WAT-9 2H 2/3 ULTIMATE from condensation.
Keep the WAT-902H 2 3 ULTIMATE dry at all times during storage
and operation.
• Should the camera not work properly, switch off the power
immediately. Then check the camera according to the “Problems
and Trouble Shooting” section.
• Avoid the striking of hard objects or dropping the WAT-
9 2H 2/3 ULTIMATE.
The WAT-902H 2 3 ULTIMATE uses high quality electrical parts
and precision components.
• Do not connect any power supply directly to the video out
terminal of the unit.
Do not connect the WAT-902H 2 3 ULTIMATE with any monitor
using a video power single transmission terminal. The WAT-
902H 2 3 ULTIMATE is not designed for use with this type of
equipment. We also advise you to read the operation manual of
the monitor you plan to use before any connections are made.
• Do not install the WAT-9 2H 2/3 ULTIMATE in a position
subject to direct sunlight.
Sunlight shinning directly onto the WAT-902H 2 3 ULTIMATE lens
can cause damage to the CCD.
• Select a stable place for installation of the WAT-9 2H 2/3
ULTIMATE.
Use a support of durable strength around an installation position
on a ceiling or wall when a camera stand or tripod is used.
• Do not move the WAT-9 2H 2/3 ULTIMATE with the cables
connected.
Before moving the WAT-902H 2 3 ULTIMATE, always remove the
video cable and power cable from the rear of the camera first.
• Avoid using the WAT-9 2H 2/3 ULTIMATE near any strong
electromagnetic field.
After installing into main equipment, if the WAT-902H 2 3
ULTIMATE is exposed to electromagnetic waves causing the
monitored image to become distorted, we recommend the camera
be shielded by appropriate protective casing.
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-9 2H 2/3
ULTIMATE,
• An optimal picture cannot be obtained, after checking that all the cables
and connections are correctly in place
• Smoke or any unusual odor emerges from the WAT-902H 2 3 ULTIMATE.
• An object becomes embedded or a quantity of liquid seeps into the camera
housing
• More than the recommended voltage or and amperage has been applied
to the WAT-902H 2 3 ULTIMATE by mistake
• Anything unusual occurring to any equipment connected to the WAT-
902H 2 3 ULTIMATE.
Disconnect the camera immediately according to the following
procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-902H 2 3
ULTIMATE.
③Contact the distributor or dealer from which the WAT-902H 2 3 ULTIMATE was
purchased.
About EMC
The WAT-902H 2 3 ULTIMATE is in conformity with EMC test standards carried
out by authorized organizations in Japan.
E I A FCC Part15 class B
CCIR EN61000-6-3 EN50130-4
Do not modify the WAT-902H 2 3 ULTIMATE. A modified camera
may not conform to EMC test standards.
Contents
Using the contents figures below, check to make sure all parts are present before
use.
Lens Mount Cap WAT-9 2H 2/3 ULTIMATE DC plug Iris connector
Description of Parts
①CCD FRONT FACE
・
・・
・The light receiving face of the CCD camera
(Dirt, water or oil deposits on the CCD will cause an unclear picture on the
monitor. Attach the lens cap to protect the lens and CCD from contamination
and damage.)
②LENS MOUNT
・
・・
・Mount for the lens (Thread type)
③IRIS LEVEL VOLUME
・By controlling the volume, the iris level of a DC iris lens can be adjusted.
④FOCUSING ADJUSTMENT SCREWS
・
・・
・There are 3 hex. adjustment screws each placed at intervals of 120゜for fine
focusing of the lens.
⑤AUTO-IRIS SOCKET
・
・・
・This socket is for a video or DC auto-iris lens cable connector.
(Video DC: Auto selected by the camera)
⑥TRIPOD MOUNTING SCREW HOLES
・
・・
・Mounting holes for stands. The size of these threads are 1 4”, 20 threads, 4.5
±0.2mm, which is the same as any standard camera tripod (U1 4”).
⑦CAMERA BASE
・
・・
・The camera base has a thread for fixing to a standard tripod and four M3 size
holes for additional easy fixing.
⑧VIDEO OUT (BNC)
・
・・
・The terminal for composite video signal output
⑨GAMMA CORRECTION SWITCH
・
・・
・Three gamma values are selectable, 1.0, 0.45, 0.35.
⑩POWER IN
・
・・
・The terminal designed for the DC-plug of the power adaptor
⑪MGC VOLUME ADJUSTING
・The volume for setting manual gain control
⑫AGC MGC SELECTION SWITCH
・Switch for setting AGC HI、LO or MGC
⑬BACK LIGHT
・
・・
・The switch for back light compensation
⑭ELECTRONIC SHUTTER ON OFF SWITCH
・
・・
・The switch for the selecting electronic shutter mode
⑮AE MODE CONTROL
・
・・
・The switch for the shutter speed mode control according to the object being
monitored
Power Supply
If any other power adaptor besides the AD901-120 230 is used, please use a
stabilized power adaptor designed for DC+12V±10%, with a current capacity of
more than 250mA.
Use the optional DC plug if the shape or polarity of the DC plug of the power
adaptor to be used is not compatible with the camera (See the drawing on the
right below).
The wiring on the connector must be exact.
Be careful not to touch the other terminal while wiring.
Protect the wiring portion by using insulation tape after
wiring. If the above care and attention is not adhered to,
damage to the WAT-902H 2 3 ULTIMATE and power
adaptor may occur and may also cause fire.
Auto-iris Lens
Before connecting the auto-iris lens, please make sure that the pin configuration
is correct by confirming with the following table. If the configuration of your iris
connector is different from the following, the plug and pins will need to be
rewired.
Pin No.
EIAJ Video
Auto-iris Lens
Arrangement
EIAJ DC
Auto-iris Lens
Arrangement
① Power Control －
② Not used Control ＋
③ Iris signals Drive ＋
④ Common (GND) Drive －
Camera Base
There is a tripod mounting screw
hole as shown in the diagram on
the right .
In addition, there are 4 corners
holes M3 size and one φ5 for
stability.
Set-up and Operation
1) Ensure that the power to the WAT-902H 2 3 ULTIMATE and the peripheral
equipment is turned off before making any connections.
2) Remove the lens mount cap from the WAT-902H 2 3 ULTIMATE and attach the
CS-mount lens. Use the optional C-mount adaptor (30CMA-R) when a
C-mount lens is used.
3) Connect the iris control cable to ⑤AUTO-IRIS SOCKET on the WAT-902H 2 3
ULTIMATE when an auto-iris lens is being used.
4) Connect ⑧VIDEO OUT on the WAT-902H 2 3 ULTIMATE with the monitor,
using a coaxial cable with 75Ω impedance, such as an RG-58 U or an
RG-6 U. Select a monitor with the same television system as the
WAT-902H 2 3 ULTIMATE: EIA or CCIR. A monitor with more than 600TV lines
is recommended.
5) Insert the power plug of the power adaptor into ⑩POWER IN on the back
panel of the WAT-902H 2 3 ULTIMATE. Confirm that the power adaptor is not
connected to the power supply before insertion of the power plug into ⑩
POWER IN.
6) Turn on the power to the WAT-902H 2 3 ULTIMATE, monitor and all other allied
equipment. When a picture cannot be obtained on the monitor, or a problem
occurs, check and follow the procedure mentioned in the【Problems and
Trouble Shooting】section.
7) After following the procedure below and the picture is still out of focus, open
the iris fully and loosen ④FOCUSING ADJUSTMENT SCREWS with the hex.
wrench and move the lens forwards until a clear picture is obtained.
Manual Lens Adjust the focus and iris to the best position on
the lens.
Video Auto-iris Lens Adjust the focus on the lens.
DC Auto-iris Lens Adjust the iris level on the camera, then adjust
the focus on the lens. See below.
Iris Level Adjustment (for DC auto-iris lenses only)
Adjust ③IRIS LEVEL VOLUME placed on the side
of the unit until an acceptable light level is attained.
No change will occur if a video iris lens or manual
iris lens is fitted.
8) Select any required gamma by the ⑨GAMMA CORRECTION SWITCH.
Mode Gamma Effect
OFF 1.0 Required for image processing such as data
storage for PCs and for FA.
LO 0.45
Standard setting for using TVs and
Monitors. Natural images can be obtained
in dark areas.
HI 0.35 Dark areas can be lightened and bright
areas can be reduced.
※Select LO position for normal use. In a low light environment or dark
viewing, HI mode is recommended.
※The switch is set to LO(γ≒0.45) upon shipment.
9) Select any required gain control by the ⑫AGC MGC SELECTION SWITCH.
Mode Range Effect
MGC 5 - 60dB
・In a low light environment, when
illumination of the object is important,
increase the manual gain. Lower the gain
control for a clearer picture with less
noise. (Factory automation or Image
processing)
AGC HI 5 - 60dB
・When minimum illumination is more
important than the S N ratio
(Surveillance in a low light environment)
AGC LO 5 - 32dB
・When SN ratio is more important than
minimum illumination.
・When adequate lighting is present or a
stable lighting condition is available.
※The switch is set to LO(5-32dB) upon shipment.
10) Set the gain to any required environment by ⑪MGC VOLUME ADJUSTING.
Manually adjusted in a range between 5 to 60dB. In a low light environment,
when illumination of the object is important, increase the manual gain.
Lower the gain control for a clearer picture with less noise.
※The volume is set to L(Min.) upon shipment.
Warning
DC+12V
COMMON(GND)
Caution
Warning Caution
①
②
③
④
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
Warning
Caution
Hex. Wrench

AC Adaptor (AD9 1
-
12 /23 )
The recommended AC adaptor for the
WAT-902H 2 3 ULTIMATE
for a constant
and stable power supply.
ON
12
Area Switch
1. Default
ON
12
2. Center
ON
12
3. Lower
4. Center + Lower
ON
12
•
Design and specifications are subject to change without notice.
• Watec is not responsible for any inconvenience or the attendant damages
to the video and monitoring recording equipment caused by misuse, mis-
operation or improper wiring of our equipment.
• If for any reason the WAT-902H 2 3 ULTIMATE does not work properly, or if you
have any questions regarding installation or operation, please contact the
distributor or dealer from which it was purchased.
1340Z00
-
Y2000004
11) Select any required back light area by ⑬BACK LIGHT to one of its 4
positions.
※The switches are set to OFF(Default) upon shipment.
12) Set the shutter mode by ⑭ELECTRONIC SHUTTER ON OFF SWITCH
When shutter mode is OFF, fix the shutter speed to EIA1 60, CCIR1 50.
When shutter mode is ON, select the shutter speed mode by ⑮AE MODE
CONTROL.
※The switch is set to OFF upon shipment.
13) Select any required shutter speed by the ⑮AE MODE CONTROL to one of
its 10 positions.
Shutter Speeds (Sec.)
No. Mode EIA CCIR
0 FL 1 100 1 120
1 ES 1 250
2 ES 1 500
3 ES 1 1000
4 ES 1 2000
5 ES 1 5000
6 ES 1 10000
7 ES 1 100000
8 EI: OFF 1 60-1 100000 1 50-1 100000
9 EI: FL 1 100-1 100000 1 120-1 100000
※An intense light may leave a trail on the screen longitude. This smearing is
a natural phenomenon and is not due to equipment failure or fault.
※The dial is set to 0(FL) upon shipment.
Options
To purchase these options, please contact the distributor or dealer from which
you purchased the WAT-902H 2 3 ULTIMATE.
Specifications
WAT-9 2H 2 ULTIMATE
WAT-9 2H 3 ULTIMATE
WAT-9 2H 2 ULTIMATE / WAT-9 2H 3 ULTIMATE
WAT-9 2H 2/3 ULTIMATE
Model EIA CCIR
Number of
Total Pixels 811(H)×508(V) 795(H)×596(V)
Number of
Effective Pixels 768(H)×494(V) 752(H)×582(V)
Sync. System Internal
Scanning System 2:1 interlace
Video Output Composite video, 1.0 V(p-p) 75Ω (Unbalanced)
Resolution (H) More than 570TVL (Center)
S N More than 50dB (AGC=5dB, γ=1.0)
OFF 1 60 sec. 1 50 sec.
FL 1 100 sec. 1 120 sec.
ES 1 250, 1 500, 1 1000, 1 2000
1 5000, 1 10000, 1 100000 sec.
EI: OFF 1 60-1 100000 sec. 1 50-1 100000 sec.
AE Mode
EI: FL 1 100-1 100000 sec. 1 120-1 100000 sec.
AGC HI: 5-60dB LO: 5-32dB
MGC 5-60dB
Gamma
Characteristics γ≒0.35(HI) γ≒0.45(LO) γ=1.0(OFF)
Lens iris Video DC (EIAJ arrangement, Auto-select)
Back Light
Compensation ON OFF
Power Supply DC+12V±10%
Operating
Temperature -10 - +40℃ (Without condensation)
Operating Humidity Less than 95% RH
Storage Temperature
-30 - +70℃ (Without condensation)
Storage Humidity Less than 95% RH
Lens Mount CS-mount (Back focus adjustable)
Size 36(W)×40(H)×63(L) (mm)
Weight Approx. 98g
Contact information
Watec Co., Ltd.
Watec Co., Ltd.Watec Co., Ltd.
Watec Co., Ltd.
iAdd.: i254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
iYamagata-Ken, 997-0017 Japan
TEL: [phone] FAX: [phone]
Email: [email protected]p
URL: http: www.watec.net
WAT-9 2H 2 ULTIMATE
Model EIA CCIR
Pick-up Element 1 2 inch interline transfer CCD image sensor
Unit Cell Size 8.4
μ m(H)×9.8 μ m(V) 8.6 μ m(H)×8.3 μ m(V)
Minimum Illumination 0.0001 lx. F1.4
Power Consumption 1.32W (110mA)
WAT-9 2H 3 ULTIMATE
Model EIA CCIR
Pick-up Element 1 3 inch interline transfer CCD image sensor
Unit Cell Size 6.35
μ m(H)×7.4 μ m(V) 6.5 μ m(H)×6.25 μ m(V)
Minimum Illumination 0.0002 lx. F1.4
Power Consumption 1.26W (105mA)
C
-
mount Adaptor (3 CMA
-
R)
This lens mount adaptor is used to
convert a CS-mount to a C-
mount.
Mini Stand (MS5 )
A convenient stand for the
WAT-902H 2 3 ULTIMATE. With this
stand, the camera can be adjusted
to any desired angle.
