Waters Bus SAT/IN Module
Installation Guide
34 Maple Street
Milford, MA 01757
200409TP, Revision 2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NOTICE
The information in this document is subject to change without notice and should not be
construed as a commitment by Waters Corporation.Waters Corporation assumes no
responsibility for any errors that may appear in this document.This manual is believed to
be complete and accurate at the time of publication. In no event shall Waters Corporation
be liable for incidental or consequential damages in connection with or arising from the
use of this manual.
 1992 WATERS CORPORATION. PRINTED IN THE UNITED STATES OF AMERICA.
ALL RIGHTS RESERVED.THIS BOOK OR PARTS THEREOF MAY NOT BE
REPRODUCED IN ANY FORM WITHOUT THE WRITTEN PERMISSION OF THE
PUBLISHER.
LAC/E, Millennium, SAT/IN, UltraWISP, and Waters are trademarks of Waters
Corporation.
The quality management systems of Waters manufacturing facilities comply with the
International Organization for Standardization International Standard ISO 9001 Quality
Management and Quality Assurance Standards. Waters quality management systems are
periodically audited by the registering body to ensure compliance.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Attention: The Bus SAT/IN Module may be used for IN VITRO diagnostic applications.
This is a highly sensitive instrument. Read this installation manual before use.
When using the instrument, follow generally accepted procedures for quality control and
methods development.
If you observe a change in the retention of a particular compound, in the resolution
between two compounds, or in peak shape, immediately take steps to determine the
reason for the changes.Until you determine the cause of a change, do not rely upon the
results of the separations.
Attention: This equipment generates and uses radio frequency energy. If not installed
and used strictly in accordance with the user’s guide, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
interference, in which case you must take measures to correct the interference at your own
expense.
Attention: To meet the regulatory requirements of immunity from external
electrical disturbances that may affect the performance of this instrument, do not
use cables longer than 9.8 feet (3 meters) when you make connections to the
screw-type barrier terminal strips.In addition, ensure you always connect the
shield of the cable to chassis ground at one instrument only.
The Installation Category (Overvoltage Category) for this instrument is Level II.The Level
II category pertains to equipment that receives its electrical power from a local level, such
as an electrical wall outlet.
STOP
STOP
STOP
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Canadian Emissions Notice
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set forth in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe A
prescrites dans les règlements sur le brouillage radioélectrique édictés par le
Ministère des Communications du Canada.
Symbols Used on the Bus SAT/IN Module
Alternating current
Protective conductor
terminal
Caution, risk of electric
shock (high voltage)
Caution or refer to
manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Record the following numbers when installing the
Waters Bus SAT/IN module
BusSAT/IN module serial number
(from label on rear panel)
Detector connected to Channel 1
Detector connected to Channel 2
Device on Event 1 and 2
Device on Event 3 and 4
Device on Event 5 and 6
Device on Event 7 and 8
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents 6
How to Use This Guide..................................................................... 10
Chapter 1 Introduction .................................................................... 13
1.1 Bus SAT/IN Overview............................................................ 13
1.2 Bus SAT/IN Module Connections.......................................... 14
Chapter 2 Installation ...................................................................... 17
2.1 Selecting the Site and Unpacking......................................... 17
2.2 Connecting the Serial Cable................................................. 19
2.3 Connecting Analog Cables ................................................... 19
2.4 Connecting Event Cables...................................................... 20
2.5 Connecting BCD Cable (Optional)........................................ 24
2.6 Connecting the Power Supply............................................... 25
Chapter 3 Using the Bus SAT/IN Module ....................................... 26
3.1 Powerup................................................................................ 26
3.2 Configuring the Bus SAT/IN Module ..................................... 28
3.3 Troubleshooting..................................................................... 28
Table of Contents
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents 7
Appendix A Bus SAT/IN Module Specifications................................ 29
Appendix B Spare Parts ................................................................. 31
Appendix C Warranty Information ................................................... 32
C.1 Limited Product Warranty..................................................... 32
C.2 Shipments, Damages, Claims, Returns................................ 34
Index ............................................................................................ 36
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents 8

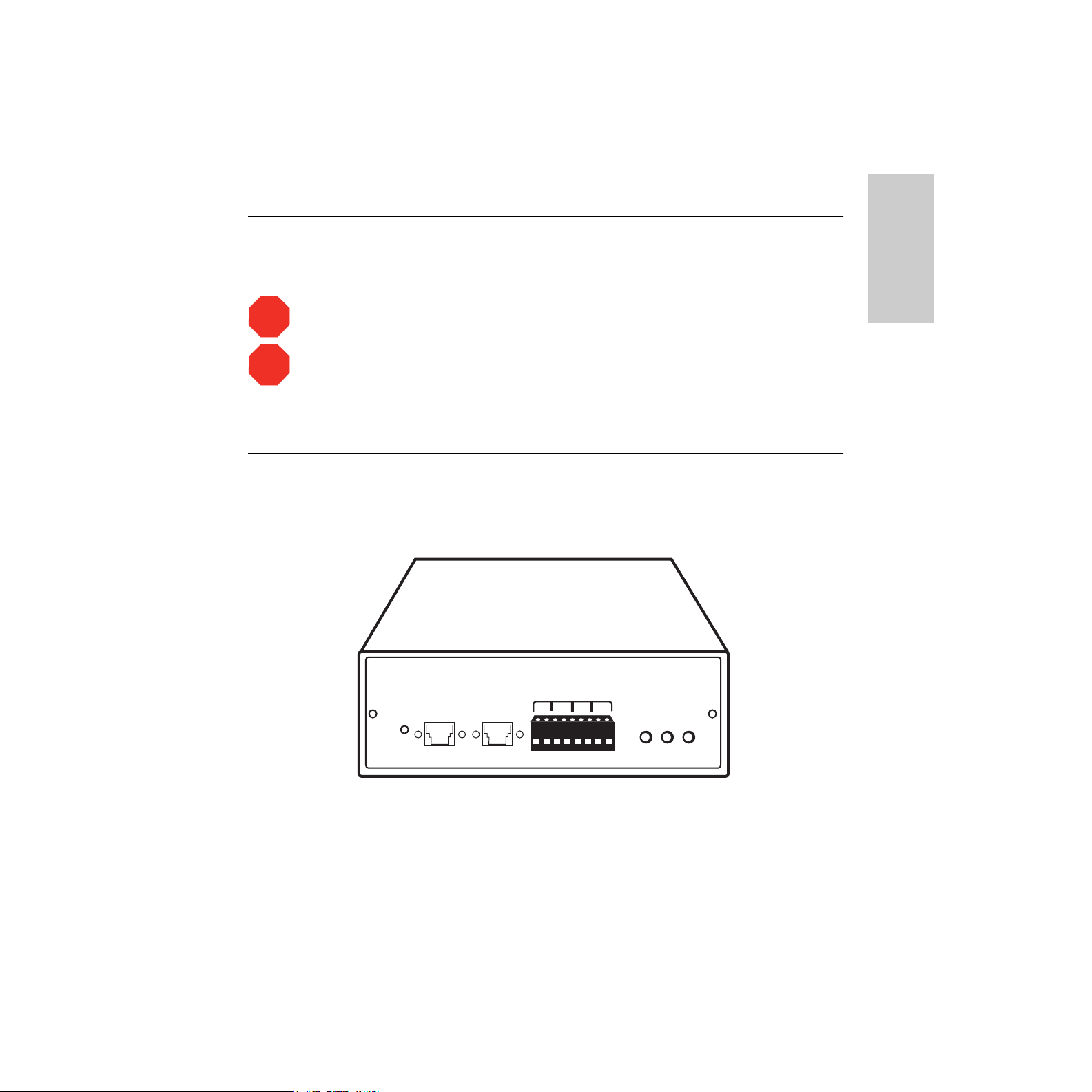

1-1 Waters Bus SAT/IN Module .......................................................... 13
1-2 Bus SAT/IN to Bus LAC/E Card Connections................................ 14

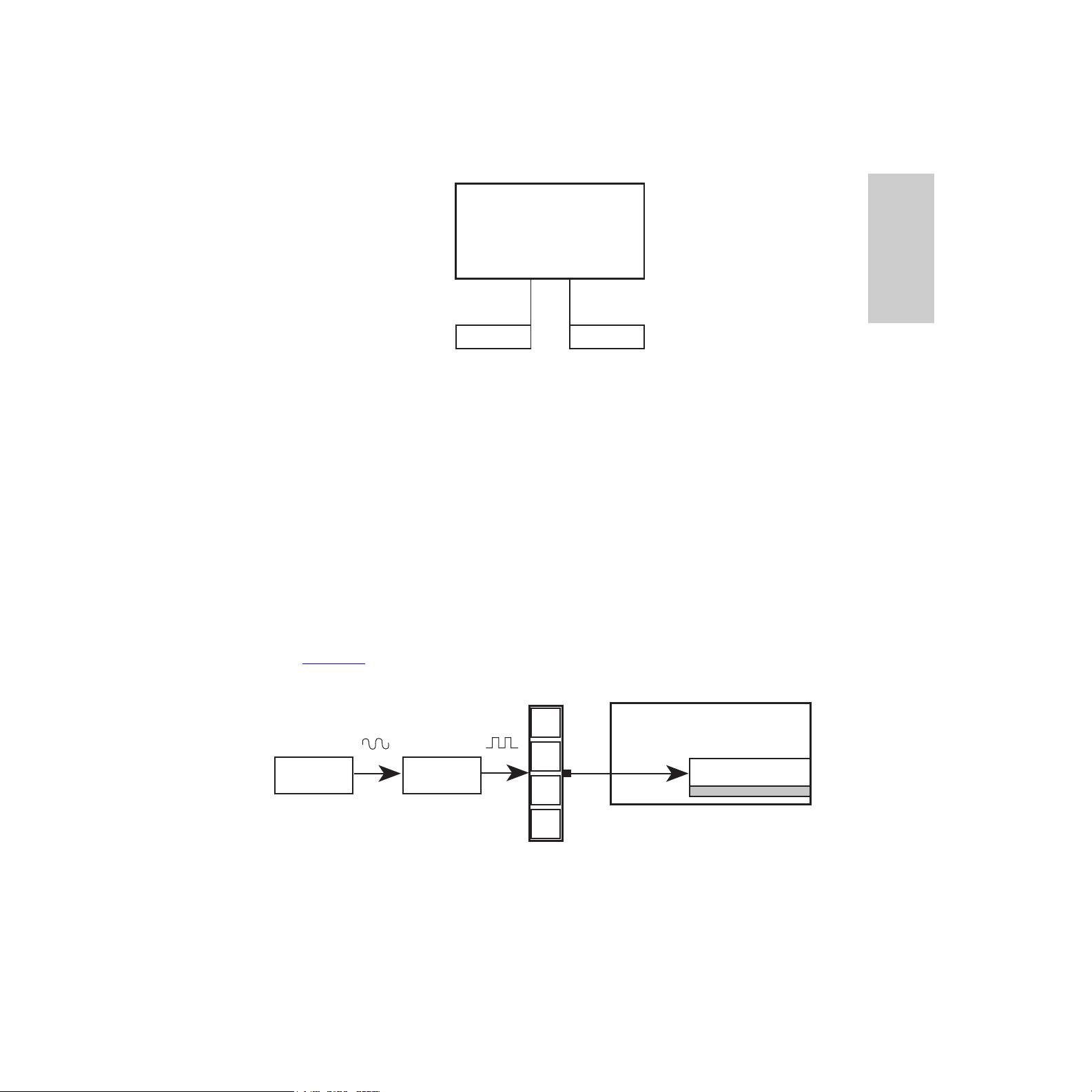

1-3 Bus SAT/IN Module Channels ....................................................... 15
1-4 Data Flow When Using the Bus SAT/IN Module............................ 15

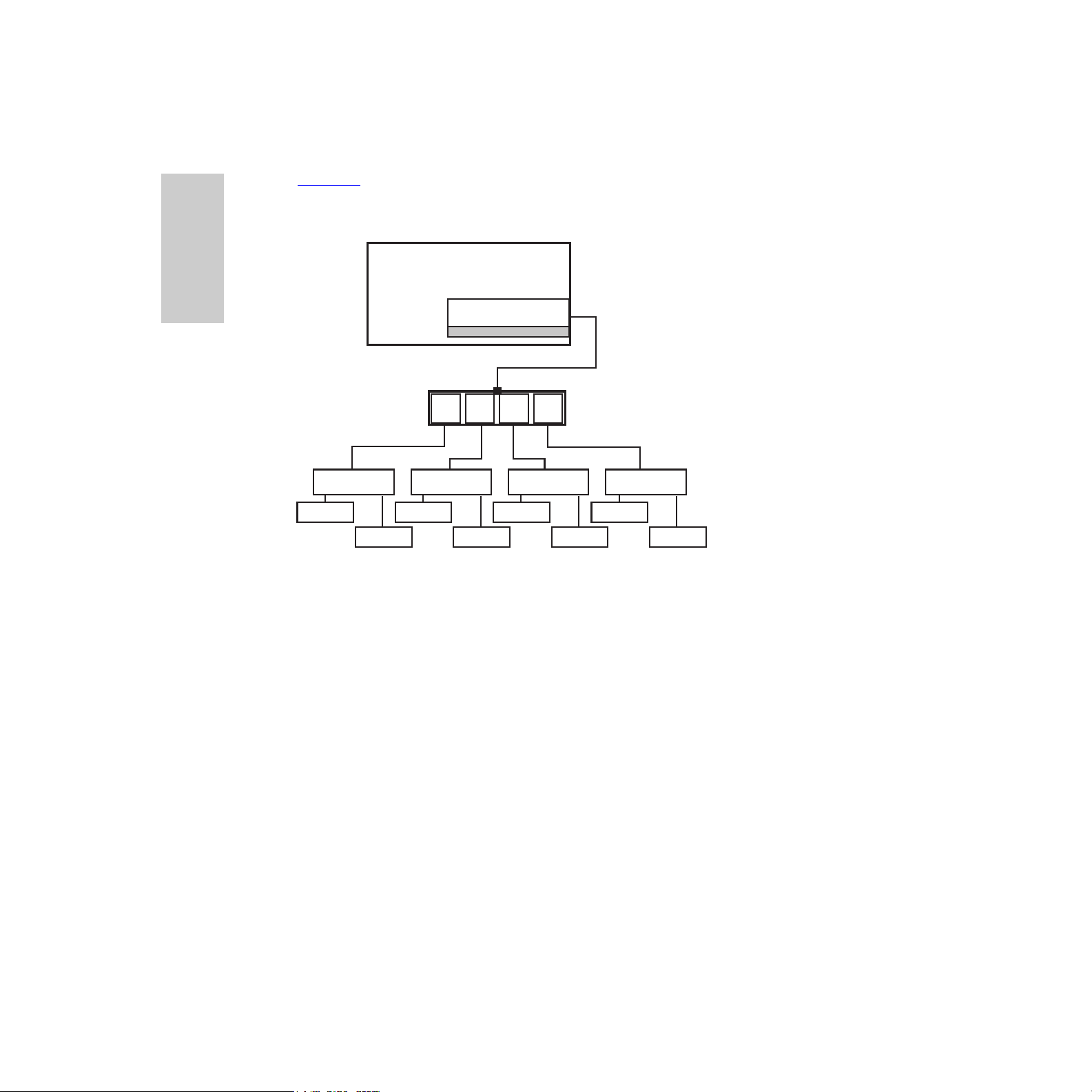

1-5 Bus SAT/IN Module and Bus LAC/E Card Configuration .............. 16
2-1 Connecting Bus SAT/IN to I/O Distribution Box ............................ 19
2-2 Connecting Bus SAT/IN to Detector .............................................. 20
2-3 Removing the Terminal Strip..........................................................22
2-4 Connecting Event Cables.............................................................. 23
2-5 Connecting Two-Channel Detector................................................ 23
2-6 Connecting Optional BCD Cable................................................... 24
2-7 Connecting the Power Supply....................................................... 25
3-1 Bus LAC/E Card DIP Switch Positions ..........................................27
List of Figures
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents 9
2-1 Bus SAT/IN Module Components ............................................ 18
2-2 Event In and Out Terminal Strips............................................. 21
3-1 Summary of LED Indicators .................................................... 27
A-1 Bus SAT/IN Module Specifications ......................................... 29
B-1 Bus SAT/IN Module Spare Parts ............................................. 31
List of Tables
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

10 How to Use This Guide
How to Use This Guide
Purpose
The Waters Bus SAT/IN Module Installation Guide contains information needed to install a
Waters™ Bus SAT/IN™ module.The Bus SAT/IN module translates signals from analog
devices to digital form, and transmits those signals to the Waters Bus LAC/E card inside a
host personal computer.
Audience
This installation guide is intended for anyone who must install a Bus SAT/IN module.This
guide assumes that the Waters Bus LAC/E™ card is installed in the host computer and
working properly.
Structure of this guide
The Waters Bus SAT/IN Module Installation Guide is divided into sections.Each page is
marked with a footer, providing easy access to all information within the chapter.The table
below describes the material covered in each section.
Title Description
Chapter 1, Introduction Describes the Bus SAT/IN module and its
connection to other components of the
chromatography system.
Chapter 2, Installation Contains procedures for unpacking and
connecting the Bus SAT/IN module to the
Bus LAC/E card and other devices.
Chapter 3, Using the Bus
SAT/IN Module Describes the powerup sequence of the Bus SAT/IN module.
Appendix A, Bus SAT/IN
Module Specifications Provides Bus SAT/IN module specifications.
Appendix B, Spare Parts Provides part numbers for spare parts.
Appendix C, Warranty
Information Provides warranty and service information.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

How To Use This Guide 11
Related Millennium documentation
The table below lists other guides in the Millennium Chromatography Manager
documentation set that include information about Bus SAT/IN module operation.
Related Adobe™ Acrobat Reader Documentation
For detailed information about using the Adobe Acrobat Reader, refer to the Adobe
Acrobat Reader Online Guide .This Online Guide covers procedures such as viewing,
navigating and printing electronic documentation from Adobe Acrobat Reader.
Printing From This Electronic Document
Adobe Acrobat Reader lets you easily print pages, pages ranges, or the entire electronic
document by selecting Print from the File menu.For optimum print quantity, Waters
recommends that you specify a Postscript printer driver for your printer. Ideally, use a
printer that supports 600 dpi print resolution.
Bus LAC/E Card
Installation Guide How to install the Bus LAC/E card.
System
Configuration Guide
Describes how chromatographic
instrumentation is connected and
addressed as part of the Millennium
Chromatography Manager system.
Also covers software installation,
computer hardware installation, and
operating requirements.
Millennium Software
User's Guide:
Volumes I and II
Describes how to use Millennium
software. Includes software features,
and describes Millennium software
acquisition, integration, and
quantitation theory.
Millennium Software
Troubleshooting
Guide
Aids in identifying and resolving
problems you may encounter when
using Millennium software.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

12 How to Use This Guide
Conventions Used in This Guide
This guide uses the following conventions to make text easier to understand.
• PurpleText indicates user action. For example:
Press 0 , then press Enter for the remaining fields.
• Italic text denotes new or important words, and is also used for emphasis. For
example:
An instrument method tells the software how to acquire data.
•Underlined, Blue Color text indicates hypertext cross-references to a specific
chapter, section, subsection, or sidehead.Clicking this topic using the hand symbol
automatically brings you to this topic within the electronic document. Right-clicking
and selecting Go Back from the popup context menu brings you back to the
originating topic. For example:
If the Bus SAT/IN module does not require a BCD cable, proceed directly to
Section 2.6, Connecting the Power Supply.
Notes, Attentions, and Cautions
• Notes call out information that is important to the operator. For example:
Note: Record your results before you proceed to the next step.
• Attentions provide information about preventing possible damage to the system or
equipment. For example:
Attention: To avoid damaging the detector flow cell, do not touch the flow cell
window.
• Cautions provide information essential to the safety of the operator.For example:
Caution: To avoid chemical or electrical hazards, always observe safe laboratory
practices when operating the system.
Caution: To avoid the possibility of electrical shock and possible injury, always turn
off the detector and unplug the power cord before performing maintenance
procedures.
Caution: To avoid the possibility of burns, turn off the lamp at least 30 minutes
before removing it for replacement or adjustment.
STOP
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Bus SAT/IN Overview 13
1
1 Introduction
This chapter is intended as an overview to the Bus SAT/IN module.Perform all Bus SAT/IN
module procedures in the order specified in this guide.
Attention: Do not power up this unit until all procedures described in this guide are
performed. Improper powerup can damage the unit and void the warranty.
Attention: The Bus SAT/IN module does not have an ON/OFF switch. Always disconnect
the power cord at either the wall outlet or the power supply before attaching or removing
the connection to the Bus SAT/IN module. Failure to do so may damage the unit.
1.1 Bus SAT/IN Overview
The Waters™ Bus SAT/IN™ (Satellite Interface) module is an A/D (analog-to-digital)
converter (Figure 1-1). The Bus SAT/IN module contains two individual A/D converters,
allowing conversion of two independent channels of data on two time bases.
Figure 1-1 Waters Bus SAT/IN Module
STOP
STOP
IN OUT IN OUT
1 2 3 4 5 6 7 8
Waters
CHANNEL 1 CHANNEL 2
EVENTS
CH1 CH2
CH
1 CH 2 OK
+ - + -
Waters Bus SAT/IN Module
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

14 Introduction
1
1.2 Bus SAT/IN Module Connections
This section covers:
• Bus SAT/IN to Bus LAC/E connection
• Bus SAT/IN module channels
• Event input and output
• Flow of data
Bus SAT/IN-to-Bus LAC/E connection
The Bus SAT/IN module communicates with the Bus LAC/E™ card through the Bus LAC/E
I/O Distribution Box (Figure 1-2). The I/O Distribution Box accepts up to four Bus SAT/IN
modules.
Figure 1-2 Bus SAT/IN to Bus LAC/E Card Connections
Bus SAT/IN module channels
The Bus SAT/IN module has two independent channels, and converts data from two
detectors (up to eight channels of data for each Bus LAC/E card).Figure 1-3 illustrates the
Bus SAT/IN module channels.
Bus SAT/IN
Bus SAT/IN
Bus SAT/IN
Bus SAT/IN
Bus LAC/E Card
Host Computer
1234 I/O Distribution Box
(4 Serial Ports)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Bus SAT/IN Module Connections 15
1
Figure 1-3 Bus SAT/IN Module Channels
Event input and outputs
The Bus SAT/IN module has two event input signal connections and two event output
signal connections.
Flow of data
The Bus SAT/IN module:
1. Receives analog signals from detectors
2. Converts the analog signals to digital format
3. Sends the digital signals through the Bus LAC/E I/O Distribution Box to the Bus
LAC/E card inside a host computer
The Bus LAC/E card sends the data to a host PC running Millennium software
(Figure 1-4).
Figure 1-4 Data Flow When Using the Bus SAT/IN Module
Bus SAT/IN
Module
Detector Detector
Bus SAT/IN
Module
1234
Bus LAC/E Card
Host Computer
I/O Distribution Box
Detector
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

16 Introduction
1
Figure 1-5 illustrates multiple Bus SAT/IN modules and a Bus LAC/E card configuration
designed to collect eight channels of data.
Figure 1-5 Bus SAT/IN Module and Bus LAC/E Card Configuration
Bus SAT/IN
Bus LAC/E Card
Host Computer
1234
Bus SAT/IN
Detector
Detector
Detector
Detector
Detector
Detector
Detector
Detector
Bus SAT/IN Bus SAT/IN
I/O Distribution Cable
I/O Distribution Box
Serial Cable
Analog Cable
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Selecting the Site and Unpacking 17
2
2 Installation
This chapter covers the necessary procedures for installing the Bus SAT/IN module.
2.1 Selecting the Site and Unpacking
Selecting the site
Install the Bus SAT/IN module in an area where:
• The Bus SAT/IN module is up to 4, 8, 16, 32 or 64 meters from the Bus LAC/E I/O
Distribution Box, depending on the length of the serial cable.(The startup kit
contains an 8 m cable. See Appendix B, Spare Parts for part numbers for other
cable lengths.)
• The Bus SAT/IN module is up to two meters (maximum analog cable length) from
the detectors to which it is to be connected.
• Bench space is approximately 9 inches wide by 12 inches deep by 4 inches high (23
centimeters by 30.5 centimeters by 10.5 centimeters).
Note: Do not stack heavy devices on top of the Bus SAT/IN module.
• Temperature is 50 to 95 °F (10 to 35 °C).
• Relative humidity is 20 to 80%, non-condensing.
• Vibration and shock are negligible.
Caution: To avoid chemical hazards, always observe good laboratory practices when
handling solvents and performing maintenance.
Power requirements
The Bus SAT/IN module draws power from a table-model, regulated power supply. See
Appendix A, Bus SAT/IN Module Specifications for power supply specifications.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

18 Installation
2
List of components
The Bus SAT/IN module shipment includes:
Unpacking
Find the packing list and unpack the shipment. As you unpack, compare all items to the
packing list.Save the packing materials for future transport or shipment.
Inspection
If there is any discrepancy between the shipment and the packing list, call the Waters
Order Entry Department immediately. If any items are damaged, immediately notify the
shipping agent and Waters.
Recording serial number
Before continuing with the installation, record the serial number of the Bus SAT/IN module
inside the front cover of this guide, and in the Waters Bus LAC/E Card Installation Guide .
See bottom of the Bus SAT/IN module for the serial number.
Table 2-1 Bus SAT/IN Module Components
Item Quantity
Bus SAT/IN module 1
Power supply 1
Bus SAT/IN serial cable (8 m) 1
Bus SAT/IN analog cables (2 m) 2
Event cables (1.5 m) 4
Flat-blade screwdriver 1
Waters Bus SAT/IN Module
Installation Guide
1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Connecting the Serial Cable 19
2
2.2 Connecting the Serial Cable
The Bus SAT/IN serial cable transmits digital data to the Bus LAC/E card inside the host
PC via the I/O Distribution Box.The cable connecting the Bus SAT/IN module to the Bus
LAC/E I/O Distribution Box is a six-connector serial cable with modified modular jack
(MMJ) connectors.
Procedure
To connect the Bus SAT/IN module serial cable to the I/O Distribution Box:
1. Place the Bus SAT/IN module on a level surface.
2. Insert one end of the Bus SAT/IN serial cable in the connector marked DATA on
the Bus SAT/IN module (Figure 2-1). Both ends of the cable are identical.
Figure 2-1 Connecting Bus SAT/IN to I/O Distribution Box
3. Insert the other end of the serial cable into the first available Bus SAT/IN port on
the Bus LAC/E I/O Distribution Box as shown in Figure 2-1.
2.3 Connecting Analog Cables
Analog cables transmit analog data from the detector to the Bus SAT/IN module.
Attention: To meet the regulatory requirements of immunity from external electrical
disturbances that may affect the performance of this instrument, do not use cables longer
than 9.8 feet (3 meters) when you make connections to the screw-type barrier terminal
strips. In addition, ensure you always connect the shield of the cable to chassis ground at
one instrument only.
BCD
DATA POWER
Serial Cable
I/O Distribution Box
To Bus LAC/E
Card
4
3
1
2
STOP
