Watson-Marlow qdos30 User manual

Contents
1 Declaration of conformity 3
2 Declaration of incorporation 4
3 Warranty 5
4 When you unpack your pump 7
5 Information for returning pumps 9
6 Safety notes 10
7 Pump specifications 12
7.1 Dimensions 15
7.2 Weights 15
8 Good pump installation practice 16
8.1 General recommendations 16
8.2 Do's and do not's 17
9 Connecting to a power supply 18
10 Start-up check list 19
11 Switching on the pump for the first time 20
12 Switching the pump on in subsequent power cycles 22
13 Pump operation 23
13.1 Keypad functions 23
13.2 SCREEN ICONS 24
13.3 Switching between modes 25
14 Manual 26
15 Flow calibration 28
16 Fluid recovery mode 31
17 Main menu 33
17.1 Fluid level monitor 34
17.2 Security settings 37
Watson-Marlow qdos30 Manual Pump User Manual 1
WATSON-MARLOW MANUALS
m-qdos30-manual
Watson-Marlow qdos30
Manual pump

17.3 General settings 40
17.4 MODE menu 44
17.5 Control settings 45
17.6 Help 46
18 Troubleshooting 47
18.1 Leak detection 48
18.2 Error codes 49
18.3 Technical support 50
19 Drive maintenance 51
20 Pumphead Replacement 52
20.1 Connecting interface tubing 56
21 Ordering information 59
21.1 Pump part numbers 59
21.2 Spares and accessories 60
22 Performance data 62
22.1 Pumping conditions 62
22.2 Pressure capability 62
22.3 Dry running 62
22.4 Pumphead life 62
22.5 Performance curves 63
23 Trademarks 64
24 Publication history 64
Watson-Marlow qdos30 Manual Pump User Manual 2

1 Declaration of conformity

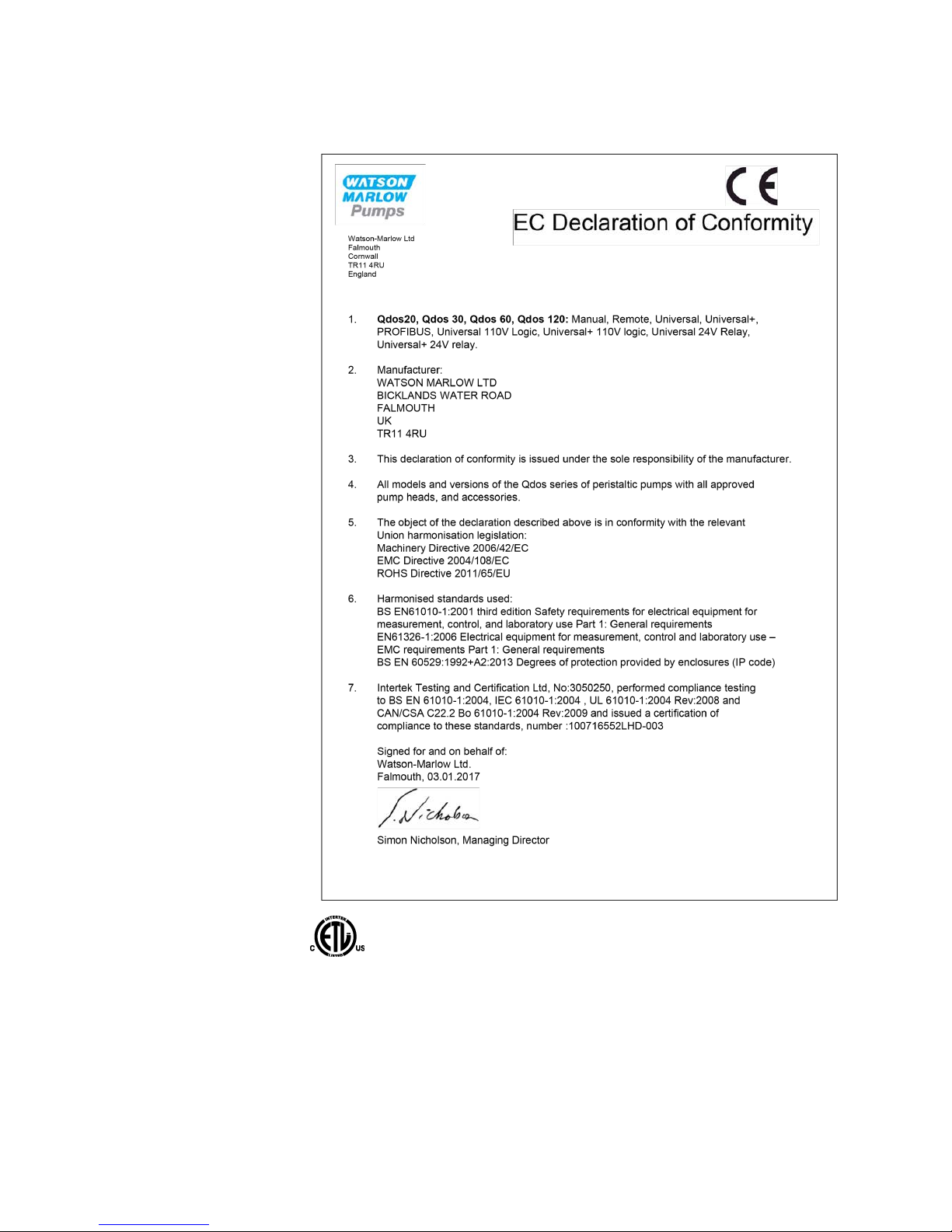

This pump is ETL listed: ETL control number 3050250. Cert to CAN/CSA
std C22.2 No 61010-1. Conforms to UL std 61010A-1.
See 7 Pump specifications on page 12.
m-qdos30-manual-11 3

2 Declaration of incorporation
The information in this user guide is believed to be correct at the time of publication.
However, Watson- Marlow Limited accepts no liability for errors or omissions.
Watson-Marlow has a policy of continuous product improvement, and reserves the
right to alter specifications without notice. This manual is intended for use only with
the pump it was issued with. Earlier or later models may differ. The most up-to-date
manuals appear on the Watson-Marlow website: http://www.wmftg.com.
m-qdos30-manual-11 4

3 Warranty
Watson-Marlow Ltd (“Watson-Marlow”) warrants this product to be free from defects
in materials and workmanship for three years from the date of shipment, under
normal use and service.
Watson-Marlow’s sole responsibility and the customer’s exclusive remedy for any
claim arising out of the purchase of any product from Watson-Marlow is, at Watson
Marlow’s option: repair, replacement or credit, where applicable.
Unless otherwise agreed in writing, the foregoing warranty is limited to the country
in which the product is sold.
No employee, agent or representative of Watson-Marlow has the authority to bind
Watson-Marlow to any warranty other than the foregoing unless in writing and
signed by a director of Watson-Marlow. Watson-Marlow makes no warranty of the
fitness of its products for a particular purpose.
In no event:
i. shall the cost of the customer’s exclusive remedy exceed the purchase price of
the product;
ii. shall Watson-Marlow be liable for any special, indirect, incidental,
consequential, or exemplary damages, however arising, even if Watson-Marlow
has been advised of the possibility of such damages.
Watson-Marlow shall not be liable for any loss, damage, or expense directly or
indirectly related to or arising out of the use of its products, including damage or
injury caused to other products, machinery, buildings, or property. Watson-Marlow
shall not be liable for consequential damages, including, without limitation, lost
profits, loss of time, inconvenience, loss of product being pumped, and loss of
production.
This warranty does not obligate Watson- Marlow to bear any costs of removal,
installation, transportation, or other charges which may arise in connection with a
warranty claim.
Watson-Marlow shall not be responsible for shipping damage of returned items.
Conditions
lProducts must be returned by pre-arrangement to Watson-Marlow, or a Watson-
Marlow approved service centre.
lAll repairs or modifications must have been made by Watson-Marlow Ltd, or a
Watson-Marlow approved service centre or with the express permission in
writing of Watson-Marlow, signed by a manager or director of Watson-Marlow.
lAny remote control or system connections must be made in accordance to
Watson-Marlow recommendations.
lAll PROFIBUS systems must be installed or certified by a PROFIBUS approved
installation engineer.
m-qdos30-manual-11 5

Exceptions
lConsumable items including tubing and pumping elements are excluded.
lPumphead rollers are excluded.
lRepairs or service necessitated by normal wear and tear or by lack of reasonable
and proper maintenance are excluded.
lProducts which, in the judgement of Watson-Marlow, have been abused,
misused, or subjected to malicious or accidental damage or neglect are excluded.
lFailure caused by electrical surge is excluded.
lFailure caused by incorrect or sub-standard system wiring is excluded.
lDamage by chemical attack is excluded.
lAncillaries such as leak detectors are excluded.
lFailure caused by UV light or direct sunlight.
lAll ReNu pumpheads are excluded.
lAny attempt to disassemble a Watson-Marlow product will invalidate the product
warranty.
Watson-Marlow reserves the right to amend these terms and conditions at any time.
m-qdos30-manual-11 6

4 When you unpack your pump
Unpack all parts carefully, retaining the packaging until you are sure all components
are present and in good order. Check against the components supplied list, below.
Packaging disposal
Dispose of packaging materials safely, and in accordance with regulations in your
area. The outer carton is made of corrugated cardboard and can be recycled.
Inspection
Check that all components are present. Inspect components for damage in transit. If
anything is missing or damaged, contact your distributor immediately.
Components supplied

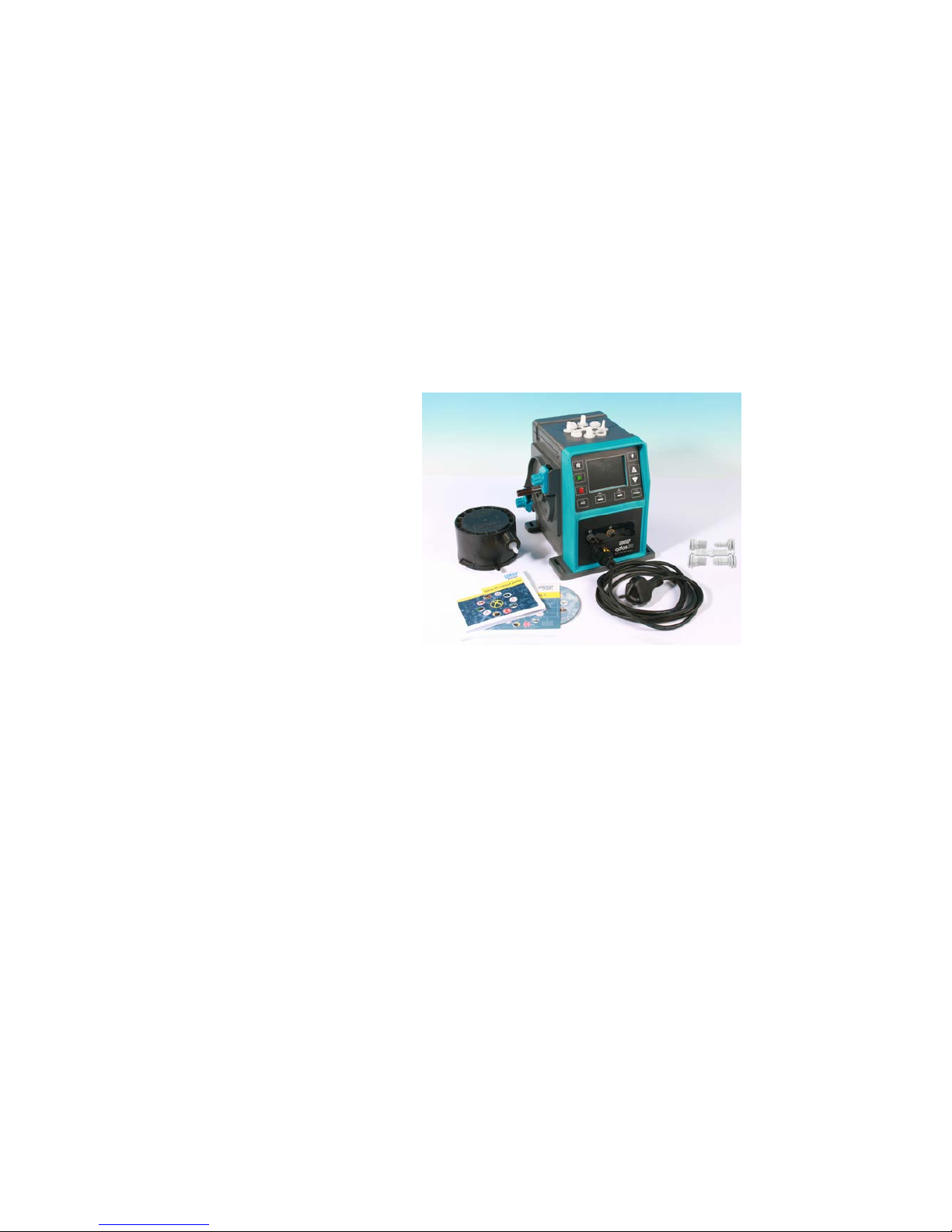

lqdos30 pump drive unit
lReNu120 pumphead
lUser connection collars
lThe designated power cable (attached to the pump drive unit)
lCD-ROM containing these operating instructions
lQuick start manual
lProduct safety information booklet
Optional accessories
lAdditional ReNu pumphead
lHMI protective cover
lInterface tubing
lInput and output (I/O) leads
m-qdos30-manual-11 7

Storage
This product has an extended shelf life. However, care should be taken after storage
to ensure that all parts function correctly. Please observe the storage
recommendations and use-by dates which apply to tubing you may wish to bring
into service after storage.
m-qdos30-manual-11 8

5 Information for returning pumps
In compliance with the UK Health and Safety at Work Act and the Control of
Substances Hazardous to Health Regulations, you are required to declare the
substances which have been in contact with product (s) you return to Watson-
Marlow or its subsidiaries or distributors. Failure to do so will cause delays. Please
ensure that you fax us this form and receive an RGA (Returned Goods Authorisation)
before you despatch the product(s). A copy of this form must be attached to the
outside of the packaging containing the product(s).
Please complete a separate decontamination certificate for each product. A copy of
the appropriate decontamination certificate can be downloaded from the Watson-
Marlow website at: www.wmftg.com/decon.
You are responsible for cleaning and decontaminating the product(s) before return.
m-qdos30-manual-11 9

6 Safety notes
In the interests of safety, this pump and pumphead should only be used by
competent, suitably trained personnel after they have read and understood this
manual, and considered any hazard involved. If the pump is used in a manner not
specified by Watson- Marlow Ltd, the protection provided by the pump may be
impaired.
Any person who is involved in the installation or maintenance of this equipment
should be fully competent to carry out the work. In the UK this person should also be
familiar with the Health and Safety at Work Act 1974.
This symbol, used on the pump and in this manual, means:
Caution, refer to accompanying documents.
This symbol, used on the pump and in this manual, means: Do
not allow fingers to contact moving parts.
This symbol, used on the pump and in this manual, means:
Caution, hot surface.
Fundamental work with regard to lifting, transportation,
installation, starting-up, maintenance and repair should be
performed by qualified personnel only. The unit must be isolated
from mains power while work is being carried out. The motor
must be secured against accidental start-up.
There is a non-replaceable fuse on the switch-mode power
supply board. In some countries, the mains power plug contains
a replaceable fuse. There are no user-serviceable fuses or parts
inside this pump.
This pump must be used only for its intended purpose.
The pump must be accessible at all times to facilitate operation and maintenance.
Access points must not be obstructed or blocked. Do not fit any devices to the drive
unit other than those tested and approved by Watson-Marlow. Doing so could lead to
injury to persons or damage to property for which no liability can be accepted.
If hazardous fluids are to be pumped, safety procedures specific to the particular fluid
and application must be put in place to protect against injury to persons.
This product does not comply with the ATEX directive and must
not be used in explosive atmospheres.
If pumping flammable liquids, a full risk assessment should be
completed prior to use.
m-qdos30-manual-11 10

The exterior surfaces of the pump may get hot during operation.
Do not take hold of the pump while it is running. Allow the pump
to cool after use before handling. The drive unit must not be run
without a pumphead fitted. The pumphead should not be run dry
for extended periods of time. The pump should not be used to
pump fluids where the temperature of the fluid can reach
temperatures of more than 70°C.
Ensure the chemicals to be pumped are compatible with the
pumphead, lubricant, tubing, pipework and fittings to be used
with the pump. Please refer to the chemical compatibility guide
which can be found at: www.wmpg.com/chemical If you need
to use the pump with any other chemical please contact
Watson-Marlow to confirm compatibility
m-qdos30-manual-11 11

7 Pump specifications

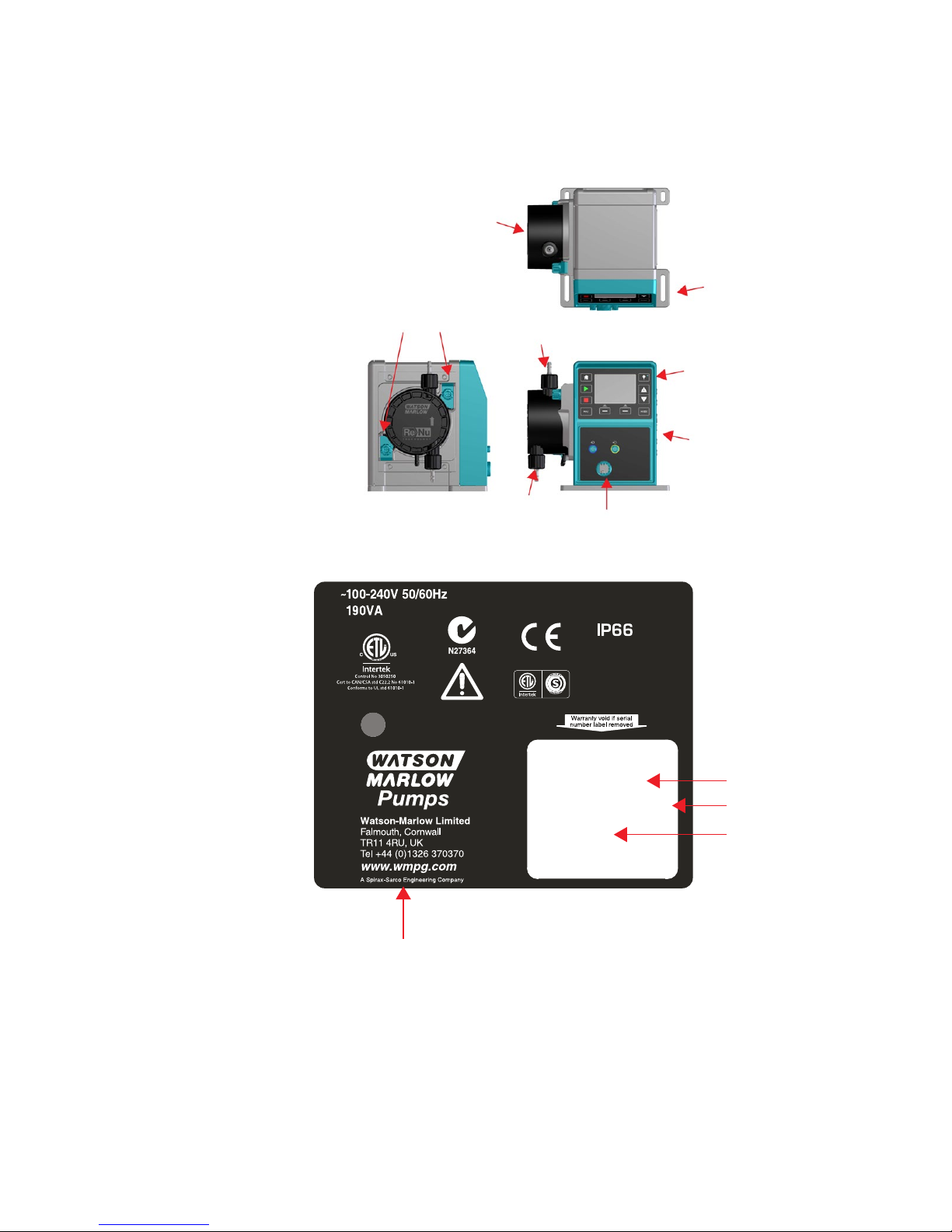

ReNu pumphead
(left hand mounted)
Pumphead retaining
clamps Outlet
Inlet Power
Mounting plate
HMI
(not Remote)
Drive unit
A nameplate is fixed to the rear of the pump. It contains manufacturer and contact
details, product reference number, serial number and model details.
0M0.223L.GLU Iss 1
qdos Manual 30l/hr 7bar
190gpd 100psi Sant PFPE
Serial Number
Manufacturer details
Product reference
Model
Serial number
m-qdos30-manual-11 12

Pump specifications
Flow Range (flow control) 0.1-500 ml/min (5000:1)
Supply voltage/frequency ~100-240V 50/60Hz
±10% of nominal voltage.
Maximum voltage fluctuation
An electrical mains supply is required
along with cable connections to the
best practice of noise immunity
Installation category (overvoltage
category) II
Power consumption 190VA
Enclosure rating
IP66 to BS EN 60529
NEMA 4X to NEMA 250*
Operating temperature range 4°C to 45°C, 41°F to 113°F
Storage temperature range -20°C to 70°C, -4°F to 158°F
Maximum altitude 2,000m, 6,560ft
Humidity (non-condensing) 80% up to 31°C, 88°F, decreasing
linearly to 50% at 40°C, 104°F
Pollution degree 2
Noise <70dB(A) at 1m
*Requires the fitting of the HMI protective cover.
m-qdos30-manual-11 13

Standards
EC
Harmonised
standards
Safety requirements for electrical equipment for
measurement, control and laboratory use: BS EN 61010- 1
incorporating A2 Category 2, Pollution degree 2
Degrees of protection provided by enclosures (IP code): BS EN
60529 amendments 1 and 2
Conducted emissions: BS EN 55011 A1 and A2, Class A,
called by BS EN 61000-6-4
Radiated emissions: BS EN 55011 A1 and A2, Class A, called
by BS EN 61000-6-4
Electrostatic discharge: BS EN 61000-4-2
Radiated RF immunity: BS EN 61000-4-3 A1 and A2, called
by BS EN 61000-6-2
Fast transient burst: BS EN 61000-4-4 A1 and A2, Level 3
(2kV), called by BS EN 61000-6-2
Surge testing: BS EN 61000-4-5 A1 and A2, called by BS EN
61000-6-2
Conducted RF immunity: BS EN 61000-4-6, called by BS EN
61000-6-2
Voltage dips and interruptions: BS EN 61000-4-11, called by
BS EN 61000-6-2
Mains harmonics: BS EN 61000-3-2 A2
Pumps and pump units for liquids—common safety
requirements: BS EN 809
Other
Standards
UL 61010A-1, UL/CSA 61010-1
CAN/CSA-C22.2 No 61010-1
IEC 61010-1
Radiated emissions FCC 47CFR, Part 15
NEMA 4X to NEMA 250
NSF61 for pumphead
m-qdos30-manual-11 14

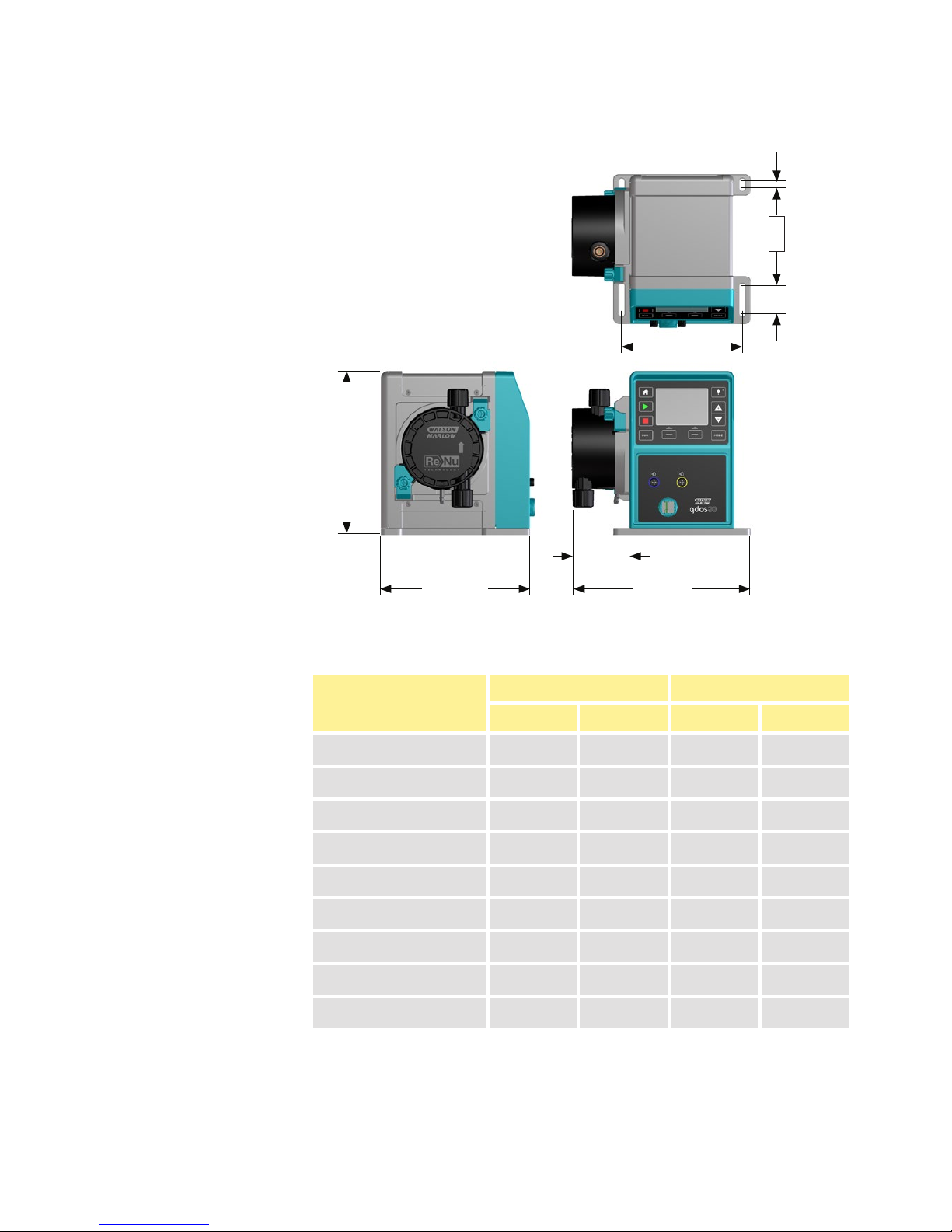

7.1 Dimensions
10mm
(0.4”)
40mm
(1.6”)
140mm
(5.5”)
173mm
(6.8”)
256mm
(10”)
82.5mm
(3.2”)
214mm
(8.4”)
234mm
(9.2”)
7.2 Weights
Model
Drive Drive with pumphead
kg lb kg lb
Manual 4.1 9lb 5.05 11lb 2oz
Remote 4.0 8lb 13oz 4.95 10lb 15oz
Universal 4.1 9lb 5.05 11lb 2oz
Universal+ 4.1 9lb 5.05 11lb 2oz
PROFIBUS 4.1 9lb 5.05 11lb 2oz
Universal 24V relay 4.3 9lb 8oz 5.25 11lb 9oz
Universal+ 24V relay 4.3 9lb 8oz 5.25 11lb 9oz
Universal 110V logic 4.3 9lb 8oz 5.25 11lb 9oz
Universal+ 110V logic 4.3 9lb 8oz 5.25 11lb 9oz
m-qdos30-manual-11 15

8 Good pump installation practice
8.1 General recommendations
Always consult an expert before installing a metering pump in a
specialised system. Metering pumps should be maintained by
qualified persons.
The pump must be bolted to a flat, horizontal, rigid surface, free from excessive
vibration, to ensure correct lubrication of the gearbox and correct pumphead
operation. Allow a free flow of air around the pump to ensure that heat can be
dissipated. Ensure that the ambient temperature around the pump does not exceed
45°C (113°F).
The STOP key on pumps supplied with a keypad will always stop the pump. However,
it is recommended that a suitable local emergency stop device is fitted into the mains
supply to the pump.
Do not stack pumps.
This pump is self-priming and self-sealing against backflow. No valves are required in
inlet or discharge lines, except as described below. Valves in the process flow must be
opened before the pump operates.
Users must fit a non-return valve between the pump and the
discharge pipework to avoid the sudden release of pressurised
fluid in the event of a pumphead failure. This shall be fitted
immediately after the discharge of the pump.
qdos30 is a positive displacement pump; therefore, it is
recommended best practice that customers incorporate
discharge pressure relief in their piping system. Failure to fit a
pressure release valve in the discharge pipework will result in
excessive build up of pressure should the discharge become
blocked. This may present a safety risk, may cause damage to
the system pipework or lead to premature failure of the
pumphead. The pressure relief valve shall be rated at no more
than 10 bar. It shall always be rated at below the users system
maximum operating pressure. It shall be installed so as to
provide easy access for maintenance, inspection and repair. It
shall not be capable of being adjusted without the use of a tool.
The discharge opening must be located and directed so that the
release material is not directed towards any person and will not
deposit on parts that could cause a hazard. There must not be a
shut-off valve between the overpressure safety device and the
pump.
Do not block the drain port of the ReNu pumphead.
Ensure the chemicals to be pumped are compatible with the
pumphead and the pipework and fittings to be used with the
pump. Please refer to the chemical compatibility guide which
can be found at: www.wmftg.com/chemical. If you need to use
the pump with any other chemical please contact Watson-
Marlow to confirm compatibility.
m-qdos30-manual-11 16

8.2 Do's and do not's
Do not build a pump into a tight location without adequate airflow around the
pump.
Do keep delivery and suction tubes as short and direct as possible - though ideally
not shorter than one metre - and follow the straightest route. Use bends of large
radius: at least four times the tubing diameter. Ensure that connecting pipework
and fittings are suitably rated to handle the predicted pipeline pressure. Avoid pipe
reducers and lengths of smaller bore tubing than the pumphead section, particularly
in pipelines on the suction side. Any valves in the pipeline must not restrict the flow.
Any valves in the flow line must be open when the pump is running.
Do use suction and delivery pipes equal to or larger than 6.4mm diameter bore.
When pumping viscous fluids use pipe runs with a bore several times larger than the
pump tube.
Do site the pump at or just below the level of the fluid to be pumped if possible. This
will ensure flooded suction and maximum pumping efficiency.
Do run at slow speed when pumping viscous fluids. Flooded suction will enhance
pumping performance, particularly for materials of a viscous nature.
Do recalibrate after changing pumphead, fluid, or any connecting pipework. It is also
recommended that the pump is recalibrated periodically to maintain accuracy.
Do not pump any chemical not compatible with the pumphead.
Do not tilt the drive with a pumphead fitted, even if it is not running.
Pressure capability
qdos30 can be operated continuously at discharge pressures of up to 7 bar (100psi).
The pump can be operated at discharge pressures of up to 10 bar (145 psi), however
flowrate and pumphead life will be affected.
Dry running
qdos30 will continue to operate when there is gas present in the suction line and will
maintain prime in these conditions. The pump can be run dry, however flow rate and
pumphead life will be affected.
m-qdos30-manual-11 17

9 Connecting to a power supply
This pump is fitted with a switch mode power supply and will operate from any mains
voltage in the range ~100-240V AC, 50/60Hz supplies.
Make suitable connection to an earthed, single-phase mains electricity supply.
We recommend using commercially available supply voltage
surge suppression where there is excessive electrical noise.
Power cable: The pump is supplied fitted with a cable gland and approximately
1.8m (5.9ft) of power cable.
Each pump is supplied with a power cable. The connector at the pump end of the
cable is IP66 rated. The mains plug at the opposite end of the cable is NOT IP66
rated.
Ensure that all power supply cables are adequately rated for the
equipment.
The pump must be positioned so that the disconnection device
(the mains plug), is easily accessible when the equipment is in
use.
When PAT testing this unit ensure that the earth bond test
terminal is used. Do not use the motor shaft as this will result in
motor bearing damage.
Earth bond test terminal position
m-qdos30-manual-11 18

10 Start-up check list
lFit the pumphead to the drive. Refer to: 20 Pumphead Replacement on page 52.
lEnsure the pumphead ports are securely fitted to the interface tubing.
lEnsure proper connection has been made to a suitable power supply.
lEnsure that the general recommendations are followed (see 8.1 General
recommendations on page 16).
m-qdos30-manual-11 19

11 Switching on the pump for the
first time
Power-up the pump.

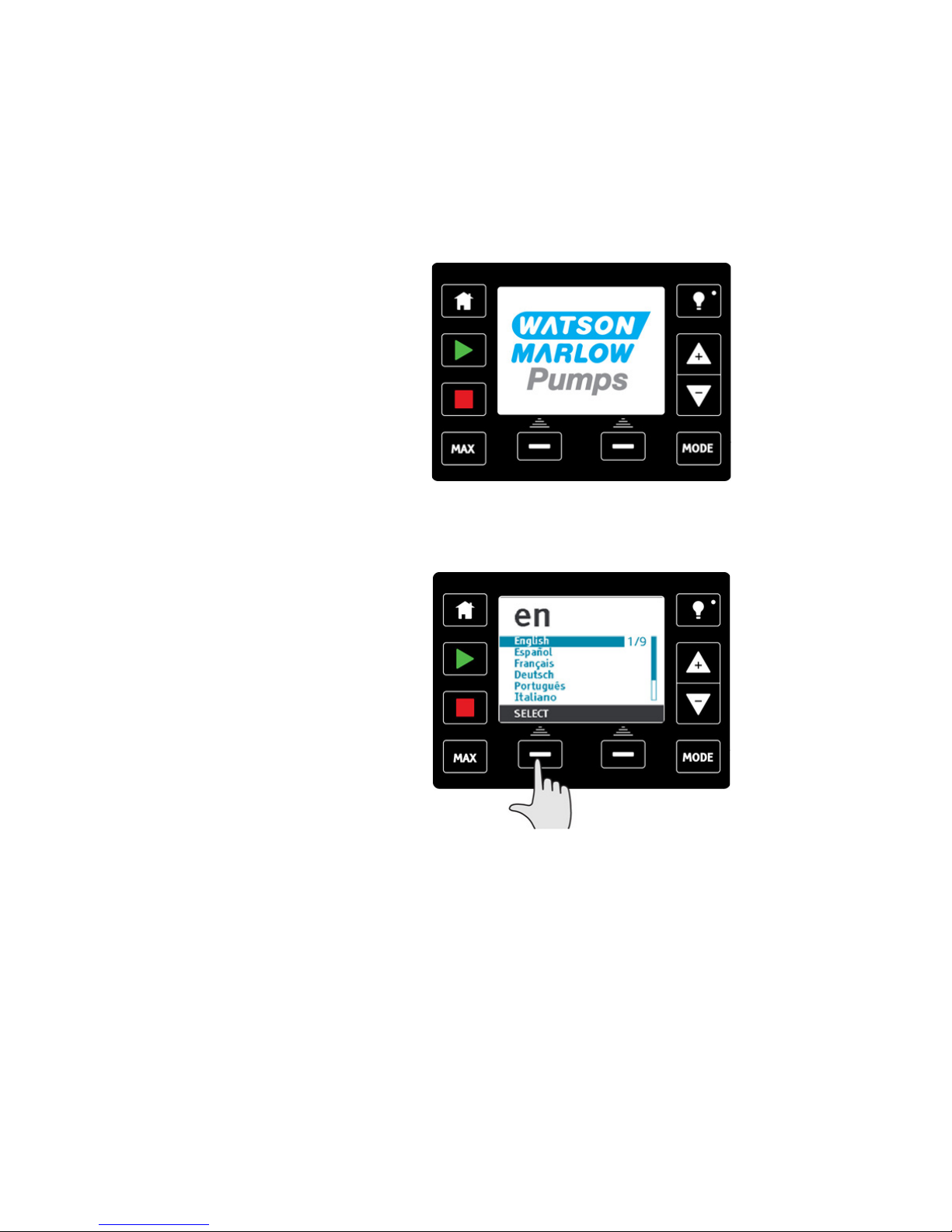

The pump displays the start-up screen with the Watson-Marlow Pumps logo for three
seconds.
Selecting your chosen display language
Use the +/- keys to move the selection bar to your required language. Press SELECT
to choose.
Your selected language will now be displayed on screen, choose CONFIRM to
continue. All displayed text will now appear in your chosen language.
m-qdos30-manual-11 20
