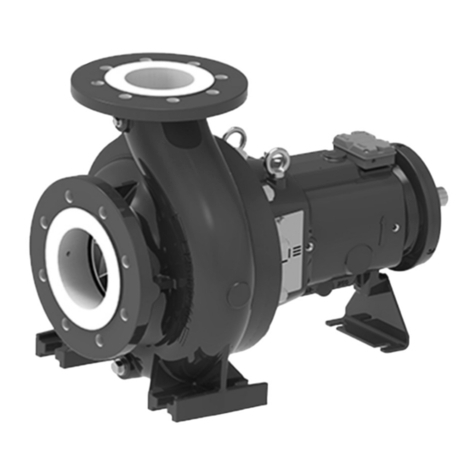

Xylem Lowara e-SVI Series Manual

e-SVI Series
Pump unit / Immersed body multi-stage
vertical pump
Additional Installation, Operation
and Maintenance Instructions

en – Original Instructions
2 e-SVI series – Additional Installation, Operation and Maintenance Instructions
Table of Contents
1Introduction and Safety ............................................................................................................................................4
1.1 Introduction ......................................................................................................................................................4
1.2 Hazard levels and safety symbols....................................................................................................................4
1.3 User safety ........................................................................................................................................................5
1.4 Protection of the environment.........................................................................................................................6
2Handling and Storage...............................................................................................................................................7
2.1 Unit inspection upon delivery..........................................................................................................................7
2.1.1 Package inspection ......................................................................................................................................7
2.1.2 Unpacking and inspection of the unit .........................................................................................................7
2.2 Guidelines for transport ...................................................................................................................................7
2.2.1 Handling of the packed unit using a forklift truck.......................................................................................8
2.2.2 Lifting with a crane .......................................................................................................................................8
2.3 Storage ...........................................................................................................................................................10
3Description of the Product .....................................................................................................................................11
3.1 Features ..........................................................................................................................................................11
3.1.1 Part names ..................................................................................................................................................12
3.2 Data plates......................................................................................................................................................13
3.3 Identification code .........................................................................................................................................14
3.4 Approval marks ..............................................................................................................................................15
4Installation ...............................................................................................................................................................16
4.1 Precautions .....................................................................................................................................................16
4.2 Assembly of the motor...................................................................................................................................17
4.3 Mechanical installation...................................................................................................................................19
4.4 Hydraulic connection .....................................................................................................................................21
4.5 Electrical connection......................................................................................................................................22
4.5.1 Guidelines for electrical connection..........................................................................................................22
4.5.2 Guidelines for the control panel................................................................................................................22
4.5.3 Guidelines for the motor............................................................................................................................22
4.5.4 Overload protection...................................................................................................................................23
4.5.5 Operation with frequency converter .........................................................................................................24
5Use and Operation..................................................................................................................................................25
5.1 Precautions .....................................................................................................................................................25
5.2 Start-up ...........................................................................................................................................................26
5.3 Stopping .........................................................................................................................................................27
6Maintenance............................................................................................................................................................28
6.1 Precautions .....................................................................................................................................................28
6.2 Maintenance every 4000 hours of operation, or every year ........................................................................28

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 3
6.3 Long periods of inactivity...............................................................................................................................29
6.4 Spare parts ordering ......................................................................................................................................29
7Troubleshooting......................................................................................................................................................30
7.1 Precautions .....................................................................................................................................................30
7.2 The unit does not start ...................................................................................................................................30
7.3 The differential protection device (RCD) has tripped ..................................................................................30
7.4 The unit stops and starts cyclically ................................................................................................................31
7.5 The motor protector on the control panel trips ............................................................................................31
7.6 The motor becomes excessively hot .............................................................................................................31
7.7 Little or no hydraulic performance ................................................................................................................32
7.8 When switched off, the unit turns in the opposite direction ........................................................................32
7.9 The unit starts and stops too frequently........................................................................................................32
7.10 The unit does not stop ...................................................................................................................................32
7.11 The unit produces excessive noise and/or vibrations ..................................................................................33
7.12 The unit is leaking at the mechanical seal.....................................................................................................33
8Technical Information .............................................................................................................................................34
8.1 Operating environment .................................................................................................................................34
8.2 Temperature of pumped liquid .....................................................................................................................34
8.3 Maximum operating pressure .......................................................................................................................35
8.4Maximum number of starts per hour.............................................................................................................35
8.5 Electrical specifications ..................................................................................................................................36
8.6 Sound pressure ..............................................................................................................................................36
8.7 Materials in contact with the liquid ...............................................................................................................36
8.8 Seals................................................................................................................................................................37
8.9 Maximum head...............................................................................................................................................37
8.9.1 50 Hz motors ..............................................................................................................................................37
8.9.2 60 Hz motors ..............................................................................................................................................39
9Disposal...................................................................................................................................................................42
9.1 Precautions .....................................................................................................................................................42
9.2 WEEE 2012/19/EU (50 Hz) ............................................................................................................................42
10 Declarations........................................................................................................................................................43
10.1 Pump unit .......................................................................................................................................................43
10.2 Pump...............................................................................................................................................................44
11 Warranty .............................................................................................................................................................45
11.1 Information .....................................................................................................................................................45

en – Original Instructions
4 e-SVI series – Additional Installation, Operation and Maintenance Instructions
1Introduction and Safety
1.1 Introduction
Purpose of this manual
This manual provides information on how to do the following in the correct manner:
•Installation
•Operation
•Maintenance.
CAUTION:
This manual is an integral part of the unit. Be sure to read and understand the manual before
installing the unit and putting it to use. The manual must always be made available to the user,
stored in the proximity of the unit, and well kept.
Supplementary instructions
The instructions and warnings of this manual apply to the standard unit as described in the sale
documentation. Special version pumps may be supplied with supplementary instruction
manuals. For situations not considered in the manual or in the commercial documentation,
contact Xylem or the Authorised Distributor.
1.2 Hazard levels and safety symbols
Before using the unit, the user must read, understand and comply with the indications of the
danger warnings in order to avoid the following risks:
•Injuries and health hazards
•Damage to the product
•Unit malfunction.
Hazard levels
Hazard level
Indication
DANGER:
It identifies a dangerous situation which, if not avoided, causes
serious injury, or even death.
WARNING:
It identifies a dangerous situation which, if not avoided, may cause
serious injury, or even death.
CAUTION:
It identifies a dangerous situation which, if not avoided, may cause
small or medium level injuries.
NOTE:
It identifies a situation which, if not avoided, may cause damage to
property but not to people.

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 5
Complementary symbols
Symbol
Description
Electrical hazard
Hot surface hazard
Danger, pressurized system
Explosive atmosphere hazard
Do not use flammable liquids
Do not use corrosive liquids
Read the instruction manual
1.3 User safety
Strictly comply with current health and safety regulations.
Qualified personnel
This unit must be used only by qualified users. Qualified users are people able to recognise
the risks and avoid hazards during installation, use and maintenance of the unit.
Inexperienced users
WARNING:
•
For EU countries: this product may be used by children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities, or who lack experience and
knowledge, provided that they are being supervised and have been instructed on how to
use it safely, and understand the hazards involved. Children must not play with the product.
Cleaning and maintenance must not be carried out by children without supervision.
•
For countries outside the EU: this product is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or who lack experience and
knowledge, unless they are being supervised and have been instructed on how to use it by
a person responsible for their safety. Children should be supervised to ensure that they do
not play with the product.

en – Original Instructions
6 e-SVI series – Additional Installation, Operation and Maintenance Instructions
1.4 Protection of the environment
Disposal of packaging and product
Comply with the current regulations on sorted waste disposal.
Leaking of fluid
If the unit contains lubricating fluid, take appropriate measures to prevent the dispersion of
leaks into the environment.
Sites exposed to ionizing radiations
WARNING: Ionizing radiation hazard
If the unit has been exposed to ionizing radiations, implement the necessary safety measures
for the protection of people. If the unit needs to be dispatched, inform the carrier and the
recipient accordingly, so that appropriate safety measures can be put in place.

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 7
2Handling and Storage
2.1 Unit inspection upon delivery
2.1.1 Package inspection
1. Check that quantity, descriptions and product codes match the order.
2. Check the packaging for any damage or missing components.
3. In case of immediately detectable damage or missing parts:
•Accept the goods with reserve, indicating any findings on the transport document, or
•Reject the goods, indicating the reason on the transport document.
In both cases, promptly contact Xylem or the Authorised Distributor from whom the
product was purchased.
2.1.2 Unpacking and inspection of the unit
CAUTION: Cut and abrasion hazard
Always wear personal protective equipment.
1. Remove the packaging.
2. Ensure sorting of all packaging materials in accordance with the applicable regulations.
3. Release the unit by removing the screws and/or cutting the straps, if fitted.
4. Check the unit for integrity and to make sure that there are no missing components.
5. In case of damage or missing components, promptly contact Xylem or the Authorised
Distributor.
2.2 Guidelines for transport
Precautions
WARNING: Crushing hazard
The unit and components are heavy: risk of crushing.
WARNING:
Always wear personal protective equipment.
WARNING:
Check the gross weight marked on the
packaging.
WARNING:
Handle the unit in compliance with the current regulations on "manual load handling", to avoid
undesirable ergonomic conditions causing risks of back
-spine injury.
WARNING:
Take appropriate measures during transport,
installation and storage to prevent contamination
from external substances.

en – Original Instructions
8 e-SVI series – Additional Installation, Operation and Maintenance Instructions
2.2.1 Handling of the packed unit using a forklift truck
NOTE:
Do not lift the cardboard packaging with the forklift.
The Figure shows the types of packaging and the lifting points.
1. Cardboard box
2. Cardboard box with wooden base
3. Wooden crate
2.2.2 Lifting with a crane
WARNING:
Use ropes, chains and/or slings (hereinafter referred to as "ropes"), hooks and/or clasps
(hereinafter referred to as "hooks"), shackles or eyebolts that comply
with the applicable
directives and are suitable for use.
NOTE:
Make sure that the harnessing does not hit and/or damage the unit.
WARNING:
Lift and handle the unit slowly to avoid stability issues.
WARNING:
During handling, make sure to avoid injury to people and animals, and/or damage to property.
WARNING:
Do not use eyebolts screwed on the motor for handling the unit.
NOTE:
The pump is shipped by the Manufacturer with two shims to block the shaft and the impeller
stack; always handle the pump with the shims installed to prevent damage.
Also see Assembly
of the motor on page 17.
1 2 3

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 9
Preparing the unit for lifting
1. Move the unit from the horizontal to the vertical position, only using the motor eyebolts if
necessary.
2. Depending on the model:
•Attach the shackles to the eyelets, if any, and attach the ropes to the shackles, or
•Use the ropes to make a tie harness.
The figure shows how to harness and lift the different models.
3. Fix the ropes to the crane.
4. Lift the crane and tension the ropes without lifting the unit.
Lifting and positioning
1. Lift and move the unit slowly
2. Set the unit down slowly.
3. Depending on the model:
•Release the ropes from the shackles, or
•Release the harness.
SVI_M0002_A_sc
SVI_M0003_A_sc

en – Original Instructions
10 e-SVI series – Additional Installation, Operation and Maintenance Instructions
2.3 Storage
Storage of the packed unit
The unit must be stored:
•In a covered and dry place
•Away from heat sources
•Protected from dirt
•Protected from vibrations
•At an ambient temperature between -5°C and +40°C (23°F and 140°F), and relative
humidity between 5% and 95%.
NOTE:
Do not place heavy loads on top of the unit.
NOTE:
Protect the unit from collisions.
Long-term storage of the unit
1. Remove the unit from the tank.
2. Lift and empty the unit.
3. Follow the same instructions for the storage of the packed unit.
Alternatively:
1. Empty the tank.
2. Follow the same instructions for the storage of the packed unit.
Note
This operation is essential in environments with cold temperatures. Otherwise, any residual
liquid in the unit could have an adverse effect on its condition and performance.
For more information on long-term storage contact the Xylem sales company or Authorised
Distributor.

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 11
3Description of the Product
3.1 Features
The product is an immersed body multi-stage vertical pump unit.
The product can be supplied as an pump unit (pump with electric motor), or as a pump only.
Intended use
•Pressure boosting systems
•Transfer and pressure boosting of liquids in machine tools
•Transfer of condensation
•Industrial washing systems
•Filtering systems
•Similar applications.
DANGER: Potentially explosive atmosphere hazard
It is prohibited to start the unit in environments with potentially explosive
atmospheres or with combustible dusts.
Pumped liquids
•Condensation
•Coolants
•Emulsions
•Liquids:
- Clean
- Cold or hot
- Non-explosive
- Free of solid particles or fibres
- Chemically and mechanically non aggressive.
DANGER:
It is prohibited to use this unit to pump flammable and/or explosive liquids.

en – Original Instructions
12 e-SVI series – Additional Installation, Operation and Maintenance Instructions
3.1.1 Part names
1. Coupling
2. Coupling protection
3. Elastomers
4. Tie rod
5. Shaft
6. Shaft sleeve and bush
7. Filter
8. Motor
9. Motor adapter
10. Seal housing
11. Mechanical seal
12. Outer sleeve
13. Suction bottom
14. Screw
15. Cartridge seal
16. Inducer
SVI_M0004_A_ds
16
1
8
2
3
4
5
6
7
9
10
11
12
13
14
15

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 13
3.2 Data plates
Models 1, 3, 5SVI (E) - 1~
1. Pump or pump unit type
2. Flow rate range
3. Head range
4. Minimum head
5. Serial number + manufacturing date
6. Product code
7. Mechanical seal and O-ring materials identification codes
8. Rated voltage range
9. Minimum liquid operating temperature
10. Maximum liquid operating temperature
11. Frequency
12. Maximum operating pressure
13. Pump rated power
14. Weight
15. Protection class
16. Minimum efficiency index
17. Pump unit absorbed power
Models 1, 3, 5SVI (E) - 3~ / 1, 3, 5, 10, 15, 22SVI (C, M)
1. Pump or pump unit type
2. Minimum liquid operating temperature
3. Maximum liquid operating temperature
4. Maximum operating pressure
5. Flow rate range
6. Head range
7. Rotation speed
8. Pump rated power
9. Weight
10. Product code
11. Mechanical seal materials identification code
12. O-ring materials identification code
SVI_M0019_A_sc
1234 5 67
8 9 10 11 12 13 14 15 16 17
SVI_M0020_A_sc
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
917

en – Original Instructions
14 e-SVI series – Additional Installation, Operation and Maintenance Instructions
13. Pump unit absorbed power
14. Minimum head
15. Minimum efficiency index
16. Protection class
17. Serial number + manufacturing date
Models 33, 46, 55, 92 (S, N)
1. Pump unit type
2. Product code
3. Flow rate range
4. Mechanical seal materials identification code
5. Pump unit absorbed power
6. Rotation speed
7. O-ring materials identification code
8. Head range
9. -
10. Type of motor
11. Manufacturing date + serial number
12. Maximum liquid operating temperature
13. Minimum head
14. Maximum operating pressure
3.3 Identification code
Models 1, 3, 5, 10, 15 and 22
1. Flow rate in m3/h
2. Series name
3. Standard asynchronous motor [ ], with Hydrovar® [H] or with e-SM Drive [E]
4. Number of impeller
5. Number of stages
6. Version with extended shaft [E], with cartridge seal [C], standard [M] or special [X] seal
7. Material: AISI 304 [G] or AISI 316 [N]
8. Rated motor power in kWx10
9. 2-pole [2], 4-pole [4] or e-SM Drive [P] motor
10. Single-phase motor [M], three-phase motor [T] or bare shaft pump [ ]
11. Electrical voltage with:
•Frequency 50 Hz: 1x220-240 V [5H], 3x220-240/380-415 V [5R], 3x380-415/660-690 V [5V], 3x200-208/346-
360 V [5P], 3x255-265/440-460 V [5S], 3x290-300/500-525 V [5T] or 3x440-460/- V [5W]
•Frequency 60 Hz: 1x220-230 V [6F], 1x200-210 V [6E], 3x220-230/380-400 V [6P], 3x255-277/440-480 V [6R],
3x440-480/- V [6V], 3x380-400/660-690 V [6U], 3x200-208/346-360 V [6N] or 3x330-346/575-600 V [6T]
•Double frequency: 3x230/400 V 50 Hz, 3x265/460 V 60 Hz [BR] or 3x400/690 V 50 Hz 3x460/- V 60 Hz [BV]
•e-SM Drive: 1x208-240 V [02], 3x380-460 V [04] or 3x208-240/380-460 V [05]
•Bare shaft pump: to be coupled with 60 Hz [6-] or 50 Hz [5-] motor
•Hydrovar®: HVL2.015 1~ 208-240 V (50/60 Hz) [02], HVL3.015 3~ 208-240 V (50/60 Hz) [03] or HVL4.015 3~
380-460 V (50/60 Hz) [04]
SVI_M0021_A_sc
8
9
1234567
12
13
1410
11
SVI_M0022_A_sc
1 5 S V 0 6 - 06C 5
I G 0 5 T 5 R Q Q E
13
35 6 7 9 10
124811 12

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 15
12. Mechanical seal and elastomers
13. Other information: standard [ ], PTC [P], motor heater [S], UL approved (cURus) [U], other specifications [Z] or
Hydrovar® Premium Card [C]
Models 33, 46, 66 and 92
1. Series name
2. Flow rate in m3/h
3. Number of impeller
4. Number of stages
5. Version with coupling [S] or AISI 316 with coupling [N]
6. Rated motor power in kWx10
7. 2-pole [ ] or 4-pole [4] motor
8. Single-phase motor [M], three-phase motor [T] or bare shaft pump [ ]
9. Other information
3.4 Approval marks
For products with a mark of electrical-related safety approval such as IMQ, TUV, IRAM, etc., the
approval refers exclusively to the pump unit.
S V I40 9 / 2 -036 9 S 4
0 T / _
0
SVI_M0023_A_sc
57
2489
36
1

en – Original Instructions
16 e-SVI series – Additional Installation, Operation and Maintenance Instructions
4Installation
4.1 Precautions
General precautions
Before starting, make sure that the safety instructions shown in Introduction and Safety on
page 4 have been fully read and understood.
DANGER:
All the hydraulic and electrical connections must be completed by a technician possessing the
technical
-professional requirements outlined in the current regulations.
WARNING:
Always wear personal protective equipment.
WARNING:
Always use suitable working tools.
WARNING:
Piping must be sized to ensure safety at the maximum operating pressure.
WARNING:
Install appropriate gaskets between the unit and the piping
system.
Electrical measures
DANGER: Electrical hazard
Before starting work, check that the electric power supply is disconnected and locked out, to
avoid unintentional restart of the unit, the control panel and the auxiliary control circuit.
WARNING: Injuries hazard
The unit, equipped with a single
-phase motor with automatic reset thermal overload
protection, could restart inadvertently after it has cooled down: risk of physical injury.
WARNING:
The use of units with single
-phase motors with automatic reset thermal protection for
extinguishing fires and in pulverised water firefighting systems is forbidden.
NOTE:
If using a single
-phase motor other than the standard motor, check that a thermal protection
device has been installed.
NOTE:
Only use dynamically balanced motors with half
-sized key at the shaft end (IEC 60034-14), and
with normal vibration rate (N).

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 17
NOTE:
Only use single
-phase or three-phase motors with sizes and powers in compliance with
European standards.
NOTE:
The mains voltage and frequency must match the specifications on the data plates.
Ground
DANGER: Electrical hazard
Always connect the external protection conductor (ground) to the ground terminal before
attempting to make any other electrical connections.
DANGER: Electrical hazard
Connect all the electrical accessories of the unit to the ground.
DANGER: Electrical hazard
Check that the external protection conductor (ground) is longer than the phase conductors. In
case of accidental disconnection of
the unit from the phase conductors, the protection
conductor must be the last one to detach itself from the terminal.
DANGER: Electrical hazard
Install suitable systems for protection against indirect contact, in order to prevent lethal electric
shocks.
4.2 Assembly of the motor
1. Motor
2. Coupling protection
3. Couple screw
4. Pump
5. Pump shaft shim
6. Coupling
7. Impeller stack shim
8. Motor fixing screws
1
2
3
4
8
7
6
5
SVI_M0006_A_de

en – Original Instructions
18 e-SVI series – Additional Installation, Operation and Maintenance Instructions
1. Remove the shaft shim.
2. Reassemble the protections.
3. Loosen the couple screw.
4. Secure the motor to the adapter with the bolts (not supplied).
5. Tighten the couple screw.
Screws and torques:
M6 = 15 Nm (133 lbf·in)
M8 = 25 Nm (221 lbf·in)
M10 = 50 Nm (443 lbf·in).
SVI_M0007_A_de
SVI_M0008_A_de
SVI_M0009_A_de

en – Original Instructions
e-SVI series – Additional Installation, Operation and Maintenance Instructions 19
6. Remove the impeller stack shim.
7. Reassemble the protections.
Tightening torque: 1.5 Nm (13 lbf·in).
4.3 Mechanical installation
Tank or basin
1. Return piping system
2. Tank
3. Air vent, to maintain the atmospheric pressure inside the tank
4. Discharge pipe
5. Bulkheads, to allow the unit to suck liquid in a quiet state
6. Bypass pipe, to reduce the risk of water hammer effects
7. Unit
8. Seal
SVI_M0010_A_de
6
SVI_M0012_A_sc
1
58
74
2
3

en – Original Instructions
20 e-SVI series – Additional Installation, Operation and Maintenance Instructions
Dimension of the mounting flanges
Model
D1, mm (in)
D2, mm (in)
D3, mm (in)
L, mm (in)
A
F, mm (in)
1, 3 and 5 SVI
140 (5.51)
160 (6.30)
180 (7.09)
100 (3.94)
Rp 1 1/4
Ø 7.5 (2.95)
10, 15 and 22 SVI
200 (7.87)
225 (8.86)
250 (9.84)
125 (4.92)
Rp 2
Ø 9.5 (3.74)
1, 3 and 5 SVIE
140 (5.51)
160 (6.30)
180 (7.09)
120 (4.72)
Rp 3/4
Ø 7.5 (2.95)
33, 46, 66 and 92 SVI
240 (9.44)
265 (10.43)
300 (11.81)
210 (8.27)
DN80
Ø 14 (0.55)
Permitted positions
SVI_M0015_A_sc
A
L
4 x F
D1
D2
D3
SVI_M0014_A_sc
