Watts HYDROGUARD HG210 User manual

HG210
HG220
Installation and Operating Instructions
For correct operation of this product, it is essential to observe these instructions

2| P a g e
Contents
Introduction .................................................................................................................................2
General Warnings and Safety Information.......................................................................................3
General ....................................................................................................................................3
Mechanical...............................................................................................................................3
Product Information......................................................................................................................4
Features...................................................................................................................................4
Product Specications ..............................................................................................................4
Parts Included ..............................................................................................................................5
Installation Instructions.................................................................................................................6
Water supply Requirements.......................................................................................................6
Environment Requirements .......................................................................................................6
Product and Position Preparation ...............................................................................................6
Mounting Installation.................................................................................................................7
Plumbing Installation.................................................................................................................7
Maintenance Instructions..............................................................................................................8
Filter Cartridge Replacement .....................................................................................................8
Spare Parts List.........................................................................................................................9
Troubleshooting............................................................................................................................9
Limited Warranty ........................................................................................................................11
Maintenance Log ........................................................................................................................12
Introduction
Please read the entire manual before installing or operating this product. Failure to follow any
instructions or operating parameters may lead to injury, untreated water or product damage.

P a g e | 3
General Warnings and Safety Information
General
•Do not use with water that is microbiologically unsafe or with water of unknown quality
without adequate disinfection.
•The product must be installed in an upright position, it cannot be installed in any other
orientation.
•Do not allow this product or the water system to freeze. Damage from freezing will void the
warranty.
•Whilst all care is taken to provide a robust system, like any plumbing product, failure can
occur which can result in water damage or ooding. The location of the installed product
should consider the risk of ooding and measures put in place to minimize the impact should
a ood occur.
•Regularly inspect the product for signs of wear or damage. If any abnormality is found then
immediately discontinue the use of the product.
Mechanical
•Installation and plumbing of the product should be done by a certied installer and follow all
local standards and regulations.
•Backow prevention, if required, should be installed prior to the water inlet on the product
•Supply pressure to the unit must not exceed 500kPa. A certied pressure limited device
should be installed by a licensed plumber upstream of the product if the supply pressure can
exceed 500kPa.
•Protect the product from water hammer.
•Filter housings should only be hand tightened. A spanner is included to assist when loosening
the lter housings during service, but it is not recommended to use to tighten the housing.
•Thread sealant tape should be used on all plumbing connections, do not use any other type of
thread sealant.
•Only 100% silicone food grade lubricants should be used on O-rings. Do not use petroleum
based lubricants such as Vaseline, oils, or hydrocarbon based lubricants.

4| P a g e
Product Information
Features
•Pre-assembled for easy assembly
•2-stage ltration for excellent water quality:
▪5-micron sediment ltration
▪Chlorine, taste and odour treatment (CTO)
•Brass ttings for extra strength
•No power required
Product Specications
HG210
HG220
Water Supply
1-40°C water only from tank, bore or mains supply
Ambient Temperature
1-40°C
Inlet/Outlet Connections
25mm (1”) BSP
Working Pressure
≤500kPa
Maximum Pressure
800kPa
Max Flow Rate (500kPa supply pressure)
110 L/min
Product Weight (No Water)
6.5 kg
12.5 kg
Product Weight (With Water)
12.5 kg
23.5 kg
Product Size (height x width x depth)
520x405x220 mm
670x405x220 mm

P a g e | 5
Parts Included
For quick and easy installation, the product components come assembled. Before installing the
product, please check all contents are present and undamaged. All connections must be checked for
leaks before operating the product.
Item
Description
Product Code
HG210
Product Code
HG220
1
Mounting Plate
-
2
Filter Housing Cap (x2)
-
3
Housing O-ring (x2)
-
4
Filter Housing (x2)
HGFH10
HGFH20
5
Sediment Filter Cartridge
HG10SFC
HG20SFC
6
CTO Filter Cartridge
HG10CTOFC
HG20CTOFC
7
Spanner
-

6| P a g e
Installation Instructions
Water supply Requirements
•Cold water inlet only, working water temperature 1-40 °C. Protect from freezing at all times.
•Supply pressure ≤500kPa. An approved pressure limiting valve must be installed by a licensed
person in situations where supply pressure could exceed 500kPa.
•Contamination could be present in the water system before the product is installed. Flush the
water system after installation and consult an expert if water treatment is required at the
source.
Environment Requirements
•The Hydroguard can be installed indoors or outdoors, but should be protected from harsh
chemical or salt air environments to prevent premature corrosion.
•The mounting xture must be solid and capable of supporting the weight of the product when
lled with water.
•Minimise exposure of the lter housings to direct sunlight and protect the system from
freezing at all times. Ambient temperature 1-40 °C.
Product and Position Preparation
Remove all packaging and dispose of it responsibly. Check all components are present and
undamaged.
Select a suitable location to install:
•The wall tting needs to be suiciently strong to support the weight of the product when lled
with water.
•Avoid locations where the unit is in direct sunlight or at risk of freezing.
•Check the location has suitable access to the supply and building plumbing, and be within x m
of a suitable power outlet. A licensed plumber or electrician may be required if appropriate
xtures are not available.

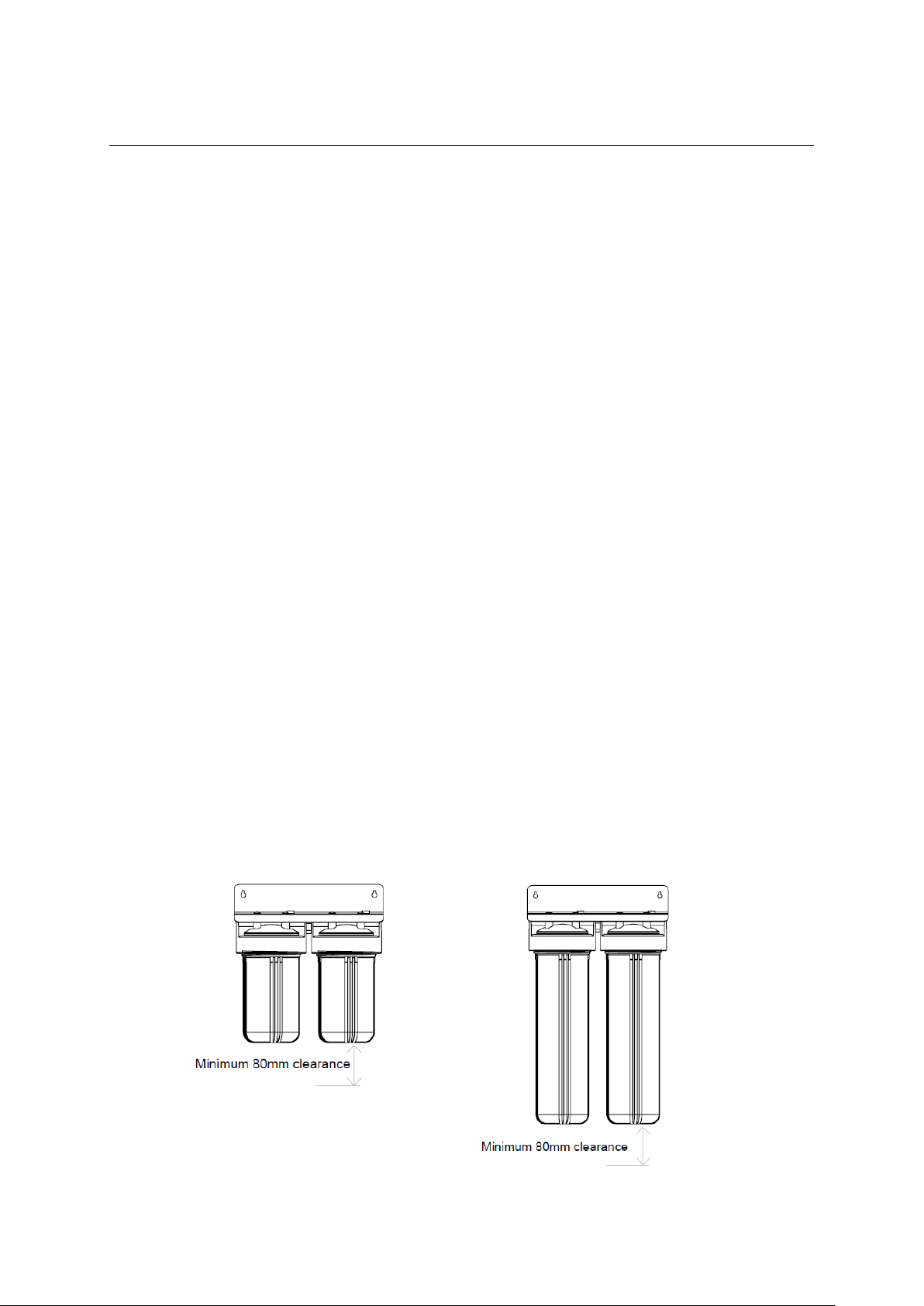

•At least 80 mm of clearance below the lter housings is required for the replacement of lter
cartridges. Refer to diagram below.

P a g e | 7
Mounting Installation
Installation steps:
1. Mark the desired location for the mounting xings. See Product and Position Preparation
2. Drill the holes and install the anchors (not included).
3. Align the mounting plate with the anchors and lower into place.
4. Tighten the xings to hold the system securely in place.
Plumbing Installation
If installing on a mains water supply, an approved backow prevention valve must be
installed by a licensed plumber according to local regulations.
1. Ensure the water supply is o. Connect the inlet and outlet plumbing to the product 1”
(25mm) connections. Unions (not supplied) are recommended at the inlet and outlet for easy
disconnection and maintenance. An isolation valve should be installed upstream and
downstream of the product to allow easy maintenance of the product.
2. Check that lter cartridges are installed in both housings. The 5 micron sediment lter should
be in the rst housing, and the CTO lter should be in the second housing (next to the UV
sterilizer).
3. Check that 2 sealing O-rings are clean, undamaged and assembled correctly to the lter
housing. If the O-rings are not lubricated, use 100% silicone food grade lubricant to assist
with assembly.
4. Screw the lter housings into the housing caps. Do not overtighten the housings.
5. Slowly turn on the water supply and check for leaks at all connections in and around the
product.
6. If there are no leaks, increase the supply pressure up to the maximum of 500kPa. Check for
leaks again and then open an outlet downstream to ush water through the line for 3-5
minutes. Check again for leaks and then close the downstream outlet.

8| P a g e
Maintenance Instructions
Before any maintenance turn o the water supply to the product and open a downstream xture for a
few minutes or until the water ow stops. Close the downstream xture, and then press the red
buttons on top of the lter housing caps to release the pressure in the system. You may now begin
maintenance. Place a tray underneath, if required, to catch any water that splashes.
To resume ow after maintenance, slowly turn on the water supply to the product and check for
leaks. Open a xture downstream of the product for 3 minutes to ush water through the system and
remove any air pockets. Close the xture downstream and then check for leaks again. You may now
resume water usage.
Filter Cartridge Replacement
Replacement of the lter cartridges is recommended at least every 1 year, or as required due to the
supply water quality.
Steps to replace the lter cartridge (recommended at least every 1 year or as required):
1. Read the general maintenance instructions before
starting the lter cartridge replacement.
2. After isolating and release the system pressure. Loosen
the lter housing from the cap using the spanner to assist
(turn clockwise when looking from above).
3. Carefully unscrew the lter housing, taking care as the
weight of the lter housing with water can be heavy.
4. Empty excess water from the housing and remove the
lter cartridge. Please dispose of the lter cartridge
responsibly.
5. If necessary, clean the housing with dish soap and warm
water and then rinse thoroughly.
6. Remove all packaging from the replacement lter
cartridge. Record the model number of the cartridges you
use & install date in the maintenance log at the back of
this manual.
7. Insert the lter cartridge into the lter housing. For CTO
lters, ensure that the rubber seal on the top and bottom
are rmly in place before inserting into the housing.
Ensure the lter cartridge is correctly seated on the spigot
at the base of the lter housing.
8. Check O-rings are clean, undamaged and assembled
correctly to the lter housing. Replace if necessary and
lubricate using only 100% silicone food grade lubricant.
9. Hold the lter housing vertically whilst screwing the lter
housing back into the cap. Ensure the top spigot is
aligned with the center of the lter housing. Hand tighten
the housing until rm, being careful not to overtighten. Do
not overtighten the housings.
10. Read the general maintenance instructions on how to
restart ow after replacing the cartridges.

P a g e | 9
Spare Parts List
Product
Sediment Filter
(1st Stage)
CTO Filter
(2nd Stage)
UV
Lamp
Quartz
Sleeve
UV Controller
Ballast
Filter
Housing
HG210
HG10SFC
HG10CTOFC
-
-
-
HGFH10
HG220
HG20SFC
HG20CTOFC
-
-
-
HGFH20
HG210UV
HG10SFC
HG10CTOFC
HGUVL
HGUVQSS
HGBPC
HGFH10
HG220UV
HG20SFC
HG20CTOFC
HGUVL
HGUVQSS
HGBPC
HGFH20
Troubleshooting
Symptom
Possible Cause(s)
Solutions
Low water ow
Filter cartridge(s) are blocked
Replace the cartridge(s), see Filter Cartridge
Replacement. Cartridges should be replaced every 6-
12 months depending on water quality.
Low supply pressure
Investigate cause of low pressure at the source.
Isolation valves are restricting
ow
Check all isolation valves before and after the lter
product are fully open.
Water leak at
inlet or outlet
Plumbing connection is leaking
Remove any ttings, clean all threads thoroughly and
reseal with thread sealant tape and tighten.
Filter cap is damaged, causing a
leak
Contact Watts for a replacement if the part has been
overtightened, exposed to freezing, high pressure or
other damage.
Water leak at
lter housing
Seal is leaking due to missing,
damaged, or unlubricated O-
ring.
Unscrew the lter housing. Check that 2 sealing O-
rings are present, clean, undamaged and assembled
correctly to the lter housing. Use 100% silicone food
grade lubricant on O-rings to assist with assembly and
prevent pinching. See Filter Cartridge Replacement.
Filter housing is damaged,
causing a leak
Replace lter housing if the part has been
overtightened, exposed to freezing, high pressure or
other damage. See Spare Parts List.
Inconsistent or
bubbly water
ow
Trapped air in the system
Shut o water supply and release pressure in the
system by pressing the red buttons on top of the lter
housing caps. Slowly turn on the water supply and
open a xture downstream of the product for 3
minutes to ush water through the system and remove
any air pockets.
Filters are
becoming
blocked very
quickly
High sediment from water
source
Consider adding pre-ltration before the product with
a larger nominal micron size (e.g. 20 micron) to
remove large sediment before reaching the lter.
Table continues on next page

10 | P a g e
Contaminants in
the outlet water
Filter cartridges are at
capacity
Cartridges should be replaced every 6-12 months
depending on water quality. See Filter Cartridge
Replacement.
Contamination in the lter
housings
Remove the lter housings, clean the housing with dish
soap and warm water, rinse thoroughly and then
reassemble. See Filter Cartridge Replacement.
Insuicient ushing of the
lter cartridge
Shut o water supply and release pressure in the
system by pressing the red buttons on top of the lter
housing caps. Slowly turn on the water supply and
open a xture downstream of the product for 3
minutes to ush water through the system. See Filter
Cartridge Replacement.
Source of contamination after
the lter
Flush the system for at least 3 minutes. Investigate
possible sources of contamination after the product.
System bypass is open
If the lter product has a bypass, check that the valve
is fully closed.
Poor water quality at the
source
Consult an expert to test if additional water treatment
is required at the source.

P a g e | 11
Limited Warranty
Watts warrants each product to be free from defects in material and workmanship under normal
usage for a period of one year from the date of purchase. In the event of such defects within the
warranty period, Watts will, at its option, replace or recondition the product without charge.
Watts shall in no way be liable for any loss, damage (direct, indirect or consequential), cost or
expense incurred other then those rights a consumer has under the Consumer Guarantees Act 1993.
This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or
improper maintenance or alteration of the product including the following:
1. Faulty operation due to foreign matter in the water supply
2. Installation of the product in water supplies that contain excessive dissolved salt or
chemicals.
3. Installation that does not comply with NZ Building Code G12, NZS 4607:1989, any other
relevant approved Standard or manufacturers instructions and recommendations.
4. Abuse or mutilation of a valve during installation or in an attempt to repair or replace the
product.
5. Installation of a product in an application where its intended use is not that for which the valve
was designed without the prior written consent of Apex Valves Limited.
6. Failure due to a lack of maintenance.
Watts reserves the right at any time to modify any product design, features or specications.

12 | P a g e
Maintenance Log
Date
Serviced By
Stage 1 Filter
Stage 2 Filter
Replace at least every 1 year or as required
Replace at least every 1 year or as required
