INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Refer to enclosed warranty and operating parameters to ensure proper use with your water supply.
Save manual for future reference
MODEL
WP4V-50
Warning
Please read carefully before proceeding with installation. Your failure to follow any attached
instructions or operating parameters may lead to the product’s failure.
Watts Premier 8716 W Ludlow Drive, Suite 1 Peoria, AZ 85381
Phone: [phone] www.premierH2o.com Fax: [phone]
Manual: 199393 Manual Date: 10/25/2016
System tested and certied by WQA against NSF/ ANSI Standard
53 & 58 for the reduction of the claims specied on the performance
data sheet and NSF/ ANSI Standard 372 for lead free.

Page 2
Thankyouforyourpurchase ofa stateof theart PremierReverseOsmosis(RO) watertreatment system.Water quality
concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water, such
asArsenic, Chromium, Cryptosporidium or Giardia. There may also be some local water issues such as high levels of Lead
and Copper. This Premier water treatment system has been designed and tested to provide you with high quality water for
years to come. The following is a brief overview of the system.
Your Reverse Osmosis System:
Osmosis is the process of water passing through a semi permeable membrane in order to balance the concentration of
contaminants on each side of the membrane.Asemi permeable membrane is a barrier that will pass some particles like clean
water, but not other particles like arsenic and lead.
Reverse osmosis uses a semi permeable membrane; however, by applying pressure across the membrane, it concentrates
contaminants (like a strainer) on one side of the membrane, producing clean water on the other. This is why RO systems
produce both clean drinking water and waste water that is ushed from the system. This reverse osmosis system also utilizes
carbon block ltration technology, and can therefore provide much higher quality drinking water than carbon ltration systems.
Your system is a Four Stage RO which is based upon four separate treatment segments within one complete water ltration
system. These stages are as follows:
Stage 1 – Sediment lter, recommended change 6 months.
The rst stage of your RO system is a ve micron sediment lter that traps sediment and other particulate matter
like dirt, silt and rust which affect the taste and appearance of your water.
Stage 2 – Carbon lter, recommended change 6 months.
The second stage contains a 5 micron carbon block lter. This helps ensure that chlorine and other materials that
cause bad taste and odor are greatly reduced.
Stage 3- Membrane, recommended change 2-5 years.
Stage three is the heart of the reverse osmosis system, the RO membrane. This semi-permeable membrane will take
out TDS & Sodium and a wide range of contaminants such as Chromium,Arsenic, Copper, Lead, as well as Cysts,
such as Giardia and Cryptosporidium and much more. Because the process of extracting this high quality drinking
water takes time, your RO water treatment system is equipped with a storage tank.
Stage 4- VOC Block, recommend change 12 months.
Premier WP4V-50 reverse osmosis system conforms to NSF/ANSI 58 for VOC reduction. Through the specialty
formulated VOC post lter your system is capable of reducing harmful Volatile Organic Chemicals (VOC) like
MTBE’s, Atrazine, Benzene, 2,4-D,Lindane and others from your drinking water. It is estimated that VOC’s are
present in one-fth of the nation’s water supplies. These water contaminants can enter ground water from a variety
of sources including localized use of herbicides and pesticides, gasoline or oil spills, leaking underground fuel tanks,
septic system cleaners, and chemicals used in the dry-cleaning industry. See performance data sheet for individual
contaminants and reduction performance.
Note: Filter life may vary based upon local water conditions and/or use patterns.
System Maintenance
Just because you can not taste it, does not mean that it is not there. Contaminants such as lead, chromium,VOC’s and arsenic
are undetectable to the taste. Additionally, over time if you do not replace the lter elements, other bad tastes and odors will
be apparent in your drinking water.
This is why it is important to change out your lter at the recommended intervals as indicated in this system manual. When
replacing the lter elements, pay special attention to any cleaning instructions. Should you have any further questions please
refer to our website at www.premierH2o.com or call our customer service dept. at 1-800-752-5582.
With proper installation and maintenance, this system will provide you with high quality water for years to come.
All of Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability.
If you have any questions or concerns, please contact our customer service department at 1-800-752-5582
(outside USA 480-675-7995) or refer to our on-line troubleshooting guide at www.premierH2o.com.

Page 3
** Before installation, please take a moment to ll out the warranty card on page 25.
Table of Contents
Operational Parameters................................................................................................................... 4
Contents of Reverse Osmosis System............................................................................................ 4
Installation & Startup
Tools Recommended For Installation .............................................................................................. 4
System Diagram and Parts List....................................................................................................... 5
Drill a Hole for the Reverse Osmosis Faucet .................................................................................. 6
How to use Quick Connect Fittings on Your RO System ................................................................ 6
Faucet Installation .......................................................................................................................... 7
Helpful Installation Tips for the Watts Top Mount Faucet ................................................................ 8
Adapt-a-Valve Installation ............................................................................................................... 9
Drain Saddle Installation................................................................................................................ 10
Drain Saddle Tube Connection...................................................................................................... 10
Reverse Osmosis Module Mounting...............................................................................................11
Green Tube Connection .................................................................................................................11
Tank Elbow Installation ...................................................................................................................11
Connect Blue Tube from “TANK” Port on RO Module to the Tank..................................................11
Connect Blue Tube from the Faucet to RO Module........................................................................11
Connect the Red Tube from Faucet to RO Module ........................................................................11
Start up Instructions....................................................................................................................... 12
Maintenance & Troubleshooting
Six Month Maintenance................................................................................................................. 13
Annual Maintenance ..................................................................................................................... 14
Membrane Replacement .............................................................................................................. 15
Check Air Pressure in the Tank ..................................................................................................... 16
Procedure for Extended Non-Use (More than 2 months).............................................................. 16
Troubleshooting ............................................................................................................................ 17
Product Technical & Warranty Information
Performance Data Sheet................................................................................................................ 18
Arsenic Fact Sheet ......................................................................................................................... 19
VOC Performance Data Sheet ....................................................................................................... 20
Service Record............................................................................................................................... 21
Limited Warranty ............................................................................................................................ 22

Page 4
1 Tank – White
1 Module – White
1 Parts Bag
1 Faucet Bag
1 Filter Wrench
1 Manual
* All Filters Are Pre-Installed
Installation must comply with State and local plumbing regulations. Do not use with water that is micro
biologically unsafe or of unknown quality without adequate disinfection before or after the system.
System is intended to be installed using the cold water supply only.
Tools Recommended For Installation
√ 1 1/4" Diamond Tipped Hole Saw bit for faucet opening (Counter Tops/Porcelain & Stainless Sinks)
√ 1 1/4” Adjustable Wrench √ Phillips bit for electric drill
√ 1/2" Open End Wrench √ Needle Nose Pliers
√ 5/8” Open End Wrench √ Adjustable Pliers
√ Electric Drill √ Sharp Knife
√ 1/8" diamond tip bit, pilot hole √ Phillips Screw Driver
√ 1/4” drain saddle hole
Contents of the Reverse Osmosis (RO) System
Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F (4.4°C)
Operating Pressure: Maximum 100 psi (7.0 kg/cm
2
) Minimum 40 psi (2.80 kg/cm
2
)
pH Parameters: Maximum 11 Minimum 2
Iron: Maximum 0.2 ppm
TDS (Total Dissolved Solids) < 1800 ppm
Turbidity < 5 NTU
Hardness Maximum 10 Grains Per Gallon *
Hardness: Recommended hardness not to exceed 10 grains per gallon, or 170 parts per million.
* System will operate with hardness over 10 grains but the membrane life may be shortened.
Addition of a water softener may lengthen the membrane life.
Copper Tube: Reverse Osmosis water should not be run through copper tube as the purity of the
water will leach copper causing an objectional taste in water and pin holes may form in the tube.
Water Pressure: The operating water pressure in your home should be tested over a 24 hour
period to attain the maximum pressure. If the incoming water pressure is above 100 psi then a
water pressure regulator is required. A booster pump is needed for incoming water pressure
under 40psi.
Operational Parameters
INSTALLATION & STARTUP
If any of the items are missing please contact Premier prior to installing.

Page 5

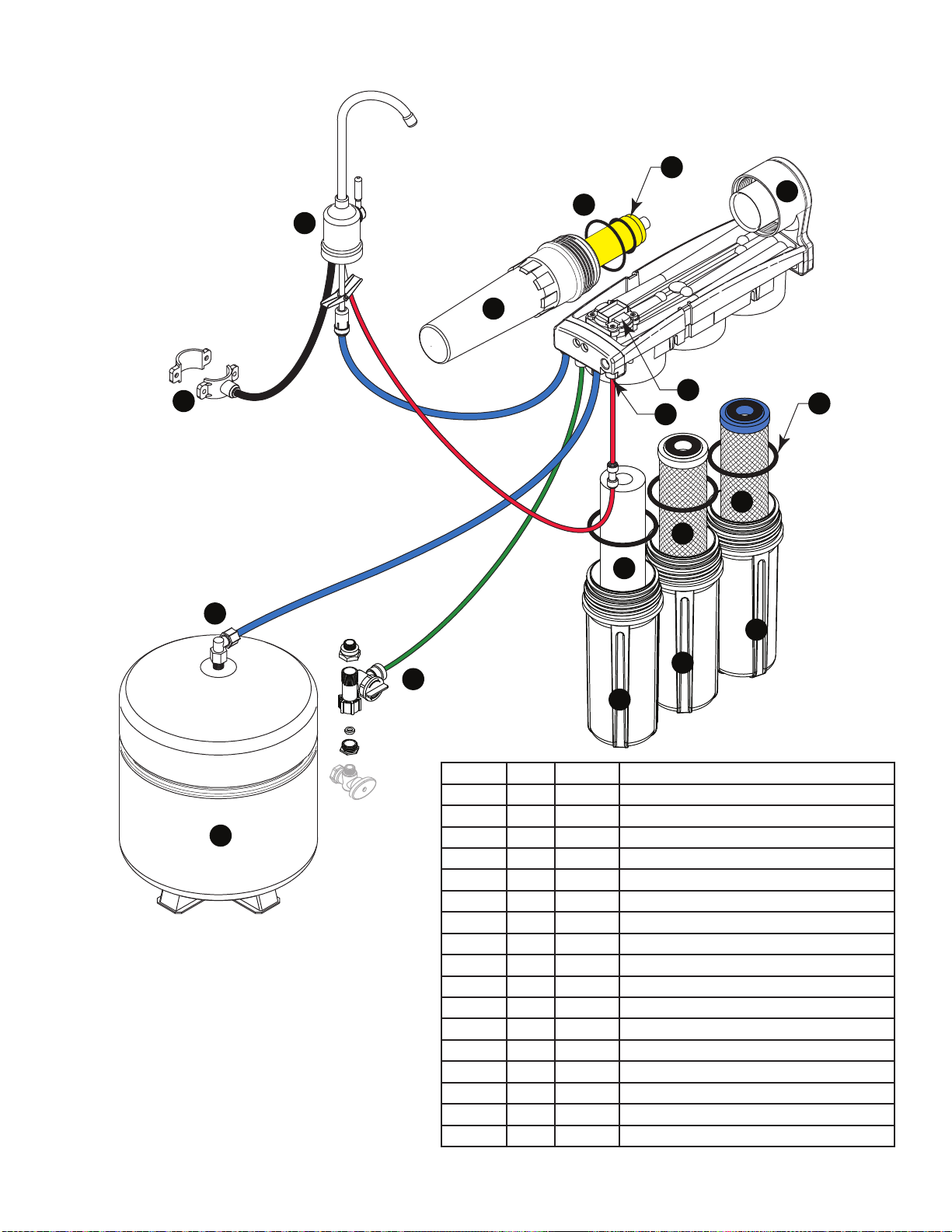

System Diagram and Parts List
12
COLD WATER
ANGLE-STOP
(SUPPLY)
1/4”
GREEN
TUBE
3/8”
BLUE
TUBE
11
1/4”
RED
TUBE
3/8”
BLUE
TUBE
3/8”
BLACK
TUBE
9
8
6
4
14
7
3
1
2
5
5
5
10
15
13 16
Item Qty Part # Description
1 1 101009 Carbon Block-10 Inch-5M
2 1 101013 VOC Carbon Block
3 1 104017 Sediment Filter-10 Inch-5M
4 ALT 1 560016 RO Membrane 35GPD
4 1 560018 RO Membrane 50GPD
5 3 113018 Filter Bowl
6 1 113035 Membrane Vessel
7 3 113041 O-Ring Filter Bowl
8 1 113045 O-Ring Membrane Vessel
9 1 420060 WTM Faucet
10 1 119007 Tank-Pressure 3GAL White
11 1 125032 Elbow Fitting 3/8” Tank
12 1 560080 Adapt-a-Valve
13 1 164056 Drain Saddle 3/8”
14 1 610003 Prepared Lid, Manifold
15 1 610020 Automatic Shut Off Valve Kit
16 1 622055 500mL Flow Restrictor

Page 6
After drilling, remove all sharp edges and make sure the surroundings
of the sink are cooled before mounting the faucet.
Step 3
Step 4
Determine desired location for the RO faucet on your sink and place
a piece of masking tape over where the hole is to be drilled. Mark the
center of the hole on the tape.
Step 1
Using a variable speed drill set on the slowest speed, drill a 1/8“ pilot
hole through both porcelain and metal casing of sink at the marked
center of the desired location. Use lubricating oil or liquid soap to keep
the drill bit cool (If drill bit gets hot it may cause the porcelain to crack
or chip).
Using a 1 ¼” diamond tip hole saw, proceed to drill the large hole. Keep
drill speed on the slowest speed and use lubricating oil or liquid soap
to keep the hole saw cool during cutting.
Step 2
Counter Top / Porcelain & Stainless Steel Sink
Note: Most sinks are pre drilled with 1 ¼” diameter hole that you can use for your RO faucet.
(If you are already using it for a sprayer or soap dispenser, see step 1)
Porcelain sinks are extremely hard and can crack or chip easily.
Use extreme caution when drilling. Watts accepts no responsibility for
damage resulting from the installation of faucet. Diamond tip bit recommended.
Marble Counter-top
We recommend contacting a qualied contractor for drilling a hole in a marble counter-top.
Drill a Hole for the Reverse Osmosis Faucet
How to use the Quick Connect Fittings
To make a connection, the tube is simply pushed into the tting. The unique locking system holds the tube rmly in place
without deforming it or restricting ow. Use the steps below in reference to any quick connect tube connections.
It is essential that the outside diameter be free of score
marks and that burrs and sharp edges be removed before
inserting into tting.
Fitting grips before it seals. Ensure tube is pushed into
the tube stop.
Push the tube into the tting, to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
rmly in position while the O-ring provides a permanent
leak proof seal.
Pull on the tube to check that it is secure. It is a good practice
to test the system prior to leaving site and /or before use.
To disconnect, ensure the system is
depressurized before removing the tube. Push in the col-
lect squarely against face of tting. With the collet held
in this position, the tube can be removed. The tting can
then be reused.

Page 7

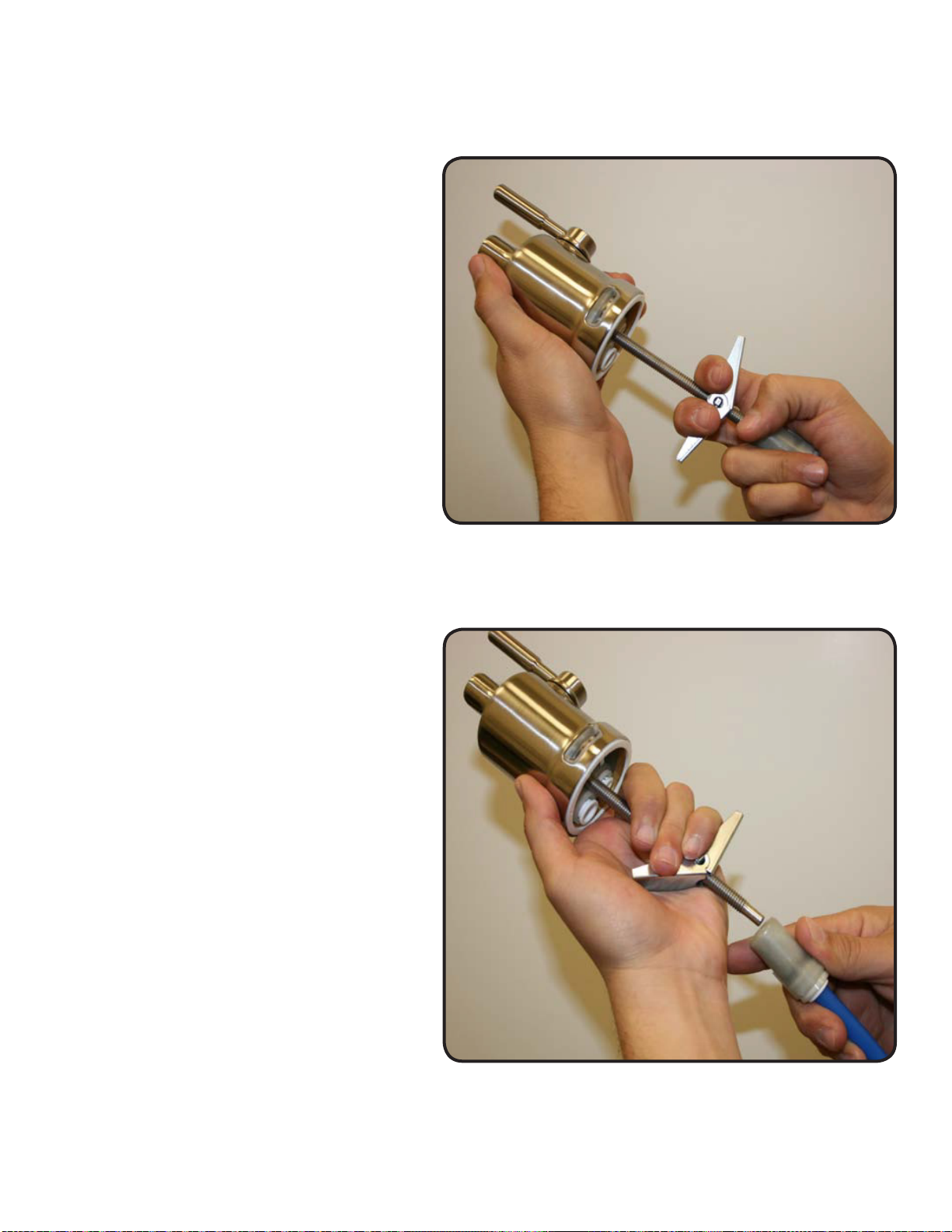

Premier Monitored (Top Mount) Faucet Installation
1
2
3
b
a
4
4. Feed the toggle bolt and tubes through the mounting hole in The
sink. Test t faucet placement.
6. Using a at head screwdriver torque the toggle bolt through the
spout hole to approximately 5lbs/in.
5
A 1.0” - 1.25” Mounting hole is required for faucet installation.
8. Pull the Battery Safety Tab out to activate faucet monitor.
Make sure that the clear drawer is rmly seated in the
faucet base. The monitor will ash briey once activated.
7. Insert spout into the faucet base until fully seated.
8
7
6
A) Connect tubes to the RO faucet (Figure A)
B) Mount the RO faucet (Figure B)
C) Pull Battery Tab and Install Spout (Figure C)
This RO faucet is equipped with quick connect ttings for easy tube
installation. To connect tubes, simply push them rmly into their
corresponding tting on the RO faucet until fully seated.
1. Connect 3/8” BLUE tube. (3/8” Fitting on Toggle Bolt)
To disconnect a tube, push in collet (Fig. b) squarely against face
of tting (Fig. a). With collet held in this position the tube can be
removed.
2. Connect 3/8” BLACK tube . (3/8” Fitting on base of faucet)
3. Connect 1/4” RED tube. (1/4” Fitting on base of faucet)
Approximately 3/4” of the tube should go into the tting.
A
B
C
5. Peel the white backing paper off the seal on the bottom of the
faucet base and press rmly over the mounting location.

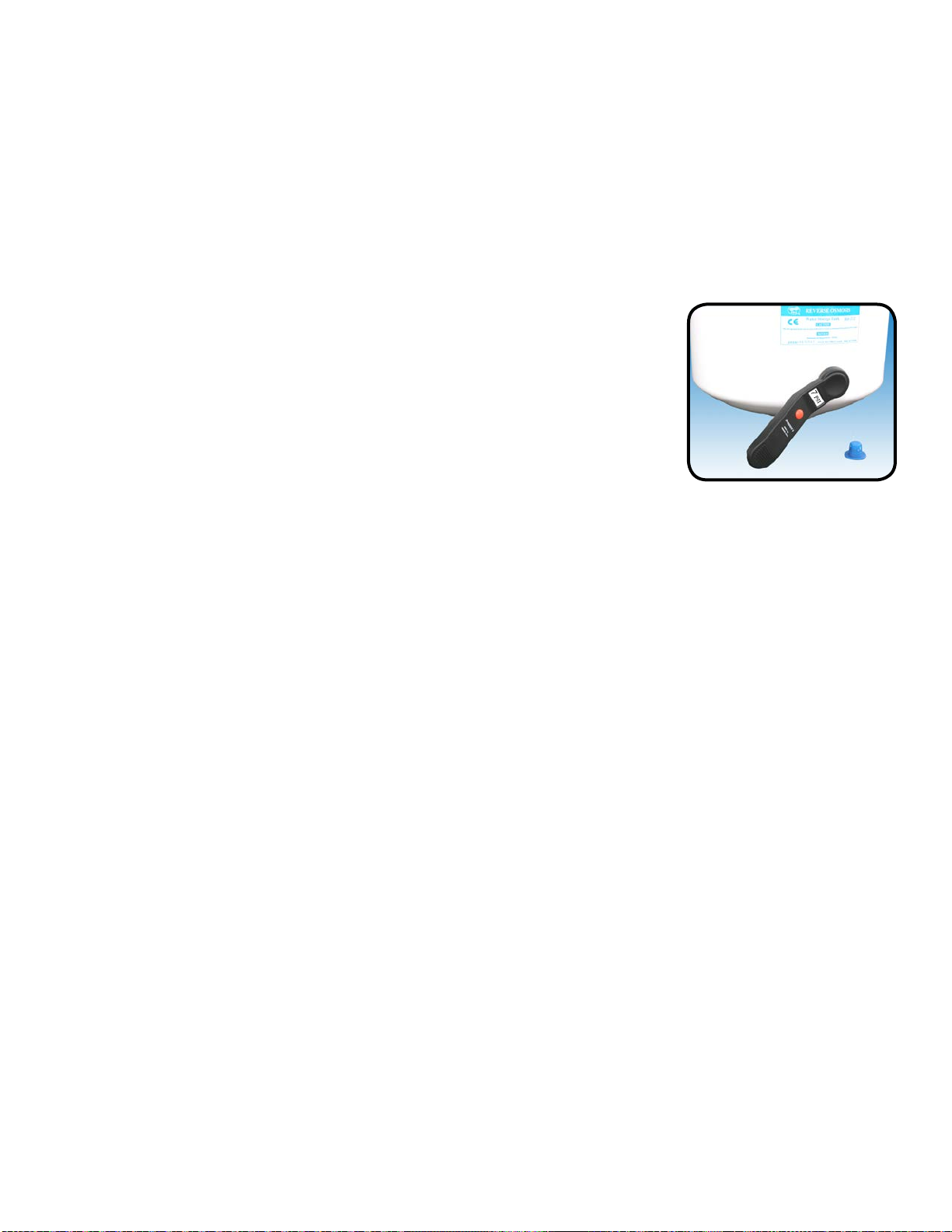

“This product contains a button cell battery. If swallowed, it
could cause severe injury or death in just 2 hours.
Seek medical attention immediately.”
CAUTION!

Page 8
Helpful Installation Tips for the Watts Top Mount Faucet
During shipping/handling the tog-
gle bolt on your new faucet may
push up out of position. Prior to the
install, hold the faucet as shown in
the picture and pull down on the
wing nut. This will ensure that the
O-rings are in their proper position
and that your faucet will have a
good seal.
Disassembling your faucet is never
recommended as this could void
your warranty. If it is necessary to
remove the fitting at the end of the
toggle bolt you must follow the fol-
lowing procedure for re-assembly.
Prior to re-connecting the fitting
to the toggle bolt, you must insert
the 3/8” blue tube into the fitting.
There are small O-rings inside of
the fitting that could be pushed out
of position if the blue tube is not
fully inserted first. Failure to do so
may cause the faucet to leak.

Page 9
Turn off the cold water supply to the faucet by turning the angle stop valve completely off.
Open cold water sink faucet to relieve pressure.
Step 5
Step 6 Choosing the conguration that ts your plumbing, attach the adapt-a-valve as illustrated in
the four photos above.
Adapt-a-Valve Installation
Do not use Teon tape with the Adapt-a-Valve.WARNING:
Caution: Water supply line to the system must be from the cold water supply line only.
Hot water will severely damage your system.
3/8” Conguration
(With Brass Fittings)
* Insert White Washer
1/2” Conguration
(Without Brass
Fittings)
*White
Washer
Hot
Supply Cold
Supply
Hot
Supply Cold
Supply
Verify contents prior to installation:
( 1 ) - Plastic Adapt-a-Valve with black collet
( 1 ) - Brass Adapter no washer
( 1 ) - Brass Adapter with black washer
( 1 ) - White rubber washer
Make sure that the black collet is installed in to the 1/4” opening on the Adapt-a-valve.
Don’t forget to install the white compression washer with the 3/8” conguration.
Brass adapter (A) does not need to be tightened with a wrench, only nger tight.
Black
Collet
A
TIPS:
A
White
Washer

Page 10
Drain Saddle ts standard 1 ¼” – 1 ½” drain pipes
Drain Saddle Installation
Step 11
Step 12
Step 13 The drain saddle must be installed at least 1 ½” above the nut
of the P-Trap elbow or cross bar from the garbage disposal to
insure proper drainage. Using the 3/8” drill bit, drill into the drain
pipe at best available location as specied above, for drain saddle
installation. Take extreme caution to only drill through one side
of the drain pipe.
The small square black foam gasket with a circle cut out of the middle
must be applied to the inside of the drain saddle. Remove sticky tape
backing and stick to the drain saddle as shown.
1 Semicircle bracket with opening
2 Screws 1 Foam gasket
2 Nuts for screws 1 Semicircle bracket
Gather the pieces of the drain saddle:
Caution: Do not over tighten the screws. It may crack the drain saddle.
If you have a garbage disposal, do not install the drain saddle near it.
Installation of the drain saddle must be either above the garbage disposal, or
if a second sink drain is available, install it above the cross bar on the second
drain. Installation of the drain saddle near a garbage disposal may cause
the drain line to plug. If no other installation of drain line is available, Premier
offers drain line installation kit (part number 164020) that can be used with
garbage disposals.
Caution:
The black 3/8” drain tube must be as SHORT and STRAIGHT as possible to the drain
saddle, making a downward slope from faucet to drain saddle to allow for proper
drainage. This is a gravity fed line and if there is any bend or dip in the tube, the rinse
water will not ow into the drain properly. Water may back up and come out the air
gap hole in the back of the faucet.
IMPORTANT:
Measure the 3/8” black tube from faucet to the drain saddle on the
drain pipe and make a straight cut to the correct length.
Connect the black tube to the open quick connect tting on the drain
saddle by pushing the tube all the way to the tube stop.
Step 16
Step 15
Assemble the drain saddle around the drain pipe and align drain
saddle tting opening with the hole drilled in the previous
step - you may use a small screwdriver to feed through the drain
saddle into the drain pipe to aid with the alignment. Using a Phillips
screw driver tighten the drain saddle bolts evenly and securely on
both sides.
Step 14

Page 11
Thread the plastic elbow (supplied in the parts bag) onto the
stainless steel connection on the top of tank. Tighten using an
adjustable wrench. Do not over tighten as plastic could crack.
Step 15
Step 16
Wrap (7 to 12 turns) of Teon tape clockwise around the male
pipe threads (MPT) on the Stainless Steel tting on top of the
tank.
Tank Elbow Installation
Do not let the tape cover the opening.
Note:
Connect Blue Tube from “TANK” Port on RO Module to the Tank
Position tank in desired location. Stand it upright or lay it on its side (using the black plastic
stand). Measure the blue tube attached to the RO module port marked “TANK” over to the
tank and cut it to desired length.
Insert the blue 3/8” tube into the open compression side of the elbow previously installed on
top of the storage tank and push in as far as it will go. Tighten the compression nut securely
with a wrench.
Step 17
Step 18
Step 20
Connect the Red Tube from Faucet to RO Module
Insert the open end of the red 1/4” tube attached to the RO faucet
into the 1/4” X 1/4” quick connect tting on the RO Manifold. Make
sure the tube is pushed in all the way to the tube stop. (See Picture)
Connect red faucet tube.
Green Tube Connection
Step 14 Locate green tube attached to the RO Module. Insert the open
end of the green 1/4” tube into the open 1/4” quick connect tting
on the plastic water feed valve making sure the tube is pushed in
all the way to the tube stop.
Green Tube
Adapt-a-Valve
Connect the Blue Tube from the Faucet to RO Module
Step 19 Insert the blue 3/8” tube from the faucet into the port on the module marked “FAUCET”.
Make sure the tube is pushed in all the way to the tube stop.
A connection to a refrigerator / ice maker may be tee’d into this blue tube.
Premier offers an ice maker install kit part # 500102 (See Page 22).
Note:
Reverse Osmosis Module Mounting
Step 13 Determine best location for the RO module to be mounted to allow
for future system maintenance. Using the mounting holes on the
bracket, mark the location for the mounting screws on the cabinet
wall under the sink. In the parts bag, locate the two self tapping
screws. Using an electric drill with a Phillips bit, screw them into
the cabinet at the marked location. Hang the module on the screws
using the mounting holes in the bracket

Page 12
Register by mail, phone, fax or internet. Premier uses this information only to provide a
lter change reminder notice. Pre-lters should be changed every 6 months and VOC lter
annually. You may register your system via our website at www.premierH2o.com or call
1-800-752-5582 (within USA only) / FAX#: [phone].
Don’t Forget To Register!
Start up Instructions
If you have connected your RO system to a refrigerator / ice maker, make sure the ice maker is
off (do not allow water to ow to the ice maker) until ushing (Step 4) is complete and the tank
has been allowed to ll completely. Connection from the RO to the ice maker system should
have an in-line valve installed before the ice maker so it can easily be closed to prevent water
owing to the ice maker during start up and periodic maintenance. Your storage tank must be
allowed to ll up fully in order for the ice maker system to work properly.
After the storage tank has lled (the water trickling has stopped), open the RO Faucet to
ush the tank completely. You will know that the tank is empty when the ow rate from the
RO faucet is down to a trickle. Repeat this step two more times. The fourth tank can be
used for drinking.
Open the RO faucet and leave it open until water begins to trickle out (this may take a few
minutes and the water will come out slowly).
Step 4
Turn on the incoming cold water at the angle stop valve and the
Adapt-a-Valve. Check the system for leaks and tighten any ttings
as necessary. (Check frequently over the next 24 hours to ensure
no leaks are present).
Step 3
Step 2
Note:
Step 1
Close the RO faucet allowing the storage tank to ll with water. It may take 3 to 6 hours to
ll the tank completely depending on the production capability of the membrane, local water
temperature and water pressure.
Flushing of the tank 3 times is only necessary during the initial startup and after replacing the
membrane.
During the ll period you may hear water trickling which is a normal occurrence.
Note:
Note:
Congratulations!
You have completed the installation of your new Reverse Osmosis system.
Please Follow the Startup Instructions.
The ushing process should take about a day to complete.
ON

Page 13
Clean lter housings (bowls) with a mild soap solution and rinse with
water. Check O-rings and lubricate with water soluble lubricant. KY
Jelly®or other water based lubricants may be used. Petroleum based
lubricants (such as Vaseline®) must not be used.
For more leverage you may leave the RO module attached to wall of
cabinet. If you are unable to access the module while it hangs, remove
it prior to changing lters. Starting with the closest housing
(Stage 1), remove it by turning it clockwise, empty water, then discard
lter. Continue on to the 2nd housing (Stage 2).
Insert the new sediment lter (cloth like appearance) into the 1st lter
housing which is the one closest to the side with tubing connections
and re-install housing.
6 Month System Maintenance
Turn off the incoming water supply to the RO at the adapt-a-valve.
(Follow the green tube away from the RO system to nd the adapt-
a-valve.)
Step 1
Step 3
Step 4
Step 5
Step 6
Let system sit for a few minutes after tank is empty to depressurize
before attempting to remove lter housings.
Open the RO Faucet and allow water to drain from the tank until it
is completely empty.
Insert the new Carbon Block lter (White End Caps) into the middle
housing and re-install housing.
Step 7
Step 2
Step 8
*Order lters by calling 1-800-752-5582 or buy online at www.premierH2o.com.
√ Stage 1 - Sediment Filter (part #: 104017)
√ Stage 2 - Carbon Block Filter (part #: 101009-White End Caps)
Turn water on to the unit at the adapt-a-valve.
Note: Water Can be saved in a container for drinking or to rinse
system parts.
Before re-installing the lter bowls back on to the system ,
check O-rings to make sure they are still in place.
Caution:
Open the RO faucet and leave it open until water begins to trickle out
(it will come out slowly).
Step 10
Step 9
Close the RO faucet allowing the storage tank to ll with water. It
may take 3 to 6 hours to ll the tank completely depending on the
production capability of the membrane, local water temperature and
water pressure.
** To reset the electronic monitor during replacement of lters, slide out the battery from the
base of the faucet, wait one minute and reinsert.
Note:

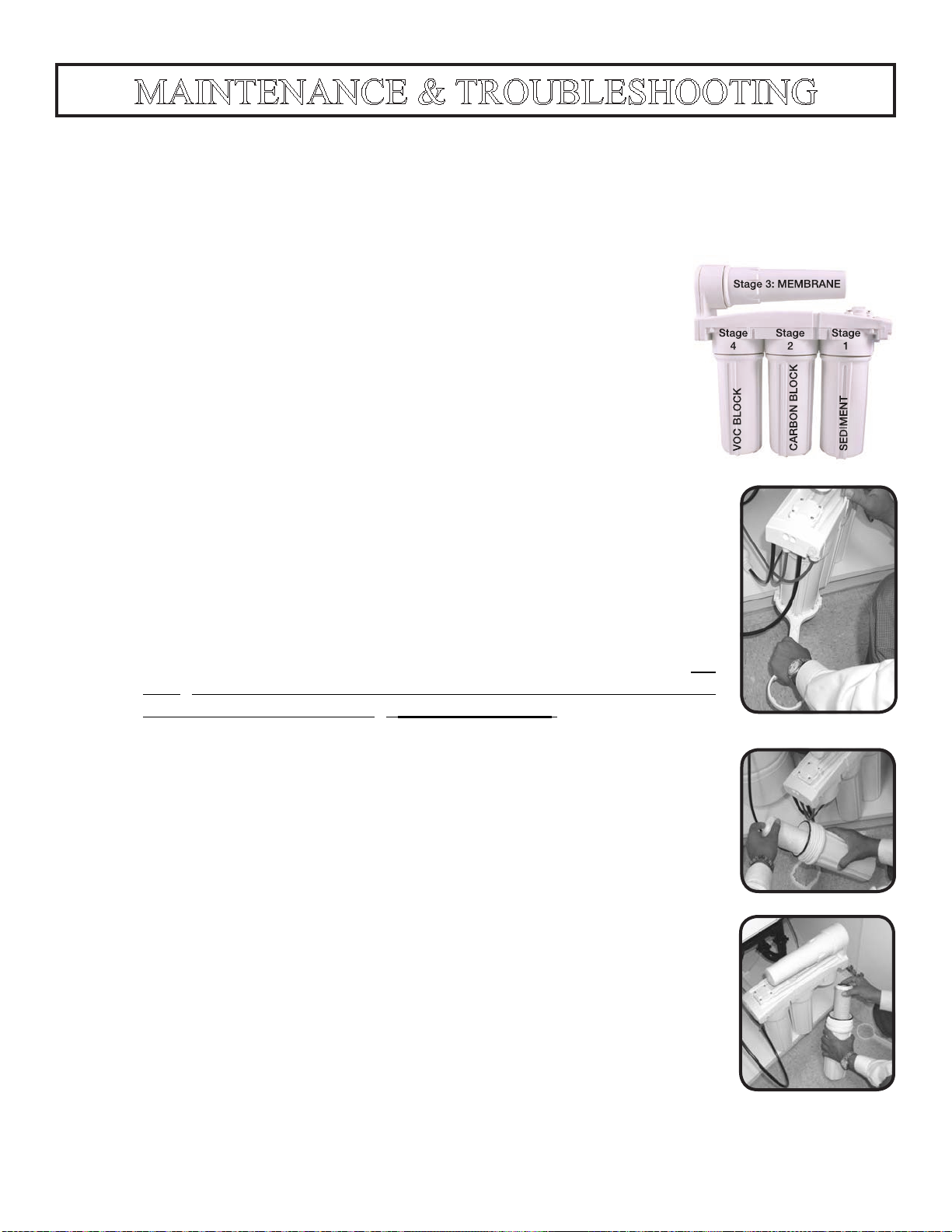

MAINTENANCE & TROUBLESHOOTING

Page 14
Annual Maintenance
*Order filters by calling 1-800-752-5582 or buy online at www.premierH2o.com
• Stage 1 - Sediment Filter (part #: 104017)
• Stage 2 - Carbon Block Filter (part #: 101009 -White end caps)
• Stage 4 - VOC Carbon Block Filter (part #: 101013 -Blue end caps)
• 1/4 Cup of common household bleach.
NOTICE: Sanitizing of unit is recommended.
Step 1: Perform steps 1 through 3 in the Six Month System Maintenance (Page 13).
Step 2: For more leverage you may leave the RO module attached to wall of cabinet. If you are
unable to access the module while it hangs, remove it prior to changing lters. Starting with
the closest housing (Stage 1), remove it by turning it clockwise, empty water, then discard
lter. Continue on to the 2nd (Stage 2) and 3rd (Stage 4) housings.
NOTICE: If not sanitizing the system, skip to step 9
Step 3: Remove the RO membrane from its housing and rest in a clean sanitary place. (Refer to
“Membrane Replacement” section on page 15 for directions on removing the membrane).
Replace empty membrane housing onto unit.
Step 4: Leaving the filters out, replace stage 2 and 4 empty filter housings (hand tight) onto
unit. Measure & pour 1/4 cup of of common household bleach into the 1st filter housing
(Stage 1) and hand tighten onto unit.
DANGER
!
IF BLEACH GETS IN EYES: Hold eye open and rinse slowly and gently with water
for 15 - 20 minutes. Remove contact lenses if present, after the first 5 minutes, then
continue rinsing eye. Call a poison control center or doctor for treatment advice.
Step 4: With the RO faucet in the closed position turn on the incoming water supply to the
system by turning the adapt-a-valve counter clockwise. Let the unit fill with water
(approximately 8 minutes) allowing the bleach to dilute.
Step 5: Let the system sit idle for 1 minute
Step 6: Drain the system completely
Step 7: Let the system fill again (approximately 8 minutes) and sit idle for 10 minutes before
draining the system again.
Step 8: Turn off the incoming water at the adapt-a-valve and open the faucet to make sure all
the water has been drained
Step 7: Open the membrane vessel and insert the RO membrane back into the manifold while
making sure not to kink the O-rings. Tighten the membrane housing back on the RO unit
(Refer to “Membrane Replacement” on Page 15 for details).
Step 8: Remove filter housings Stage 1, 2 and 4 and empty of water.
NOTICE: Before re-installing the lter bowls back on to the system , check O-rings to make sure
they are still in place and lubricate with water soluble lubricant.
Step 9: Insert the new sediment filter (cloth like appearance) into the 1st filter housing which is the one
closest to the side with tubing connections and re-install housing.
Step 10: Insert the new Carbon Block filter (White End Caps) into the middle housing and re-install
housing.
Step 11: Insert the new VOC Carbon Block filter (Blue End Caps) into the 3rd filter housing (Stage 4)
which is the one farthest from the side with tubing connections and re-install housing.
SANITATION STEPS

Page 15
Membrane Replacement
Membranes have a life expectancy between 2 and 5 years, depending on the incoming water conditions
andtheamounttheRO systemis used.Thisreverse osmosismembrane iscriticalfor effectivereduction
of total dissolved solids (TDS). The product water should be tested periodically to verify that the system
is performing satisfactorily.
Normally, a membrane would be replaced during a semiannual or annual lter change. However, if
at any time you notice a reduction in water production or an unpleasant taste in the reverse osmosis
water, it could be time to replace the membrane. Premier recommends replacing the membrane when
TDS reduction falls below 75%.
NOTE: A water sample may be sent to Premier for a free diagnosis of your
membranes performance. To send a water sample, use two (2) clean
containers and ll ½ cup of tap water in one container and ½ cup of
reverse osmosis water in 2nd container. Clearly label each sample.
Send the samples to the address listed on the cover of this manual
attention “Water Samples”. Premier will test the water and mail or
call you with the results.
Step 1: Turn off the incoming water supply to the RO by turning the needle
valve on the adapt-a-valve clockwise until it stops. (Follow the green
tube away from the RO system to find the adapt-a-valve.)
Step 2: Open the RO Faucet and allow water to drain from the tank until it is
completely empty.
Step 3: Remove the horizontal membrane housing on top of the unit by
turning it counter clockwise to loosen.
Step 4: Pull firmly on the yellow RO membrane to remove it from the
housing and discard.
Step 5: Lubricate the O-rings on the new membrane with a water soluble
lubricant such as KY Jelly ®. Insert the end with the two black
O-rings into the cap. Twist the membrane as you push it firmly into
the manifold.
NOTICE: Before re-installing the membrane housing back on to the
system, check O-ring on the housing to make it is still in place
and lubricate with water soluble lubricant.
Step 6: Replace the membrane housing onto the cap by turning clockwise.
Tighten securely.
Step 7: Follow Start up instructions on page 12.
This reverse osmosis system contains a replaceable component (the RO membrane) which is critical to
the efciency of the system. Replacement of this reverse osmosis membrane should be with one of identi-
cal specications as dened by Premier to assure the same efciency and contaminant reduction perfor-
mance.
NOTICE: This is a good time to check the air pressure in your storage tank. For instructions please
see page 16.
Step 12: Follow Steps 8 through 10 in the Six Month System Maintenance (Page 13) for startup
directions.

Page 16
Procedure for Extended Non-Use (More than 2 months)
Turn off the water supply to the RO system at the adapt-a-valve and open the RO faucet to
empty the storage tank (Save a few ounces of RO water). Once the storage tank is empty,
remove the membrane and place it in a sealed plastic bag with the RO water saved earlier
and store in your refrigerator.
For restart, reinstall membrane and follow startup procedure on page 12.
Once all water in the tank is purged, check air pressure using an air pressure gauge, it should
read between 5 - 7 PSI. (Digital air pressure gauge is recommended)
Check Air Pressure in the Tank
Important:
Step 3
Check air pressure only when tank is empty of water!
Step 1 Turn off the incoming water supply to the RO.
Open the RO Faucet and allow water to drain from the tank until
it is completely empty.
Step 2
Check air pressure in the storage tank when you notice a decrease in available water from
the RO system.Air can be added with a bicycle pump using the schrader valve that is located
on the lower side of the tank behind the blue plastic cap.
Tip: When water from the RO faucet slows to a trickle, with the faucet still in the open posi-
tion, you may add air to the tank to purge any left over water, this will ensure that the
tank is completely empty.
7
PSI
Step 4 Follow startup procedure on page 12.

Page 17
TROUBLE SHOOTING
Problem Cause Solution
1. Low/Slow Production Low Water Pressure Assure a minimum of 40 psi incoming water pressure.
Premier sells a booster pump if home water pressure is
low. Maker sure water supply is turned on and Adapta
Valve is all the way open
Crimps in tubing Check tubing and straighten or replace as necessary.
Clogged pre-lters Replace pre-lters.
Fouled membrane Replace membrane and clean ow restrictor.
2. Milky colored Water Air in system Air in the system is a normal occurrence with initial start
up of the RO system. This milky look will disappear
during normal use within 1-2 weeks. If condition reoccurs
after lter change, drain tank 1 to 2 times.
3. Water constantly Low water pressure See #1 Above
running/unit will not
shut off Fouled membrane Replace membrane
High water pressure Check incoming water pressure to make sure it does not
exceed 100psi. A pressure relief valve may be necessary.
High air pressure in tank Empty storage tank of water. Set tank air pressure to 5
psi. See Page 16.
4. Noise from faucet or drain Air gap faucet Inherent sound with air-gap faucets.
Location of drain saddle See diagram for proper location of drain saddle.
Higher capacity membrane Normal with high capacity membrane
High water pressure Check incoming water pressure to make sure it does not
exceed 100 psi. A presser relief valve may be necessary.
5. Faucet leaks from Crimp or loop in drain line Straighten black 3/8 drain tube. Cut off any excess tubing
the air gap feature Drain tube clogged/restricted Caused from dishwasher or garbage disposal.
Disconnect the 3/8” black tube at the drain, clean the 3/8”
black tube out with a wire, then reconnect.
6. Small amount of water in System just starting up Normally it takes 3-6 hours to ll tank. Note: Low water
storage tank pressure and/or temperature can drastically reduce
production rate.
Low water pressure See #1 Above
Too much air in tank Add air if below 5 psi and bleed if above 5 psi. Check
only when tank is empty of water. See Page 16.
7. Water leaks from the Not properly tightened. Tighten the bowl
lter housing Missing or kinked O-ring Turn off the water supply. Release the pressure, remove
bowl and replace the O-ring. (p/n 113043). Make sure
the O-ring is seated in the lter bowl properly before
reinstalling the lter bowl.

Page 18
This system has been tested according to NSF/ANSI 53 & 58 for reduction of the substances listed below. The concentration of the indicated substances in water
entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specied in NSF/ANSI 58. This system
has been tested for the treatment of water containing pentavalent arsenic (also known as As (V), As (+5), or arsenate) at concentrations of 0.30 mg/L or less. This
system reduces pentavalent arsenic, but may not remove other forms of arsenic. This system is to be used on water supplies containing a detectable free chlorine
residual at the system inlet or on water supplies that have been demonstrated to contain only pentavalent arsenic. Treatment with chloramine (combined chlorine) is
not sufcient to ensure complete conversion of trivalent arsenic to pentavalent arsenic, Please see the Arsenic Facts section of the Performance Data Sheet for further
information.
Avg. In. Avg. Eff. % Reduction pH Pressure Max Eff. Inf. challenge Max Allowable
(mg/L) (mg/L) mg/L concentration concentration
mg/L mg/L
Arsenic (Pentavalent) 334.62 ug/L 5.039 ug/L 98.4% 50psi 19 ug/L 0.30±10% 0.010 mg/L
Barium Reduction 10.2 0.13 98.7% 7.24 50psi 0.27 10.0±10% 2.0
Cadmium Reduction 0.031 0.0001 99.7% 7.49 50psi 0.0009 0.03±10% 0005
Chromium (Hexavalent) 0.30 0.006 98.0% 7.24 50psi 0.013 0.03±10% 0.1
Chromium (Trivalent) 0.30 0.003 99.0% 7.24 50psi 0.008 0.03±10% 0.1
Copper Reduction 3.0 0.04 98.7% 7.64 50psi 0.06 3.0±10% 1.3
Cysts 222,077#/ml 10 #/ml 99.99% 50psi 58 minimum 50,000/mL N/A
Fluoride Reduction 8.0 0.33 95.9% 7.49 50psi 0.47 8.0±10% 1.5
Lead Reduction 0.15 0.004 97.3% 7.49 50psi 0.008 0.15±10% 0.0107
Radium 226/228 25pCi/L 5pCi/L 80.0% 7.24 50psi 5pCi/L 25pCiL±10% 5pCiL
Selenium 0.10 <0.001 99.0% 50psi <0.001 0.10±10% 0.05
TDS 765 24 96% 7.84 50psi 39.0 750±40mg/L 187
Turbidity 81 NTU 0.15 NTU 99.8% 50psi 0.28 NTU 11±1 NTU 0.5 NTU
*Refer to the VOC Performance Data Sheet for the complete list of VOC’s.
Recovery - 13.7% Daily Production Rate - 9.86 GPD Efciency - 6.8%
Depending on water chemistry, water temperature, and water pressure Premier’s R.O. Systems production and performance will vary.
Efciency rating means the percentage of the inuent water to the system that is available to the user as reverse osmosis treated water under
operating conditions that approximate typical daily usage. Recovery rating means the percentage of the inuent water to the membrane portion of
the system that is available to the user as reverse osmosis treated water when the system is operated without a storage tank or when the storage
tank is bypassed. There is an average of 4 gallons of reject water for every 1 gallon of product water produced.
REFER TO OWNER’S INSTALLATION/SERVICE MANUAL FOR FURTHER MAINTENANCE REQUIREMENTS AND WARRANTY
INFORMATION.
Phone: [phone] Fax: [phone] www.premierh2o.com
GENERAL USE CONDITIONS:
1. System to be used with municipal or well water sources treated and tested on regular basis to insure bacteriological safe quality. DO NOT use with water that
is microbiologically unsafe or unknown quality without adequate disinfection before and after the system. Systems certied for cyst reduction may be used on
disinfected water that may contain lterable cysts.
2. Operating Temperature: Maximum: 100°F (40.5°C) Minimum: 40° (4.4°)
3. Operating Water Pressure: Maximum: 100 psi (7.0kg/cm2) Minimum: 40 psi (2.8kg/cm2)
4. pH 2 to 11
5. Maximum iron present in incoming feed water supply must be less than 0.2 ppm.
6. Hardness of more than 10 grains per gallon (170 ppm) may reduce RO membrane life expectancy.
7. Recommend TDS (Total Dissolved Solids) not to exceed 1800 ppm.
Performance Data Sheet
WP4V-50
Watts Premier
8716 W Ludlow Drive Sutie #1
Peoria, AZ 85381 85027 USA
RECOMMENDED REPLACEMENT PARTS AND CHANGE INTERVALS:
Note: Depending on incoming feed water conditions replacement time frame may vary.
Description Change time Frame
Sediment Pre-lter: #104017 6 Months
Carbon Pre-lter: #101009 6 Months
Stage 4- VOC lter #101013 12 Months
R.O. Membrane: #110019 2 to 5 years
* All Prices Subject to change without notice
TECHNICAL & WARRANTY INFORMATION

Page 19
Arsenic (As) is a naturally occurring contaminant found in many ground waters. Arsenic in water
has no color, taste or odor. It must be measured by an arsenic test kit or lab test.
Publicwaterutilitiesmusthavetheirwatertestedforarsenic.You can obtain the results from your
water utility contained with in your consumer condence report. If you have your own well, you
will need to have the water evaluated. The local health department or the state environmental
health agency can provide a list of test kits or certied labs.
There are two forms of arsenic: pentavalent arsenic (also called As (V), As (+5)) and trivalent
arsenic (also called As (III), As (+3)). In well water, arsenic may be pentavalent, trivalent, or a
combination of both. Although both forms of arsenic are potentially hazardous to your health,
trivalent arsenic is considered more harmful than pentavalent arsenic.
RO systems are very effective at removing pentavalent arsenic. A free chlorine residual will
rapidly convert trivalent arsenic to pentavalent arsenic. Other water treatment chemicals such
asozone and potassium permanganate will alsochange trivalent arsenic to pentavalent arsenic.
A combined chlorine residual (also called chloramine) where it does convert trivalent arsenic to
pentavalent arsenic, may not convert all the trivalent arsenic in to pentavalent arsenic. If you get
your water from a public water utility, contact the utility to nd out if free chlorine or combined
chlorine is used in the water system.
This Premier reverse osmosis system is designed to remove up to 98% of pentavalent arsenic.
It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing
conditions, this system reduced 0.30 mg/L (ppm) pentavalent arsenic to under 0.010 mg/L (ppm)
(the USEPA standard for drinking water). Actual performance of the system may vary depending
on specic water quality conditions at the consumer’s installation. In addition to the independent
laboratory standard testing conditions Premier has conducted additional eld testing on our
reverse osmosis units to determine trivalent arsenic reduction capabilities. Based upon Premier
eld testing, it has been determined that the RO units are capable of reducing up to 67% of
trivalent arsenic from the drinking water.
The RO membrane component of this Premier reverse osmosis system must be maintained
according to its recommended maintenance cycle. Specic component identication and ordering
information can be found in the installation/operation manual maintenance section, by phone at
1-800-752-5582 or online www.premierH2o.com
Arsenic Fact Sheet

Page 20
Substance Percent Reduction Inuent Challenge Concentration
(mg/L unless noted)
Maximum
Permissible Product
Water Concentration
ALACHLOR >98% 0.05 0.001
ATRAZINE >97% 0.1 0.003
BENZENE >99% 0.081 0.001
BROMODICHLOROMETHANE (TTHM) >99.8% 0.300 +/- 0.30 0.015
BROMOFORM (TTHM) >99.8% 0.300 +/- 0.30 0.015
CARBOFURAN (Furadan) >99% 0.19 0.001
CARBON TETRACHLORIDE 98% 0.078 0.0018
CHLOROBENZENE (Monochlorobenzene) >99% 0.077 0.001
CHLOROPICRIN 99% 0.015 0.0002
CHLOROFORM (TTHM) >99.8% 0.300 +/- 0.30 0.015
2, 4-D 98% 0.110 0.0017
DBCP (see Dibromochloropropane) >99% 0.052 0.00002
1,2-DCA (see 1,2-DICHLOROETHANE) 95% 0.088 0.0048
1,1-DCE (see 1,1-DICHLOROETHYLENE) >99% 0.083 0.001
DIBROMOCHLOROMETHANE (TTHM;
Chlorodibromomethane) >99.8% 0.300 +/- 0.30 0.015
DIBROMOCHLOROPROPANE (DBCP) >99% 0.052 0.00002
o-DICHLOROBENZENE (1,2 Dichlorobenzene) >99% 0.08 0.001
p-DICHLOROBENZENE (para-Dichlorobenzene) >98% 0.04 0.001
1,2-DICHLOROETHANE (1,2-DCA) 95% 0.088 0.0048
1,1-DICHLOROETHYLENE (1,1-DCE) >99% 0.083 0.001
CIS-1,2-DICHLOROETHYLENE >99% 0.17 0.0005
TRANS-1,2- DICHLOROETHYLENE >99% 0.086 0.001
1,2-DICHLOROPROPANE (Propylene Dichloride) >99% 0.08 0.001
CIS-1,3- DICHLOROPROPYLENE >99% 0.079 0.001
DINOSEB 99% 0.17 0.0002
EDB (see ETHYLENE DIBROMIDE) >99% 0.044 0.00002
ENDRIN 99% 0.053 0.00059
ETHYLBENZENE >99% 0.088 0.001
ETHYLENE DIBROMIDE (EDB) >99% 0.044 0.00002
Furadan (see CARBOFURAN) >99% 0.19 0.001
HALOACETONITRILES (HAN)
BROMOCHLOROACETONITRILE 98% 0.022 0.0005
DIBROMOACETONITRILE 98% 0.024 0.0006
DICHLOROACETONITRILE 98% 0.0096 0.0002
TRICHLOROACETONITRILE 98% 0.015 0.0003
HALOKETONES (HK):
1,1-DICHLORO-2-PROPANONE 99% 0.0072 0.0001
1,1,1-TRICHLORO-2-PROPANONE 96% 0.0082 0.0003
HEPTACHLOR >99% 0.25 0.00001
HEPTACHLOR EPOXIDE 98% 0.0107 0.0002
HEXACHLOROBUTADIENE (Perchlorobutadiene) >98% 0.044 0.001
HEXACHLOROCYCLOPENTADIENE >99% 0.060 0.000002
LINDANE >99% 0.055 0.00001
METHOXYCHLOR >99% 0.050 0.0001
Methylbenzene (see TOLUENE) >99% 0.078 0.001
Monochlorobenzene (see CHLOROBENZENE) >99% 0.077 0.001
PCE (see TETRACHLOROETHYLENE) >99% 0.081 0.001
PENTACHLOROPHENOL >99% 0.096 0.001
Perchlorobutadiene (see HEXACHLOROBUTADIENE) >98% 0.044 0.001
Propylene Dichloride (see 1,2 -DICHLOROPROPANE) >99% 0.080 0.001
SIMAZINE >97% 0.120 0.004
Silvex (see 2,4,5-TP) 99% 0.270 0.0016
STYRENE (Vinylbenzene) >99% 0.15 0.0005
1,1,1-TCA (see 1,1,1 - TRICHLOROETHANE) 95% 0.084 0.0046
TCE (see TRICHLOROETHYLENE) >99% 0.180 0.0010
1,1,2,2- TETRACHLOROETHANE >99% 0.081 0.001
TETRACHLOROETHYLENE >99% 0.081 0.001
TOLUENE (Methylbenzene) >99% 0.078 0.001
2,4,5-TP (Silvex) 99% 0.270 0.0016
TRIBROMOACETIC ACID 0.042 0.001
1,2,4 TRICHLOROBENZENE (Unsymtrichlorobenzene) >99% 0.160 0.0005
1,1,1-TRICHLOROETHANE (1,1,1-TCA) 95% 0.084 0.0046
1,1,2-TRICHLOROETHANE >99% 0.150 0.0005
TRICHLOROETHYLENE (TCE) >99% 0.180 0.0010
TRIHALOMETHANES (TTHM) (Chloroform; Bromoform;
Bromodichloromethane; Dibromochloromethane) >99.8% 0.300 +/- 0.30 0.015
Unsym-Trichlorobenzene (see 1,2,4-
TRICHLOROBENZENE)
>99% 0.160 0.0005
Vinylbenzene (see STYRENE) >99% 0.150 0.0005
XYLENES (TOTAL) >99% 0.070 0.001
VOC Performance Data Sheet
Watts Premier
8716 W Ludlow Drive Suite #1
Peoria, AZ 85381 USA
