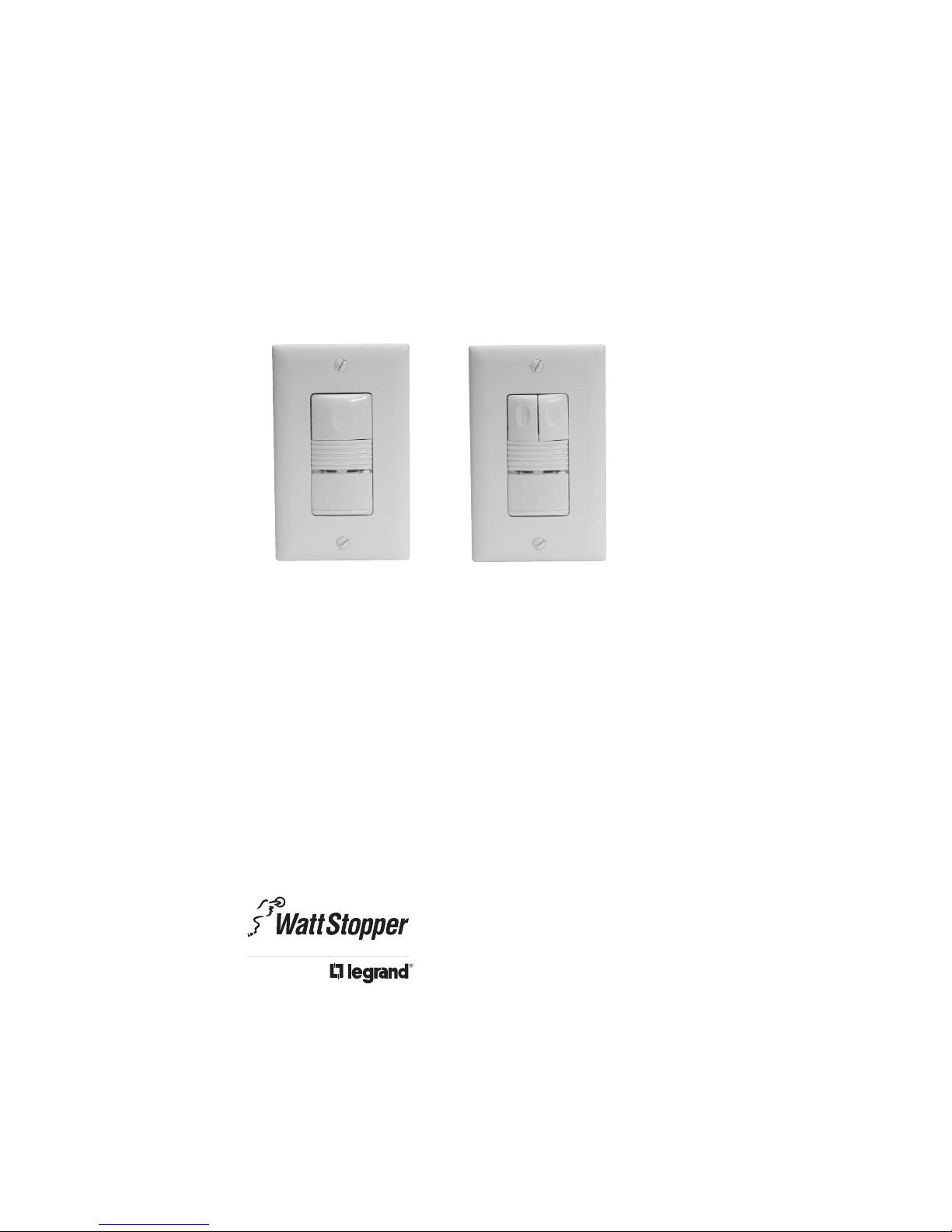

wattstopper PW-100 User manual

Santa Clara, CA 95050
800.879.8585
Installation Instructions
Specifications
Voltages:
PW-100 & PW-200 . . . . . . . . . . . . . .120/230/277VAC, 50/60Hz
PW-100-347 . . . . . . . . . . . . . . . . . . . . . . . . . . .347VAC, 50/60Hz
Load Limits for each relay:
@120VAC . . . . . . . . . . . .0-800W tungsten or ballast, 1/6 HP
@230 or 277VAC . . . . . . . . . . . . . . . . . . . . . . .0-1200W ballast
@347VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0-1500W ballast
Load Type Compatibility:
Incandescent, fluorescent, magnetic or electronic ballast
Horsepower Rating (each relay) . . . . . . . . .1/6 HP @120VAC
Time Delay Adjustment . . . . . . . . . . . . . . . . . . . .5 to 30 minutes
Walk-Through Mode . .3 minutes if no activity after 30 sec.
Test Mode . . . 5 sec. at initial power up or DIP switch reset
PIR Adjustment . . . . . . . . . . . . . . . . . . .High or Low (DIP switch)
Light Level Adjustment . . . . . . . . . . . . . . . . . . . . . . .8fc to 180+fc
Alerts . . . . . . . . . . . . . . . . . . . . . .Selectable Audible & Visual
US Patents: 5640113, 6617560B2,
A4787722, A4874962
PW-200PW-100 & PW-100-347
PW-100/PW-100-347/PW-200
Passive Infrared Wall Switch
Occupancy Sensor

UNIT DESCRIPTION AND OPERATION
The PW Passive Infrared Wall Switch sensors use advanced passive infrared
(PIR) technology.
The PW sensor can turn a load on, and hold it on as long as the sensor detects
occupancy. After no movement is detected for the selected time delay, the lights
switch off. A “walk-through” mode can turn lights off after only 3 minutes, if no
activity is detected after 30 seconds following an occupancy detection.
The PW-100 has one relay and one ON/OFF button. The PW-200 contains two
relays and two ON/OFF buttons to allow control of one or two loads
independently. Pressing a button toggles the state of the corresponding relay.
PW sensors contain a light level sensor. If adequate daylight is present, the
sensor holds the load OFF until light levels drop, even if the area is occupied. In
the PW-200, light level only affects the load on Relay 2. Users can override this
function by pressing the ON/OFF button. See Light Level Adjustment.
Turning The Load ON
The relays are programmed independently for either Auto ON or Manual ON. In
either mode, the load can be turned ON or OFF using the ON/OFF button.
Auto ON
DIP 8 OFF
for Relay 1
DIP 9 OFF
for Relay 2
Load turns ON and OFF automatically based on occupancy. If the
load is turned OFF manually, it stays OFF until 5 minutes after
the last occupancy detection, at which time it reverts to Auto ON
mode. This prevents the load from turning ON automatically
after it was deliberately turned OFF. Pressing the button to turn
lights ON returns the sensor to Auto ON mode.
** PW-100: Switch 9 is not used. PW-200: Switch 9 default is ON to comply
with CA Energy Commission Title 24 bi-level switching requirements.
Time Delays
The PW sensor holds the load ON until no motion is detected for the selected
time delay. Select the time delay using DIP switch settings. The sensor
automatically sets the time delay when SmartSet is enabled. In the PW-200,
both relays use the same delay.
Manual ON
DIP 8 ON
for Relay 1
DIP 9** ON
for Relay 2
Occupants must press the ON/OFF button to turn ON the load.
The sensor keeps the load ON until no motion is detected for the
selected time delay. There is a 30 second re-retrigger delay. If
occupancy is detected during the delay, the sensor turns the load
back ON. After the re-trigger delay elapses the ON/OFF button
must be pressed to turn ON the load.
Shading indicates default operation and switch setting.

Fixed Time Delay
(DIP 1 ON, 2 & 3 OFF)
High (DIP #5 OFF)
Walk-Through
Mode
(DIP #4 ON)
The PW sensor turns the load OFF three minutes after
the area is initially occupied, if no motion is detected
after the first 30 seconds. If motion continues beyond
the first 30 seconds, the set time delay applies.
Default setting. Suitable for most applications.
PIR Sensitivity Adjustment
The PW sensor constantly monitors the controlled environment and
automatically adjusts the PIR to avoid common ambient conditions that can
cause false detections, while providing maximum coverage.
Time delays are 5, 10, 15, 20 (default), 25, or 30
minutes.
SmartSet™ auto
adjust time delay
and Test Mode
Records typical occupancy patterns. Using this history
(which is constantly updated), it chooses an optimal
time delay from 7 minutes (if the space is usually
vacant) up to 30 minutes (if the space gets heavy
usage). SmartSet behavior starts immediately, and is
refined continually as history is collected.
A Test Mode with a short time delay of 5 seconds is set
when DIP switches 1, 2, & 3 are OFF. It cancels
automatically after five minutes, or when you set a
fixed time delay. To restart Test Mode, change the time
delay setting to any fixed amount and then return it to
the Auto/Test setting.
Reduces sensitivity by approximately 50%. Useful in
cases where the PIR is detecting movement outside of
the desired area (also consider masking the lens) and
where heat sources cause unnecessary activation.
Low, 50%
(DIP #5 ON)
Visit our website for FAQs: www.wattstopper.com
Walk-Through
The Walk-Through mode shortens the time delay to reduce the amount of time
the load is ON after a brief moment of occupancy, such as returning to an office
to pick up a forgotten item then immediately exiting.
No Walk-Through Walk-Through mode disabled.

Call 800.879.8585 for Technical Support

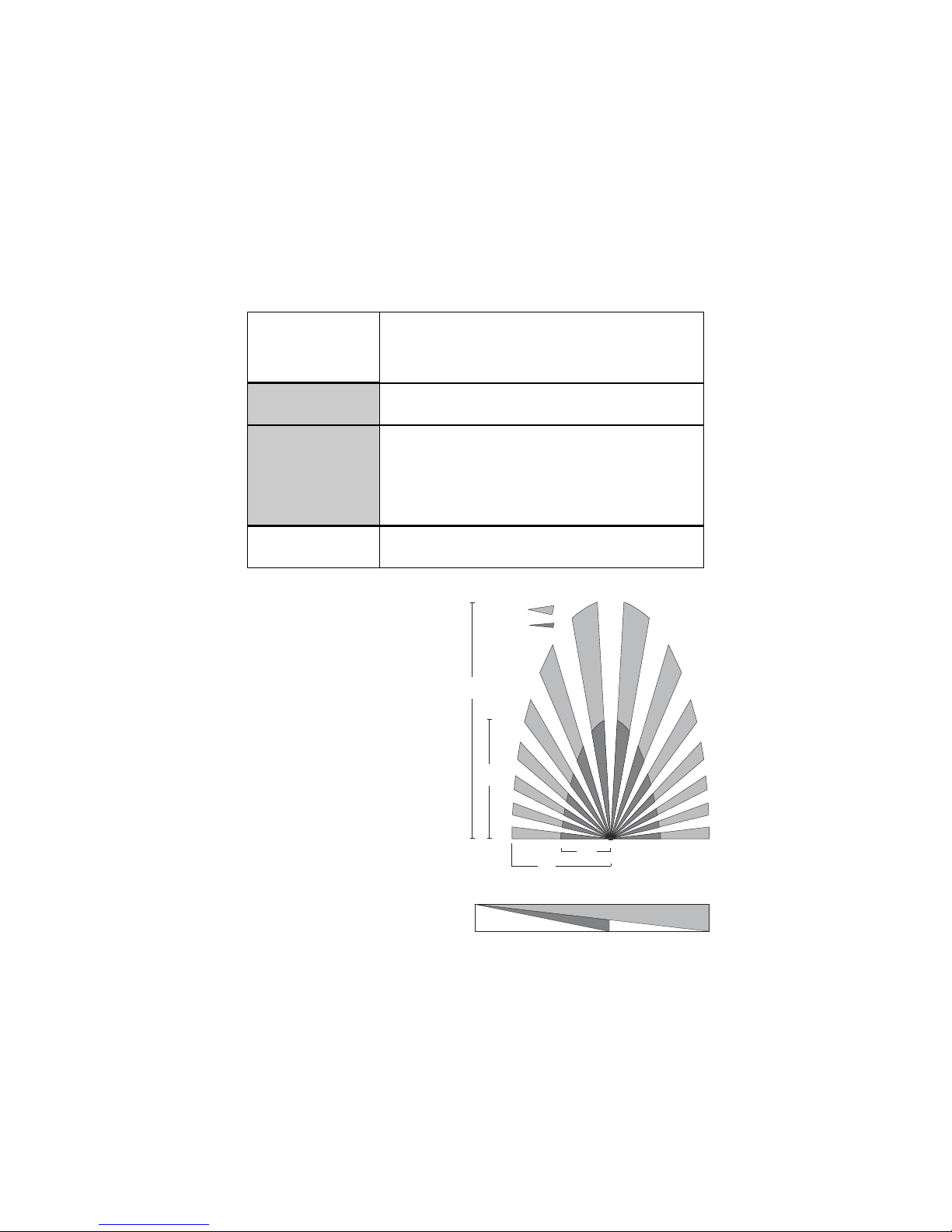

COVERAGE PATTERNS
Coverage testing has been
performed according to the NEMA
WD 7 guideline. For best
performance, use in spaces not
larger than 15’ x 12’.
PIR Sensor
The sensor has a two-tiered, multi-
cell viewing Fresnel lens with 180
degree field of view. The red LED on
the sensor flashes when the PIR
detects motion.
Masking the lens
Opaque adhesive tape is supplied so
that sections of the PIR sensor’s
view can be masked. This allows you
to eliminate coverage in unwanted
areas. Since masking removes
bands of coverage, remember
to take this into account when
troubleshooting coverage
problems.
PIR
Coverage
7.5’
(2.2m)
15’
(4.5m)
20’
(6.1m)
35’
(10.6m)
Major motion
Minor motion
Alerts
The PW can provide audible and/or visible alerts as a warning before the load
turns OFF.
"Whistles" twice, at one minute and at 30 seconds
before turning OFF load. “Chirps” 10 seconds before
turning OFF load. “Beeps” three times 10 seconds
before the load goes OFF for Walk-Through.
If Visible Alert is also ON, the one-minute whistle is
replaced by the visible alert.
Audible Alerts
(DIP #7 ON)
No audible warnings provided.
When only one minute is left in the time delay, the load
connected to the relay turns OFF for one second. This
provides a one minute warning before the load(s) are
turned OFF by the sensor.
Visible Alert
(DIP #6 ON)
No Visible Alerts
(DIP #6 OFF)
No visible warnings provided.
No Audible Alerts
(DIP #7 OFF)
4’
(1.2m)
20’
(6.1m)
35’
(10.6m)
0
Top View
Side View

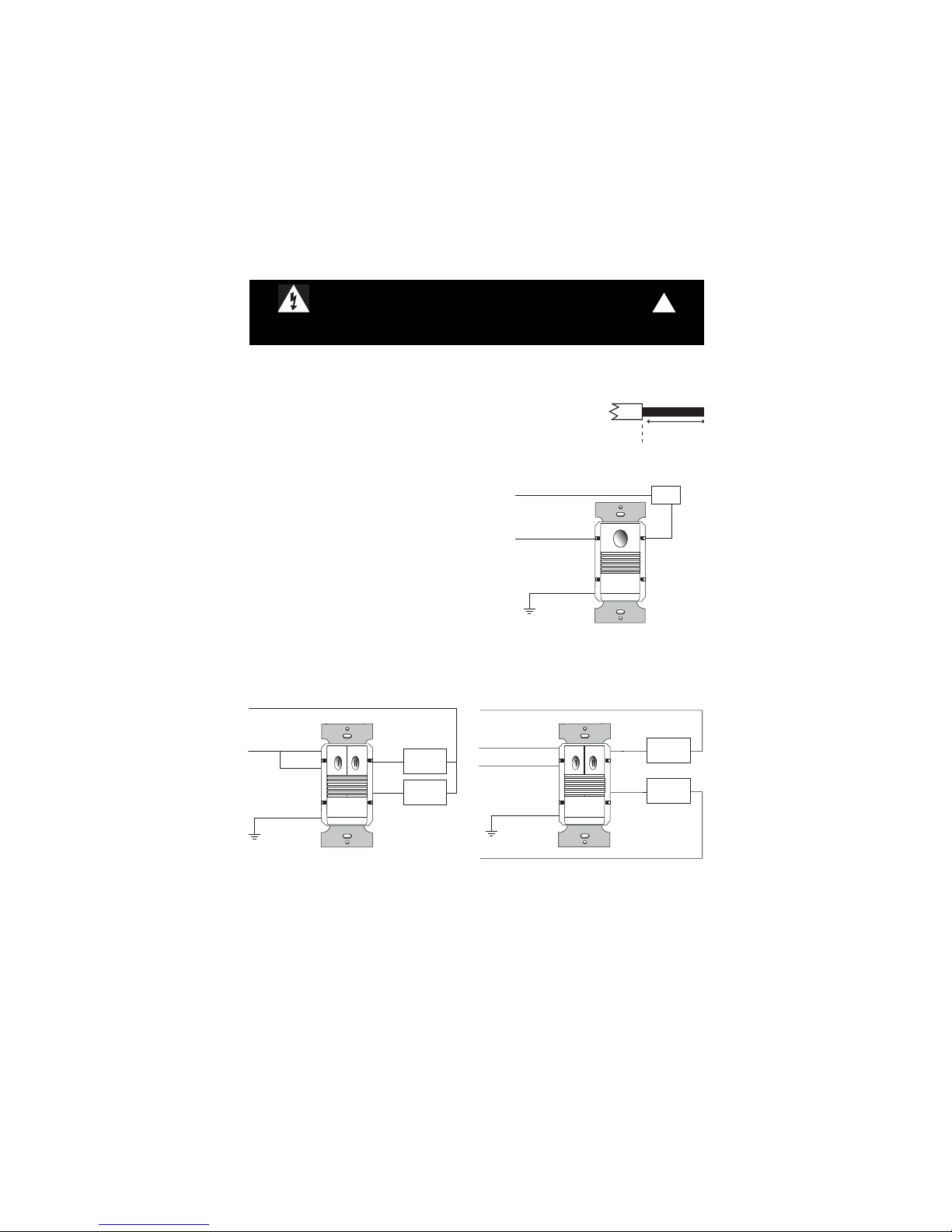

1. Make sure that the power has been turned OFF at the circuit breaker.
2. Connect wires to the PW flying leads as shown in the
wiring diagram that is appropriate to the PW model and
electrical supply. The ground wire (green) must be
festened to ground for the sensor to work properly.
3. Attach the sensor to the wall box by inserting screws into
the two wide holes on the top and bottom of the attached
metal bracket. Match them up with the
holes in the wall box and tighten.
4. Turn the circuit breaker ON. Wait one
minute, then push the Auto ON/OFF switch
for each load and the lights will turn ON.
There is a delay due to initial power-up of
the sensor that only occurs during
installation.
5. Test and adjust the sensor if necessary.
6. Attach the cover plate.
INSTALLATION
Neutral
Blue
Line Black
Secondary
Load
Brown
Primary
Load
Red
Ground Green
Blue
Primary
Load
Secondary
Load
Neutral
Red
Brown
Line 2
Line 1
Neutral
Ground Green
Black
PW-200 Bi-Level Wiring PW-200 Dual Circuit Wiring
WARNING
TURN THE POWER OFF AT THE CIRCUIT BREAKER
BEFORE INSTALLING THE SENSOR OR WORKING ON THE LOAD.
!
#12 – #14 AWG
Cu Wire Only
Strip Gage
1/2"
12.7mm
Visit our website for FAQs: www.wattstopper.com
Load
Red
Line Black
Neutral
Ground
Green
PW-100 and PW-100-347 Wiring

DELAY
PIR 50%
WALK
AUD. ALERT
RLY 1 MAN
RLY 2 MAN
VIS. ALERT
ON/OFF Buttons
Relay 1
Relay 2
DIP Switches
Detection LED
PIR Lens
DIP SWITCH SETTINGS
=ON =OFF =Factory Setting
8
Auto On
Manual On
Relay 1 Mode
9
Auto On
Manual On
Relay 2 Mode
5
High
Low, 50%
PIR Sensitivity
7
Disabled
Enabled
Audible Alert
4
Disabled
Enabled
Walk-Through
912345678
Time
Delay
Walk-Through
ON
Relay 1 Mode
Relay 2 Mode
Audible Alerts
PIR Sensitivity
Visible
Alerts
Auto/Test
10 minutes
15 minutes
20 minutes
25 minutes
30 minutes
override
5 minutes
123
Time Delay
Bypass occupancy & light level
functions. Loads are manually
controlled with PW-200 buttons.
6
Disabled
Enabled
Visible Alert
PW-200 ONLY
Call 800.879.8585 for Technical Support
Button
Hinges
Tabs
PW-200 shown.
PW-100 has a
single button.

TROUBLESHOOTING
Lights do not turn ON with motion (LED does flash)
1. Press and release each button to make sure that the correct lights come
ON for each relay. If the lights do NOT turn ON, check wire connections,
especially the Load connection. If the lights turn ON, verify that the
correct On Mode is selected in DIP switches 8 and 9.
2. Check to see if light level control is enabled: cover the sensor lens with
your hand. If the lights come ON, adjust the light level setting.
3. If lights still do not turn ON, call 800.879.8585 for technical support.
Lights do not turn ON with motion (LED does not flash)
1. Press and release each button to make sure that the correct lights come
ON for each relay. If the lights turn ON, verify that Sensitivity is on High.
2. Check the wire connections, in particular, the Line connection. Verify
that connections are tightly secured.
3. If lights still do not turn ON, call 800.879.8585 for technical support.
ADJUSTMENTS
Sensor Adjustment
Remove the wall plate. Remove the button cap by firmly squeezing together the
top sides of the button assembly. Gently pull it away from the unit.
When the adjustments are completed, replace the button cap by inserting its
hinges into the tabs on the main unit and then squeeze the top of the button while
pressing it into the unit. Reinstall the cover plate.
Light Level Adjustment
The light level can be set with loads ON or OFF. To enable light level control and
set the threshold: 1) Make sure the room is lit appropriately. 2) Put the sensor into
TEST mode. You have 5 minutes to complete the procedure. 3) Press and hold the
ON/OFF button (Relay 1button on the PW-200) for 3 seconds, until you hear a
beep. 4) Step away from the sensor. After 25 seconds a beep sounds, indicating
that the threshold level is set. This threshold is retained, even if power is lost,
until it is re-set or disabled. In the PW-200, light level control only affects Relay 2.
To disable light level control, press and hold the Relay 1button for 7 seconds,
until a double beep tone sounds.
Reset to Default
To reset the PW to factory settings, press and hold the Relay 1button for 10
seconds, until a triple beep sounds. This resets the sensor occupancy history and
disables light level control (the brightest ambient light will not hold the light OFF).

ORDERING INFORMATION
Warranty Information
Watt Stopper/Legrand warranties its products to be free of defects in materials
and workmanship for a period of five years. There are no obligations or
liabilities on the part of Watt Stopper/Legrand for consequential damages
arising out of or in connection with the use or performance of this product or
other indirect damages with respect to loss of property, revenue, or profit, or
cost of removal, installation or reinstallation.
Units come in White (-W), Light Almond (-LA), Ivory (-I), Gray (-G), Black (-B).
Add color designator to catalog number when ordering.
* One ASP-211 Cover Plate for single gang box is included with each switch.
2800 De La Cruz Boulevard, Santa Clara CA 95050
Technical Support: 800.879.8585 • www.wattstopper.com
07124r3 8/2007
Catalog # Description
PW-100 Passive infrared wall switch sensor; 120/230/277VAC, 50/60Hz
PW-100-347 Passive infrared wall switch sensor; 347VAC, 50/60Hz
PW-200 Passive infrared dual relay wall switch sensor;
120/230/277VAC, 50/60Hz
ASP-422 Blank cover plate for 2-gang box
ASP-432 Switch option cover plate for 2-gang box
Lights do not turn OFF
1. There can be up to a 30 minute time delay after the last motion is
detected. To verify proper operation, set DIP switch 1 to ON, then reset
switches 1, 2, and 3 to OFF to start Test Mode. Move out of view of the
sensor. The lights should turn OFF in approximately 5 seconds.
2. Verify that the sensor is mounted at least six feet (2 meters) away from
any heating/ventilating/air conditioning device that may cause false
detection. Verify that there is no significant heat source (e.g., high wattage
light bulb) mounted near the sensor.
3. If the lights still do not turn OFF, call 800.879.8585 for technical support.
Sensing motion outside desired areas
1. Select PIR Sensitivity – Low (DIP switch 5 = ON) if necessary.
2. Mask the PIR sensor’s lens to eliminate unwanted coverage area.
Please
Recycle
