wattwatchers A6M+One User manual

The Wattwatchers A6M+One can be used for power purchase
agreements (PPAs), other off-market billing, large-scale generation
certificates (LGCs), meeting NABERS and Green Star requirements,
and more...
https://service.wattwatchers.com.au/a6mone-comprehensive-
installation-guide
For the full A6M+One comprehensive installation guide, scan the QR
code or go to:
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 1/14
A6M+ONE
INSTALLATION GUIDE

T A B L E O F C O N T E N T S
SAFETY
Safety guide
7
8
9
9
9
PRODUCT OVERVIEW
Overview of the A6M+One package
What comes in the A6M+One package
Overview of the A6M with Modbus
Overview of the PMC meter types
ONBOARDING
How to use Onboarding
How to read the Modbus tab in Onboarding
SUPPORT
Troubleshooting
FAQs
How to contact support
4
4
4
5
A6M+ONE WIRING DIAGRAMS
What PMC meter do you have?
Wiring diagrams for PMC-220
Wiring diagrams for PMC-340-BA
Wiring diagrams for PMC-340-BB
3
INSTALLATION SUCCESS
Steps toward a successful installation
Tips
6
6
11
12
13
14
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 2/14

The Auditor device has a warning symbol (see on the left) on the side of the Auditor
device which indicates that the device may cause electric shock to a person if the
device is opened, which can result in personal injury or even death. The warranty will
also be voided if the device is opened or otherwise tampered with, without written
authority from Wattwatchers.
To prevent safety risks,, including the potential for injury or death, please use the test
and short-circuit blocks with the billing current transformers (CTs) that are supplied
for the CET PMC meters.
Never connect a billing CT—which has a 5A output—to the Auditor device. Billing CTs
are only designed for connecting to the CET PMC meters.
WARNING: Billing CTs have a potential of 5 AMPS on the secondary side when
connected. If exposed to the open terminal when the CT is operational, there is a risk
of serious injury or death.
The Auditor device must be installed by a licensed electrician, or an individual with
equivalent qualifications as required by the laws of the relevant state or country. The
installer must possess comprehensive knowledge of applicable standards and
directives within the jurisdiction where the device is being installed.
The warranty will be voided if the device is installed by someone who does not meet
the minimum licensing requirements for electrical device installation. The installer
must adhere to this safety guide, as well as the rules, regulations, and laws of the
state/country where the device is being installed. Failure to comply with the safety
guide will also void the warranty. Please read the full safety manual in the link above.
YOU MUST READ THE FULL SAFETY MANUAL BEFORE INSTALLATION!
You must read the full safety manual given to you before installing the 6M+One.
The safety manual contains information and advice on how to avoid damaging the
Auditor device, and how to avoid personal injury or death. You will find a copy of the
safety manual in the link below or by scanning the QR code.
https://service.wattwatchers.com.au/safety-manual
Scan QR code to view the complete safety
manual or go to:
FIND THE SAFTEY MANUAL HERE
SAFETY GUIDE
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 3/14

Single phase, two phase or three phase at 80–260VAC per
phase
This device is used to monitor loads from 60A to 600A using CTs
and cables up to 36mm in diameter.
Modbus interface for the CET PMC meter
Communicates via 4G
Can be used with the MyEnergy app or in our Fleet tool to
monitor circuits independent of the PMC meter
Up to 6x non-billing CTs
60A to 600A available
A6M+One CET PMC METER
3x billing CTs for the
PMC 330-BB
600A or 1500A
available
Modbus
4G via cloud
Three CET models
available
1x 4G stubby antenna
1x Green plug for power (for the top)
1x Green plug for CTs (for the bottom)
1x Modbus cable with connector
1x resistor (for long comms cable runs
if signal becomes weak)
3x Billing CTs (if applicable)
1x A6M+One
1x CET PMC meter
OVERVIEW OF THE A6M+ONE PACKAGE
OVERVIEW OF THE A6M+ONE
WHAT COMES IN THE
A6M+ONE PACKAGE
(C) 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 4/14

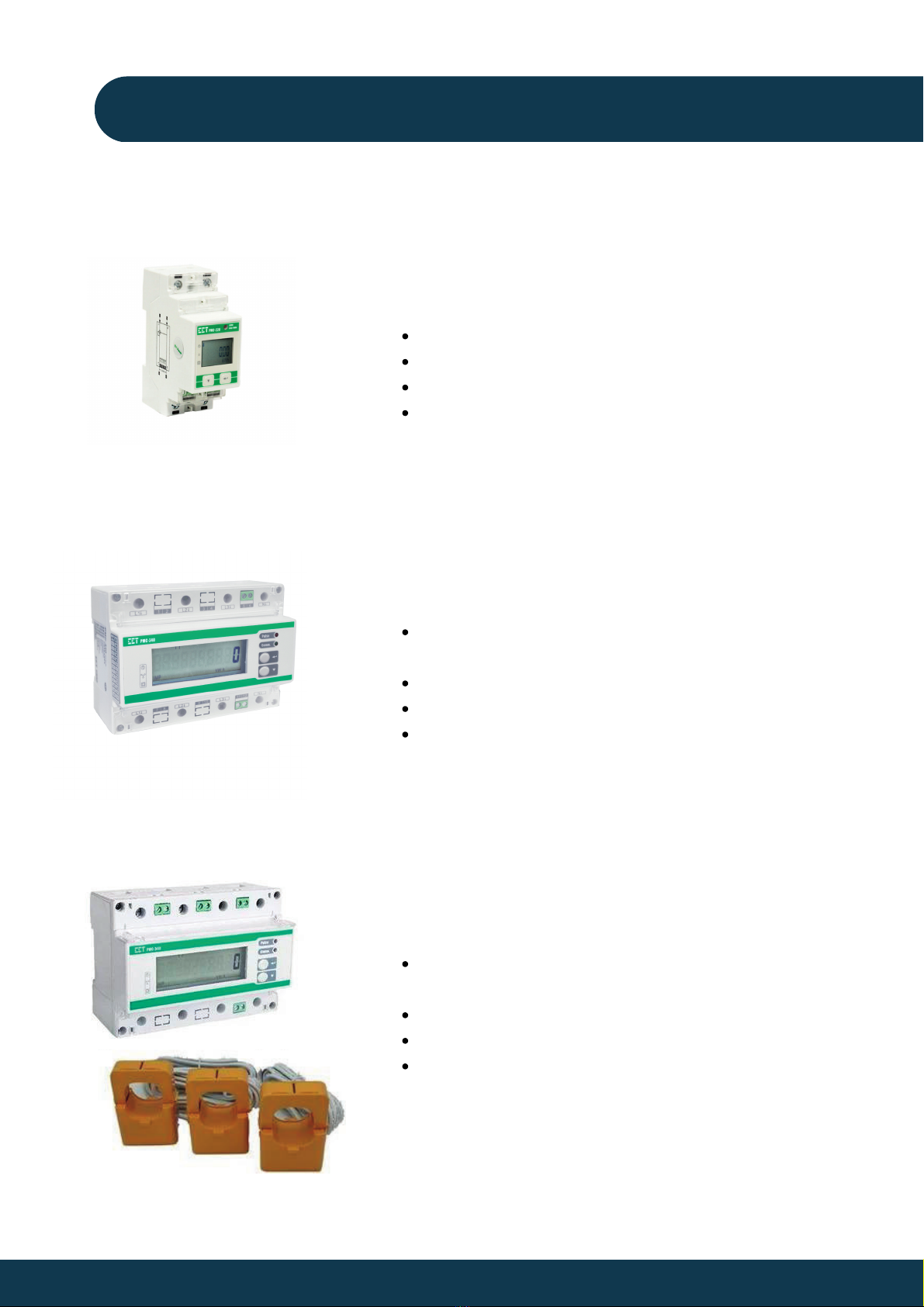

PMC-340-BA current pass through meter
up to 100A (per phase)
NMI M6 Pattern Approved
DIN mountable
Fits cables up to 35mm diameter
Three phase PMC for circuits up to
100A per phase via direct connection
Compatible only with 600A or 1500A
billing CTs (per phase)
NMI M6 Pattern Approved
DIN mountable
Fits cables up to 80mm diameter
Three phase PMC For circuits up to
1500A per phase via CT connection
PMC 220
PMC 340-BA
PMC 340-BB
Up to 63A direct connection
NMI M6 Pattern Approved
Din mountable
Fits cables up to 25mm diameter
Single phase PMC—63A
Max. via direct connection
Billing CTs for the 340-BB
OVERVIEW OF THE PMC METER TYPES
(C) 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 5/14

Step 1. Mount the A6M and the PMC Meter
Step 2. Follow the wiring diagrams
Step 3. Watch the Onboarding video
Step 4. Use Onboarding to commission the Auditor
Step 5. Apply the silver stickers
Step 6. Take photos of your installation
STEPS TOWARD A
SUCCESSFUL
INSTALLATION
MAKE SURE YOU HAVE AN ONBOARDING ACCOUNT
Make sure you have access to onboard the device before going to the site. See the
'HOW TO USE ONBOARDING' page for more info.
TAKE SPARE PARTS
Take a spare A6M+One pack if you have one and an external high-gain antenna.
LABEL THE CTS ON BOTH ENDS
Label all the CTs on both ends before you install. This will save a lot of headaches if
you need to retrace any cables for problem-solving.
APPLY THE SILVER STICKER
You will have two silver serial number label stickers. Apply one on the front of the
Auditor (don't block the lights) and one below the circuit breaker feeding it.
TIPS
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 6/14

https://wattwatchers.app/
https://www.youtube.com/watch?v=1EKZAECABgs
Make sure your Onboarding account has access to the device
Please make sure the fleet manager has arranged your access to the device. If you do
not have login access to the device, the fleet manager must request your access to be
set up by Wattwatchers Support. Installers cannot request access directly to support.
Already have an account? Great! But remember to ask the fleet manager if you are
added to their account as an installer so you can onboard their devices.
Scan the QR Code below or use the link to
watch our YouTube video on how to
onboard a Wattwatchers device.
Scan the QR Code below or use the link to
access Onboarding, so you can commission
the Auditor
Watch our 6 minute Onboarding tutorial
Use our Onboarding tool
HOW TO USE
ONBOARDING
Once you have installed the device
and it's powered up, it's time to
Onboard the device!
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 7/14

The Modbus tab helps you validate the readings
You don't need to pair or add the PMC meter, as it will be automatically
detected once the Modbus cable has been correctly wired to the Modbus
inputs of the A6M.
Power factor (PF) should always be in a positive state and not show a
negative sign. You want to see a good range between 0.8 and 1.0 when
sufficient load is present
0.8–1.0
The Start, Channel and Energy screens are explained in the Onboarding video
VALIDATE READINGS
WITH A CLAMP METER
USING THE MODBUS TAB
IN ONBOARDING
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 8/14

Need help? You can lodge a support request by using the
link below, or by scanning the QR code (to the left). You
can also send an email to [email protected]
Support responds via email only
https://wattwatchers.com.au/support/submit-request
TROUBLESHOOTING
SUPPORT
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 9/14
Looking for an answer you can not find here?
Information regarding software, hardware, FAQs, and
more can be searched in our service page by scanning the
QR code or going to:
https://service.wattwatchers.com.au
NO LIGHTS ON THE AUDITOR
Check for voltage on the device. If voltage is present but all lights are still off, make
sure green plug is seated correctly and power cycle the device.
L3 OFF OR L3 FLASHING
This indicates that the Auditor has poor/no signal. Improve signal by installing a high
gain 4G antenna. Contact Support to see if stock is available.
NO LIGHT/ RED LIGHTS ON MODBUS INDICATOR (MB)
The link below contains information to help you troubleshoot a Modbus Connection
Issue (Red Modbus Light):
https://service.wattwatchers.com.au/troubleshooting-Modbus-connection-issue-red-
Modbus-light
FAQs
CAN THE CT CABLES BE EXTENDED?
Yes, the CT cables can be extended up to 10m. Contact us if you need recommended
cable specifications.
HOW FAR APART CAN THE PMC AND THE AUDITOR BE?
We recommend avoiding extending beyond 50m, if possible.
CAN I USE AN EXISTING BREAKER TO FEED THE A6M+ONE?
Yes, just remember to follow the electrical rules of your jurisdiction.
Service page
Support request

Wiring diagrams are intended to be used as a guide only.
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 10/14
A6M + ONE
WIRING DIAGRAMS

3 PHASE CT CONNECT
Terminals 1,2,3 and 4 are all
blanked out.
3 PHASE DIRECT CONNECT
Terminals 1,2,3 and 4 are all
present.
PMC-340-BA
(Direct connection)
Page 13
PMC-340-BB
(CT connection)
Page 14
PMC-220
(Single phase)
Page 12
1 PHASE DIRECT CONNECT
WHICH PMC METER DO YOU HAVE?
Before finding your wiring diagram,
find your PMC meter first
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 11/14

Auditor is monitoring: Mains and Load
PMC is monitoring: Load
PMC-220 (Single Phase)
Auditor is monitoring: Mains and Solar
PMC is monitoring: Solar
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 12/14
PMC-220A6M + ONE WIRING DIAGRAMS

PMC-340-BA (Direct connection)
Auditor is monitoring: Grid and Solar
PMC is monitoring: Solar
Auditor is monitoring: Grid and Load
PMC is monitoring: Load (any type of load)
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 13/14
PMC-340-BAA6M + ONE WIRING DIAGRAMS

WARNING: Billing CTs are potentially dangerous as they have a 5A output. Turn off all power to the
device and circuits being monitored when working with the billing CTs.
PMC-340-BB (CT connection)
Auditor is monitoring: Grid and Load
PMC is monitoring: Load (any type of load)
Auditor is monitoring: Grid and Solar
PMC is monitoring: Solar
© 2023 Wattwatchers Pty Ltd ABN 47 123 010 588 v2.0 Page 14/14
PMC-340-BBA6M + ONE WIRING DIAGRAMS
