Weaver Leather 65-3085 User manual

HANDCRAFTED IN THE USA
LIMITED LIFETIME GUARANTEE
weaverleathersupply.com
800-932-8371
INSERT-139 7/21

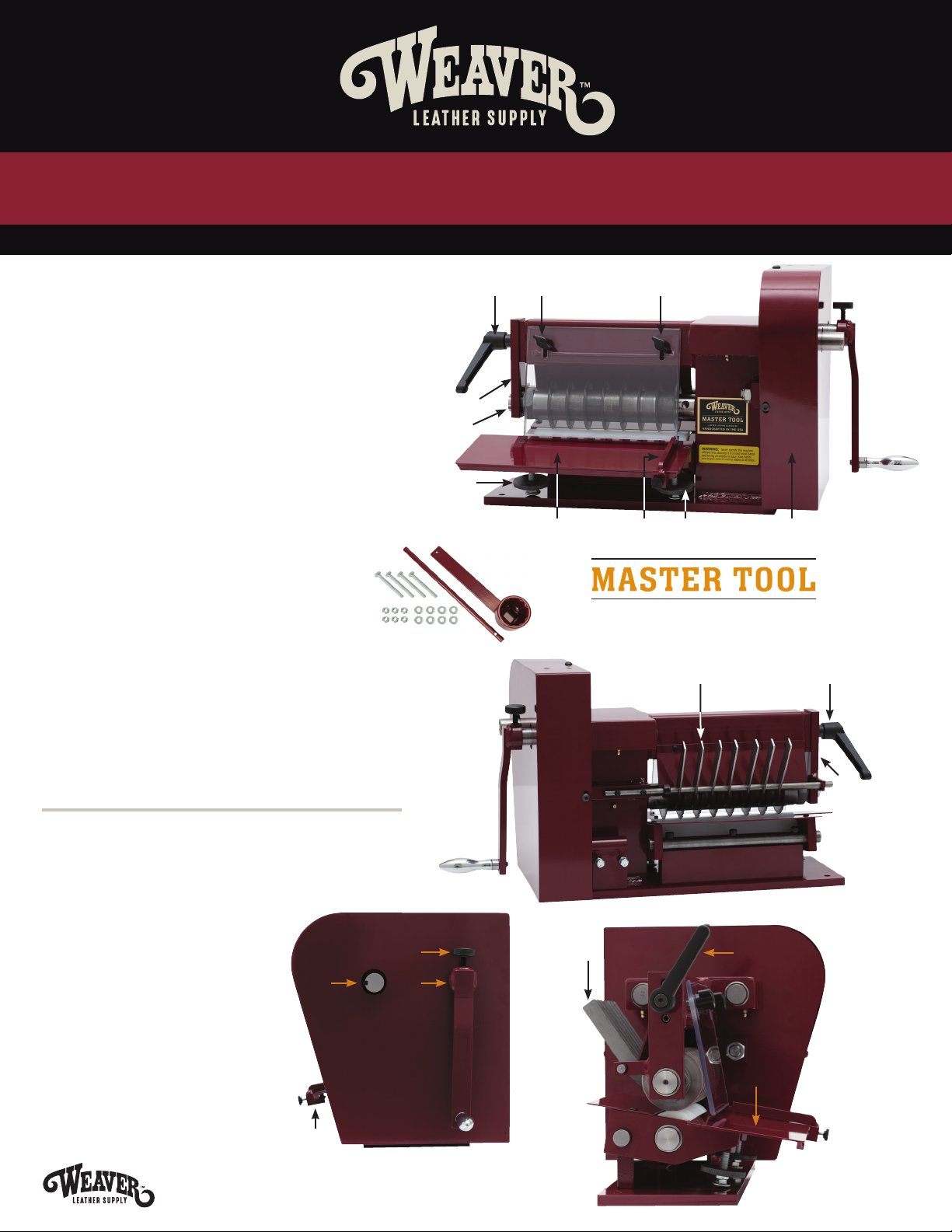

HAND-OPERATED STRAP CUTTER
A- Left Adjustment Wheel
B- Right Adjustment Wheel
C- Metal Fingers
D- Side Bracket
E- Low Speed Adjustment
F- High Speed Adjustment
G- Thumb Screw
H- Locking Lever
I- Thumb Screw
J- Thumb Screw
K- Left-Handed Nut
L- Work Table
M- Chain Guard
N- Guide
O- Wrench
P- Bar
Congratulations on the purchase of your new
Master Tool Hand-Operated Strap Cutter.
Designed and manufactured by Weaver Leather,
this 8" strap cutter features a table and roll that
adjust together. This hand-operated machine
features a handle that can be mounted in two
positions – one for higher torque, lower speed
applications and one for lower torque, higher
speed applications. With the ability to cut
through most types of leather, this efficient
machine is an economical alternative to cutting
by hand. You’ll appreciate the way the ends
remove easily for quick change of blades
and spacers and the roller bearings that
ensure trouble-free operation.
Your machine is assembled and ready to
use after you mount it to a solid wood
bench. This strap cutter features holes and
mounting hardware for your convenience. It comes
set up for 1" straps with spacers and blades. Do
not operate this machine until you have read this
instruction sheet in its entirety. This machine is
designed for cutting leather. Use for any other
purpose is prohibited and voids the warranty.
JH I
D
K
A
L MBN
HC
D
M
F E
G
N
C
D
H
L
Included Tools
O
P

It is important to position the Work Table (L) correctly to ensure you receive the best cutting performance
from the blades.
1. Turn the Adjustment Wheels (A and B) to the left until the blades cut into the bottom of the roll
approximately 1/16" or more, depending on the condition of the roll and the type of leather you are cutting.
2. Pay close attention to your adjustments. If the blades cut too deeply into the bottom roll, it may cause
uneven edges on your straps and may eventually wear deep wrinkles into the bottom roll. If the blades are
positioned too far from the roll, the machine will not cut the leather all the way through.
Please note: Adjustments may vary depending on the thickness of the leather.
The purpose of the machine’s metal fingers is to prevent the cut material from winding onto the cutter shaft.
It is important for them to be positioned correctly.
1. You’ll find the Metal Fingers (C) located at the back of the machine.
2. Adjust by sliding the Metal Fingers (C) to the left or right, spacing them between the blades so the
Metal Fingers (C) skim the spacers that are mounted between the blades.
3. To remove Metal Fingers (C), remove the Side Bracket (D) on the left side of the machine and slide them off.
The handle on this machine can be mounted in two positions – one for higher torque, lower speed applications,
which is the Low Speed Adjustment (E), and one for lower torque, higher speed applications, which is the High
Speed Adjustment (F).
1. To adjust the speed, first remove the handle by loosening the Thumb Screw (G) that’s located at the base
of the handle. The handle should then slide off.
2. Slide the handle onto the preferred shaft and then tighten the Thumb Screw (G). You’ll want to adjust your
speed according to the weight of the leather and your personal work preferences.
For your convenience, this machine is designed for the quick changing of spacers and blades.
1. Turn the Adjustment Wheels (A and B) to the right until the blades are no longer touching the bottom roll.
2. Remove the Locking Lever (H) located on the left side of the machine and then slide the Side Bracket (D)
off of the shaft.
3. Remove the safety guard by removing the Thumb Screws (I and J).
4. Then, loosen the Left-Handed Nut (K), using the Wrench (O) supplied and a Bar (P) that fits into the hole
on the shaft. The spacers and blades should now easily slide off the shaft.
5. To replace, simply slide your preferred spacers and blades onto the shaft. Properly adjust the Metal
Fingers (C), so there is one Metal Finger (C) per spacer. Tighten the nut on the drive shaft. Replace the
end bracket and tighten the Allen screw. Remember to replace the safety guard before operating.
We offer 1/16", 1/4", 1/2", 5/8", 3/4" or 1"* spacers and replacement blades.
*1/16" measures 1/16" even; the rest are 1/16" under size so you get the proper measurement after the
addition of the blades.
POSITIONING THE WORK TABLE
METAL FINGER ADJUSTMENTS
ADJUSTING THE DRIVE SHAFT SPEED
CHANGING THE SPACERS AND BLADES
weaverleathersupply.com
800-932-8371

Begin by adjusting your Guide (N) according to the material you’re going to cut. Insert the leather through the
front of the machine, holding it steady against the Guide (N). Slowly crank the handle. The combined action of
the bottom roll and the blades convey and cut the material, forcing it out of the back of the machine.
1. To adjust the material Guide (N), loosen the thumb screw and adjust by sliding the Guide (N) to the left or right.
OPERATING THE MACHINE
TROUBLESHOOTING
GUIDE ADJUSTMENT
weaverleathersupply.com
800-932-8371
PROBLEM REMEDY
Ruined or dull blade edge. Sharpen or replace blades.
Weaver Leather offers blade sharpening service.
Deep wrinkles on bottom roll. Rearrange spacers and blades on drive shaft
or replace bottom roll.
Incorrect position of bottom roll Turn the Adjustment Wheels (A and B) to the
(it’s too far from blades). left until the blades skim the bottom roll.

weaverleathersupply.com
800-932-8371
Limited Lifetime Guarantee
Every Master Tool is built to last using the finest materials and skilled American workmanship. We are proud to stand behind our products with an unmatched Limited
Lifetime Guarantee. This quality standard warrants each product for its lifetime against defects in materials and workmanship under correct use, normal operating
conditions and proper application. This guarantee does not extend to any component parts not manufactured by Weaver Leather, or if the machine is modified in any
way. Weaver Leather makes no express warranties other than those that are specifically described herein. This warranty is expressly in lieu of all other warranties
express or implied. There are no implied warranties of any kind including merchantability or fitness for a particular purpose. Weaver Leather will in no event be liable
for any incidental or consequential damages whatsoever, nor for any sum in excess of the price received for the goods.
Safety
• Never use this machine unless it is securely fastened down to your solid wood workbench.
• Never operate this machine without all the guards and shields in place.
• Always keep hands, fingers, body parts and cloth away from moving parts during operation.
• Do not put fingers underneath the plexiglass shield.
• Caution: Cutting blades are very sharp. Handle with extreme care.
• Keep away from children at all times.
We recommend oiling the machine’s chain regularly through the access port. Be sure to crank the machine to
ensure the entire chain is oiled. Bearings should also be oiled as needed.
MAINTENANCE
