Webb WEELT450 User manual

Please read & understand this manual, paying particular attention to the safety instructions, before use.
The manufacturer reserves the right to change the product specifi cation and livery according to continues product improvements.
Operator’s Manual
450W Electric
Line Trimmer
WEELT450
1938172001
WEELT450 Instruction Manual.indd 1 17/11/2017 10:05

WEELT450 Instruction Manual.indd 2 17/11/2017 10:05

CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
KNOW YOUR MACHINE
ASSEMBLY
OPERATION
CLEANING & MAINTENANCE

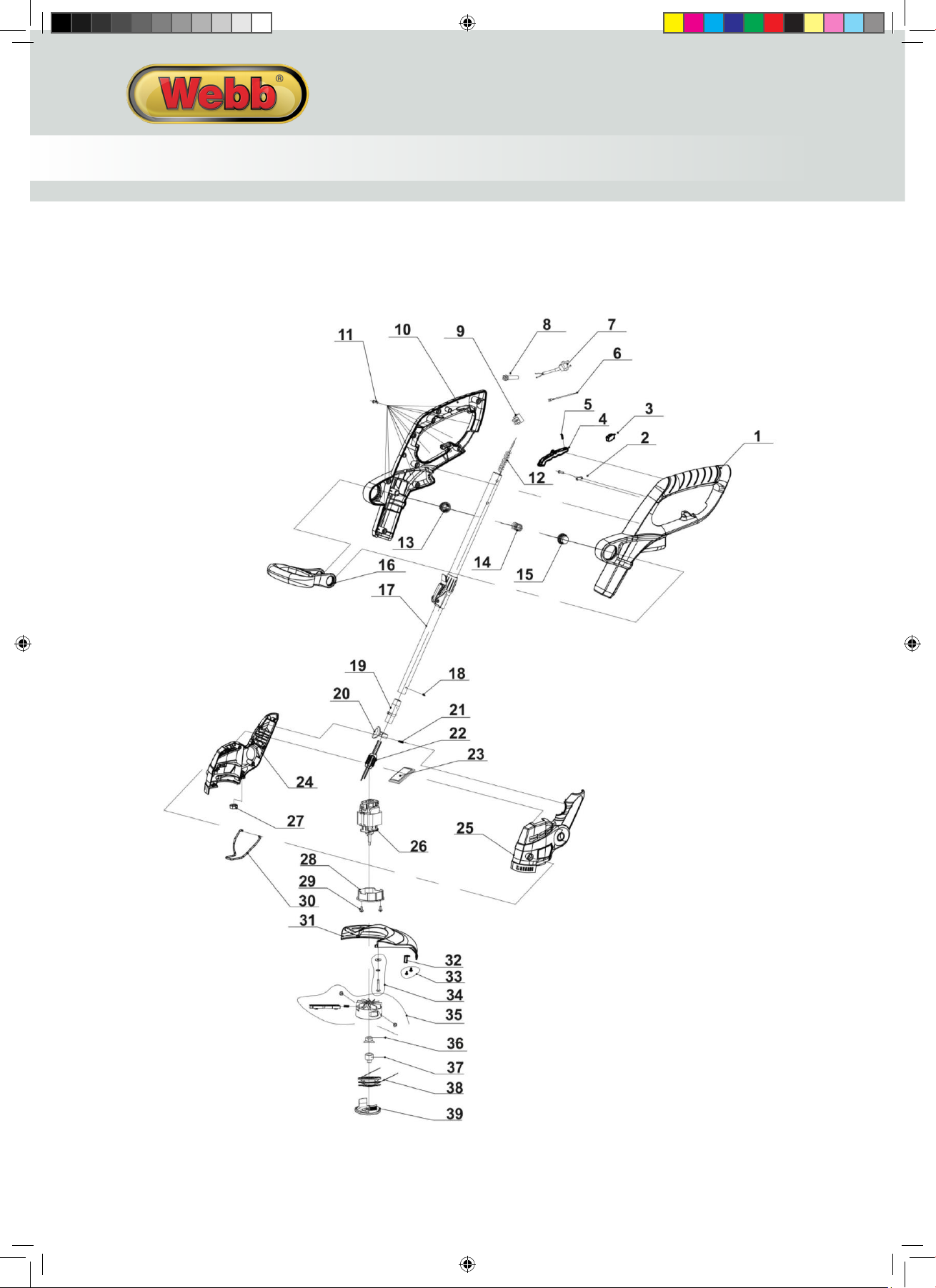

PARTS DIAGRAM & LIST
GUARANTEE
DECLARATION OF CONFORMITY
SPECIFICATION
Consistent with our policy of continuous improvement, WEBB reserves the right to change the
design and configuration of any of its products without notice or obligation. Therefore, please
treat the text and images in this manual for illustrative purposes only. They may in no case serve
as a basis for any legal claim.
If you require any assistance with regards to the contents or operation of your machine,
please call our Customer Service Team on 01793 333212 or email
custome[email protected]o.uk
(Monday to Friday 8.00am to 5.30pm excl. Bank Holidays)
Model
WEELT450
Product Number
1938172001
Motor Capacity
450W
Rated Voltage
230–240V~50 Hz
Idle Speed
11000 min-1
Trimmer Line Diameter
1.5mm
Trimmer Line Length
2x 4m
Trimming Cutting Width
250mm
Height Adjustment
20cm
Protection Rating
II
Guarantee Sound Power Level
L
WA
96dB(A)
Vibration
4.907m/s2,
Uncertainty K=1.5dB
Weight
N.W 1.9kg
WEELT450 Instruction Manual.indd 3 17/11/2017 10:05

IMPORTANT INFORMATION
WARNING: Read this instruction manual carefully before operating this machine. Make
sure that you are familiar with the controls and properly operate the machine. Following
these instructions to reduce the risk of fire, electric shock and personal injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety
instructions must be followed to ensure reasonable safety and efficiency in using this product.
The operator is responsible for following the warning and safety instructions in this manual and
on the machine. Never use the product unless the fixing screws or guards are correctly
positioned.
DESIGNED FOR DOMESTIC USE ONLY.
For use in private gardens are those with an annual use not generally exceeding 50 hours and
that are primarily used for tending GRASS OR LAWN AREAS, but not in public facilities, parks or
sports grounds and not for agricultural or forestry use.
Compliance with the operating manual supplied by the manufacturer is a prerequisite for the
proper usage of the lawn mower. The operating manual contains servicing and maintenance
instructions as well as directions for use.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the
equipment.
Never allow children or people unfamiliar with these instructions to use the product. Local
regulations can restrict the age of the operator.
Never operate while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards involving the
machine that occur to other people or their property.
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 4 17/11/2017 10:05

GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the
machine. Learn its application and limitations as well as the specific potential hazards. Retain
these instructions for future reference. The operator is responsible for following the warnings
& instructions in this manual and on the product.
Read & understand operator’s manual
before using the machine. Failure to follow
instructions could result in death or serious
injury.
DANGER
Beware of sharp blades & nylon line,
which will continue to move after the
motor is switched off. The blades could
reciprocate, even after the plug has been
removed from the power supply.
Wear gloves to protect your hands
Wear safety shoes.
Check your machine before turning it on.
Keep guards in place & in working order.
Frequently check to see that foreign
objects are removed from the working
area before turning it on. Replace
damaged, missing or failed parts before
using it.
Whenever the machine is in use, safety
glasses must be worn to safeguard against
flying objects.
Hearing protection must also be used to
protect the users hearing.
Face masks are also recommended to avoid
inhalation of debris.
Before working or undertaking any
servicing or cleaning of the machine,
ensure the electrical cable is removed
from the power source.
Keep all bystanders & animals at least 15
metres away from the machine during
operation.
If approached, stop the machine
immediately.
Do not expose to rain or damp conditions
Always disconnect your machine from the
electrical supply before
clearing, inspecting or adjusting any part of
it, or if the supply cable has
become damaged or entangled
Safety alert symbol. Used to alert you to
potential personal injury hazards. Obey all
safety messages that follow this symbol to
avoid possible injury.
DANGER
Indicates an imminently hazardous situation
which, if not avoided, will result in serious
injury.
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in
serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
CAUTION
Used without the safety alert symbol,
indicates a potentially hazardous situation
which, if not avoided, may result in
property damage.
Class II Protection
Sound Power Level
(Image used for illustration purposes only,
check machine and Declaration of
Conformity for actual reading)
According to the European directive
2012/19/EU for Waste Electrical &
Electronic Equipment and its
implementation into national law, electrical
and electronic equipment that are no longer
usable must be collected separately &
disposed of in an environmentally correct
manner.
Separate collection of used products and
packaging allow materials to be recycled &
used again. Reuse of recycled materials
helps prevent environmental pollution and
reduces the demand for raw material.
CE marking is a certification mark that
indicates conformity with health, safety, and
environmental protection standards for
products sold within the European Economic
Area.
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 5 17/11/2017 10:05

PREPARATION
To operate this device safely, the user must
have read and understood these
instructions for use before using the device
for the first time.
Observe all safety instructions! Failure to do
so may cause harm to you and others.
Retain all instructions for use, and safety
instructions for future reference.
If you sell or pass the device on, you must
also hand over these operating instructions.
The device must only be used when it
functions properly. If the product or part of
the product is defective, it must be taken
out of operation and disposed of correctly.
Never use the device in a room where there
is a danger of explosion or near flammable
liquids or gases.
Always ensure that a device which has been
switched off cannot be restarted
unintentionally.
Do not use devices with an on/off switch
that does not function correctly.
Keep children away from the device! Keep
the device out of the way of children and
other unauthorised persons.
Do not overload the device. Do not use the
device for purposes for which it is not
intended.
Make sure to always wear the required
personal protective equipment.
The clothing of the operator should be close
fitting. Avoid wearing loosely fitting
clothing. Wear sturdy footwear and long
work trousers.
Always wear appropriate footwear, such as
work boots, and trousers when operating
the mower. Do not operate the equipment
when barefoot or wearing open sandals.
Always wear safety goggles or safety glasses
with side shields when operating the
machine.
Exercise caution and only work when in
good condition: If you are tired, ill, if you
have ingested alcohol, medication or illegal
drugs, do not use the device, as you are not
in a condition to use it safely.
This product is not intended to be used by
persons (including children) or who are
limited in their physical, sensory or mental
capacities or who lack experience and/or
knowledge of the product unless they are
supervised, or have been instructed on how
to use the product, by a person responsible
for their safety.
Ensure that children are not able to play
with the device.
Always comply with all applicable domestic
and international safety, health, and
working regulations.
RISKS CAUSED BY VIBRATIONS
The vibration values specified in the
technical data represent the main uses of
the device. The actual existing vibrations
during use may deviate from these because
of the following factors:
•Incorrect use of the product;
•Unsuitable tools inserted;
•Unsuitable material;
•Insufficient maintenance.
You can reduce the risks considerably by
following the tips below:
•Maintain the device in accordance with
the instructions within this manual.
•Avoid working at low temperatures.
•When it is cold, make sure your body
and your hands in particular, are kept
warm.
•Take regular breaks and move your
hands at the same time to promote
circulation.
ELECTRICAL SAFETY
The device may only be connected to a
socket that is correctly installed and
grounded.
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 6 17/11/2017 10:05

The fuse must be a residual current circuit-
breaker with a measured residual current of
no more than 30 mA.
Make sure that the power supply
corresponds with the connection
specifications of the device before it is
connected.
The tool may only be used within the
specified limitations for voltage and power
(see type plate).
Do not touch the mains plug with wet
hands!
Always pull out the mains plug at the plug
and not by the cable.
Do not bend, crush, pull or drive over the
power cable, protect from sharp edges, oil
and heat.
Do not lift the device using the cable or use
the cable for purposes other than intended.
Check the plug and cable before each use.
If the power cable is damaged, immediately
disconnect the plug. Never use the device if
the power cable is damaged.
If the device is not in use, make sure the
plug is pulled out.
Make sure that the device is switched off
before plugging in the mains cable.
Make sure that the device is switched off
before unplugging it.
Disconnect the power supply before
transporting the device.
DEVICE-SPECIFIC SAFETY INSTRUCTIONS
Keep the handle dry and free of grease.
Make sure to always wear personal
protective clothing when operating.
Make sure the connection cable is always
kept out of the working range of the device.
Make sure that cables always lead away
from the rear of the device.
Make sure you are positioned firmly and
with a natural stance when working with
the device.
Always hold the unit tightly with both
hands.
Before starting work, check the area for
animal and objects. Remove all objects that
may be blown away by the unit, or that the
cutting blade/line may become caught on.
Before starting work, check the area and
remove all objects which may damage the
cutting mechanism.
Always ensure sufficient distance to the
cutting mechanism.
In the vicinity of 15m around the cutting
area there should be no people or animals,
they may be hurt by flying objects.
Only work with good light and visibility.
Do not work above hip height! Do not bend
forwards or lean over backwards!
Pay attention when walking backwards.
Danger of stumbling!
The cutting tool will continue to rotate even
after the engine has been switched off.
Risk of injury caused by the cutting
blade/line!
Always keep the machine in the normal
working position before switching on.
Ensure that the ventilation slots are kept
free from dirt.
Never mount metal cutting elements.
Children should be supervised to ensure
that they do not play with the device.
If the power cable of this device is
damaged, it may only be replaced by the
manufacturer, their customer service
operation, or a similarly qualified person, in
order to prevent risks.
Remember that moving parts may also be
located behind ventilation and venting
slots.
Symbols affixed to your tools may not be
removed or covered. Information on the
device that is no longer legible must be
replaced immediately.
Read the operating manual before using the
device
MAINTENANCE AND STORAGE
Keep all nuts, bolts and screws tight to be
sure the equipment is in safe working
condition.
Replace worn or damaged parts for safety.
Keep the machine free of grass, leaves, or
other debris build-up.
Allow the machine to cool before storing.
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 7 17/11/2017 10:05

STAY ALERT
Do not operate the machine while under
the influence of drugs, alcohol, or any
medication that could affect your ability to
use it properly. Do not use this machine
when you are tired or distracted from the
job at hand. Be aware of what you are
doing. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding
workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient
light. Keep area around the machine clear
of obstructions, stones, sticks, wires and
other debris or foreign bodies which could
cause damage to the machine.
DO NOT SMOKE, whilst using the machine.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for
tightness before each use, especially those
securing guards and drive mechanisms.
Vibration during use may cause these to
loosen.
Replace damaged, missing or failed parts
before using.
Warning labels carry important information.
Replace any missing or damaged warning
labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs,
neckties or jewellery (rings, wrist watches),
which can be caught in moving parts.
ALWAYS wear protective eye and ear wear.
Appropriate gloves are also recommended.
Wear protective hair covering to contain
long hair, preventing it from getting caught
in machinery.
DO NOT use whilst barefoot or wearing
open toed footwear.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons or animals a
minimum distance of 15 metres away from
the mower. Do not allow children to handle,
use, or climb on the lawnmower.
DO NOT OVERREACH
Keep proper footing and balance at all
times, particularly if using on slopes. The
machine should not be used on steep slopes
and always be sure of footing.
AVOID INJURY FROM UNEXPECTED
ACCIDENT
Keep hands out of the way of moving parts,
particularly the engine and rotating cutting
tool.
DO NOT FORCE TOOL
Always work within the rated capacity. Do
not use the machine for a purpose for
which it was not intended. Always use the
correct handles provided with the machine.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use.
Keep the machine clean to ensure it
operates to its full and safest performance.
When maintaining this machine, only the
manufacturer’s original replacement parts
should be used. The use of non-original
manufacturer parts may invalidate your
warranty.
STORE IDLE EQUIPMENT
When not in use, the machine should be
stored in a dry location. Keep the machine
away from children and others not qualified
to use it.
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 8 17/11/2017 10:05

KNOW YOUR MACHINE
1. On/Off Trigger
2. Main Handle
3. Cable Restraint
4. Safety Guard
5. Nylon Head
6. Plant Guard
7. Motor Head
8. Cutting Head Lock
9. Height Adjuster
10. Front Handle Lock
11. Front Handle
1
11
10
2
3
9
8
7
4
6
5
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 9 17/11/2017 10:05

ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If
you require any assistance with regards to the contents or operation of your machine, please call
our Customer Service Team on 01793 333212 or email [e-mail]
(Monday to Friday 8.00am to 5.30pm excl. Bank Holidays)
PROTECTIVE GUARD
CAUTION
Risk of injury! On the underside of the protective guard there is a sharp blade designed to cut the
thread. Remove the transportation protection before operating.
Put protective guard (4) in place use screws (12)
to fix to the unit.
Remove the transportation protection from the
cutting blade (13).
FRONT HANDLE
Press in and hold the locking buttons (10).
Attach the front handle (11) to the product as
illustrated.
Release the locking buttons (10) again
OPERATION
DANGER
Risk of injury! The device may only be put into operation if there are no defects. If a part is defective it
must be replaced before the device is used again.
WARNING
Risk of injury! Before starting work check the area and remove all objects which may be kicked up by the
unit.
Check to make sure there are no visible defects.
Check to make sure all device components are correctly mounted
1
3
4
12
13
4
10
11
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 10 17/11/2017 10:05

CORRECT POSITION
Hold the unit with the left hand on the front handle, and the right hand at approximately hip level on
the operating handle, balanced in a comfortable way.
SETTING THE ANGLE OF THE FRONT HANDLE
Press in and hold the locking buttons (10).
Attach the front handle (11) to the product as
illustrated.
Release the locking buttons (10) again.
SETTING THE ADJUSTABLE HANDLE
Loosen the locking lever (9).
Pull the telescopic pole (14) to the desired
length.
Tighten the locking lever (9).
CABLE RESTRAINT
Feed the extension cable through the strain
relief mechanism (3) as shown.
SWITCHING ON AND OFF
Switching on:
Pull the On/Off trigger upwards (1).
Switching off:
Release the On/Off trigger (1).
9
1
4
10
11
9
14
3
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 11 17/11/2017 10:05

AUTOFEED NYLON LINE
When switching on the line trimmer, the inertia of the head spinning
will feed a small length of line out. An ‘impact’ noise can be heard
when both nylon lines hit the cutting knife, this is normal. After a
minimal period, the nylon line will be cut to the correct length and
the noise will reduce as the motor reaches operation speed. Make
sure the motor is up to full speed before trimming or edging.
If the noise of the nylon line being cut cannot be heard, more line will
need to be fed out. To feed more line, it is first necessary to allow the
machine to stop completely, then re-start, allowing it to reach full
speed.
MANUAL FEED NYLON LINE
You can manually feed out the nylon line. To do this, press & release
manual feed button, whilst pulling on one of the nylon lines. Feed until
the line reaches the cutting knife. Gently pull on the second line (do not
press the manual line feed button again). If the line extends past the
cutting knife, remove the spool cap and click spool anti-clockwise until the
line is at the desired length.
CUTTING TIPS
Only cut with the left (shown here as light grey) area of the
cutting unit when the unit is being moved from right to left.
In the right (dark grey) area, the threads rotate in your
direction.
This represents a high level of kickback risk and objects may be
thrown in your direction by the rotation of the thread. You may
be hurt as a result.
When the unit is moved from left to right, ensure that the nylon
line is kept away from the grass to ensure that the grass is not
thrown up.
Cut long grass from top to bottom to ensure that the grass does
not get tangled around the spool.
Only use the tip of the nylon line. This way you use less nylon
line and avoid grass getting caught up in the spool.
Only take the nylon line as close as absolutely necessary to
posts, walls, fences etc. Solid objects will wear the nylon line.
Tree trunks, young trees and bushes may be damaged by the
nylon line.
TRIMMING EDGES
Press in and hold the locking
button (8). Rotate the cutting head
(7), 180 degrees. Release the
locking button (8) again.
Guide the unit, as shown, slowly
along the edge of the lawn.
8
7
7
8
MANUAL FEED
BUTTON
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 12 17/11/2017 10:05

CLEANING & MAINTENANCE
DANGER
Prior to conducting maintenance or cleaning: Unplug from the power source.
Note: Clean unit immediately after every use. Remains of dried grass is very hard, and are very
difficult to remove.
BEFORE EACH USE
What?
How?
Check the power cable and connector for
damage.
Conduct a visual inspection and have the cable
replaced by an electrician if necessary.
IF NECESSARY
What?
How?
Cleaning the device
Wipe the unit with a damp cloth.
Replace the thread if it is too short.
Replace the spool
REPLACING THE THREAD SPOOL
Remove the spool by pressing the locking
mechanism in (15). Remove the cover (16).
Pull out the cord spool.
INSERTING THE THREAD SPOOL
Feed both threads in the openings (17) of the
spool housing.
Press the thread spool into the spool housing.
Pull the threads out through the openings.
Mount cover (16) and allow to engage.
STORAGE & TRANSPORTATION
STORAGE
Store the tool in a dry and well-ventilated place.
TRANSPORTATION
When dispatching, try to use the original packaging, if possible.
TROUBLE SHOOTING
Error/Fault
Cause
Remedy
Motor Not Working No power supply.
Check the cable, plug and
fuse.
Defective connecting cable
Contact the retailer
Nylon line doesn’t unwind
Nylon Line used up
Replace the spool
Spool blocked
Remove the cause of the
blockage.
If you can’t fix the fault yourself, contact your retailer. Please be aware that any improper
repairs will also invalidate the warranty and additional costs may be incurred.
17
15
16
17
16
15
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 13 17/11/2017 10:05

PARTS DIAGRAM
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 14 17/11/2017 10:05

PARTS LIST
Item No.
Webb Part No.
Webb Description
Qty
1
WE131-301029388C
Left Handle
1
2
WE131-301990135
Pressing Line Plate
3
3
WE131-102020111
Positive Microswitch
1
4
WE131-301070613B
Trigger
1
5
WE131-103060034
Hand Spring
1
6
WE131-102080445
Inner Wire
1
7
WE131-102070627
BS Plug & Cable
1
8
WE131-301021046
Cable Sleeve
1
9
WE131-1029901010
Wiring Terminal
1
10
WE131-301029387C
Right Handle
1
11
WE131-104030136
Self-Tapping Screws
24
12
WE131-4100124
Spring Wire Assembly
1
13
WE131-301023043B
Right Adjustable Handle Knob
1
14
WE131-103060259
Spring
1
15
WE131-301023045
Left Adjustable Handle Knob
1
16
WE131-301020019D
Adjustable Front Handle
1
17
WE131-4040105B
Telescopic Tube Assembly
1
18
WE131-104030421B
Self-Tapping Screws
2
19
WE131-301029391
Swivel Joint
1
20
WE131-301070624B
Rotate Button
1
21
WE131-103060276
Button spring
1
22
WE131-102090029
Inductor
1
23
WE131-301029393G
Decorative Block
1
24
WE131-301029390C
Right Housing
1
25
WE131-301029389C
Left housing
1
26
WE131-102010381
450W Motor
1
27
WE131-104020074
Square Nut
1
28
WE131-301029386
Motor Bracket
1
29
WE131-104030334
Flat Head Screws
2
30
WE131-103990722
Plant Protector
1
31
WE131-301029256
Guard
1
32
WE131-103030062
Cutting Blade
1
33
WE131-104030416
Cutting Blade Screws
2
34
WE131-104030363
Pan Head Screws
1
35
WE131-301070651
Full Automatic Fan Assembly
1
36
WE131-104020030
Flange Nut
1
37
WE131-301029099
Nut cover
1
38
WE131-301100001
Spool & 1.5m Line
1
39
WE131-301021041
Spool Cover
1
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 15 17/11/2017 10:05


ECDECLARATIONOFCONFORMITY

WeHandyDistributionLtd-SN35HY(Importer)declarethattheproduct:

Designation:ElectricGrassTrimmer
Model(s):WEELT450
ProductNumber:1938172001
Type/SerialNo.Asperratinglabelonmachine
Voltage:230-240V~50Hz
RatedPower:450W
Protection:ClassII
IdleSpeed:11000min-1
CuttingWidth:250mm

ThismachineconformstoEUDirectives,towhichthisdeclarationrelates&correspondstotherelevantbasic
safetyandhealthrequirementsofDirective:
MachineryDirective2006/42/EC
LowVoltageDirective2006/95/EC
NoiseDirective2000/14/ECamendedby2005/88/EC,AnnexVI

FortherelevantimplementationofthesafetyandhealthrequirementsmentionedintheDirectives,the
followingstandardsand/ortechnicalspecification(s)havebeenrespected:
EN60335-1:2012+A11:2014,EN50636-2-91:2014,EN62233:2008

GuaranteedSoundPowerLevel:LWA=96dB(A)
VibrationLevel:2.5m/s²(Uncertainty–K=1.5m/s2)

NotifiedBody:
TÜVSÜDProductServiceGmbH
Addresses:
Zertifizierstelle,RidlersraBe65,80339München,Germany

Authorisedsignatoryandtechnicalfileholder
Date:08/11/2017
Name:MrSimonBelcher
Position:ManagingDirector
Company:HandyDistributionLtd
Address:MurdockRd,Swindon,Wiltshire,SN35HY.
Signature: 

WEELT450 Instruction Manual.indd 16 17/11/2017 10:05

NOTES
WEELT450 Instruction Manual.indd 17 17/11/2017 10:05

This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you
to take advantage of the conditional manufacturer domestic warranty*.
Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
The booklet is applicable to the following products, in the UK only:
Ride On Lawn Tractors
Cylinder Lawnmowers
Petrol Rotary Lawnmowers
Petrol Hand Held Range
Please register your machine using the following pages or at www.webbgardenpower.co.uk. By registering your machine, you
agree to maintain the machine in accordance with the service schedules specifi ed in this manual and services duly recorded.
(Not applicable for Webb electric handheld machines). You may be asked to produce this booklet as proof of servicing in the
event of a claim. Proof of purchase should also be kept as a reference.
Ensure you have the following information available from your machine product label. The two examples below can be found
on your machine:
1
2
1. Model Number
2. Serial & Product Number
Please complete using BLOCK CAPITALS.
Sections marked* must be completed to validate Warranty.
Warranty
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies
to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those
parts, which are of original manufacture.
2. Period of Warranty
Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the fi rst
domestic user.
Webb Electric Handheld 1 year warranty from the original date of sale to the fi rst domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the fi rst 14 months from the original date of purchase, to qualify for a second year
parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in normal use,
will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of
correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the
operators manual, or service parts replacement which would include oil, fi lters, tyres, belts, brake linings, fuses, blades, seals
and other service parts unless it can be proven that the item has evidence of faulty manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modifi ed without the
written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fi tted and as a result damage has occurred to
the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the fi tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of GJ
Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any way.
(c) Neither GJ Handy & Co Ltd nor any company affi liated with GJ Handy & Co Ltd shall be liable in any event or manner
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 18 17/11/2017 10:05

This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you
to take advantage of the conditional manufacturer domestic warranty*.
Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
The booklet is applicable to the following products, in the UK only:
Ride On Lawn Tractors
Cylinder Lawnmowers
Petrol Rotary Lawnmowers
Petrol Hand Held Range
Please register your machine using the following pages or at www.webbgardenpower.co.uk. By registering your machine, you
agree to maintain the machine in accordance with the service schedules specifi ed in this manual and services duly recorded.
(Not applicable for Webb electric handheld machines). You may be asked to produce this booklet as proof of servicing in the
event of a claim. Proof of purchase should also be kept as a reference.
Ensure you have the following information available from your machine product label. The two examples below can be found
on your machine:
1
2
1. Model Number
2. Serial & Product Number
Please complete using BLOCK CAPITALS.
Sections marked* must be completed to validate Warranty.
Warranty
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies
to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those
parts, which are of original manufacture.
2. Period of Warranty
Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the fi rst
domestic user.
Webb Electric Handheld 1 year warranty from the original date of sale to the fi rst domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the fi rst 14 months from the original date of purchase, to qualify for a second year
parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in normal use,
will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of
correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the
operators manual, or service parts replacement which would include oil, fi lters, tyres, belts, brake linings, fuses, blades, seals
and other service parts unless it can be proven that the item has evidence of faulty manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modifi ed without the
written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fi tted and as a result damage has occurred to
the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the fi tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of GJ
Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any way.
(c) Neither GJ Handy & Co Ltd nor any company affi liated with GJ Handy & Co Ltd shall be liable in any event or manner
INSTRUCTION MANUAL
SERVICE BOOK
WEELT450 Instruction Manual.indd 19 17/11/2017 10:05

Warranty
whatsoever for incidental or consequential damages or injuries, including, but not limited to, loss of crops, loss of profi t, out
of pocket expenses or profi ts, rental of substitute equipment or other commercial losses.
5. General
(a) Most warrantable failures show up within the fi rst few weeks of use. These failures are usually straightforward and
warranty assessment is relatively easy.
(b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be straightforward.
Look for damage to blades and pulleys especially when the cutter belt or blade boss have snapped or cracked as this could be
due to impact damage.
(c) Customers should always refer to the operator/instruction manual when any disputed problem arises, you will fi nd most
areas covered within the manual.
Protecting your machine
Maintenance
Regular maintenance of your Webb machine is essential to ensure it operates, safely, effi ciently and therefore reducing the
environmental impact.
It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved Webb
service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine
and any technical updates which will save valuable time & money.
If you are using your machine in dry, dusty or high temperatures, you will need to service the machine more regularly.
Fuel (if applicable)
Due to ongoing efforts by fuel companies to reduce emissions, unleaded petrol will oxidize & deteriorate in storage overtime,
leaving residue from detergent components.
Fuel deterioration problems may occur when petrol is stored for over 30 days. If you are planning to store fuel for over
30 days, we recommend you add Handy Parts Sure-Start fuel stabilizer to fresh fuel after purchasing. Sure-Start cannot
reconstitute stale fuel.
Storage
When storing your machine for an extended period, we do recommend that you follow the instructions of engine instruction
manual.
Always store the fuel in a clean, approved and sealed container. If the container is steel, ensure it is not corroded.
If the container is not fi lled to its recommended capacity, air can accelerate fuel deterioration.
Always store fuel away from direct sunlight, in a dark, cool environment.
Service Record
Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have
been completed.
PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK.
1st Service
This must be stamped by an approved service dealer to
qualify for a free second year warranty.
(Excluding the Webb Electric Handheld machines)
24 Months
Date Date
36 Months
12 Months
Date
INSTRUCTION MANUAL
WEELT450 Instruction Manual.indd 20 17/11/2017 10:05
