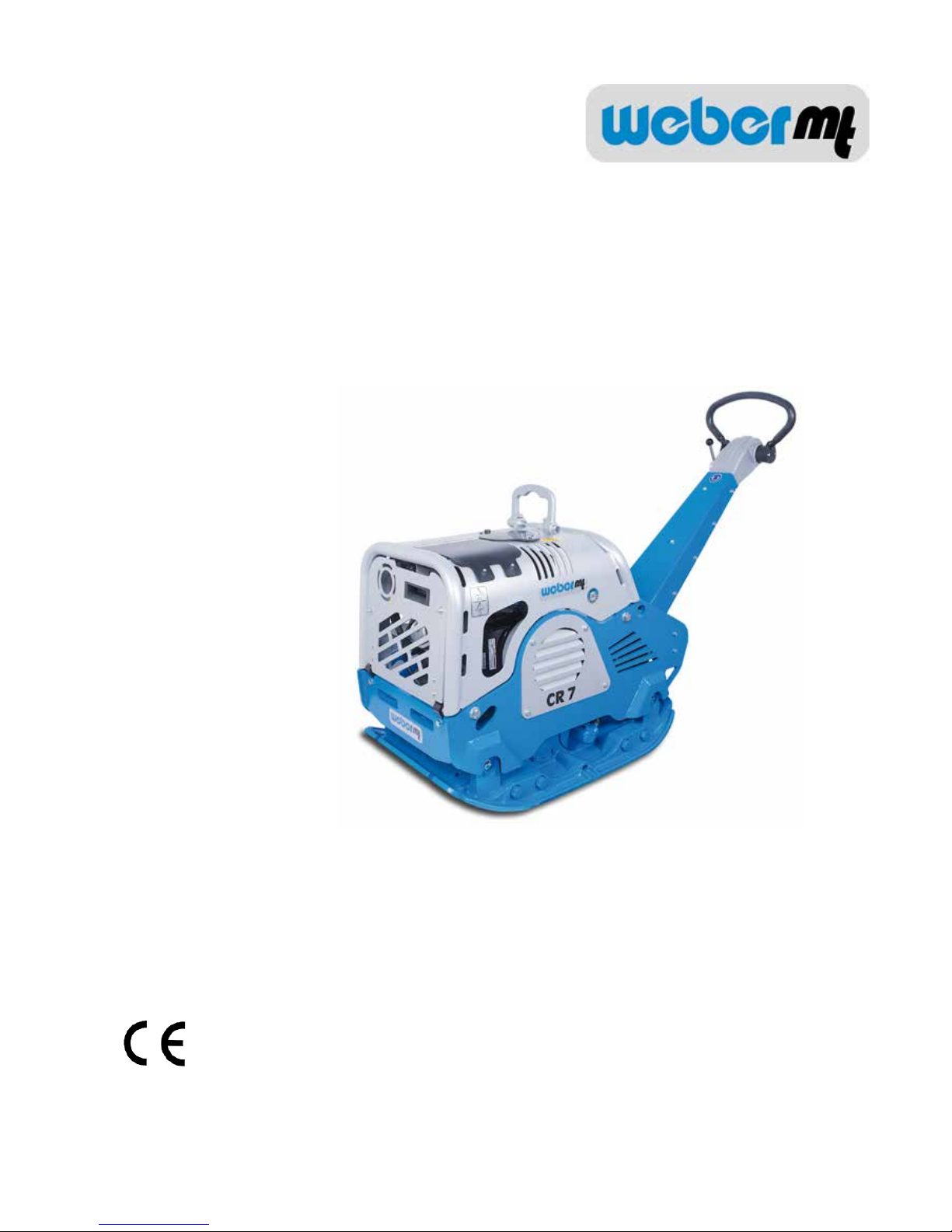

Weber Maschinentechnik GmbH CR 7 HD Operating instructions

CR 7 HD 1
CR 7 HD
Honda GX 390
Operating and
Maintenance Manual
Weber Maschinentechnik GmbH
Im Boden 5 - 8, 10
57334 Bad Laasphe-Rückershausen / Germany
Telephone [phone] / 398-0
Fax [phone] / 398-101
E-Mail: [email protected]
Web: www.webermt.de
1114/englisch/Übersetzung der Original-Betriebsanleitung

2 CR 7 HD

CR 7 HD 3
Table of contents
Introduction 4
Safety guidelines 5
Graphic presentation 8
Device description 9
Technical data 10
Activities prior to starting work 12
Starting 14
Compacting 15
Shutting down 15
Maintenance overview 16
Maintenance work 17
Operating uids and ll levels 19
Troubleshooting 19
Storage 20
Contact addresses 24

4 CR 7 HD
Introduction
This operating and maintenance manual is designed to facilitate familiarization with your soil
compactor, and to enable you to maintain the compactor and use it for its intended purpose.
When complying with the instructions in the operating and maintenance manual you help avoid
hazards, reduce repair and downtime costs, and increase the reliability and service life of your
compactor.
This operating and maintenance manual must always be available at the implementation site
of the soil compactor.
If necessary you can obtain additional information from your authorized WEBER dealer,
or you can obtain information from one of the contact addresses on the last page.
The valid conformity declaration is enclosed with every machine delivery.
You can obtain information on the assembled Honda gasoline engine and nd a spare-part list for it
at www.honda-engines-eu.com.

CR 7 HD 5
Safety guidelines
General
All safety instructions must be read and complied with, non-compliance results in
– danger to life and limb of the user
– impairments to the machine or other property.
In addition to the operating manual, the accident-prevention regulations in the country where
the appliance is used must be complied with.
Intended use
The soil compactor should only be used if it is in a technically faultless condition, as intended,
in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the
operating manual. Malfunctions that impair safety must be eliminated without delay.
The CR 7 soil compactor is designed exclusively for compacting
– sand
– gravel
– crushed rock
– semi-cohesive mixed material
– concrete paving stone.
Any other use of the soil compactor is considered to be improper use for which the owner shall
be exclusively responsible. All liability is rejected if damage occurs due to non-compliance with
this provision. This risk is borne solely by the user.
Easily foreseeable misuse
Any use for which the machine is not intended.
Operation
Soil compactors are only permitted to be operated by suitable persons of or above the age of
eighteen. Personnel must be instructed in how to guide the compactor by the owner or by the
owner’s assigned personnel.
The machine operator must comply with trafc regulations. If instructions that affect safety are
given by third parties, then the operator must be authorized to reject these instructions.
Protective equipment
This machine is capable of exceeding the permissible sound level of 80 dB(A). The owner might also
face additional dangers when using the machine. Precautionary action must, therefore, be taken.
Unauthorized persons are forbidden from being in the area of the soil compactor during the
compacting process.
Protective equipment includes:
Hearing protection
Hard hat
Safety shoes
Protective gloves

6 CR 7 HD
Operation
Prior to starting work the owner of the compactor must be familiar with the work environment. The
work environment includes obstacles in the work and trafc area, the bearing capacity of the ground,
as well as the necessary safeguarding of the construction site in the area adjacent to public trafc;
and it includes compliance with trafc regulations.
The soil compactor should only be operated when the protective xtures are mounted. The protective
xtures must all be in functional condition.
At least once per shift the compactor must be checked for apparent defects. If there are apparent
defects then operation of the compactor must be stopped immediately, and the responsible person
must be informed. Prior to restarting, compactor malfunctions that have occurred must be corrected.
Always maintain adequate clearance to the edges of pits and embankments.
Do not drive at ninety degrees to slopes to prevent the compactor from tipping over.
After work has been concluded secure the compactor in accordance with statutory regulations,
particularly in the area of public trafc surfaces.
Operation under difcult conditions
Never inhale the exhaust gas; it contains carbon monoxide, a colorless and odorless gas that
is extremely hazardous, which, if inhaled even briey, can cause unconsciousness and death.
Therefore, never operate the engines in enclosed areas or in areas that are poorly ventilated
(tunnels, caves, etc.). Exercise particular caution when operating the engine in the vicinity of
people and livestock.
Maintenance and repair work
Only use original Weber spare parts to ensure reliable and safe operation for maintenance or repair
work.
Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering
practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects
are present.
Adjusting tasks, maintenance tasks, and inspection tasks must be executed on schedule as specied
in this operating and maintenance manual. These activities should only be executed by instructed
personnel.
For repair, service, or inspection work the engine of the compactor must be safeguarded against
unintentional starting.
All pressurized lines, particularly hydraulic lines and lines of the injection system of the drive motor
must be depressurized before performing maintenance or repair tasks.
For maintenance and repair tasks the compactor must be parked on a level and stable substrate and
must be secured from rolling off or tipping over.
Heavy components and assemblies must be secured to and lifted by hoisting machines that can
bear their weight when they are replaced. Ensure that no hazard is caused by raising components or
assemblies.
Do not position yourself or work under suspended loads.
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact
with the skin, clean affected skin with suitable cleaning agent without delay.

CR 7 HD 7
Inspection
Compactors must be inspected in accordance with the corresponding implementation conditions and
operating conditions, as needed; however an inspection to ensure operationally safe status must be
performed by an expert at least once a year. The results of the inspection must be recorded in writing
and must be stored at least until the next inspection.
Cleaning work
Prior to cleaning the compactor with a high-pressure cleaner, protect all accessible energized
switches, cable connections, etc. against water penetration by masking them off.
Cleaning tasks should only be executed in areas that are suitable and have been approved for this
purpose (oil separator amongst others).
Disposal
All operating uids and auxiliary materials must be disposed of in an environmentally-compatible
manner in accordance with country-specic regulations.
Important information for operating and maintenance personnel is marked by pictograms.
Warning against irritants or materials hazardous to health
Warning against a hazardous place
Warning against a suspended load
Wear ear protection
General regulation
Environmental protection
Hard hat
Safety shoes
Protective gloves

8 CR 7 HD
1
3
4
6
2
7
8
9
4
5
10
Graphic presentation
Overall view CR 7HD
1 Engine
2 Drive lever
3 Manual guidance rod
4 Lifting ring
5 Base plate
6 Protective frame
7 Exciter
8 Gas lever
9 Attachment plates
10 Hearing protection (sticker)

CR 7 HD 9
Device description
The CR 7 compactor is used for road building and landscaping compaction tasks.
Drive
The unit is powered by an air-cooled Honda gasoline engine.
Force is transferred to the exciter mechanically via a V-belt.
Operation
Start the Honda gasoline engine with the attached reversing starter.
After starting, vibration is switched on via the centrifugal clutch attached to the engine.
Use the gas lever to vary the engine speed between idle and full throttle.
Forward and reverse is variably controlled via the handle attached to the manual guidance rod.

10 CR 7 HD
Technical data
CR 7 HD
Weight
Operating weight CECE in kg 437 / 489
Dimensions
Overall length (in mm) 1835
Width with attachment plates (in mm) 600 / 800
Height with folded manual guidance rod (in mm) 1135
Base plate length (base in mm) 440
Pressure surface (in mm) 440 x 600/440 x 800
Drive
Engine manufacturer Honda
Type GX 390
Performance at operating speed in accordance
with ISO 3046-1 (kW) 7,0
Combustion process 4-stroke gasoline
Operating speed (1/min) 3000
Operating speed (ground-dependent in m/min) 24 / 20
Incline capacity (ground-dependent in %) 30
Area capacity (in m²/h) 864 / 960
Vibration
System Two-wave vibrator
Drive concept Mechanical
Frequency (in Hz) 65
Centrifugal force (in kN) 60
CR 7 HD
Noise emissions in accordance with 2000/14/EC
Sound pressure level LPA ascertained
in accordance with EN 500, in dB (A) 94
Sound power level LWA ascertained
in accordance with EN ISO 3744 and EN 500, in dB (A)
108
Vibration values
Root-mean-square acceleration value
for hand-arm vibration ascertained
in accordance with EN 500 in m/s² 2,1
In accordance with directive 2006/42/EC,
complying with the vibration values is the
owner’s responsibility.

CR 7 HD 11
2
1
3 4
56

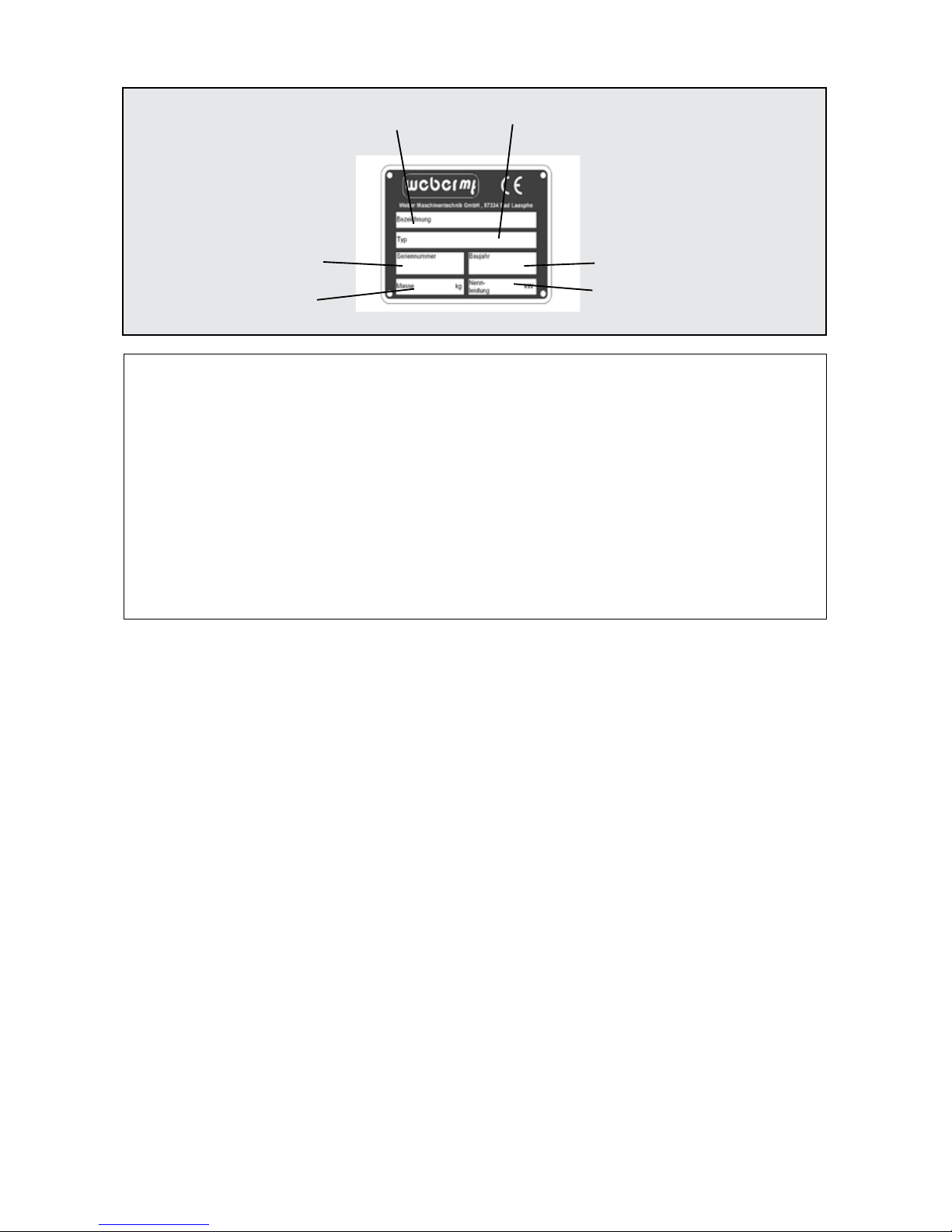

1 Description 2 TYPE
.................................................... ....................................................
3 Serial number 4 Year of construction
.................................................... ....................................................
5 Mass 6 Rated power kW
.................................................... ....................................................

12 CR 7 HD
1
1
1
1
2
Transport
Fit the crane hook into the lifting ring (1) and lift the machine
onto the desired means of transport.
Only use lifting machines with a minimum bearing
capacity of 500 kg.
Adjust the desired work height of the manual guidance rod
with the set screw (1).
Adjusting the manual guidance rod
Arrest the manual guidance rod (1) with the spring bolt (2).
Activities prior to starting work
When transporting the soil compactor on a vehicle,
secure it with suitable restraints.
Do not step under suspended loads.
Checking the engine oil level
Pull the oil dip stick (1) out of the crankcase.
Open the engine hood (1). pull
min max
The correct oil level is between the min. and max. marks.

CR 7 HD 13
1
2
1

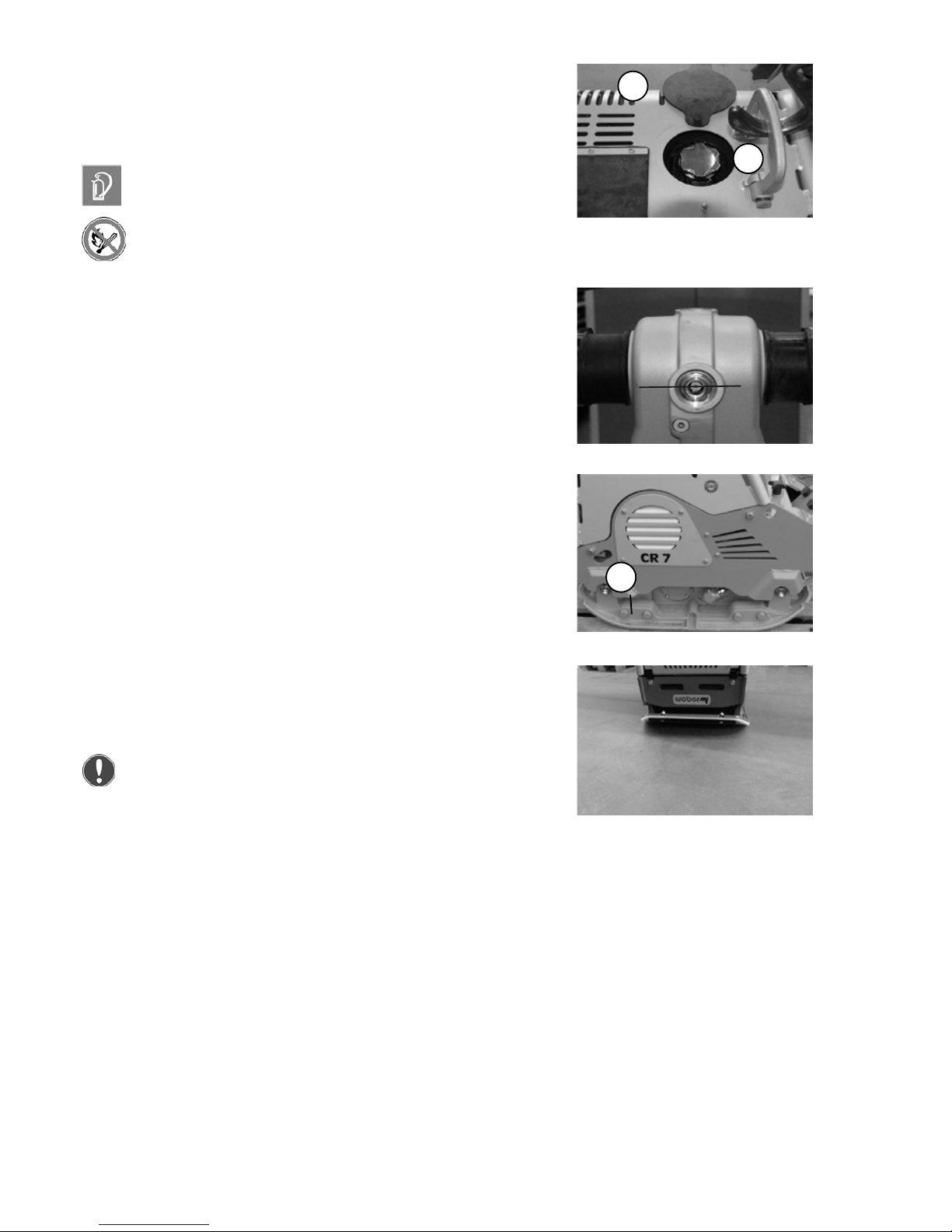

Check the hydraulic oil level when the machine is at
operating temperature. The correct oil level is reached
when the oil is in the middle of the oil sight glass.
Tighten the screws (1) of the attachment plates with a torque
of 425 NM.
Check the hydraulic uid level
Mounting the attachment plates
Open the cover (1), unscrew and remove the gas cap (2),
check the ll level and, if necessary, top off with clean
unleaded gasoline to the lower edge of the ller neck in
accordance with the specication.
Check the fuel level
For work at the fuel system, have a suitable re-
extinguishing agent at the ready.
Fire, naked light, and smoking is forbidden!
Installing the protective mat
Fasten the protective mat with holder, screws, spring-lock
washers and nuts on the base plate front and rear.
Ensure that the protective mat rests under the base plate.

14 CR 7 HD
2
1
1

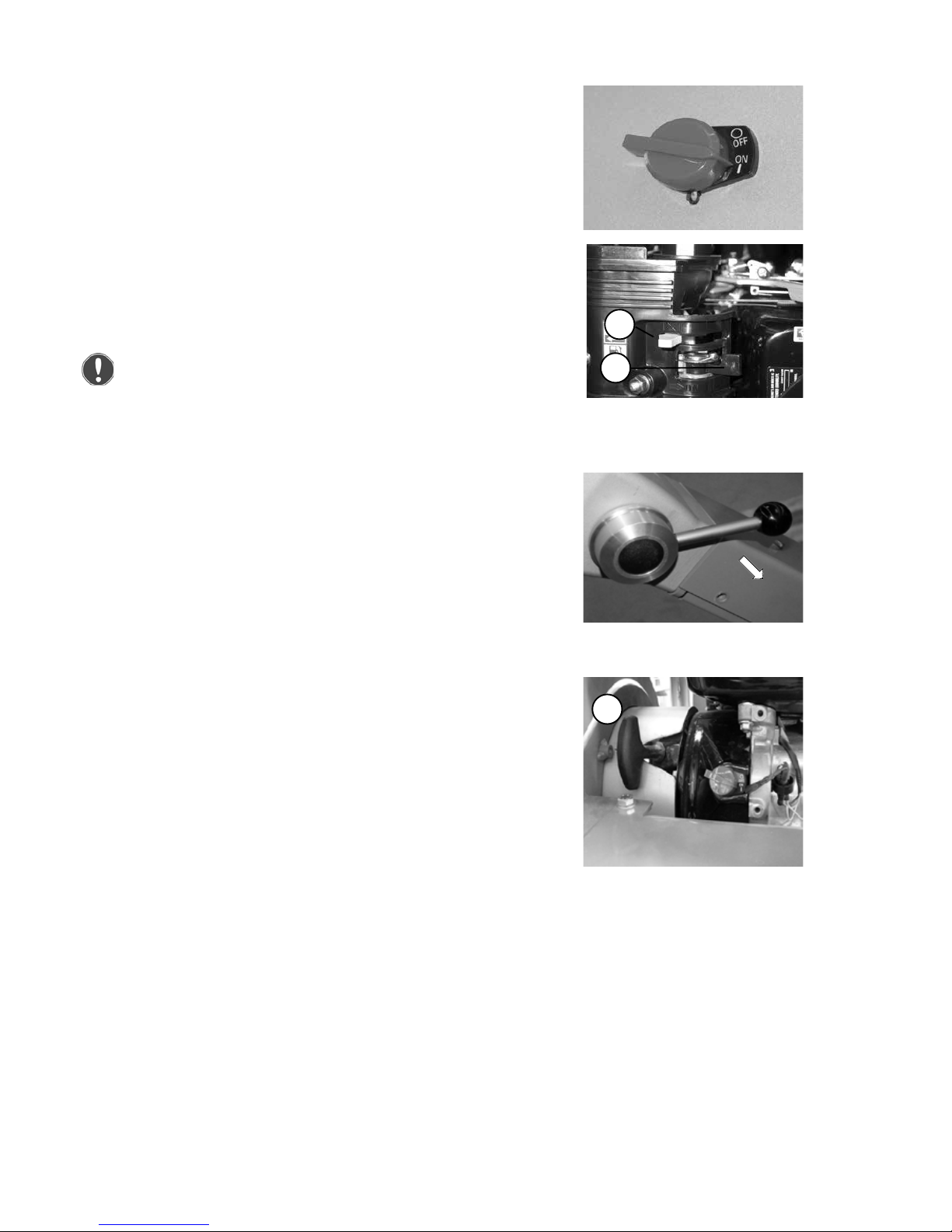

Starting
Turn the short-circuit button to the “ON” position.
Slide the lever of the fuel cock (1) to the right.
Slide the choke lever (2) to the left (close).
After the engine has warmed up, slide the choke lever
(2) to the right (open).
Slowly tighten the handle (1) of the reversing starter until
resistance is noticeable.
Allow the handle (1) to glide back into the initial position,
and then forcefully and completely pull it through with both
hands.
Allow the engine to warm up for a few minutes.
Bring the gas lever into full-throttle position.

CR 7 HD 15
1
1
1
1
Compacting
Bring the gas lever (1) into full-throttle position.
Control drive speed and direction of travel with the handle (1).
Only run machine within reach of the manual
guidance rod.
Shutting down
Push back the gas lever (1) all the way.
Turn the short-circuit button to the “0” – OFF position.
During breaks – even if they are short – the machine
must be shut down.
Parked devices that represent an obstacle must be
safeguarded against through conspicuous measures.
Close the fuel cock (1).

16 CR 7 HD
Maintenance overview
Maintenance interval Maintenance point Maintenance activity
After the rst
25 operating hours
Engine – Change the engine oil
– Re-tighten all accessible
threaded connections
Every 8 operating hours /
daily
Air lter –Clean air lter insert,
check for damage,
replace if necessary
Every 150 operating
hours / every 6 months
Engine – Change the engine oil
– Clean and, if necessary,
replace the spark plug
– Adjust valves
Every 150 operating hours /
every year
Transmission – Change oil
Exciter – Change oil
The regulations of the engine manufacturer must be complied with in addition to the
above maintenance overview!
Work must be carried out using regulation tools, and the operating and maintenance
manual must be complied with for all work.
All maintenance work: Select a collection vessel that is large enough to prevent oil from
spilling onto the ground. Dispose of waste oil in an environmentally friendly manner
(regulation on waste oils).
Dispose of oils, greases, cloths soaked in oil, and replaced parts with oil on them in an
environmentally friendly manner.
If lubricating oils and fuel come into contact with skin, they can cause skin cancer.
Upon contact with the skin, clean affected skin with suitable cleaning agent without delay.
If accessible during maintenance, check the condition and stability of all screws.

CR 7 HD 17
1
1

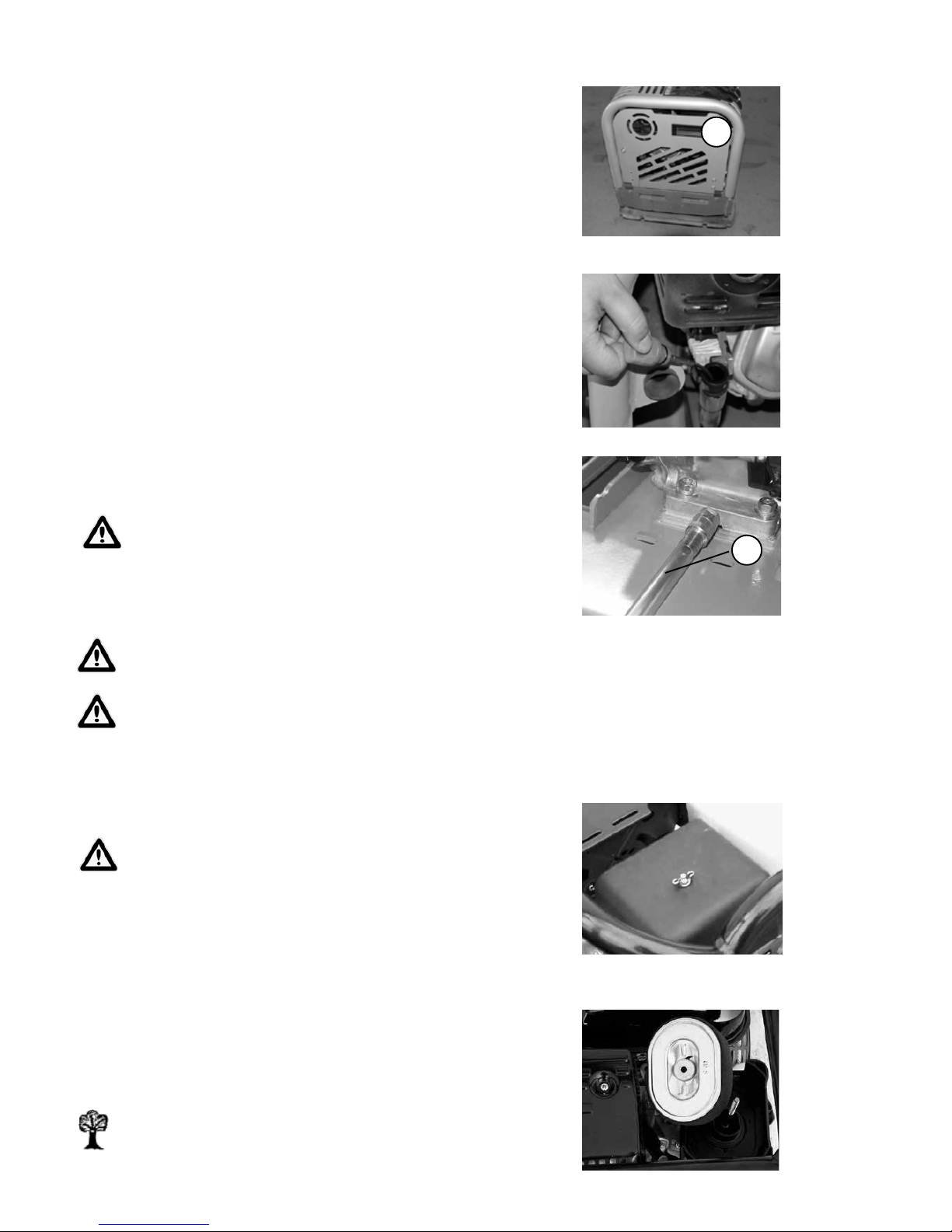

Change the engine oil
Remove oil dip stick.
When working in the area of the engine compartment
there is a danger of being burnt!
Screw the oil drain pipe (1) onto the engine drain valve and
drain off the oil.
After emptying completely, unscrew the oil drain pipe
from the drain valve and ll with oil in accordance with the
specication.
Clean / change air lter cartridge
Unscrew the air lter cover.
Remove the air lter insert from the air lter enclosure.
Clean air lter insert as specied by the engine manufacturer
if there is damage or if it is extremely dirty.
Maintenance work
Danger of scalding due to hot oil.
Only drain engine oil when at operating temperature.
Dispose of oils, greases, cloths soaked in oil, and re-
placed parts with oil on them in an environmentally
friendly manner.
If lubricating oils and fuel come into contact with skin, they
can cause skin cancer. Upon contact with the skin, clean
affected skin with suitable cleaning agent without delay.
Open the engine hood (1).

18 CR 7 HD
1
1
1

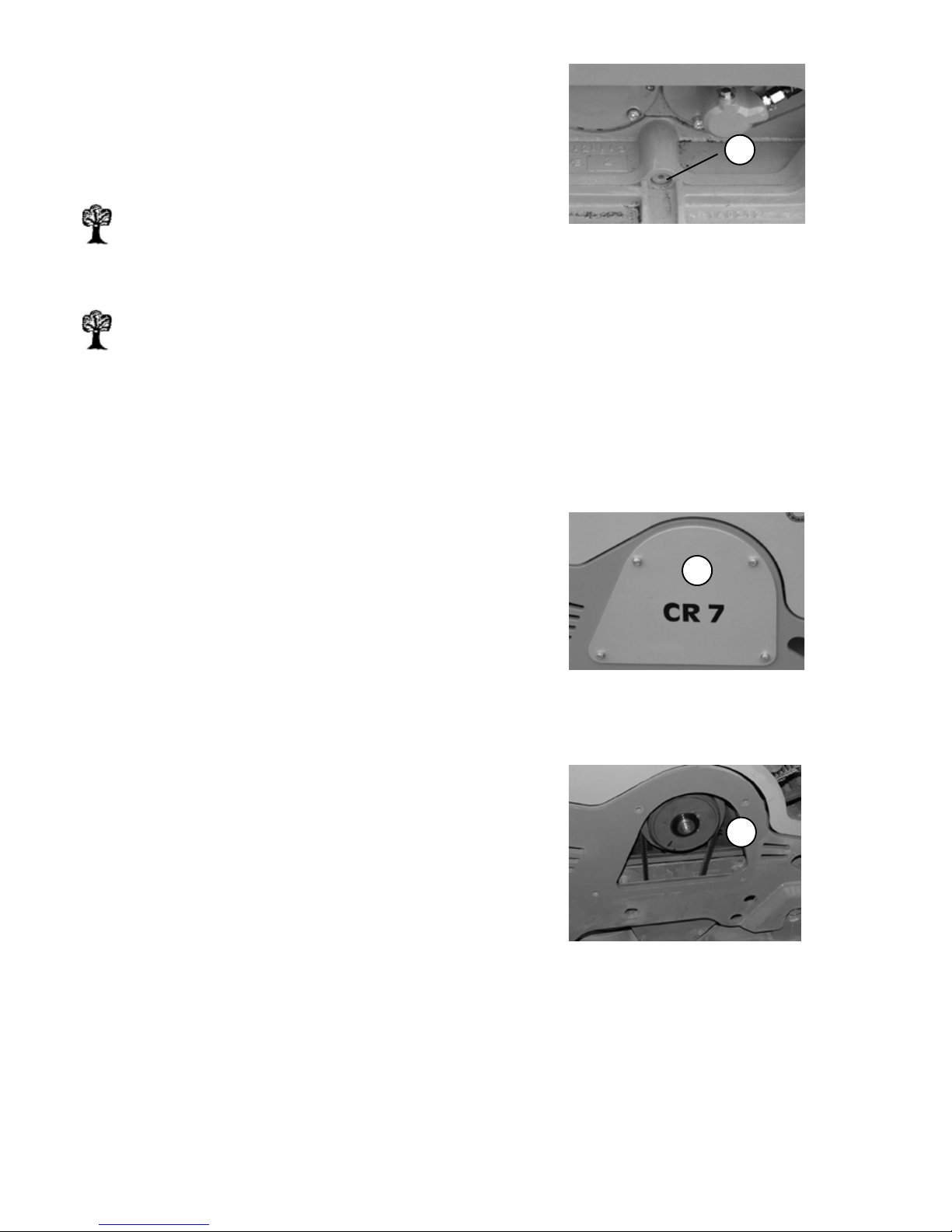

Changing the oil in the exciter
Remove the oil drain screw (1) and drain oil.
To ll – tilt the machine slightly and ll with fresh oil through
the drain opening in accordance with the ll level table.
Checking the V-belt
Remove the V-belt guard (1).
Check the V-belt (1) for cracks, damaged anks, and wear.
If there is excessive wear – replace the V-belt as specied
in the repair manual.
Select a collection vessel that is large enough to pre-
vent oil from spilling on the ground. Dispose of waste
oil in an environmentally friendly manner (regulation
on waste oils).
Wipe up/off oil slick and oil residue and dispose of
fuel-soaked cleaning cloths in an environmentally
responsible manner.

CR 7 HD 19
Operating uids and ll levels
Troubleshooting
Assembly Operating material Quantity
Summer Winter CR 7 HD
Quality
Engine
Engine oil SAE 10 W 40
(–10 ~ +50 °C)
API – CD CE-CF-CG
or SHPD
or CCMC – D4 – D5 – PD2
1.1 l
Fuel tank Unleaded gasoline 6.5 l
Vibrator Fully-synthetic transmission uid
API GL-5/GL-4
First lling Fuchs Titan
SINTOPOID
LS SAE 75W-90
0.75 l
Transmission Transmission uid DEXRON II-D-ATF
First lling
Fuchs Titan ATF 3000
or equivalent
As
necessary
Fault Possible cause Remedy
Soil compactor
does not start
Operating error Execute the start
process as prescribed
Lack of fuel Check the fuel level
Fuel lter fouled Change the fuel lter
Air lter fouled Clean / change air lter
cartridge
No vibration / no
forward motion
or insufcient
forward motion
Vibrator V-belt
defective
Change vibrator V-belt
Unit switches
with a delay
Air trapped in the
hydraulic transmission
system
Bleed the transmission
system

20 CR 7 HD
Actions to be taken before long-term storage (longer than a month)
Entire soil compactor – Clean thoroughly
– Check watertight
– If there are leaks, correct defects
Fuel tank –Empty fuel and ll with clean fuel
up to the lower edge of ller neck
Engine – Check oil level, if necessary
ll to upper oil-level mark
–Check air lter, clean,
replace if necessary
–Check fuel lter,
change if necessary
All bare parts / accelerator /
accelerator control cable /
fastening bolts
–Oil/grease
If the machine is to be stored for longer than six months, then contact the Weber
service organization to discuss additional measures.
