Weider WEBE37330 User manual

Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEBE37330
Serial No.
Write the serial number in the
space above for future reference.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Serial Number Decal (Under Seat)

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING is attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-
ning assembly.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
TABLE OF CONTENTS

3
WARNING DECAL PLACEMENT
Keep hands and
fingers clear of
this area.
• Misuse of this
product may result in
serious injury.
WARNING
!
• Read user’s manual
and follow all warnings
and operating instruc-
tions prior to use.
• Replace label if
damaged, illegible,
or removed.
• Do not allow children
on or around machine.

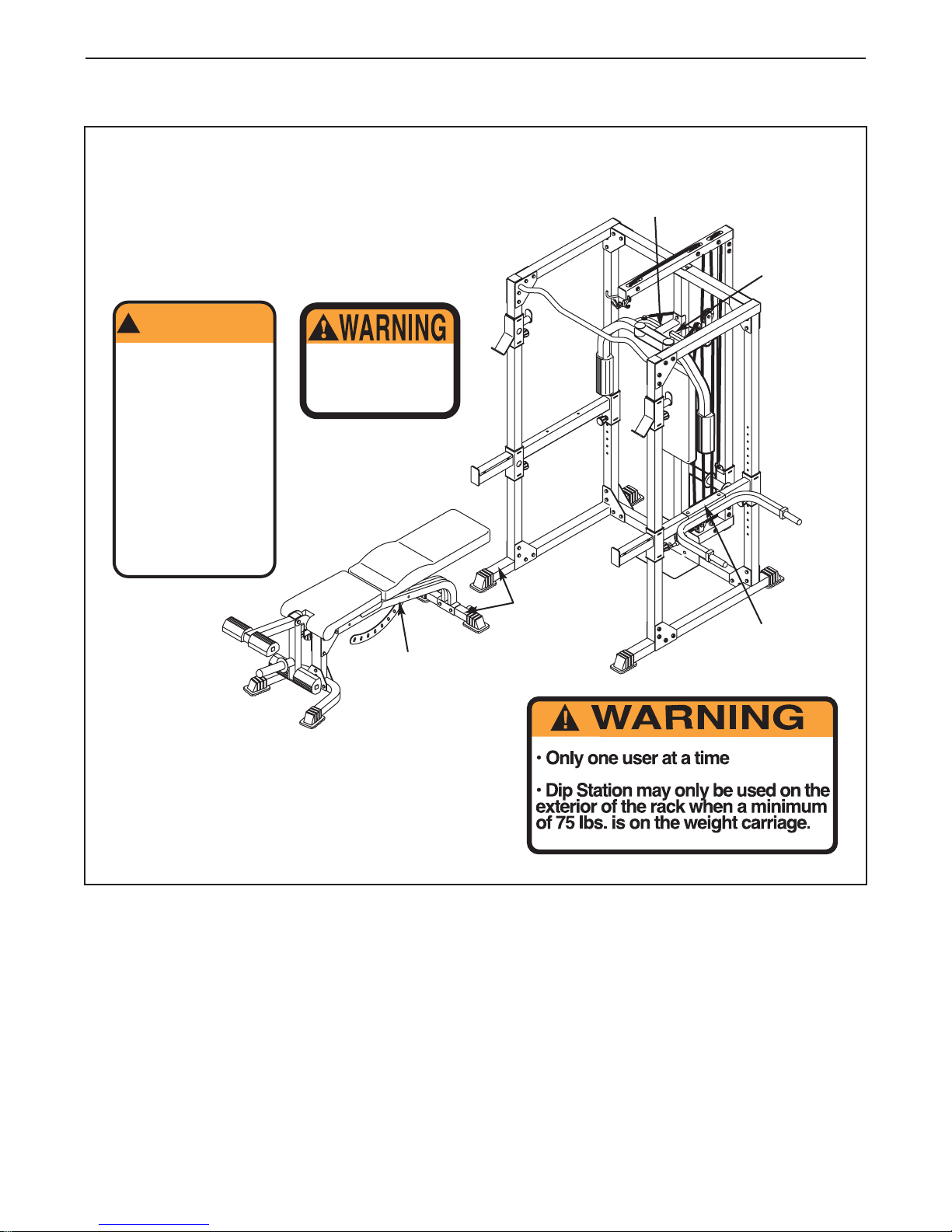

The decals shown here have been placed on
the weight bench. If a decal is missing or
illegible, please call our Customer Service
Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time, to order a free replacement
decal. Apply the decal in the location shown.
Decal 1
Decal 3
Decal 3
Decal 2
Decal 2
Decal 2
Decal 2
Decal 1

1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are ade-
quately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure all parts are properly tightened
each time the weight bench is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. Make sure that the cables remain on the pul-
leys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
10. Always set both weight rests and both safety
spotters at the same height.
11. The weight bench is designed to support a
maximum user weight of 300 pounds and a
maximum total weight of 610 pounds. Do not
place more than 310 pounds, including the
barbell, on the weight rests. Do not place
more than 150 pounds on the weight car-
riage. Note: The weight bench does not
include a barbell or weights.
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage.
14.
Always exercise with a partner. Your partner
should be ready to catch the barbell if you
cannot complete a repetition.
15. Always disconnect the lat bar from the
weight rack when performing an exercise
that does not require the lat bar.
16. Always move the bench out of the way when
performing squat exercises.
17. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
IMPORTANT PRECAUTIONS
4

ASSEMBLED
DIMENSIONS:
Height: 83 in.
Width: 66 in.
Depth: 90 in.
5
Weight Carriage
Wheel
Safety Spotter
Ab Sling
Weight Rest
Curl Pad
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting on the
bench; they do not correspond to right and left on the drawings in this manual.
Backrest
Dip Arm
Low Pulley Station
High Pulley Station
Leg Lever
Seat
Backrest
Pull-up Bar
Butterfly Arm
Lat Bar
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®CLUB
C670 weight bench. The weight bench offers a selec-
tion of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight bench
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number is WEBE37330. The serial
number can be found on a decal attached to the weight
bench (see the front cover of this manual).

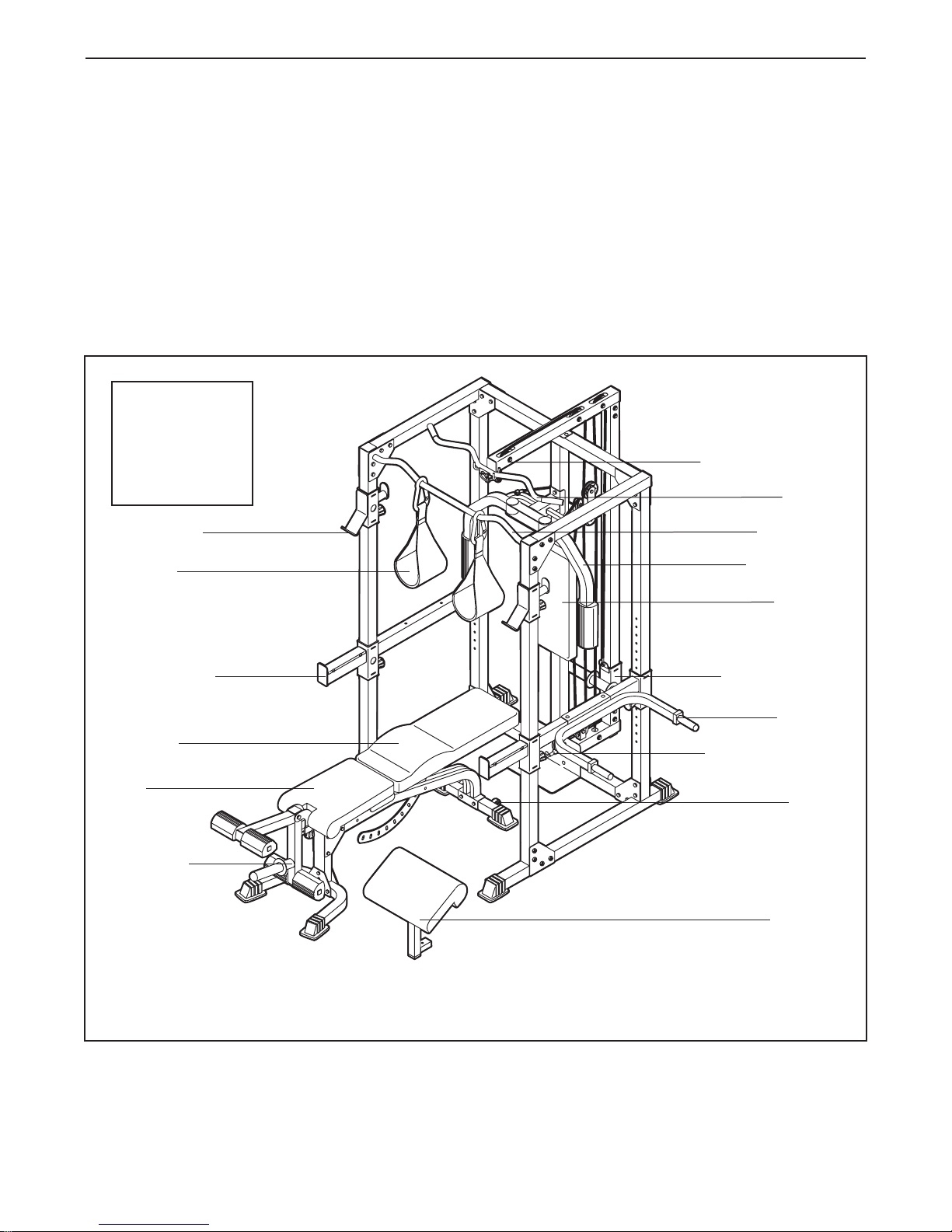

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

6
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
•For help identifying small parts, use the PART
IDENTIFICATION CHART.
The included Allen wrench and the following
tools (not included) are required for assembly:
•Two adjustable wrenches
•One rubber mallet
•One standard screwdriver
•One Phillips screwdriver
•Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plen-
ty of time, assembly will go smoothly.
ASSEMBLY

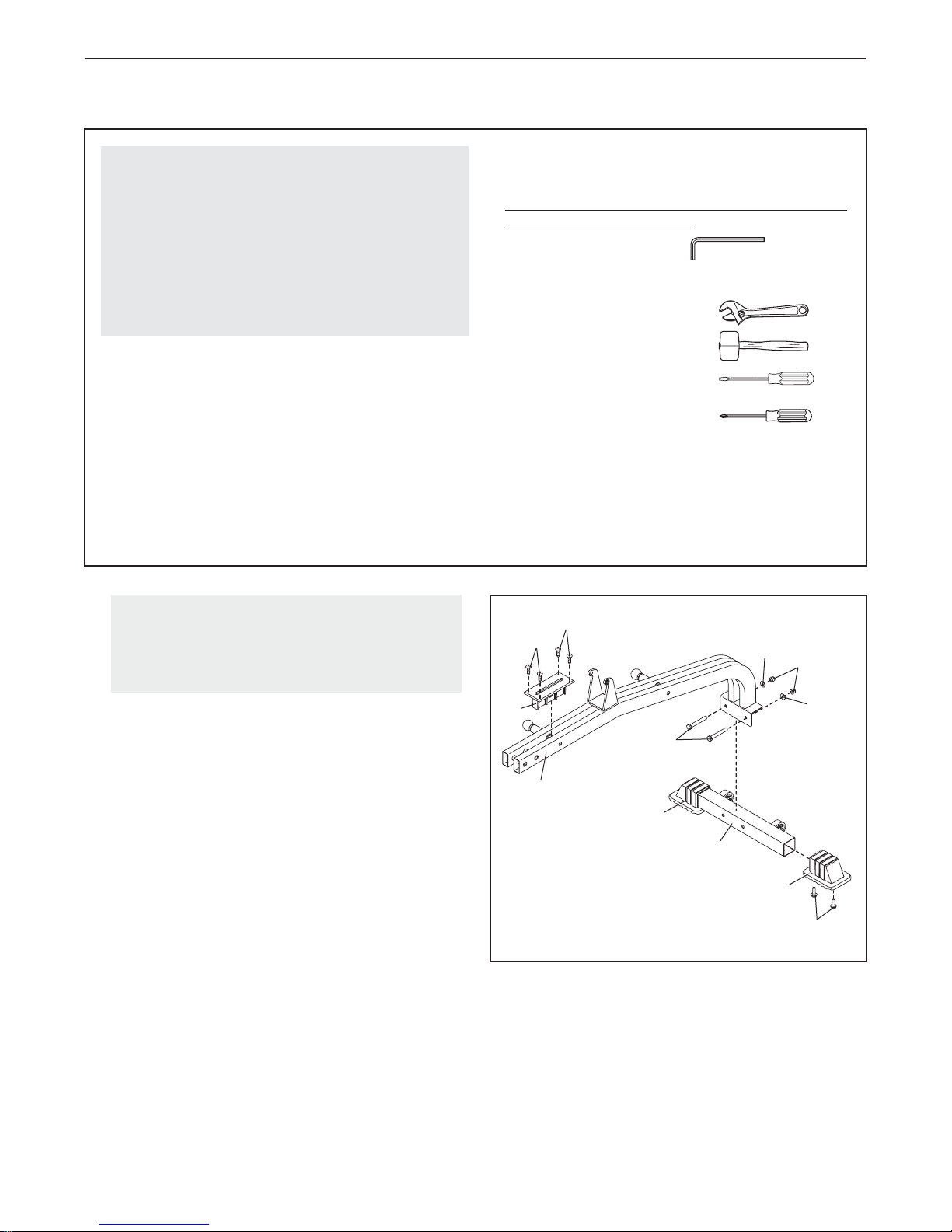

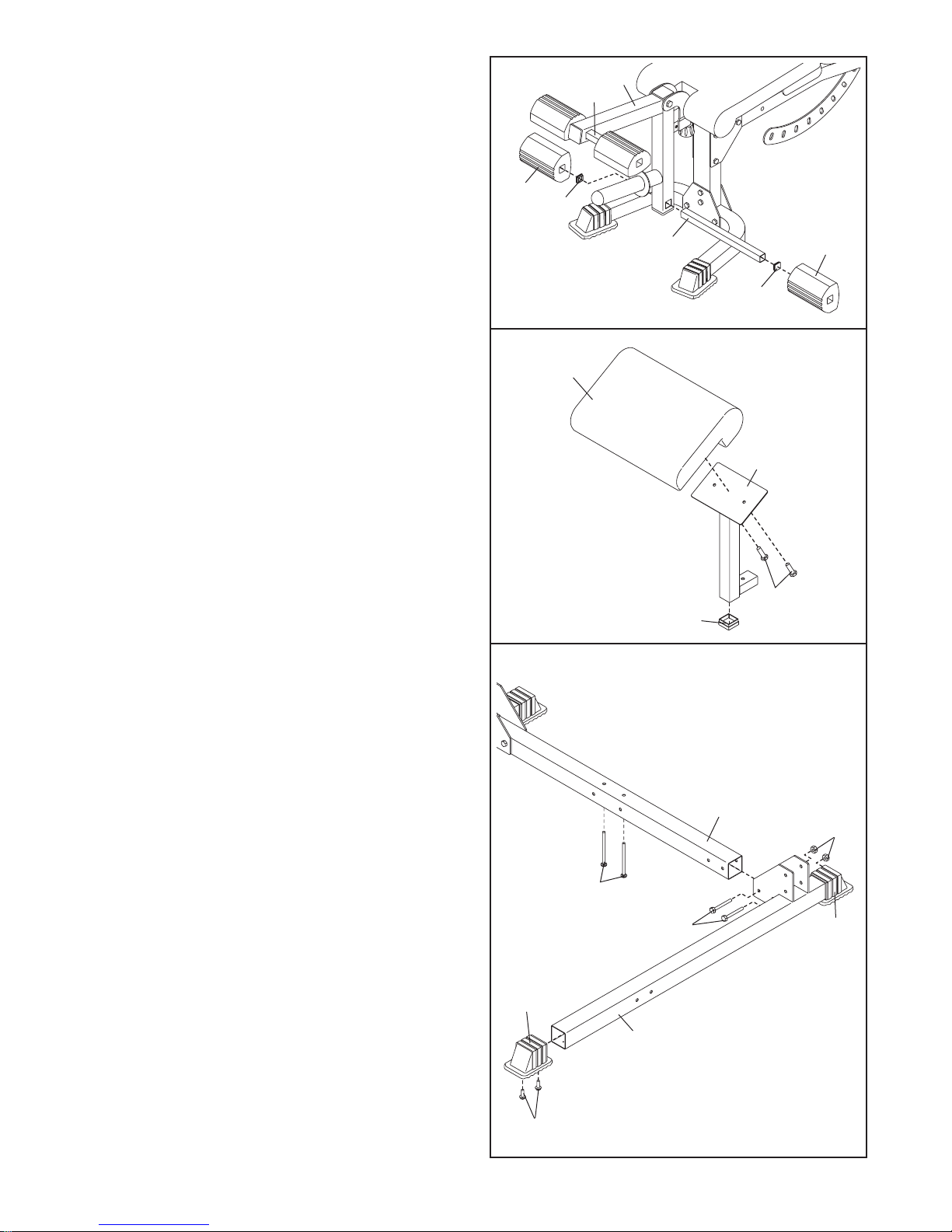

1.
Attach a Small Base Cap (20) to the Stabilizer (2)
with two M4 x 16mm Screws (36). Attach anoth-
er Small Base Cap in the same manner.
Pull the Small Adjustment Knob (23) out and slide
the Seat Bracket Sleeve (93) between the tubes
in the Bench Frame (1) as shown. Engage the
Knob into the Sleeve and Bench Frame. Attach
the Sleeve to the Bench Frame with four M4 x
16mm Screws (36).
Attach the Bench Frame (1) to the Stabilizer (2)
with two M10 x 65mm Bolts (100), two M10
Washers (35), and two M10 Nylon Locknuts (34).
Do not tighten the Locknuts yet.
1
2
1
93
36
20
35
35
36
36 34
100
Before beginning assembly, make sure you
understand the information in the box
above. For help identifying small parts, use
the PART IDENTIFICATION CHART.
20

7
2. Attach a Small Base Cap (20) to the Bench Base
(3) with two M4 x 16mm Screws (36). Attach the
other Small Base Cap in the same manner.
Press the 51mm x 76mm Inner Cap (14) into the
indicated end of the Bench Leg (4).
Attach the Bench Leg (4) to the Bench Base (3)
with four M10 x 71mm Bolts (31), two Bench
Base Joint Plates (25), and four M10 Nylon
Locknuts (34). Do not tighten the Locknuts yet.
4. Press two 38mm x 50mm Inner Caps (15) into
the Backrest Frame (6).
Attach the Backrest Bracket (16) to the Backrest
Frame (6) with two M10 x 56mm Bolts (30), two
M10 Washers (35), and two M10 Nylon Locknuts
(34).
5. Press a 38mm x 50mm Inner Cap (15) into the
Seat Frame (7).
Attach the Seat Bracket (17) to the Seat Frame
(7) with two M10 x 56mm Bolts (30), two M10
Washers (35), and two M10 Nylon Locknuts (34).
Do not tighten the Locknuts yet.
3. Attach the Bench Leg (4) to the Bench Frame (1)
with four M10 x 94mm Bolts (98), two Bench Joint
Plates (24), and four M10 Nylon Locknuts (34).
Tighten the M10 Nylon Locknuts (34) used in
steps 1–3.
214
3
4
5
1
4
24
34
24
98
15
6
16 34
30
35 35
15
15
7
34
17
34
30
35 35
34
25
25
20
31
31
20
36
3
4

8
6. Pull out the Small Adjustment Knob (23) that is
nearer the Stabilizer (2). Insert the Backrest
Bracket (16) between the tubes on the Bench
Frame (1) and engage the Small Adjustment
Knob into one of the holes in the Bracket.
Pull out the Small Adjustment Knob (23) by the
Seat Bracket Sleeve (93). Insert the Seat Bracket
(17) into the Seat Bracket Sleeve and engage the
Small Adjustment Knob into one of the holes in
the Bracket.
Lubricate the M10 x 102mm Bolt (99) with
grease. Attach the Seat Frame (7) and the
Backrest Frame (6) to the Bench Frame (1) with
the Bolt, two M10 Washers (35), and an M10
Nylon Locknut (34). Do not overtighten the
Locknut; the Seat Frame and Backrest Frame
must be able to pivot easily.
Tighten the M10 Nylon Locknuts (34) used in
step 5.
7. Press three 50mm Square Inner Caps (13) and a
48mm Round Inner Cap (19) into the Leg Lever
(5).
Lubricate the M10 x 85mm Bolt (103) with
grease. Attach the Leg Lever (5) to the Leg Lever
Bracket (18) with the Bolt and an M10 Nylon
Locknut (34).
Loosen the Adjustment Knob (22) by turning it
counterclockwise several turns. Pull the Knob out
and slide the Leg Lever Bracket (18) into the Seat
Frame (7). Tighten the Adjustment Knob into the
Leg Lever Bracket.

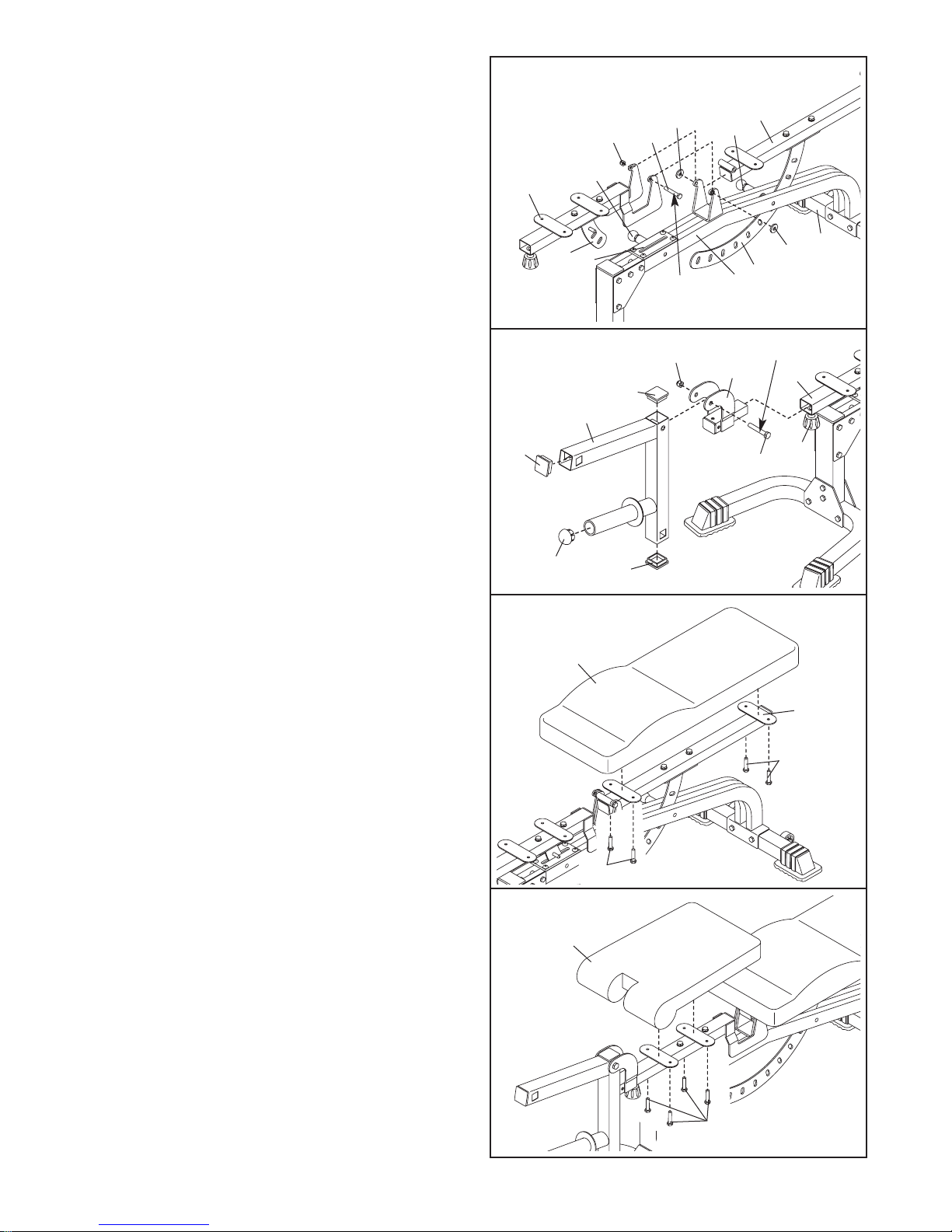

8. Attach the Backrest (11) to the Backrest Frame
(6) with four M6 x 16mm Screws (29)
9. Attach the Seat (10) to the Seat Frame (7) with
four M6 x 16mm Screws (29)
6
23 6
34 99
16 35 2
35
Lubricate 1
23
7
7
5
13
13
19
13 18
34
103 22
7
8
9
11
10
29
6
29
Lubricate
29
17 93

9
10. Press two 25mm Square Inner Caps (28) into a
Pad Tube (27). Slide the Pad Tube into a hole in
the Leg Lever (5). Slide two Foam Pads (26) onto
the Pad Tube.
Assemble the other Pad Tube (27) in the same
manner.
12. Attach a Large Base Cap (70) to the Left Base
(40) with two M4 x 16mm Screws (36). Attach
another Large Base Cap to the other end of
the Left Base in the same manner.
Attach the Left Base (40) to the Center Base (39)
with two M10 x 78mm Bolts (32) and two M10
Nylon Locknuts (34). Do not tighten the
Locknuts yet.
Repeat this step with the Right Base (not
shown).
Insert two M10 x 75m Carriage Bolts (90) up
through the Center Base (39).
11.Press a 45mm Square Inner Cap (12) into the
bottom of the Curl Post (8).
Attach the Curl Pad (9) to the Curl Post (8) with
two M6 x 16mm Screws (29).
10 5
27
27
26 28
11
9
8
12 29
12
39 34
40
70
70
36
90
32
26
28

10

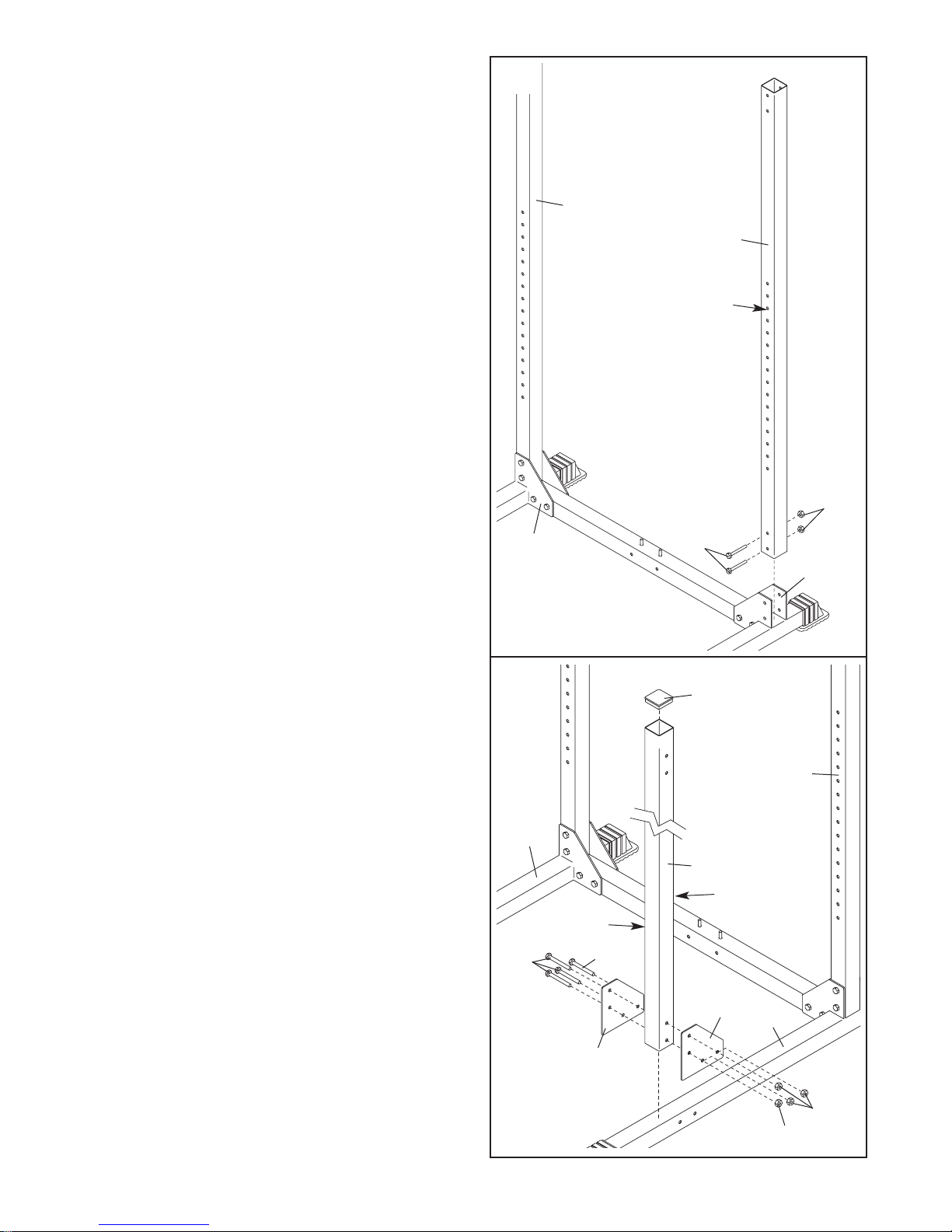

13. Attach a Rear Upright (43) to the Left Base (40)
with two M10 x 78mm Bolts (32) and two M10
Nylon Locknuts (34). Note: The Rear Uprights
are shorter than the Front Uprights (not
shown). Make sure the holes are on the side
shown. Do not tighten the Locknuts yet.
Repeat this step with the other Rear Upright
(43) and the Right Base (38).
14. Press a 60mm Square Inner Cap (64) into the top
of the Left Front Upright (44).
Attach the Left Front Upright (44) to the Left Base
(40) with four M10 x 78mm Bolts (32), two Rack
Joint Plates (85), and two M10 Nylon Locknuts
(34). Do not tighten the Locknuts yet.
Make sure the holes on the Left Front Upright
(44) face the holes on the Rear Upright (43),
and that the numbers on the Left Front
Upright face the numbers on the Right Front
Upright (not shown).
Repeat this step with the right Front Upright
(not shown) and the Right Base (38).
13
14
43
43
Holes
40
34
32
38
64
43
44
Numbers
Holes
32
32
85
85 40
38
34
34

11
15. Loosen the two Adjustment Knobs (22) on the
Left Safety Spotter (51) by turning them counter-
clockwise. Pull both Knobs out at the same time
and slide the Left Safety Spotter (51) onto the
Left Uprights (43, 44) and engage and tighten the
Adjustment Knobs (22) into a set of holes in the
Uprights.
Repeat this step with the Right Safety Spotter
(50) and Right Uprights (not shown).
16. Loosen the Adjustment Knob (22) on the Right
Weight Rest (52) by turning it counterclockwise.
Pull the Knob out and slide the Right Weight Rest
(52) onto the Right Front Upright (110). Engage
and tighten the Adjustment Knob (22) into a hole
in the Upright.
Repeat this step with the Left Weight Rest
(not shown) and the Left Front Upright (not
shown).
17. Press a 60mm Square Inner Cap (64) into the
indicated end of the Right Top Frame (47).
Attach the Right Top Frame (47) to the right Rear
Upright (43) with two M10 x 78mm Bolts (32) and
two M10 Nylon Locknuts (34). Do not tighten the
Locknuts yet.
Repeat this step with the Left Top Frame (not
shown) and the left Rear Upright (not shown).
15
51
22
22
110
44
43
22
50
16
17
52
47
32
43
34
64

12
18. Attach the Chin-up Bar (54), with the bends going
up, to the Left Front Upright (44) and the Left Top
Frame (48) with four M10 x 78mm Bolts (32), a
Rack Joint Plate (85), and four M10 Nylon
Locknuts (34). Do not tighten the Locknuts yet.
Attach the Chin-up Bar (54) to the Right Front
Upright (not shown) and the Right Top Frame
(not shown) in the same manner.
19. Attach the Center Upright (45) to the Center Base
(39) with the two M10 x 75mm Carriage Bolts
(90), and two M10 Nylon Locknuts (34). Do not
tighten the Locknuts yet.
18
32
54
Bend
32
34
85
44
48
19
90
45
39
34
34

13

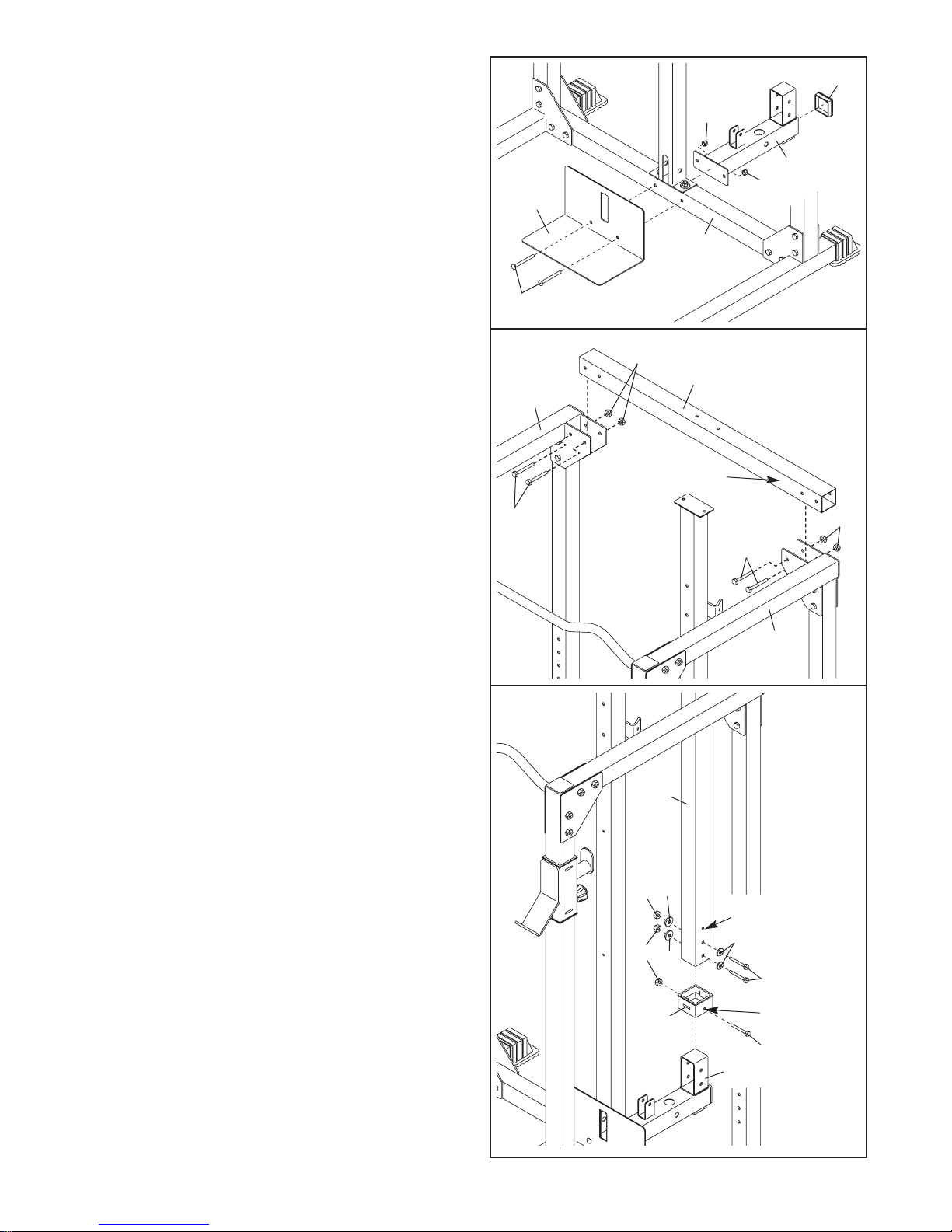

20. Press a 60mm Square Inner Cap (64) into the
Weight Guide Base (41).
Attach the Foot Plate (67) and the Weight Guide
Base (41) to the Center Base (39) with two M10 x
81mm Button Bolts (104) and two M10 Nylon
Locknuts (34). Do not tighten the Locknuts yet.
22. Slide the Weight Carriage Stop (65) onto the
Weight Guide Upright (42) as shown, and attach
it at the indicated hole with an M10 x 87mm Bolt
(106) and an M10 Nylon Locknut (34).
Attach the Weight Guide Upright (42) to the
Weight Guide Base (41) with two M10 x 75mm
Bolts (92), four M10 Washers (35), and two M10
Nylon Locknuts (34). Do not tighten the
Locknuts yet.
21. Attach the Center Top Frame (46) to the Left Top
Frame (48) with two M10 x 78mm Bolts (32) and
two M10 Nylon Locknuts (34). Make sure the
decal is in the indicated location. Do not tight-
en the Locknuts yet.
Attach the Center Top Frame (46) to the Right
Top Frame (47) with two M10 x 78mm Bolts (32)
and two M10 Nylon Locknuts (34). Do not tight-
en the Locknuts yet.
20
67
104
39
34
34
41
64
21
46
Decal
47
48
34
32 34
32
22
65
35 35
35
92
106
Hole closer
to bottom
41
Hole
42
34
34

14
23. Press two 48mm Weight Carriage Caps (63) into
the Weight Carriage (62).
Insert an M10 x 19mm Bolt (102) into the bracket
on the Weight Carriage (62) from the side shown.
Slide the Weight Carriage (62) onto the Weight
Guide Upright (42) so that the weight tube is
toward the Center Upright (45).
25. Attach the Butterfly Bracket (55) to the Center
Upright (45) with two M10 x 78mm Bolts (32), two
M10 Washers (35), and two M10 Nylon Locknuts
(34).
24. Press two 60mm Square Inner Caps (64) into the
Weight Guide Top Frame (49).
Attach the Weight Guide Top Frame (49) to the
Weight Guide Upright (42) with two M10 x 75mm
Bolts (92), four M10 Washers (35), and two M10
Nylon Locknuts (34). Do not tighten the
Locknuts yet.
Attach the Weight Guide Top Frame (49) to the
Center Top Frame (46) with two M10 x 78mm
Bolts (32) and two M10 Nylon Locknuts (34).
Tighten the M10 Nylon Locknuts (34) used in
steps 12–24.
23
24
63
63
42
45
64
64
49
46
34
34
92
35
35
35
35
34
42
32
102
62
Weight
Tube
25
45
35
35
34
55
32
32

15
26. Press a 50mm Square Inner Cap (13) and a
25mm Square Inner Cap (28) into the Right
Butterfly Arm (56). Wet the bottom of the Butterfly
Arm with soapy water and slide a Butterfly Foam
Pad (66) onto the Arm.
Lubricate a 1/2” x 78mm Bolt (97) and the
Butterfly Bushings (79) with grease. Attach the
Right Butterfly Arm (56) to the Butterfly Bracket
(55) with the Bolt and a 1/2” Nylon Locknut (94).
Cover the Bolt and Locknut with two Butterfly
Caps (80). Do not overtighten the Locknut; the
Butterfly Arm must be able to pivot easily.
Repeat this step with the Left Butterfly Arm
(57).
27. Press two Caps w/Holes (61) and two Handgrips
(59) onto the Dip Arm (60).
Attach the Dip Arm (60) to the Left Safety Spotter
(51) with two M10 x 97mm Carriage Bolts (101)
and two M10 Nylon Locknuts (34). Make sure
the warning decal is in the indicated location.
Note: The Dip Arm (60) can be attached to the
Right Safety Spotter (not shown) in the same
manner.
28. Attach the Butterfly Backrest (112) to the Center
Upright (45) with two M6 Washers (78) and two
M6 x 75mm Screws (96).
26
79
Lubricate
Lubricate
80
97
94
80
55
28
56
57
79
13
66
34
60
Warning Decal
61 59
59
34
51
61
28
112
78 96
7896
45
27 101

16
29. Locate the Medium Cable (69). Route the Cable
up through the Weight Guide Top Frame (49) and
over a Pulley (87). Attach the Pulley inside the
Top Frame with an M10 x 75mm Bolt (92), two
M10 Washers (35), two 17mm Spacers (89), and
an M10 Nylon Locknut (34).
31. Wrap the Medium Cable (69) under a Pulley (87).
Attach the Pulley and a Cable Trap (88) to the
indicated hole in the Pulley Plates (82) with an
M10 x 45mm Bolt (33) and an M10 Nylon Locknut
(34). Make sure the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
33. Attach the Medium Cable (69) to the M10 x
19mm Bolt (102) in the Weight Carriage (62) with
an M10 Nylon Locknut (34).
32. Route the Medium Cable (69) up through the
Weight Guide Top Frame (49), over a Pulley (87),
and back down through the Top Frame. Attach
the Pulley inside the Top Frame with an M10 x
75mm Bolt (92), two M10 Washers (35), two
17mm Spacers (89), and an M10 Nylon Locknut
(34).
30. Route the Medium Cable (69) over a Pulley (87)
and down through the Weight Guide Top Frame
(49). Attach the Pulley inside the Top Frame with
an M10 x 75mm Bolt (92), two M10 Washers
(35), two 17mm Spacers (89), and an M10 Nylon
Locknut (34).
29 49
69
69
89
89
89
35
35
34
92
89
49
35
35
92
30 34 87
69
82 33
31
32
33
34
88
69
89 89
49
35
35
34
62
69
102
92
34 87
87
87

17

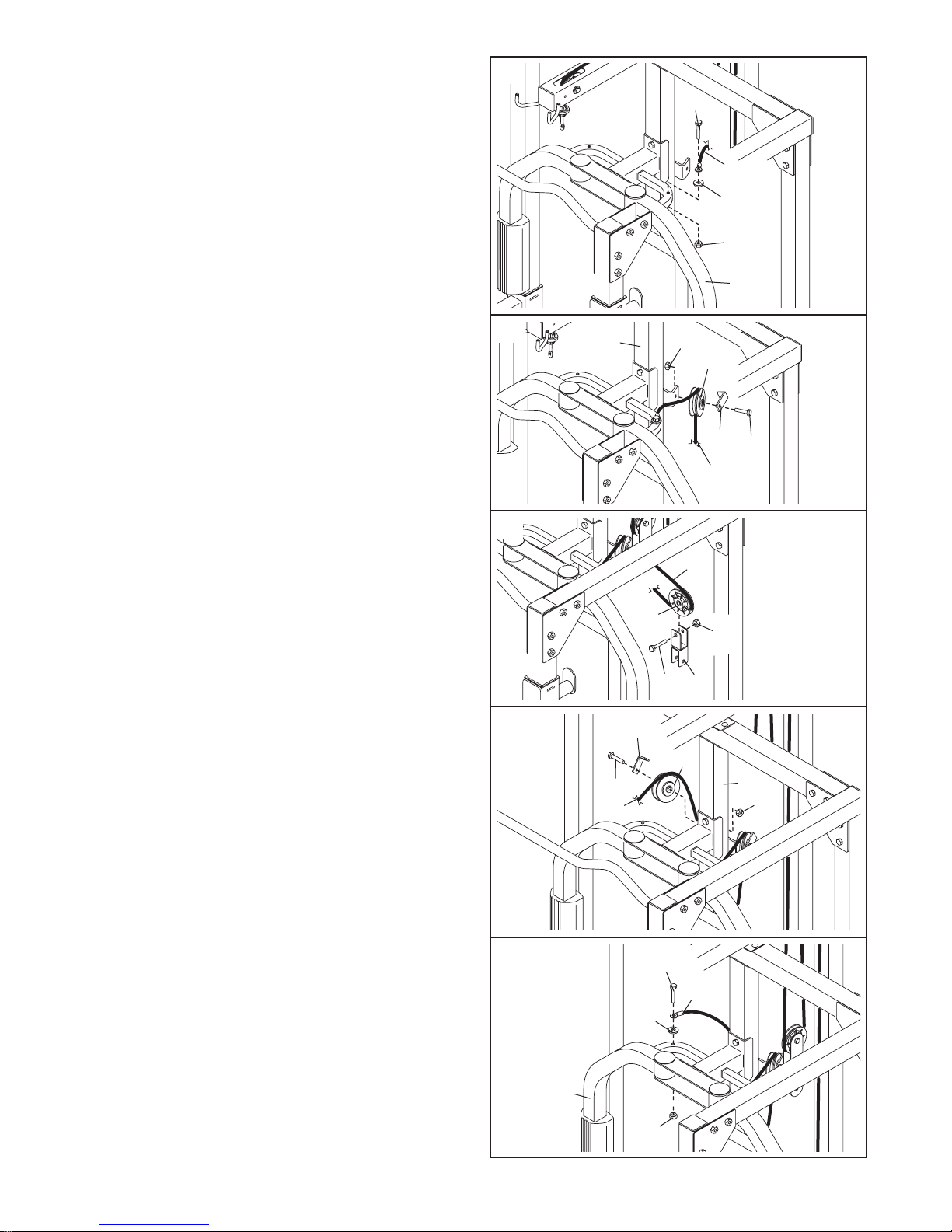

34. Locate the Butterfly Cable (109). Attach the
Cable to the Left Butterfly Arm (57) with an M8 x
43mm Shoulder Bolt (107), an M10 Small Washer
(95), and an M8 Nylon Locknut (108).
36. Wrap the Butterfly Cable (109) under a Pulley
(87). Attach the Pulley to the Double “U”-bracket
(81) with an M10 x 45mm Bolt (33) and an M10
Nylon Locknut (34).
38. Attach the Butterfly Cable (109) to the Right
Butterfly Arm (56) with an M8 x 43mm Shoulder
Bolt (107), an M10 Small Washer (95), and an M8
Nylon Locknut (108).
35. Wrap the Butterfly Cable (109) over a “V”-pulley
(86). Attach the “V”-pulley and a Large Cable
Trap (111) to the bracket on the Center Upright
(45) with an M10 x 60mm Bolt (105) and an M10
Nylon Locknut (34). Make sure the Cable Trap
is oriented to hold the Cable in the groove of
the Pulley.
37. Wrap the Butterfly Cable (109) over a “V”-pulley
(86). Attach the “V”-pulley and a Large Cable
Trap (111) to the other side of the bracket on the
Center Upright (45) with an M10 x 60mm Bolt
(105) and an M10 Nylon Locknut (34). Make sure
the Cable Trap is oriented to hold the Cable in
the groove of the Pulley.
34
107
108
95
109
57
35
86
105
109
111
34
45
37
38
86
105
109
111
34
45
36
87
109
81
33
107
108
95 109
56
34

18

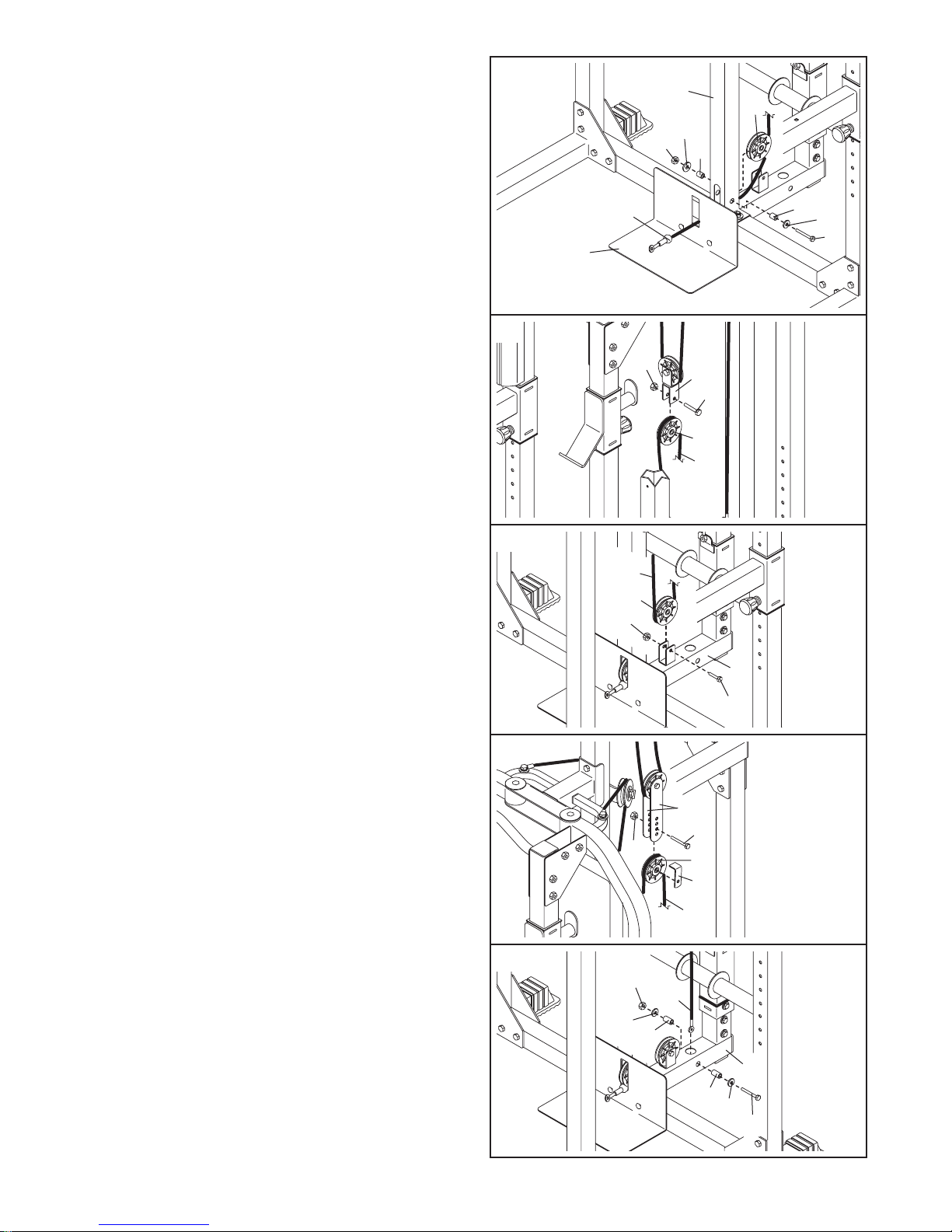

39. Locate the Long Cable (68). Route the eyelet
end of the Cable through the Foot Plate (67) and
the Center Upright (45), and under a Pulley (87).
Attach the Pulley (87) inside the Center Upright
(45) with an M10 x 75mm Bolt (92), two M10
Washers (35), two 17mm Spacers (89), and an
M10 Nylon Locknut (34). Note: The Foot Plate
(67) is shown pulled away from the Center
Upright for clarity.
43. Attach the Long Cable (68) inside the Weight
Guide Base (41) with an M10 x 75mm Bolt (92),
two M10 Washers (35), two 28mm Spacers (91),
and an M10 Nylon Locknut (34).
42. Wrap the Long Cable (68) over a Pulley (87).
Attach the Pulley and a Cable Trap (88) to the
second set of holes from the bottom of the Pulley
Plates (82) with an M10 x 45mm Bolt (33) and an
M10 Nylon Locknut (34). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
40. Wrap the Long Cable (68) over a Pulley (87).
Attach the Pulley to the Double “U”-bracket (81)
with an M10 x 45mm Bolt (33) and an M10 Nylon
Locknut (34).
41. Wrap the Long Cable (68) under a Pulley (87).
Attach the Pulley to the Weight Guide Base (41)
with an M10 x 45mm Bolt (33) and an M10 Nylon
Locknut (34).
39
40
67
68
45
34 35
35
89
87
89
92
87
68
34 81
33
41
42
43
68
87
34
33
41
8233
34
34
35 91
91
88
68
87
68
44. Make sure that all parts are properly tightened
before the weight bench is used. The use of all
remaining parts will be explained in ADJUST-
MENTS, beginning on the following page.
41
92
35

This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 24 for impor-
tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-
ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
19
ADJUSTING THE BACKREST AND SEAT
The Backrest (11) can be adjusted to ten different
positions. Pull the Small Adjustment Knob (23 [shown
removed]) out as far as it can go and reposition the
Backrest. Release the Knob and make sure it
engages a hole in the Backrest Bracket (16).
The Seat (10) can be adjusted in the same man-
ner.
11
9
8
22
16
10
23
23
ATTACHING THE CURL PAD OR LEG LEVER
To use the Curl Pad (9), remove the Adjustment Knob
(22) and the Leg Lever Bracket (18) from the Seat
Frame (7). Slide the Curl Post (8) into the Seat Frame
and secure it in place with the Adjustment Knob.
Attach the Leg Lever (5) in the same manner.
18
5
7
ADJUSTMENTS
WARNING: The Seat Frame (7)
must be positioned in the most inclined posi-
tion before using the Leg Lever (5).

20
5
58
54
76
75

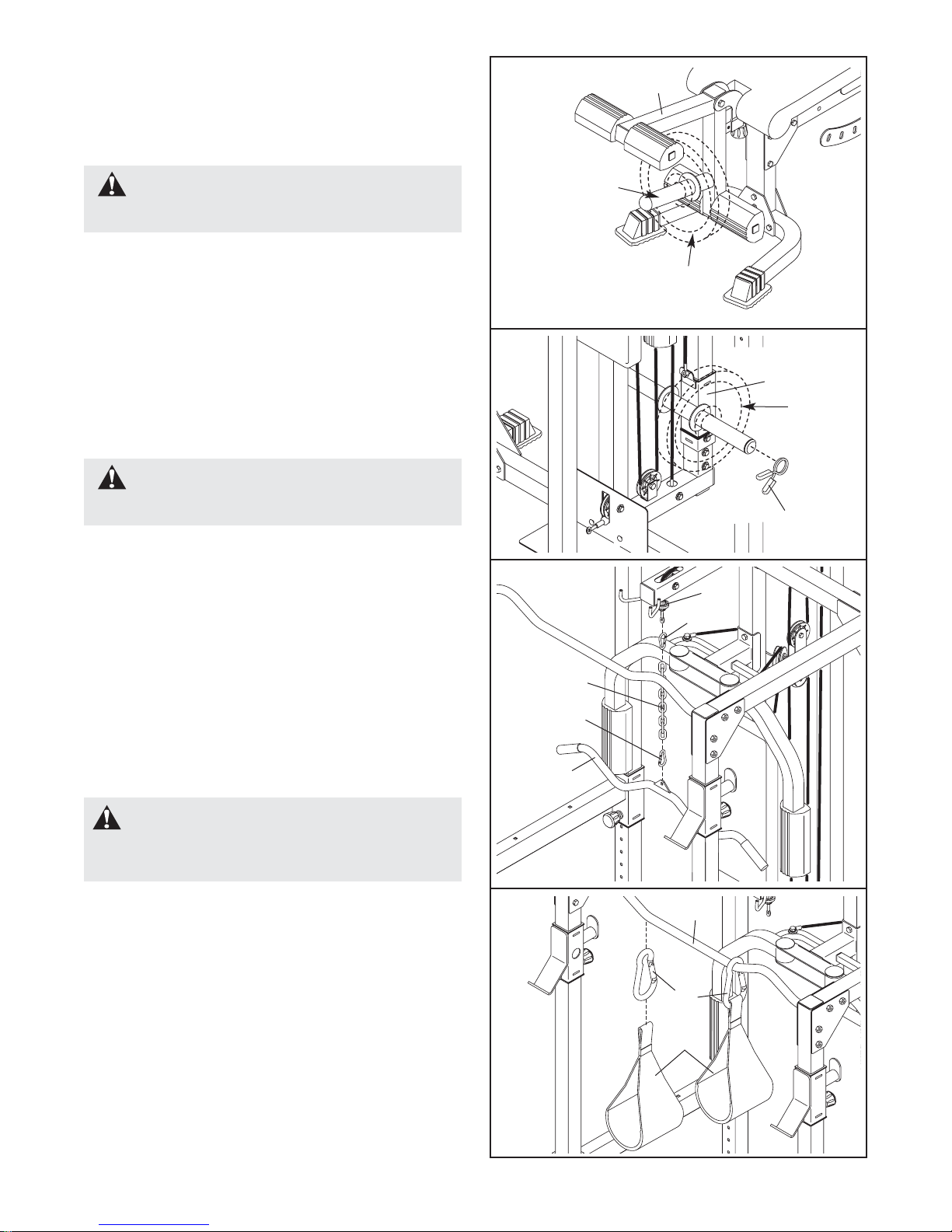

ADDING WEIGHT TO THE LEG LEVER
To add weight (not included) to the Leg Lever (5),
slide the desired amount of weight onto the weight
tube.
Weight
Tube
Weight
USING THE AB SLINGS
To use the Ab Slings (76), use the Large Cable Clips
(75) to attach them to the Chin-up Bar (54).
74
74
69
73
62
71
WARNING:Do not place more than
150 pounds on the Leg Lever (5).
ADDING WEIGHT TO THE WEIGHT CARRIAGE
To add weight (not included) to the Weight Carriage
(62), slide the desired amount of weight onto the
weight tube. Secure the weight with a Weight Clip
(71).
WARNING:Do not place more than
150 pounds on the Weight Carriage (62).
Weight
ATTACHING THE ACCESSORIES
Attach the Lat Bar (58) to the Medium Cable (69) with
a Small Cable Clip (74). For some exercises, the
Chain (73) should be attached between the Lat Bar
and the Medium Cable with two Small Cable Clips.
Adjust the length of the Chain between the Lat
Bar and the Cable so the Lat Bar is in the correct
starting position for the exercise to be performed.
The Lat Bar (58) or the Ankle Strap (not shown) can
be attached to either cable in the same manner.
WARNING: Always disconnect the
Lat Bar (58) when performing an exercise that
does not require using the Lat Bar.
