WEIDERCLUB 390 POWER TOWER User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEBE2998.0
Serial No.
Write the serial number in the
space above for future reference.
USERʼS MANUAL
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-877-992-5999
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.weiderservice.com
www.weiderfitness.com
Serial Number Decal
(under knee pad)
All manuals and user guides at all-guides.com
all-guides.com

2
WARNINGDECA P ACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
PARTIDENTIFICATIONCHART ..............................................................5
ASSEMB Y ...............................................................................6

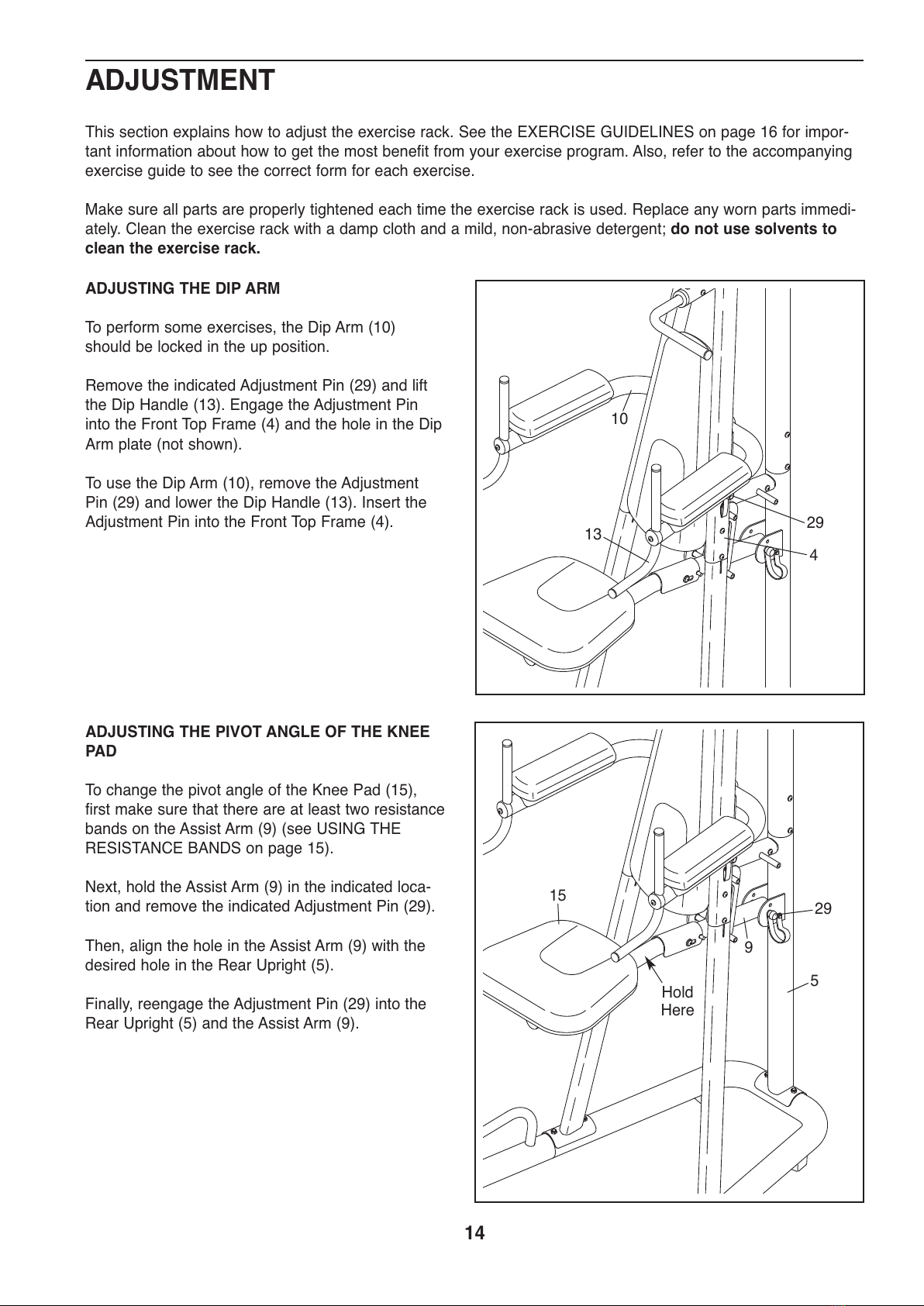

ADJUSTMENT ...........................................................................14
EXERCISEGUIDE INES ...................................................................16
PART IST ..............................................................................18
EXP ODEDDRAWING ....................................................................19
ORDERINGREP ACEMENTPARTS ..................................................BackCover
IMITEDWARRANTY ..............................................................BackCover
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
Keep hands and
fingers clear of
this area.
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
All manuals and user guides at all-guides.com

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise rack before using your exercise rack.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of the exercise rack.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. It is the responsibility of the owner to
ensure that all users of the exercise rack
are adequately informed of all precau-
tions.
3. The exercise rack is intended for home
use only. Do not use the exercise rack in
any commercial, rental, or institutional
setting.
4. Use the exercise rack only on a level sur-
face. Cover the floor beneath the exercise
rack to protect the floor.
5. eep children under age 12 and pets away
from the exercise rack at all times.
6. Make sure that all parts are properly tight-
ened each time the exercise rack is used.
Replace any worn parts immediately.
7. Always make sure that the pins and knobs
are fully engaged before using the exer-
cise rack.
8. Never use the knee pad without at least one
resistance band connecting the support
frame to the pivot arm.
9. Always wear athletic shoes for foot pro-
tection while exercising.
10. The exercise rack is designed to support a
maximum user weight of 300 lbs. (136 kg).
11. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
12. Use the exercise rack only as described in
this manual.
IMPORTANT PRECAUTIONS
All manuals and user guides at all-guides.com

4
BEFORE YOU BEGIN
Assembled Dimensions
Height: 6 ft. 10 in. (208 cm)
Width: 3 ft. 6 in. (107 cm)
Depth: 4 ft. (122 cm)
Thank you for selecting the versatile WEIDER
C UB™ 390 POWER TOWER exercise rack. The
exercise rack is designed to develop the muscles of
the upper body. Whether your goal is to tone your
body, build dramatic muscle size and strength, or
improve your cardiovascular system, the exercise rack
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the exercise rack. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Adjustment Pin
Arm Rest
Dip Handle
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person with his or her
back to the backrest; they do not correspond to right and left on the drawings in this manual.
Backrest
Resistance Band
Adjustment Pin
Push-up Handle
Knee Pad
Pull-up Handle
All manuals and user guides at all-guides.com

5
PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART IST near the end of this manual. Note: If a part is not in the hard-
ware kit, check to see if it has been preattached.
M10 x 62mm Button Bolt (30)
M10 x 100mm Button Bolt (31)
M10 x 85mm Button Bolt (51)
M4 x 12mm Screw (49)
M4 x 25mm Screw (48)
M8 x 15mm Button Screw (39)
M8 x 20mm Button Screw (43)
M8 x 25mm Shoulder Bolt (44)
M6 x 43mm Button Screw (46)
M10 x 53mm Button Bolt (40)
M8 x 62mm Button Screw (41)
M6 x 70mm Button Screw (45)
M6 x 80mm Button Screw (47)
M10 x 90mm Button Bolt (42)
M6 Washer (36) M8 Washer (37) M10 Locknut (35)
All manuals and user guides at all-guides.com

6
1.
Attach two Base Pads (23) to the Base (1) with
two M4 x 25mm Screws (48).
Insert two M10 x 85mm Button Bolts (51)
upward through the Base (1). Tip: It may be
helpful to place tape over the bolt heads to
hold them in place.
1
1
51
23
23
48
48
Before beginning assembly, make sure
that you have read and understand the
information in the box above.

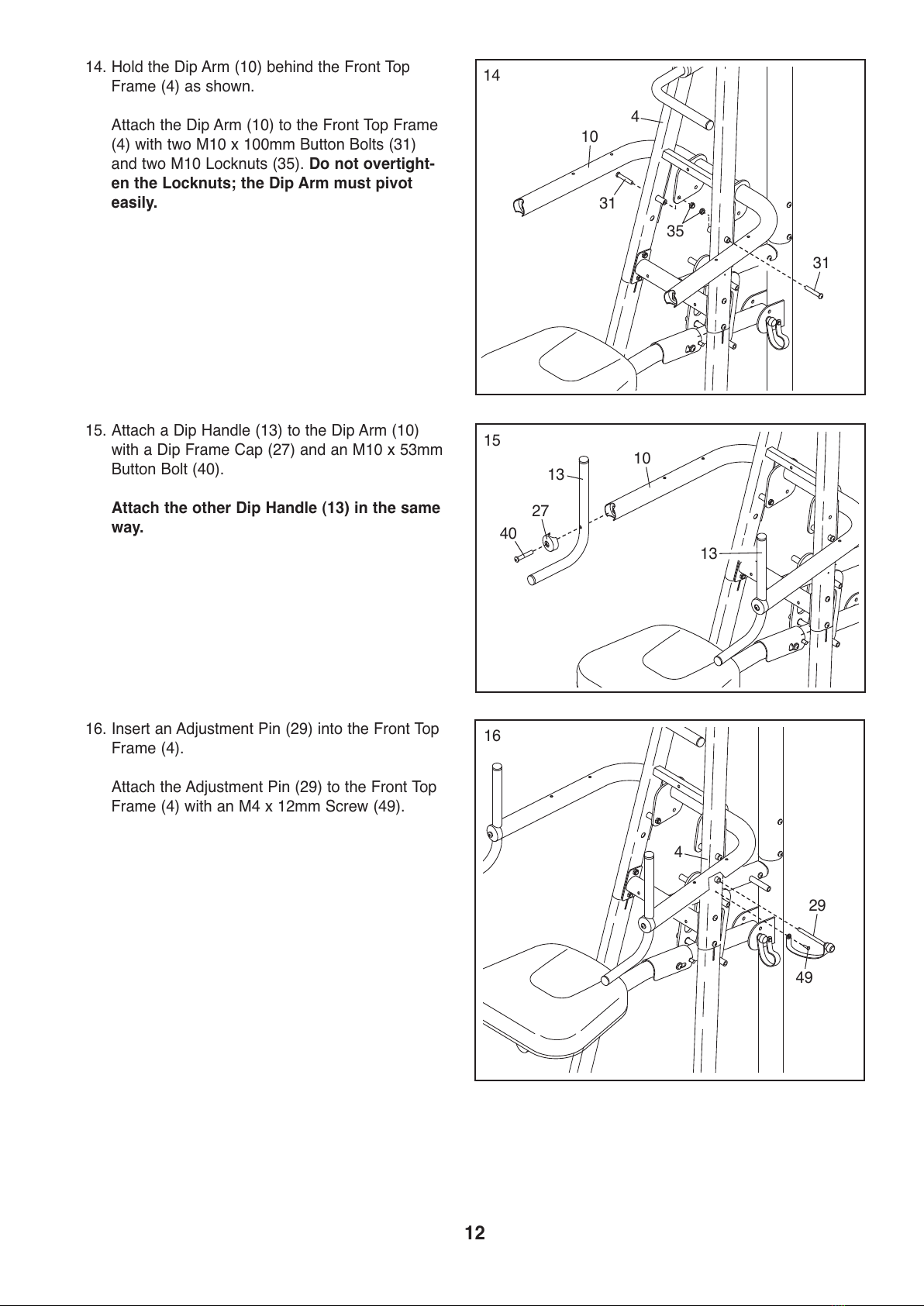

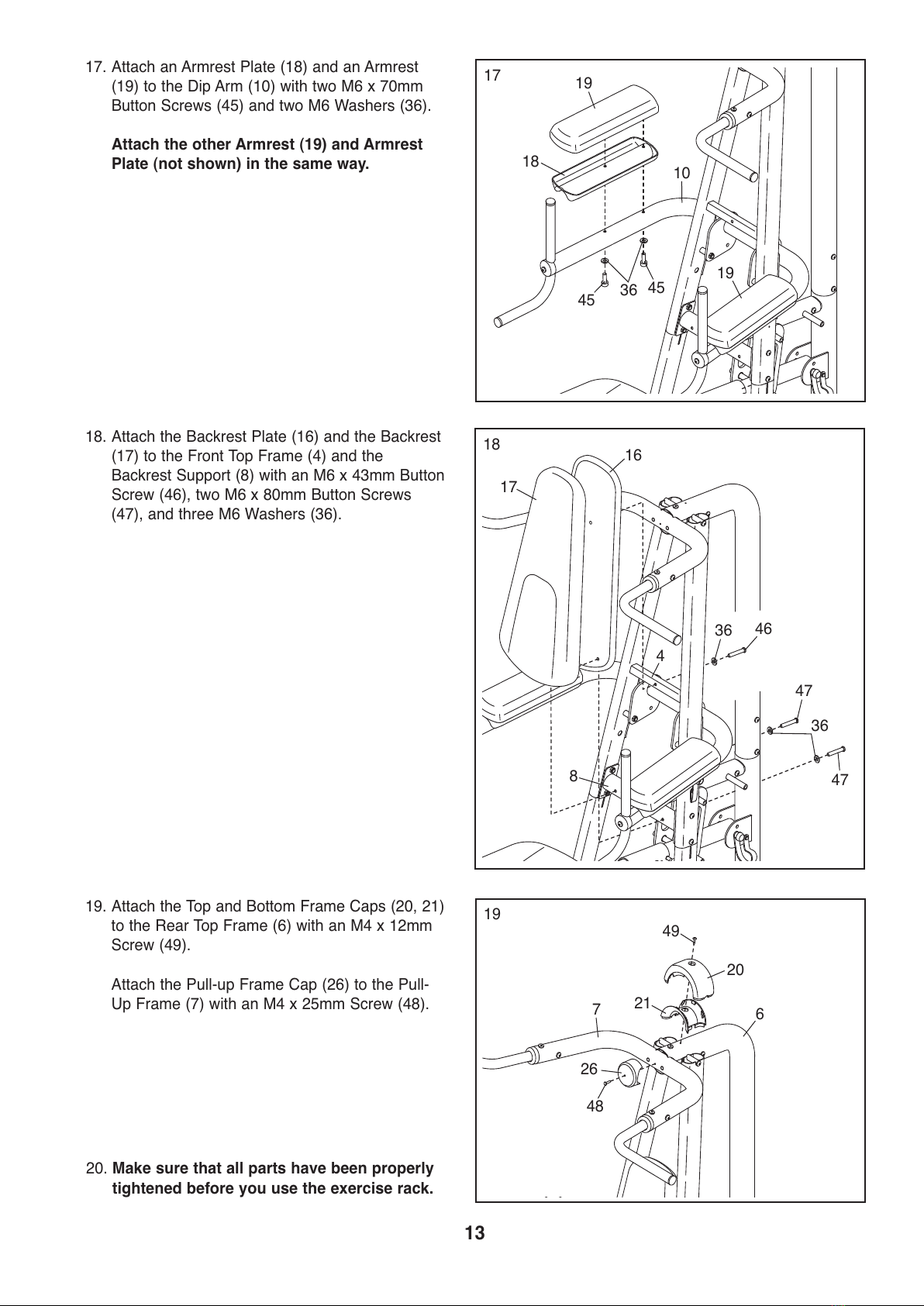

ASSEMBLY
• To hire an authorized service technician to
assemble the exercise rack in your home, call
1-800-445-2480.
• Assembly requires two persons.
• Because of its size and weight, assemble the
exercise rack in the location where it will be
used. Make sure that there is enough clear-
ance to walk around the exercise rack as you
assemble it.
• Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
• To identify small parts, see page 5.
• The following tools (not included) may be
required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
All manuals and user guides at all-guides.com
all-guides.com

7
3. Attach the Rear Upright (5) to the Base (1)
using the indicated M10 x 85mm Button Bolts
(51) and two M10 ocknuts (35). Do not tight-
en the Locknuts yet.
5
3
35
35
51 1
2. Press the two Base eg Caps (22) onto the
Base egs (2).
Insert the two Base egs (2) into the Base (1)
as shown. Insert four M10 x 90mm Button Bolts
(42) upward through the Base. Tip: It may be
helpful to place tape over the bolt heads to
hold them in place.
2
2
1
42
42
1
2
22
22
All manuals and user guides at all-guides.com

8

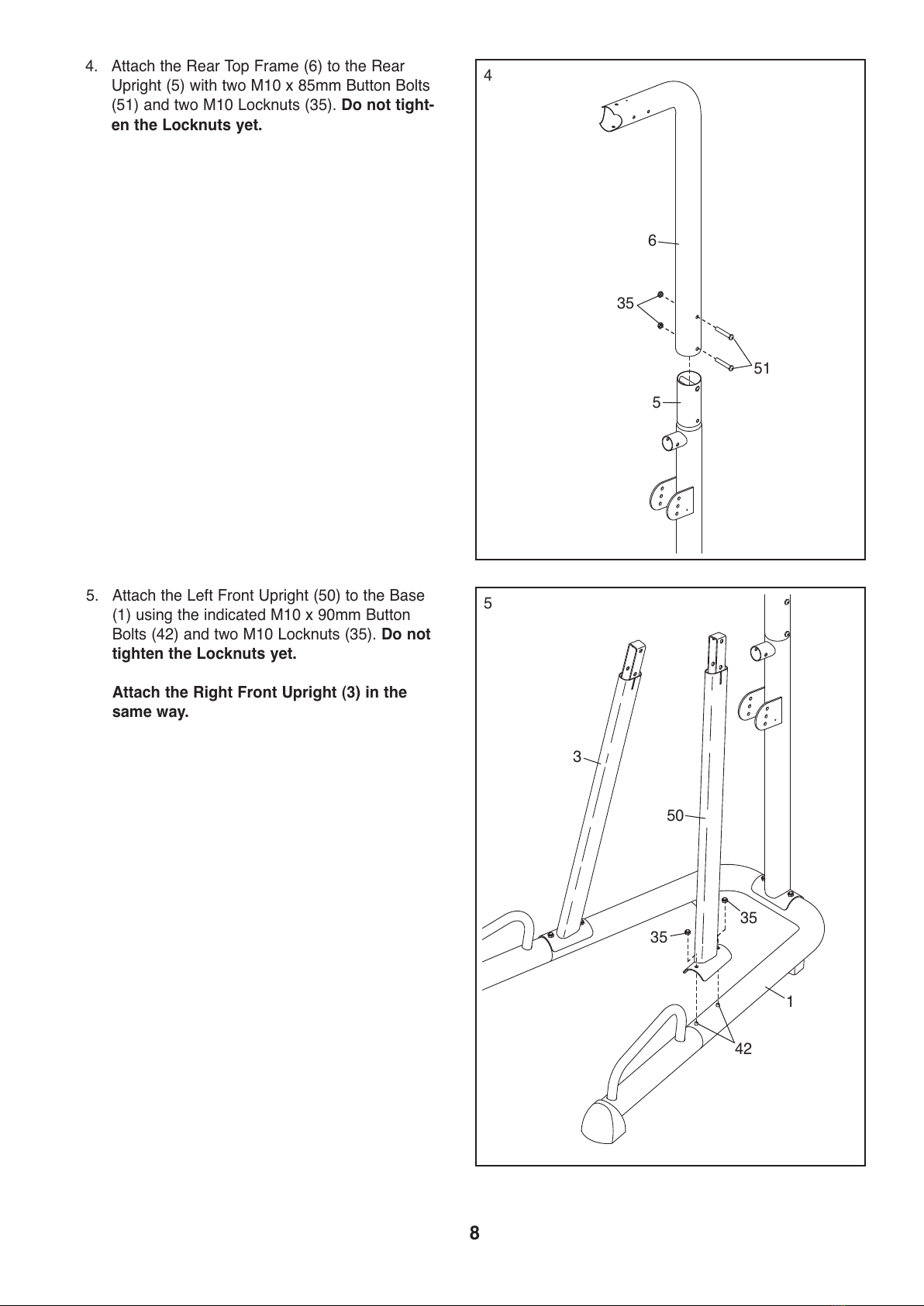

5. Attach the eft Front Upright (50) to the Base
(1) using the indicated M10 x 90mm Button
Bolts (42) and two M10 ocknuts (35). Do not
tighten the Locknuts yet.
Attach the Right Front Upright (3) in the
same way.
3
5
50
1
42
35
35
4. Attach the Rear Top Frame (6) to the Rear
Upright (5) with two M10 x 85mm Button Bolts
(51) and two M10 ocknuts (35). Do not tight-
en the Locknuts yet.
6
35
51
4
5
All manuals and user guides at all-guides.com

9
7. Attach the Backrest Support (8) to the Rear
Upright (5) with an M10 x 62mm Button Bolt
(30) and an M10 ocknut (35). Do not tighten
the Locknut yet.
Attach the Backrest Support (8) to the Front Top
Frame (4) with four M10 x 53mm Button Bolts
(40) and four M10 ocknuts (35).
7
4
35
35
8
30
35
40
40
40
5
6. Slide the Front Top Frame (4) onto the Right
and eft Front Uprights (3, 50). 6
4
3
50
All manuals and user guides at all-guides.com

10

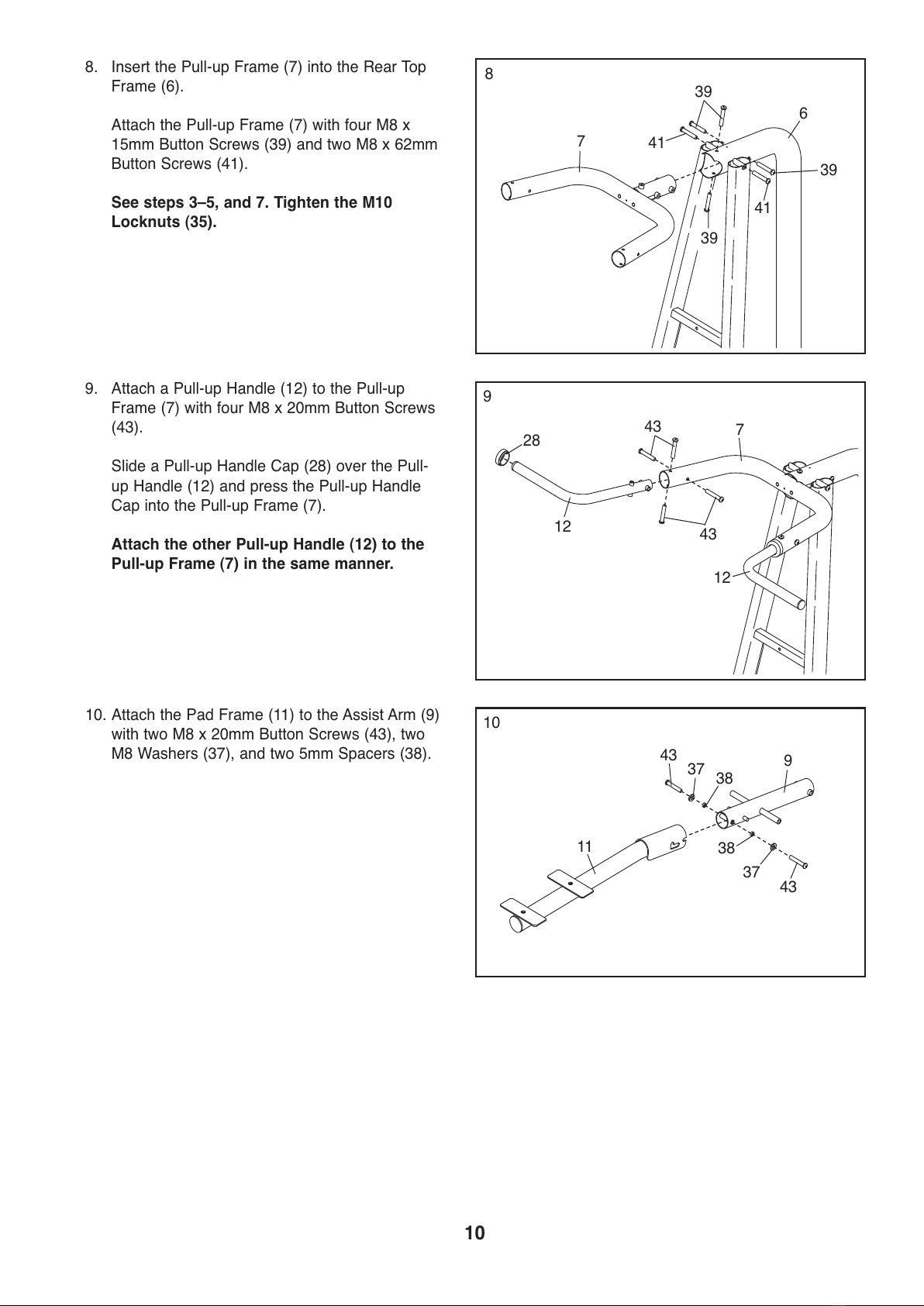

10. Attach the Pad Frame (11) to the Assist Arm (9)
with two M8 x 20mm Button Screws (43), two
M8 Washers (37), and two 5mm Spacers (38).
10
9
11
43
43
37
37
38
38
8. Insert the Pull-up Frame (7) into the Rear Top
Frame (6).
Attach the Pull-up Frame (7) with four M8 x
15mm Button Screws (39) and two M8 x 62mm
Button Screws (41).
See steps 3–5, and 7. Tighten the M10
Locknuts (35).
8
39
39
41
41
39
6
7
9. Attach a Pull-up Handle (12) to the Pull-up
Frame (7) with four M8 x 20mm Button Screws
(43).
Slide a Pull-up Handle Cap (28) over the Pull-
up Handle (12) and press the Pull-up Handle
Cap into the Pull-up Frame (7).
Attach the other Pull-up Handle (12) to the
Pull-up Frame (7) in the same manner.
43
43
12
12
7
9
28
