WEIDERCLUB WEBE1996.1 User manual

Part No. 282183 R0809A Printed in China © 2009 ICON IP, Inc.
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.weiderservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a min-
imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART IST and the EXP ODED
DRAWING near the end of this manual)
Model No. WEBE1996.1
Serial No.
Write the serial number in the
space above for future reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal (Under Seat)
USERʼS MANUAL
QUESTIONS?
If you have questions, or if parts are
missing, DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-877-992-5999
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.weiderservice.com
www.weiderfitness.com

EXPLODED DRAWING—Model No. WEBE1996.1 R0809A
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
34
34
22
22
23 24
25
26
27
28
29
30
31
32
32
70
32
33
69 39
38
40
40
41
41
42
42
42
74
37 44
44
46
45
45
45
45
47
48
48
47
39
36
65
65
52
52
52
52
52
52
65
73
55
56
55
56
54
57
58
58
58
58
75
58
49
71
71
59
59
60
61
58
50 50
50
50
50
50
50
62
62
65
65
51
65
65
65
65
65
65 72
65
65
65
65
53
54
58
58
58
61
72
58
58
68
68
51
65
65
65
67
67 66
64
64
43
58
58
63
58
62
62
62
58
58
58
35
71
192
WEIDER is a registered trademark of ICON IP, Inc.
WARNINGDECA P ACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
PARTIDENTIFICATIONCHART ..............................................................5
ASSEMB Y ...............................................................................6
ADJUSTMENT ...........................................................................14
ROTATINGONTHEINVERSIONSYSTEM.....................................................16
DEVE OPINGAPROGRAM ................................................................17
PART IST ..............................................................................18
EXP ODEDDRAWING ....................................................................19
ORDERINGREP ACEMENTPARTS ..................................................BackCover
IMITEDWARRANTY..............................................................BackCover
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, call the telephone number on
the front cover of this manual and
request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown at
actual size.

18
PART LIST—Model No. WEBE1996.1 R0809A
11 eft Base
21Right Base
31Center Base
41 eft Frame
51Right Frame
61Center Frame Extension
71Center Frame
81Backrest Frame
91Headrest Frame
10 1 eg Frame
11 1 ock Frame
12 2 Handle
13 1 Support eg
14 1 Base
15 1 Support Bracket
16 1 Top Tube
17 1 Bottom Tube
18 1 Ankle Brace Tube
19 1 Foot Plate
20 1 Headrest
21 1 Backrest
22 2 Front Ankle Brace
23 1 Top Cover
24 1 Bottom Cover
25 1 Index Handle
26 1 Index Ring
27 1 Cup Washer
28 1 Small Spring
29 1 Cup Bushing
30 1 Index Cup
31 1 eft arge Spacer
32 3 89mm Cap
33 1 Ankle ock Assembly
34 2 Rear Ankle Brace
35 1 ock Pin
36 1 Bumper
37 1 ong Adjustment Knob
38 1 eg Frame Bushing
39 2 42mm x 70mm Cap
40 2 63mm Round Cap
41 2 eveling Foot
42 3 Foot
43 1 M6 Nut
44 2 32mm Round Cap
45 4 19mm Round Cap
46 2 16mm Spacer
47 2 Pivot Bushing
48 2 29mm Spacer
49 2 M10 x 53mm Button Bolt
50 12 M10 Curved Washer
51 4 M10 x 85mm Button Bolt
52 10 M10 x 80mm Button Bolt
53 3 M10 x 35mm Button Bolt
54 2 M10 x 16mm Button Screw
55 4 M6 x 18mm Button Screw
56 2 M6 x 60mm Button Screw
57 1 M10 x 75mm Button Bolt
58 20 M4 x 15mm Screw
59 4 M5 x 25mm Screw
60 4 M4 x 25mm Screw
61 2 M8 x 16mm Button Bolt
62 7 M6 Washer
63 1 M4 x 30mm Screw
64 2 M10 arge Washer
65 24 M10 ocknut
66 1 M6 x 15mm Screw
67 2 M5 x 15mm Screw
68 2 M10 Washer
69 1 30mm x 60mm Cap
70 1 Right arge Spacer
71 3 M4 x 20mm Screw
72 2 M8 ocknut
73 1 M10 x 95mm Button Bolt
74 1 Short Adjustment Knob
75 1 M6 x 60mm Button Bolt
*–Userʼs Manual
*–Hex Key
*–Grease Packet
ey No. Qty. Description ey No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your inversion system before using your inversion
system. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of the inversion system.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the inversion system only as described
in this manual.
3. It is the responsibility of the owner to ensure
that all users of the inversion system are
adequately informed of all precautions.
4. The inversion system is intended for home
use only. Do not use the inversion system in
any commercial, rental, or institutional set-
ting.
5. eep the inversion system indoors, away
from moisture and dust. Do not put the
inversion system in a garage or covered
patio or near water.
6. Use the inversion system only on a level
surface. Cover the floor beneath the inver-
sion system to protect the floor.
7. Make sure that all parts are properly tight-
ened each time the inversion system is
used. Replace any worn parts immediately.
8. eep children under age 12 and pets away
from the inversion system at all times.
9. The inversion system is designed to support
a maximum user weight of 300 lbs. (136 kg).
Do not use weights with the inversion sys-
tem.
10. Always wear athletic shoes with laces to
help secure your feet in the inversion sys-
tem, and for foot protection while exercising.
11. The inversion system should be used only
by persons 6 ft. 6 in. (198 cm) tall or less.
12. eep hands and feet away from moving
parts.
13. Always make sure that the ankle lock is
secured snugly against your ankles and that
the short knob is fully tightened before you
use the inversion system.
14. Perform all activities on the inversion sys-
tem in a slow, controlled manner. Aggressive
exercise can cause the inversion system to
tip over.
15. Always exercise with a partner. Your partner
should be ready to return the backrest to the
upright position if you cannot complete the
rotation.
16. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
17. Following is a list of factors and conditions
that may make inverting inadvisable (this list
is not exhaustive; it is intended only for ref-
erence). If one or more factors or conditions
apply to you, consult your physician before
using the inversion system.
• Pregnancy
• Hiatal hernia or ventral hernia
• Glaucoma, retinal detachment, or conjunc-
tivitis
• High blood pressure, hypertension, or
recent stroke or transient ischemic attack
• Heart or circulatory disorders for which
you are being treated
• Middle ear infection and extreme obesity
• Spinal injury, cerebral sclerosis, or acutely
swollen joints
• Bone weakness (osteoporosis), recent
unhealed fractures, medullary pins, or sur-
gically implanted orthopedic supports
• The use of anticoagulants, including high
doses of aspirin
IMPORTANT PRECAUTIONS

17
BENEFITING FROM USING THE INVERSION
SYSTEM
If you feel nauseated while using the inversion sys-
tem, return to the starting position. Note that it may
take a few weeks of use for your inner ear to become
accustom to being inverted.
Do not use the inversion system right after you have
eaten.
Moving while using the inversion system may make it
a more comfortable experience, and may help joints
and muscles stretch and relax. Always move in a slow,
controlled manner.
The greater the angle at which the inversion system is
used, the shorter the time that you should rotate back
before rotating up. Increase the amount of inverted
time and the angle of use gradually.
Always pay attention to how your body feels as you
use the inversion system. Increase the level of inten-
sity only as it is comfortable for you. When you feel
like you have had enough, return to the starting posi-
tion.
BEGINNER PROGRAM
The following are suggestions for persons who are
just starting to use the inversion system.
Set the index handle to allow the backrest frame to
rotate to 15 degrees or less for the first one or two
weeks. This will allow your body time to adjust to the
change in gravitational pull.
Use the inversion system for one or two minutes at a
time, two or three times a day.
Stay inverted only for as long as it is comfortable. This
may be only a few seconds at first.
INTERMEDIATE PROGRAM
The following are suggestions for persons who have
become comfortable using the inversion system as
described under the BEGINNER PROGRAM.
Increase the angle to which the inversion system can
rotate, as it is comfortable. Adjust the index handle to
allow the inversion system to rotate to up to 60
degrees, a few degrees at a time.
Start to do gentle stretching while using the inversion
system.
Gradually increase the amount of time that you use
the inversion system to ten minutes or more, two or
three times a day. Routines can be varied from rotat-
ing back for one or two minutes and then up for 30
seconds, to rotating back and up for equal amounts of
time.
FULL INVERSION PROGRAM
The following are suggestions for persons who have
become comfortable using the inversion system as
described under the INTERMEDIATE PROGRAM and
desire to rotate to greater angles. Note that all the
benefits of inversion can be gained by rotating to 60
degrees. Do not attempt to do sit-ups.
Increase the angle to which the inversion system can
rotate, as it is comfortable. Adjust the index handle to
allow the inversion system to rotate until it comes in
contact with the center frame.
Adjust the backrest frame so that the long adjustment
knob is in the top hole (see SE ECTING THE BACK-
REST FRAME POSITION on page 14). If you weigh
220 lbs. (100 kg) or more, adjust the long adjustment
knob to the center hole in the backrest frame. Rotate
back and up as described on page 16.
This section contains information and suggestions about using the inversion system. Make sure that all parts are
properly tightened each time you use the inversion system. Replace any worn parts immediately. See the
ADJUSTMENT section starting on page 14 to identify parts referred to in this section.
DEVELOPING A PROGRAM
4
Handle
eft Frame
ong Adjustment Knob
Backrest
Headrest
Foot Plate
Ankle Brace
Ankle ock
Index Handle
Short Adjustment Knob
Right Frame
ASSEMB ED DIMENSIONS:
Height: 5 ft. 2 in. (157 cm)
Width: 3 ft. (91 cm)
Depth: 5 ft. 6 in. (168 cm)
BEFORE YOU BEGIN
Thank you for selecting the WEIDER®C UB
INVERSION SYSTEM. The inversion system will
increase your intervertebral dimension, decrease pres-
sure on intervertebral discs, stretch and relax your
muscles, and temporarily relieve back pain associated
with the listed conditions.
For your benefit, read this manual carefully before
using the inversion system. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

16
This section explains how to rotate back on the inversion system, and then return to the starting position. Before
using the inversion system, see the ADJUSTMENT section starting on page 14 to correctly set up the
inversion system. It may be helpful to have a second person ready to assist you as you learn to use the inver-
sion system.
ROTATING ON THE INVERSION SYSTEM
ROTATING BAC ON THE INVERSION SYSTEM
To rotate back on the inversion system, slowly lift your
arms over your head until you reach the desired posi-
tion. The speed at which you lift your arms will
determine how quickly the inversion system will rotate.
Rest your arms in a comfortable position that does not
cause the inversion system to rotate. Note: The inver-
sion system will rotate only to the degree setting set
by the index handle.
ROTATING UP ON THE INVERSION SYSTEM
To return to the starting position, move your hands
toward your waist until you rotate to a horizontal posi-
tion. Rest in a horizontal position for 30 to 60 seconds
before rotating to the starting position. This will allow
your body to readjust. Return to the starting position
slowly. Dizziness after using the inversion system is an
indication that you have returned to the starting posi-
tion too quickly.
To rotate up from the fully inverted position, pull your-
self up using the handles.
Do not sit up to return to the starting position.
5
M10 Locknut (65)
M8 Locknut (72)
M6 Washer (62)
M4 x 15mm
Screw (58)
M10 x 85mm Button Bolt (51)
M10 x 95mm Button Bolt (73)
M6 x 18mm
Button Screw (55)
M
M6 x 60mm Button Screw (56)
M4 x 25mm
Screw (60)
M4 x 30mm
Screw (63)
M4 x 20mm
Screw (71)
M10 Curved Washer (50)
M10 Washer (68)
M10 x 35mm
Button Bolt (53)
M10 x 16mm
Button Screw (54)
M10 x 75mm Button Bolt (57)
M10 x 80mm Button Bolt (52)
M10 x 53mm Button Bolt (49)
M8 x 16mm
Button Bolt (61)
M5 x 25mm
Screw (59)
M10 Large Washer (64)

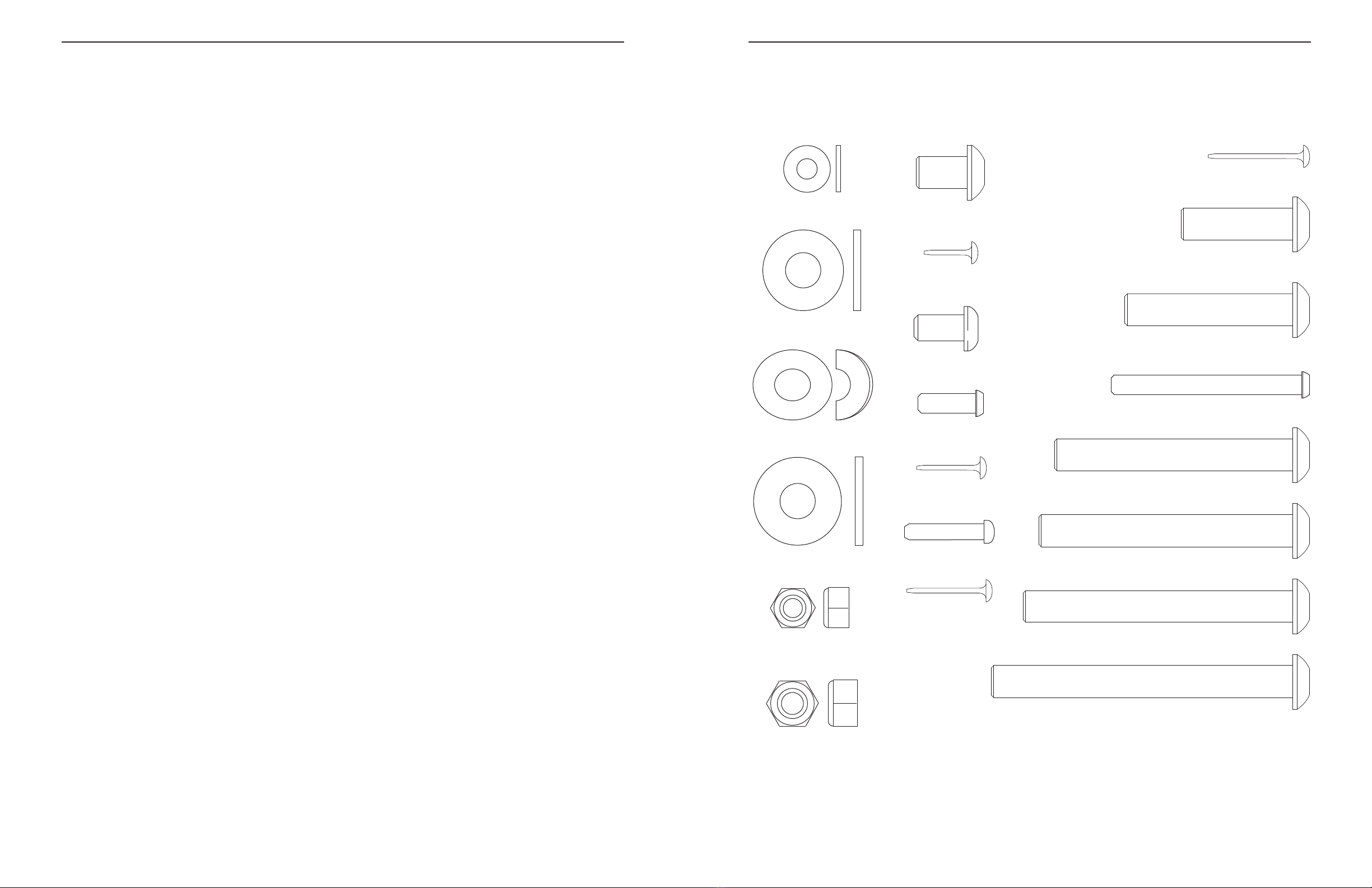

PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART IST near the end of this manual. Note: If a part is not in the hard-
ware kit, check to see if it has been preassembled.

15
LEVELING THE INVERSION SYSTEM
If the inversion system rocks slightly on your floor,
turn one or both of the eveling Feet (41) until the
inversion system is level.
LOC ING THE INVERSION SYSTEM
To lock the inversion system when you are not
using it, insert the threaded end of the ock Pin
(35) into the Support eg (13), and position the
other end of the ock Pin on top of the eg Frame
(10). Then, tighten an M10 ocknut (65) onto the
ock Pin.
SETTING THE INVERSION ANGLE
The inversion system can be set to rotate between
15° and 90°, in 15° increments. To set the inversion
angle, pull the Index Handle (25) out as far as it will
go, and turn the Index Handle until the arrow on top
of the Index Handle points to the desired degree
setting. Then, release the Index Handle; make
sure that the Index Handle is fully engaged.
11
33
19
25
Arrow
10
34
41
35
13
65
41
USING THE AN LE LOC
To secure your ankles in the inversion system, pull
the Ankle ock Assembly (33) out as far as it will
go, and move the ock Frame (11) away from the
eg Frame (10). Stand on the Foot Plate (19), with
the backs of your legs against the Rear Ankle
Braces (34). Then, push the ock Frame against
your ankles and engage the ock Handle into a
notch in the eg Frame.
WARNING: Always make sure
that the Lock Frame (11) is secured snugly
against your ankles before using the
inversion system. Always wear athletic
shoes with laces to help secure your feet in
the inversion system.
Notches
10
6
1.
Press a 63mm Round Cap (40) onto the eft
Base (1).
Attach a Foot (42) to the eft Base (1) with an
M4 x 20mm Screw (71). Next, tighten a
eveling Foot (41) into the eft Base.
Repeat this step for the Right Base (2).
1
1
71
42
2
41
40
ASSEMBLY
To make assembly easier, carefully read the
following assembly tips:
•Assembly requires two persons.
•Because of its weight and size, the inversion
system should be assembled in the location
where it will be used. Make sure that there is
enough clearance to walk around the inversion
system as you assemble it.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• The included grease and the following tools (not
included) may be required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Before beginning assembly, make sure
that you understand the information in
the box above.
2. Attach the eft Base (1) to the Right Base (2)
with two M10 x 80mm Button Bolts (52), four
M10 Curved Washers (50), and two M10
ocknuts (65).
Attach another Foot (42) to the Right Base (2)
with an M4 x 20mm Screw (71).
22
1
52 50
50 65
71
42

14
This section explains how to adjust the inversion system. See DEVE OPING A PROGRAM on page 17 for
important information about how to get the most benefit from the inversion system.
Make sure that all parts are properly tightened each time you use the inversion system. Replace any worn parts
immediately. The inversion system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do
not use solvents to clean the inversion system.
SELECTING THE BAC REST FRAME POSITION
See the inset drawing. The bracket on the Backrest
Frame (8) has four adjustment holes. The correct
hole to use will depend on your body weight and
the desired level of responsiveness. See the chart
to determine which hole to use. For example, if you
weigh between 200 and 250 pounds and you are a
beginning user, the chart recommends that you use
hole A.
To adjust the Backrest Frame (8), first pull the ong
Adjustment Knob (37) out as far as it will go. Move
the Backrest Frame and engage the ong
Adjustment Knob into the desired hole in the
bracket on the Backrest Frame.
Try the inversion system with the Backrest Frame
(8) adjusted to each position to determine which
one is best for you.
37
8
ADJUSTMENT
ADJUSTING THE LEG FRAME
The length of the eg Frame (10) can be adjusted
to correspond to your height. Pull the Short
Adjustment Knob (74) out as far as it will go. Slide
the eg Frame into or out of the Backrest Frame (8)
so that the first or second measurement greater
than your height is covered by the Backrest Frame.
Then, engage the Short Adjustment Knob into
adjustment holes in the eg Frame and the
Backrest Frame.
Use the inversion system with the eg Frame (10)
adjusted to a few different lengths to determine
which length is best for you.
WARNING: The inversion
system is designed to be used by persons 6
ft. 6 in. (198 cm) tall or less.
74
10
8
Adjustment
Hole
Height
Measurements
8Hole A
Hole B
Hole C
Hole D
7
3. Attach the Support eg (13) to the Center Base
(3) with three M10 x 35mm Button Bolts (53)
and three M10 ocknuts (65).
Attach the Base (14) to the Center Base (3)
with four M5 x 25mm Screws (59).
4. Attach the Support Bracket (15) to the Support
eg (13) with two M4 x 15mm Screws (58).
13
59
59
65
53
3
53
14
3
13
58
58
4
15
5. Attach the Center Base (3) to the eft and Right
Bases (1, 2) with four M10 x 80mm Button Bolts
(52), four M10 Curved Washers (50), and four
M10 ocknuts (65).
5
52 50
50
3
65
50
50
52
52
2
1

13
18. Attach a Handle (12) to the eft Frame (4) with
two M10 x 80mm Button Bolts (52), two M10
Curved Washers (50), and two M10 ocknuts
(65).
Attach the other Handle (12) in the same
way.
Make sure that all parts are properly tight-
ened before you use the inversion system.
18
65
50
52
12
12
65
4
35
13
65
10
WARNING:
HOW TO LOC THE INVERSION SYSTEM
FOR STORE DISPLAY OR TO
PREVENT UNSUPERVISED USE
When the inversion system is displayed in a
store, or when it is not in use, it should be
locked to prevent unsupervised use. First,
insert the threaded end of the Lock Pin (35)
into the Support Leg (13), and position the
other end of the Lock Pin on top of the Leg
Frame (10). Then, tighten an M10 Locknut
(65) onto the Lock Pin.
8
6. See the inset drawing. Identify the Center
Frame (7).
Apply some of the included grease to both sides
of the eft arge Spacer (31).
Attach the eft arge Spacer (31) and the eft
Frame (4) to the Center Frame (7) with an M10
ocknut (65), an M10 arge Washer (64), and a
29mm Spacer (48). Then, press an 89mm Cap
(32) into the Center Frame.
Repeat this step with the Right Large Spacer
(70) and the Right Frame (5).
7. Attach the eft and Right Frames (4, 5) to the
eft and Right Bases (1, 2) with four M10 x
85mm Button Bolts (51) and four M10 ocknuts
(65).
7
65
51
51
1
2
65
65
65
4
5
3265 64
48
4
731
Grease
70
5
6
7

12
15. Slide a Front Ankle Brace (22) onto the round
tube on the ock Frame (11). Next, press a
19mm Round Cap (45) into the round tube, and
attach the Round Cap with an M4 x 15mm
Screw (58).
Attach the other Front Ankle Brace (22) in
the same way.
15
58
22
22
11
45
16. Pull the Short Adjustment Knob (74) out as far
as it will go, and insert the end of the eg
Frame (10) a few inches into the Backrest
Frame (8).
See the inset drawing. Press the round tab on
the eg Frame Bushing (38), and press the eg
Frame Bushing upward into the Backrest Frame
(8). Make sure that the round tab is in the
indicated hole in the Backrest Frame.
Then, slide the eg Frame (10) farther into the
Backrest Frame (8), and engage the Short
Adjustment Knob (74) into one of the holes in
the eg Frame.
8
10
74
Holes
16
10
38
8
Hole
Tab
17. Attach the Headrest (20) to the Headrest Frame
(9) with two M6 x 18mm Button Screws (55), an
M6 x 60mm Button Screw (56), and three M6
Washers (62).
Attach the Backrest (21) to the Backrest Frame
(8) in the same way.
17
20
21
8
62
62
56
55
9
9
8. Attach the Top Cover (23) and the Bottom
Cover (24) to the Center Frame (7) with two M4
x 15mm Screws (58) and an M4 x 30mm Screw
(63).
Attach the Center Frame Extension (6) to the
Center Frame (7) with two M10 x 53mm Button
Bolts (49) and two M10 ocknuts (65).
8
7
58
58
63
23
24
6
49
65
9. Orient the Headrest Frame (9) and the Backrest
Frame (8) as shown. Attach the Headrest
Frame to the Backrest Frame with two M10 x
16mm Button Screws (54).
9
9
8
54
54

11

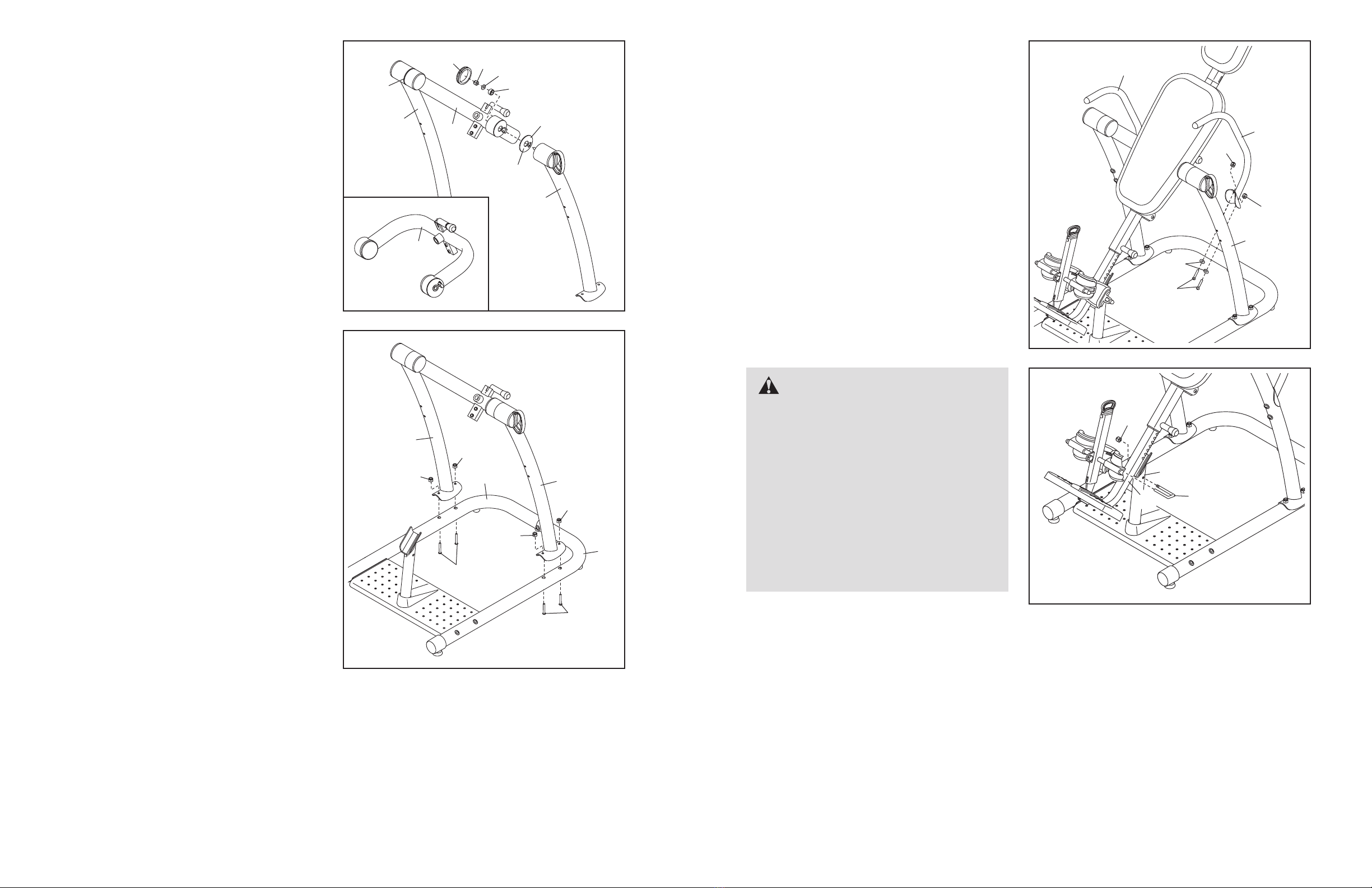

12. Set the Foot Plate (19) on the Top Tube (16)
and the Bottom Tube (17). Finger tighten four
M4 x 25mm Screws (60) through the Tubes into
the Foot Plate. Do not tighten the Screws yet.
13. Slide the ock Frame (11) onto the notched
bracket on the eg Frame (10), and insert the
lower end of the ock Frame into the slot in the
Foot Plate (19). Attach the ock Frame with an
M10 x 75mm Button Bolt (57), two M10
Washers (68), two 16mm Spacers (46), and an
M10 ocknut (65) as shown. Make sure that
the Button Bolt is inserted through the hole
in the lower end of the Lock Frame.
See step 12. Tighten the four M4 x 25mm
Screws (60).
Pull the Ankle ock Assembly (33) upward and
pivot the ock Frame (11) over the indicated
notch in the bracket on the eg Frame (10).
Release the Ankle ock Assembly and engage
the ock Frame into the notch.
See the inset drawing. Attach an M8 x 16mm
Button Bolt (61) and an M8 ocknut (72) to the
hole in the end of the bracket on the eg Frame
(10).
12
60
16
17
19
60
13
Notch
33
11
10
19
57
46
Slot
68
68
65
46
61
10
72
14. Identify the two Rear Ankle Braces (34), which
have holes in the indicated locations.
Slide a Rear Ankle Brace (34) onto the Ankle
Brace Tube (18). Attach the Rear Ankle Brace
with two M4 x 15mm Screws (58). Make sure
that the Screws are tightened into the indi-
cated holes in the Ankle Brace Tube. Next,
press a 19mm Round Cap (45) into the Ankle
Brace Tube, and attach the Round Cap with an
M4 x 15mm Screw (58).
Attach the other Rear Ankle Brace (34) to the
Ankle Brace Tube (18) in the same way.
34
18 Holes
Holes
34
58
58
45
14
10
10. Apply a small amount of grease to an M10 x
95mm Button Bolt (73).
Pull the ong Adjustment Knob (37) out as far
as it will go. Insert the bracket on the Backrest
Frame (8) into the Top Cover (23). Next, attach
the Backrest Frame to the Center Frame
Extension (6) with the M10 x 95mm Button Bolt
(73) and an M10 ocknut (65). Then, engage
the ong Adjustment Knob into one of the holes
in the bracket.
See the inset drawing. Attach an M8 x 16mm
Button Bolt (61) and an M8 ocknut (72) to the
hole in the end of the bracket on the Backrest
Frame (8).
6
23
Bracket
65
73
Grease
8
37
61
8
72

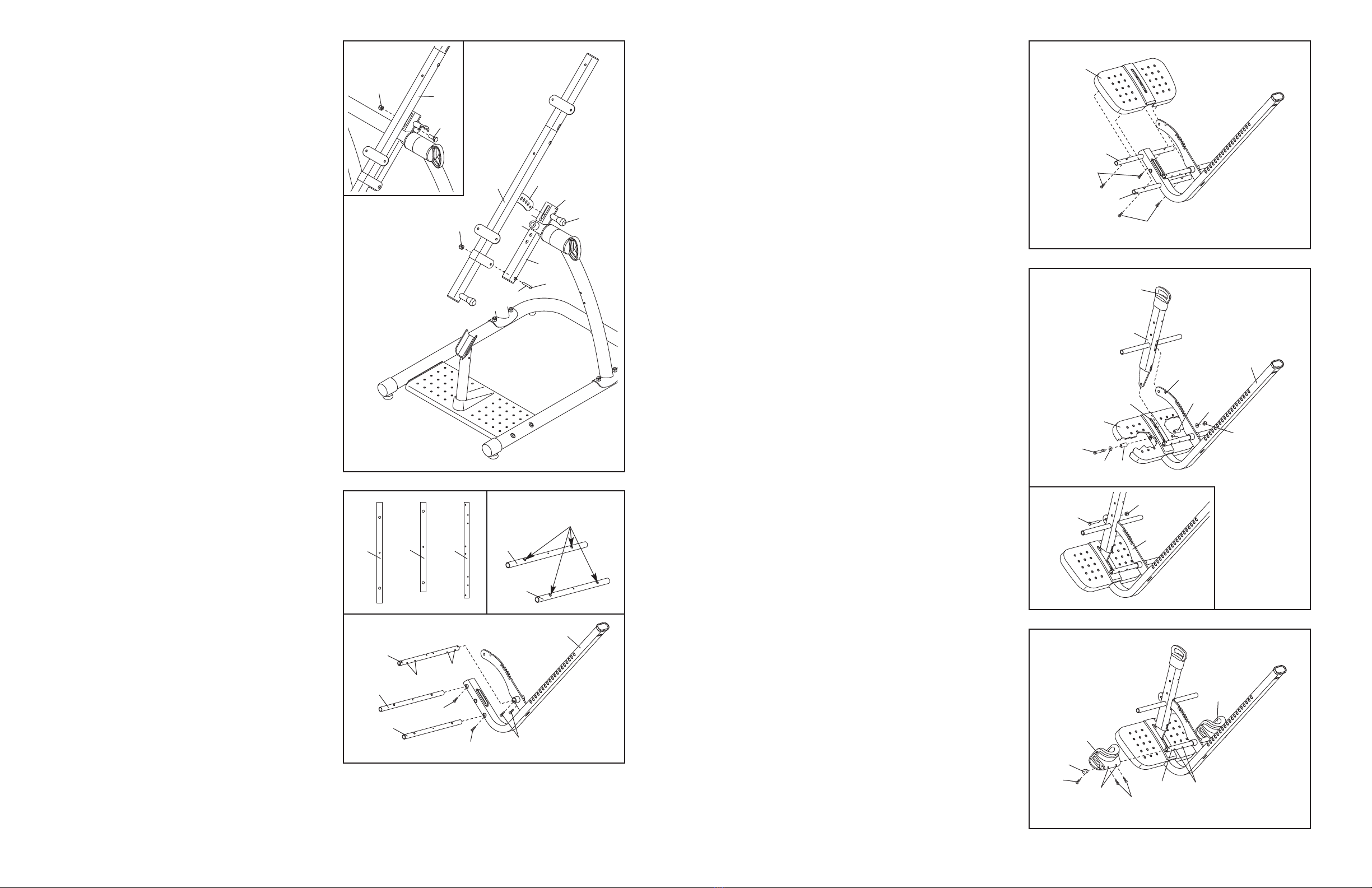

11. See the left inset drawing. Identify the Top
Tube (16), the Bottom Tube (17), and the Ankle
Brace Tube (18); the Tubes have different
lengths and holes in different positions.
Orient the Top Tube (16) and the Bottom Tube
(17) so that the largest holes are on top (see
the right inset drawing), and insert them into
the indicated holes in the eg Frame (10).
Attach each Tube with an M4 x 15mm Screw
(58).
Orient the Ankle Brace Tube (18) as shown, and
insert it into the eg Frame (10). Attach the
Ankle Brace Tube with two M4 x 15mm Screws
(58).
Make sure that the M4 x 15mm Screws (58)
are tightened into the holes in the bottoms
of the Tubes (16, 17, 18).
17
16
58
58
10
11
16 17 18
18
Holes
58
Holes
argest holes
must be on top
17
16
10
