Welbilt Frymaster FilterQuick 3FQE30U User manual

FilterQuick™FQE30
Electric Fryer
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Part Number: FRY_IOM_8197053 09/2017

*8197053*
FOR YOUR SAFET
Y
Do Not Store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
OriginalInstructions
CAUTION
READTHEINSTRUCTIONSBEFOREUSINGTHEFRYER.


i
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER FOOD SERVICE
EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER
OR ANY OF ITS AUTHORIZED SERVICERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL
CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER AND ITS AFFILIATES WILL NOT BE
LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR
INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART
RECEIVED FROM AN UNAUTHORIZED SERVICER.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified personnel only. A Frymaster
Factory Authorized Servicer (FAS) or other qualified professional should perform installation, maintenance, and
repairs. Installation, maintenance, or repairs by unqualified personnel may void the manufacturer’s warranty. See
Chapter 1 of this manual for definitions of qualified personnel.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of the country and/or
region in which the appliance is installed. See NATIONAL CODE REQUIREMENTS in Chapter 2 of this manual for
specifics.
NOTICE
When installed, this appliance must be electrically grounded in accordance with local codes, or in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70, the Canadian Electrical Code, CSA C22.2, or the
appropriate national code of the country in which installed.
NOTICE TO U.S. CUSTOMERS
This equipment is to be installed in compliance with the basic plumbing code of the Building Officials and Code
Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the U.S. Food and Drug
Administration.
NOTICE
This appliance is intended to be used for commercial applications, for example in kitchens of restaurants, canteens,
hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production
of food.
WARNING
This equipment is intended for indoor use only. Do not install or operate this equipment in outdoor areas.
NOTICE
The appliance must be installed and used in such a way that any water cannot contact the fat or oil.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning and technical procedures
and may not conform to onsite management operational procedures.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH CONTROLLERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This
device may not cause harmful interference, and 2) This device must accept any interference received, including
interference that may cause undesired operation. While this device is a verified Class A device, it has been shown to
meet the Class B limits. CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set out by the ICES-003
standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A et B prescrites dans
la norme NMB-003 edictee par le Ministre des Communcations du Canada.
WARNING
Do not use water jets to clean this equipment.

ii
DANGER
Improper installation, adjustment, maintenance or service, and unauthorized alterations or modifications can cause
property damage, injury, or death. Read the installation, operating, and service instructions thoroughly before
installing or servicing this equipment.
DANGER
No structural material on the fryer should be altered or removed to accommodate placement of the fryer under a
hood. Questions? Call the Frymaster Service Hotline at 1-800-551-8633.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending on or transmitting
stress to the electrical conduit. A restraint kit is provided with the fryer. If the restraint kit is missing contact your
local KES.
NOTICE
All fryers shipped without factory supplied cords and plug assemblies must be hardwired using flexible conduit to
the terminal block located on the rear of the fryer. These fryers should be wired to NEC specifications. Hardwired
units must include installation of restraint devices.
CAUTION
No warranty is provided for any Frymaster fryer used in a mobile or marine installation or concession. Warranty
protection is only offered for fryers installed in accordance with the procedures described in this manual. Mobile,
marine or concession conditions of this fryer should be avoided to ensure optimum performance.
DANGER
The front ledge of the fryer is not a step! Do not stand on the fryer. Serious injury can result from slips or contact
with the hot oil.
DANGER
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
DANGER
Do not spray aerosols in the vicinity of this appliance while it is in operation.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying
operations each day. Some food particles can spontaneously combust if left soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal the joint between the
fry vessels. Banging fry baskets on the strip to dislodge shortening will distort the strip, adversely affecting its fit. It
is designed for a tight fit and should only be removed for cleaning.
DANGER
This fryer has a power cord (three-phase) for each frypot. Prior to movement, testing, maintenance and any repair on
your Frymaster fryer; disconnect ALL electrical power cords from the electrical power supply.
DANGER
This appliance must be connected to a power supply having the same voltage and phase as specified on the rating
plate located on the inside of the appliance door.
WARNING
All wiring connections for this appliance must be made in accordance with the wiring diagram(s) furnished with the
appliance. Refer to the wiring diagram(s) in the rear of this manual when installing or servicing this equipment.

iii
WARNING
Use caution and wear appropriate safety equipment to avoid contact with hot oil or surfaces that may cause severe
burns or injury.
DANGER
This fryer must not be modified to serve as a water-bath unit. This is especially dangerous if adjoining frypots are
used for conventional frying. Water splashing or falling into hot oil causes dangerous eruptions in the oil. Personnel
near the fryer can be seriously injured.
DANGER
Do not operate this equipment unless all covers and access panels are in place and properly secured.
WARNING
If the electrical power supply cord is damaged, it must be replaced by a Frymaster Factory Authorized Servicer or a
similarly qualified person in order to avoid a hazard.
DANGER
Building codes prohibit a fryer with its open tank of hot oil being installed beside an open flame of any type,
including those of broilers and ranges.
DANGER
Hot oil can cause severe burns. Avoid contact. Under all circumstances, oil must be removed from the fryer before
attempting to move it to avoid spills, falls, and severe burns. Never attempt to transfer hot oil from one container to
another. Fryers may tip and cause personal injury if not secured in a stationary position.
WARNING
Always fill both sides of a split-pot vat when heating for any purpose, testing, cooking or boiling out the vat.
DANGER
This appliance is not intended for use by children under the age of 16 or persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision concerning use of
the appliance by a person responsible for their safety. Do not allow children to play with this appliance.
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with water or cooking oil
before energizing the elements. Failure to do so will result in irreparable damage to the elements and may cause a
fire.
NOTICE
If this equipment is wired directly into the electrical power supply, a means for disconnection from the supply having
a contact separation of at least 3-mm in all poles must be incorporated in the fixed wiring.
NOTICE
This equipment must be positioned so that the plug is accessible unless other means for disconnection from the
power supply (e.g., a circuit breaker) is provided.
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by means of copper wires having a
temperature rating of not less than 167°F (75°C).
DANGER
NEVER set a complete block of solid shortening on top of heating elements. To do so will damage the elements and
increase the potential for flash-point shortening temperatures and subsequent fire.
WARNING
NEVER drain boil out or cleaning solution into a shortening disposal unit (SDU), a built-in filtration unit, a
portable filter unit, or an OQS (Oil Quality Sensor). These units are not intended for this purpose, and will
be damaged by the solution and void the warranty.

iv
FilterQuick™FQE30 Series Electric Fryers
Installation and Operation Manual
TABLE OF CONTENTS
CHAPTER 1: Introduction
1.1 General.....................................................................................................................................1-1
1.2 Safety Information ...................................................................................................................1-1
1.3 Computer Information..............................................................................................................1-2
1.4 European Community (CE) Specific Information ...................................................................1-2
1.5 Installation, Operating, and Service Personnel........................................................................1-2
1.6 Definitions................................................................................................................................1-2
1.7 Shipping Damage Claim Procedure.........................................................................................1-3
1.8 Reading Model Numbers.........................................................................................................1-4
1.9 Service Information..................................................................................................................1-4
CHAPTER 2: Installation Instructions
2.1 General Installation Requirements...........................................................................................2-1
2.1.1 Clearance and Ventilation............................................................................................2-2
2.1.2 Electrical Grounding Requirements.............................................................................2-2
2.1.3 Australian Requirements..............................................................................................2-3
2.2 Power Requirements................................................................................................................2-3
2.3 Positioning the Fryer................................................................................................................2-3
2.4 Installing the JIB Cradle ..........................................................................................................2-4
CHAPTER 3: Operating Instructions
3.1 Equipment Setup and Start-Up Procedures..............................................................................3-2
3.2 Operation..................................................................................................................................3-2
3.3 Oil Attendant®Automatic Topoff............................................................................................3-3
3.3.1 Install the Oil Reservoir...............................................................................................3-3
3.3.2 Routine Oil Changes....................................................................................................3-4
CHAPTER 4: Filtration Instructions
4.1 Introduction..............................................................................................................................4-1
4.2 Preparation for Use with Filter Paper or Filter Pad..................................................................4-1
4.3 FilterQuick™with Fingertip Filtration.....................................................................................4-2
4.4 Troubleshooting FilterQuick™with Fingertip Filtration..........................................................4-3
4.4.1 Incomplete Filtration.....................................................................................................4-3
4.5 Filter Busy.................................................................................................................................4-4
4.6 Draining and Disposing of Waste Oil.......................................................................................4-5
CHAPTER 5: Preventive Maintenance
5.1 Cleaning the Fryer....................................................................................................................5-1
5.2 Daily Checks and Service........................................................................................................5-1
5.2.1 Inspect Fryer for Damage .............................................................................................5-1
5.2.2 Clean Fryer Cabinet Inside and Out..............................................................................5-1
5.2.3 Clean the FilterQuick™Filtration System.....................................................................5-1
5.2.4 Clean Detachable Parts and Accessories.......................................................................5-2
5.3 Weekly Checks and Service.....................................................................................................5-2
5.3.1 Drain, Clean Frypot and Heating Elements..................................................................5-2
5.3.2 Boiling Out the Frypot..................................................................................................5-2

v
5.4 Monthly Checks and Service...................................................................................................5-3
5.4.1 Check FilterQuick™Controller Setpoint Accuracy......................................................5-3
5.5 Quarterly Checks and Service..................................................................................................5-4
5.5.1 Replace O-rings ............................................................................................................5-4
5.5.2 Pre-Filter Maintenance .................................................................................................5-4
5.6 Annual/Periodic System Inspection.........................................................................................5-4
5.6.1 Fryer..............................................................................................................................5-4
5.6.2 FilterQuick™Filtration System.....................................................................................5-5
CHAPTER 6: Operator Troubleshooting
6.1 Introduction..............................................................................................................................6-1
6.2 Troubleshooting.......................................................................................................................6-2
6.2.1 Controller and Heating Problems .................................................................................6-2
6.2.2 Error Message and Display Problems...........................................................................6-2
6.2.3 Filtration Problems .......................................................................................................6-4
6.2.4 Basket Lift Problems ....................................................................................................6-5
6.2.5 Auto Top Off Problems ................................................................................................6-5
6.2.6 Error Log Codes............................................................................................................6-6
6.2.7 High Limit Test.............................................................................................................6-7
6.2.8 OQS (Oil Quality Sensor).............................................................................................6-8
APPENDIX A: Bulk Oil Instructions
APPENDIX B: Solid Shortening JIB Preparation Instructions
APPENDIX C: Solid Shortening Melting Unit Use Instructions

1-1
FILTERQUICK™FQE30 SERIES ELECTRIC FRYER
CHAPTER 1: INTRODUCTION
1.1 General
Read the instructions in this manual thoroughly before attempting to operate this equipment. This
manual covers all configurations of FilterQuick™ FQE30 electric models. The fryers in this model
family have most parts in common, and when discussed as a group, will be referred to as
FilterQuick™ FQE30 fryers.
The FilterQuick™ FQE30 fryers feature a low oil volume frypot, automatic oil top off and semi-
automatic fingertip filtration unit. The Euro-Look design incorporates a rounded topcap and a large
round drain, which ensures that fries and other debris, will be washed into the filter pan. The
FilterQuick™ FQE30 fryers are controlled with a FilterQuick™ controller. Fryers in this series
come in full- or split-vat arrangements, and can be purchased in batteries of up to five fryers.
1.2 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
one below.
DANGER
Hot oil causes severe burns. Never attempt to move a fryer containing hot oil or to
transfer hot oil from one container to another.
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER boxes contain information about actions or conditions that may cause or result in
injury to personnel, and which may cause damage to your system and/or cause your system to
malfunction.
The FilterQuick™ FQE30 fryers incorporate a high-temperature detection feature which shuts off
power to the elements should the temperature controls fail.
NOTE: The Frymaster FilterQuick
™
FQE30 fryer requires a start-up, demonstration and
training before normal restaurant operations can begin.

1-2
1.3 Controller Information
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been
shown to meet the Class B limits. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
the equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at their own expense.
The user is cautioned that any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
If necessary, the user should consult the dealer or an experienced radio and television technician for
additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission
helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available
from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
1.4 European Community (CE) Specific Information
The European Community (CE) has established certain specific standards regarding equipment of
this type. Whenever a difference exists between CE and non-CE standards, the information or
instructions concerned are identified by means of shadowed boxes similar to the one below.
CE Standard
Example of box used to distinguish CE and
Non-CE specific information.
1.5 Installation, Operating, and Service Personnel
Operating information for Frymaster equipment has been prepared for use by qualified and/or
authorized personnel only, as defined in Section 1.6. All installation and service on Frymaster
equipment must be performed by qualified, certified, licensed, and/or authorized installation
or service personnel, as defined in Section 1.6.
1.6 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had previous
experience with the operation of the equipment covered in this manual.

1-3
QUALIFIED INSTALLATION PERSONNEL
Qualified installation personnel are individuals, firms, corporations, and/or companies which, either
in person or through a representative, are engaged in and are responsible for the installation of
electrical appliances. Qualified personnel must be experienced in such work, be familiar with all
electrical precautions involved, and have complied with all requirements of applicable national and
local codes.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those who are familiar with Frymaster equipment and who have been
authorized by Frymaster, L.L.C. to perform service on the equipment. All authorized service
personnel are required to be equipped with a complete set of service and parts manuals, and to stock
a minimum amount of parts for Frymaster equipment. A list of Frymaster Factory Authorized
Servicers (FAS’s) is located on the Frymaster website at www.frymaster.com. Failure to use
qualified service personnel will void the Frymaster warranty on your equipment
1.7 Shipping Damage Claim Procedure
What to do if your equipment arrives damaged:
Please note that this equipment was carefully inspected and packed by skilled personnel before
leaving the factory. The freight company assumes full responsibility for safe delivery upon
acceptance of the equipment.
1. File Claim for Damages Immediately - regardless of extent of damage.
2. Inspect For and Record All Visible Loss or Damage, and ensure that this information is noted
on the freight bill or express receipt and is signed by the person making the delivery.
3. Concealed Loss or Damage- If damage is unnoticed until equipment is unpacked, notify the
freight company or carrier immediately upon discovery and file a concealed damage claim.
This must be submitted within 15 days of date of delivery. Be sure to retain container for
inspection.
Frymaster DOES NOT ASSUME RESPONSIBILITY FOR DAMAGE OR LOSS
INCURRED IN TRANSIT.

1-4
1.8 Reading Model Numbers
1.9 Service Information
For non-routine maintenance or repairs, or for service information, contact your local Frymaster
Authorized Servicer (FAS). In order to assist you quickly, the Frymaster Authorized Servicer (FAS)
or Service Department representative requires certain information about your equipment. Most of
this information is printed on a data plate affixed to the inside of the fryer door. Part numbers are
found in the Service and Parts Manual. Parts orders may be placed directly with your local FAS or
distributor. A list of Frymaster Factory Authorized Servicers (FAS’s) is located on the Frymaster
website at www.frymaster.com. If you do not have access to this list, contact the Frymaster Service
Department at 1-800-551-8633 or 1-318-865-1711 or by email at [e-mail].
The following information will be needed in order to assist you efficiently:
Model Number _________________________
Serial Number__________________________
Voltage _______________________________
Nature of the Problem____________________
_____________________________________
_____________________________________
RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.

2-1
FILTERQUICK™FQE30 SERIES ELECTRIC FRYER
CHAPTER 2: INSTALLATION INSTRUCTIONS
2.1 General Installation Requirements
Proper installation is essential for the safe, efficient, trouble-free operation of this appliance.
Qualified, licensed, and/or authorized installation or service personnel, as defined in Section
1.6 of this manual, should perform all installation and service on Frymaster equipment.
Failure to use qualified, licensed, and/or authorized installation or service personnel (as
defined in Section 1.6 of this manual) to install or otherwise service this equipment will void
the Frymaster warranty and may result in damage to the equipment or injury to personnel.
Where conflicts exist between instructions and information in this manual and local or
national codes or regulations, installation and operation shall comply with the codes or
regulations in force in the country in which the equipment is installed.
Service may be obtained by contacting your local Frymaster Authorized Servicer.
NOTICE
All fryers shipped without factory supplied cords and plug assemblies must be
hardwired using flexible conduit to the terminal block located on the rear of the fryer.
These fryers should be wired to NEC specifications. Hardwired units must include
installation of restraint devices.
DANGER
Adequate means must be provided to limit the movement of this appliance without
depending on or transmitting stress to the electrical conduit. A restraint kit is
provided with the fryer. If the restraint kit is missing contact your local Frymaster
Authorized Servicer (FAS).
NOTICE
If this equipment is wired directly into the electrical power supply, a means for
disconnection from the supply having a contact separation of at least 3-mm in all
poles must be incorporated in the fixed wiring.
NOTICE
This equipment must be positioned so that the plug is accessible unless other
means for disconnection from the power supply (e.g., a circuit breaker) is provided.
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by
means of copper wires having a temperature rating of not less than 167°F (75°C).

2-2
NOTICE
If the electrical power supply cord is damaged, it must be replaced by a Frymaster
Authorized Servicer or a similarly qualified person in order to avoid a hazard.
DANGER
This appliance must be connected to a power supply having the same voltage and
phase as specified on the rating plate located on the inside of the appliance door.
DANGER
All wiring connections for this appliance must be made in accordance with the
wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s)
affixed to the inside of the appliance door when installing or servicing this
equipment.
DANGER
Do not attach an apron drainboard to a single fryer. The fryer may become unstable,
tip over, and cause injury. The appliance area must be kept free and clear of
combustible material at all times.
DANGER
Building codes prohibit a fryer with its open tank of hot oil being installed beside an
open flame of any type, including those of broilers and ranges.
In the event of a power failure, the fryer(s) will automatically shut down. If this occurs, turn the
power switch OFF. Do not attempt to start the fryer(s) until power is restored.
2.1.1 Clearance and Ventilation
This appliance must be kept free and clear of combustible material, except that it may be installed on
combustible floors.
A clearance of 6 inches (15cm) must be provided at both sides and back adjacent to combustible
construction. A minimum of 24 inches (61cm) should be provided at the front of the equipment for
servicing and proper operation.
WARNING
Do not block the area around the base or under the fryers.
2.1.2 Electrical Grounding Requirements
All electrically operated appliances must be grounded in accordance with all applicable national and
local codes, and, where applicable, CE codes. All units (cord connected or permanently connected)
should be connected to a grounded power supply system. A wiring diagram is located on the inside
of the fryer door. Refer to the rating plate on the inside of the fryer door for proper voltages.
The equipotential grounding lug allows all the equipment in the same location to be
electrically connected to ensure there is no electrical potential difference between
the units, which could be hazardous.

2-3
2.1.3 Australian Requirements
To be installed in accordance with AS 5601 and AS/NZS 3000:2007 local authorities, gas,
electricity, and any other relevant statutory regulations.
If casters are fitted, the installation must comply with AS5601 and AS1869 requirements.
2.2 Power Requirements
The optional three phase supply plug for 208v and 240v delta configuration fryers are rated at 60
amps, 250 VAC and is NEMA configuration 15-60P.
Three (3) Phase Requirements
MODEL kW VOLTAGE
WIRE
SERVICE MINIMUM WIRE SIZE AWG (mm) AMPS (per leg)
FQEL14 14 208 3 6 (4.11) 39
FQEL14 14 240 3 6 (4.11) 34
FQEL14 14 480 3 8 (2.59) 17
FQEL14 14 220/380 4 6 (4.11) 22
FQEL14 14 230/400 4 6 (4.11) 21
FQEL14 14 240/415 4 6 (4.11) 20
Single (1) Phase Requirements
MODEL kW VOLTAGE
WIRE
SERVICE MINIMUM WIRE SIZE AWG (mm) AMPS (per leg)
FQEL14 14 208 2 3 (5.83) 67
FQEL14 14 220 2 3 (5.83) 63
FQEL14 14 240 2 4 (5.19) 58
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by
means of copper wires having a temperature rating of not less than 167°F (75°C).
DANGER
This appliance must be connected to a power supply having the same voltage and
phase as specified on the rating plate located on the inside of the appliance door.
DANGER
All wiring connections for this appliance must be made in accordance with the
wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s)
affixed to the inside of the appliance door when installing or servicing this
equipment.

2-4
2.3 Positioning the Fryer
DANGER
No structural material on the fryer should be altered or removed to accommodate
placement of the fryer under a hood. Questions? Call the Frymaster Dean Service
Hotline at 1-800-551-8633.
1. Once the fryer has been positioned at the frying station, use a carpenter’s level placed across the
top of the frypot to verify that the unit is level, both side-to-side and front-to-back.
To level fryers, adjust the casters being careful to ensure the fryer(s) are at the proper height in
the frying station.
When the fryer is leveled in its final position, install the restraints provided by the KES to limit
its movement so that it does not depend on or transmit stress to the electrical conduit or
connection. Install the restraints in accordance with the provided instructions. If the restraints are
disconnected for service or other reasons, they must be reconnected before the fryer is used.
DANGER
Adequate means must be provided to limit the movement of this appliance without
depending on or transmitting stress to the electrical conduit. A restraint kit is
provided with the fryer. If the restraint kit is missing contact your local KES.
DANGER
Hot oil can cause severe burns. Avoid contact. Under all circumstances, oil must be
removed from the fryer before attempting to move it to avoid oil spills, falls and
severe burns. This fryer may tip and cause personal injury if not secured in a
stationary position.
2. Close fryer drain-valve(s).
3. Clean and fill frypot(s) to the bottom oil level line with cooking oil. (See Equipment Setup and
Shutdown Procedures in Chapter 3.)
2.4 Installing the JIB Cradle
Open the fryer door (typically the far right door)
and remove the cross brace used for shipping
support by removing the four screws (see Figure
1). Install the JIB cradle shipped in the
accessories pack with the screws that were
removed in the cross brace removal step (see
Figure 2). If using the solid shortening option see
Appendix A in the rear of this manual for
installation instructions. Install the optional JIB
splash shield to protect the bottom of the JIB (see
Figure 3).
Figure 1 Figure 2
Figure 3

3–1
FILTERQUICK™ FQE30 SERIES ELECTRIC FRYER
CHAPTER 3: OPERATING INSTRUCTIONS

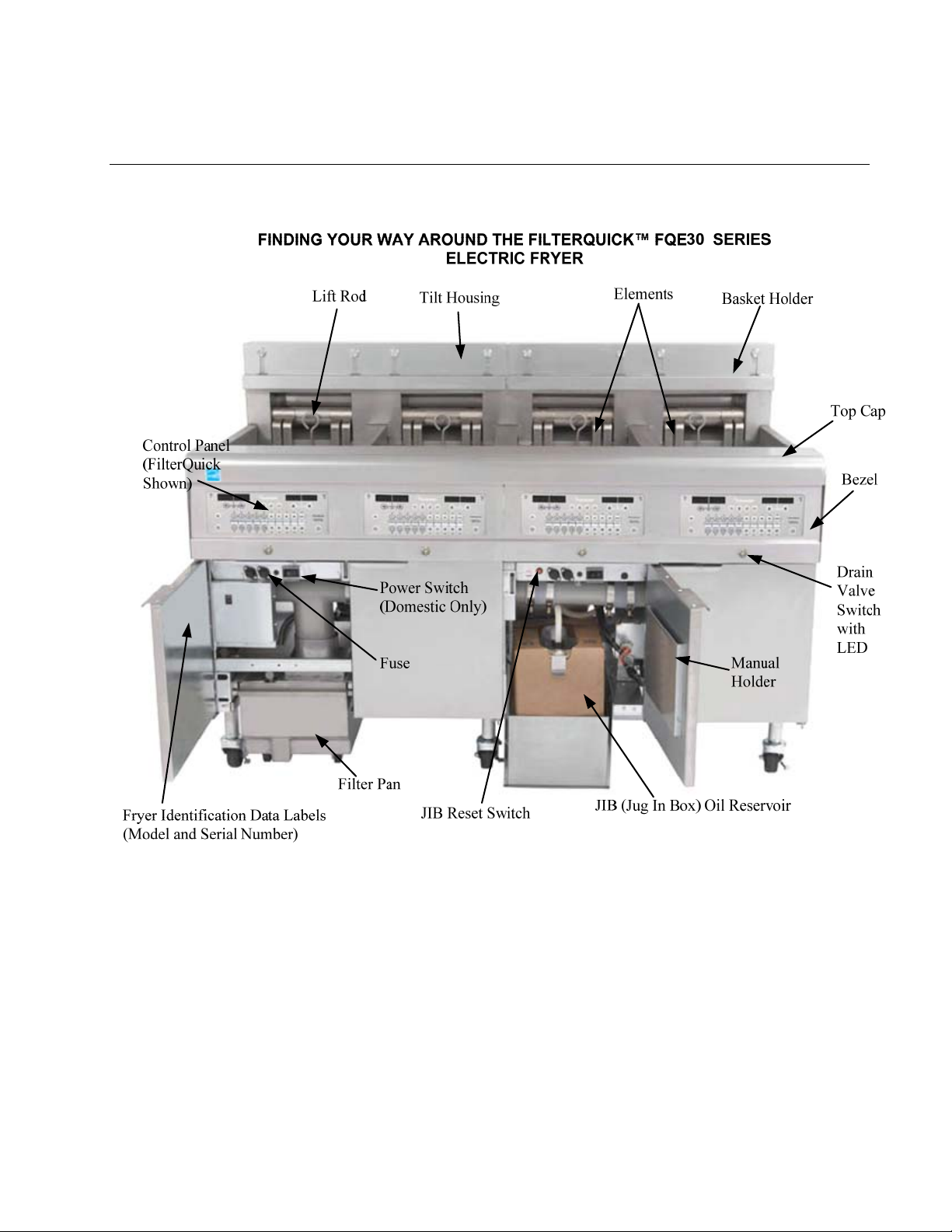

TYPICAL CONFIGURATION (FILTERQUICK™ FQE ELECTRIC 330 SHOWN)
NOTE: The appearance of your fryer may differ slightly from that
shown depending upon configuration and date of manufacture.

3–2
3.1 Equipment Setup and Shutdown Procedures
Setup
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line
with water or oil before energizing the elements. Failure to do so will result in irreparable
damage to the elements and may cause a fire.
DANGER
Remove all drops of water from the frypot before filling with oil. Failure to do so will cause
spattering of hot liquid when the oil is heated to cooking temperature.
WARNING
The FilterQuick™ is not intended to use solid shortening without a solid shortening kit
installed. Use only liquid shortening with this fryer if a solid shortening kit is not installed.
The use of solid shortening without a solid shortening kit will clog the oil lines. The oil
capacity of the FilterQuick™ fryer is 31 lbs. (3.7 gallons/14 liters) for a full-vat and 15.5 lbs.
(2.5 gallons/7 liters) for a dual-vat at 70°F (21°C).
WARNING
Always fill both sides of a split-pot vat when heating for any purpose, testing, cooking or
boiling out the vat.
1. Fill the frypot with cooking oil to the bottom OIL LEVEL line located on the rear of the frypot. This will
allow for oil expansion as heat is applied. Do not fill cold oil any higher than the bottom line; overflow
may occur as heat expands the oil. For bulk oil systems see Section 1.9.8 on page 1-16 in the
FilterQuick™ Controller Manual 8197206 for instructions to fill the vat from bulk.
2. Ensure that the power cord(s) is/are plugged and locked (if applicable) into the appropriate receptacle(s).
Verify that the face of the plug is flush with the outlet plate, with no portion of the prongs visible.
3. Ensure that the power is switched on. Some models are equipped with a master switch located behind the
fryer door cabinet on the front panel of the component box, next to the fuse.
4. Ensure that the controller is switched ON. When the controller is switched on, the fryer will begin
heating and will display MLT-CYCL alternating with the fryer temperature until the fryer reaches 180°F
(82°C). The fryer temperature is displayed until within 2°F of setpoint. Once the fryer reaches setpoint,
the controller display changes Ready and the fryer is ready for use. To exit the melt cycle, press the
EXIT COOL button. Answer YES to EXIT MELT?
5. Ensure that the oil level is at the top OIL LEVEL line when the oil is at its cooking temperature.
6. The maximum batch load for French Fries in oil or fat shall be no more than 1½ pounds or 0.7 kilograms.
Shutdown
1. Filter the oil and clean the fryers (See Chapters 5 and 6).
2. Turn the fryer off.
3. Place the frypot covers on the frypots.

3–3
3.2 Operation
This fryer is equipped with FilterQuick™controllers (illustrated below). Refer to the FilterQuick™Controller
Operation Manual 8197206 for programming and operating procedures.
FILTERQUICK CONTROLLER
Refer to Chapter 5 of this manual for operating instructions for the built-in filtration system.
3.3 Oil Attendant®Automatic Top-Off
When the Oil Attendant®top-off oil
system is in place on the fryer, oil is
continually topped off in the frypots from
a reservoir in the cabinet. The reservoir
holds a 35 pound box of oil. In a typical
operation this will last approximately two
days before changing.
Components of the system are annotated
at the right (see Figure 1).
NOTE: The top off system is intended
to top off the frypots, not fill them. The
frypots will require manual filling upon
startup and after disposal.
Special Cap: Has plumbing
attached to draw oil from the
reservoir to the fryer vats.
Jug In Box (JIB):
The JIB is the
reservoir for the oil.
JIB (Jug In Box) Low
Reset Switch: Resets
the ATO system after
oil change.
Figure 1
3.3.1 Install the Oil Reservoir
Remove the original lid from the oil container and foil liner. Replace with the provided cap, which has
connected suction hardware. Ensure the feeder tube from the cap reaches to the bottom of the oil
container.
Place the oil container inside the cabinet and slide it into place (as shown on the following page).
Avoid catching the suction hardware on the cabinet interior as the container is placed in the fryer.
The system is now ready for operation. As the fryer heats to preprogrammed temperatures, the system
will energize and then slowly add oil to the frypot as needed, until the oil reaches an optimal level.

3–4
3.3.2 Routine Oil Changes
When the oil reservoir level is low, the controller displays TOPOFF OIL EMPTY in the left
display and CONFIRM in the right display. Press (CONFIRM). Some procedures may differ from
photos shown. Follow manufacturer’s instructions for changing the JIB. If using solid shortening see
Appendix C in the rear of this manual for instructions.
1. Open the cabinet and slide the JIB from
the cabinet (see Figure 2).
Figure 2
2. Remove the cap and pour any remaining oil in the
container into all fry vats equally (see Figure 3).
Figure 3
3. With the jug upright remove the cap
and foil seal (see Figure 4).
Figure 4
4. Put the tube in the new full container (see Figure 5).
Figure 5
5. Slide the JIB onto the shelf inside the fryer cabinet (as
seen in Figure 2).
7. Press and hold the orange JIB reset switch five (5)
seconds to reset the top off system (see Figure 6).
Figure 6
3.3.3 Bulk Oil Systems
Instructions for installing and using bulk oil systems are found in Appendix A
located at the rear of this manual.
WARNING:
Do not add HOT or
USED oil to a JIB.

4-1
FILTERQUICK™ FQE30 SERIES ELECTRIC FRYERS
CHAPTER 4: FILTRATION INSTRUCTIONS
4.1 Introduction
The FilterQuick™with fingertip filtration system allows the oil in one frypot to be safely and
efficiently filtered while the other frypots in a battery remain in operation.
Section 4.2 covers preparation of the filter system for use. Operation of the system is covered in
Section 4.3.
WARNING
The on-site supervisor is responsible for ensuring that operators are made aware of
the inherent hazards of operating a hot oil filtering system, particularly the aspects
of oil filtration, draining and cleaning procedures.
WARNING
The filter pad or paper MUST be replaced daily or when the sediment level exceeds
the height of the hold down ring.
4.2 Preparing the FilterQuick™ with Fingertip Filtration System for Use with Filter
Paper or Filter Pad
The FilterQuick™with fingertip filtration system allows the oil in one frypot to be safely and
efficiently filtered while the other frypots in a battery remain in operation. The FilterQuick™
filtration system uses a filter paper configuration which includes a crumb tray, large hold-down ring,
and metal filter screen.
1. Pull the filter pan out from the cabinet and
remove the crumb tray, hold-down ring, filter
paper and filter screen (see Figure1). Clean
all components with a solution of detergent
and hot water then dry thoroughly.
The pan cover must not be removed except
for cleaning, interior access, or to allow a
shortening disposal unit (SDU) built before
January 2004 to be positioned under the
drain. Disposal instructions are in the
controller manual 8197206.
Figure 1

4-2
2. Inspect the filter pan connection fitting to ensure that
both O-rings are in good condition (see Figure 2).
3. Then in reverse order, place the metal filter screen in
the center of the bottom of the pan, then lay a sheet of
filter paper on top of the screen, overlapping on all
sides (see Figure1). If using a filter pad, ensure the
rough side of the pad is up and lay the pad over the
screen, making sure that the pad is in between the
embossed ridges of the filter pan.
4. Position the hold-down ring over the filter paper and
lower the ring into the pan, allowing the paper to rest
on the sides of the filter pan (see Figure 3).
5. When the hold-down ring is in position, if using filter
paper, sprinkle one packet of filter powder evenly
over the paper. (See Figure 4)
6. Replace the crumb tray in the filter pan, then push the
filter pan back into the fryer, positioning it under the
drain.
Figure 2
Figure 3
Figure 4
DO NOT USE FILTER POWDER WITH THE PAD!
7. Push the filter pan back into the fryer, positioning it under the fryer. Ensure “A” is displayed on
the MIB board. The filtration system is now ready for use.
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid
overflow and spillage of hot oil that may cause severe burns, slipping and falling.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a
fireproof container at the end of frying operations each day. Some food particles can
spontaneously combust if left soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is
present to seal the joint between the fry vessels. Banging fry baskets on the strip to
dislodge shortening will distort the strip, adversely affecting its fit. It is designed for
a tight fit and should only be removed for cleaning.
4.3 FilterQuick™with Fingertip Filtration
The FilterQuick™controller has a feature that will prompt the operator to begin the semi-automatic
filtration process, after a number of preset cook cycles.
Inspect the filter
connection fitting
O-rings.
