Weldclass Promax 600 Series User manual

Promax 600 Series
ELECTRONIC WELDING HELMETS
OPERATING MANUAL FOR

CONTENTS
1 / BEFORE YOU START – IMPORTANT INFORMATION
Section Details
1 BEFORE YOU START... IMPORTANT INFORMATION
2 SPECIFICATIONS
3 AUTO-DARKENING FILTER/LENS (ADF) CONTROLS & FEATURES
4 REPLACING ACCESSORIES & MAKING ADJUSTMENTS
5 SPARE PARTS LIST
6 MAINTENANCE
7 TROUBLESHOOTING
8 WARRANTY
Warning: Incorrect use of this product may cause serious injury.
a. All users of this helmet should read & understand this manual before using the
product
b. Use this helmet only for the intended application as described in this manual
c. Each time the helmet is used, it should be checked for correct operation: Use a ciga-
rette lighter or strong light source to check that the lens is activating correctly.
d. Stop welding immediately if the helmet lter/lens fails to darken when the arc
is struck. Do not continue use until the malfunction has been rectied. Read this
manual for further information and if in doubt, return the helmet to your Weldclass
distributor for further inspection.
e. This welding helmet does NOT provide unlimited protection. All appropriate PPE
and safety-wear must be worn, and safe work practices must be followed at all times,
in accordance with applicable industry OH&S regulations. Arc rays can burn eyes and
skin. Fumes and Gases can be hazardous. Noise can damage hearing. Flying particles
can cause impact injury or death.
f. Never use the helmet without the outer & inner cover lenses correctly installed.
Failure to do so will damage the Auto-darkening lter & void warranty.
Always keep clear cover lenses clean and replace them regularly. Dirty or scratched
cover lenses may cause the auto-darkening lter to malfunction.
© Weldclass 2022. E.&O.E.

2 / SPECIFICATIONS
Promax 600 Promax 650
Suitable Applications MIG, MMA (stick), TIG, Plasma Cutting, Oxy Cutting (Brazing,
Arc Gouging)
TIG Suitability 5 amps or more
Optical Class V2 (1/1/1/2) V1 (1/1/1/1)
Switching Speed Conforms to & exceeds the requirements of
AS/NZS1338.1 & ISO16321-2
Sensors 4
Power Supply 2 x CR2450 replaceable battery (assisted by Solar panels)
On / O Ready to weld at any time – no switching required
Low Battery Indicator Battery level indicator on Digital Screen
Inactive Shade Level (Grind/O) 3
Active Shade Level (Weld) 4-8 / 9-13
Sensitivity Adjustment Low - High (9 levels)
Delay Adjustment Min 0.04 sec – Max 2.0 sec with Gradiant function
Grinding Mode Yes, internal Yes, internal and external push
button
Operating Temperature -10oc to +60oc
Storage Temperature -25oc to +65oc
Weight 562 g 568 g
Viewing Area 108x74 mm 108x82 mm
Outer Cover Lens Dimensions 178x130mm
Inner Cover Lens Dimensions 114x90 mm
ADF/Cassette Dimensions 145x105x26mm
Magnication Lens Holder Internal – takes standard 108x51mm magnications lenses
Standards Compliance - Shell AS/NZS1337.1 High Impact
Standards Compliance – Auto
Darkening Filter/Lens AS 1338.1, ISO 16321-2, ANSI Z87.1, CSA Z94.3
© Weldclass 2022. E.&O.E.

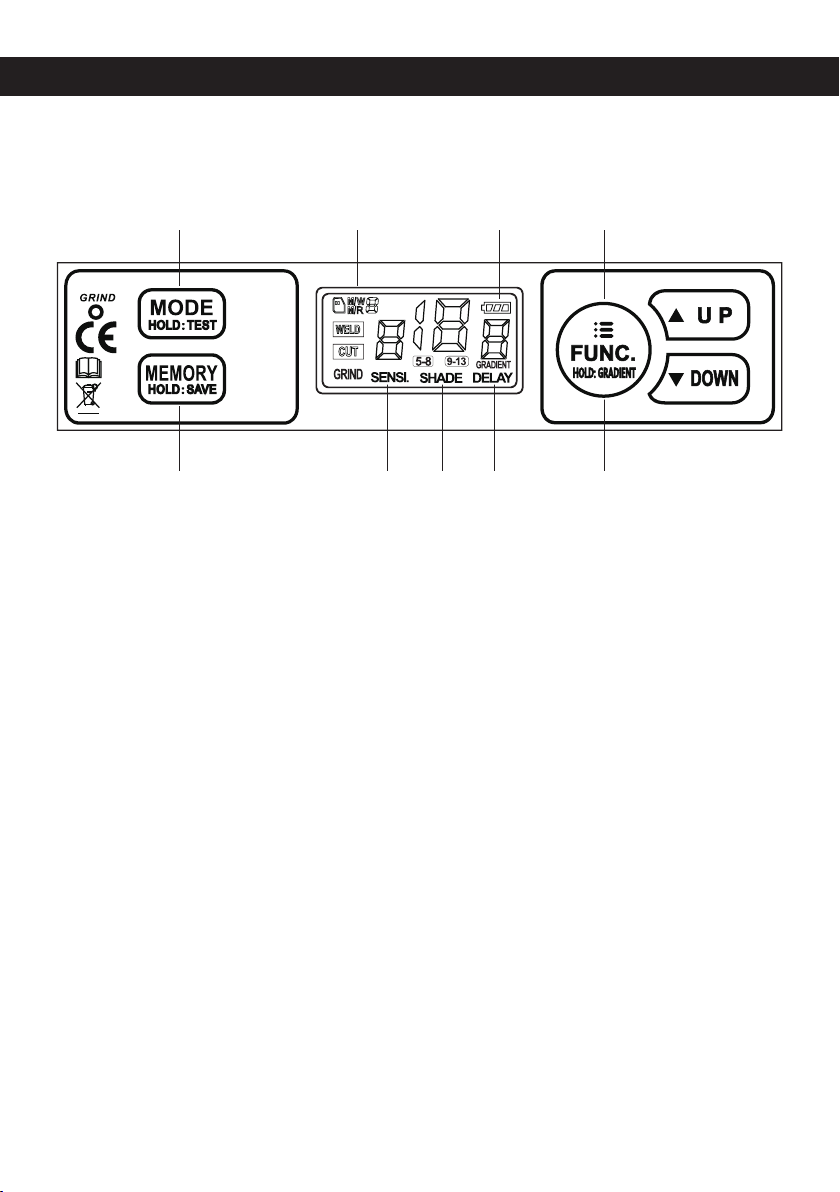

3 / AUTO-DARKENING FILTER/LENS (ADF) CONTROLS & FEATURES
Note: ADF = Auto-Darkening Filter/Lens
a. FUNCTION BUTTON (FUNC.)
This scroll through Sensitivity, Shade and Delay settings. Press the Up and Down
buttons to adjust the Function that is ashing. Once adjusted, wait for the setting to
stop ashing to store the new value.
b. SENSITIVITY CONTROL (SENSI)
This adjusts the sensitivity of the arc sensors to best suit the welding task &
surrounding environment. Low sensitivity helps prevent the ADF from reacting
to other nearby light sources. High sensitivity may be required if welding on low
current &/or when TIG welding. Low to mid sensitivity is recommended for most
welding applications.
c. MODE BUTTON
This changes between WELD 9-13, WELD 4-8, CUT, and GRIND modes.
Also, press and hold this button to test/check ADF is operating correctly.
Grind Mode locks the ADF to “o”(Shade 3). If helmet has eternal grind button,
holding this for 3 sec will also turn grind mode on or o.
Cut Mode locks the ADF to the set shade level.
d. BATTERY LEVEL INDICATOR
h.1
c
e
d
b
h.2
f g
a
© Weldclass 2022. E.&O.E.

3 / AUTO-DARKENING FILTER (ADF) CONTROLS & FEATURES – Cont’d
e. SHADE ADJUSTMENT (SHADE)
The following chart shows recommended shade levels for dierent welding
applications.
Welding Application Arc Current in Amps Protective Shade No.
Stick Electrode (MMA)
Less than 40
40-80
80-175
175-300
300-500
9
10
11
12
13
MIG
Less than 100
100-175
175-300
300-500
10
11
12
13
TIG
Less than 50
50-100
100-200
200-400
8-10
11
12
13
Air Carbon Arc Gouging Less than 500
500-700
12
13
Plasma Arc Cutting
Less than 80
80-150
150-350
8-9
10-11
12-13
Gas Welding & Cutting - 4-6
f. TIME DELAY ADJUSTMENTS (DELAY)
This adjusts the time the ADF switches from dark back to light when welding stops.
A short delay time is best for tack welding and short welds. A longer delay may be
required if welding heavier materials, where the welding pool emits bright light for a
brief period.
g. GRADIENT DELAY
Activate this by pressing the FUNC. Button for 2 seconds.
When this is active the shade will decrease from your preset shade setting to shade
3. This is best used for welding heavier materials so you can monitor the weld as it
cools.
h. MEMORY SAVE
.1 - You can save up to 10 of your favourite settings.
.2 – M/R = Memory Recall, this will display when you are trying to Recall a saved
Memory setting. M/W = Memory Write, this will display when you are Saving a
Memory Setting. The Number represents the Memory number slot you are saving to
or recalling. Use the Up and Down buttons to scroll through the memory Slots. Wait
for 5 seconds after selecting the desired memory slot to save or recall these settings.
© Weldclass 2022. E.&O.E.

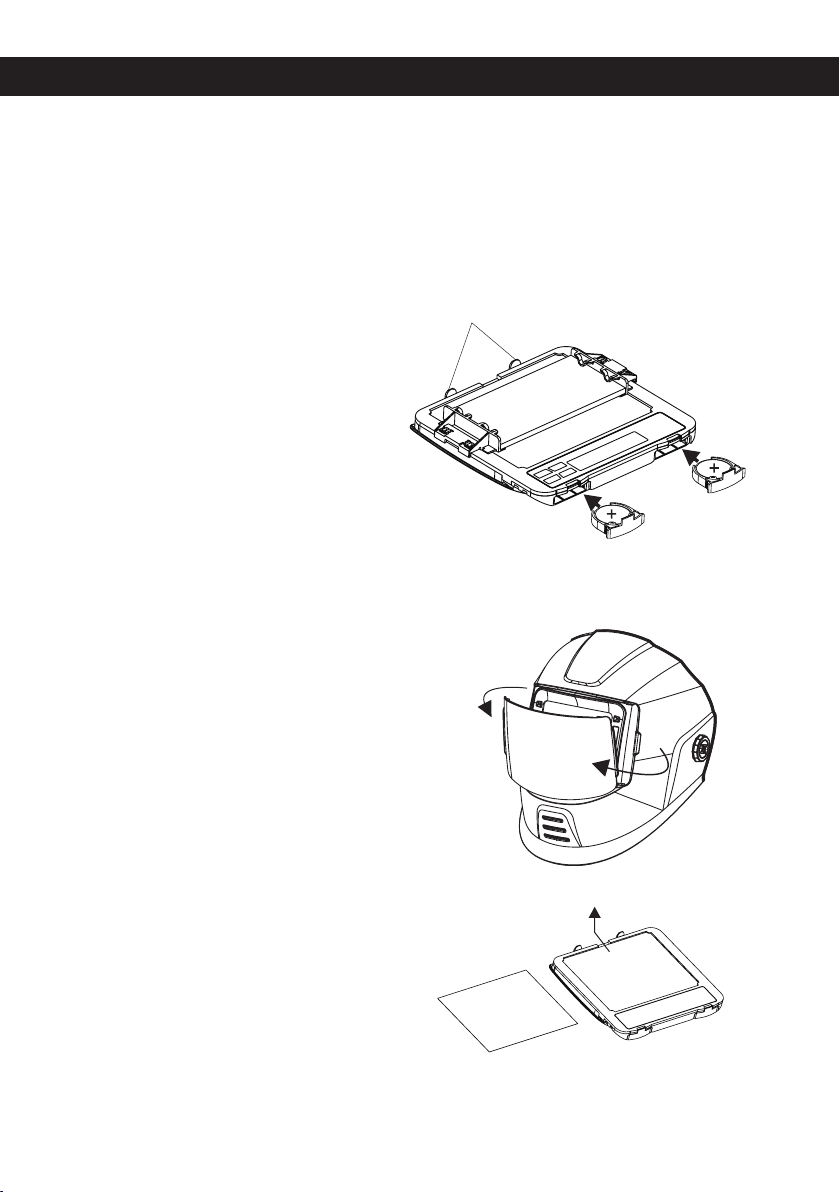

REPLACING BATTERIES
When the batteries have become discharged. You can view the battery level status on
the Digital Display (h).
Remove the Front cover lens before removing the ADF. For the Promax 650 also remove
the Grind Switch by unscrewing the button retainer ring and pushing the button into
the inside of the helmet.
Remove the ADF by pressing down
on the 2 tabs (i) at the top of the ADF
while simultaneously pressing the ADF
forwards out of the front of the helmet.
Remove the screws holding the battery
holders in place and remove the holders.
Reverse these steps to re-assemble
the helmet once new batteries are installed.
REPLACING COVER LENSES
Replacing Front Cover Lens: Firmly pull 1
side of the Cover lens forwards. Once 1 side
is released the other side will come free.
Replacing Inner Cover Lens: Using the
access point at the top of the ADF, pull the
lens backwards so the lens bends and the
corners release from their holders.
NOTE: If you have the mag lens holders
installed, you may need to remove the
whole cassette rst. (see instructions in a
Replacing Batteries)
IMPORTANT: Use only original Weldclass
cover lenses to ensure correct t and
conformance to safety standards.
4 / REPLACING ACCESSORIES & MAKING ADJUSTMENTS
i
© Weldclass 2022. E.&O.E.

4 / REPLACING ACCESSORIES & MAKING ADJUSTMENTS – Cont’d
HEADGEAR ADJUSTMENT
Tightening Knob (Y): Expands or contracts the
main headband. Turn the knob clockwise to
tighten, and anti-clockwise to loosen.
Top Strap (W): Adjust the strap buckle
according to personal preference & head size.
Tilt Angle (X): The locating pin on the right
side of the helmet can be moved to dierent
positions to adjust the tilt angle of the helmet
when it is resting in the lowered position.
Horizontal Position (Z): Adjusts the distance of
the helmet from the operator’s face. Loosen
the headgear retaining nut to change position
(front, centre or rear). The same position
should be selected on both sides.
INSTALLING A MAGNIFICATION LENS
Install the 2 Magnication Lens holder clips
(supplied as separate parts with helmet) to
the mounting positions on either side of
the viewing window. These will click rmly
into place.
Any standard 108x51mm magnication lens can
be tted by inserting it into the retaining tabs on
the inside of the lens retainer frame (j), in front of
the viewing window.
Note: To prevent fogging, place the at side of
the magnication lens towards the ADF (auto-
darkening lter/lens).
i
© Weldclass 2022. E.&O.E.

REF DESCRIPTION PART NO
1 Outer Clear Cover Lens Pkt 3 WC-05351
2 Auto-Darkening Filter Cassette (ADF) Promax 600 WC-05346
Auto-Darkening Filter Cassette (ADF) Promax 650 WC-05349
- Inner Clear Cover Lens Pkt 5 WC-05350
- Sweat Band Pkt 5 WC-01630
4 Headgear Assembly WC-05353
- Battery (CR2450) (Not pictured) WC-02640
3
Magnication Lens 1.5x P7-ML15
Magnication Lens 2.0x P7-ML20
Magnication Lens 2.5x P7-ML25
5 / SPARE PARTS
1
2
3
4
© Weldclass 2022. E.&O.E.

6 / MAINTENANCE
7 / TROUBLESHOOTING
The helmet and ADF must be checked regularly. Defective equipment should not
be used. Parts that are broken, missing, worn, distorted or contaminated, should be
replaced immediately.
a. Inspect lenses frequently. Immediately replace any scratched, cracked, or pitted
lenses as they may impair visibility and reduce protection.
b. Inspect Helmet Shell and Harness Assembly frequently. Replace any damaged or
worn components immediately.
c. Keep the Sensors and the Solar Panel clean at all times. When cleaning the Welding
Helmet or Filter Lens do not use solvents or abrasive cleaning agents. Clean with a
soft cloth after use.
FAULT POSSIBLE CAUSES POSSIBLE REMEDY
The Filter Lens does not
activate at all (fails to darken)
Batteries are discharged Replace Batteries
Batteries are not tted correctly Check batteries (see section 4)
Battery or terminals are dirty Inspect & clean battery/terminals
The Filter Lens ickers or
intermittently fails to darken
Front Cover Lens is dirty or
scratched & is obstructing the
sensors
Replace cover lens
Sensors are dirty Clean the Sensors with a soft cloth
Sensitivity too low Increase sensitivity level
Momentary disruption to sensing
of the arc
Increase delay time adjustment (will
help compensate for
momentary disruptions)
Filter lens is dark when no arc
is present or stays dark after
the weld is extinguished
The ambient light level is too bright Reduce the ambient light level in
the area
Sensitivity too high Reduce sensitivity level
7 / TROUBLESHOOTING
© Weldclass 2022. E.&O.E.

8 / WARRANTY
Warranty period;
See www.weldclass.com.au/warrantyinfo for warranty period information.
The WELDCLASS® Promax Series Welding Helmets are warranted against faulty components and
manufacturing defects in the auto-darkening lter (ADF) for the warranty periods indicated.
The warranty period begins on the date of purchase. It is the sole responsibility of the owner of the helmet to
retain proof of purchase (i.e. a copy of the invoice made out by the distributor or reseller to the owner of the
helmet clearly showing the purchase date). Proof of purchase must be provided in the event of any warranty
claim.
a. Warranty Includes and Covers:
1. The ADF
2. Manufacturing faults that do not allow the ADF to perform the functions for which it was
designed.
b. Warranty Excludes / Does Not Cover:
1. Helmet parts other than the ADF, including: shell and headgear
2. Warranty claims made without proof of purchase, or warranty claims made with proof of
purchase that is deemed by Weldclass Welding Products to be false, misleading, incomplete or
insucient.
3. Defects or damage resulting from: misuse, accidents, neglect, improper maintenance, alteration/
modication, use of the helmet contrary to the applications for which it was designed, or failure
to heed any of the instructions, warnings or guidelines issued with the helmet, spare parts or
accessories that are not genuine Weldclass.
4. Filters that have been used without cover lenses or have spatter damage or are scratched or
cracked.
5. Damage incurred in transport
6. Operator error, misunderstanding or use contrary to the intended purpose
7. Warranty claims made where the owner/operator of the helmet is not willing or not able to
provide any information required by Weldclass Welding Products to process the warranty claim.
8. The cost of freight involved in transporting parts in the event of a warranty claim.
This is a repair and/or replacement warranty only and does not allow for a refund. Weldclass reserves the right
to replace faulty units covered under warranty with alternative / equivalent units should the original unit
become obsolete or unavailable. No other warranty is expressed or implied. This warranty is exclusive and
in lieu of all others, including, but not limited to any warranty of merchantability or tness for any particular
purpose. Weldclass shall not under any circumstances be liable for special, indirect or consequential
damages. No employee, agent, representative, distributor or agent of Weldclass is authorised to change
this warranty in any way or grant any other warranty. Notwithstanding the foregoing, in no event shall
the warranty period extend more than the stated warranty period plus 6 months from the date Weldclass
delivered the product to the authorised distributor. Warranty is always dated from original date of purchase -
if warranty repairs are made or if warranty replacements are given this does not extend the warranty period.
© Weldclass 2022. E.&O.E.

© Weldclass 2022. E.&O.E.

www.weldclass.com.au
