Cornwell Tools MMWC1 User manual

MMWC1 Universal Welding Cart
OPERATOR’S MANUAL
Read carefully and understand RULES FOR SAFE OPERATION and instructions before
operating. Failure to follow the safety rules and other basic safety precautions may
result in serious personal injury.

Please read and save these instructions. Read through this owner’s manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.
1
Operating Instructions and Parts Manual
Universal Welding Cart

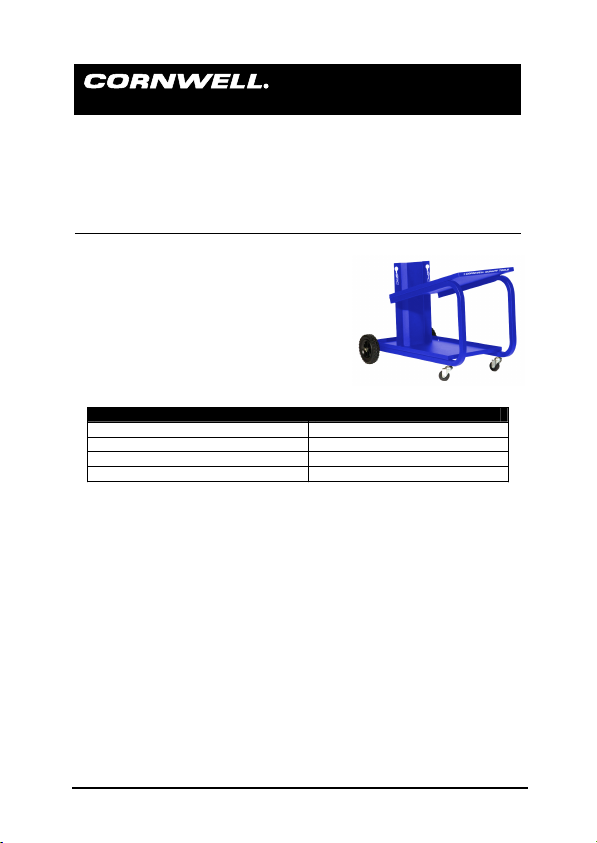

Description
The Universal Welding cart is designed to
hold all portable MIG welders, it can also be
used for stick welders and plasma cutters.
accessories, consumables and gas cylinder.
Rear wheels and casters make it easy to move
around. Slanted top shelf makes the weld
controls accessible. Holds up to 7 ½” diameter,
80 lb cylinder.
Specifications
Description Specifications
Product Dimension 31.9” X 16.5” X 19.7”
Packing dimension 30.9” X 16.5” X 3.5”
Weight 25 Lbs
Loading capacity 110 Lbs
Removing from carton
1.1 .Remove cart pieces from carton, bags or Styrofoam.
1.2. Check the contents with parts list on page 3.
Assembly.
See parts list for descriptions, pages 3.
1) Assemble bottom shelf to frame using four self tapping screws.
2) Insert gas cylinder support into bottom shelf
3) Assemble top shelf to frame with four self tapping screws
4) Assemble top shelf to gas cylinder support with two bolts, lock washer and
nuts.
5) Put axle through holes in frame and assemble wheels, washers and cotter
pins.
6) Assemble front casters using flat washers, lock washers and hex nut
7) Insert chain into slots in the gas cylinder support. When cylinder is
installed tighten chain snug around the cylinder.
Operation
1. This cart is designed to be used on a flat surface.

2
Operating Instructions and Parts Manual
Universal Welding Cart

3
Operating Instructions and Parts Manual
Repair Parts List
Reference
number Description Part number Qty
1 Rear rubber wheel* 2.05.07.107 2
2 Axle 2.01.29.041 1
3 Flat washer 2.06.17.007 4
4 Cotter pin 2.06.21.001 2
5 Pan head bolt 2.06.08.039 2
6 Gas bottle retaining chain 2.01.29.006 1
7 Gas cylinder support 1.1.01.05.0100 1
8 Lock washer 2.06.18.004 2
9 Hex nut 2.06.14.004 2
10 Pan head self tapping
screw 2.06.03.006 8
11 Top shelf 1.1.01.01.0129 1
12 Frame 2.01.29.907 2
13 Hex nut 2.06.14.005 2
14 Spring washer 2.06.18.005 2
15 Plain washer 2.06.17.005 2
16 Bottom shelf 1.1.01.04.0120 1
17 Front caster 2.05.07.106 2
Universal Welding Cart
