Welkin WKES001 User manual

1
WELKIN
ELECTRIC BICYCLE
User manual
WKES001
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY,
PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE
REFERENCE. • Products covered by this manual may vary in appearance, assembly,
inclusions, specifications, description and packaging.

2
CONTENTS
Safety............................................................................................................................3
Parts Assembly..............................................................................................................5
Front Wheel..................................................................................................................5
Handlebars....................................................................................................................5
Seat...............................................................................................................................6
Front Light.....................................................................................................................6
Pedals............................................................................................................................7
Operation......................................................................................................................7
Bicycle Parts Instruction...............................................................................................................8
Operation and Use.........................................................................................................9
Meter operation..............................................................................................................9
Using Gears.................................................................................................................10
Guidelines for Using Gears...........................................................................................11
Using Brakes................................................................................................................11
Guidelines for Using Brakes.........................................................................................11
Batteries and Battery Charging....................................................................................12
To Charge the battery..................................................................................................12
Removing the Battery Pack..........................................................................................13
Maintenance...............................................................................................................13
Battery Storage............................................................................................................15
Battery Fuse................................................................................................................15
Brakes.........................................................................................................................15
Tyre Pressures.............................................................................................................17
Chain Care...................................................................................................................17
Torque Settings...........................................................................................................17
Frequently Asked Questions.........................................................................................17
Troubleshooting..........................................................................................................18
Specification...............................................................................................................................21
Record Your bike Info..................................................................................................21

3
Safety
•Safety messages are designed to alert you to possible dangers or hazards that could
cause death, injury or equipment or property damage if not understood or followed.
You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions
•It is vital that you read and understand this user manual before using the product,
including safety warnings, and any assembly and operating instructions.
Keep the manual for future reference. Safety precautions and recommendations
detailed here must be fully understood and followed to reduce the risk of injury, fire,
explosion, electrical hazard,and/or property damage.
Safety information presented here is generic in nature–some advice may not be
applicable to every product.
The term"equipment"refers to the product, be it electrical mains powered, battery
powered or combustion engine powered.
•Before Use If you are not familiar with the safe operation/ handling of the equipment
or are in any way unsure of any aspect of suitability or correct use for your application,
you should complete training conducted by a person or organization qualified in safe
use and operation of this equipment, including fuel/ electrical handling and safety.
•Do NOT operate the equipment in flammable or explosive environments, such as in
the presence of flammable liquids, gases or dust.
The equipment may create sparks or heat that may ignite flammable substances.
•Keep clear of moving parts.
•Equipment may be a potential source of electric shock or injury if misused.
•Do NOT operate the equipment if it is damaged,malfunctioning or is in an excessively
worn state.
•Do NOT allow others to use the equipment unless they have read this manual and are
adequately trained.
•Keep packaging away from children-risk of suffocation! Operators must use the
equipment correctly. When using the equipment, consider conditions and pay due care
to persons and property.
General Personal Safety
•Wear appropriate protective equipment when operating, servicing, or when in the
operating are a of the equipment to help protect from eye and ear injury, poisoning,
burns, cutting and crush injuries. Protective equipment such as safety goggles,
respirators, non-slip safety footwear, hardhat, hearing protection etc should be used
for appropriate equipment/conditions. Other people nearby should also wear
appropriate personal protective equipment. Do not wear loose clothing or jewellery,
which can be caught in moving parts. Keep hair and clothing away from the

4
equipment.
•Stay alert and use common sense when operating the equipment. Do not over-reach.
Always maintain secure footing and balance.
•Do not use the equipment if tired or under the influence of drugs, alcohol or
medication.
•This equipment is not intended for use by persons with reduced physical, sensory or
mental capabilities.
General Equipment Use and Care
•The equipment is designed for domestic use only.
•Handle the equipment safely and carefully.
•Before use, inspect the equipment form is alignment or binding of moving parts, loose
components, damage or any other condition that may affect its operation. If damaged,
have the equipment repaired by an authorized service centre or technician before use.
•Prevent unintentional starting of the equipment-ensure equipment and power
switches are in the OFF position before connecting or moving equipment. Do not carry
equipment with hands or fingers touching any controls. Remove any tools or other
items that are not apart of the equipment from it before starting or switching on.
•Do not force the equipment. Use the correct equipment for your application.
Equipment will perform better and be safer when used with in its design and usage
parameters.
•Use the equipment and accessories etc. In accordance with these instructions,
considering working conditions and the work to be performed. Using the equipment for
operations different from those intended could result in hazardous situations.
•Always keep equipment components(engines, hoses, handles, controls, frames,
housings, guards etc) and accessories(cutting tools, nozzles, bits etc) properly
maintained. Keep the equipment clean and, where applicable, properly lubricated.
•Store the equipment out of reach of children or untrained persons. To avoid burns or
fire hazards, let the equipment cool completely before transporting or storing. Never
place or store the equipment near flammable materials, combustible gases or liquids
etc.
•The equipment is not weather-proof, and should not be stored in direct sunlight, at
high ambient temperatures or locations that are damp or humid.
•Do not clean equipment with solvents, flammable liquids or harsh abrasives.
•For specific equipment safety use and care, see Equipment Safety.

5
Parts Assembly
Carefully place the bicycle on a flat ground so that it rests on the front fork and rear wheel.
Front Wheel

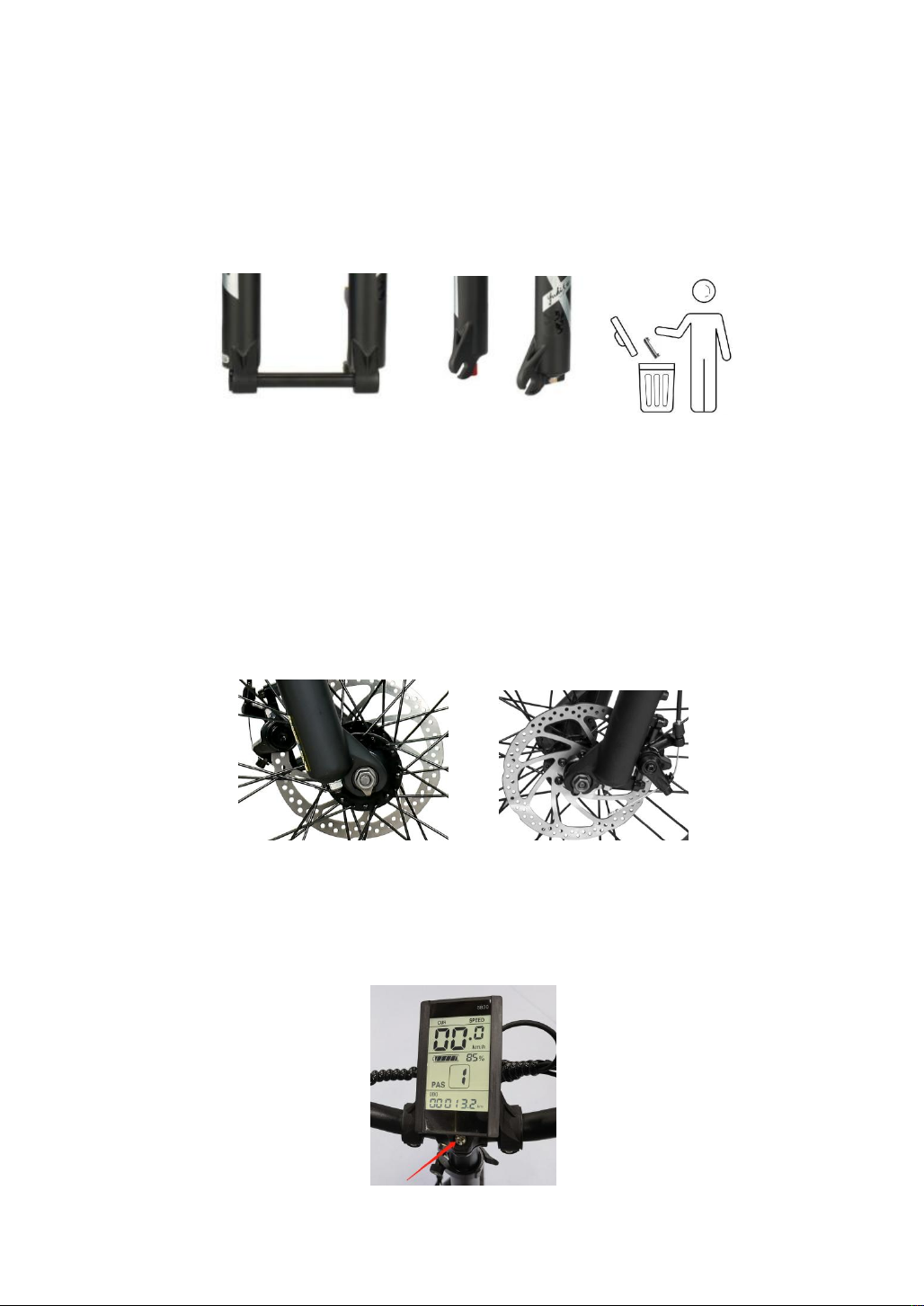

1. Remove the front fork protector from the front fork. (Please note: front fork protector is
used to prevent the fork from being deformed during transport. It belongs to the packing
material. You can throw away it!)
2.Take out the front wheel fixed axles, according to the picture installed in a good direction:
thick washer is on the right side of the thin washer is on the left (disc brake) direction; First
remove the left direction of the nut washer gasket, etc., put the shaft through the front wheel
hole, and then put the left direction of the nut washer gasket, etc., back on the shaft.
3. When the front wheel is mounted on the fork, lock the nuts of the front axle with spanner
to tighten it for both side.
Handlebars
1. Place the handlebars on the mounting place of the stem, and then tighten the 2 screws on
the stem to the most comfortable position on the front.

6
Seat
When setting seat height, it’s important to ensure that the resulting ride position is not only
comfortable, but also safe. You should be able to remain stable and properly handle the
bicycle when at and comfortably and safely operate the handlebars and all controls. A good
reference height for the seat is at hip height. Do NOT have the seat raised enough so you can
see the maximum height marker on the seat post.
• Ensure that when the seat is clamped, you cannot rock it back and forth or rotate it.
1. Insert the seat post/seat assembly into the bicycle frame and adjust it to a comfortable
position-do NOT have the seat raised enough so you can see the maximum height marker on
the seat post.
2. Rotate the clamp lever from the unlock position to the lock position.It the seat post is not
clamped firmly,increase pressure by unlocking the clamp,then rotating the adjustment knob
right(clockwise) a¼ turn, then re-test and adjust as necessary.
The seat angle can also be adjusted, again for best comfort. To adjust angle, using a 13mm
spanner, loosen (rotate left) the seat clamp nuts (CC) on either side of the seat until the front
of the seat can be moved up/down. Set the angle as required, then tighten the 5 nuts securely.
Note that small changes in seat position can have a substantial effect on comfort. It is
recommended to make seat adjustments in small increments and test the position, then re-
adjust as necessary.
Front light
1.Use the #"5" spanner to loosen the screw on the front fork, then screw through the
headlight rack hole to ck the screw.

7
Pedals
It is critical that you follow the pedal to crank arm attachment procedure carefully to ensure
correct assembly. During assembly, do NOT use excessive force to screw the pedals into the
crank arms – this may indicate misalignment of the pedals or unmatched threads. If the pedal
does not "feel right" when being screwed in, STOP immediately and check that it is the correct
pedal and that it is aligned properly with the crank arm. Failure to follow the instructions
here or take due care may damage the equipment and void any product warranty.
1.Starting with the right-hand crank arm,identify the right-hand pedal assembly,which is
identified by having the pedal bolt stamped "R".
2.Very carefully begin screwing the pedal bolt into the crank arm (rotate right / clockwise). If
the bolt does not "feel right" when being screwed in, STOP immediately and check that it is
the correct bolt and that it is aligned properly with the crank arm. Screw the pedal bolt in
fully,then tighten to the specified torque using a 15mm spanner and torque wrench.
3.Repeat the above procedure for the left-hand crank arm,noting that the pedal bolt and
crank arm thread is left-hand(rotate left/anti-clockwise to tighten)and that the pedal bolt is
stamped “L”.
Operation
Before riding, ensure that all required fasteners are tightened to the correct torque.
• Charge the battery prior to use.
• Ensure that the pedal assistance system is switched OFF when the bicycle is not in use.
• Always wear a helmet and appropriate safety equipment and always keep both hands on
the handlebars and both feet on the pedals whilst riding. Read, understand and follow all
safety recommendations before riding.
• Avoid riding in damp conditions, rain etc. as this may affect operation or possibly damage
the bicycle electronics.

8
Bicycle Parts Instruction
1
Frame
11
Pedal
21
Front hub
2
Front fork
12
Chain
22
Spoke
3
Handlebar
13
Rear derailleur
23
Rim
4
Stem
14
Freewheel
24
Tyre
5
Brake lever
15
Seat
25
Kickstand
6
Brake caliper
16
Seat post
26
Motor
7
Brake disc
17
Seat clamp
27
Display
8
Grip
18
Suspension
28
Sensor
9
Thumb shifter
19
Controller box
29
Front light
10
Chain-wheel
20
Battery box
30
Wheel reflector

9
Operation and use
It is recommended to use pedal assistance when necessary, and not rely on it solely. When
using pedal assistance, also pedal for best efficiency.
• The bicycle must be moving, or have enough pressure placed on the pedals (in a forward
direction) to activate pedal assistance.
• If you apply the brakes when pedal assistance is active,the drive provided by the motor
reduces in proportion to how much braking pressure you apply.
• Once the bicycle reaches a sufficiently slow speed or stops completely,pedal assistance
automatically deactivates.
• The bicycle pedal assistance system comprises an electric motor built into the rear wheel
hub, a battery pack with key security and charging port (on the other side of the battery pack),
pedal assist, throttle,and display.
Meter operation
Meter instruction
Display operation
Operating instructions

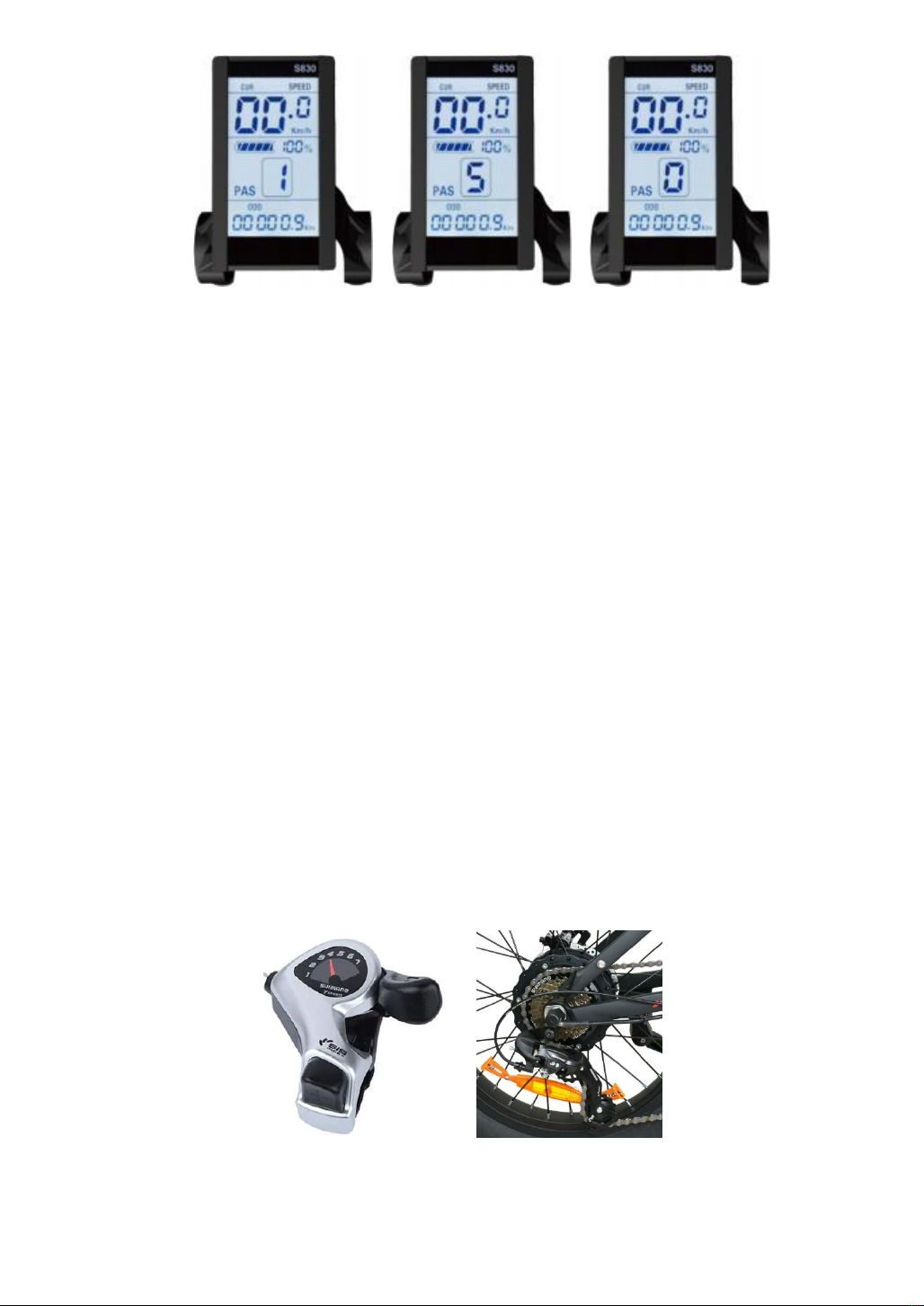

1. Pedal Assist Mode 1 To switch on/off the E-Bike system, hold the M button for 3s. The
default value is “1“step pedal assist level.
2. Pedal Assist Mode 2 Mode-Middle Press “+”to crease into pedal assist level “2-5“.From low
to high speed.
3. Electric function Press the "-" key to display step "0" Then low power
mode directly convert to pure electric mode

10
Using Gears
Some model bicycles are equipped with gears. Gears are used to change the ratio between
rotations of the rear wheel and the crank set. This enables you to pedal less and travel faster
on flat or downhill sections, or pedal faster and travel slower to climb hills. Gearing is
independent to pedal assistance, so pedal assistance operates the same regardless of selected
gear. Remember, however, that pedal assistance is "governed" by overall speed.
The select-able gears are located on the rear wheel, known as a "gear cluster" or "cassette".
The larger the gear, the smaller number of rotations per rotation of the crank. The largest
gear is the "lowest" and is referred to as "1". As each gear becomes smaller, it is a "higher"
gear then the previous and is numbered sequentially. The number of gears may vary between
different models. Beneath the gear cluster is the derailleur mechanism, which moves the
chain, so it runs on different gears. The derailleur is operated by the rider using controls
mounted on the handlebars.
The gear change is "indexed" so each gear selection positively engages – this is factory set and
should require no adjustment. There may be slight variations between bicycle models in
method to change gear "up" (from a lower gear to a higher gear), or to change gear "down"
(from a higher gear to a lower gear). The image shows a "7-speed" type that uses a button for
changing up gears (push button to activate derailleur), and a lever for changing down gears
(rotate lever forward to activate derailleur).

11
Guidelines for Using Gears
To get the best performance and service life from the gear change system, understand and
apply the following techniques:
• You MUST be pedaling during gear changes.
• Do not attempt to change multiple gears in a single action.Allow each gear change to
complete fully before the next change.
• Always use an appropriate gear for your speed, the terrain and incline. This helps you ride
most efficiently.
• Keep the chain and gears properly lubricated and clean.
• If you notice noise after changing gear or an ability to select a gear or the chain not running
smoothly,have the gear system inspected and adjusted by a b1ic2ycle mechanic or suitably
qualified person.
Using Brakes
All bicycle models are equipped with a front and rear wheel braking system. Brakes are used
to slow the bicycle down. The braking systems may use different mechanics; however,the
functionality is the same, and that is to change the energy of the moving bicycle into heat
energy (“friction”): For disc brakes, this means pads made from a special friction material
pinching against a disc mounted to the centre of the bicycle wheel.
The brakes are operated by the rider through levers mounted to the handlebars,The left-hand
lever operates the rear brake,the right-hand lever operates the front brake. The ability of the
rider to adequately slow and/or stop the bicycle depends largely on the skill of the rider, the
surface being ridden on and other factors such as rain, tyres, adjustment and condition of the
brake parts etc.
Guidelines for Using Brakes
To get the best performance and service life from the brake system, understand and apply the
following techniques:
• In wet conditions, which reduces friction, always provide additional distance for braking and
adjust how quickly you apply the brakes.
• When applying the brakes, particularly the front brake, use a lower pressure to start with
until you feel the brakes starting to “bite”, then increase pressure as required.Do NOT over-

12
apply the brakes and cause the wheel to stop rotating - this may result in loss of control.
• Maintain the brake friction components (pads, shoes, rubbers) in good condition and
replace when they reach the wear limit.
• Maintain brake adjustment so that the brakes perform effectively, the levers are
comfortably
positioned, and there is not excessive play in adjustable components.
• If the brakes are not performing effectively, making abnormal noise or any part is not
serviceable or cannot be adjusted correctly, have the brakes inspected and adjusted by a
bicycle mechanic or suitably qualified person.
*If the brake cables become frayed or otherwise damaged, have them replaced by a bicycle
mechanic or suitable qualified person.
Batteries and Battery Charging
Never modify the electrical system. Alterations may cause a fire, resulting in serious injury
and could also damage the electrical system.
• Charge with the supplied charger only. Use of the wrong charger may cause a fifire or
explosion, resulting in serious injury.
• Ensure the voltage and frequency of the charger is compatible with mains electrical supply.
• Use the battery charger in dry locations only.
• The battery must be charged before first use.
• For maximum battery performance and service life, charge the battery after each use, and
charge at temperatures between 0 and 40°C (32 and 104°F).
• Battery charging generally takes 4 to 6 hours from discharged to fully charged. Do NOT
charge the battery continuously for more than 24 hours.
• If the bicycle has not been used for over 4 weeks, charge the battery before use.
• Always switch the bicycle OFF after each use.
The battery pack can be recharged repeatedly. However, rechargeable batteries eventually
need to be replaced. A significantly reduced operating period after charging indicates that the
battery is no longer serviceable and should be replaced. Discard old batteries in an
environmentally responsible manner.
The battery charger has a charge status LED indicator:
• Red - Battery charging.
• Green - Battery fully charged.
To charge the battery
1. Plug the charger connector into the charging port.
2. Connect the charger to a mains electrical supply and switch ON. The indicator LED on the
charger illuminates red to show the battery is charging.

13
3. When the battery is charged (approximately 6 hours), the charger indicator LED illuminates
green. Disconnect the charger from the electrical supply, then disconnect it from the bicycle.
Lower the battery pack handle to protect the bicycle charging port.
Removing the Battery Pack
1. To remove the battery, slide the safety forward and then pull the silver lever outward,
moving it from the locked position to the open position, and gently rotate the front part of
the bicycle around until fully folded.
2. Insert the key into the keyhole in the ON position. Apply pressure to push the key towards
the battery pack so that the keyhole is depressed. While it’s depressed, turn the key anti-
clockwise towards the OFF position, take off the key from the battery pack.
3. The battery pack is now unlocked, and can be released from the bicycle.
Maintenance
Some maintenance activities described may be beyond the scope of some users. Do NOT
attempt procedures that you are not comfortable with, or do not have the necessary tools,
experience or knowledge for - take the unit to an authorized service centre or qualified
technician for servicing. Items in the maintenance schedule below that are recommended to
be performed by a qualified technician are highlighted yellow.
• Failure to follow the maintenance recommendations, using incorrect or non compatible
accessories or replacement parts, or general negligence may result in making the product
warranty void. Improper adjustment or service may result in damage to the bicycle or make it
hazardous.
• Maintenance requirements may be affected by any number of factors from your riding style
to geographic location.

14
• When new, parts of the bicycle may "break-in" over the course of the first approximate
100km of riding, possibly including the stretching of cables, spoke tension changes etc. It is
recommended to have the bicycle inspected and serviced at an authorized service centre or
by a qualified technician.
• The bicycle components are subject to wear and stress. If a component is weakened
through stress, age etc, it may fail without warning. It is important to regularly inspect the
bicycle for any signs of component fatigue - look for cracks, fraying, discoloration etc, as this
may indicate that a part is near the end of its useful life and should be replaced.
• Clean the bicycle with a soft, damp cloth - do NOT use high pressure water cleaners or
hoses, pressurized air, solvents, abrasives etc. For the console, battery and motor, do NOT use
any liquids.
• When transporting in a vehicle, it is recommended to have the battery out of the bicycle
during transport.
• Store the bicycle where it will be protected from rain, sun etc to help prevent corrosion,
fading etc.
For safety, longest possible service life and reliability, maintain the bicycle properly. Use the
components before each ride. The proper condition and function of these Systems is critical
to your maintenance schedule below for guidance. It is very important that you check certain
systems and safety.
Maintenance Schedule
Component / Condition
Check Before
Every Ride
Check
Periodically
Clean /
Lubricate
Adjust / Tighten /
Replace as Required
Tyre Pressure
*
*
*
Tyre Wear / Damage
*
*
Brake Adjustment
*
*
Handlebar Tightness
*
*
*
Controls and Display
*
Seat Post Tightness
*
*
Fasteners / Mounting
Hardware
*
Brake Pads / Shoes
*
*
Brake Cable Wear
*
*
Chain
*
*
*
Reflectors
*
Battery / Charger
*
*
Steering Head Bearings
*
*
*
Derailleur
*
*
*
Wheel Spoke Tension
*
*
Wheel Trueness
*
*
Wheel Bearings
*
*
*
Bottom Bracket (Crank)
Bearings
*
*
*

15
* Every 5 to 10 rides depending on ride length and conditions.
Battery Storage
When storing the batteries for a long period of time:
• Charge the batteries at least every 30 days to avoid capacity loss. Batteries slowly self-
discharge when unused over a long period. If the battery cells are left at a critically low charge
state, the lifespan and capacity will be permanently reduced.
• Always disconnect the charger from the mains electrical supply and battery before storing
the battery.
• Avoid storing batteries in extreme temperatures, whether hot or cold. The recommended
battery storage temperature is between 0 and 25 ° C (32 to 77 ° F). Avoid exposing batteries
to
temperatures at or above 40°C (104°F) for extended periods.
• Batteries are best kept in a cool, dry place. Do not allow batteries to accumulate
condensation, as this may cause shorting or corrosion.
Battery Fuse
Use fuses of the same type only - the rating (in Amperes) is printed on the end of the fuse. . If
the fuse"blows" regularly, have the bicycle inspected at an authorized service centre.
The bicycle battery/ electrical system may feature fuse protection to prevent damage in the
event of a short circuit, overload or over current situation. For example, if the electrical
system is exposed to excessive moisture. On some model bicycles, the fuse is accessible and
can be easily replaced. If the fuse is "blown", the bicycle electronics will not be available until
the fuse is replaced.
To replace the fuse:
1. Using a suitable screwdriver, remove (rotate left) the fuse holder on the battery pack until
fully unscrewed, then pull the fuse holder and fuse from the bicycle.
2. Discard the blown fuse. Insert the replacement fuse into the fuse holder.
3. Insert the fuse and fuse holder to the bicycle, and re install (rotate right) the fuse holder
until fully.
Brakes
If your brakes are scrubbing on the disc or are not making full contact, please take the
following steps.
1. Loosen the 2 bolts holding the caliper a couple of turns.
2. Press and hold the rear brake handle so it’s making contact with the disc.
3. Re tighten the 2 bolts a little at a time to ensure the brakes are not applied unevenly.
4. Release the brake and spin the back wheel, the wheel should spin freely and stop when you
press the rear brake.(If the brake pads are not making equal contact on the disc, loosen the 2

16
bolts holding the caliper and realign it visually while looking at it straight on from the rear of
the bike.)
Pad Replacement
* Use manufacturer supplied replacement pads only.
The life expectancy of the brakes will vary depending on the amount of use etc.
You will need to change the brake pads before the metal part of the brake pad starts to make
contact with the
disc. Failure to do so will damage the disc and may void any warranty claim in relation to the
disc.
1. Remove the 2 screws holding the caliper.
2. Please insert a 5mm Allen key into the black pad holder that is holding the worn pads. This
will free the pads
so you can remove and replace them by hand.
3. Remove the worn pads.
4. Replace the new pads into the black pad holder.
5. Lock the new pads in to the black pad holder and tighten with the 5mm Allen key.
*Please note that the black brake pad holder with magnet. This enables the distances to be
kept between the pad and the inside. Please view the diagrams which will assist you with this
process.

17
Tyre Pressures
The tyres must always be inflated to the correct pressure (as specified on the tyre sidewall)
before every ride. Riding the bicycle with either too low or too high pressures will affect
bicycle performance, may affect effective electrical assistance range, and may render the
bicycle as dangerous. Use an accurate pressure gauge when checking pressures.
Chain Care
The chain periodically requires lubrication, depending on
frequency of use and conditions etc. If the chain is noisy
or running roughly, lubricate it by applying a small
amount of bicycle chain lubricant to it. Do not allow the
lubricant to get on to the tyres.
Torque Settings
It is important to regularly check all fasteners for adequate tightness. The following are
considered highly important and should be adjusted to the specified torque values using a
suitable bicycle torque wrench, sockets and adapters. Depending on bicycle model and design,
some fasteners listed below may not be applicable:
• Front Axle Nut – 35Nm
• Rear Axle Nut – 35Nm
• Handlebar Clamp Bolt – 10Nm
• Handlebar Neck Lock Bolt - 15Nm
• Handlebar Stem Bolt – 24Nm
• Pedal Bolts – 35Nm
• Brake Calliper Mounting Bolt – 7Nm
• Brake Cable Anchor Bolt – 7Nm
Frequently Asked Questions
Q:Is it normal for batteries to get warm when charging?
A: Yes, it is normal that the batteries will become warm during the charging process.
Q:How long will my batteries last before needing replacement?
A: Average battery life depends on use and conditions. Even with proper care, rechargeable
batteries do not last forever. Generally, lithium-ion batteries will last more than 800 charge
discharge cycles. A partial charge/discharge counts fractionally against those
numbers ;discharging the battery to 50% then recharging it completely uses up one half of a
charge cycle.
"End of useful life" refers to the point at which a battery can no longer supply 60% or more of
its original rated ampere-hour (Ah) capacity. A this point, degradation of the battery being
able to be fully charged accelerates and the battery will need to be replaced.

18
Q: What happens if the battery discharges while riding?
A: Pedal assistance will stop when battery charge reaches a minimum level (check level on the
console,if applicable). Lights (if applicable) may still function for a period. Your bike can be
ridden without pedal assistance.
Troubleshooting
Malfunction
Possible Cause
Possible Solution
Pedal assistance not
working
1. Under-charged battery.
2. Battery no longer
serviceable.
3. Battery charger faulty.
4. Motor electrics or switches
damaged/faulty.
1. Charge the battery. Follow
the battery care procedures
2. Have the battery checked,
Replace if faulty.
3. Have charger checked.
Replace if faulty.
4. Seek diagnosis and repair
from authorized service
centre.
Reduced range
and/or speed
1. Under-charged battery.
2. Battery no longer
serviceable.
3. Low tyre pressure.
4. Brakes dragging.
5. Terrain, headwind, etc.
1. Charge the battery, Follow
the battery care procedures.
2. Have the battery checked,
Replace if faulty.
3. Inflate to recommended
pressure.
4. Adjust.
5. Normal
Gear change (where
applicable) rough /
not changing
1. Derailleur cables sticking /
stretched / damaged.
2. Derailleurs / shifter not
correctly set.
1. Lubricate / adjust / replace
cables.
2. Adjust.
Chain slip / Jumping off
sprockets
1. Worn sprockets.
2. Stretched chain.
3. Front sprocket loose / out
of true.
4. Sprocket teeth bent /
broken.
5. Derailleur / shifter not
correctly adjusted.
1. Replace.
2. Replace.
3. Re-true / tighten.
4. Replace.
5. Adjust.
Clicking noises
when pedaling
1. Stiff chain link.
2. Loose pedals / bearings.
3. Loose bottom bracket /
bearings.
4. Bent bottom bracket or
pedal bolt.
1. Lubricate chain.
2. Tighten / adjust bearings.
3. Tighten / adjust bearings.
4. Replace.
5. Tighten.

19
5. Loose pedal arm bolts.
Grinding noise
when pedaling
1. Pedal bearings too tight.
2. Bottom bracket bearings
too tight.
3. Rear wheel not straight.
4. Chain too tight.
5. Derailleur dirty.
1. Adjust.
2. Adjust.
3. Align so chain is straight.
4. Adjust.
5. Clean and lubricate.
Brakes not
effective
1. Pads worn.
2. Pads / discs dirty.
3. Brake cables binding /
stretched /
damaged.
4. Brakes levers binding.
5. Brakes require adjustment.
1. Replace.
2. Clean and degrease.
3. Lubricate / adjust / replace
cables.
4. Clean pivots.
5. Adjust.
Brakes squeal
1. Pads / discs dirty.
2. Brakes not centred.
3. Calliper fasteners loose.
1. Clean and degrease.
2. Centre brakes and adjust.
3. Tighten.
Brakes chatter / vibrate
1. Brake mounting bolts
loose.
2. Brakes out of adjustment.
3. Steering head bearings
loose.
1. Tighten.
2. Centre brakes and adjust.
3. Adjust bearings.
Wheel vibration / wobble
1. Axle bent or broken.
2. Wheel out of true.
3. Wheel hub bearings loose /
not
serviceable.
4. Quick-release (if equipped)
mechanism loose.
1. Replace.
2. True wheel.
3. Adjust / replace.
4. Adjust.
Steering not accurate
1. Wheels not aligned to
frame.
2. Steering head loose /
binding.
3. Front forks or frame bent.
1. Align wheels.
2. Adjust.
3. Straighten.
Motor "clicks" / has reduced
power and/or shuts off
1. Under-charged battery.
2. Motor internal fault.
1. Charge battery. Follow
battery care procedures.
2. Replace.
No power when pedal
assistance switched ON
1. Blown fuse.
2. Loose connectors / wiring
damage.
3. Faulty switch.
4. Faulty controller.
1. Replace.
2. Check connectors / wiring.
Replace
as required.
3. Replace.
4. Replace.

20
Pedal assistance OK, but no
display
1. Loose connectors / wiring
damage.
2. Faulty controller.
1. Check connectors / wiring.
Replace
as required.
2. Replace.
Display OK, but no pedal
assistance
1. Loose motor connectors /
wiring damage.
2. Poor contact at battery
terminals.
3. Faulty braking sensor.
1. Check connectors / wiring.
Replace as
required.
2. Inspect and clean
terminals.
3. Replace.
Bicycle runs at full
speed without
pedaling
1. Faulty crank sensor.
2. Faulty throttle.
3. Faulty controller.
1. Replace.
2. Replace.
3. Replace.
Throttle (if equipped) not
returning to neutral position
1. Grip jamming against
throttle.
2. Faulty throttle.
1. Reposition grip so gap to
throttle is 1 to 2mm.
2. Replace.
Pedal assistance operating
intermittently or not as
expected
1. Loose connectors / wiring
damage.
2. Faulty controller.
3. Faulty crank sensor.
4. Faulty throttle.
1. Check connectors / wiring.
Replace as
required.
2. Replace.
3. Replace.
4. Replace.
Charger shows "full charge"
in an unusually short amount
of time
1. Faulty charger.
2. Faulty batteries.
1. Replace.
2. Replace.
Charger indicator not
illuminating when charger is
plugged into outlet
1. Outlet has no power.
2. Faulty charger.
1. Check charger plugged in
and electrical supply ON.
2. Replace.
Charger indicator flashes red
and never changes to green
1. Damaged wire from
charger to battery.
2. Faulty batteries.
1. Replace charger.
2. Replace.
