INSTRUCTION MANUAL
Amadeus 254 / 254 GT
Rev. September 18

Preliminary
The Well Tempered Lab Amadeus 254 / 254 GT turntable is a William Firebaugh designed turntable, predominately
conceived for use with the Well Tempered Lab LTD Tonearm.!
!
The Amadeus 254 range of turntables feature a unique 2 piece plinth construction with squash ball isolation.!
!
The Amadeus 254 GT has an aluminium top and bottom layer plinth whilst the Amadeus 254 features Bamboo. Both have
multilayer plywood included in the plinth design.
Before embarking on the relatively simple process of assembling the Amadeus 254 / 254 GT, please take the time to fully
read these instructions and follow the steps within. The old adage of "if all else fails read the instruction manual" needs to
be applied from the onset. Well Tempered Lab cannot be held responsible for consequences resulting from the failure to
comprehend these instructions. If in doubt always consult with your dealer.
Well Tempered Lab’s policy is the continuous improvements of its products. We therefore reserve the right of departure
from illustration or specification that this might occasion.
Contents
Unpacking the Amadeus 254 / 254 GT
Pg 3
Assembly
Pg 3
Installing the Platter
Pg 3 - 4
Speed Control
Pg 4
Installing the Belt
Pg 4
Rear Panel
Pg 5
Making a Belt
Pg 6
Troubleshooting
Pg 7
Tonearm Alignment Guide for Well Tempered Lab Turntables
Pg 8
Specifications
Pg 9
Warranty and Service
Pg 10
European Waste and Electrical and Electronic Directive
Pg 10
Registration
Pg 10
2

Unpacking the Amadeus 254 / 254 GT
We recommend the use of the white gloves provided when handling the plinth and platter assemblies.
Take care that none of the fluids contaminate the finished surfaces of your Amadeus 254 / 254 GT.
The Amadeus 254 / 254 GT packaging has been designed to protect it from the hazards of shipping. It is advisable to save it for
further use.
Important: Never place a Well Tempered Lab turntable in direct sunlight. Not only will it have detrimental effects on your valuable
recordings, it will impair the mechanical integrity and performance of your turntable.
Assembly
For ease of assembly we recommend a flat work surface, such as a table or bench. All necessary tools have been provided.
!
Note: Instructions for installing the LTD tonearm are contained with the tonearm package.!
!
Start by placing the bottom layer of the plinth on a flat surface. The adjustable feet on the bottom layer plinth provide for fine level
adjustment. Place the squash balls in the recesses provided on the bottom layer and gently lower the top plinth onto the squash
balls again aligning within recesses provided on the underside of the top plinth layer.
Installing the Platter
Please ensure that the point of the triangle hold in the upper teflon bearing is correctly orientated to the motor pulley. See Fig (1). If
necessary consult your dealer.
Fill the bearing with synthetic oil supplied to a level of approx. 5mm (1/4”) above the bottom Teflon bearing, this is not critical. Do not
overfill. Over-filling the bearing will cause the oil to overflow the bearing housing when the platter spindle is lowered into the bearing
housing. Gently lower platter into bearing. See Fig (1) - (2). It is most important that spindle is located correctly in the centre of the
lower thrust bearing. Failure to locate the pivot point of the spindle correctly will cause the platter to rotate abnormally. The spindle
has been designed to protrude through the platter to provide a central lifting point that enables the user to easily achieve this.
Important: The unique design of the zero clearance Well Tempered Lab top bearing allows the spindle to be virtually free standing.
It is perfectly normal for the platter to tilt away from the motor when the belt has not been installed.
Should there be any necessity to replace the bearing oil, any synthetic motor oil of any brand within a viscosity range of 5W-50 is
acceptable.
Note: The zero clearance Well Tempered Lab bearing can rotate for hours without oil. If you wish, you can complete other
adjustments before applying the bearing oil. See Fig (2).

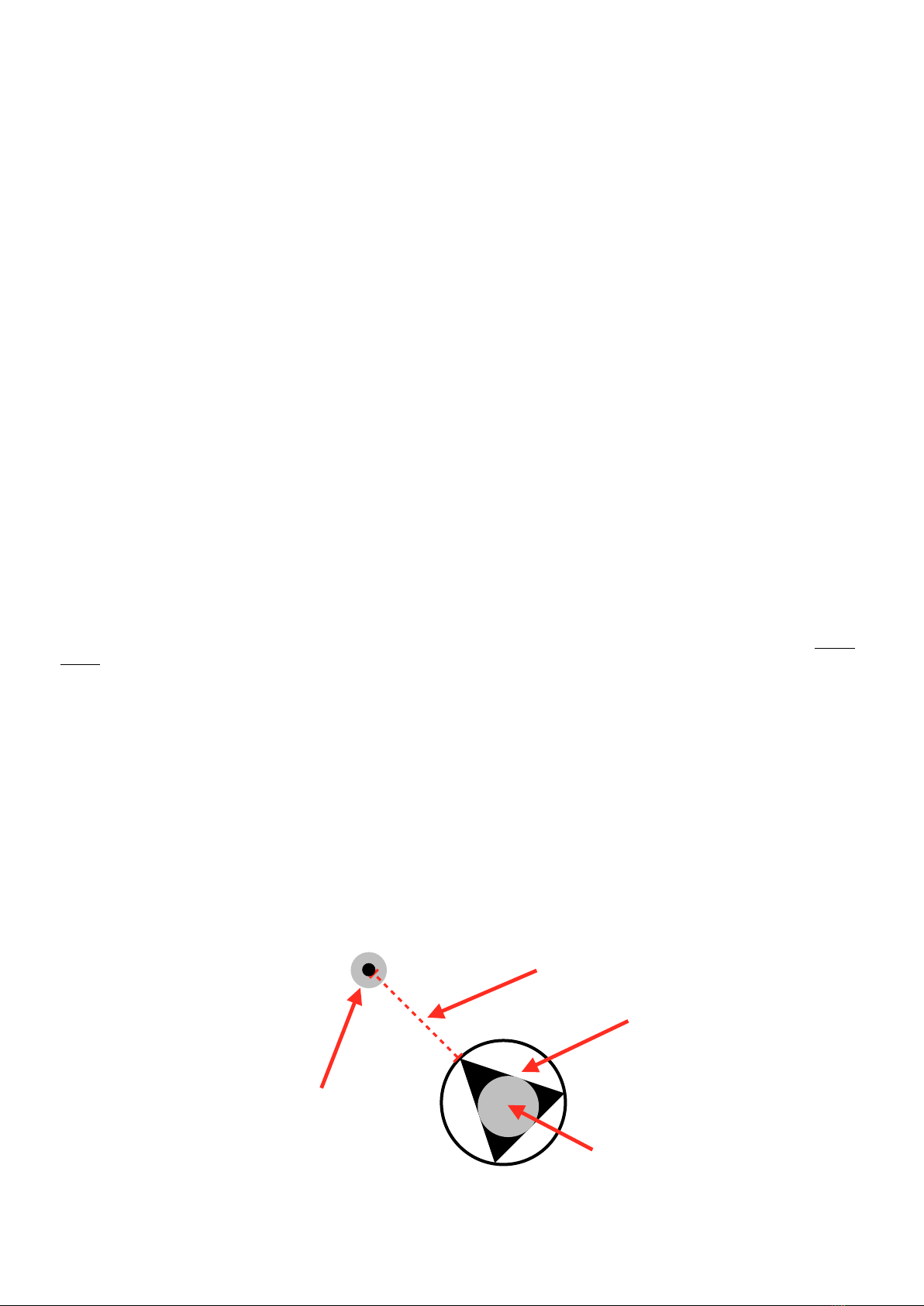

1. Motor
2. Spindle
3. Upper Teflon Bearing
4. Align corner of Upper
Teflon Bearing to Motor
Fig (1)
Birdseye view of Amadeus 254 /
254 GT Turntable Bearing. (Not to
scale)
1
4
3
2
3

Fig (2)
Fig (3)
Speed Control
The Amadeus 254 / 254 GT is supplied complete with the Well Tempered Lab Ctrl that provides both the power supply for the
turntable and electronic switching between 33 ⅓RPM and 45 RPM.

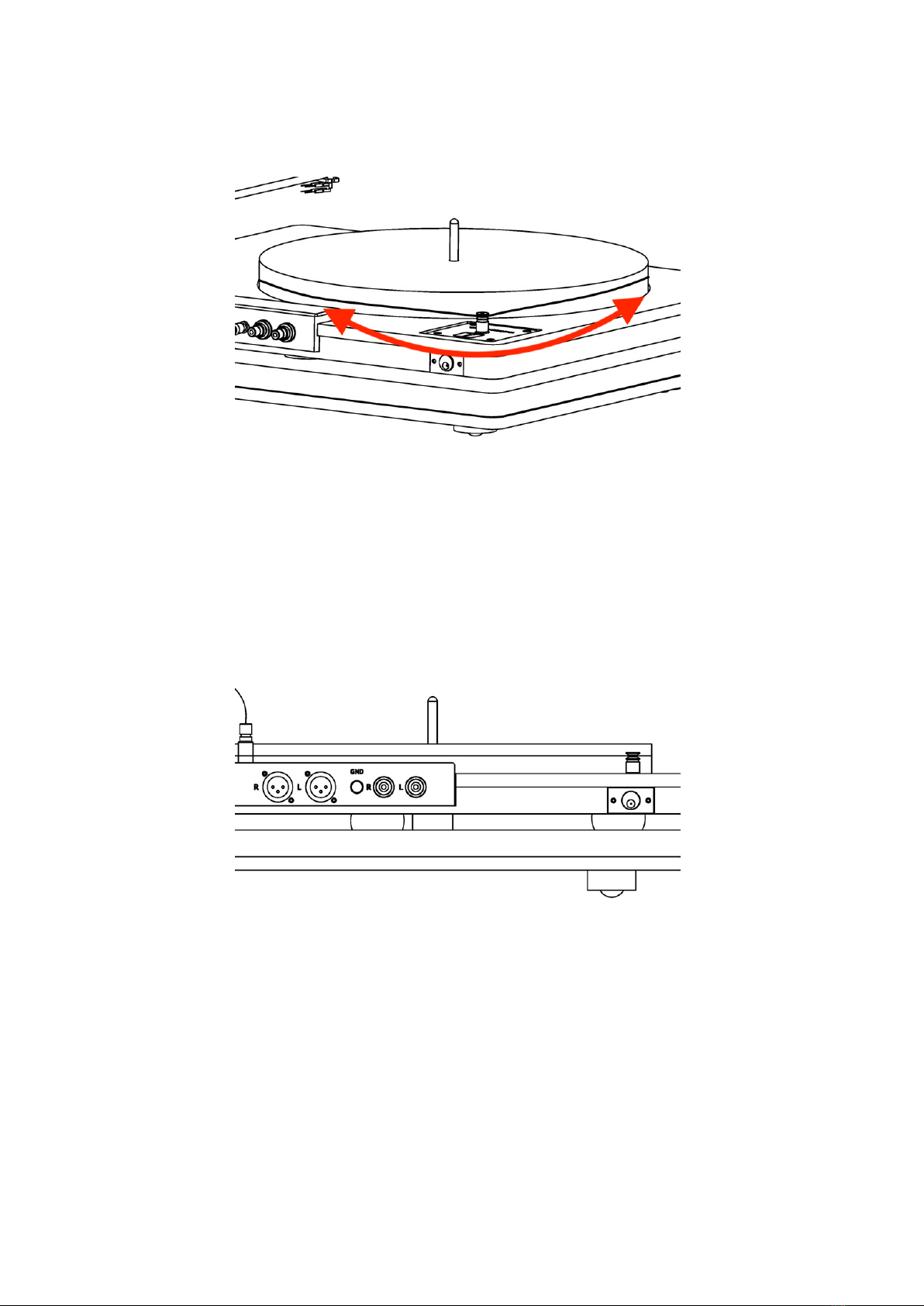

Installing the Belt
Start with the belt around the motor pulley, take care the other end clears the centre spindle and rotate the platter, the belt will track
around the platter. See Fig (4). Well Tempered Lab belts if dropped are easily misplaced, we give you two but suggest you place the
belt on something dark to make it easily seen.
4

Fig (4)
Rear Panel
Both Phono and XLR (Balanced) outputs are available along with the DC input socket for use with the CTRL. An earth screw is also
available.
Fig (5)
5

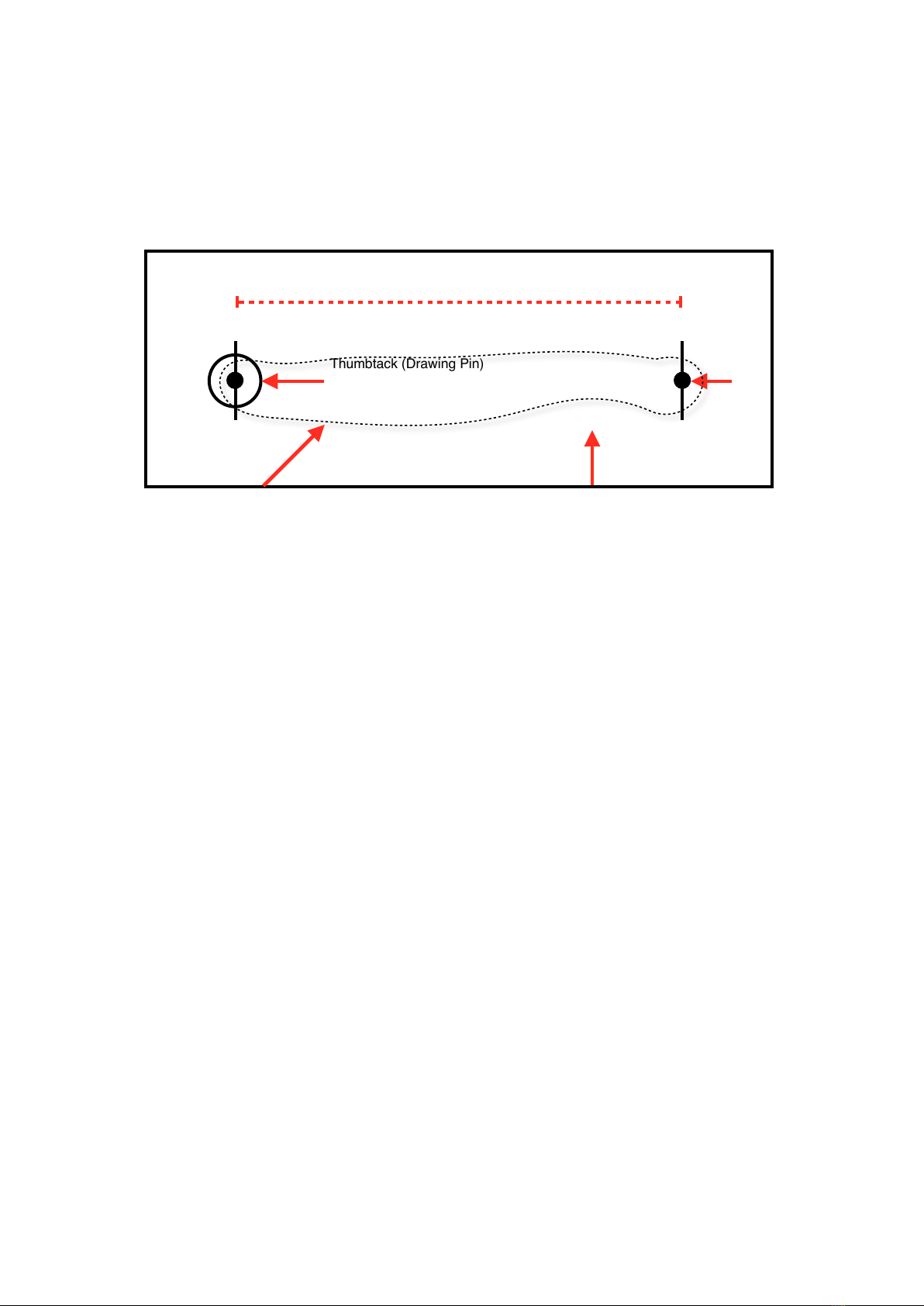

Making a Belt
Loop a long length of .004mm polyester thread around the thumbtack. Tie a simple double overhand knot around the pin. Remove
the pin and tighten the knot. Hold knot with thumbnail and pull on excess. Cut off excess leaving 10mm (minimum) tails.
543mm (21.4”)
Thumbtack (Drawing Pin)
Pin
.004mm polyester thread (White or Black).
Black cardboard for White .004mm polyester thread.
White cardboard for Black .004mm polyester thread.
6

Troubleshooting
1. In the unlikely event that you wish to remove the Symmetrex tonearm, the golf ball can be lifted clear of the fluid, and left to drain.
Surplus fluids may then be wiped from the golf ball with a paper towel.
2. Rubbing alcohol of 70% or above proof will remove all traces of fluid. All paper towels must be immediately discarded in a
suitable receptacle. We also have it on good authority that Vodka of the highest proof can be pressed into service if rubbing alcohol
is unavailable. Our chief designer also uses Ronsonol brand cigarette lighter fluid with excellent results. This is also known in some
countries as white spirits or white gas. We suggest you first try cleaning fluid with caution and or the
underside of the plinth. The Well Tempered Lab can bear no responsibility for damage caused by cleaning fluid.
3. Well Tempered Lab belts are easily lost. We recommend placing or hanging on a dark background, when not on the turntable.
4. For cartridges without threaded fixing holes we find it most convenient to attach the cartridge to the head shell in the slot closest
to the platter. The other screw with the optional finger lift attached can then be passed through the head shell and remaining
cartridge hole. A small "popsicle" stick or similar with a piece of double backed sticky tape on the end is invaluable. Just place the
remaining cartridge nut on the tape at the end of the stick under the protruding screw and tighten.
Note: Some cartridges may necessitate the shortening of the Nylon bridle that suspends the Golf Ball. This can easily be achieved
by the removal of one of the small plastic tubes that the Nylon passes through. Removal of this tube will allow excess nylon to be
pulled through the tube when the correct height is obtained the tube can be re-inserted and the excess Nylon removed with a sharp
craft knife. See Fig (7).
Fig (7)
1. Golf Ball
2. Tube
3. Nylon
4. Trim excess
5. The Amadeus 254 / 254 GT motor has bearing tolerances that cause it to be noisy without the load of the belt and platter. It is
sometimes possible during transit for the motor to shift within the isolating rubber mounting and vibrate against the motor mounting
cover. This is easily remedied by gently moving the motor clear of the mounting cover plate.
6. If the platter rotates abnormally, please refer to page 3 “Installing the Platter” to centre the spindle.
7. Important: For optimum performance Well Tempered turntables require to operate on a flat and level surface.
8. When moving or shipping the turntable, we recommend the removal of the platter from the bearing assembly. Care must be taken
as there will be a small amount of oil residue on the spindle. Care must also be taken to ensure the turntable remains level at all
times to avoid spillage of fluids.
4
2
3
1
7

20mm
Head-shell Alignment Guide for Well Tempered Lab Turntables
1. Cardboard 2. Centre of Tonearm tube 3. 19° Head-shell angle
150mm
Note: The Head-shell is factory fixed in position. Well Tempered Lab unequivocally reiterate that it should not be moved. Heavy handed mounting of the cartridge may result in moving the head shell. In which case place the above guide with centre line parallel to tone arm tube and align head shell to 19° angle. It will be necessary to gently but firmly retighten the small screw fixing the head-shell to the tonearm. Do not over-tighten this screw.
1
2
3
19°
8

Specifications
Amadeus 254
• Platter
Acrylic Translucent
• Platter mat
Anti-static Foam
• Plinth
Dual multi-layer plywood central layer with Bamboo top and bottom layers
• Motor
Servo Controlled 12VDC completely decoupled from plinth.
• Power Supply
Seperate 'Ctrl' Power supply - 12V DC, 500 mA, Centre Pin Positive
• Drive
.004mm Polyester thread
• Tonearm
Arm tube: 10.5" Aluminium arm tube with internal damping Symmetrex configuration
Azimuth Adjustment: Stainless steel collar
Suspension: Polyester thread providing anti-skate
Damping: Silicone fluid 100,000 cSt viscosity
• Dimensions (H x W x D)
195 x 480 x 410 mm, 290 x 615 x 565 mm (Shipping)
•Weight
11 kg, 15.5 kg (Shipping)
Amadeus 254 GT
• Platter
Acrylic Translucent
• Platter mat
Anti-static Foam
• Plinth
Dual multi-layer plywood central layer with Anodised aluminium top and bottom layers
• Motor
Servo Controlled 12VDC completely decoupled from plinth.
• Power Supply
Seperate 'Ctrl' Power supply - 12V DC, 500 mA, Centre Pin Positive
• Drive
.004mm Polyester thread
• Tonearm
Arm tube: 10.5" Aluminium arm tube with internal damping Symmetrex configuration
Azimuth Adjustment: Stainless steel collar
Suspension: Polyester thread providing anti-skate
Damping: Silicone fluid 100,000 cSt viscosity
• Dimensions (H x W x D)
195 x 480 x 410 mm, 290 x 615 x 565 mm (Shipping)
•Weight
15.5 kg, 20 kg (Shipping)
9

Warranty & Service
Valid on completion of warranty card and confirmed date or purchase. Details can be registered at www.welltemperedlab.net/
welltemperedlab/contact/ or mailed to: Well Tempered Lab, P.O. Box 2650, Christchurch, New Zealand.
This Well Tempered Lab product is warranted against defects in material and workmanship for one year from date of purchase.
This warranty does not cover normal wear and tear and is void if the Well Tempered product has been subject to mis-use, accident
or negligence or if it has been tampered with or modified in anyway. Spillage of any fluids supplied by the Well Tempered Lab is not
covered within the scope of this warranty.
Warranty is restricted to the territory in which the product was purchased. Our distributors and dealers are under contractual
obligation to service under warranty products only sold through them. They are entitled to make a non refundable charge for service
to products purchased outside the territory if required.
Claims Under This Warranty
The product should be returned to the dealer or†nearest Well Tempered distributor, complete with warranty card and confirmed date
of purchase. Note: special care is required with the fluids and the Well Tempered Lab and its agents†can bear no responsibility for
spillage or damage caused by incorrect handling and packaging of the fluids.
The European Waste Electrical and Electronic Directive
This product can be recycled. Products bearing this symbol must NOT be thrown away with normal household waste. At the end of
the product's life, take it to a collection point designated for recycling of electrical and electronic devices. Find out more about return
and collection points through your local authority.
The European Waste Electrical and Electronic (WEEE) Directive was implemented to dramatically reduce the amount of waste
going to landfills, there by reducing the environmental impact on the planet and on human health. Please act responsibly by
recycling used products. If this product is still useable, consider giving it away or selling it.
Registration Card
Name
Address
City
State
Post Code (Zip)
Country
Phone
Email
Model
Serial No.
Dealer
Date of Purchase
10
