Well HTR-OIL-2000/9-WL User manual

1
Installation and Operating Manual
Oil Column Heater
Preorder No.: HTR-OIL-2000/9-WL, HTR-OIL-2500/11-WL, HTR-OIL-3000/13-WL

2
Congratulations on the purchase of your new Column Heater.
Before first using your new appliance, it is most important that you read and follow the instruction in
this use and care booklet, even if you feel you are quite familiar with this type of appliance.
Your attention is drawn particularly to the section dealing with "IMPORTANT SAFEGUARDS". Find a place
and keep this booklet handy for future reference.
Your Column Heater is easy and safe to use. It has been designed to function quietly and safely under
normal circumstances. Read all instructions to ensure safe and efficient use

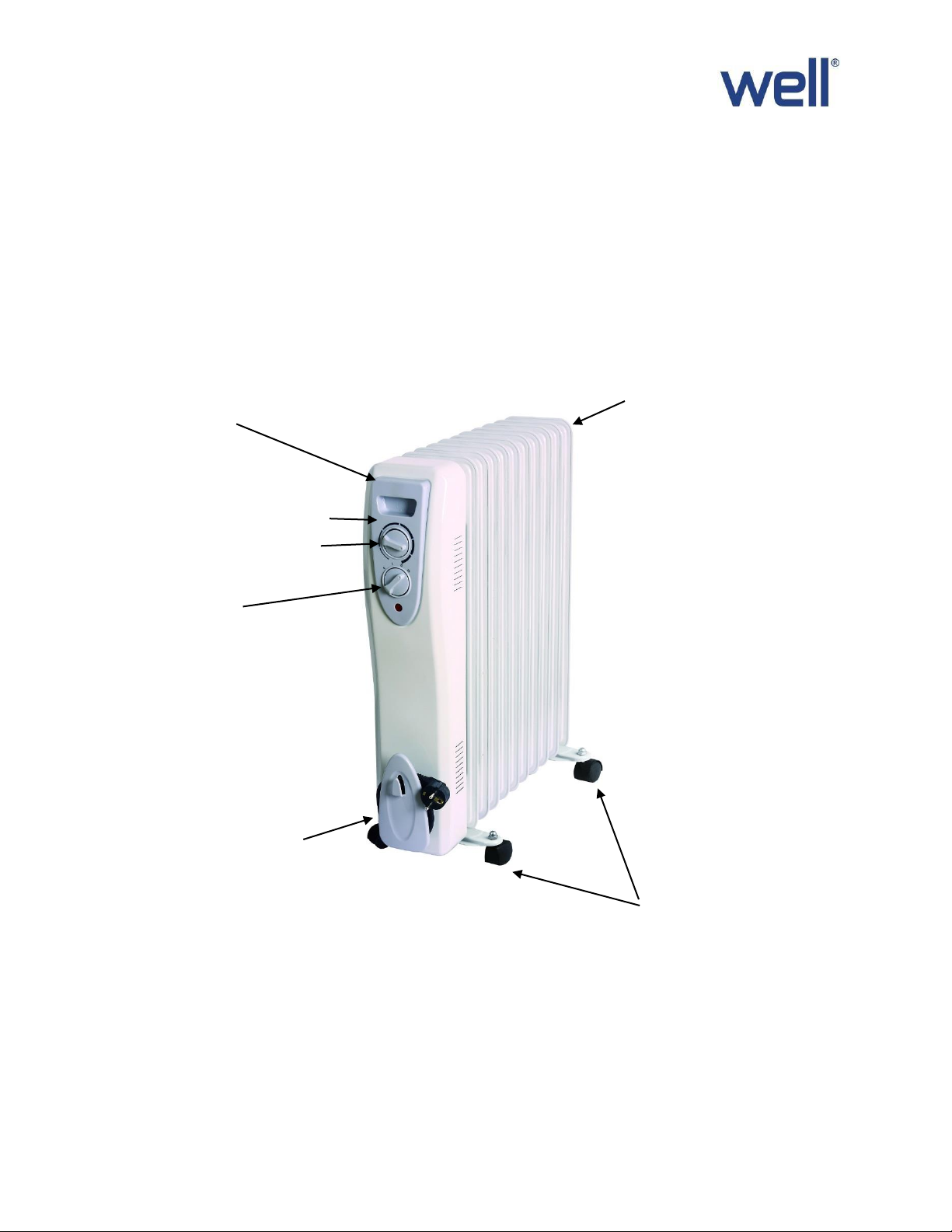

Oil Filled Fins
Handle
Thermostat Control
Power Setting Switch
Indicator Light
Power Cord Storage
Castors

3
Heating
The columns or fins are filled with a special oil that conducts heat to the metal surfaces. These in turn
warm the air around them which gently and silently heats the room. Be careful because they work under
pressure as the oil inside heats up. Like any electrical appliance, this product may cause injury or damage
property if used whilst damaged.
Castors
Column Heater are heavy, which is why castors are supplied with this product. To reduce packaging,
they have been placed unassembled in the carton.

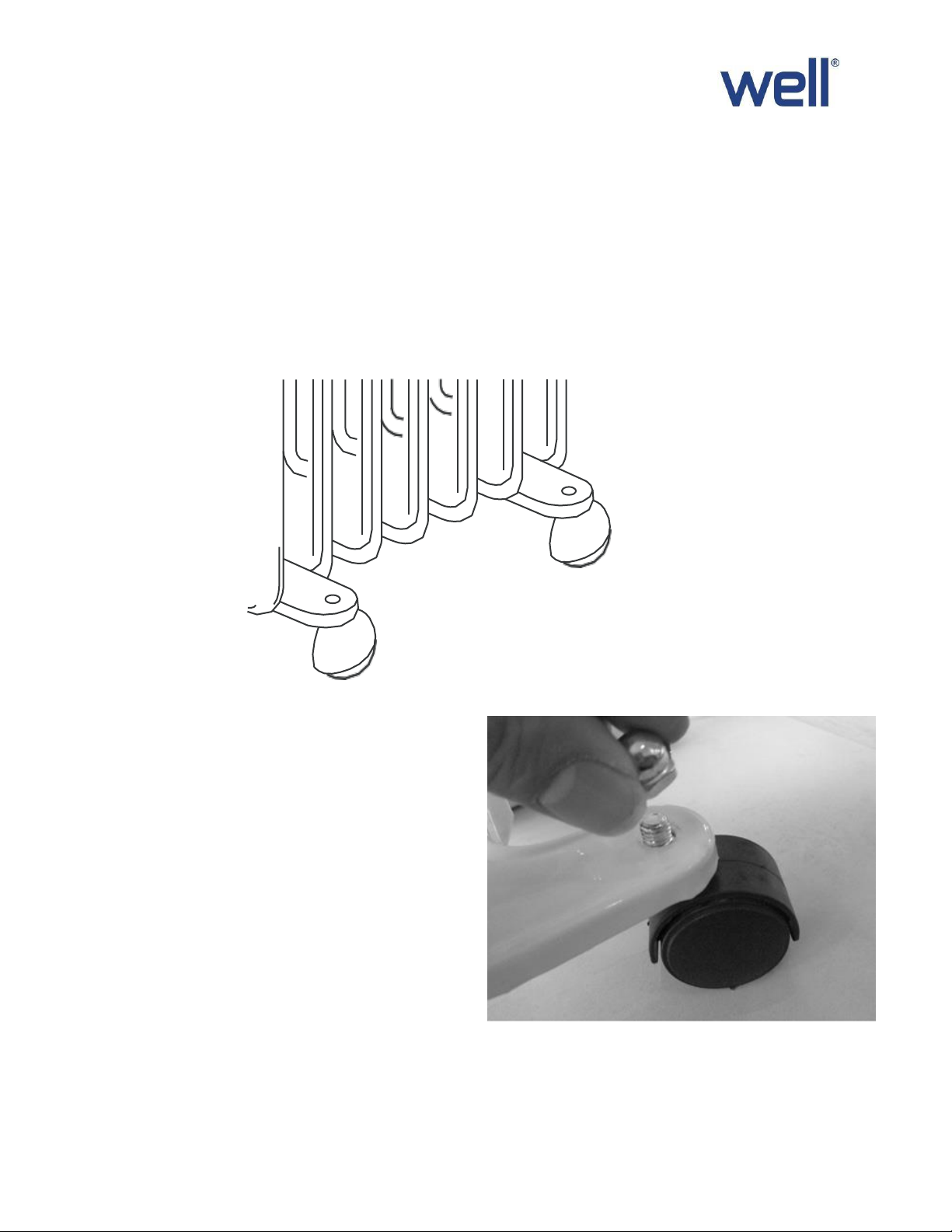

Castor Wheel Assembly
1. Unpack the castor wheels from the packaging and
remove the nut, from the castor wheel shaft.
2. Unpack the castor wheel mounting plate from the
packaging. Feed the castor wheel shaft upwards
through the underside of the castor wheel
mounting plate, and align the rectangular locator
on the base of the castor wheel shaft with the slot
on the mounting plate. The castor wheel shaft and
mounting plate should fit together snuggly.
3. Replace castor nut, over the top of the mounting
bracket and secure tightly with the nut provided.
The nut may need to be tightened with a spanner .

4
Refer to the diagram below which shows how to securely attach the castor brackets to the
Column Heater, so it can be wheeled from room to room. The brackets are designed to prevent the
fins from touching walls.
This is the only time that you should ever turn the Column Heater on its side or upside-down. After
attaching the castor brackets wait 15 minutes for the oil in each column to settle back into position before
use.

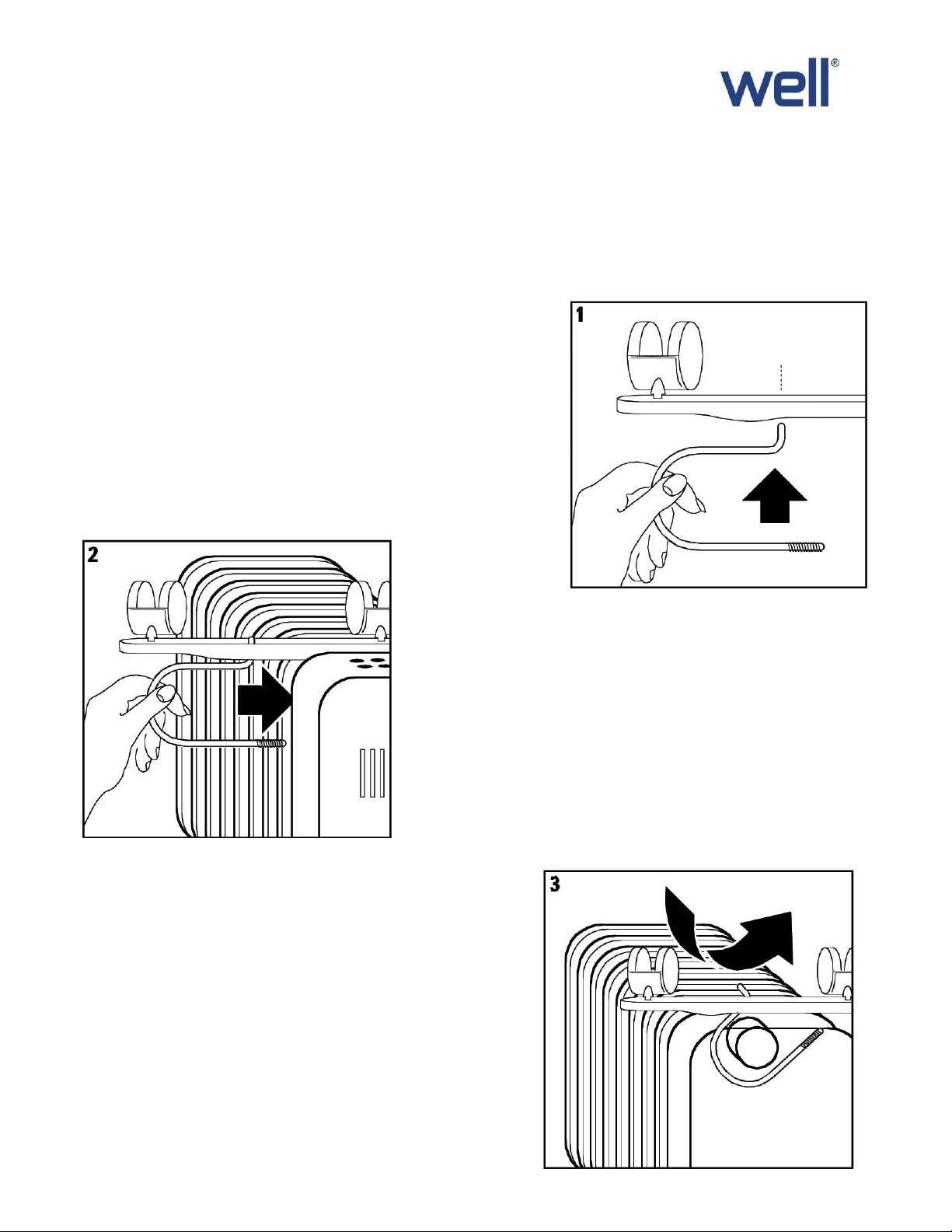

Place one of the two U-bolts supplied into the castor bracket
Position the castor bracket between the first and second
columns and slide the U-bolt through the middle
Turn the U-bolt so the threaded end is pointing vertically into
the air

5
Note: You will need to experiment with your Column Heater to establish the exact setting
required for your particular room or space.
Ensure the castors are aligned horizontally and tighten the wing
nuts. The wing nuts can be tightened securely without the use
of a tool
Heat Settings
When you turn on your Column Heater, turn the heat switch marked ‘III’, and then turn the
thermostat as high as it will go. This will set the Column Heater to high, producing the maximum
amount of heat possible to reduce the amount of time it takes to warm up the room.
As the room warms up, you may wish to decrease the heat level to maintain a comfortable room
temperature. To do this, turn the thermostat down to a lower setting. The Column Heater will cycle
on and off to maintain the desired room temperature.
To set a low room temperature, turn the switch marked ‘I’.
To set a medium room temperature, turn the switch marked ‘II’.
On really cold days these low and medium settings may not be practical, as heat losses can exceed
the heat generated by your Column Heater. Larger rooms and open space areas may also find the
low and medium heat settings ineffective.
Low Heat
Medium Heat
Maximum Heat
Switch I
Switch II
Switch III
9 Fins
700
1300
2000
11Fins
850
1650
2500
13Fins
1000
2000
3000
Power Cord Tidy
When the Column Heater is not in use, place the power cord in the power cord tidy. This will provide a
safe and convenient storage solution.
Always ensure the power cord is completely removed from the power cord tidy and uncoiled before use.

6
IMPORTANT SAFEGUARDS
When using electrical appliances, in order to reduce the risk of fire, electric shock and/or injury, these
basic safety precautions should always be followed:
FOR YOURSAFETY
Read all instructions carefully, even if you are quite familiar with the appliance.
• Do not position this heater immediately below a socket outlet.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Let the heater cool
before moving. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and
curtains at least 50cm from sides of the heater. Do not drape laundry or any other items over the heater.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
and mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged power cord or plug, or after the heater malfunctions, has
been dropped or is damaged in any manner.
• Do not use the heateroutdoors.
• This heater is not intended for use in bathrooms, laundry areas or similar moist indoor locations. Never
locate the heater where it may fall into a bathtub or other water container.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not run the power cord under carpeting or cover the power cord with throw rugs, runners or the
like. Arrange the power cord away from traffic areas and where it will not be tripped over.
• Do not place the power cord over any part of the heater.
• Do not plug this heater into an extension lead, double adapter or power board.
• To disconnect the heater, set controls to OFF then remove the plug from theoutlet.
• To prevent a possible fire, do not block air intakes or exhausts in any manner.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock, fire or could damage the heater.

7
NOTE: As a result of continual improvements, the design and
specifications of the product within may differ slightly to the unit
illustrated on the packaging.
• This heater has hot electrical parts inside. DO NOT use it in areas where gasoline, paint or
flammable liquids are used or stored.
• Use the heater only as described in this booklet. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury to persons.
• Always uncoil the power cord before applying power.
• Remove all packaging and check the appliance for any damages during transportation.
• Ensure a power socket is available to power the heater and that the heater is not directly located
under or in front of a power socket.
• Ensure the heater is placed on a level surface with enough clearance from its surroundings.
• This product must always be used in the upright position with the feet installed. Never use the
heater without the feet properly installed.
Warning: Do not place the heater on LONG PILE CARPET OR FLOKATI RUGS. Use a heat
board if necessary.
Warning: In order to avoid overheating, do not cover the heater.
WARNING
If the power cord is damaged, the power cord must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
This product has not been designed for any uses other than those specified in this booklet.
SAVE THESE INSTRUCTIONS
Technical Specifications :
Power Supply AC 230V ~ 50Hz
Power Consumption:
HTR-OIL-2000/9-WL: 2000W
HTR-OIL-2500/11-WL: 2500W
HTR-OIL-3000/13-WL: 3000W

8
Safety Device
This appliance is fitted with a safety cut-off device which automatically turns the unit off when it is tilted
or tipped over. Always ensure that the unit is placed on flat solid ground before operating.
Care And Cleaning
•Before cleaning, ensure that the heater is switched in the off position and is unplugged from the
socket.
•Clean the exterior surfaces of the heater with a dry, soft cloth.
•Never use any form of detergents or solvents to clean the heater.
•Never spray with liquids or submerge in liquids or water.
•Do not attempt to clean the interior of the heater.
•Do not attempt to open the case of this heater at any time. There are no consumer serviceable
parts inside this unit.
•When the heater is stored during the off season, neatly wind the power cord around the base of
the heater to prevent any damage to the power cord.
Waste electrical and electronic equipment are a special waste category,
collection, storage, transport, treatment and recycling are important because
they can avoid environmental pollution and are harmful to health. Submitting
waste electrical and electronic equipment to special collection centers makes the
waste to be recycled properly and protecting the environment. Do not forget!
Each electric appliance that arrives at the landfill, the field, pollutes the
environment!
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. [phone]*
[e-mail], www.vitacom.ro
Note: If the cordset of the appliance becomes damaged discontinue use. Repair
should be undertaken only by a qualified electrician.
