Well HTR-CNV-2000-WL User manual

1
Installation and Operating Manual

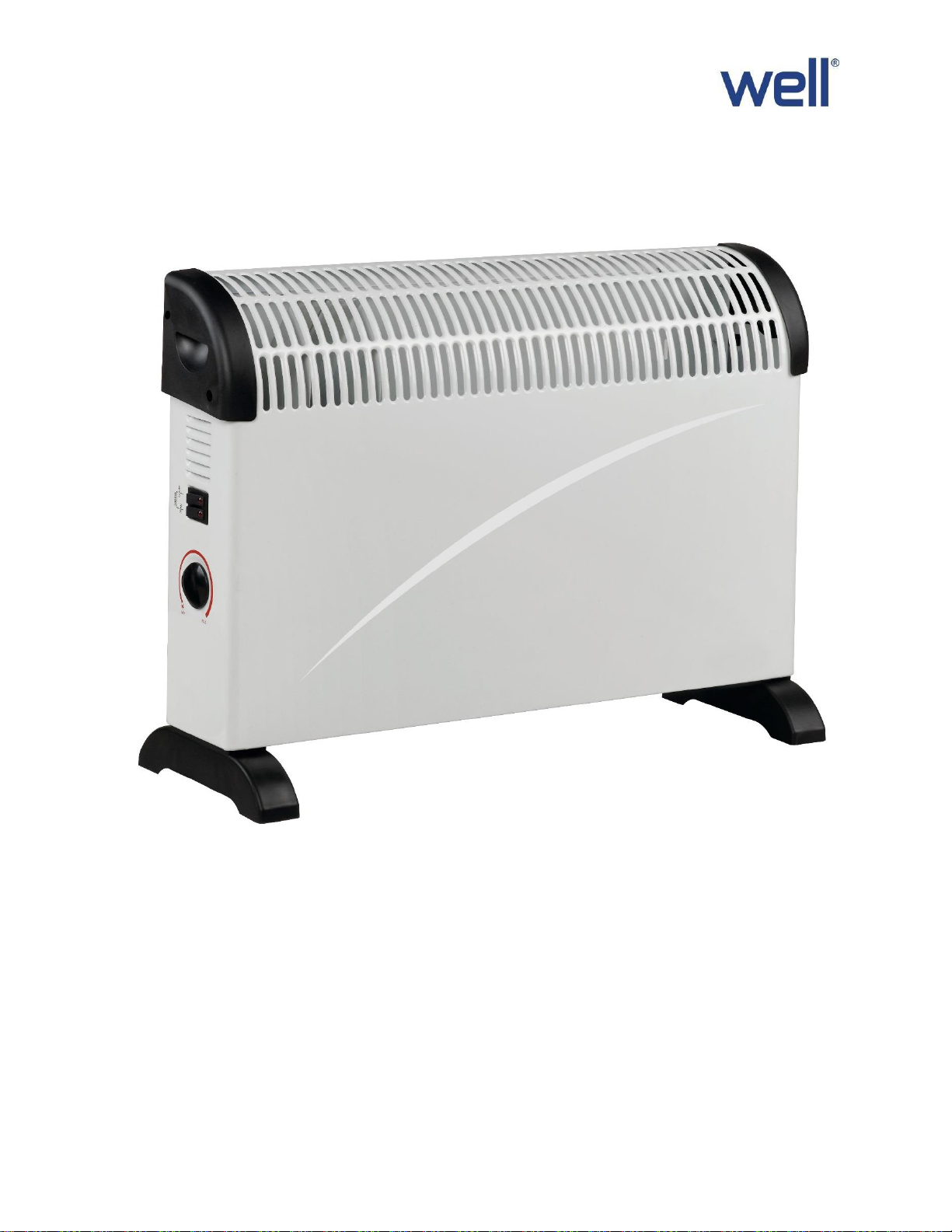

Convection Heater
Preorder No.: HTR-CNV-2000-WL

2
Congratulations on the purchase of your new Convection Heater.
Before first using your new appliance, it is most important that you read and follow the instruction in
this use and care booklet, even if you feel you are quite familiar with this type of appliance.
Your attention is drawn particularly to the section dealing with "IMPORTANT SAFEGUARDS". Find a place
and keep this booklet handy for future reference.
This appliance has been designed to operate from astandard domestic power outlet. It is not intended for
industrial or commercialuse.
This product is only suitable for well insulated spaces or occasional use.
Please retain for future reference.
ASSEMBLY OF THE HEATER
Before using the heater, the feet (supplied separately in the box), must
be fitted to the unit. These are to be attached to the base of the heater
using the 8 self-tapping screws provided. Take care to ensure that they
are located correctly in the bottom ends of the heater side moldings.
OPERATION
When operated for the first time, the unit may emit an unpleasant burning type smell. This is normal, and
will disappear after a short period of use.
Insert the plug of the heater into a suitable socket. Turn the thermostat dial fully in a clockwise direction
to the maximum setting.
Turn on the heating settings by means of the switches on the side control panel.
You may obtain three heating settings (750W/1250W/2000W) by pressing the relevant heating switch.
For 2000W maximum heat output, press both switches simultaneously.
Heat setting switches
Thermostat control
When the desired room temperature has been reached, the thermostat dial should be turned slowly
anti-clockwise until you hear a click sound and the lights on the power switch go out. After this the
heater will keep the air temperature in the room at the set temperature by switching on and off
automatically.
A heat sensing device monitors internal temperatures in the appliance. If heat levels rise beyond a pre-

3
set safety threshold, the cut-out will switch off power to the heat elements, eliminating further danger.
Let the heater cool for approximately 10 minutes, then it will function normally again.
In the event of a thermal cut-out, check for visible obstructions to air inlets. Try moving the appliance to a
new position. Sometimes placement close
to walls and furniture can restrict air movement enough to cause the heater to shut down.
IMPORTANT SAFEGUARD
When using electrical appliances, in order to reduce the risk of fire, electric shock and/or injury, these
basic safety precautions should always be followed:
FOR YOURSAFETY
Read all instructions carefully, even if you are quite familiar with the appliance.
• Do not position this heater immediately below a socket outlet.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Let the heater cool
before moving. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and
curtains at least 50cm from sides of the heater. Do not drape laundry or any other items over the heater.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
and mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensurethat they do not play with the appliance.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged power cord or plug, or after the heater malfunctions, has
beendroppedor is damaged in any manner.
• Do not use the heateroutdoors.
• This heater isnot intended foruse in bathrooms, laundry areas or similar moist indoor locations. Never
locate the heater where it may fall into a bathtub or other water container.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not run the power cord under carpeting or cover the power cord with throw rugs, runners or the
like. Arrange the power cord away from traffic areas and where it will not be tripped over.
• Do not place the power cord over any part of the heater.
• Do not plug this heater into an extension lead, double adapter or power board.
• To disconnect the heater, set controls to OFF then remove the plug from theoutlet.
• To prevent a possible fire, do not block air intakes or exhausts in any manner.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock, fire or could damage the heater.
• Thisheaterhas hot electricalpartsinside. DONOT use it in areas where gasoline, paint or
flammable liquids are used or stored.
• Use the heater only as described in thisbooklet. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury to persons.
• Always uncoil the power cord before applying power.
• Remove all packaging and check the appliance for any damages during transportation.
• Ensure a power socket is available to power the heater and that the heater is not directly located
under or in front of a power socket.
• Ensure the heater is placed on a level surface with enough clearance from its surroundings.
• This product must always be used in the upright position with the feet installed. Never use the
heater without the feet properly installed.

4
Warning: Do not place the heater on LONG PILE CARPET OR FLOKATI RUGS. Use a heat
board if necessary.
Warning: In order to avoid overheating, do not cover the heater.
WARNING
If the power cord is damaged, the power cord must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
This product has not been designed for any uses other than those specified in this booklet.
SAVE THESE INSTRUCTIONS
CARE AND CLEANING
Before cleaning, ensure that the heater is switched in the ‘OFF’ position and is unplugged from the
socket.
Clean the exterior surfaces of the heater with a dry, soft cloth.
Never use any form of detergents or solvents to clean the heater.
Never spray with liquids or submerge inliquids or water.
Do not attempt to clean the interior of the heater.
Do not attempt to open the case of this heater at any time. Thereare no consumer serviceable parts
inside this unit.
When the heater is stored during the off season, neatly wind the power cord around the base of the heater
to prevent any damage to the power cord.
Note: If the cord of the appliance becomesdamageddiscontinueuse. Repair should be
undertaken only by a qualified electrician.
Low Heat
Medium Heat
Maximum Heat
Switch I
Switch II
Switch I & II
750W
1250W
2OOOW

5
INFORMATIONREQUIREMENTSFORELECTRIC LOCAL SPACEHEATERS
Model identifier(s): HTR-CNV-2000-WL
Item
Symbol
Value
Unit
Heat output
Nominal heat output
Pnom
2.0
kW
Minimum heat output (indicative)
Pmin
0.75
kW
Maximum continuous heat output
Pmax,c
2.0
kW
Auxiliary electricity consumption
At nominal heat output
elmax
N/A
kW
At minimum heat output
elmin
N/A
kW
In standby mode
elSB
N/A
kW
Item
Unit
Type of heat input, for electric storage local space heaters only (select one)
Manual heat charge control, with integrated thermostat
No
Manual heat charge control with room and/or outdoor temperature feedback
No
Electronic heat charge control with room and/or outdoor temperature feedback
No
Fan assisted heat output
No
Type of heat output/room temperature control (select one)
Single stage heat output and no room temperature control
No
Two or more manual stages, no room temperature control
No
With mechanic thermostat room temperature control
Yes
With electronic room temperature control
No
Electronic room temperature control plus day timer
No
Electronic room temperature control plus week timer
No
Other control options (multiple selections possible)
Room temperature control, with presence detection
No
Room temperature control, with open window detection
No
With distance control option
No
With adaptive start control
No
With working time limitation
No
With black bulb sensor
No

6
Technical Specifications :
Power Supply AC 230V ~ 50Hz
Power Consumption: 2000W
Waste electrical and electronic equipment are a special waste category,
collection, storage, transport, treatment and recycling are important because
they can avoid environmental pollution and are harmful to health. Submitting
waste electrical and electronic equipment to special collection centers makes the
waste to be recycled properly and protecting the environment. Do not forget!
Each electric appliance that arrives at the landfill, the field, pollutes the
environment!
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. [phone]*
[e-mail], www.vitacom.ro
NOTE: As a result of continual improvements, the design and
specifications of the product within may differ slightly to the unit
illustrated on the packaging.
