Wenger V-Ready User manual

Assembly Instructions
V-Ready®Room System
©Wenger Corporation 2018 Printed in USA 2018-08 Part #215E700-06
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: [phone] • wengercorp.com
V-Ready® Room System
CONTENTS
Note: Please read and understand the V-Ready®Room System Assembly Instructions before
starting the installation.
Note: Examine the illustrations on the following pages. If you need additional information about
your V-Ready®Room System, write, email, or telephone Wenger Corporation at the number
below.
Note: Save these instructions.
Note: Many assembly steps require two or more people.
Note: Not all rooms can be converted to V-Room®Practice rooms. Rooms with 15-inch or 30-inch
extensions and rooms that are 125-square feet or larger cannot be converted.
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Electrical Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before You Begin ..........................4
Install the Wall Frame .......................4
Install the Door Frame. . . . . . . . . . . . . . . . . . . . . . .6
Level the Wall Frame .......................9
Wall Panel installation .......................10
Roto Locks ...............................10
Wall Panel Alignment .......................11
Install Corners .............................11
Assemble the Fan Panel.....................12
Assemble the Vent Panel ....................12
Ceiling Frame Rail (with module beam option)....13
Install Ceiling Frame Rails ...................14
Ceiling Rail Alignment .......................16
Install Ceiling Panels........................17
HVAC Ceiling Panels .......................18
Ceiling Panel Configuration...................18
Align Ceiling Panels ........................18
Lock the Ceiling Panels Together ..............18
Lock the Ceiling to the V-Ready Room..........18
Ceiling Clips ..............................19
Clip Retainers .............................19
Lights....................................20
Hole Plugs................................20
Door Stop ................................20
Clean the Panels...........................20
Door Seal Adjustment .......................21
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . .22
Optional Communications Panel...............22
Install the Optional Floor System . . . . . . . . . . . . . . . . . .23
Floor Section Roto Locks ....................23
Floor Installation ...........................23
Center the Floor ...........................24
Door Step Trim ............................24
Floor Trim Molding .........................24
Molding Installation .........................25
Install the Horizontal Closure Panels . . . . . . . . . . . . . . .26
Install the Vertical Closures. . . . . . . . . . . . . . . . . . . . . . .27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Cleaning .................................28
Adjustments...............................28
Fan Assembly Replacement ..................29
Glass Door or Window Replacement ...........29
Magnetic Gasket Replacement ................29
Sweep Seal Gasket Replacement .............30
Key Replacement ..........................30
Capacities and Ratings . . . . . . . . . . . . . . . . . . . . . . . . . .31
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Symbol Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

2
rEquirEd TOOlS
Tools required are a mallet, screwdriver, Phillips screwdriver, box level, tape rule, adjustable
jaw pliers, sockets and ratchet, small pry bar, 5/16" hex allen wrench. The Floor Option
requires a Phillips drive bit, drill, 1/8" drill bit, and hacksaw.
Mallet Screwdriver Phillips Screwdriver
24-inch Box Level 8' Tape Rule Channel Lock Pliers
5/16" Hex WrenchPry BarSocket and Ratchet Set
1/8" Drill BitPhillips Drive BitCordless DrillHacksaw
Tools needed for Floor Option
Owner __________________________
Models: _________________________
Location: ________________________
Accessories: _____________________
Date Installed: ____________________
Installer:_________________________
Key Numbers: ____________________
________________________________
________________________________
________________________________
________________________________
________________________________

3
The kit (Power Panel Kit, UL) consists of:
• Distribution Connector
• Handy box cover with 1/2" knockout
• Dust cap
• Instruction form
ElECTriCal wiriNg
The V-Ready®Room system is a prewired unit. Wenger Corporation always ships the end user kits
(UL Power Panel Kit, part number 216_481) before shipping the V-Ready®Room system. A licensed
electrician must install the Power Panel Kit BEFORE a representative from Wenger Corporation arrives
to install the rooms.
Dust Cap
Cover Plate with Screws
White (Neutral)
Black (Line) Green (Ground)
Distribution Connection

4
install the wall frame
Using the pack sheet supplied with these instructions, find the wall frames. Two pieces make up each of
the sections. The wall frame is a metal channel and a wall frame pad assembly.
1. Place the wall frame channel over the pad assembly (the pad should extend beyond the end of the
channel slightly).
2. Find the four wall frame corner assemblies, corner pad assemblies and the wall frame clips.
3. Lay out the wall frame assemblies in the rough outline of the module. Leave an opening in the frame
to locate the standard door which is 45-inches wide. (Optional 4-foot door is 60-inches wide.)
4. Corner assemblies are located on the four corners of the module wall frame, regardless of the
position chosen for the door.
Wall Frame Wall Frame Pad Assembly
Wall Frame Layout
Corner Assembly
For 48" Door
60"
For 36" Door
45"
iNSTallaTiON
before you begin
1. A licensed electrician must install all distribution connections for the electrical service shown in the
unit plan.
2. Clear the construction area and allow twelve inches of space around the module.
3. Place all parts into stacks of similar part numbers where they can be easily reached.
Warning! Components are large and heavy and must be moved by two people working
together. Moving doors requires four people working together. Failure to observe this
warning can result in serious injury.
Warning! All electrical connections and electrical installation must be done by a licensed
electrician. Failure to observe this precaution can result in serious injury, death, or
damage to property.
Warning! The V-Ready®Room electrical source must be permanently wired with the UL Power
Panel Kit and comply with local electrical codes. Failure to observe this precaution
can result in serious injury, death, or damage to property.
Warning! Always wear safety glasses and safety shoes when working on the V-Ready®Room
system. Failure to observe this warning can result in serious injury.

5
install the wall frame continued
The wall frame flat clips have uniform lips on both sides and are used for all in-line frame
connections of wall frame and corner sections. Two flat clips are used at each joint in the frame section.
As the pad is slightly longer than the channel, each section should slightly compress the pad when clips
are installed. Drive the clips into place with a mallet.
Note: Drive on clips so that they are even or just below the top of the frame channel. Do not drive the
Straight Clips down to floor surface.
End view of the
straight clip
iNSTallaTiON CONTiNuEd
Wall Frame Pad
Wall Frame Straight Clips
Wall Frame

6
install the door frame

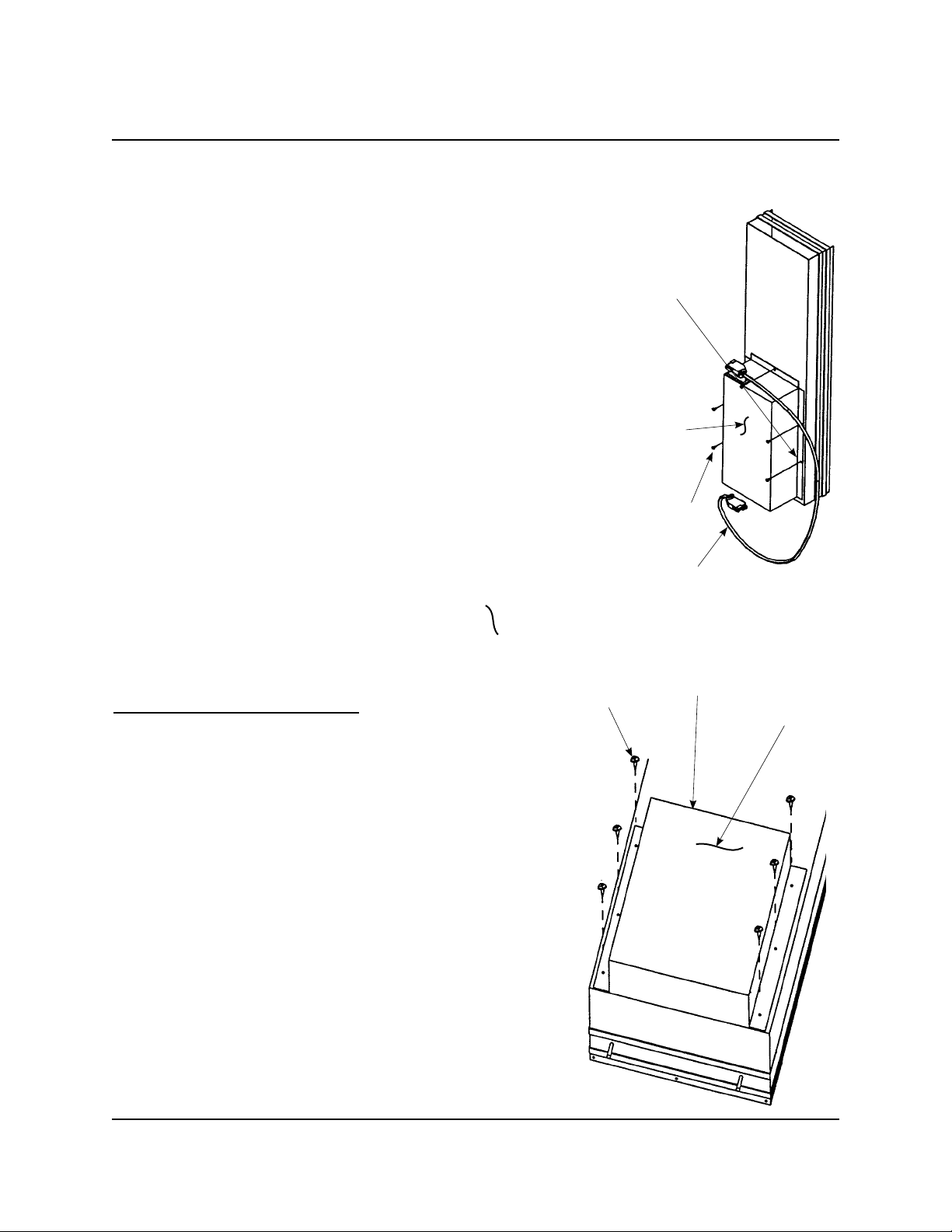

The V-Ready® Room door is fully assembled, adjusted, and shipped in a wooden crate.
1. Before removing the door from the crate, locate and remove four offset door clips from the plastic
bag. These clips have a slight convex peak and uneven lips. Clips are offset because the door frame
is 3/4" wider than the wall frame section.
iNSTallaTiON CONTiNuEd
!WARNING
Do not unlock or lift
the Door Assembly
using the Door
Leverset. Damage to
the Door can result.
Top Panel
Door Crate
Side Panel
2. To remove the door, remove the special screws holding the side and top of the crate. The door is
shipped with the hinge side up and the leverset in the locked position to hold the door leaf in place.
Warning! The Door Frame Assembly weighs more than 250-pounds. Four people working
together must lift the assembly from the crate and set it into place.
Failure to observe this warning can result in serious injury or damage to property.
a. Lift the Door Frame Assembly from the crate and transport the assembly with it horizontal.
b. Place the assembly into the final position with the assembly vertical and the Door swinging to
the outside (or inside) as shown on the room drawing plan view.
Note: Do not slide the Door Frame Assembly to avoid damage to the gasket on the bottom surface of
the Door Frame. Sliding the Door Frame Assembly can cause the gasket to roll under the Frame
or tear away from the Frame.
Profile view of the Offset Door Clip
Offset Clips
3/8" Offset on each side
Door Frame
Wall Frame
!WARNING
Four people working
together must
transport the Door
Frame Assembly.
Door Frame Side
Wall Frame Side

7
install the door frame continued
iNSTallaTiON CONTiNuEd
3. Using a 24-inch Box Level, check the level of the floor where the door is to be located.
4. Use the 24-inch Box Level and adjust the Levelers on the bottom of the Door Frame so that the
Door Frame will stand vertical and square to the floor.
Note: Do not extend levelers beyond the gasket attached to the base of the door.
Leveler
Gasket
Gasket
5. When the Door Frame Assembly is in position and aligned to the Door Frame, continue to hold it
vertical with the Door closed. Check the Door Frame and make sure that the Frame edges that will
mate with the Wall panels are plumb.
6. If the Frame is not plumb, carefully tilt the Frame to allow access to the Levelers.
a. Start with the Levelers retracted as far as possible.
b. On the corner that is lowest, extend the Leveler until the Frame is plumb when resting on the
floor.
7. Once the Door Frame is plumb, unlock the Door with the key that is taped to the Leverset.
a. Open the Door 90-degrees.
b. Place a 3/4-inch block under the outermost corner of the Door Leaf to support the Door weight.
Do not place the block under the sweep seal.
c. Using the 24-inch Box Level, make sure that the Door Frame hinge
side is plumb (measured on the inner or outer face of the Door Frame).
d. If necessary, add or remove shims under the leveling block until the
Door Frame is plumb.
Leaf
Leveling Block
Door Frame

8

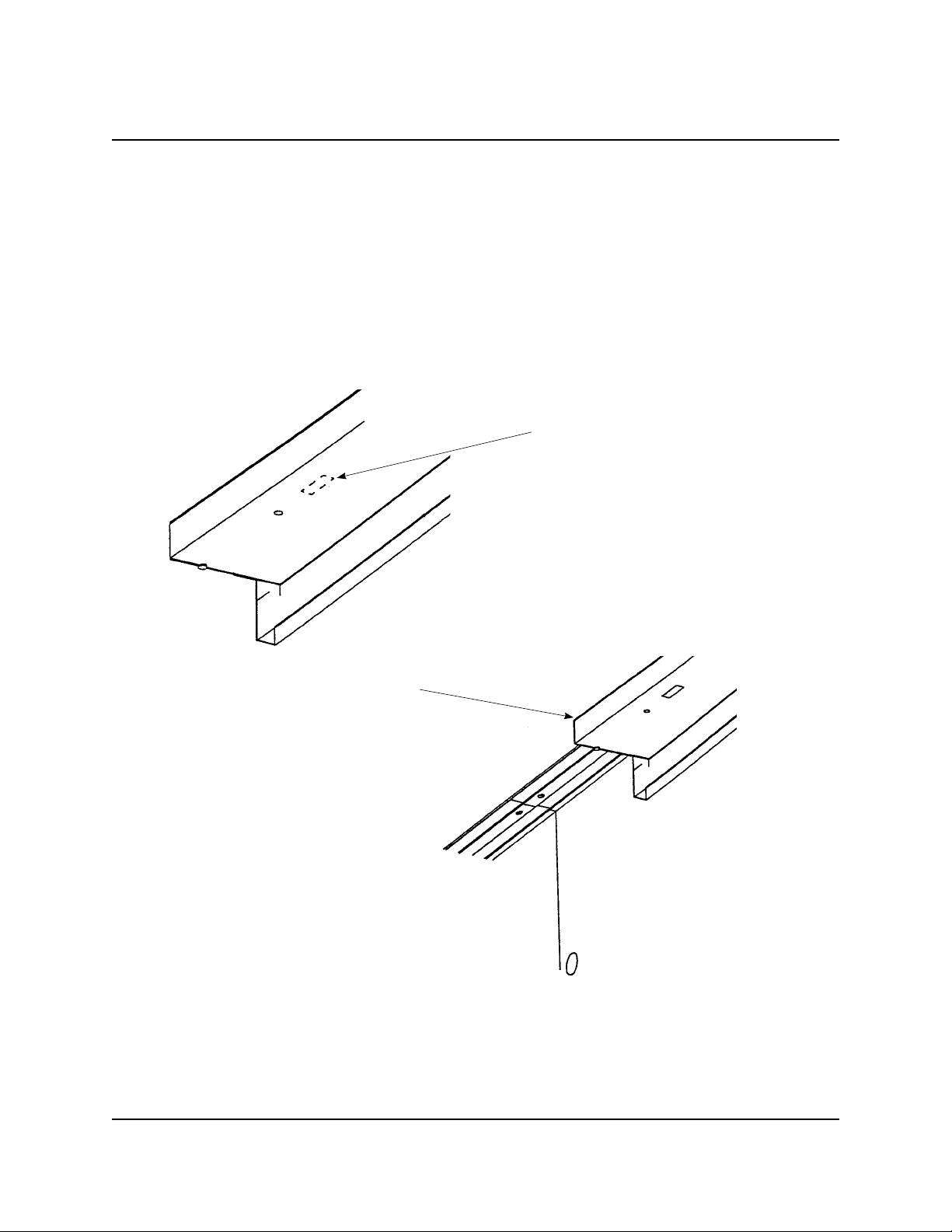

8. The Wall Frame channel must be flush against the Door Frame underneath the Alignment Tab
(refer to the illustration below).
9. Using a mallet, attach the Wall Frame to the Door Frame with the Offset Door Clips.
The narrower Wall Frame must be centered on the Door Frame.
Note: The Offset Door Clips will only fit one way.
install the door frame continued
iNSTallaTiON CONTiNuEd
Wall Frame
Leveling Screws
Alignment Tabs
3/8" Offset on each side
of the Door Frame
Offset Door Clip
Door Frame

9
Note: Level the Wall Frame at this time carefully to prevent sound leaks.
1. With the door in position and all frame members clamped together, square the frame by measuring
diagonally from corner to corner. Both dimensions must be equal. Make any necessary adjustments.
2. Using the 24-inch box level, start at the inside of the Door and level each Wall Frame working in a
clockwise direction.
a. Leveling Screws are in the center of the frame covers (refer to the illustration below).
b. Turn each Leveling Screw clockwise to lift the Wall Frame and counterclockwise to lower the
Wall Frame until the entire Frame is level.
Note: Each Leveling Screw must contact the Wall Frame Pad Assembly.
c. The rubber pad under the frame compresses slightly under the weight of the module panels.
Note: If the room you are installing has a Wenger floor, it is suggested that it be installed now.
This allows additional room to assemble the floor. However, the floor may be assembled in the
completed module or removed (it is completely independent from the rest of the unit).
Trim molding is supplied with the floor kit and applied when the module is finished.
level the wall frame
iNSTallaTiON CONTiNuEd
Wall Frame
Leveling Screw

10
·Refer to layout drawing for panel layout.
· Identify each type of panel.
· Be sure to note where solid, perforated, electrical, control, and microphone panel locations are
located.
· It is IMPORTANT to keep microphone panel locations as shown! (This will assist installation of
V-technology at a later time.)
· Start on the right side of the door when standing in the room.
Install panels as follows.
1. Start installing panels inside of room working clockwise.
2. Insert two Centering Studs into the bottom surface of each Wall Panel (refer to the illustration below).
a. The Centering Studs are in the wall hardware box.
b. Screw the Centering Studs in finger tight.
3. Place each Wall Panels into place, inserting the Centering Studs into the Wall Frame Rail Slots.
Note: To determine the bottom of the panel, the Roto Lock Hole must always be on the left inside edge
of the Panel.
wall panel installation
iNSTallaTiON CONTiNuEd
Roto Lock Hole
Centering Studs
Panel Bottom Edge
Panel Inside Surface
Note: The Upper and Lower Roto Locks turn in opposite directions. This allows the Panel to move
vertically up or down for perfect alignment and seal. Locked Panels must be even at the top and
sealed at the bottom. Refer to the illustration above.
To tighten the Roto Locks, do as follows:
1. Using a 5/16-inch Hex Wrench, turn the Lower Roto Lock, A, clockwise until the top of the panel is
flush with the panel next to it.
2. Using a 5/16-inch Hex Wrench, turn the Upper Roto Lock, B, counterclockwise until it is tight.
3. Finish tightening the Lower Roto Lock, A, by turning it clockwise. Make sure the panels are flush
with each other at the top. Repeat steps if panel is not flush.
roto locks
A
B
Wall Frame Rail Slots
Lower Roto Lock
Upper Roto Lock
Centering Studs
5/16" Hex Wrench

11
wall panel alignment
iNSTallaTiON CONTiNuEd
1. As panels are put in place, make sure that the Wall Panels are even at the top.
a. Run fingers across the center of the Wall Panels between gaskets to check for evenness
(not across the Panel skins because they vary slightly in size and appear to be uneven).
b. Look under each Wall Panels and make sure of a seal to the Wall Frame. If there is light, the
Panel is not sealed.
c. If a gap is evident between a Wall Frame and Wall Panel, the Wall Panel must be readjusted.
These surfaces
must be flush
Wall Panel
Wall Frame
No Cracks Allowed
install corners
Corners are roto locked to Panels and should be checked with a Box Level to be sure the corner is
plumb before the next Wall Panel is attached.

12
If a Fan Panel is required, the following steps are necessary prior
to installing.
1. Open Fan Panel carton on the floor.
2. Turn the Panel so that the outside of the Panel faces upward
(the opening for the fan assembly faces upward) and the Panel
is resting on the carton to protect the Panel finish.
3. Remove fan unit from the carton.
4. Remove fan plate with large hole and remove all three pieces
of cardboard packing (found above and below fan housing and
the motor protector packing).
5. Spin the fan blades to make sure of freedom of movement.
6. Place the fan assembly into the opening of the Fan Panel
by lifting the fan assembly into the upper channel and then
lowering it into the lower channel.
7. Attach the fan to the fan panel with the screws from the
hardware bag.
8. The panel is now ready to be installed as a wall panel in the
module.
assemble the fan panel
iNSTallaTiON CONTiNuEd
Screws
Fan Connector Cord
Align with holes in
the panel.
assemble the wall vent panel
Pre-assemble the appropriate adapter to the wall vent
panel as follows.
To use in a fan-ventilatated room, attach a Vent
Diffuser Assembly to the outside of the wall vent
panel. The top of this diffuser extends about two-feet
above the floor. The fan draws ambient air through
the vent and into the room.
1. Place the Vent Diffuser Assembly over the
opening in the wall vent panel outside with the
Vent Diffuser Assembly Open End facing upward.
2, Align the Vent Diffuser Assembly mounting holes
to the wall vent panel pre-drilled screw holes.
3. Attach the Vent Diffuser Assembly to the wall vent
panel with the screws provided.
Screw
Vent Diffuser Open End
Vent Diffuser Assembly
Fan Unit

13
Note: If you have a smaller module without a
beam go directly to the next page.

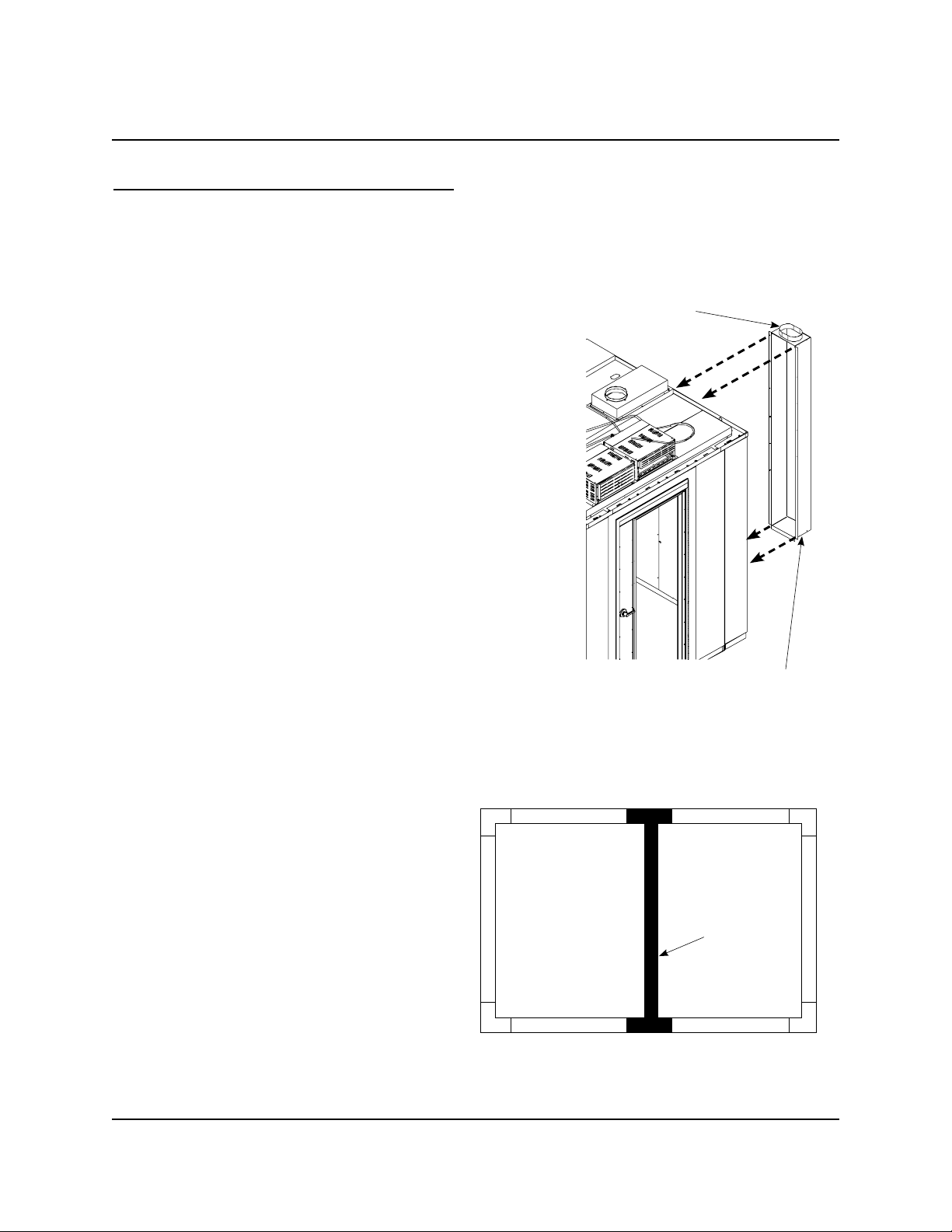

When all wall panels are in place, the ceiling
frame rail system and beam assembly are next to
be installed.
1. Refer to assembly drawing to determine the
Beam location.
2. Position the Beam on top of the Walls.
3. Without delay, attach a bolt at each Beam
end, connecting the Beam ends to the Wall
Panels to prevent the Beam from falling.
ceiling frame rail (units with module beam option)
iNSTallaTiON CONTiNuEd
Beam
assemble the wall vent panel continued
To connect to the host building HVAC system, attach a longer Vent to HVAC Plenum to the wall vent
panel. It extends to the top of the room and terminates with an eight-inch diameter oval adapter that fits
to eight-inch diameter flex ducting.
1. Place the Vent to HVAC Plenum over the wall vent panel outside opening with the Vent to
HVAC Plenum Oval Adapter facing upward as shown in the illustration below.
2. Center the Vent to HVAC Plenum on the wall vent panel with the Vent to HVAC Plenum bottom lip
flush with the wall vent panel bottom.
a. Using the Vent to HVAC Plenum as a template, mark the
location of each Vent to HVAC Plenum mounting hole.
b. Set the Vent to HVAC Plenum aside and drill a 1/8-inch
diameter hole at each mounting hole location.
3. Align the Vent to HVAC Plenum mounting holes to the drilled
wall vent panel mounting holes.
4. Attach the Vent to HVAC Plenum to the wall vent panel with
the screws provided.
The assembled panel is ready to be installed in the module wall
when required.
Vent to HVAC Plenum
Oval Adapter

14
Install the Ceiling Frame Rail System when all Wall Panels are in place.
1. Place the ceiling rails on the floor around around inside of room.
2. Remove knock outs in the locations where electrical connections come through ceiling rails for the
corner panels, two microphone panels, and one power panel.
3. Place the ceiling rails on top of wall panels with the 1-3/4-inch lip to the outside and facing upward.
The formed channel hangs down inside the module.
4. Start at a corner and work completely around the room.
Note: Be careful not to damage the electrical connectors when installing ceiling rails (or push
connectors back into the panels). Punch out knockouts where there are connectors.
install ceiling frame rails
iNSTallaTiON CONTiNuEd
Remove the knockout where needed
The Ceiling Frame rests on
the Wall Panels

15
Note: Every ceiling frame joint must have a neoprene washer under the metal washer for sound seal.
A spacer joint is used between each ceiling frame section.
1. Place neoprene washers under the metal washers where a bolt joins a section
(including joints at the corners).
2. Attach the bolts, finger tight, through ceiling frames into wall panels.
install ceiling frame rails continued
iNSTallaTiON CONTiNuEd
3. Corner pieces and spacers have metal tabs on the inside of their seams for a sound seal.
Make sure adjoining ceiling rail is placed behind and under these tabs.
Metal Washer
Capscrew
Neoprene Washer
Ceiling Frame
Spacer Joint
Tabs
Neoprene Washer
Metal Washer
Capscrew
Ceiling Frame Rail

16
The vertical lip of the ceiling rail system must be nearly even with the outside of the Wall
Panels.
1. Before the Bolts are tightened, make sure the alignment of the outside surface of the Wall Panel and
the vertical lip is correct. This will cause a space behind the formed channel on the module’s interior.
2. All rails, corners and spacer joints must fit together perfectly. If they do not, the frame will not be
square and will need readjusting. The most important factor is that no gaps be allowed between any
or all ceiling rail pieces.
3. Use the Wenger Panel Adjustment Tool (215_945) if available to assist positioning the Wall Panels.
4. Tighten all bolts.
ceiling rail alignment
iNSTallaTiON CONTiNuEd
3/32-inch
Approximately 3/32-inch
spacing on all four sides

17
The ceiling panels are installed from inside the module. Each ceiling panel rests on the straight edge of
the ceiling rail above the formed channel and has a channel section attached at each end. The two end
panels also have a channel along one side.
Install the end panels first. Each ceiling end panel has roto lock connections on only one side. This is the
side that will connect to the other ceiling panels. The end panels have only one male roto lock and one
female roto lock.
Note: Before the ceiling end panels are installed it is necessary to switch a pair of roto locks between
end panels. One of the panels must have two male roto locks and the other panel must have
two female roto locks. Use a Phillips screwdriver to make these changes. Then install ceiling end
panels so the one with female roto locks will be matched with male roto locks on the next ceiling
panel.
To install ceiling panels:
1. Lift one end over the wall and slide the channel on the bottom of the other end into the straight edge
of the ceiling rail as far as it will go. BE CAREFUL not to hit the electrical connector when installing
ceiling panels.
2. Lower the other end of the panel into place, then center the ceiling panel so that both channels
extend evenly over the ceiling rails edge.
3. Push both end panels as far to the outside of the end wall as they will go.
install ceiling panels
iNSTallaTiON CONTiNuEd
Standard Ceiling Panel End Ceiling Panel
Channel Holddown
Roto Locks
Step 1
Step 2

18
align ceiling panels
All ceiling sections are now in place but not locked together. Before roto locks are engaged, align the
panels squarely on the module. Use the wall panel edges as guides and align ceiling panels with the wall
panels. Then be sure each panel is properly centered on the edge of the ceiling rail. Allow equal overlap
for the ceiling channel at each side wall and at the ceiling end channel in relation to the end wall.
1. Install the remaining ceiling panels in the same manner, following the plan view drawing.
2. Place the HVAC ceiling panels, if required, into the appropriate position.
3. Place lights in the appropriate position.
ceiling panel configuration
iNSTallaTiON CONTiNuEd
Equal
Equal
lock the ceiling panels together
Starting at one end, engage roto locks carefully. Partially tighten
both locks before full tension is applied so that ceiling panels are
not shifted by the locks.
lock the ceiling to the v-ready room
With all ceiling panels now in place and locked together, the
ceiling system needs to be locked to the wall structure. Remove
the stack of angles (ceiling clips) and short tubular pieces
(clip retainers) from the hardware box. These clips will now be
installed to lock the ceiling to the module.
Attachment Locations
Ceiling Panel
Ceiling Vent Adapter
hvac ceiling panels
If included with you room, attach the Ceiling Vent
Adapter to the top of the ceiling panels as shown.
Note: Connection to the building HVAC system
must be made with an 8-inch diameter
flexible duct, NOT rigid duct. Rigid duct will
decrease the sound isolation of the rooms.
This is NOT included with the rooms but is
available from any HVAC contractor.
Air flow to the rooms must be adjusted as described
on the drawing for the size room being installed.
This is done by the HVAC contractor.
4. Place the first connection cable
(closest) to power panel from
the lights down the outside
of the module for the present
time. Make sure remaining
connection cables stay on top
ceiling panels.
5. Make sure male and female
roto locks mate properly,
but do not lock the panels
together.
Clip Retainer Ceiling Clip
Equal

19
ceiling clips
The ceiling clips are inserted from the corners of the
module where a space is in the ceiling frame rail.
The short leg of the clip is inserted into the channel
of the ceiling panel while the long leg slides into the
formed channel of the ceiling frame rail. Clips are
then slid in the rail to proper position. Place one clip
in the center of each ceiling panel end. On the long
side of the ceiling panel, place clips every 15-inches
to match pattern of clips on ends of ceiling panels.
At all four corners, place one clip in each direction,
but within the first 7 1/2-inches of corner for proper
seal. Do not place a clip on the ceiling rail splices.
clip retainers
When ceiling clips are in place, insert the clip
retainers. Lay the retainers on the ceiling rail
channel directly in front of each clip. Press the
retainer straight down into the bottom of the rail.
Insert one retainer for each clip using an adjustable
jaw pliers or Wenger clip retainer tool.
(Part No. 115_204)
This unit is now structurally complete.
iNSTallaTiON CONTiNuEd
Clip
Clip Retainer

20
iNSTallaTiON CONTiNuEd
lights
Remove any packing tape from tubes in fixture and light diffuser lens.
hole plugs
Insert the light colored hole plugs into all holes except those in the door and windows. Insert the dark
colored hole plugs into the door and window roto lock holes.
door stop
A door stop bumper is provided with each module. (taped to the outside of the door leverset). Select the
location of the mounting by opening the door and choosing the locations you want to prevent damage.
Remove self adhesive cover and install on the wall.
clean the panels
The cleaning of panels and glass adds greatly to the appearance of the module. Finger prints, smudges
and other marks may be easily removed with a damp cloth and common detergent or commercial
cleaner.
