Weslo PRO 10.8x User manual

TM
Model No. 83t.2t832.0
Serial No.
Write the serial number in the
space above for reference.
\
_ Serial
Number
Decal
• Assembly
•Operation
•Maintenance
•Part List and Drawing
BIKE EXERCISER
User's Manual
Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE EXERCISE CYCLE ........................................................ 11
MAINTENANCE AND TROUBLESHOOTING ................................................... 18

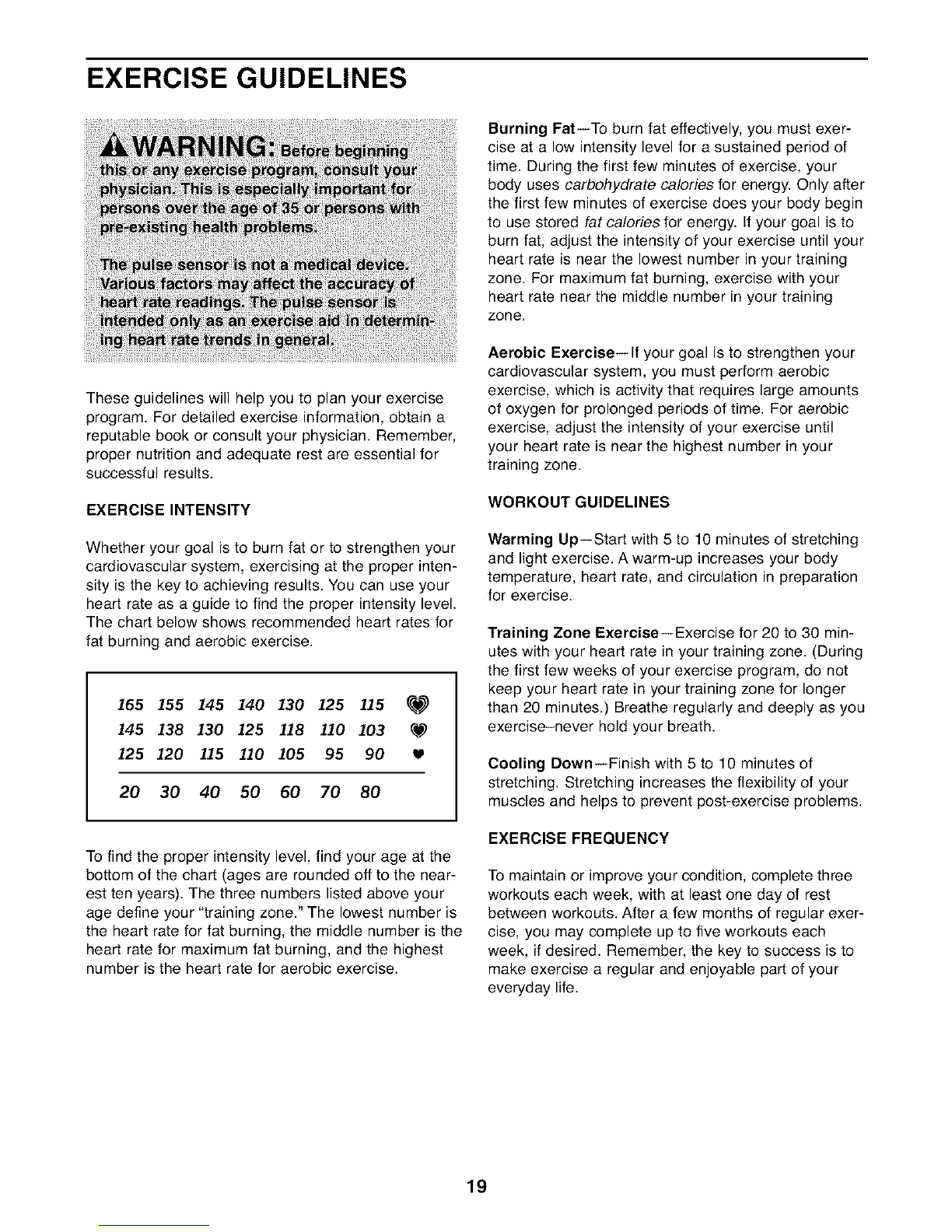

EXERCISE GUIDELINES ................................................................... 19
PART LIST .............................................................................. 22
EXPLODED DRAWING .................................................................... 23
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, call 1-866-699-3756 and
request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown at
actual size.
• Misuseof this machine
may result in serious
injury.
•Read user's mannualI
prior to use and follow
all warnings and
instructions.
• Do not allow children
on or around machine.
•Peda s continue to
spin when you stop
pedaling,
• Spinnintj pedals can
cause injury.
•Reduce pedal speed
in a controlledmanner.
•User weight must not
exceed 250 pounds.
•Replace label if
damaged, illegible, or
removed. [_
2

IMPORTANT PRECAUTIONS
3

BEFORE YOU BEGIN
Thank you for selecting the new WESLO PRO TM
10.8X exercise cycle. Cycling is one of the most effec-
tive exercises for increasing cardiovascular fitness,
building endurance, and toning the body. The 10.8X
exercise cycle offers a selection of features designed
to let you enjoy this healthful exercise in the conve-
nience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the back cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Console
Pulse Sensor
Backrest )dal/Strap
Seat
Adjustment Knob
Wheel Handlebar
4

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials, Do not dispose of the packing materials until assembly is completed,
In addition to the included tools, assembly requires a Phillips screwdriver _and an adjustable
wrench _.
As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small
parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been pre-
assembled. If a part is missing, call t-866-699-3756.
M6 Washer M8 Split M8 Locknut M10 Locknut M4 x 16ram
(55)-8 Washer (59)-5 (60)-4 (63)-4 Screw (52)-4
M6 Locknut
(72)-4
M6 x 38mm Patch
Screw (48)-4 M6 x 38mm Button Bolt (69)-4 M6 x 42ram Button Screw (49)-4
M8 x 25mm Button
Screw (33)-3 M8 x 70mm Button Bolt (54)-2
M10 x 75mm Carriage Bolt (51)-4
5

1.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer (3) to the Frame with two
M10 x 75ram Carriage Bolts (51) and two M10
Locknuts (63).
51 3
2, Slide the Rear Frame (2) out of the Frame (1), and
then tighten the Adjustment Knob (17) into the
Frame. 17
3, Attach the Wheels (18) to the Rear Stabilizer (4)
with two M8 Locknuts (60). Press a Wheel Cap (19)
onto each Wheel.
Attach the Rear Stabilizer (4) to the Rear Frame (2)
with two M10 x 75ram Carriage Bolts (51) and two
M10 Locknuts (63).
3
60
18
63 18
4
51
6

4. 4
Attach the Seat Frame (7) to the Handlebar (6) with
two M8 x 70mm Button Bolts (54), two M8 Split
Washers (59), and two M8 Locknuts (60). Do not
tighten the Button Bolts yet.
5, Attach the Backrest (5) to the Seat Frame (7) with
four M6 x 38mm Patch Screws (48) and four M6
Washers (55). Do not tighten the Patch Screws
yet.
5
7
55
7

6. 6
Have another person hold the Seat Frame (7) under
the Rear Frame (2) as shown. Attach the Seat
Frame and the Seat (12) to the Rear Frame with
four M6 x 42mm Button Screws (49) and four M6
Washers (55).
See step 4. Tighten the two M8 x 7Omm Button
Bolts (54).
See step 5. Tighten the four M6 x 38mm Patch
Screws (48).
12
49
7
7. The Console (16) can use four 1.5V "D" batteries
(not included); alkaline batteries are recommended.
IMPORTANT: If the Console has been exposed
to cold temperatures, allow it to warm to room
temperature before inserting batteries.
Otherwise, you may damage the console dis-
plays or other electronic components. Remove
the battery cover, insert the batteries into the bat-
tery compartment, and reattach the battery cover.
Make sure to orient the batteries as shown by
the diagram inside the battery compartment.
To purchase an optional AC adapter, contact the
store where you purchased this product or call
the telephone number on the cover of this man-
ual. To avoid damaging the console, use only a
manufacturer-supplied AC adapter. Plug one end
of the AC adapter into the jack on the console; plug
the other end into an outlet installed in accordance
with all local codes and ordinances.
Battery Cover
/Batteries
8

8. Identify the Left Pulse Bar (65), which is marked
with a "Left" sticker.
Have another person hold the Left Pulse Bar (65)
near the left side of the Upright (13). Make sure
that the hexagonal holes are in the indicated
location.
Insert the left Pulse Wire (71) into the Upright (13)
and pull it upward out of the top of the Upright.
Tip: Do not pinch the wires. Slide the Left Pulse
Bar (65) onto the Upright (13). Attach the Left Pulse
Bar with two M6 x 38mm Button Bolts (69) and two
M6 Locknuts (72). Make sure that the Locknuts
are in the hexagonal holes.
Repeat this step for the Right Pulse Bar (66).
8
Do not pinch
the wires during
this step
69
71
Holes
72
71
13
36 66
9. While another person holds the Console (16) near
the Upright (13), connect the console wire to the
Upper Wire Harness (36). Then, connect the con-
sole pulse wires to the Pulse Wires (71). Insert the
excess wire downward into the Upright.
Tip: Do not pinch the wires. Attach the Console
(16) to the Upright (13) with four M4 x 16mm
Screws (52).
9
52
16
Console
Wire\
Pulse Wires
71
Do not pinch
13 the wires during
this step
9

10. While another person holds the Upright (13) near
the Frame (1), connect the Upper Wire Harness
(36) to the Lower Wire Harness (8).
Tip: Do not pinch the Wire Harnesses (8, 36).
Slide the Upright (13) onto the Frame (1). Attach
the Upright with three M8 x 25mm Button Screws
(33) and three M8 Split Washers (59).
10
13
59
Do not pinch the
Wire Harnesses (8, 36)
during this step
11. Identify the Left Pedal (24), which is marked with a
"Left" sticker. Firmly tighten the Left Pedal counter-
clockwise into the left arm of the Crank (31).
Tighten the Right Pedal (not shown) clockwise into
the right arm of the Crank. IMPORTANT: Tighten
both pedals as firmly as possible. After using
the exercise cycle for one week, retighten the
pedals. For best performance, keep the pedals
tightened.
Adjust the Left Pedal Strap (25) to the desired posi-
tion, and press the end of the Left Pedal Strap onto
the tab on the Left Pedal (24). Adjust the Right
Pedal Strap (not shown) in the same way.
11
25
Tab 24
31
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware
may be left over after assembly is completed. Place a mat beneath the exercise cycle to protect the floor.
10
