Weslo Pursuit R 3.8WLEX91208.0 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
USER'S MANUAL
Serial Number
Decal
Model No. WLEX91208.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO
NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com
www.weslo.com
Meijer.com

2
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEEXERCISECYCLE........................................................11
MAINTENANCEANDTROUBLESHOOTING ...................................................15
EXERCISEGUIDELINES ...................................................................16
PARTLIST ..............................................................................18
EXPLODEDDRAWING ....................................................................19
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
WESLO is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
Meijer.com

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
3. Your exercise cycle is intended for home use
only. Do not use your exercise cycle in a
commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from
moisture and dust. Place your exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise cycle.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
7. Your exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
8. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise
cycle. Always wear athletic shoes for foot
protection while exercising.
10. Keep your back straight while using your
exercise cycle; do not arch your back.
11. When you stop exercising, allow the pedals
to slowly come to a stop.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. Use your exercise cycle only as described in
this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
Meijer.com

4
Thank you for selecting the new WESLO®PURSUIT R
3.8 exercise cycle. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The PURSUIT R 3.8 exercise
cycle provides a selection of features designed to
make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.wesloservice.com/registration.

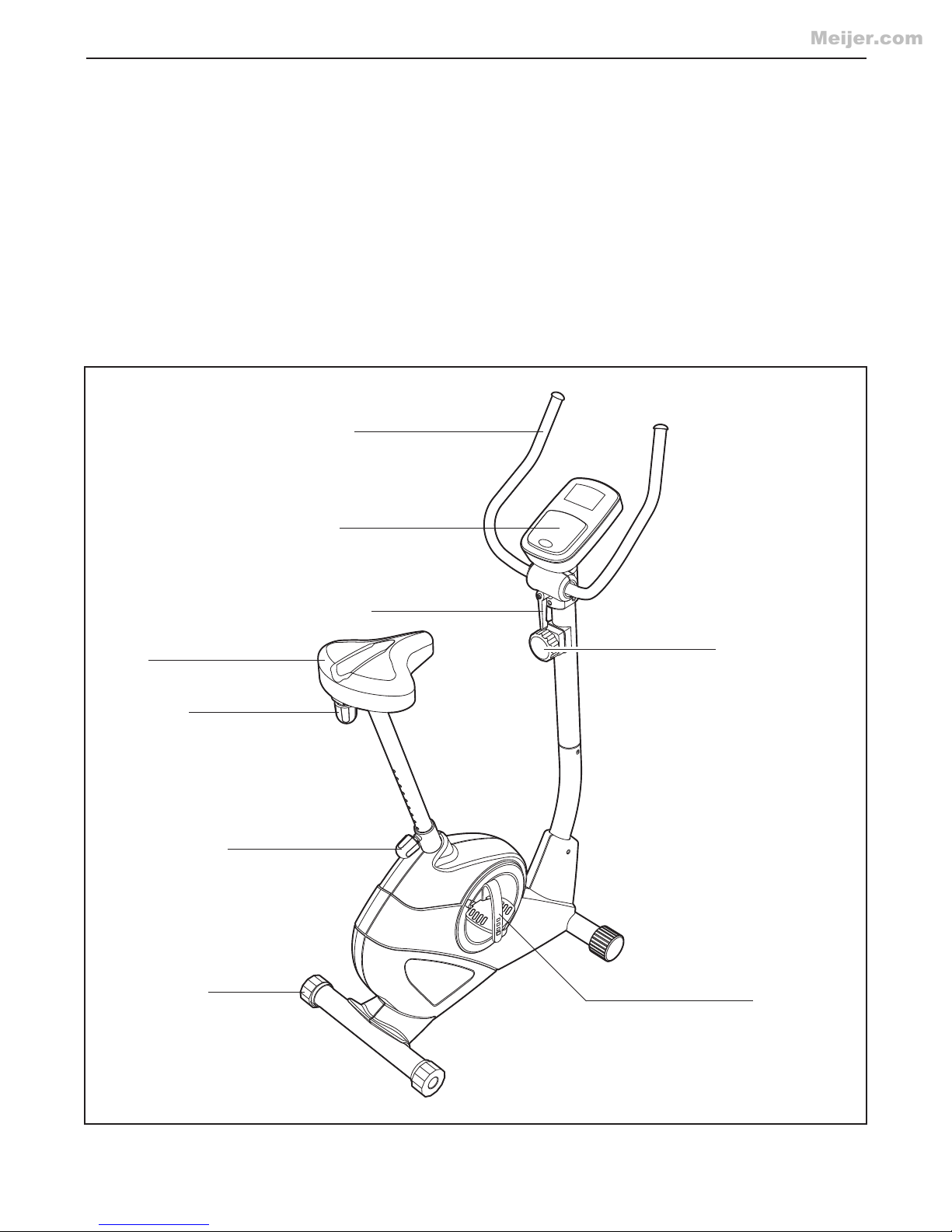

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Resistance nob
Seat
Seat Post nob
Pedal/Strap
Leveling Cap
Console
Handlebar
Pivot Handle
BEFORE YOU BEGIN
Seat nob
Meijer.com

5
M8 Split
Washer (42)–3
M4 x 15mm
Screw (48)–5
M8 x 16mm Patch
Screw (34)–3
M10 x 70mm Patch Screw (33)–2
M8 x 60mm Patch Screw (30)–4
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.

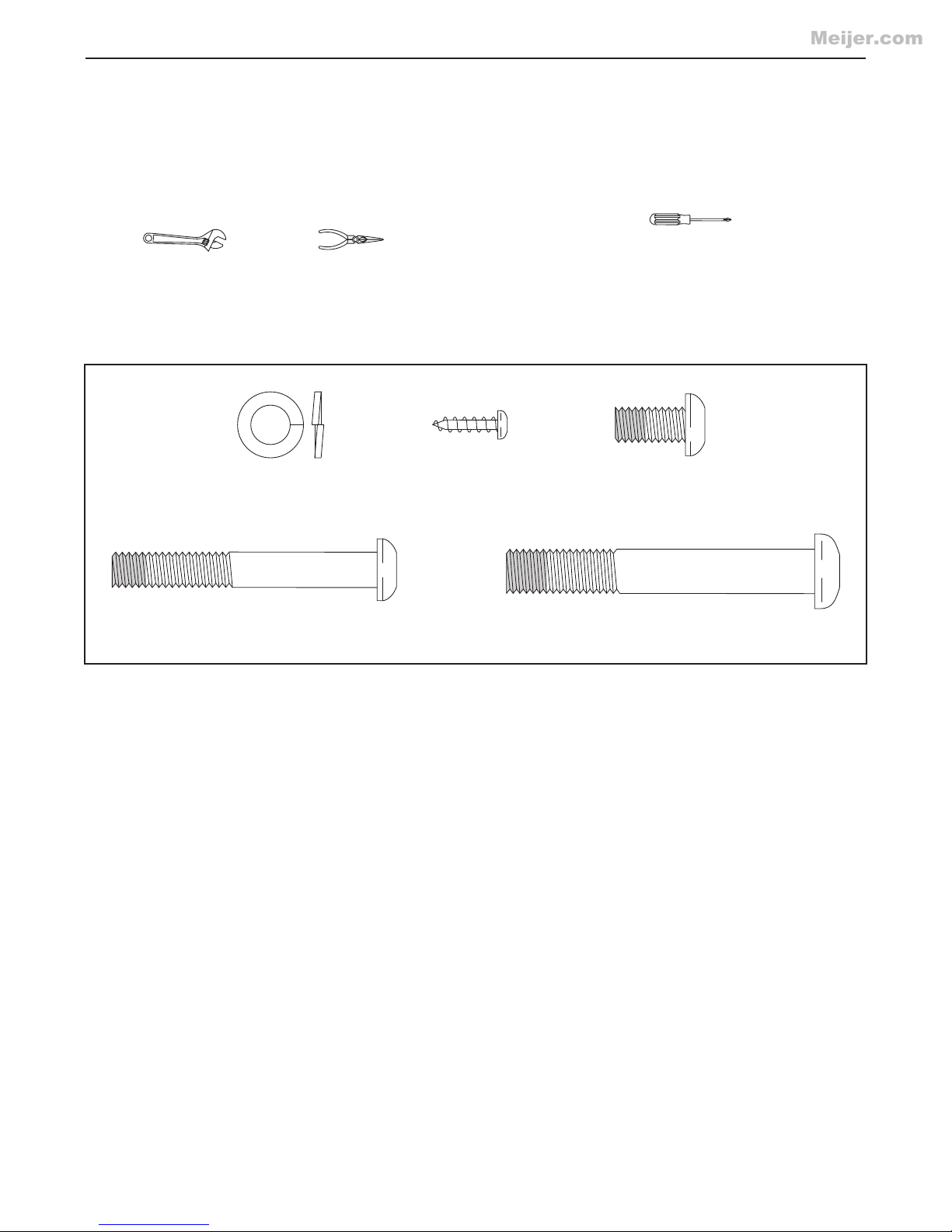

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and pliers .
Use the drawings below to identify the small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The second number is
the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in
the hardware kit, check to see if it has been preassembled.
Meijer.com

6
1.
Insert the Rear Stabilizer (6) into the Frame (1).
Attach the Rear Stabilizer with four M8 x 60mm
Patch Screws (30).
6
30
1
2. Orient the Front Stabilizer (2) so that the large
holes face the Frame (1).
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 70mm Patch Screws (33).
1
1
2
33
2Large
Holes
To make assembly easier, read the
information on page 5 before you begin.
Meijer.com

7
3
3. While another person holds the Upright (13)
near the Frame (1), connect the Extension Wire
(23) to the Wire Harness (60). Next, connect the
Resistance Cable (19) to the Lower Cable (29)
in the following way:
•See drawing A. Pull upward on the metal
bracket on the Lower Cable (29), and insert
the tip of the Resistance Cable (19) into the
wire clip inside the metal bracket as shown.
•See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
•See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the Wires (23, 60) and the Cables (19, 29)
downward into the Frame (1).
Tip: Avoid pinching the wires and cables.
Insert the Upright (13) into the Frame (1). Attach
the Upright with three M8 x 16mm Patch
Screws (34) and three M8 Split Washers (42).
Avoid pinching the
wires and cables
42
60
19
29
42
34
23
13
1
34
ABC
29
19
19 Metal
Bracket
Metal
Bracket
29
Meijer.com

8

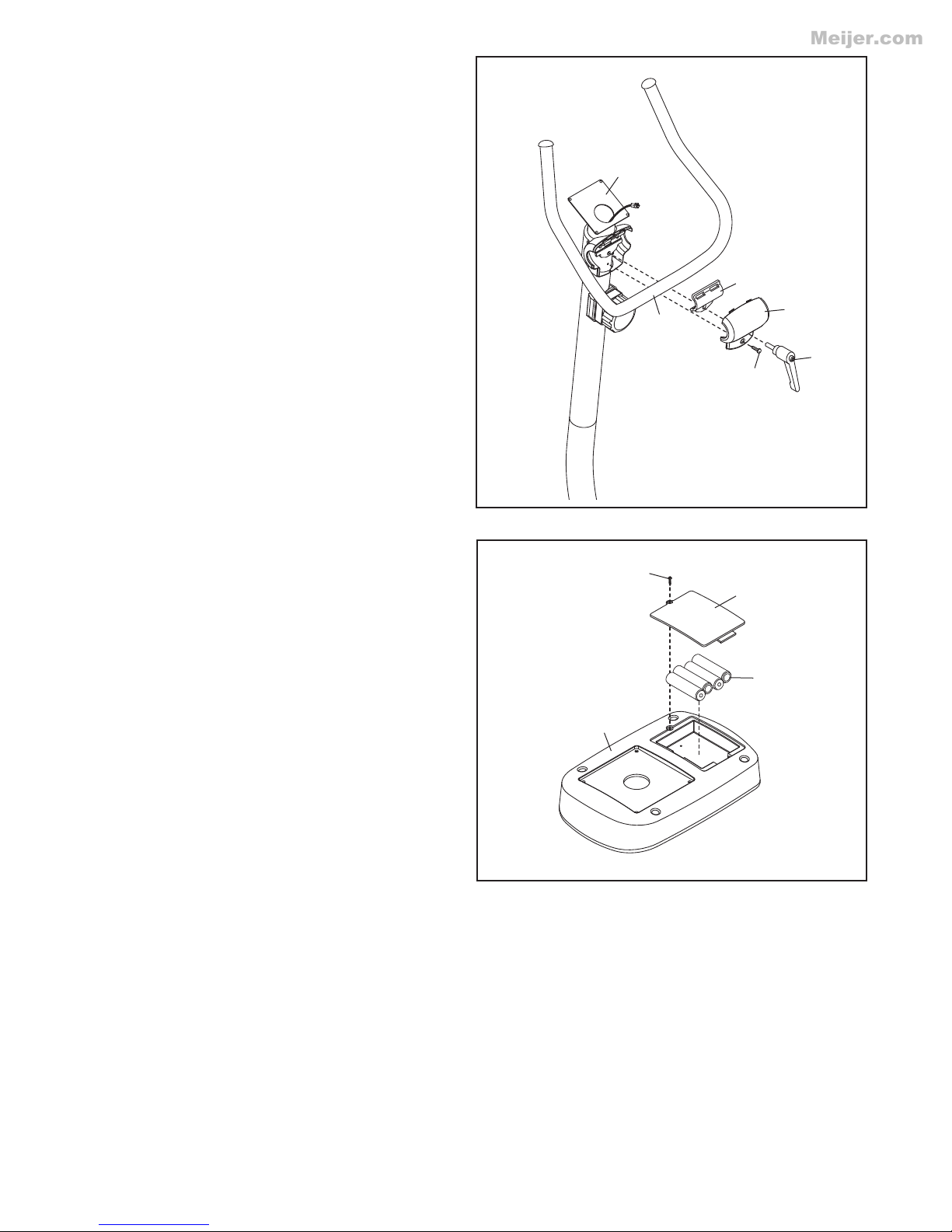

5. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, and insert the batteries into the battery
compartment. Then, reattach the battery cover.
Make sure to orient the batteries as shown
by the diagram inside the battery compart-
ment.
5
Batteries
Screw Battery
Cover
16
4
4. Attach the Handlebar (50) to the Upright (13)
with the Pivot Clamp (54), the Rear Cover (3),
and the Pivot Handle (55).
Note: The Pivot Handle (55) functions like a
ratchet. Turn the Pivot Handle clockwise, pull it
away from the Upright (13), turn it counterclock-
wise, push it toward the Upright, and then turn it
clockwise again. Repeat this process until the
Pivot Handle is tight.
Attach the Rear Cover (3) to the Upright (13)
with an M4 x 15mm Screw (48).
3
13
54
55
48
50
Meijer.com

9
7
6
6. While another person holds the Console (16)
near the Upright (13), connect the console wire
to the Extension Wire (23).
Insert the excess wire downward into the
Upright (13).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Upright (13) with four M4 x
15mm Screws (48).
48
Console Wire
16
13
23
7. Loosen and remove the Seat nob (56) from
the Seat Carriage (58), which is located on the
underside of the Seat (12).
See the inset drawing. Look underneath the
Seat (12) and locate the Seat Carriage (58).
Next, locate the Seat Block (57) inside the Seat
Carriage.
Set the Seat Carriage (58) in the bracket on the
Seat Post (5). Next, insert the Seat nob (56)
upward through the bracket on the Seat Post
into the hole in the Seat Block (57). Then, tight-
en the Seat nob.
12
5
58
56
12
57
57
58
Avoid pinching
the wires
Meijer.com

10
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Identify the Left Pedal (24), which is marked
with an “L.”
Using an adjustable wrench, firmly tighten the
Left Pedal (24) counterclockwise into the left
arm of the Crank (21).
Tighten the Right Pedal (not shown) clockwise
into the right arm of the Crank (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise cycle
for one week, retighten the pedals. For best
performance, keep the pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the side of the Left Pedal.
Adjust the strap on the Right Pedal (not
shown) in the same way.
9
24
Strap
Tab
21
8. Loosen and remove the Seat Post nob (9)
from the Frame (1).
Insert the Seat Post (5) into the Frame (1).
Adjust the Seat Post to the desired height and
insert the Seat Post nob (9) through the indi-
cated hole in the Frame into one of the
adjustment holes in the Seat Post.
Tighten the Seat Post nob (9). Make sure that
the Seat Post Knob is firmly engaged in one
of the adjustment holes in the Seat Post (5).
8
5
1
9
Hole
Adjustment
Holes
Meijer.com

11
HOW TO USE THE EXERCISE CYCLE
HOW TO AD UST THE SEAT POST
For effective exer-
cise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the height of the
seat, first loosen
and remove the
seat post knob.
Next, slide the seat
post upward or
downward and
align one of the adjustment holes in the seat post with
the indicated hole in the frame. Insert the seat post
knob into the frame and the seat post, and then tight-
en the seat post knob. Make sure that the seat post
knob is inserted through one of the adjustment
holes in the seat post.
HOW TO AD UST THE SEAT
To adjust the hori-
zontal position of
the seat, loosen the
seat knob under
the seat, slide the
seat forward or
backward to the
desired position,
and then retighten
the seat knob.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle
rocks on your floor
during use, turn
one or both of the
leveling caps until
the rocking motion
is eliminated.
HOW TO AD UST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resis-
tance, turn the knob
counterclockwise.
IMPORTANT: Stop
turning the knob
when turning
becomes difficult,
or damage may
result.
HOW TO AD UST THE ANGLE OF THE
HANDLEBAR
To adjust the angle
of the handlebar,
loosen the pivot
handle, rotate the
handlebar to the
desired angle, and
then retighten the
pivot handle. Note:
The pivot handle
functions like a
ratchet. Turn the
pivot handle clock-
wise, pull it away
from the upright, turn it counterclockwise, push it
toward the upright, and then turn it clockwise again.
Repeat this process until the pivot handle is tight.
Seat Post
Seat Post
nob
Seat nob
Leveling
Caps
Hole
Seat
Seat
Resistance
nob
Pivot
Handle
Meijer.com

12

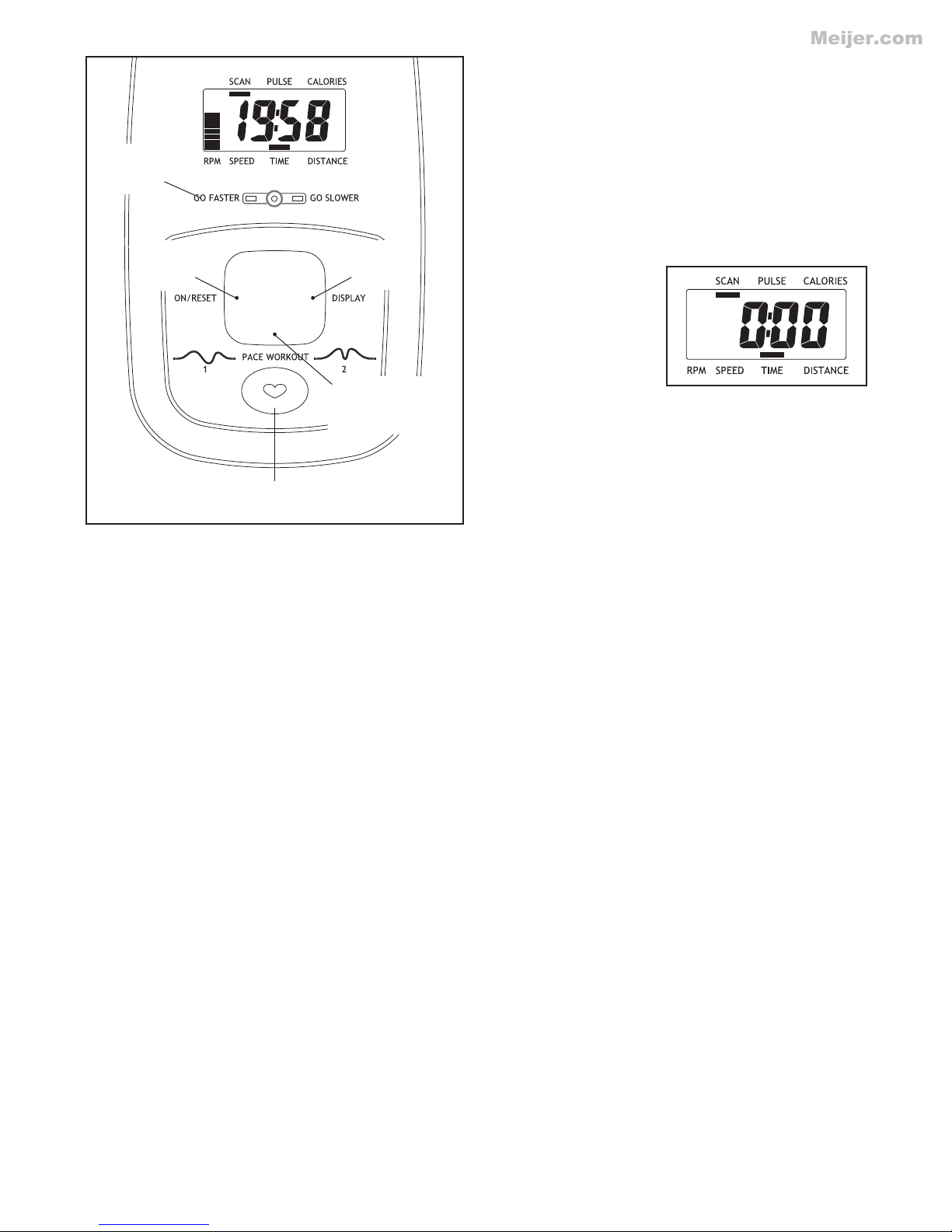

FEATURES OF THE CONSOLE
The console offers a selection of features designed to
make your workouts more effective. As you pedal, the
console will provide continuous exercise feedback.
You can even measure your heart rate using the built-
in thumb pulse sensor.
The console also offers two pace workouts that
prompt you to vary your pedaling pace while guiding
you through an effective workout.
To use the manual mode, see the instructions at the
right. To use a pace workout, see page 14.
Before using the console, make sure that batteries are
installed (see assembly step 5 on page 8). If there is a
sheet of clear plastic on the display, remove the plas-
tic.
HOW TO USE THE MANUAL MODE
1. Turn on the console.
To turn on the console, press the On/Reset button
or begin pedaling. The entire display and the pace
guide will light for a moment; the console will then
be ready for use.
2. Select the manual mode.
When you turn on
the console, the
manual mode will
be selected. If
you have select-
ed a pace
workout, reselect
the manual mode
by pressing the Pace Workout button repeatedly
until zeros appear in the display.
3. Follow your progress with the display.
The display can show the following workout infor-
mation:
RPM—The RPM meter on the left side of the dis-
play indicates your approximate pedaling pace
(revolutions per minute).
Speed—This mode shows your pedaling speed, in
miles per hour (mph) or kilometers per hour
(km/h).
Time—This mode shows the elapsed time. Note:
When a pace workout is selected, the display
shows the time remaining in the workout instead of
the elapsed time.
Distance—This mode shows the distance you
have pedaled, in miles or kilometers.
Calories—This mode shows the approximate
number of calories you have burned.
Pulse—This mode shows your heart rate when
you use the thumb pulse sensor.
Scan—This mode shows the speed, time, dis-
tance, calories, and pulse modes, for a few
seconds each, in a repeating cycle. Note: The
pulse mode will appear only when you are using
the pulse sensor.
Thumb Pulse Sensor
On/Reset
Button
Pace
Guide
Display
Button
Pace Workout
Button
Meijer.com

13
When you turn on
the console, the
scan mode will be
selected automat-
ically. One
indicator will
appear below the
word Scan to
show that the
scan mode is
selected, and a second indicator will show which
information is currently displayed. Note: If you
have selected a different mode, press the Display
button repeatedly to reselect the Scan mode.
To select the
speed, time, dis-
tance, or calories
mode for contin-
uous display,
press the Display
button repeated-
ly. The indicators
will show which mode is selected. Make sure there
is not an indicator below the word Scan.
Note: The con-
sole can show
speed and dis-
tance in either
miles or kilome-
ters. The letters
“mph” or “km/h”
will appear in the
display to show which unit of measurement is
selected. To change the unit of measurement, first
hold down the On/Reset button for a few seconds.
An E (for English) or an M (for metric) will appear
in the display. Press the Display button to change
the unit of measurement. Note: When the batteries
are replaced, it may be necessary to reselect the
desired unit of measurement.
To reset the display, press the On/Reset button.
To pause the console, stop pedaling. If the time is
displayed, it will flash. To continue your workout,
simply resume pedaling.
4. Measure your heart rate if desired.
To measure your
heart rate, stop
pedaling and
place your thumb
on the pulse sen-
sor. Do not press
too hard, or the
circulation in
your thumb will be restricted and your pulse
will not be detected. After a few seconds, the
heart-shaped indicator in the display will flash
steadily, two dashes will appear, and then your
heart rate will be shown. Hold your thumb on the
pulse sensor for about 15 seconds for the most
accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as
described above.
Make sure you are applying the proper amount of
pressure to the pulse sensor. Try the pulse sensor
several times until you become familiar with it.
Remember to stand still while measuring your
heart rate.
5. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
console will pause. If the pedals do not move for a
few minutes, the console will turn off and the dis-
play will be reset.
Indicators
Meijer.com

14

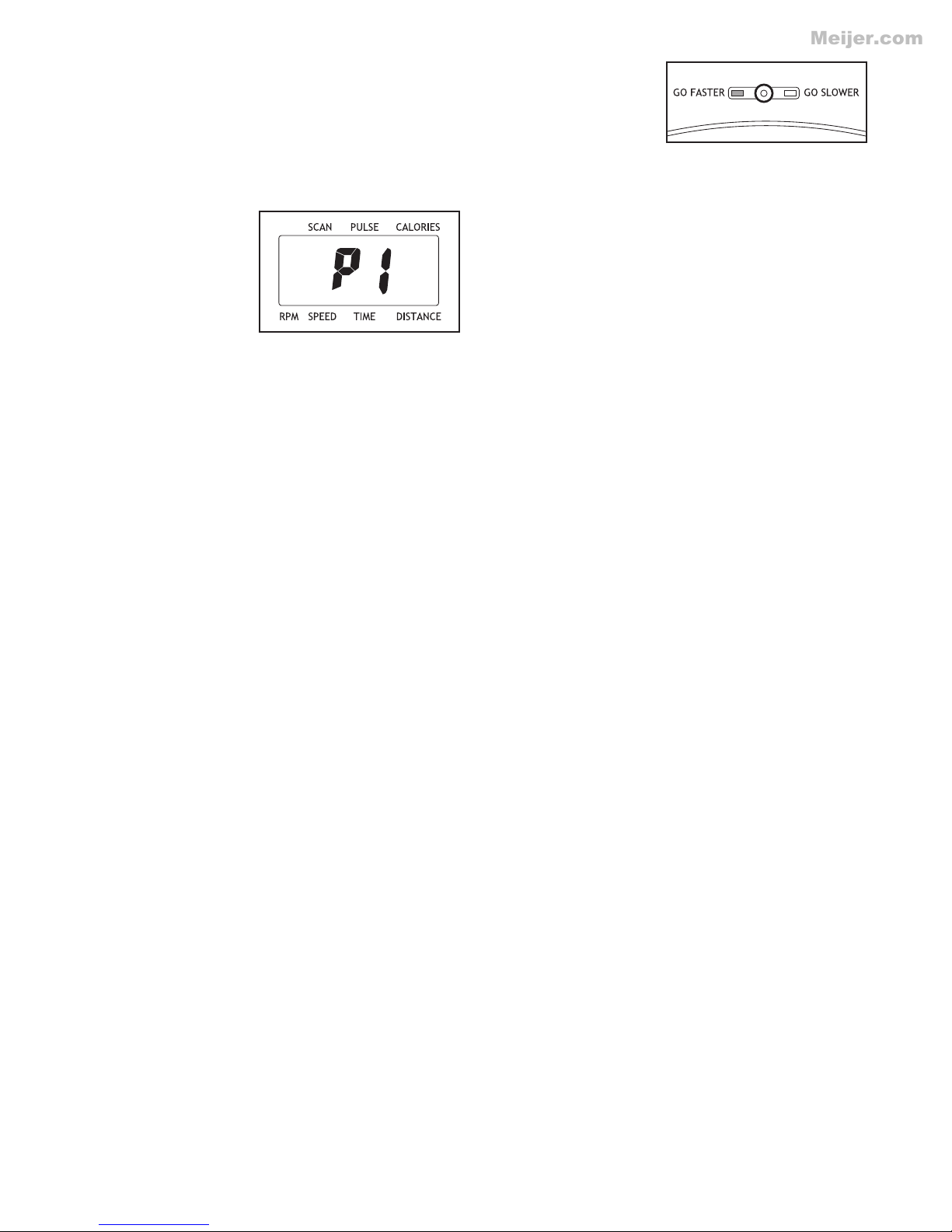

HOW TO USE A PACE WORKOUT
1. Turn on the console.
See step 1 on page 12.
2. Select a pace workout.
To select a pace
workout, press
the Pace Workout
button repeatedly
until P1 or P2
appears in the
display. A few
seconds after you
select a pace workout, the display will show the
duration of the workout.
3. Begin pedaling to start the workout.
Each pace workout consists of 30 one-minute
segments. One target pace is programmed for
each segment. Any time the target pace is about
to change, the display will flash for a few seconds
to alert you.
During the work-
out, the pace
guide will prompt
you to keep your
pedaling pace
near the target
pace setting for the current segment. When the
left indicator lights, increase your pace; when the
right indicator lights, decrease your pace. When
the center indicator lights, maintain your current
pace. IMPORTANT: The pace guide is intended
only to provide a goal. Make sure to pedal at a
pace that is comfortable for you.
The display can show the time remaining in the
workout. If you stop pedaling for a few seconds,
the workout will pause and the time will flash if it
is displayed. To restart the workout, simply
resume pedaling.
4. Follow your progress with the display.
See step 3 on page 12.
5. Measure your heart rate if desired.
See step 4 on page 13.
6. When you are finished exercising, the console
will turn off automatically.
See step 5 on page 13.
Meijer.com

15
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 5 on page 8. If the handgrip pulse sen-
sor does not function properly, see step 4 on page 13.

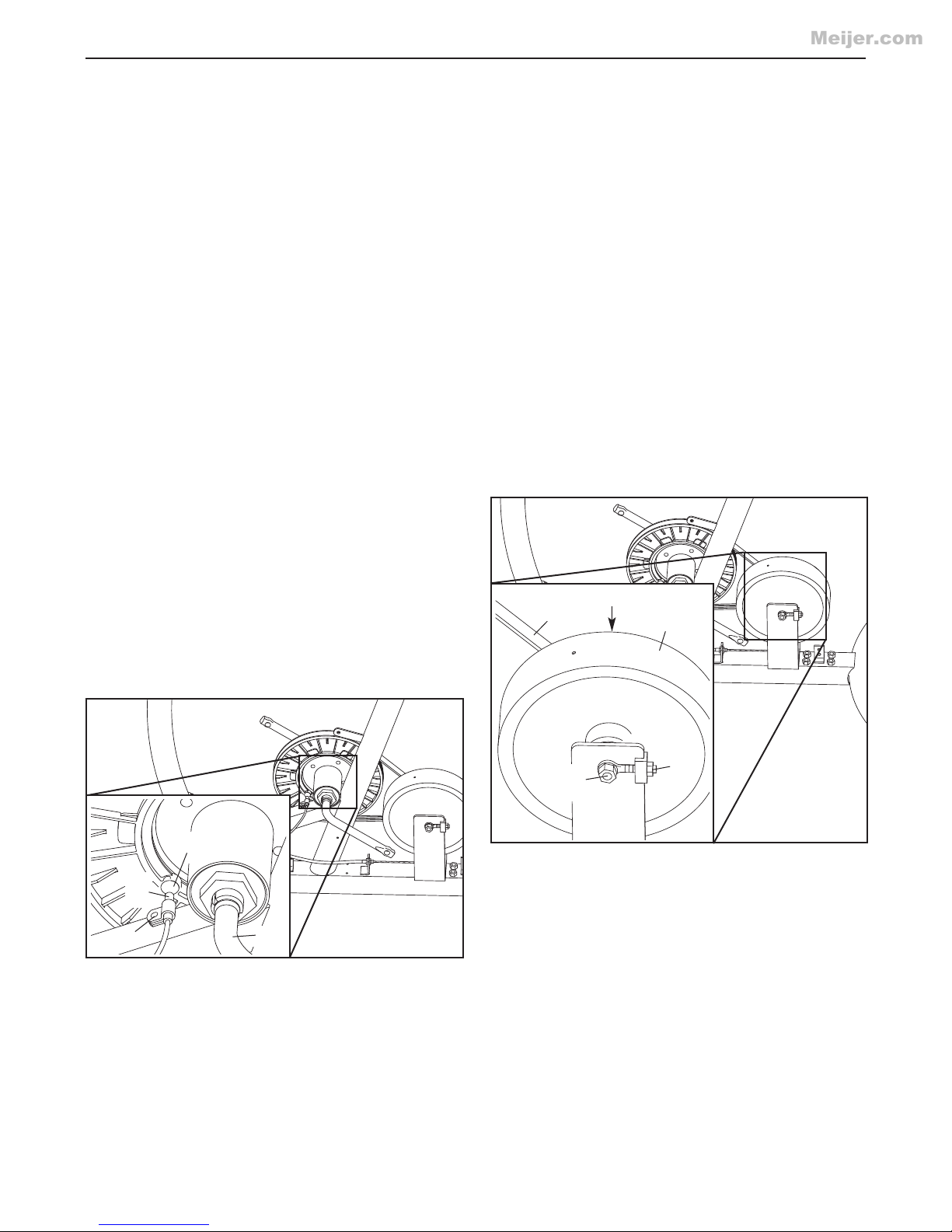

HOW TO AD UST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal and the left shield must be
removed.
Using an adjustable wrench, turn the left pedal clock-
wise and remove it. Next, remove all of the screws
from both shields; there are two sizes of screws in
the shields—note which size of screw you remove
from each hole. Then, carefully remove the left
shield.
Next, turn the resistance knob to the lowest setting.
With the left shield removed, locate the Reed Switch
(39). Turn the Crank (21) until a Magnet (38) is
aligned with the Reed Switch. Loosen, but do not
remove, the M5 x 15mm Screw (47). Slide the Reed
Switch slightly closer to or away from the Magnet, and
then retighten the Screw. Turn the Crank for a
moment. Repeat until the console displays correct
feedback.
When the Reed Switch is correctly adjusted, reattach
the shields and the left pedal.
HOW TO AD UST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
drive belt may need to be adjusted. To adjust the drive
belt, the pedals and the shields must be removed.
Use an adjustable wrench to remove the pedals. To
remove the left pedal, turn the left pedal clockwise; to
remove the right pedal, turn the right pedal counter-
clockwise.
Next, remove all of the screws from both shields;
there are two sizes of screws in the shields—note
which size of screw you remove from each hole.
Then, carefully remove the shields.
Next, loosen the 3/8" Nut (27) and the Flywheel Nut
(43), which are located on each side of the Flywheel
(37). Then, tighten the M6 Locknuts (32), one on each
side of the Flywheel, until the Drive Belt (35) is proper-
ly tightened.
Finally, tighten the 3/8" Nut (27) and the Flywheel Nut
(43) and reattach the shields and the pedals.
MAINTENANCE AND TROUBLESHOOTING
21
47
39
38
35 37
43
32
27
Meijer.com

16
These guidelines will help you to plan your exercise
workout. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise workout, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning
this or any exercise workout, consult your
physician. This is especially important for
persons over age 35 or persons with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
EXERCISE GUIDELINES
Meijer.com

17
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, backs of knees, and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. eep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward, and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles ten-
dons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5
Meijer.com

18
11Frame
21Front Stabilizer
31Rear Cover
4 2 Front Stabilizer Cap
51Seat Post
61Rear Stabilizer
72Handlebar Cap
82Leveling Cap
91Seat Post nob
10 4 M8 Locknut
11 1 Idler
12 1 Seat
13 1 Upright
14 1 Left Front Cover
15 1 Right Front Cover
16 1 Console
17 1 Left Shield
18 1 Right Shield
19 1 Resistance Control/Cable
20 1 Seat Post Bushing
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 1 Extension Wire
24 1 Left Pedal/Strap
25 1 Spring
26 1 Right Pedal/Strap
27 1 3/8" Nut
28 2 U-bracket
29 1 Lower Cable
30 4 M8 x 60mm Patch Screw
31 2 Eyebolt
32 2 M6 Locknut
33 2 M10 x 70mm Patch Screw
34 3 M8 x 16mm Patch Screw
35 1 Drive Belt
36 1 Crank Bearing Set
37 1 Flywheel
38 2 Magnet
39 1 Reed Switch/Wire
40 1 M8 x 20mm Bolt
41 7 M4 x 25mm Screw
42 7 M8 Split Washer
43 3 Flywheel Nut
44 1 M5 x 55mm Button Screw
45 1 M8 Washer
46 8 M4 x 15mm Button Screw
47 1 M5 x 15mm Screw
48 9 M4 x 15mm Screw
49 1 M8 Locknut
50 1 Handlebar
51 2 Seat Carriage Cap
52 1 Frame Bushing
53 2 Handlebar Foam
54 1 Pivot Clamp
55 1 Pivot Handle
56 1 Seat nob
57 1 Seat Block
58 1 Seat Carriage
59 1 M4 x 5mm Screw
60 1 Wire Harness
*–Userʼs Manual
*–Assembly Tool
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. WLEX91208.0 R1108A
Meijer.com

19
7
15
16
34
42
13
19
17
41
18
35
2
4
30
29
9
31
32
37
38
28
31
32
28
11
1
33
46
22
39
20
5
12
21
24
26
36
34
42
48
8
27
6
14
43
60
47
41
46
46
4
8
44
43
43
45
25
49
40
10
10
42
42
42
10
50
53
54
55
56
57
58
51
38
3
48
48
48
48
41
46
46
41
52
59
51
23
EXPLODED DRAWING—Model No. WLEX91208.0 R1108A
Meijer.com

Part No. 272200 R1108A Printed in China © 2008 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip
charge. This warranty does not extend to any damage to a product caused by or attributable to freight
damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized
service center; products used for commercial or rental purposes; or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or
other consequential damages of whatsoever nature. Some states do not allow the exclusion or limita-
tion of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties
of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms
set forth herein. Some states do not allow limitations on how long an implied warranty lasts.
Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Meijer.com
